  1. CSE 421Algorithms Richard Anderson Lecture 20 LCS / Shortest Paths

  2. Longest Common Subsequence • C=c1…cg is a subsequence of A=a1…am if C can be obtained by removing elements from A (but retaining order) • LCS(A, B): A maximum length sequence that is a subsequence of both A and B ocurranec occurrence attacggct tacgacca

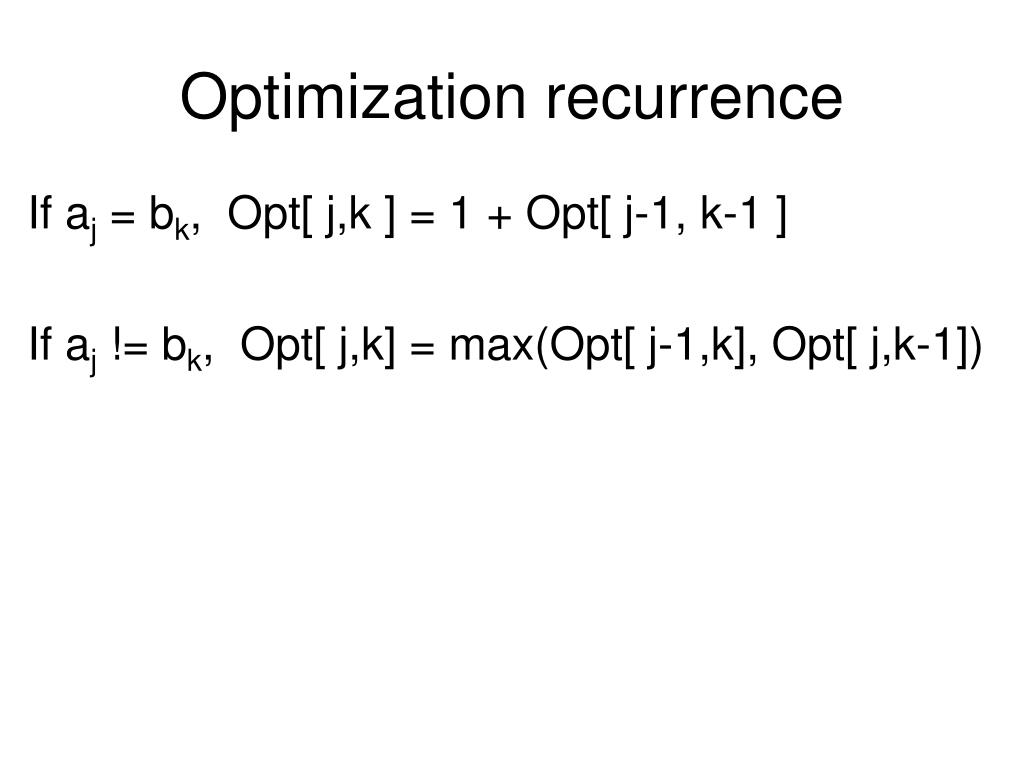

  3. Optimization recurrence If aj = bk, Opt[ j,k ] = 1 + Opt[ j-1, k-1 ] If aj != bk, Opt[ j,k] = max(Opt[ j-1,k], Opt[ j,k-1])

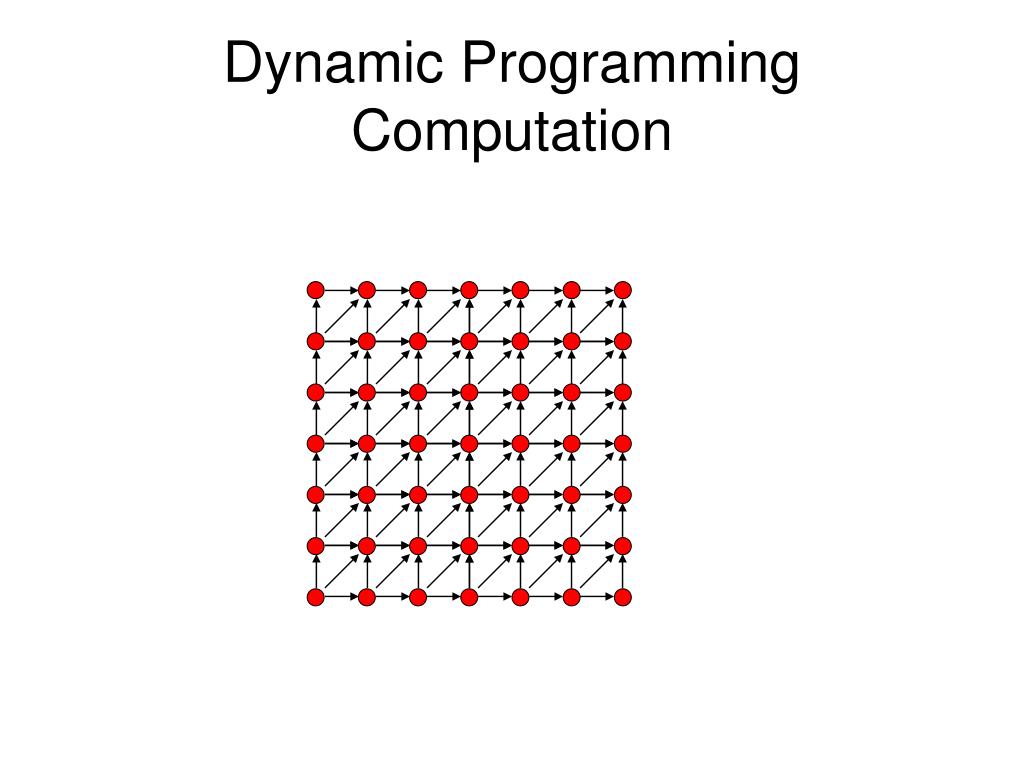

  4. Dynamic Programming Computation

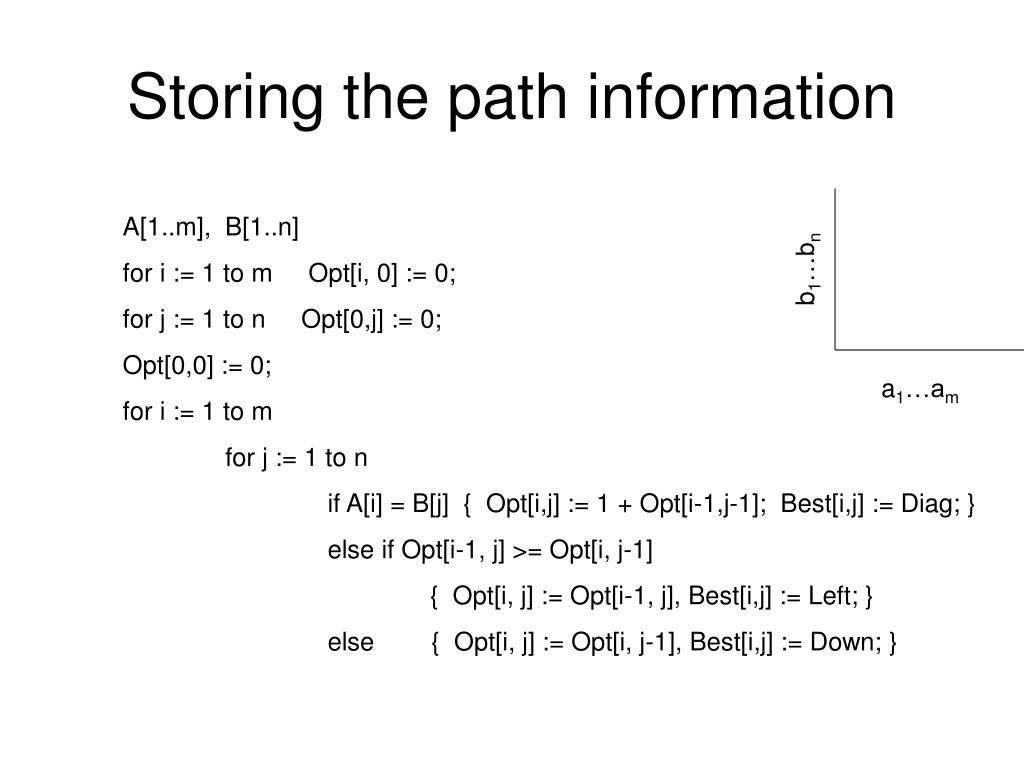

  5. Storing the path information A[1..m], B[1..n] for i := 1 to m Opt[i, 0] := 0; for j := 1 to n Opt[0,j] := 0; Opt[0,0] := 0; for i := 1 to m for j := 1 to n if A[i] = B[j] { Opt[i,j] := 1 + Opt[i-1,j-1]; Best[i,j] := Diag; } else if Opt[i-1, j] >= Opt[i, j-1] { Opt[i, j] := Opt[i-1, j], Best[i,j] := Left; } else { Opt[i, j] := Opt[i, j-1], Best[i,j] := Down; } b1…bn a1…am

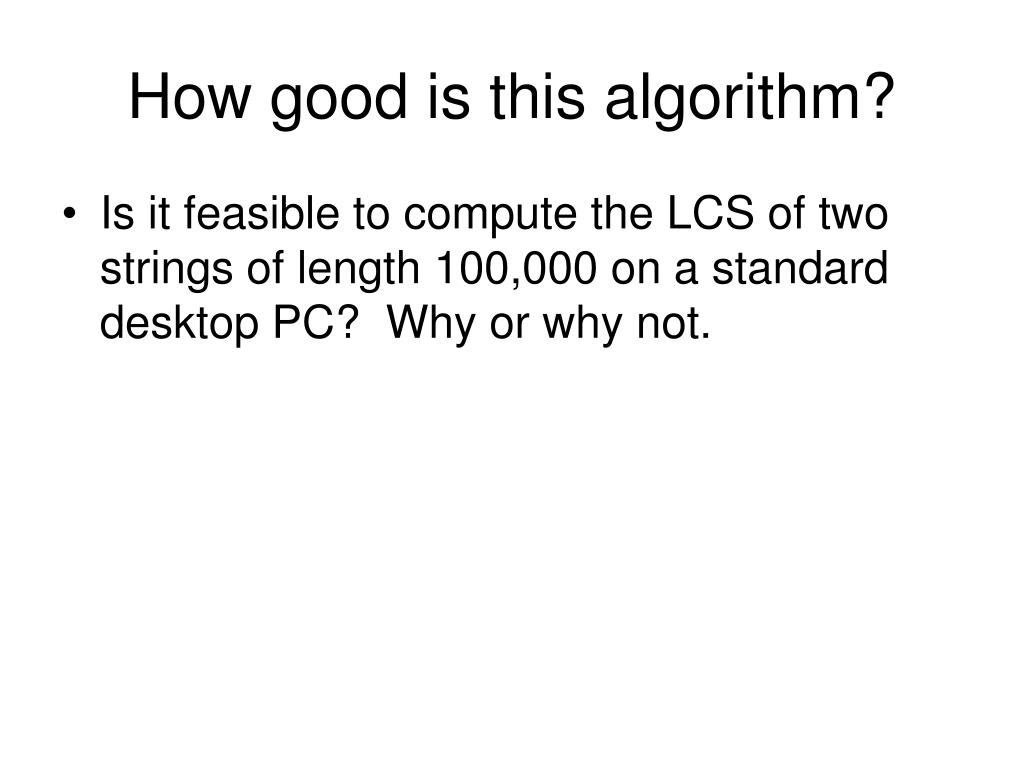

  6. How good is this algorithm? • Is it feasible to compute the LCS of two strings of length 100,000 on a standard desktop PC? Why or why not.

  7. Observations about the Algorithm • The computation can be done in O(m+n) space if we only need one column of the Opt values or Best Values • The algorithm can be run from either end of the strings

  8. Computing LCS in O(nm) time and O(n+m) space • Divide and conquer algorithm • Recomputing values used to save space

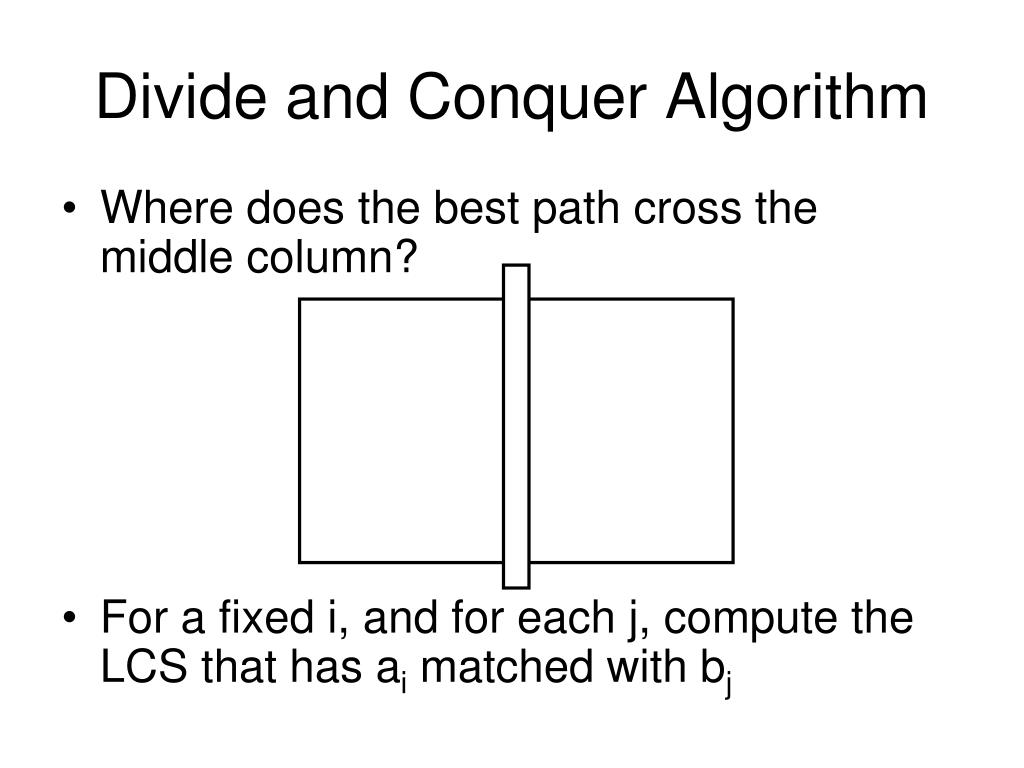

  9. Divide and Conquer Algorithm • Where does the best path cross the middle column? • For a fixed i, and for each j, compute the LCS that has ai matched with bj

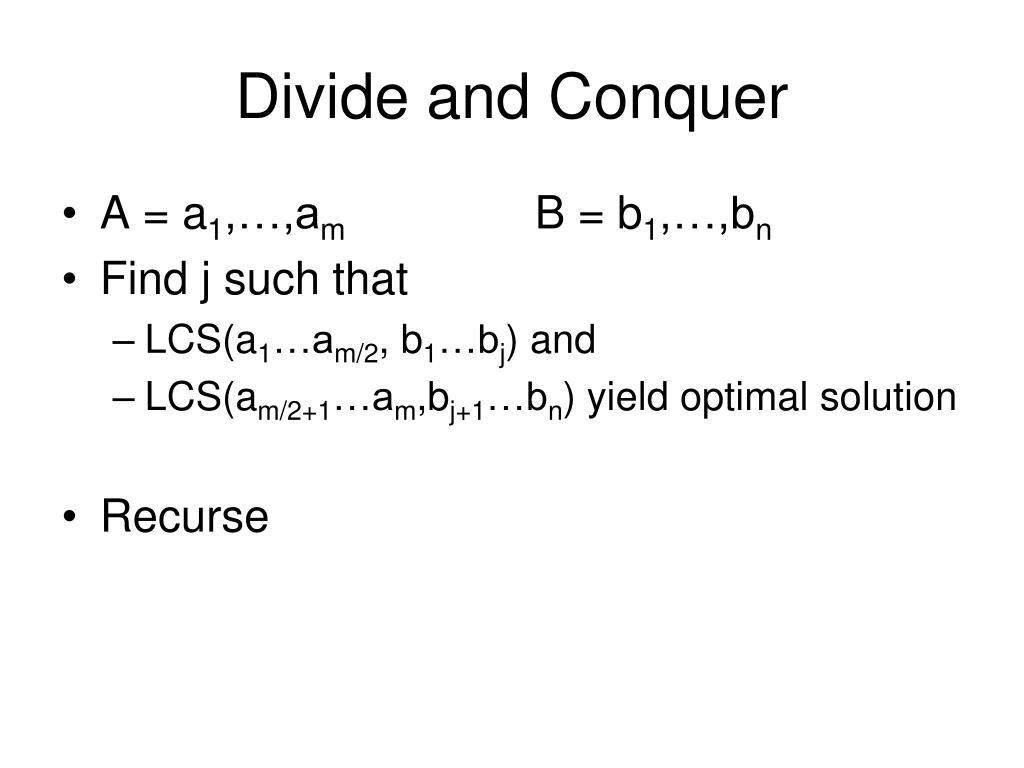

  10. Divide and Conquer • A = a1,…,am B = b1,…,bn • Find j such that • LCS(a1…am/2, b1…bj) and • LCS(am/2+1…am,bj+1…bn) yield optimal solution • Recurse

  11. Algorithm Analysis • T(m,n) = T(m/2, j) + T(m/2, n-j) + cnm

  12. Memory Efficient LCS Summary • We can afford O(nm) time, but we can’t afford O(nm) space • If we only want to compute the length of the LCS, we can easily reduce space to O(n+m) • Avoid storing the value by recomputing values • Divide and conquer used to reduce problem sizes

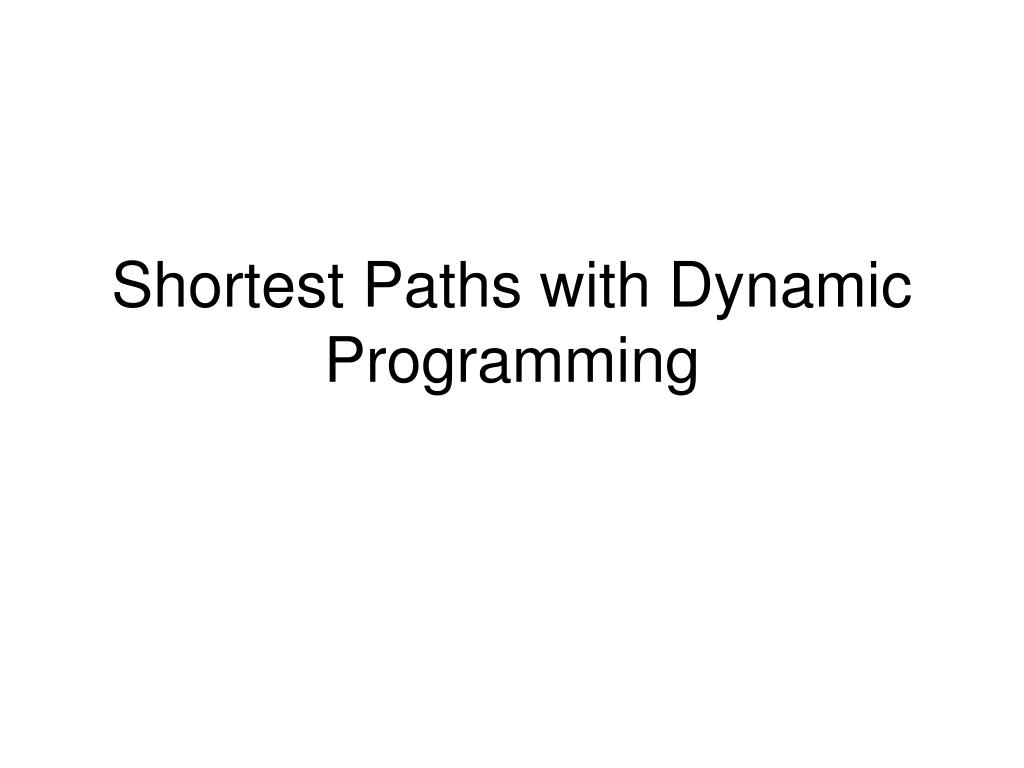

  13. Shortest Paths with Dynamic Programming

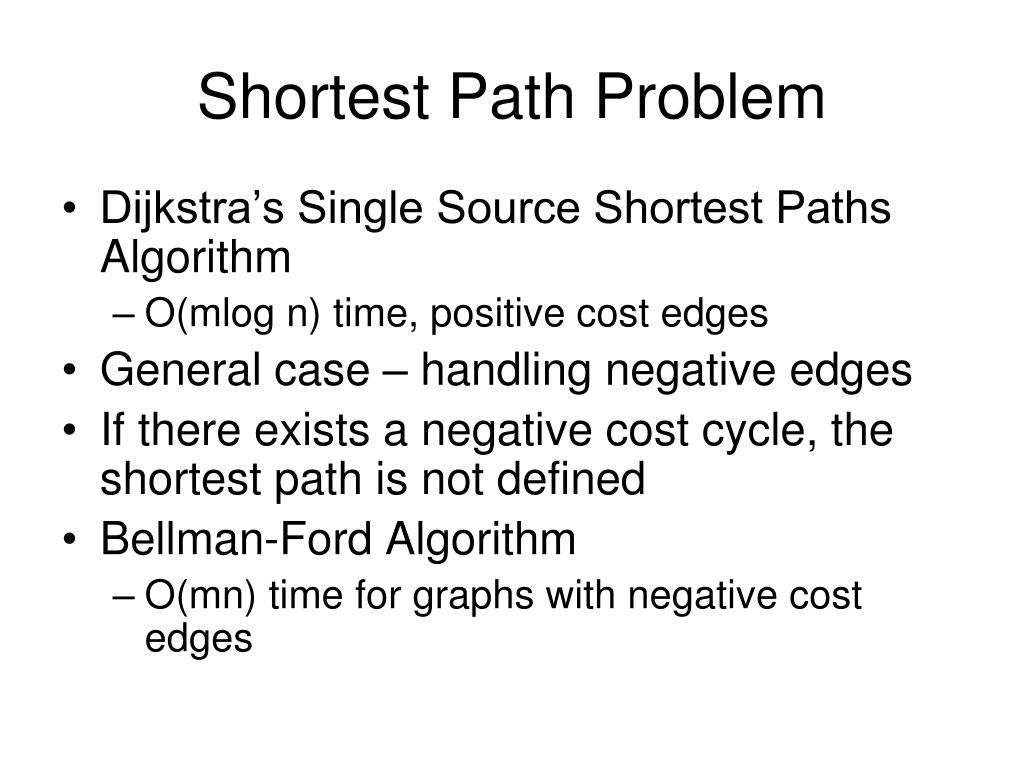

  14. Shortest Path Problem • Dijkstra’s Single Source Shortest Paths Algorithm • O(mlog n) time, positive cost edges • General case – handling negative edges • If there exists a negative cost cycle, the shortest path is not defined • Bellman-Ford Algorithm • O(mn) time for graphs with negative cost edges

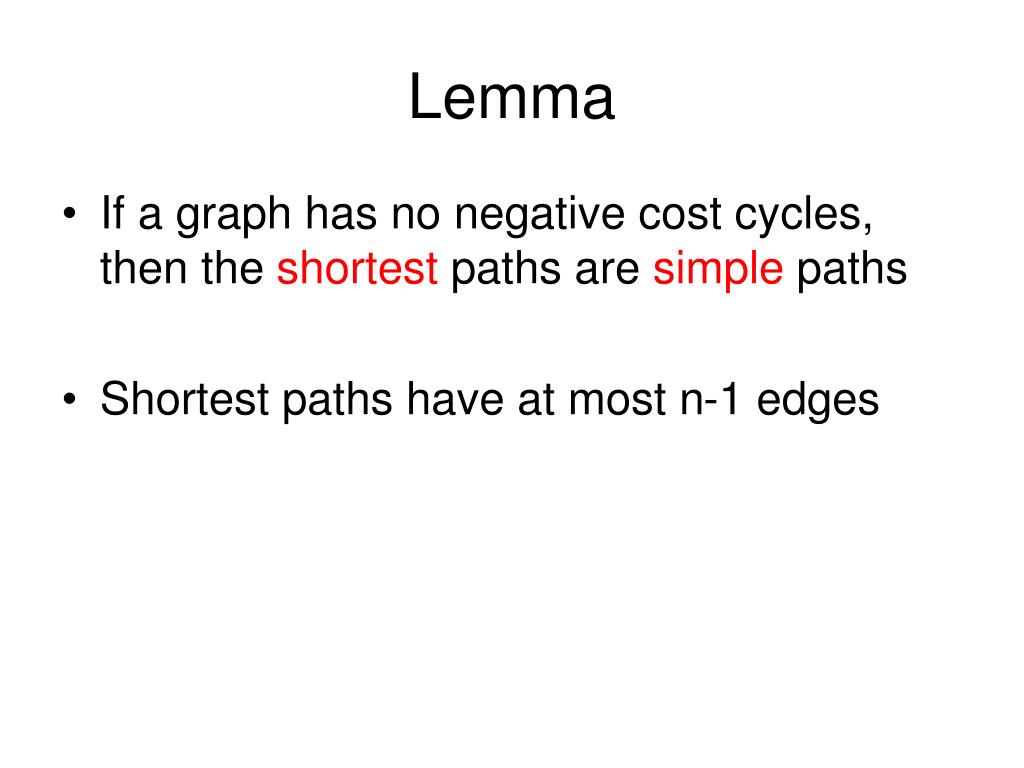

  15. Lemma • If a graph has no negative cost cycles, then the shortest paths are simple paths • Shortest paths have at most n-1 edges

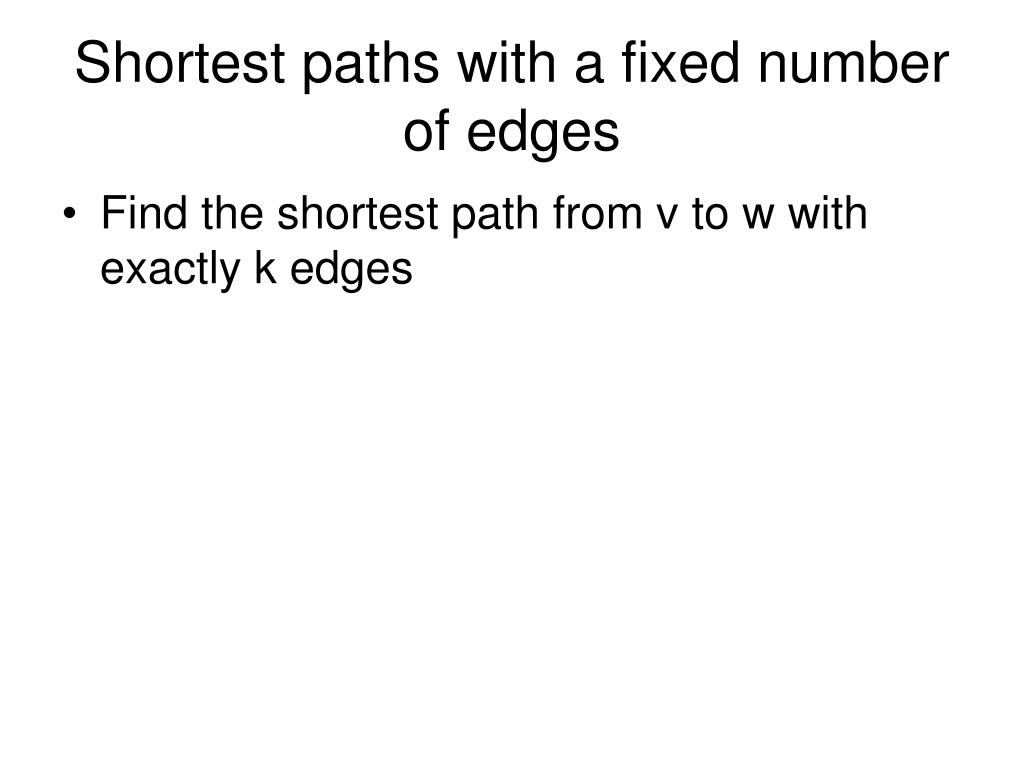

  16. Shortest paths with a fixed number of edges • Find the shortest path from v to w with exactly k edges

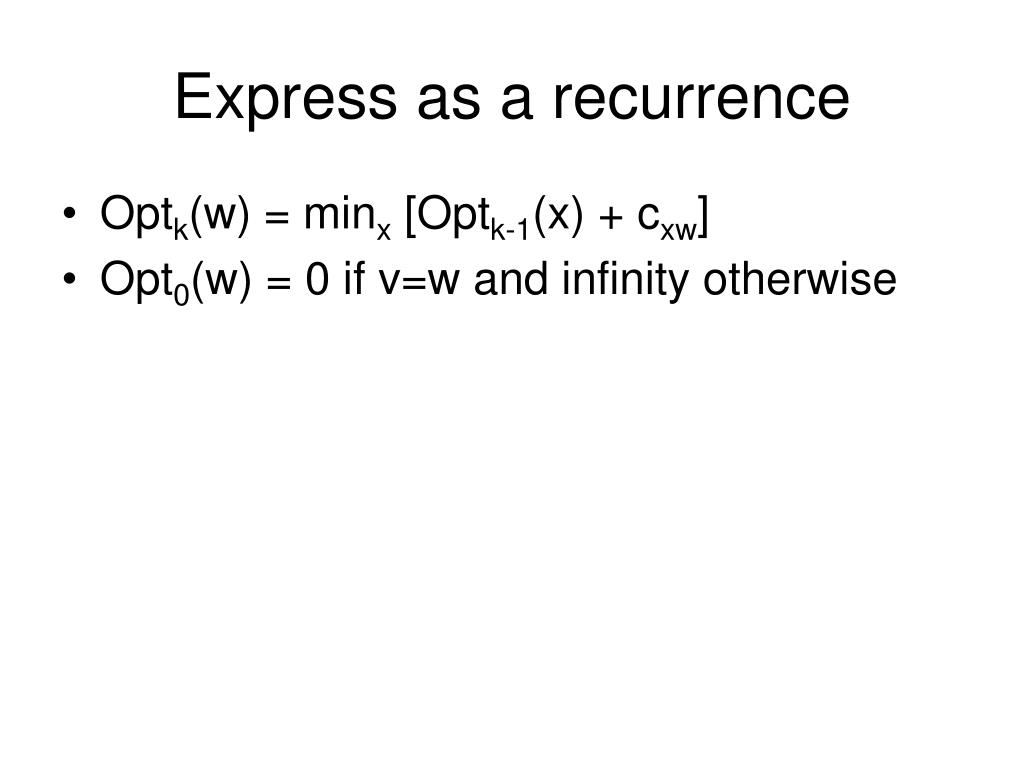

  17. Express as a recurrence • Optk(w) = minx [Optk-1(x) + cxw] • Opt0(w) = 0 if v=w and infinity otherwise

  18. Algorithm, Version 1 foreach w M[0, w] = infinity; M[0, v] = 0; for i = 1 to n-1 foreach w M[i, w] = minx(M[i-1,x] + cost[x,w]);

  19. Algorithm, Version 2 foreach w M[0, w] = infinity; M[0, v] = 0; for i = 1 to n-1 foreach w M[i, w] = min(M[i-1, w], minx(M[i-1,x] + cost[x,w]))

  20. Algorithm, Version 3 foreach w M[w] = infinity; M[v] = 0; for i = 1 to n-1 foreach w M[w] = min(M[w], minx(M[x] + cost[x,w]))

  21. Correctness Proof for Algorithm 3 • Key lemma – at the end of iteration i, for all w, M[w] <= M[i, w]; • Reconstructing the path: • Set P[w] = x, whenever M[w] is updated from vertex x

  22. If the pointer graph has a cycle, then the graph has a negative cost cycle • If P[w] = x then M[w] >= M[x] + cost(x,w) • Equal when w is updated • M[x] could be reduced after update • Let v1, v2,…vk be a cycle in the pointer graph with (vk,v1) the last edge added • Just before the update • M[vj] >= M[vj+1] + cost(vj+1, vj) for j < k • M[vk] > M[v1] + cost(v1, vk) • Adding everything up • 0 > cost(v1,v2) + cost(v2,v3) + … + cost(vk, v1) v1 v4 v2 v3

  23. Negative Cycles • If the pointer graph has a cycle, then the graph has a negative cycle • Therefore: if the graph has no negative cycles, then the pointer graph has no negative cycles

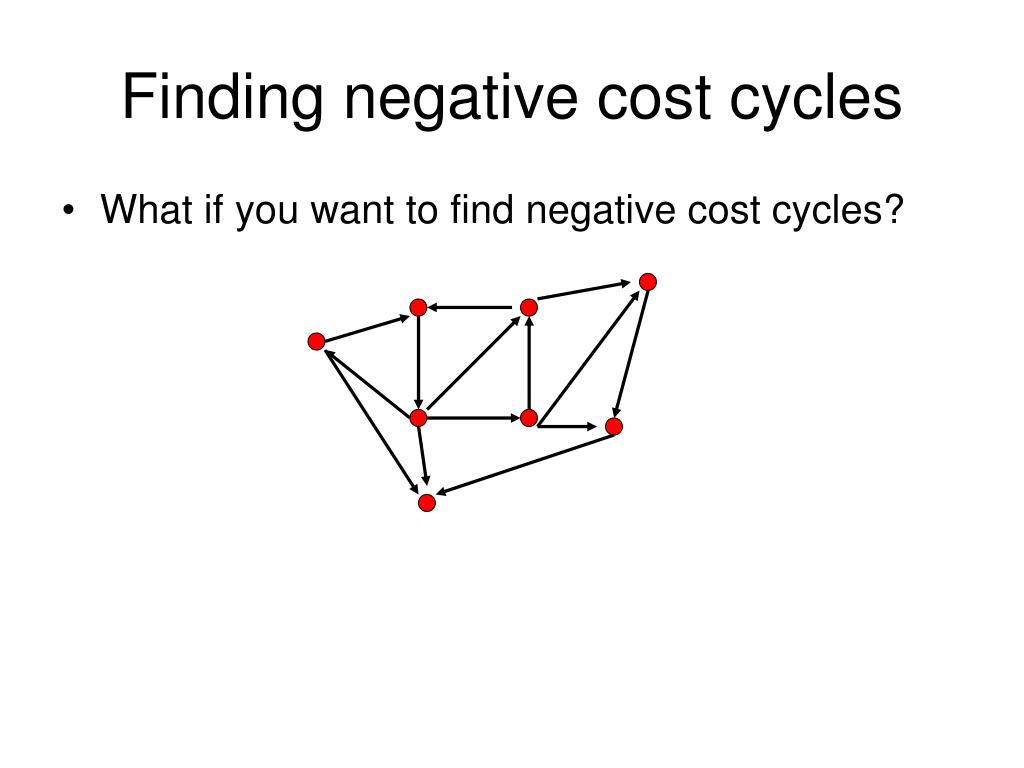

  24. Finding negative cost cycles • What if you want to find negative cost cycles?

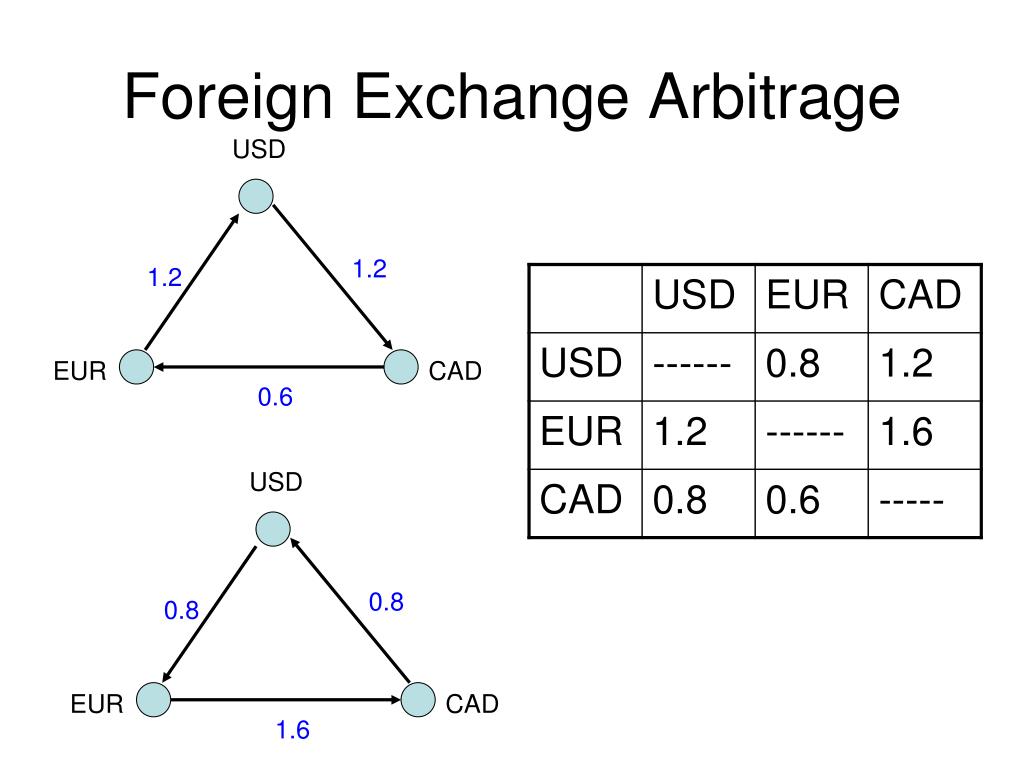

  25. Foreign Exchange Arbitrage USD 1.2 1.2 EUR CAD 0.6 USD 0.8 0.8 EUR CAD 1.6
