Solar Sail

Department of Aerospace Engineering and Mechanics

AEM 4332W – Spacecraft Design

Spring 2007


Team members

Team Members


Solar sailing

Solar Sailing:


Project overview

Project Overview


Design strategy

Design Strategy


Trade study results

Trade Study Results


Orbit

Orbit

Eric Blake

Daniel Kaseforth

Lucas Veverka


Eric blake

Eric Blake

Optimal Trajectory of a Solar Sail: Derivation of Feedback Control Laws


Recall orbital mechanics

Recall Orbital Mechanics

  • The state of a spacecraft can be described by a vector of 6 orbital elements.

    • Semi-major axis, a

    • Eccentricity, e

    • Inclination, i

    • Right ascension of the ascending node, Ω

    • Argument of perihelion, ω

    • True anomaly, f

  • Equivalent to 6 Cartesian position and velocity components.

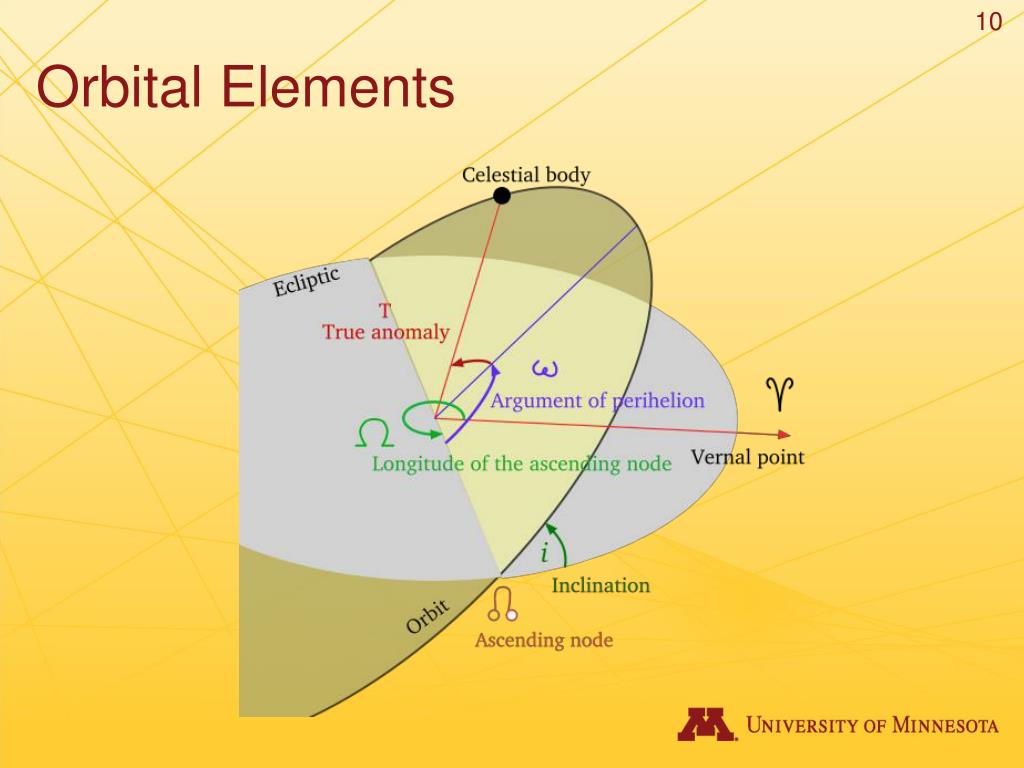

Orbital elements

Orbital Elements


Equations of motion

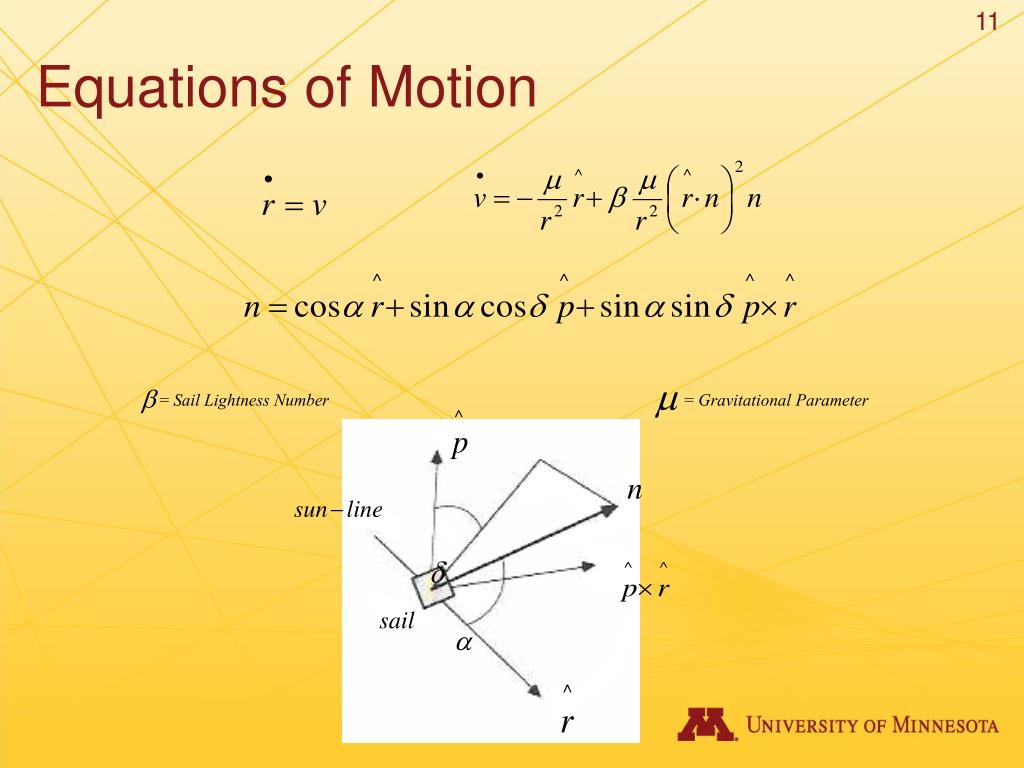

Equations of Motion

= Sail Lightness Number

= Gravitational Parameter

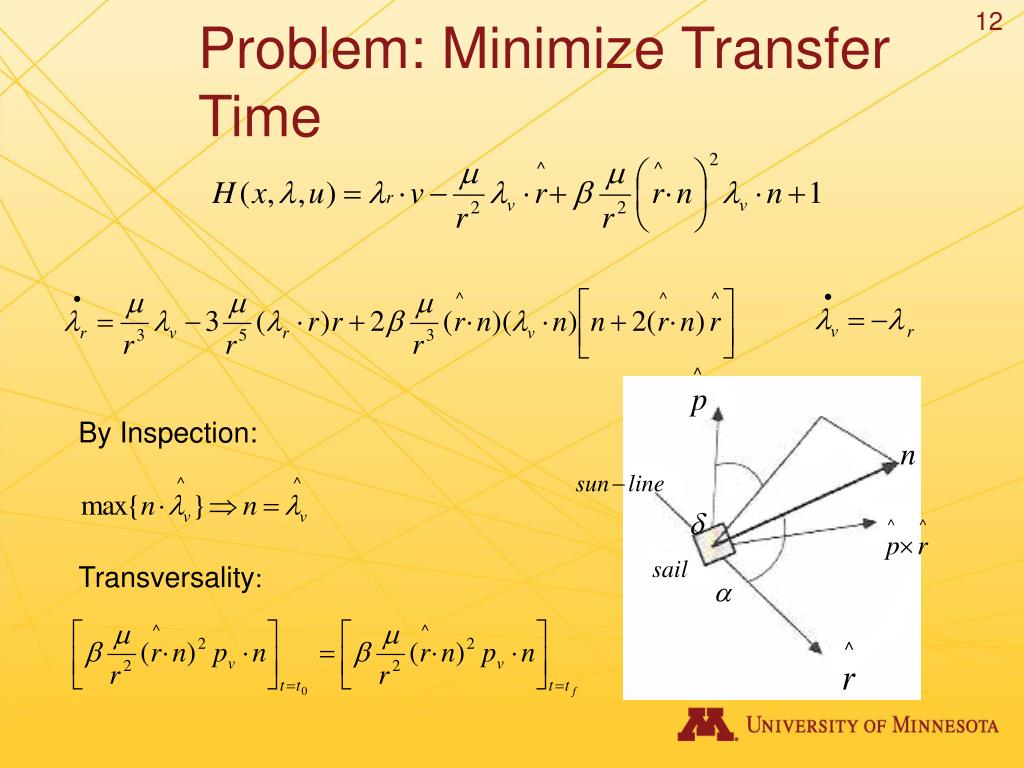

Problem minimize transfer time

Problem: Minimize Transfer Time

By Inspection:

Transversality:


Solution

Solution

  • Iterative methods are needed to calculate co-state boundary conditions.

  • Initial guess of the co-states must be close to the true value, otherwise the solution will not converge.

  • Difficult

  • Alternative: Parameter Optimization.

    • For given state boundary conditions, maximize each element of the orbital state by an appropriate feedback law.


Orbital equations of motion

Orbital Equations of Motion

= Sail Lightness Number

= Gravitational Parameter

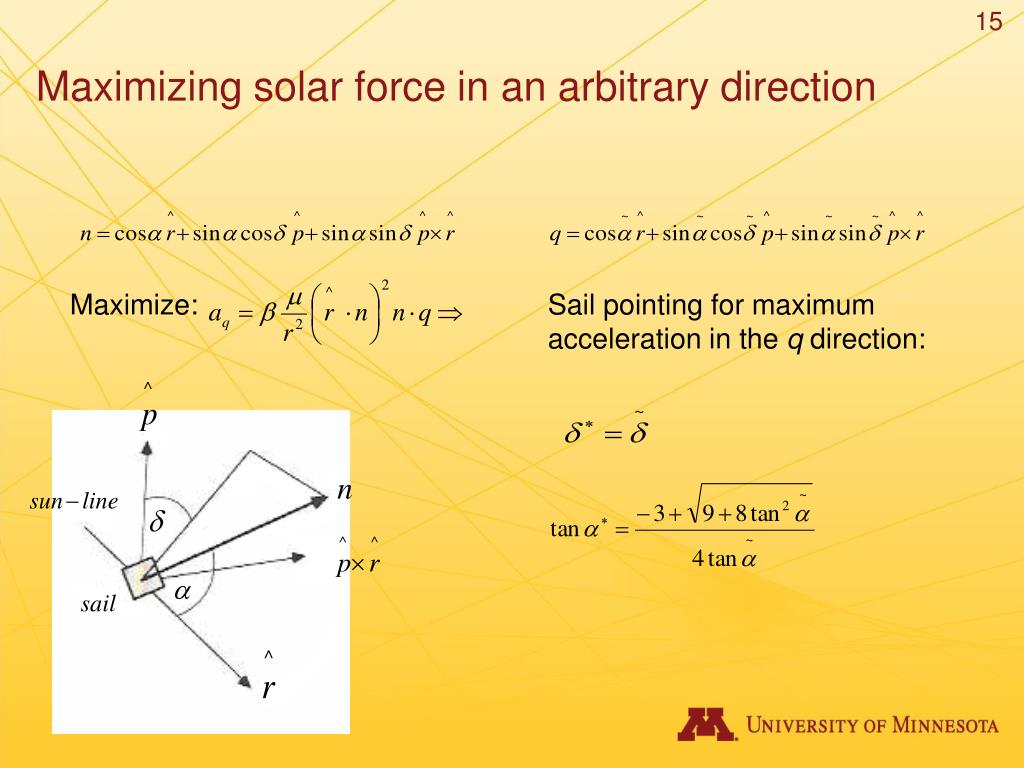

Maximizing solar force in an arbitrary direction

Maximizing solar force in an arbitrary direction

Maximize:

Sail pointing for maximum acceleration in the q direction:


Locally optimal trajectories

Locally Optimal Trajectories

  • Example: Use parameter optimization method to derive feedback controller for semi-major axis reduction.

  • Equations of motion for a:

Feedback Law:

Use this procedure for all orbital elements


Method of patched local steering laws lsl s

Method of patched local steering laws (LSL’s)

  • Initial Conditions: Earth Orbit

  • Final Conditions: semi-major axis: 0.48 AU inclination of 60 degrees


Trajectory of spi using lsl s

Trajectory of SPI using LSL’s

Time (years)


Global optimal solution

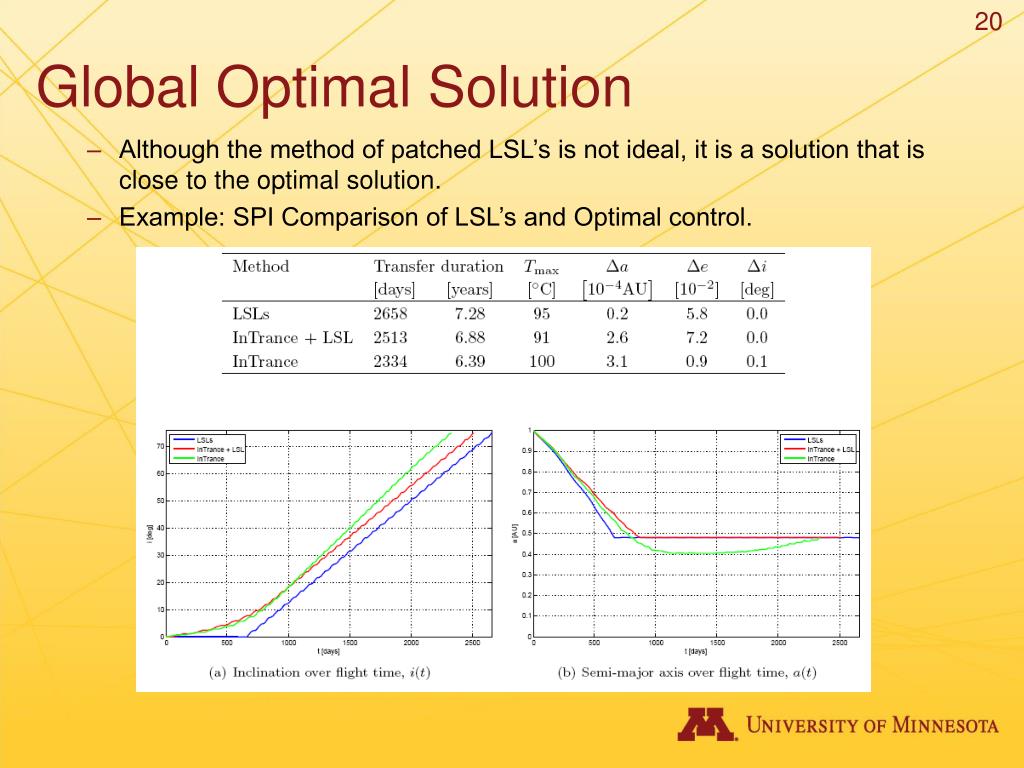

Global Optimal Solution

  • Although the method of patched LSL’s is not ideal, it is a solution that is close to the optimal solution.

  • Example: SPI Comparison of LSL’s and Optimal control.


Conclusion

Conclusion

  • Continuous thrust problems are common in spacecraft trajectory planning.

  • True global optimal solutions are difficult to calculate.

  • Local steering laws can be used effectively to provide a transfer time near that of the global solution.


Lucas veverka

Lucas Veverka

Temperature

Orbit Implementation


Daniel kaseforth

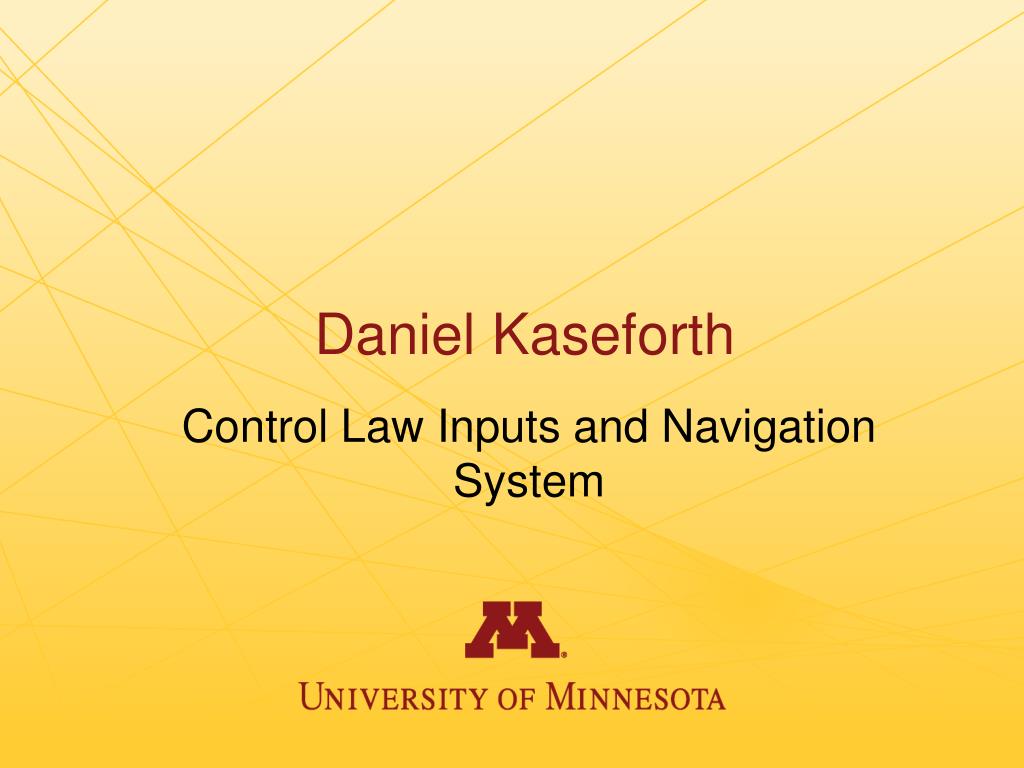

Daniel Kaseforth

Control Law Inputs and Navigation System


Structure

Structure

Jon T Braam

Kory Jenkins


Jon t braam

Jon T. Braam

Structures Group:

Primary Structural Materials

Design Layout

3-D Model

Graphics


Primary structural material

Primary Structural Material

Weight and Volume Constraints

  • Delta II : 7400 Series

  • Launch into GEO

    • 3.0 m Ferring

      • Maximum payload mass: 1073 kg

      • Maximum payload volume: 22.65 m3

    • 2.9 m Ferring

      • Maximum payload mass: 1110 kg

      • Maximum payload volume: 16.14 m3


Primary structural material1

Primary Structural Material

Aluminum Alloy Unistrut

  • 7075 T6 Aluminum Alloy

    • Density

      • 2700 kg/m3

      • 168.55 lb/ft^3

    • Melting Point

      • ? Kelvin

Picture of Unistrut


Primary structural material2

Primary Structural Material

  • Density

  • Mechanical Properties

    • Allowing unistrut design

      • Decreased volume

  • Thermal Properties

    • Capible of taking thermal loads


Design layout

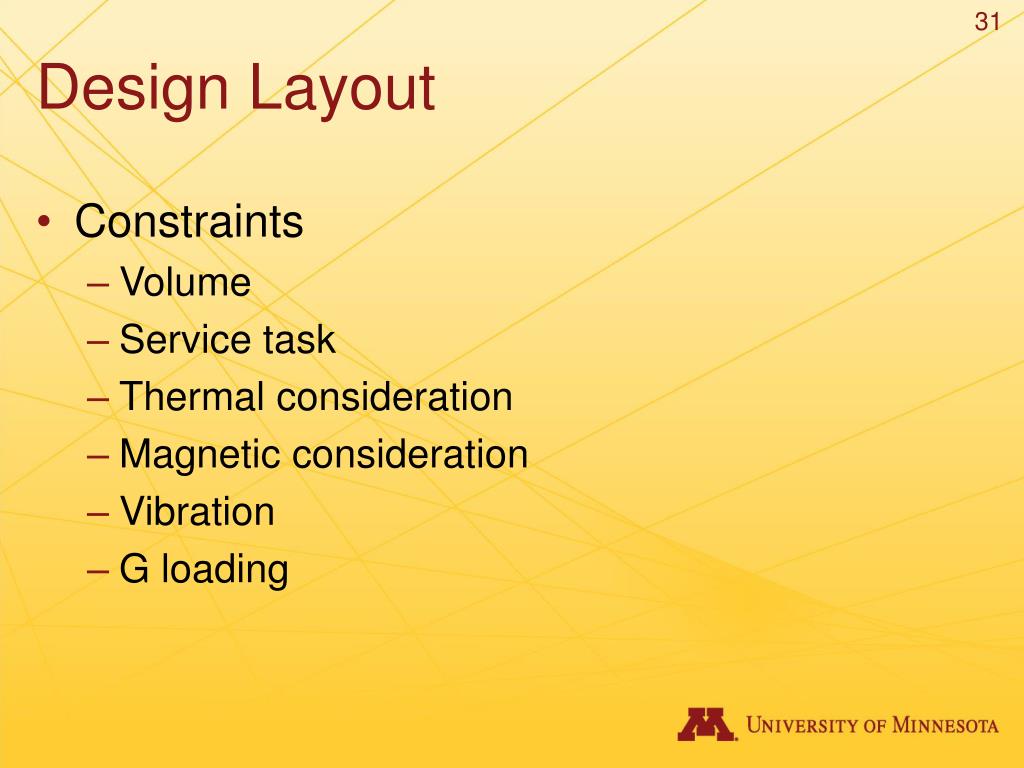

Design Layout

  • Constraints

    • Volume

    • Service task

    • Thermal consideration

    • Magnetic consideration

    • Vibration

    • G loading


Design layout1

Design Layout

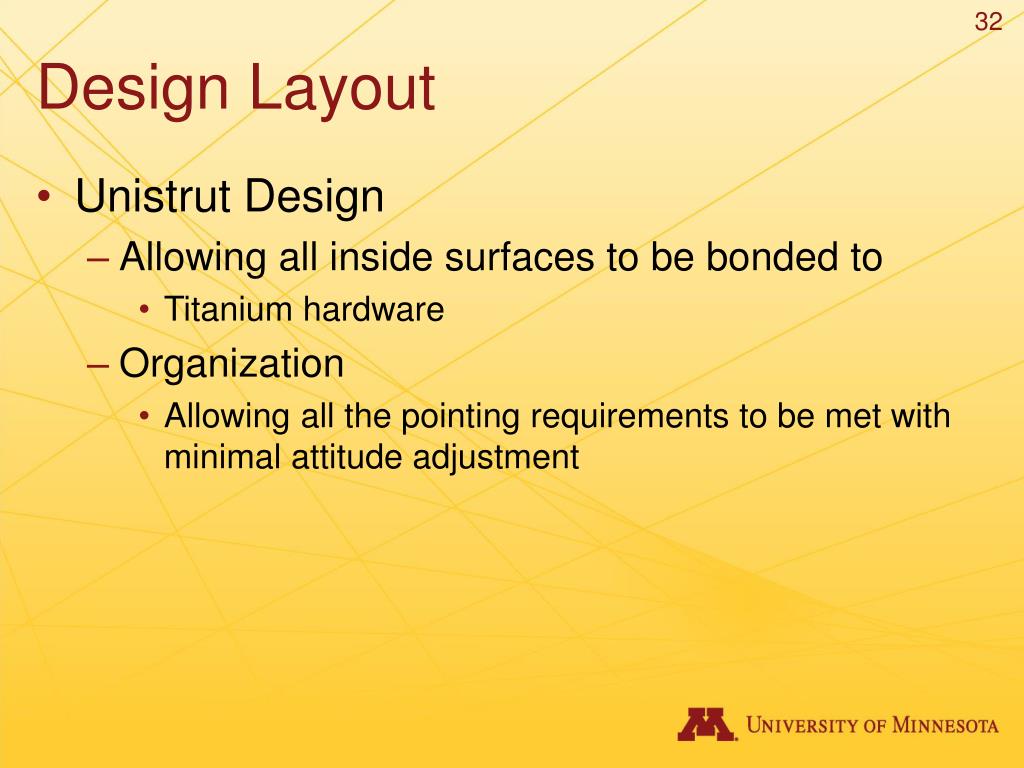

  • Unistrut Design

    • Allowing all inside surfaces to be bonded to

      • Titanium hardware

    • Organization

      • Allowing all the pointing requirements to be met with minimal attitude adjustment


Design layout2

Design Layout

  • Large Picture of expanded module


3 d model

3-D Model

  • Large picture


3 d model1

3-D Model

  • Blah blah blah (make something up)


Graphics

Graphics

  • Kick ass picture


Graphics1

Graphics

  • Kick ass picture


Solar sail

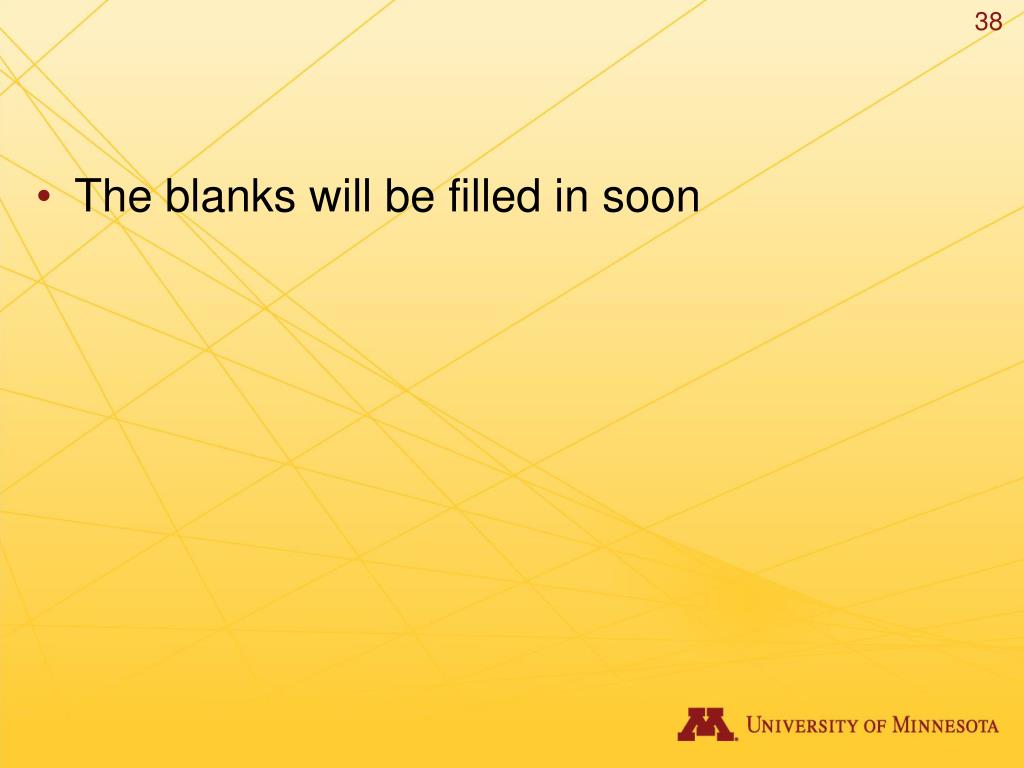

  • The blanks will be filled in soon


Trade studies

Trade Studies

  • Blah blah blah


Why i deserve an a

Why I deserve an “A”

  • Not really any reason but when has that stopped anyone!


Kory jenkins

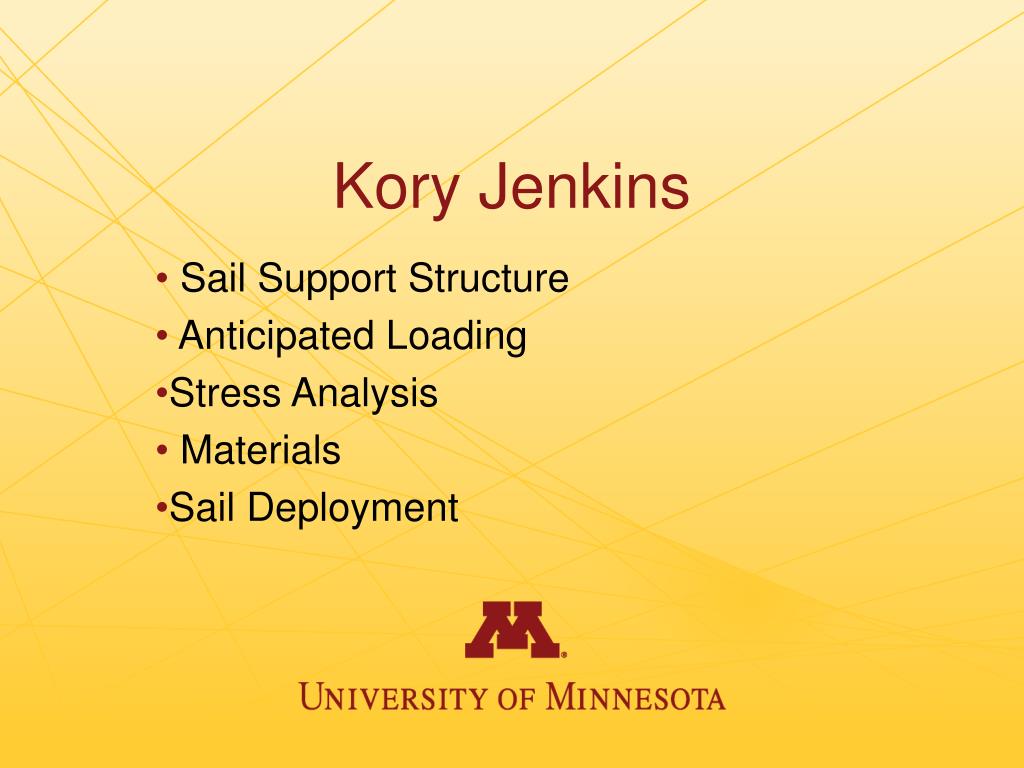

Kory Jenkins

Sail Support Structure

Anticipated Loading

Stress Analysis

Materials

Sail Deployment


Attitude determination and control

Attitude Determination and Control

Brian Miller

Alex Ordway


Brian miller

Brian Miller

Tip Thrusters vs. Slidnig Mass

Attitude Control Simulation


Alex ordway 60 hours worked

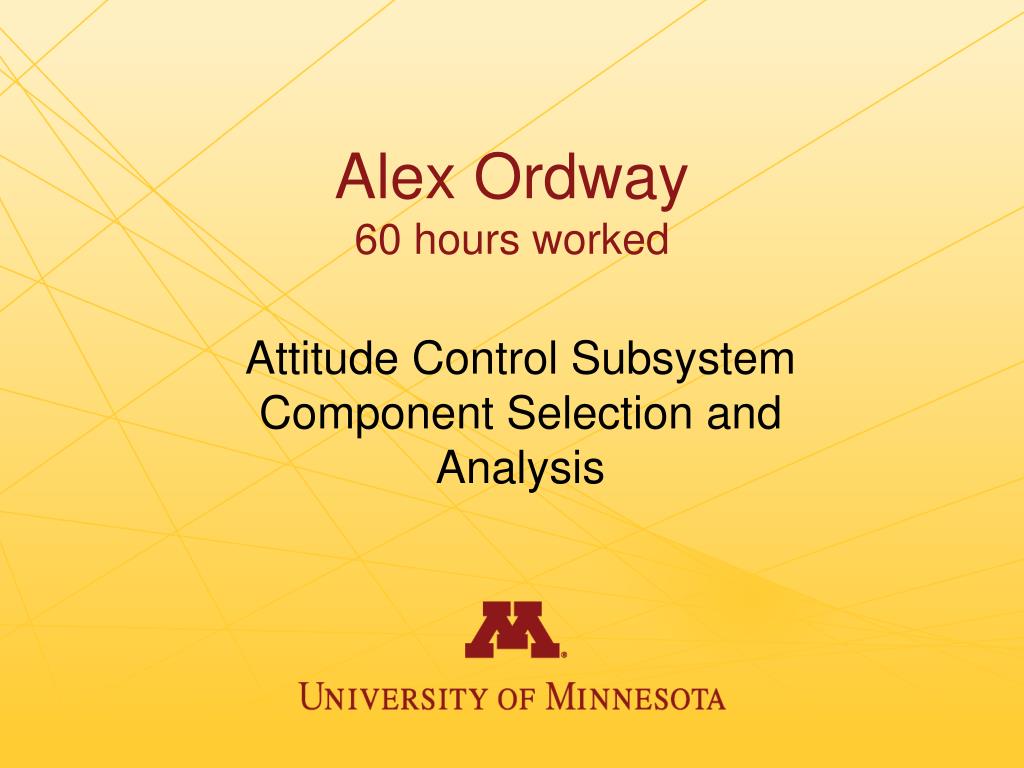

Alex Ordway60 hours worked

Attitude Control Subsystem Component Selection and Analysis


Design drivers

Design Drivers

  • Meeting mission pointing requirements

  • Meet power requirements

  • Meet mass requirements

  • Cost

  • Miscellaneous Factors


Trade study

Trade Study

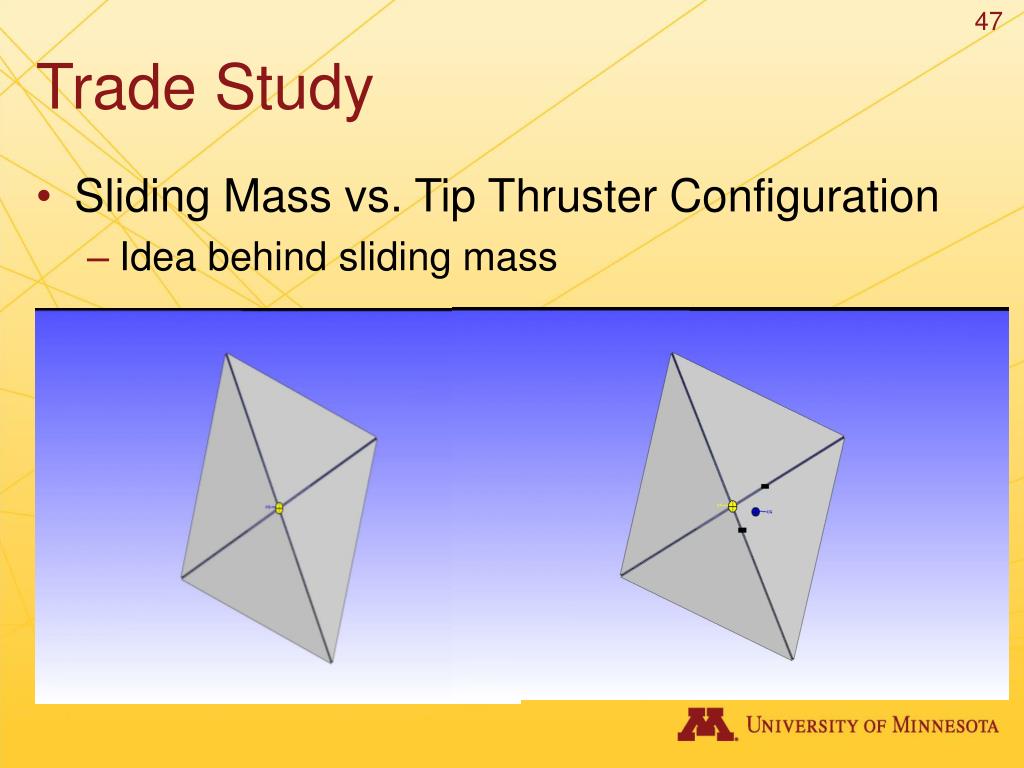

  • Sliding Mass vs. Tip Thruster Configuration

    • Idea behind sliding mass

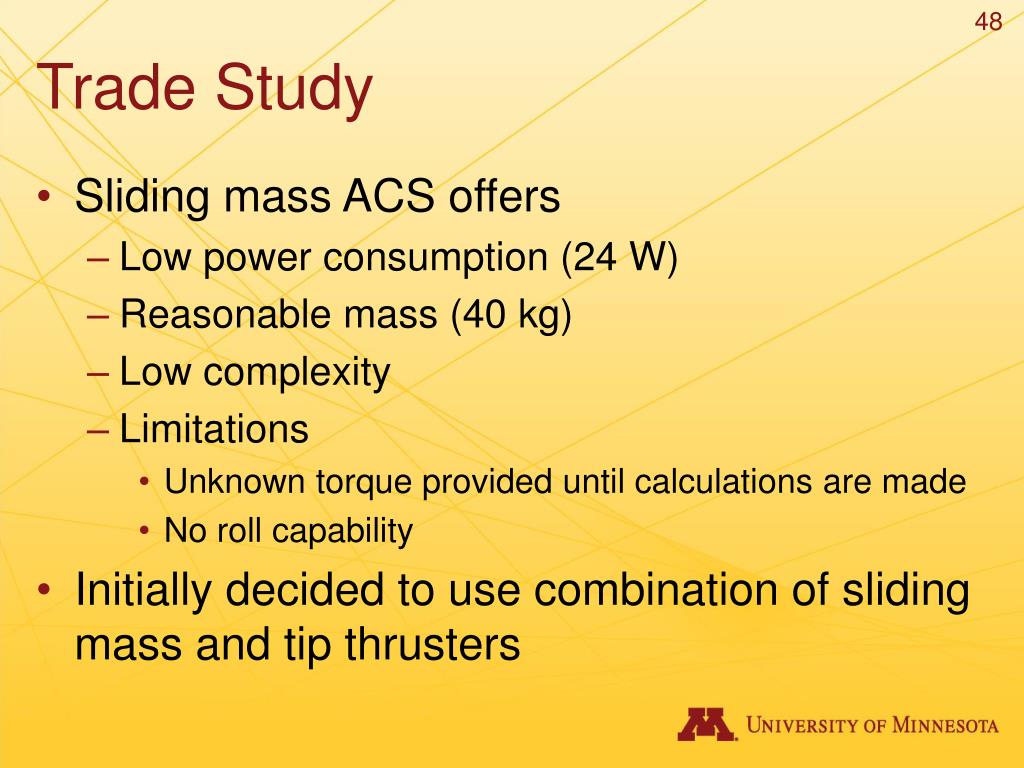

Trade study1

Trade Study

  • Sliding mass ACS offers

    • Low power consumption (24 W)

    • Reasonable mass (40 kg)

    • Low complexity

    • Limitations

      • Unknown torque provided until calculations are made

      • No roll capability

  • Initially decided to use combination of sliding mass and tip thrusters

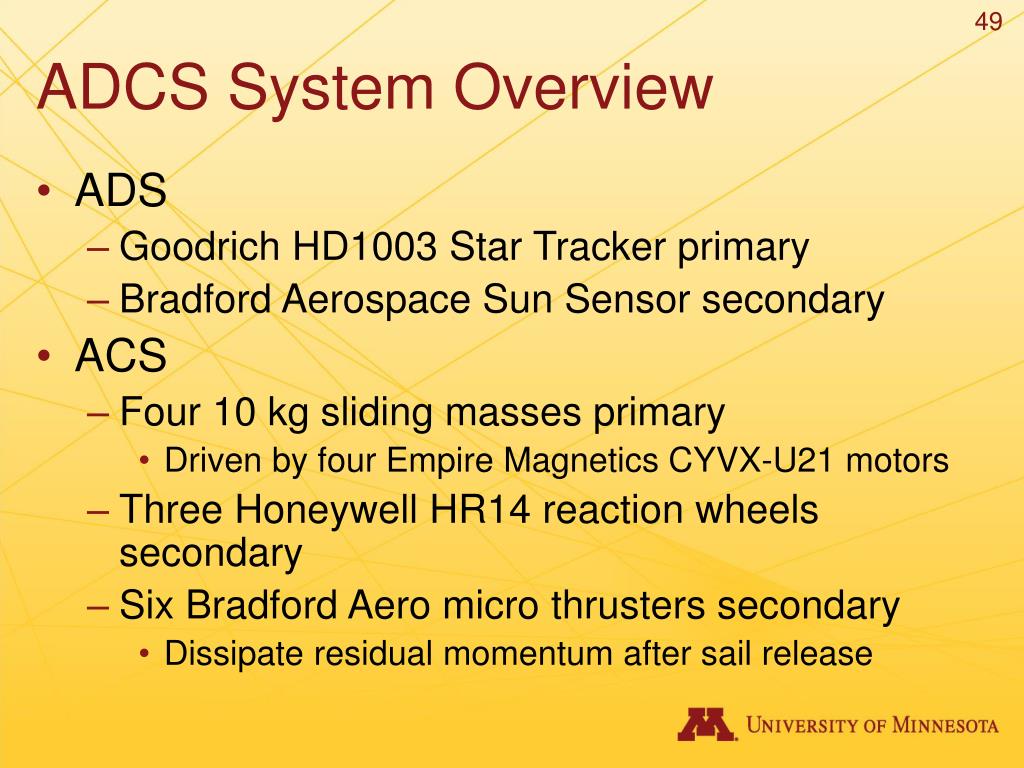

Adcs system overview

ADCS System Overview

  • ADS

    • Goodrich HD1003 Star Tracker primary

    • Bradford Aerospace Sun Sensor secondary

  • ACS

    • Four 10 kg sliding masses primary

      • Driven by four Empire Magnetics CYVX-U21 motors

    • Three Honeywell HR14 reaction wheels secondary

    • Six Bradford Aero micro thrusters secondary

      • Dissipate residual momentum after sail release


Solar sail

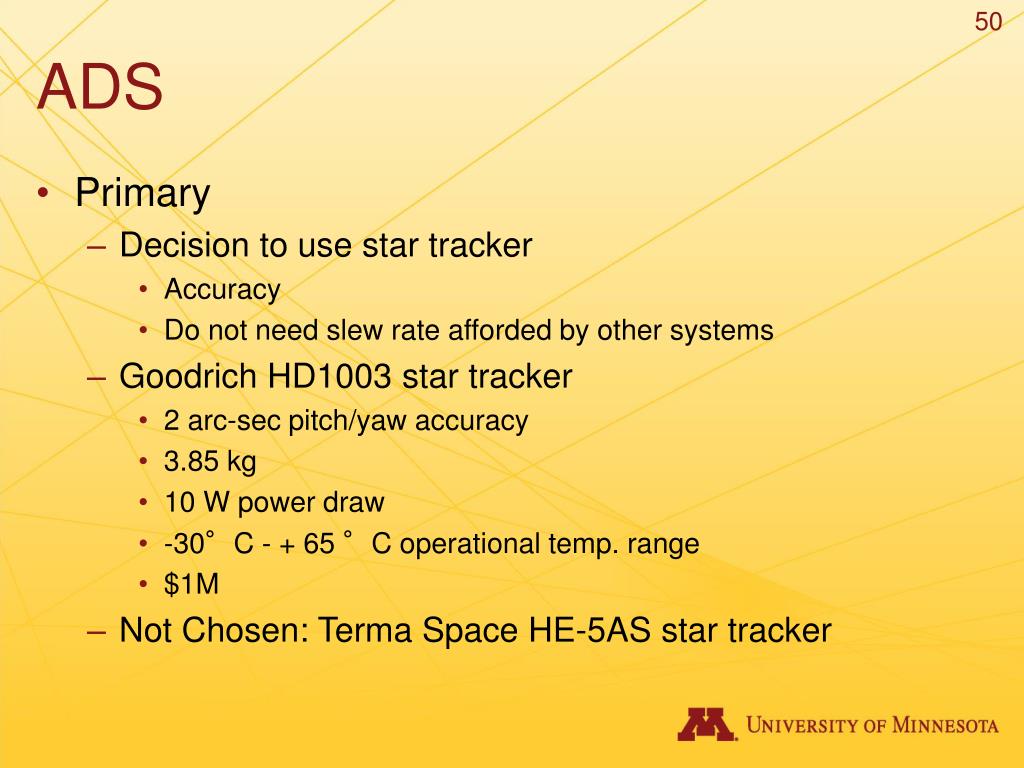

ADS

  • Primary

    • Decision to use star tracker

      • Accuracy

      • Do not need slew rate afforded by other systems

    • Goodrich HD1003 star tracker

      • 2 arc-sec pitch/yaw accuracy

      • 3.85 kg

      • 10 W power draw

      • -30°C - + 65 °C operational temp. range

      • $1M

    • Not Chosen: Terma Space HE-5AS star tracker


Solar sail

ADS

  • Secondary

    • Two Bradford Aerospace sun sensors

      • Backup system; performance not as crucial

      • Sensor located on opposite sides of craft

      • 0.365 kg each

      • 0.2 W each

      • -80°C - +90°C


Solar sail

ACS

  • Sliding mass system

    • Why four masses?

    • Four Empire Magnetics CYVX-U21 Step Motors

      • Cryo/space rated

      • 1.5 kg each

      • 28 W power draw each

      • 200°C

      • $55 K each

      • 42.4 N-cm torque


Solar sail

ACS

  • Gear matching- load inertia decreases by the gear ratio squared. Show that this system does not need to be geared.


Solar sail

ACS

  • Three Honeywell HR14 reaction wheels

    • Mission application

    • Specifications

      • 7.5 kg each

      • 66 W power draw each (at full speed)

      • -30ºC - +70ºC

      • 0.2 N-m torque

      • $200K each

      • Not selected

        • Honeywell HR04

        • Bradford Aerospace W18


Solar sail

ACS

  • Six Bradford micro thrusters

    • 0.4 kg each

    • 4.5 W power draw each

    • -30ºC - + 60ºC

    • 2000 N thrust

    • Supplied through N2 tank


Attitude control

Attitude Control

  • Conclusion

    • Robust ADCS

      • Meets and exceeds mission requirements

      • Marriage of simplicity and effectiveness

      • Redundancies against the unexpected
