Presentation Transcript

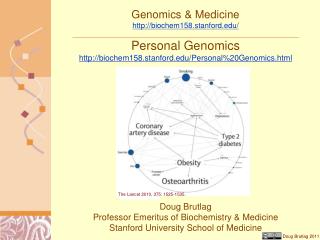

Genomics medicine http biochem158 stanford edu l.jpg

Genomics & Medicine

Personal Genomics

The Lancet 2010, 375: 1525-1535.

Doug Brutlag

Professor Emeritus of Biochemistry & Medicine

Stanford University School of Medicine

Low heritability of common snps l.jpg

Low Heritability of Common SNPs

Odds Ratio

  • Rare High Penetrance Variants Carry High Risk

  • Common SNPs Carry Low Risk

  • Multiple Variants May Increase Risk Synergistically

  • Common SNPs Associated with Genes Containing High Risk Alleles

  • Common SNPs Associations can Suggest Regions to Sequence in Cohorts or Trios or Subpopulations

Manolio et al. Nature 461, 747-753 (2009)

Disease genes are often enriched in subpopulations l.jpg

Disease Genes are Often Enriched in Subpopulations

  • Subpopulations are often enriched for disease alleles

  • Subpopulations can cause synthetic SNP associations

  • Focusing on a subpopulations will eliminate synthetic SNP associations

  • Focusing on subpopulations eliminates need for population stratification adjustments

  • Egypt is a haplotype heaven!

    • Highest frequency of genetic (SNP) variations

    • High numbers of genetic subpopulations due to multiple migrations and invasions

    • Greeks, Romans, Turks, Persians etc.

Summary of genome wide association studies l.jpg

Summary ofGenome-Wide Association Studies

  • Genome-wide association studies make no assumptions about disease mechanism or cause

  • Genome-wide association studies usually discover only genetic correlations, not causal mutations

  • Genome-wide associations suggest:

    • Genes and regions one must analyze by re-sequencing for causal alleles

    • Subpopulations that may be enriched for causal or preventive alleles

    • Genes and gene products for functional and structural studies

    • Genes to examine for regulatory studies

  • Genome-wide association studies coupled with proper biological and structural studies can lead to:

    • Unexpected causes for disease

    • Novel mechanisms for disease (missense mutations, regulatory changes, alternative splicing, copy number variation etc.)

    • Multiple genes and multiple pathways involved in disease

    • Novel diagnostics and prognosis

    • Novel treatments

Genetic loci associated with hypertriglyceridemia http www ncbi nlm nih gov pubmed 20657596 l.jpg

Genetic Loci Associated with Hypertriglyceridemia

Slide6 l.jpg

Novel Rare Variants in GWAS Genes for Hypertriglyceridemia

Rare variant accumulation in hypertriglyceridemia http www ncbi nlm nih gov pubmed 20657596 l.jpg

Rare Variant Accumulation in Hypertriglyceridemia

So what can we learn from personal genomics l.jpg

So What Can We Learn fromPersonal Genomics?

  • Disease risk for common diseases

    • Genetic predisposition towards a disease (relative risk or odds ratio)

    • Genetic versus environmental contributions to disease (penetrance)

    • How to alter your environment and behavior to avoid the disease

  • Disease Carrier status

    • Premarital genetic counseling

    • Preimplantation genetic diagnosis

    • Neonatal diagnosis

      • Amniocentesis

      • Chorion villus sampling (CVS)

      • Fetal cells in pregnant mothers blood

  • Familial traits, diseases and relationships

    • Known family diseases (breast cancers, colorectal cancer, lysosome storage diseases, etc.)

    • Paternity (10% of people do not know their true biological father)

    • Maternity (about 1% of people do not know their true biological mother)

    • Inbreeding and incest lead to increased homozygosity and recessive diseases

    • Orphans can find family relations

  • Pharmacogenomics and Pharmacogenetics: Drug susceptibility

    • Efficacy of common drugs

    • Adverse reactions to common drugs

  • Ancestry

    • One can follow maternal line using mitochondrial DNA SNPs

    • Males can follow paternal line using Y chromosome SNPs

    • Shared haplotypes with recent relatives (up to 5th cousins)

23andme l.jpg


23andme kit l.jpg

23andMe Kit

23andme spittoon l.jpg

23andMe Spittoon

23andme sample tube l.jpg

23andMe Sample Tube

23andme tube in envelope l.jpg

23andMe Tube in Envelope

23andme fedex mailer l.jpg

23andMe Fedex Mailer

Choice of gwas studies l.jpg

Choice of GWAS Studies

  • Common traits of broad interest

    • Prevalence of > 1%

    • Report Mendelian traits when possible

    • Focus on drug responses

  • Avoid false discoveries

    • Large case-control studies > 750 cases

    • Highly significant expectation values (<0.01 errors)

    • Published in reputable journals

    • Studies that have been replicated

  • May impute highly linked missing SNPs

  • Calculate likelihood and odds ratio using customers ethnicity as detected

  • Distinguish preliminary studies (non-replicated or smaller sample sizes) from established research.

23andme login l.jpg

23andMe Login

23andme disease risks l.jpg

23andMe Disease Risks

23andme opt in statement l.jpg

23andME Opt-In Statement

23andme carrier status l.jpg

23andMe Carrier Status

23andme carrier status for alpha 1 antitrypsin deficiency l.jpg

23andMe Carrier Status forAlpha-1 Antitrypsin Deficiency

23andme drug responses l.jpg

23andMe Drug Responses

Clopidogrel plavix efficacy l.jpg

Clopidogrel (Plavix®) Efficacy

23andme traits l.jpg

23andMe Traits

23andme traits24 l.jpg

23andMe Traits

23andme maternal inheritance l.jpg

23andMe Maternal Inheritance

23andme paternal inheritance l.jpg

23andMe Paternal Inheritance

23andme relative finder l.jpg

23andMe Relative Finder

What is a fifth cousin l.jpg

What is a Fifth Cousin?

23andme ancestry painting l.jpg

23andMe Ancestry Painting

23andme global similarity l.jpg

23andMe Global Similarity

23andme ancestry labs l.jpg

23andMe Ancestry Labs

23andwe discoveries l.jpg

23andWe Discoveries

23andwe discoveries33 l.jpg

23andWe Discoveries

Informed medical decisions http informeddna com l.jpg

INFORMED Medical Decisions

Informed for 23andme customers http informeddna com index php 23andme schedule appointment 23 html l.jpg

INFORMED for 23andMe Customers

Navigenics l.jpg


Navigenics37 l.jpg


Navigenics38 l.jpg


Navigenics39 l.jpg


Navigenics40 l.jpg


Navigenics41 l.jpg


Navigenics42 l.jpg


Navigenics43 l.jpg


Navigenics44 l.jpg


Navigenics compass program l.jpg

Navigenics Compass Program

Navigenics conditions covered l.jpg

Navigenics Conditions Covered

Dnadirect clinical genetic testing l.jpg

DNAdirect: Clinical Genetic Testing

Dnadirect clinical genetic testing48 l.jpg

DNAdirect: Clinical Genetic Testing

Personal genomics references l.jpg

Personal Genomics References

  • Clinical Assessment Incorporating a Personal Genome. Ashley, E. et al. (2010)

    Lancet 375, 1525-1535.

  • Emerging genomic applications in coronary artery disease. Damani SB,

    Topal EJ, JACC Cardiovasc. Intervention (2011). 4:473-482.

  • Clinical applicability of sequence variations in genes related to drug

    metabolism. Stojiljkovic M, Patrinos GP, Pavlovic S. (2011) Curr Drug Metab.


  • Clinical pharmacogenetics and potential application in personalized medicine.

    Zhou et al., (2008) Curr Drug Metab. 9(8):738-84.

  • Genes, mutations, and human inherited disease at the dawn of the age of

    personalized genomics. Cooper et al (2010) Hum Mutat. 31(6):631-55.

  • Web-based, participant-driven studies yield novel genetic associations for

    common traits. Eriksson et al. (2010) PLoS Genetics 6, e1000993.
