Modulating pain in crps with tdcs

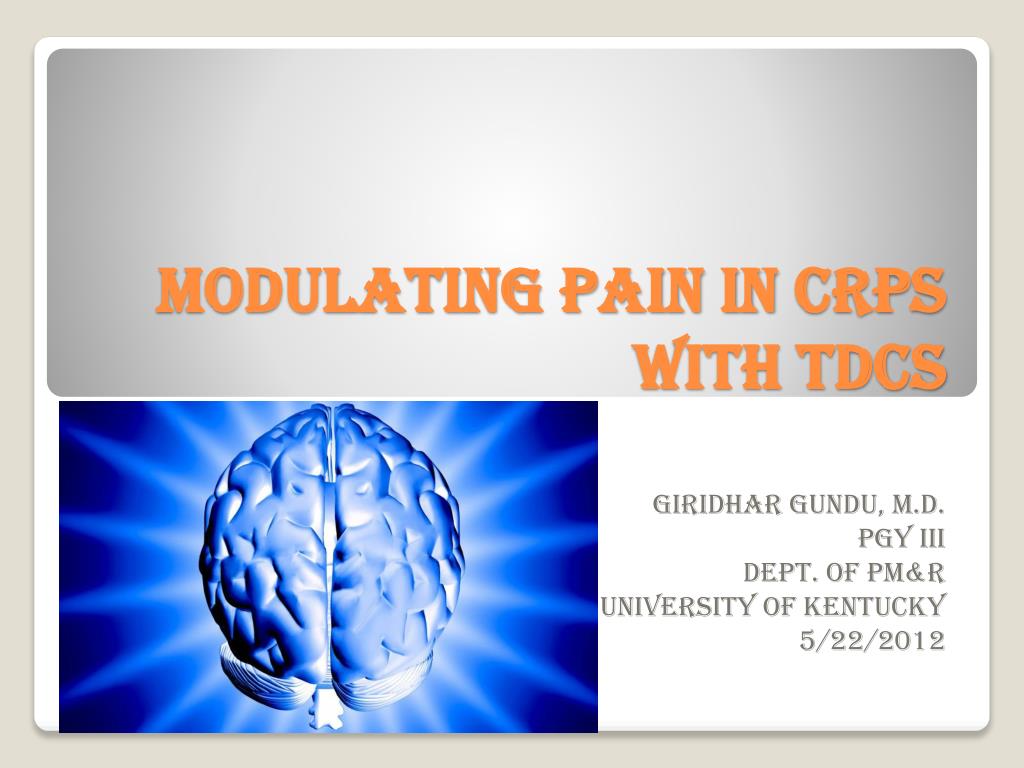

Modulating pain in CRPS with tDCS

GiridharGundu, M.D.

PGY III

Dept. of PM&R

University of Kentucky

5/22/2012


Complex regional pain syndrome

Complex regional pain syndrome

  • CRPS is a highly painful, limb-confined condition, which arises usually after trauma.

  • Associated with a particularly poor quality of life, and large health-care and societal costs.

  • Crossroads of interests of several disciplines including rheumatology, pain medicine, neurology, physiatry.


Clinical presentation of crps

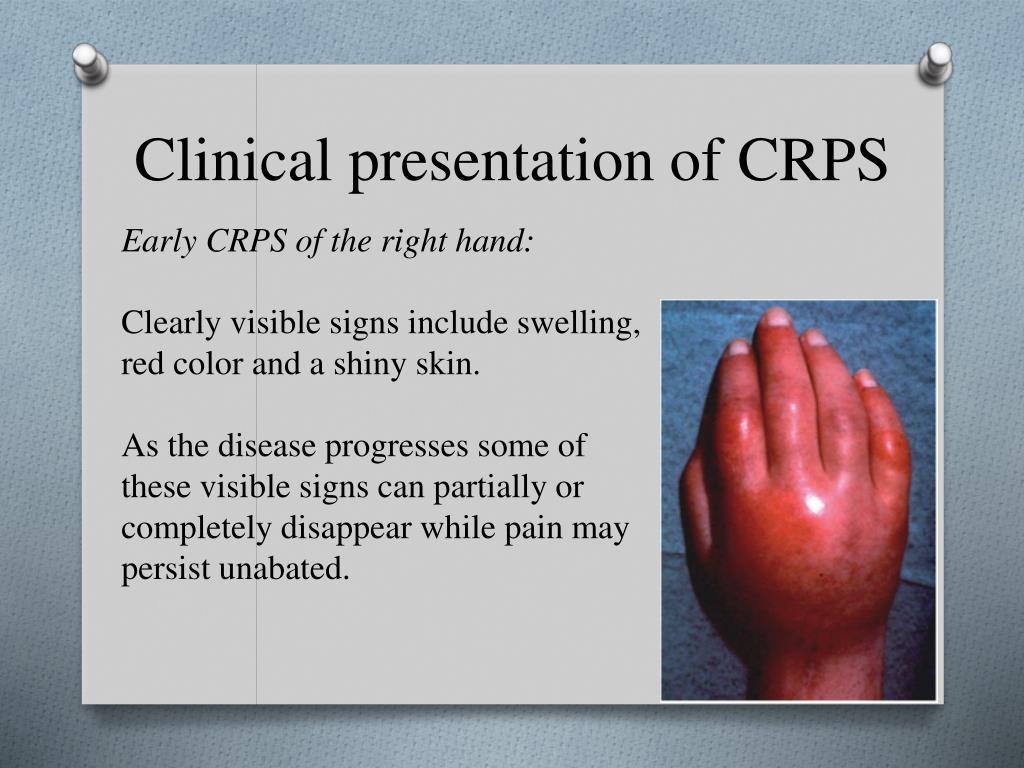

Clinical presentation of CRPS

Early CRPS of the right hand:

Clearly visible signs include swelling, red color and a shiny skin.

As the disease progresses some of these visible signs can partially or completely disappear while pain may persist unabated.


Patients with crps can present in many different ways

Patients with CRPS can present in many different ways…….

  • Limbs can be hot or cold, shiny, swollen or thin, red or blue with scaling or clammy skin.

  • Some patients cannot tolerate slight air movement on their skin, while others have completely lost the ability to feel any stimulus to the limb (with normal nerve conduction studies).

  • Blister formation, skin ulcerations, severe atrophy, joint ankylosis, dystonia and myoclonus may also be present.

  • Joints usually feel stiff with reduced range and weakness; often limb parts cannot be moved at all, and there is a fine tremor.


Causes of crps

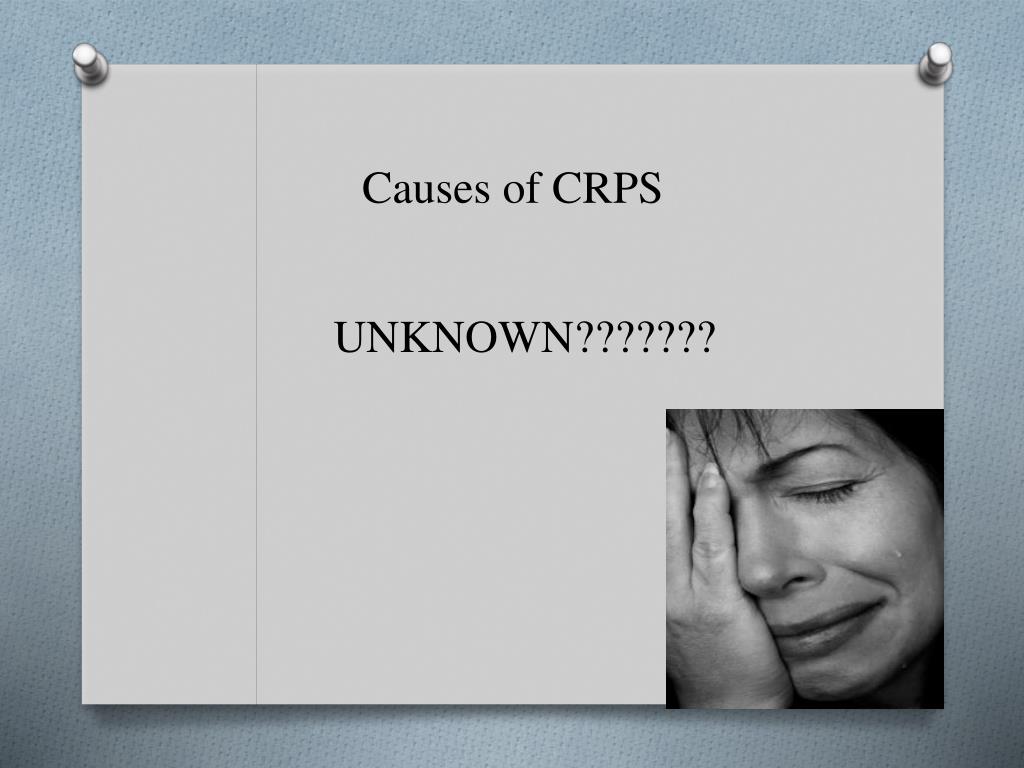

Causes of CRPS

UNKNOWN???????


Modulating pain in crps with tdcs

There are currently eight major concepts about CRPS etiology.

  • Inflammatory process

  • Sympathetically mediated disorder

  • Autoimmune condition

  • Limb ischemia/ischemia reperfusion injury

  • Cortical reorganization

  • Nerve damage

  • Neurogenic inflammation

  • Alternative concepts


Modulating pain in crps with tdcs

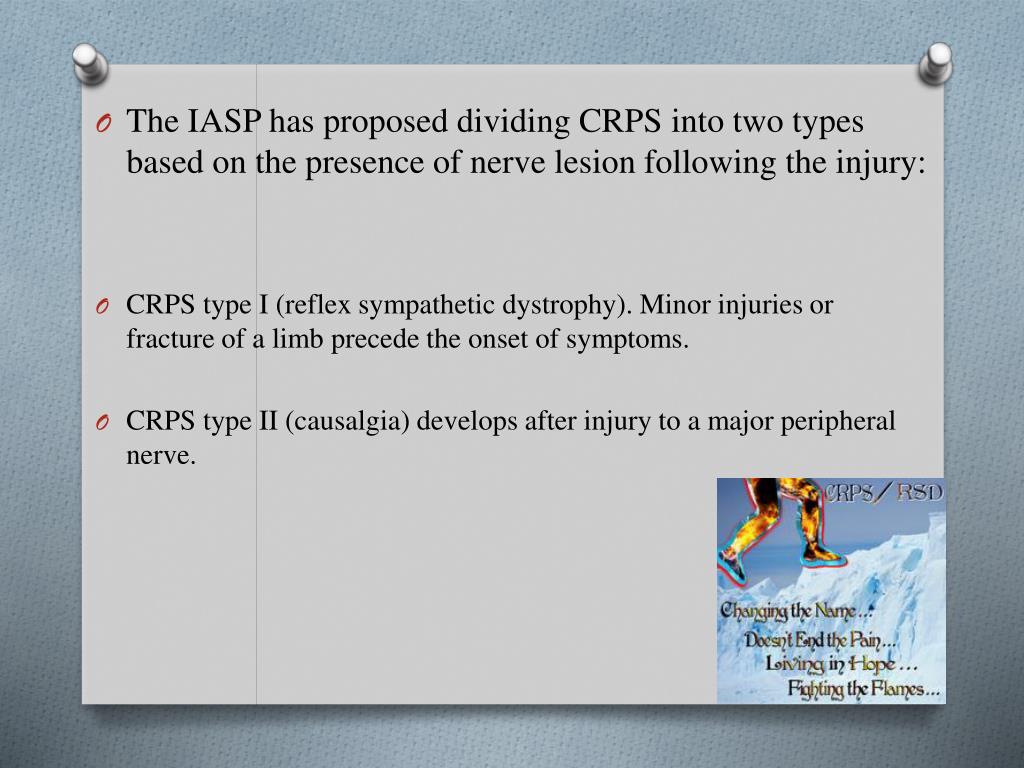

  • The IASP has proposed dividing CRPS into two types based on the presence of nerve lesion following the injury:

  • CRPS type I (reflex sympathetic dystrophy). Minor injuries or fracture of a limb precede the onset of symptoms.

  • CRPS type II (causalgia) develops after injury to a major peripheral nerve.


Modulating pain in crps with tdcs

  • CRPS diagnosis is based upon clinical criteria and that there is so far no gold standard nor any objective diagnostic tool.

  • It is a diagnosis of exclusion.

  • Budapest Criteria used for diagnosis


Modulating pain in crps with tdcs

4. No other diagnosis can better explain the signs and symptoms.


Diagnostic tests which may aid the diagnosis of crps

Diagnostic tests which may aid the diagnosis of CRPS

  • X-ray

  • 3-phase bone scan

  • Quantitative sensory testing (QST)

  • Autonomic testing

  • Thermography


Modulating pain in crps with tdcs

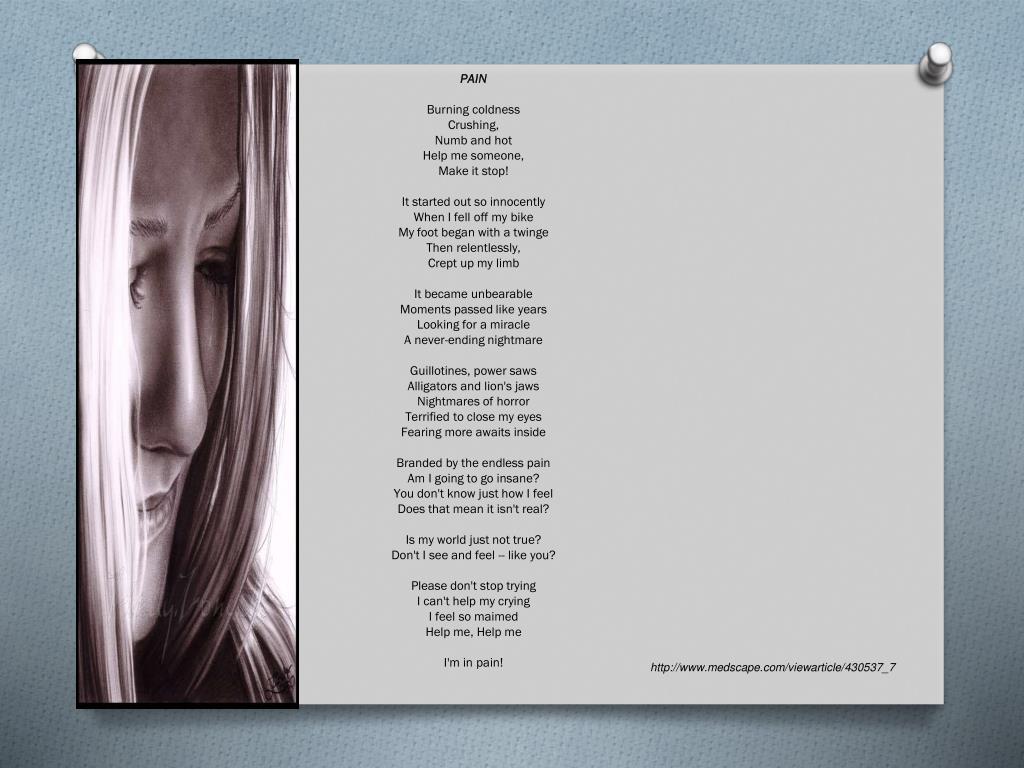

http://www.medscape.com/viewarticle/430537_7


Treatment

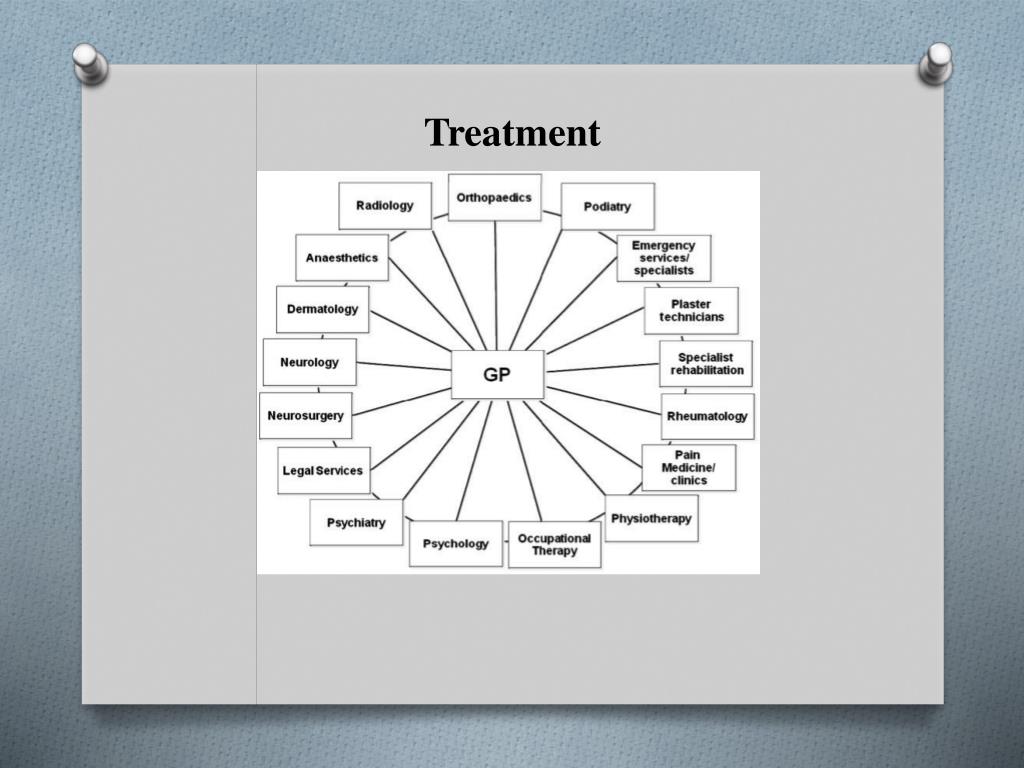

Treatment


Treatment1

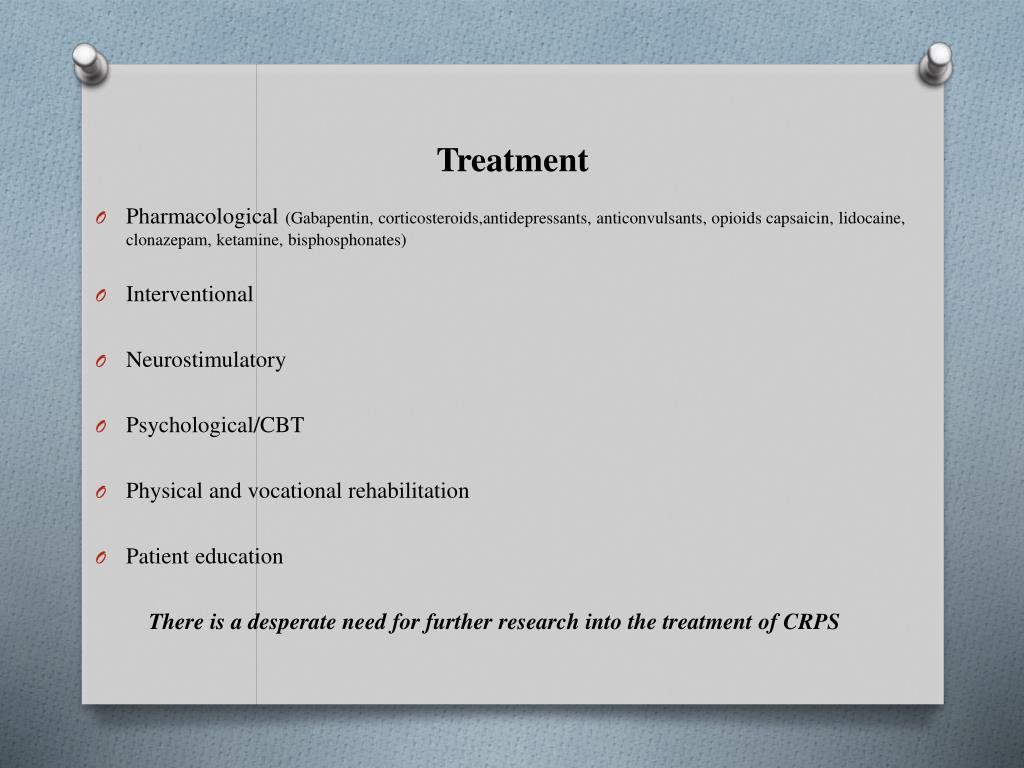

Treatment

  • Pharmacological (Gabapentin, corticosteroids,antidepressants, anticonvulsants, opioids capsaicin, lidocaine, clonazepam, ketamine, bisphosphonates)

  • Interventional

  • Neurostimulatory

  • Psychological/CBT

  • Physical and vocational rehabilitation

  • Patient education

    There is a desperate need for further research into the treatment of CRPS


Transcranial direct current stimulation tdcs

Transcranialdirect current stimulation (tDCS)

  • Uses weak electrical currents (1-2mA) to modulate the activity of neurons in the brain

  • In tDCS, the anodal electrode placed over the cortical target results in increased cortical excitability, whereas cathodal stimulation decreases local cortical excitability.


Modulating pain in crps with tdcs

  • The primary action of tDCS for pain reduction is direct modulation of activity in certain areas of the brain that are involved in pain processing, such as the thalamus and inhibitory corticospinal mechanisms.

  • tDCSis used in other pain syndromes, such as fibromyalgia, phantom pain and central pain in traumatic spinal cord injury.


Objectives

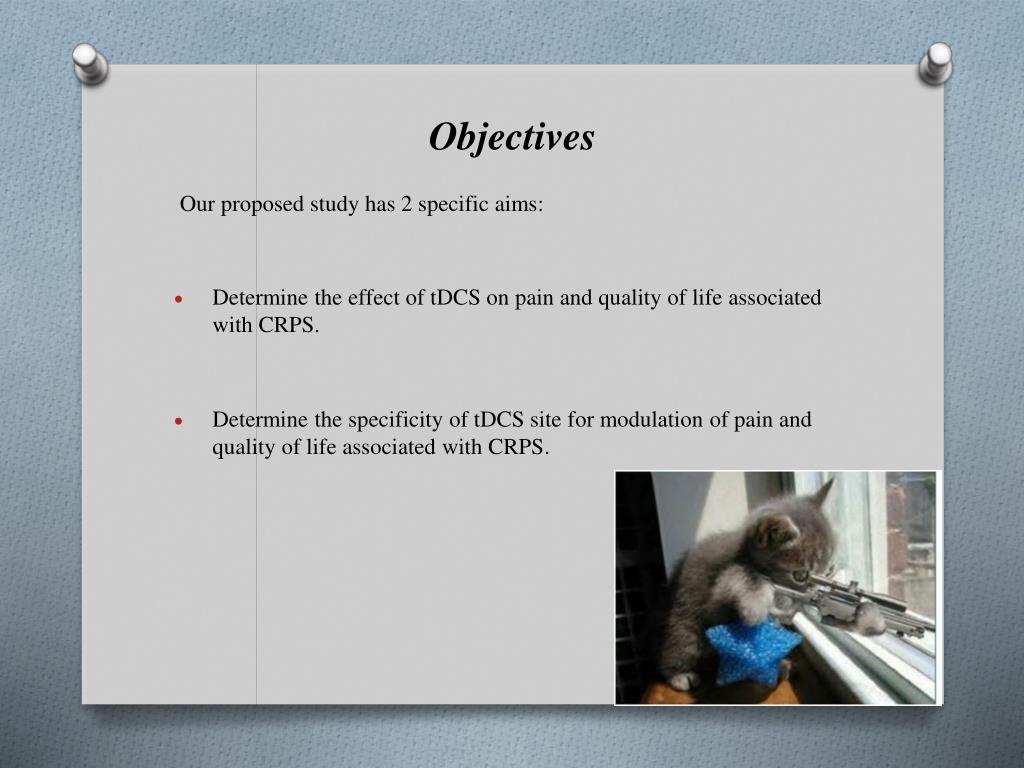

Objectives

Our proposed study has 2 specific aims:

  • Determine the effect of tDCS on pain and quality of life associated with CRPS.

  • Determine the specificity of tDCS site for modulation of pain and quality of life associated with CRPS.


Study design

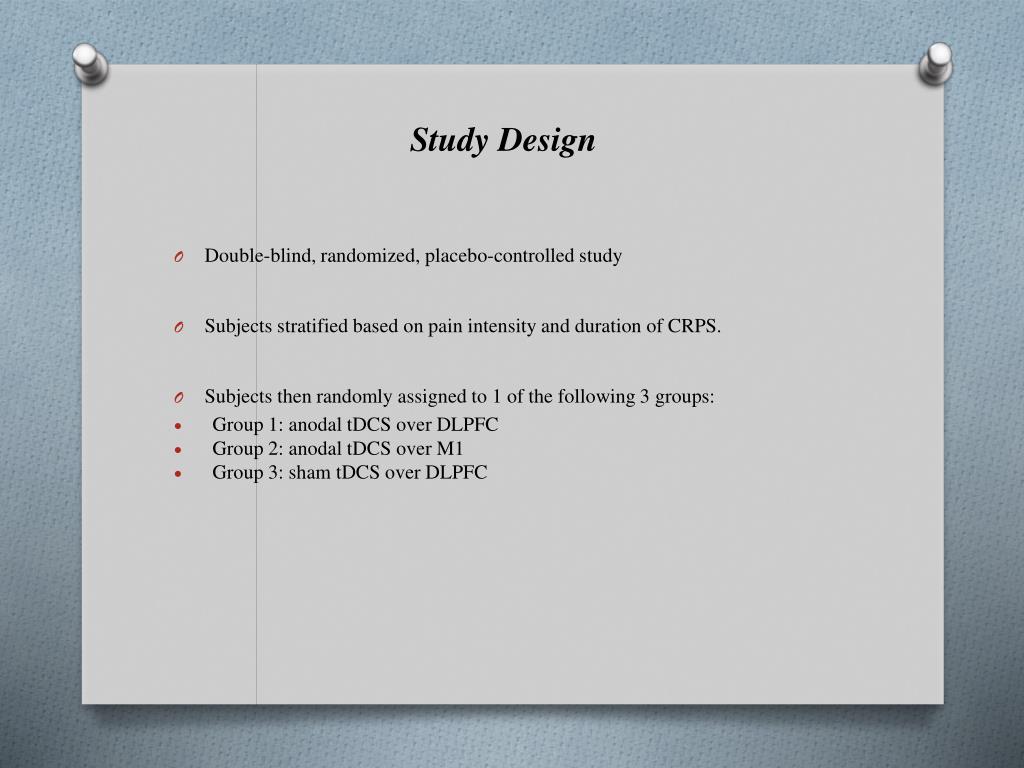

Study Design

  • Double-blind, randomized, placebo-controlled study

  • Subjects stratified based on pain intensity and duration of CRPS.

  • Subjects then randomly assigned to 1of the following 3 groups:

  • Group 1: anodal tDCS over DLPFC

  • Group 2: anodal tDCS over M1

  • Group 3: sham tDCSover DLPFC


Modulating pain in crps with tdcs

4 evaluation sessions and 10 treatment sessions with each subject

1 week

1 week

1 week

1 week

T0

T1

Begin

treatment

T3

T4


Study population

Study Population

  • Inclusion criteria:

    Subjects must be at least 18 years of age with diagnosed CRPS following the recently updated Budapest criteria

  • Exclusion criteria:

  • Within 1 month of recruitment, addition or change in the dosage of drugs known to interfere with pain

  • Untreated depression

  • History of head injury with loss of consciousness, severe alcohol or drug abuse, or psychiatric illness, Seizure disorder

  • Pregnancy

  • Presence of ferromagnetic material in the cranium except in the mouth, including metal fragments from occupational exposure, and surgical clips in or near the brain.


Intervention

Intervention

  • One 35 cm2saline-soaked sponge electrodes placed over the scalp sites overlying the relevant cortex and reference electrode placed supraorbitally.

  • Battery-operated direct current stimulator for delivery of stimulation (Magstim Ltd., Wales, UK).

  • With the exception of the control group, each subject will receive 20 minutes of tDCS at an intensity of 1.4mA. (These values result in a current density of 0.04mA/cm2 and a charge density of 480 Coulombs/M2)

  • For the control condition, stimulation intensity will be ramped up then ramped down over a 30-second window.


Assessment

Assessment

  • Short-Form McGill Pain Questionnaire, which will serve as the primary behavioral outcome for this study.

  • The SF-36 Health Survey will be used to measure changes in quality of life.


References

References

  • de Mos M, Huygen FJ, van der Hoeven-Borgman M, Dieleman JP, ChStricker BH, Sturkenboom MC. Outcome of the complex regional pain syndrome. Clin J Pain. 2009;25:590-597

  • Perez RS, Kwakkel G, Zuurmond WW, de Lange JJ. Treatment of reflex sympathetic dystrophy (crps type 1): A research synthesis of 21 randomized clinical trials. J Pain Symptom Manage. 2001;21:511-526

  • PicarelliH, Teixeira MJ, de Andrade DC, Myczkowski ML, Luvisotto TB, Yeng LT, Fonoff ET, Pridmore S, Marcolin MA. Repetitive transcranial magnetic stimulation is efficacious as an add-on to pharmacological therapy in complex regional pain syndrome (crps) type i. J Pain. 2010;11:1203-1210

  • PlegerB, Janssen F, Schwenkreis P, Volker B, Maier C, Tegenthoff M. Repetitive transcranial magnetic stimulation of the motor cortex attenuates pain perception in complex regional pain syndrome type i. NeurosciLett. 2004;356:87-90

  • Goebel A. Complex regional pain syndrome in adults. Rheumatology (Oxford). 2011;50:1739-1750

  • MaihofnerC, Handwerker HO, Birklein F. Functional imaging of allodynia in complex regional pain syndrome. Neurology. 2006;66:711-717

  • Grachev ID, Thomas PS, Ramachandran TS. Decreased levels of n-acetylaspartate in dorsolateral prefrontal cortex in a case of intractable severe sympathetically mediated chronic pain (complex regional pain syndrome, type i). Brain Cogn. 2002;49:102-113

  • Seminowicz DA, Wideman TH, Naso L, Hatami-Khoroushahi Z, Fallatah S, Ware MA, Jarzem P, Bushnell MC, Shir Y, Ouellet JA, Stone LS. Effective treatment of chronic low back pain in humans reverses abnormal brain anatomy and function. J Neurosci. 2011;31:7540-7550


References1

References

  • Priori A, Berardelli A, Inghilleri M, Pedace F, Giovannelli M, Manfredi M. Electrical stimulation over muscle tendons in humans. Evidence favouring presynaptic inhibition of iafibres due to the activation of group iii tendon afferents. Brain. 1998;121 ( Pt 2):373-380

  • NitscheMA, Paulus W. Excitability changes induced in the human motor cortex by weak transcranial direct current stimulation. J Physiol. 2000;527 Pt3:633-639

  • Hummel F, Celnik P, Giraux P, Floel A, Wu WH, Gerloff C, Cohen LG. Effects of non-invasive cortical stimulation on skilled motor function in chronic stroke. Brain. 2005;128:490-499

  • FregniF, Boggio PS, Lima MC, Ferreira MJ, Wagner T, Rigonatti SP, Castro AW, Souza DR, Riberto M, Freedman SD, Nitsche MA, Pascual-Leone A. A sham-controlled, phase ii trial of transcranial direct current stimulation for the treatment of central pain in traumatic spinal cord injury. Pain. 2006;122:197-209

  • Paulus W. Transcranial direct current stimulation (tdcs). SupplClinNeurophysiol. 2003;56:249-254

  • NitscheMA, Cohen LG, Wassermann EM, Priori A, Lang N, Antal A, Paulus W, Hummel F, Boggio PS, Fregni F, Pascual-Leone A. Transcranial direct current stimulation: State of the art 2008. Brain Stimul. 2008;1:206-223

  • FregniF, Gimenes R, Valle AC, Ferreira MJ, Rocha RR, Natalle L, Bravo R, Rigonatti SP, Freedman SD, Nitsche MA, Pascual-Leone A, Boggio PS. A randomized, sham-controlled, proof of principle study of transcranial direct current stimulation for the treatment of pain in fibromyalgia. Arthritis Rheum. 2006;54:3988-3998

  • RoizenblattS, Fregni F, Gimenez R, Wetzel T, Rigonatti SP, Tufik S, Boggio PS, Valle AC. Site-specific effects of transcranial direct current stimulation on sleep and pain in fibromyalgia: A randomized, sham-controlled study. Pain Pract. 2007;7:297-306


References2

References

  • BoggioPS, Zaghi S, Fregni F. Modulation of emotions associated with images of human pain using anodal transcranial direct current stimulation (tdcs). Neuropsychologia. 2009;47:212-217

  • Fenton BW, Palmieri PA, Boggio P, Fanning J, Fregni F. A preliminary study of transcranial direct current stimulation for the treatment of refractory chronic pelvic pain. Brain Stimul. 2009;2:103-107

  • AntalA, Terney D, Kuhnl S, Paulus W. Anodal transcranial direct current stimulation of the motor cortex ameliorates chronic pain and reduces short intracortical inhibition. J Pain Symptom Manage. 2010;39:890-903

  • Mori F, Codeca C, Kusayanagi H, Monteleone F, Buttari F, Fiore S, Bernardi G, Koch G, Centonze D. Effects of anodal transcranial direct current stimulation on chronic neuropathic pain in patients with multiple sclerosis. J Pain. 2010;11:436-442

  • Harden RN, Bruehl S, Perez RS, Birklein F, Marinus J, Maihofner C, Lubenow T, Buvanendran A, Mackey S, Graciosa J, Mogilevski M, Ramsden C, Chont M, Vatine JJ. Validation of proposed diagnostic criteria (the "Budapest criteria") for complex regional pain syndrome. Pain.150:268-274

  • Bikson M, Datta A, Elwassif M. Establishing safety limits for transcranial direct current stimulation. ClinNeurophysiol. 2009;120:1033-1034

  • Gandiga PC, Hummel FC, Cohen LG. Transcranial dc stimulation (tdcs): A tool for double-blind sham-controlled clinical studies in brain stimulation. ClinNeurophysiol. 2006;117:845-850

  • Poreisz C, Boros K, Antal A, Paulus W. Safety aspects of transcranial direct current stimulation concerning healthy subjects and patients. Brain Res Bull. 2007;72:208-214

  • Nitsche MA, Liebetanz D, Lang N, Antal A, Tergau F, Paulus W. Safety criteria for transcranial direct current stimulation (tdcs) in humans. ClinNeurophysiol. 2003;114:2220-2222; author reply 2222-2223


References3

References

  • NitscheMA, Boggio PS, Fregni F, Pascual-Leone A. Treatment of depression with transcranial direct current stimulation (tdcs): A review. Exp Neurol. 2009;219:14-19

  • Edwards DJ, Krebs HI, Rykman A, Zipse J, Thickbroom GW, Mastaglia FL, Pascual-Leone A, Volpe BT. Raised corticomotor excitability of m1 forearm area following anodal tdcs is sustained during robotic wrist therapy in chronic stroke. RestorNeurolNeurosci. 2009;27:199-207

  • Boggio PS, Nunes A, Rigonatti SP, Nitsche MA, Pascual-Leone A, Fregni F. Repeated sessions of noninvasive brain dc stimulation is associated with motor function improvement in stroke patients. RestorNeurolNeurosci. 2007;25:123-129

  • Hummel FC, Voller B, Celnik P, Floel A, Giraux P, Gerloff C, Cohen LG. Effects of brain polarization on reaction times and pinch force in chronic stroke. BMC Neurosci. 2006;7:73
