  1. WELCOME TORadio Merit Badge Patch ordering info Presented by: Bob Greenberg, W2CYK

  2. Overview • Boy Scout Radio Merit Badge • What is Radio? • How do radio waves travel? • The Spectrum • Components of a radio station • Safety • Circuits/Schematics/Block Diagrams • What is Amateur Radio? What do Hams do? • How do I communicate over radio? • Morse Code • Types of Statoins….Base/Portable/Mobile

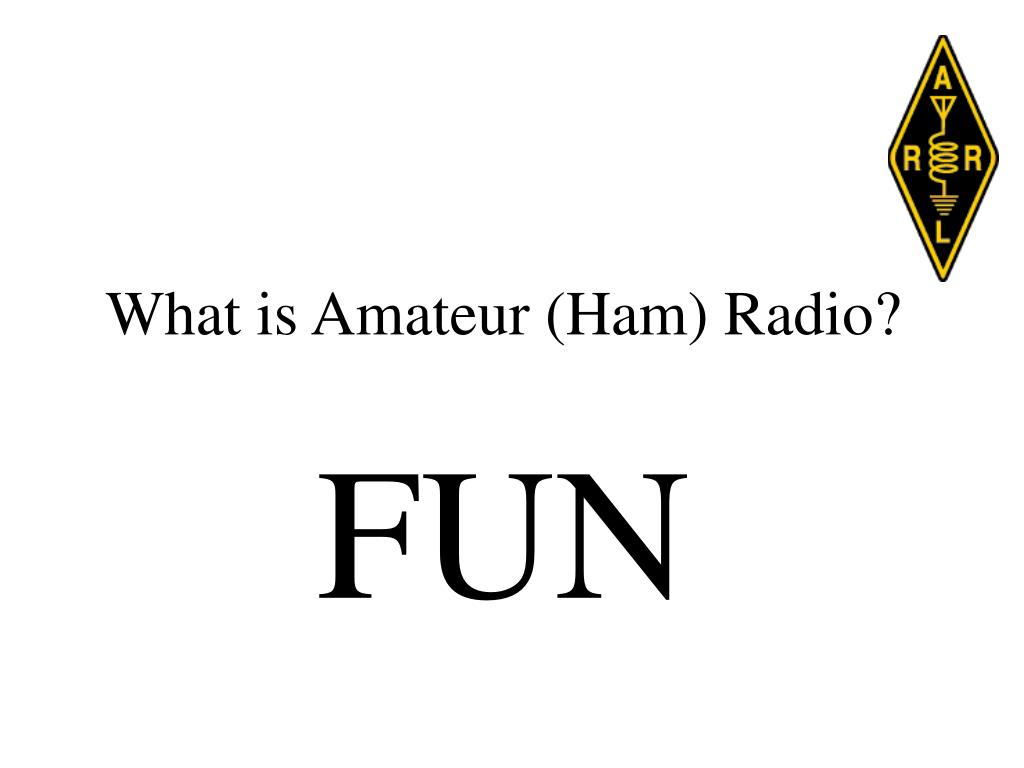

  3. What is Amateur (Ham) Radio? FUN

  4. What is Amateur (Ham) Radio(government definition) • Amateur Radio is a radio communications service for the purpose of self-training, intercommunication and technical investigations carried out by amateurs, that is authorized persons interested in radio technique solely with a personal (non-business) aim. • FCC Rules Part 97.3

  5. Ham Radio Operators • Come from all walks of life: young and old, boys and girls; without regard to ability. • Shared interest in many things including: • Communicating and meeting new people • Talking to new places around the world, around the block, or in space • Science and technology • Computers • Community service and helping others • Competitions • Learning new things and applying what you learn

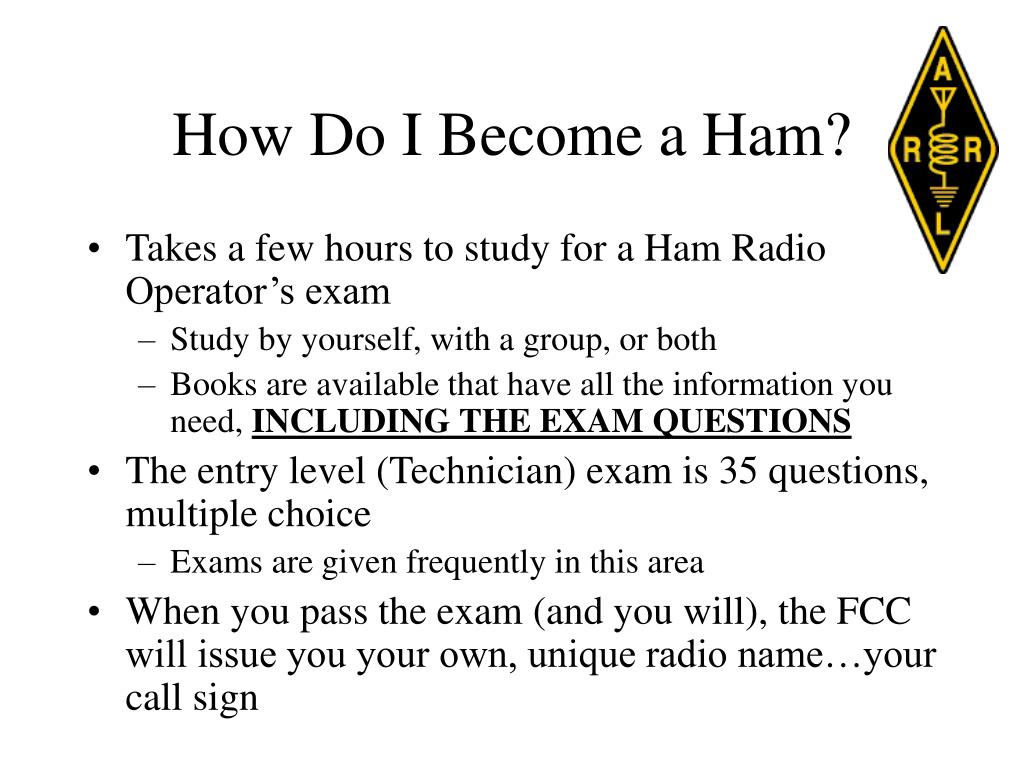

  6. How Do I Become a Ham? • Takes a few hours to study for a Ham Radio Operator’s exam • Study by yourself, with a group, or both • Books are available that have all the information you need, INCLUDING THE EXAM QUESTIONS • The entry level (Technician) exam is 35 questions, multiple choice • Exams are given frequently in this area • When you pass the exam (and you will), the FCC will issue you your own, unique radio name…your call sign

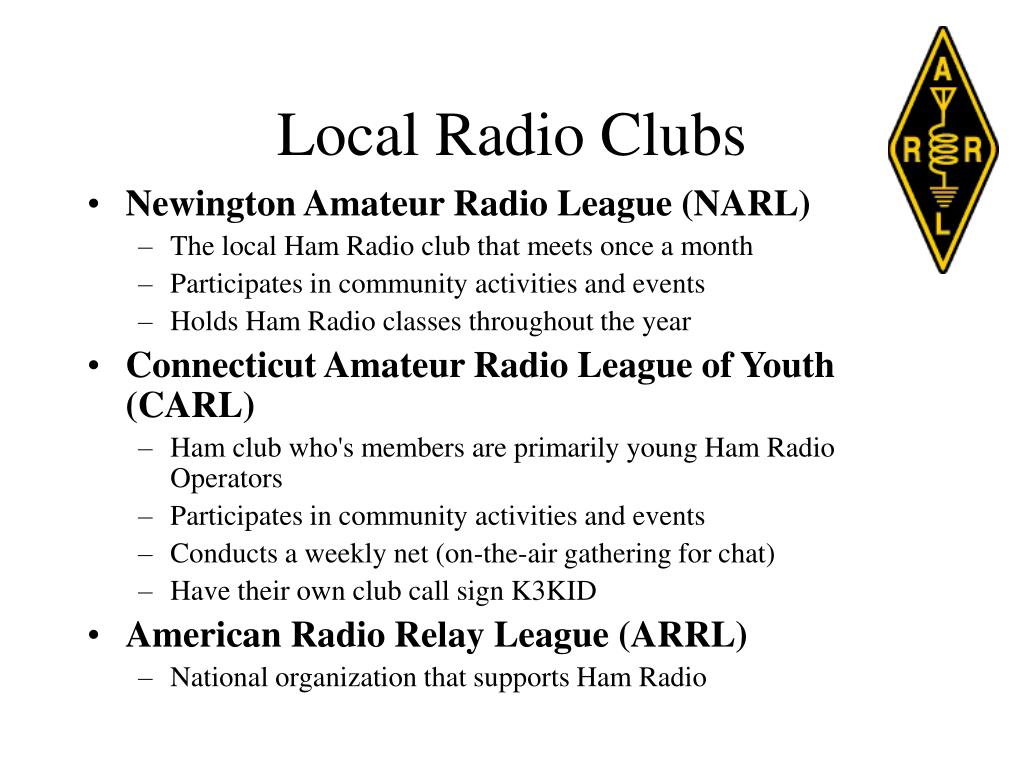

  7. Local Radio Clubs • Newington Amateur Radio League (NARL) • The local Ham Radio club that meets once a month • Participates in community activities and events • Holds Ham Radio classes throughout the year • Connecticut Amateur Radio League of Youth (CARL) • Ham club who's members are primarily young Ham Radio Operators • Participates in community activities and events • Conducts a weekly net (on-the-air gathering for chat) • Have their own club call sign K3KID • American Radio Relay League (ARRL) • National organization that supports Ham Radio

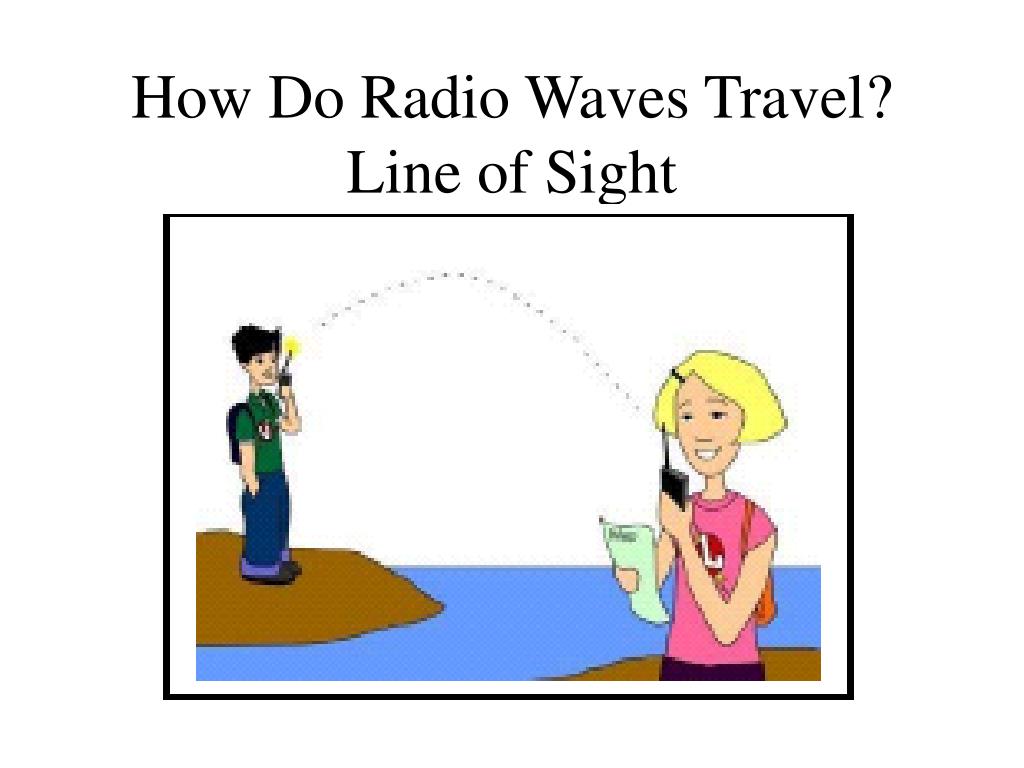

  8. How Do Radio Waves Travel? Line of Sight

  9. How Do Radio Waves Travel?Repeaters

  10. How Do Radio Waves Travel?Sky Wave

  11. How Do Radio Waves Travel?Via Space

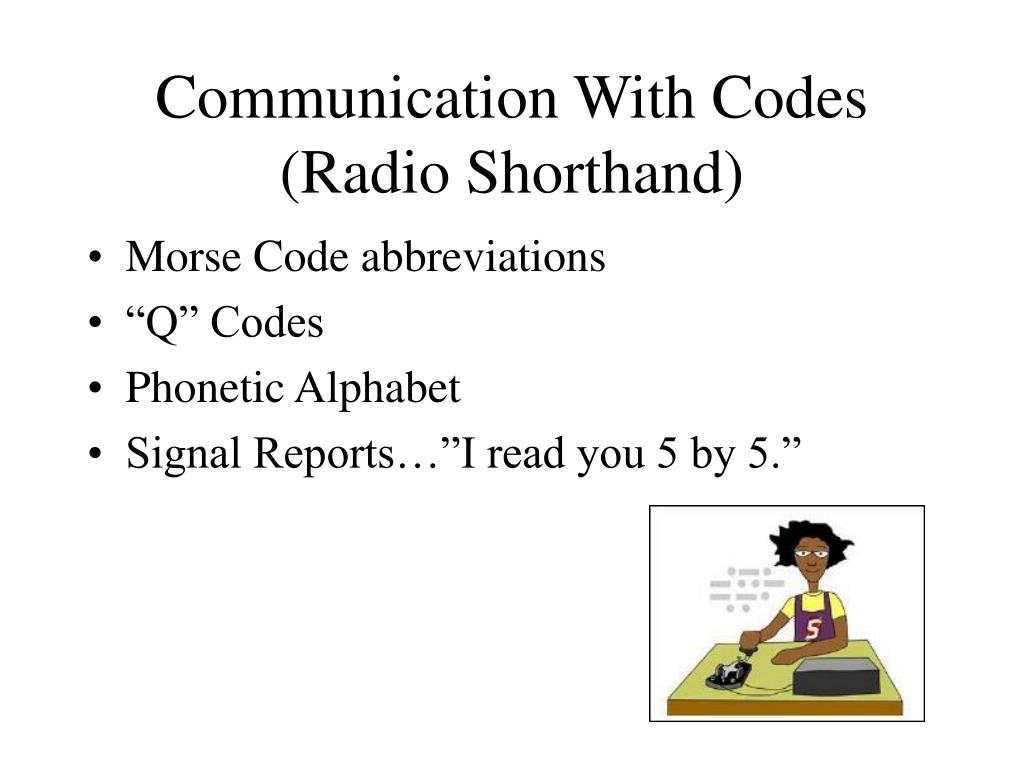

  12. Communication With Codes(Radio Shorthand) • Morse Code abbreviations • “Q” Codes • Phonetic Alphabet • Signal Reports…”I read you 5 by 5.”

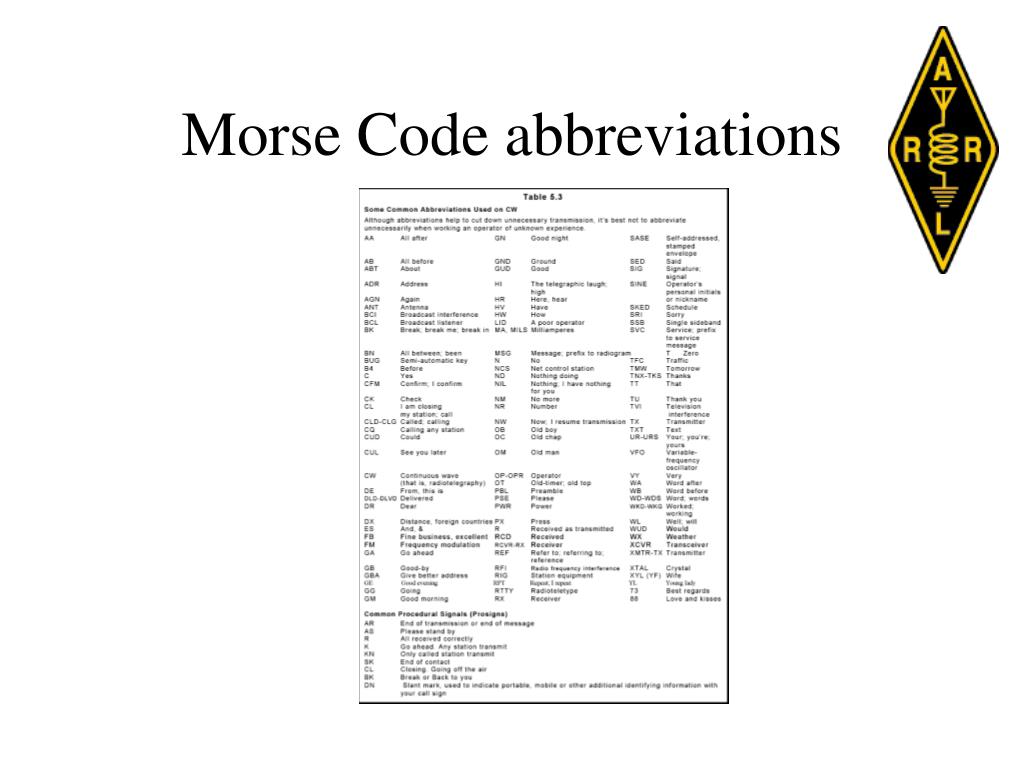

  13. Morse Code abbreviations

  14. “Q” Codes

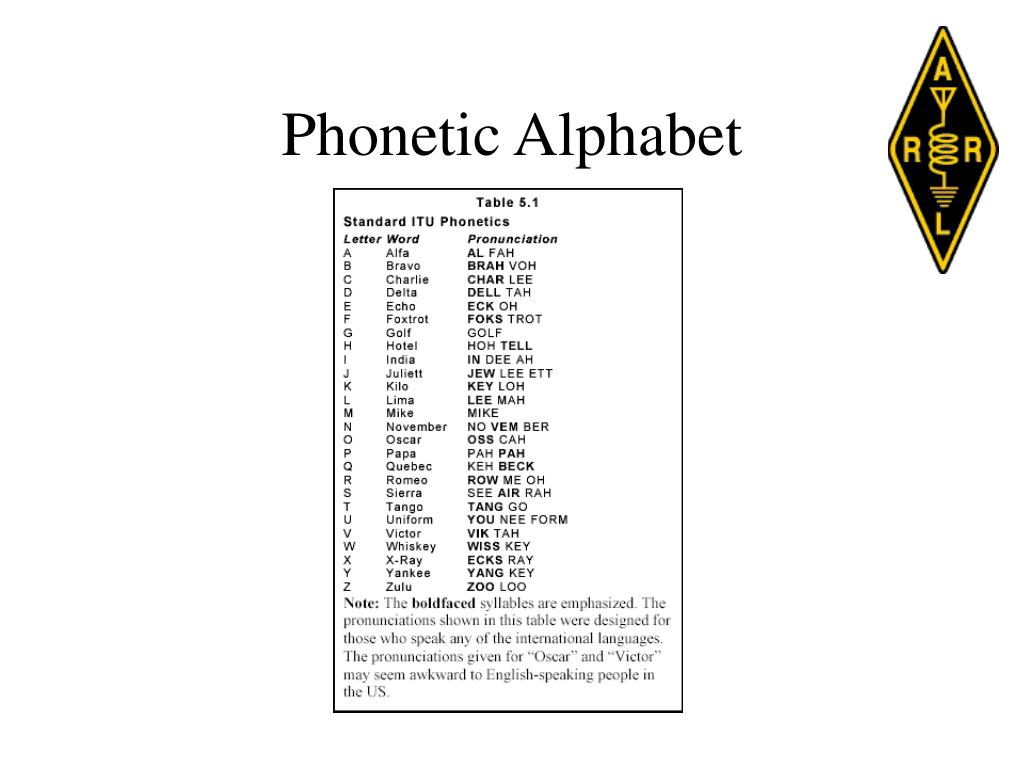

  15. Phonetic Alphabet

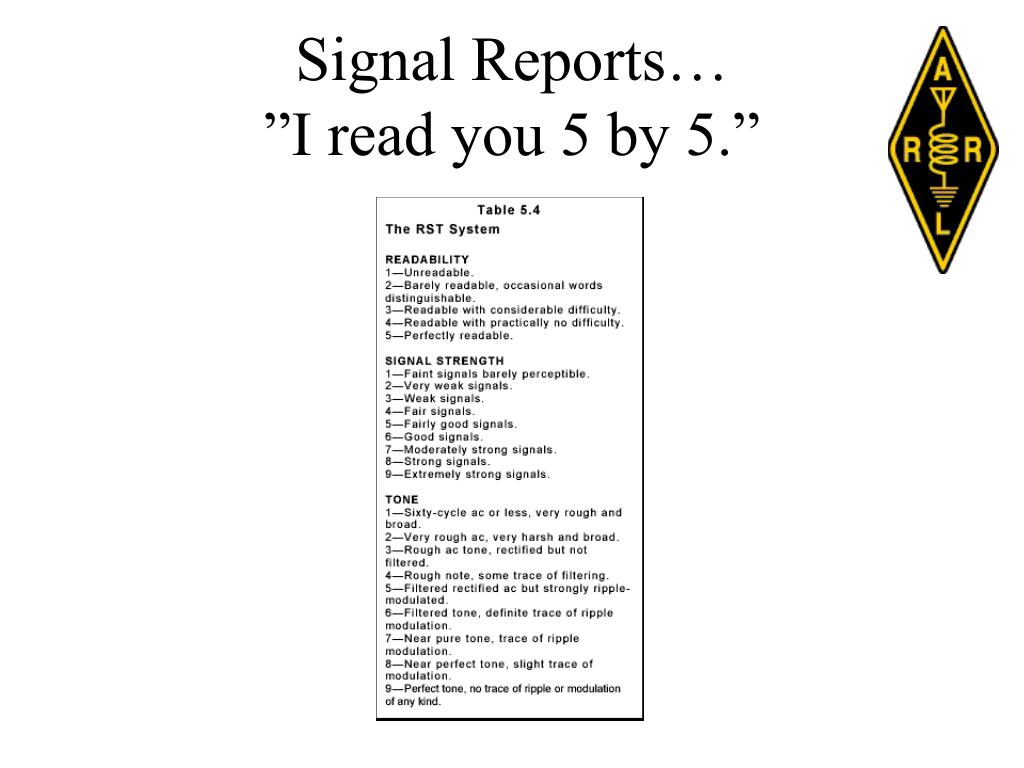

  16. Signal Reports…”I read you 5 by 5.”

  17. Radiogram Message Form

  18. The Journey Inside a Radio • Major Radio Station Components • Transceiver • Transmitter • Receiver • Antenna • Antenna feed line • Input device • Microphone • Telegraph key • Computer • TV camera

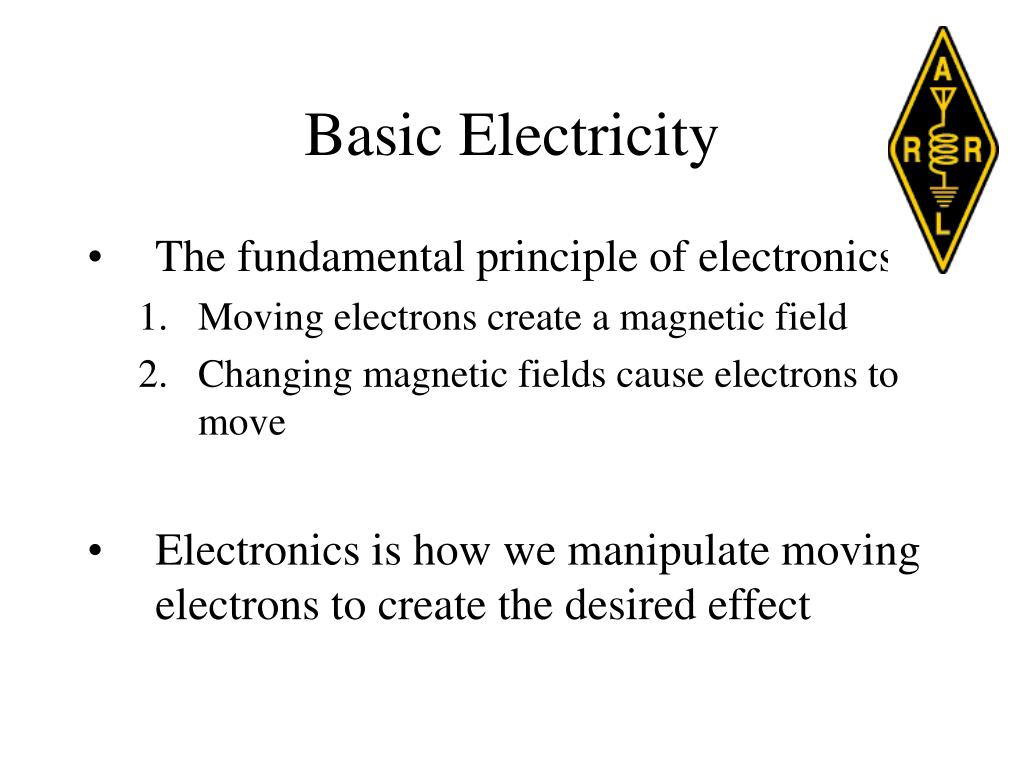

  19. Basic Electricity • The fundamental principle of electronics • Moving electrons create a magnetic field • Changing magnetic fields cause electrons to move • Electronics is how we manipulate moving electrons to create the desired effect

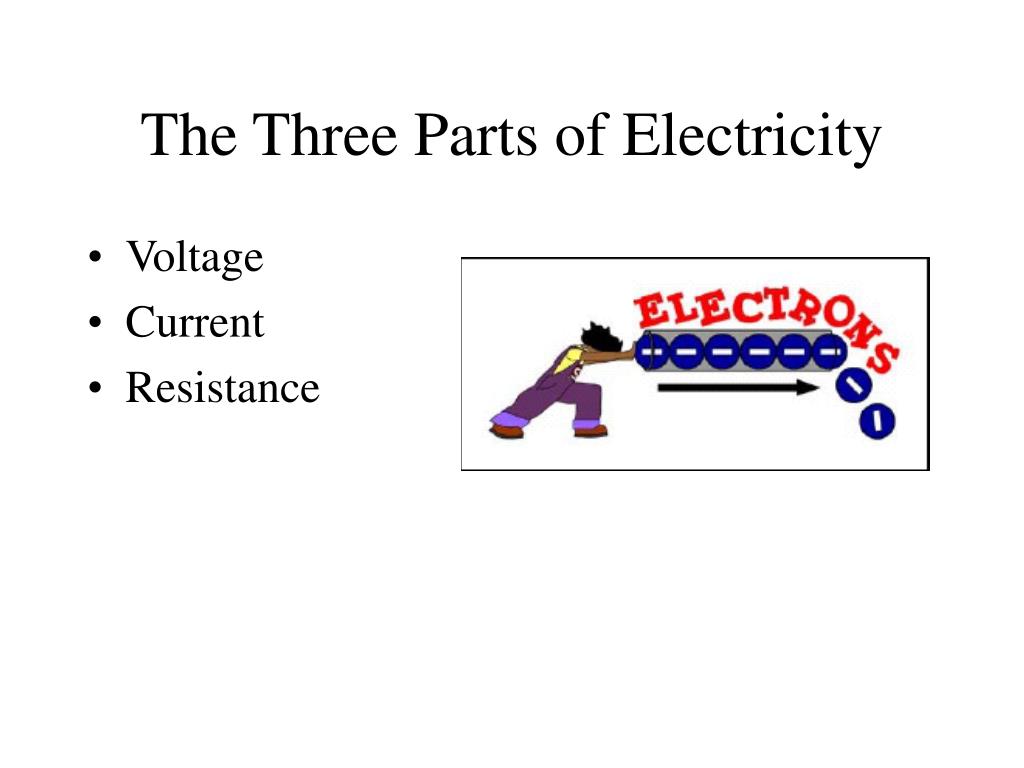

  20. The Three Parts of Electricity • Voltage • Current • Resistance

  21. The Three Parts are Related by Ohm’s Laws • Voltage = E • Current = I • Resistance = R • Ohms law is the most important relationship (formula) in electronics

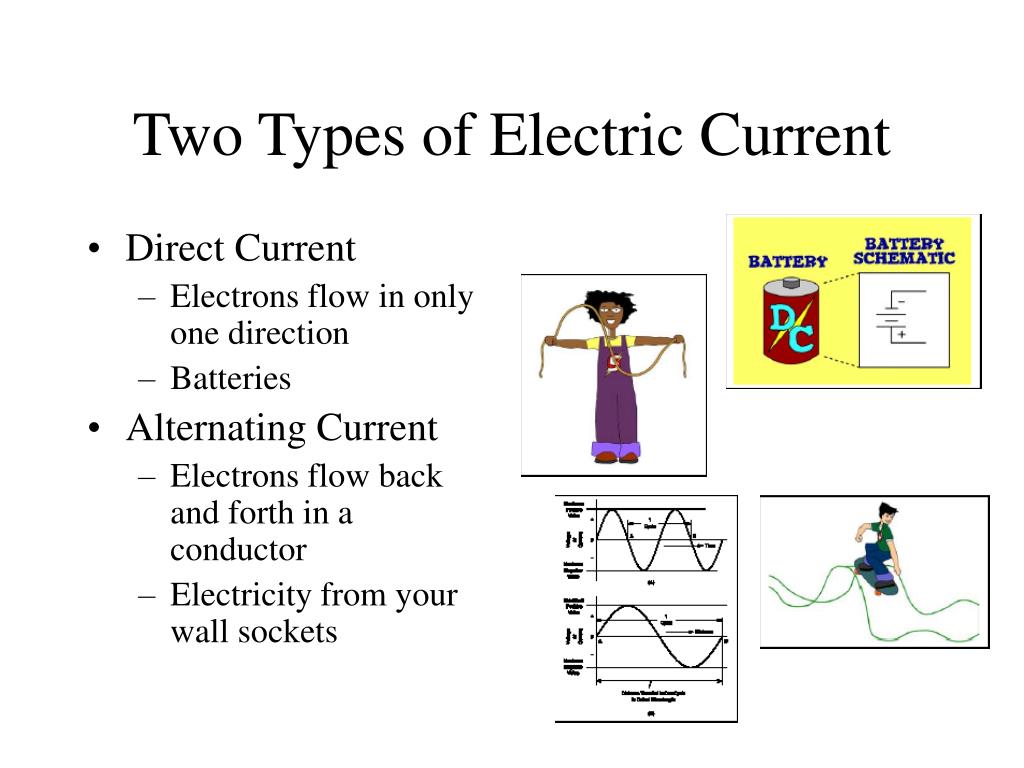

  22. Two Types of Electric Current • Direct Current • Electrons flow in only one direction • Batteries • Alternating Current • Electrons flow back and forth in a conductor • Electricity from your wall sockets

  23. Electronic Circuits(pathways for electrons) • Complete (Closed) • Proper circuit to cause electrons to do something useful • Short • Direct path that bypasses a portion of a circuit (usually a bad/dangerous thing) • Open • A broken circuit with no completed pathway for electrons (usually a safety condition)

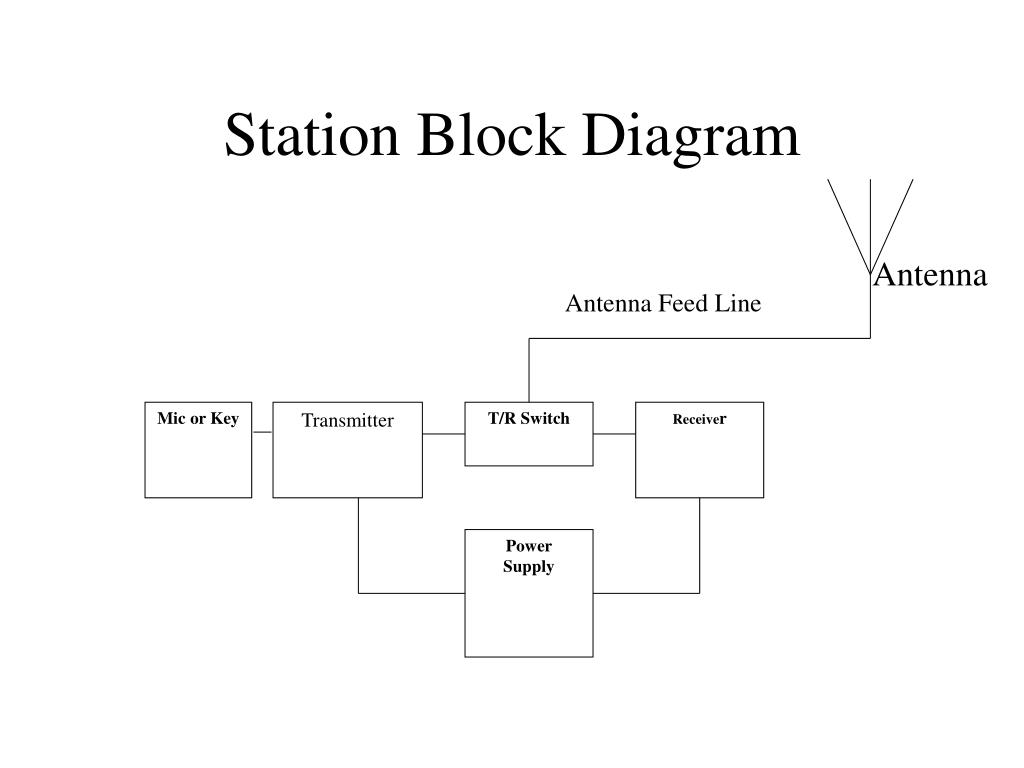

  24. Mic or Key Transmitter T/R Switch Receiver Power Supply Station Block Diagram Antenna Antenna Feed Line

  25. ElectronicSchematics • Roadmaps of the inside of a radio • Used to build, trouble- shoot, and repair electronics

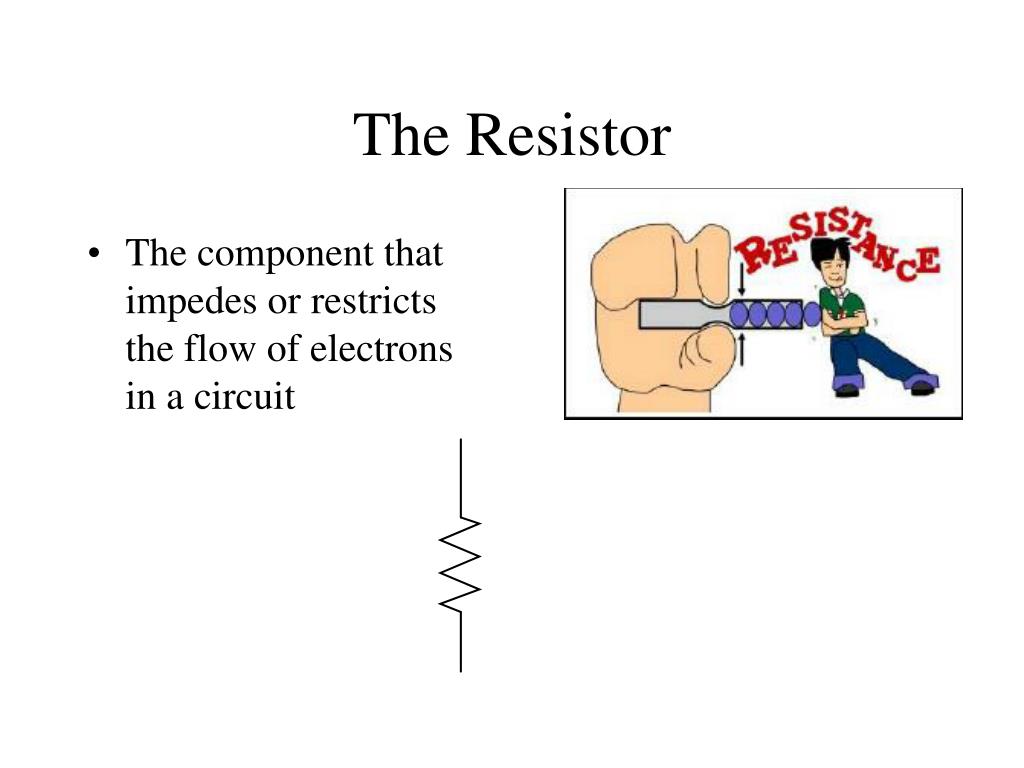

  26. The Resistor • The component that impedes or restricts the flow of electrons in a circuit

  27. The Capacitor • The component that acts like a very small battery. The capacitor temporarily stores energy in an electrostatic field between two metal plates

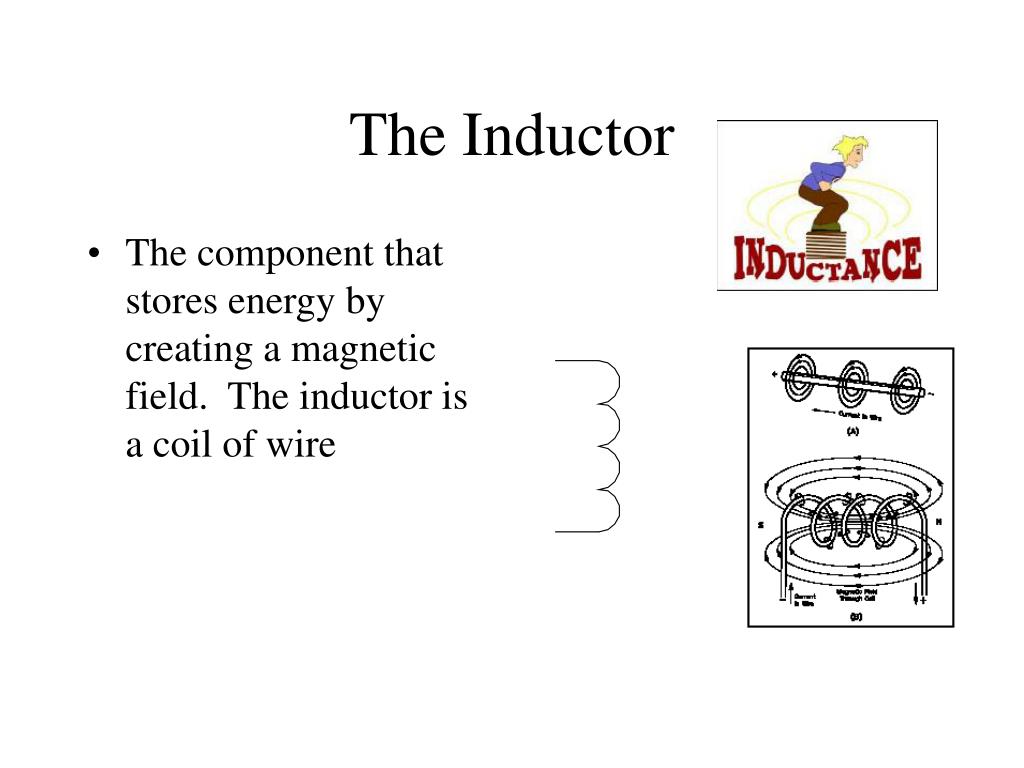

  28. The Inductor • The component that stores energy by creating a magnetic field. The inductor is a coil of wire

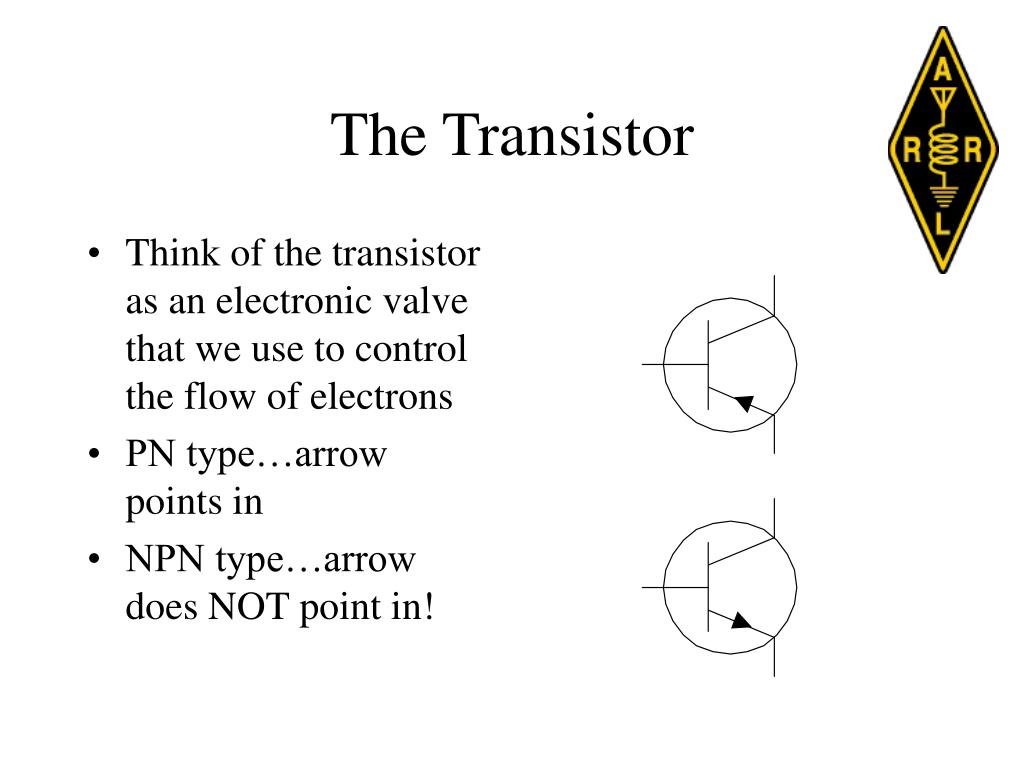

  29. The Transistor • Think of the transistor as an electronic valve that we use to control the flow of electrons • PN type…arrow points in • NPN type…arrow does NOT point in!

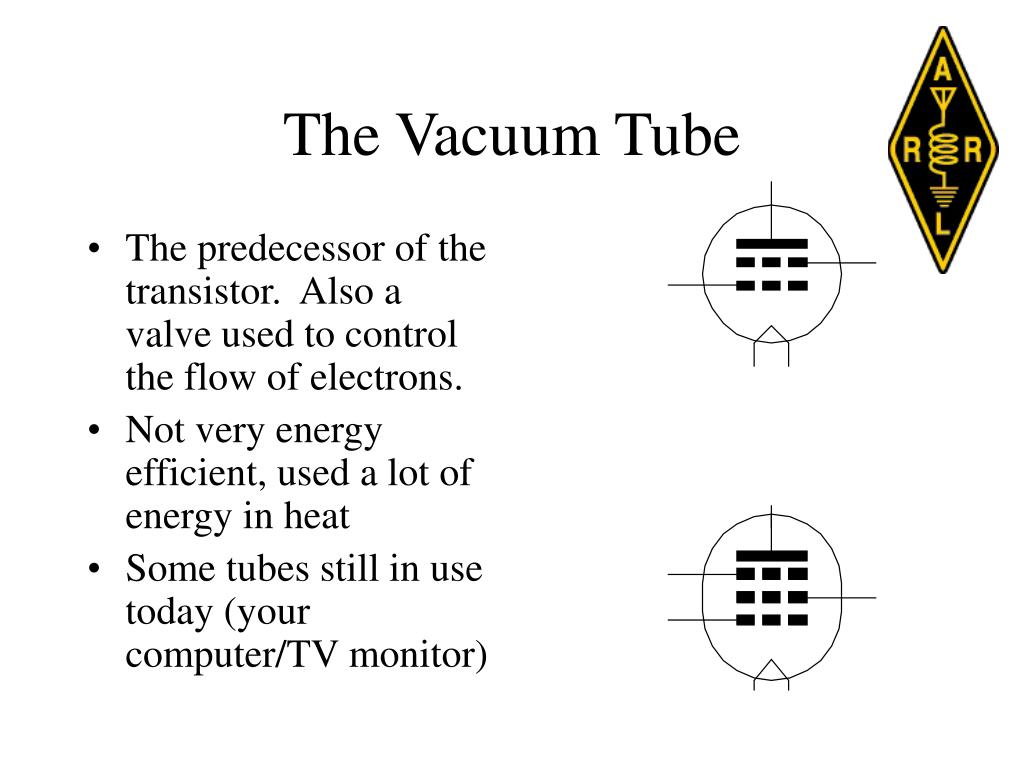

  30. The Vacuum Tube • The predecessor of the transistor. Also a valve used to control the flow of electrons. • Not very energy efficient, used a lot of energy in heat • Some tubes still in use today (your computer/TV monitor)

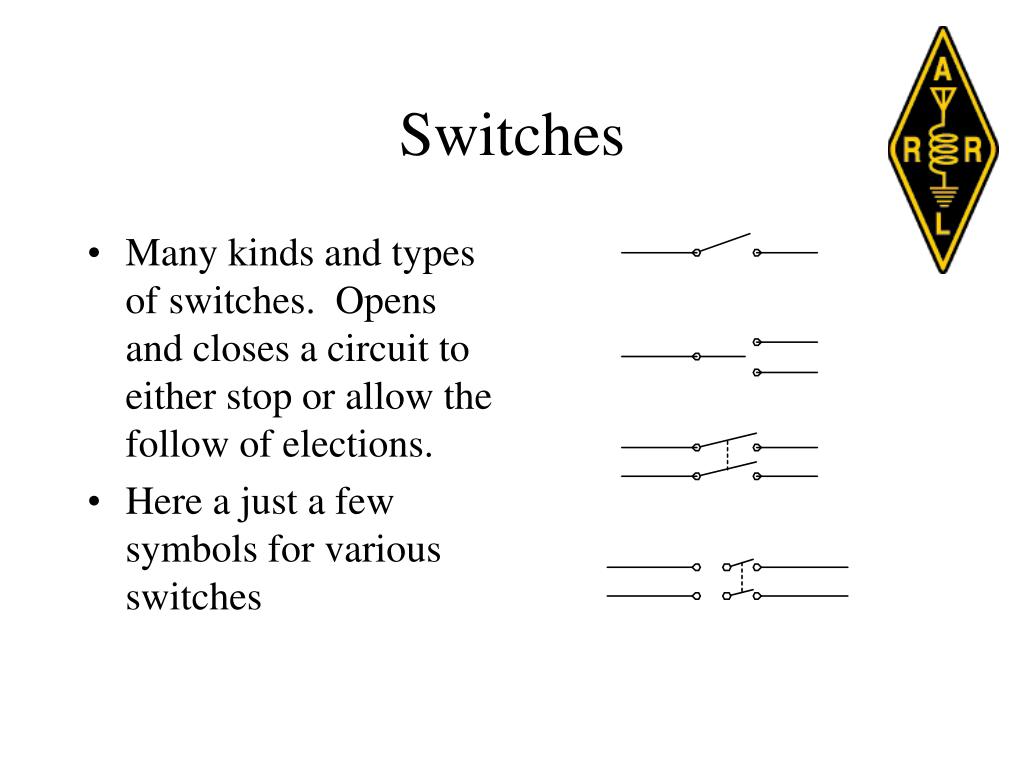

  31. Switches • Many kinds and types of switches. Opens and closes a circuit to either stop or allow the follow of elections. • Here a just a few symbols for various switches

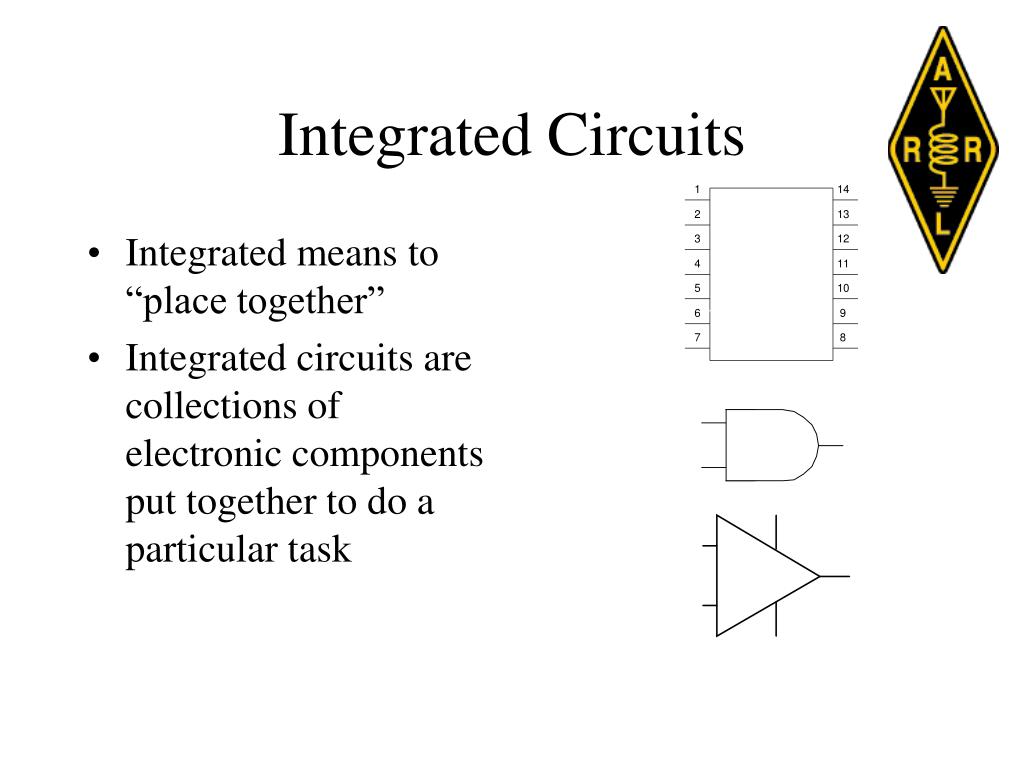

  32. Integrated Circuits • Integrated means to “place together” • Integrated circuits are collections of electronic components put together to do a particular task

  33. Ham Radio Call Signs • W2CYK • W (W,A, K, N) = United States • 2 = from the 2nd call district (NY, NJ) • CYK = The next letters in line when issued • Callsigns can be requested…they are called “vanity callsigns.” Baiting Hollow’s original callsign was KC2RZV, but we have requested AA2BH as our Vanity Callsign

  34. Ham Radio Call Signs • DA1OY • D = West Germany • G5EPV • G = England • HL9AW • HL = South Korea • 4X6TT • 4Xn = Israel

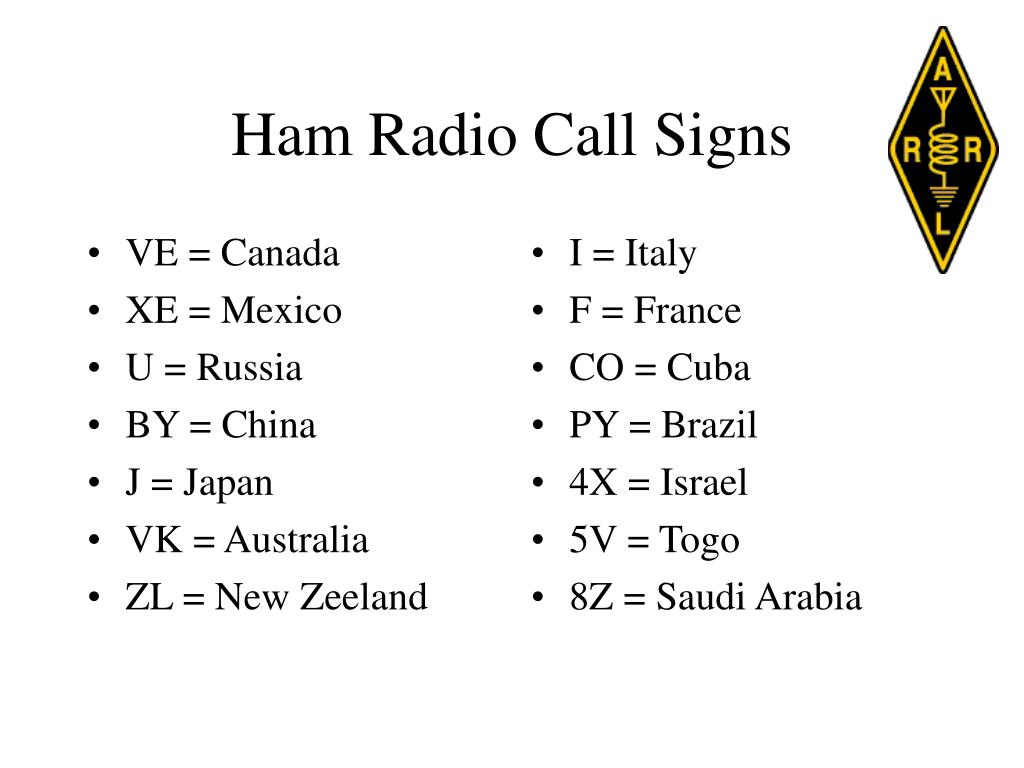

  35. VE = Canada XE = Mexico U = Russia BY = China J = Japan VK = Australia ZL = New Zeeland I = Italy F = France CO = Cuba PY = Brazil 4X = Israel 5V = Togo 8Z = Saudi Arabia Ham Radio Call Signs

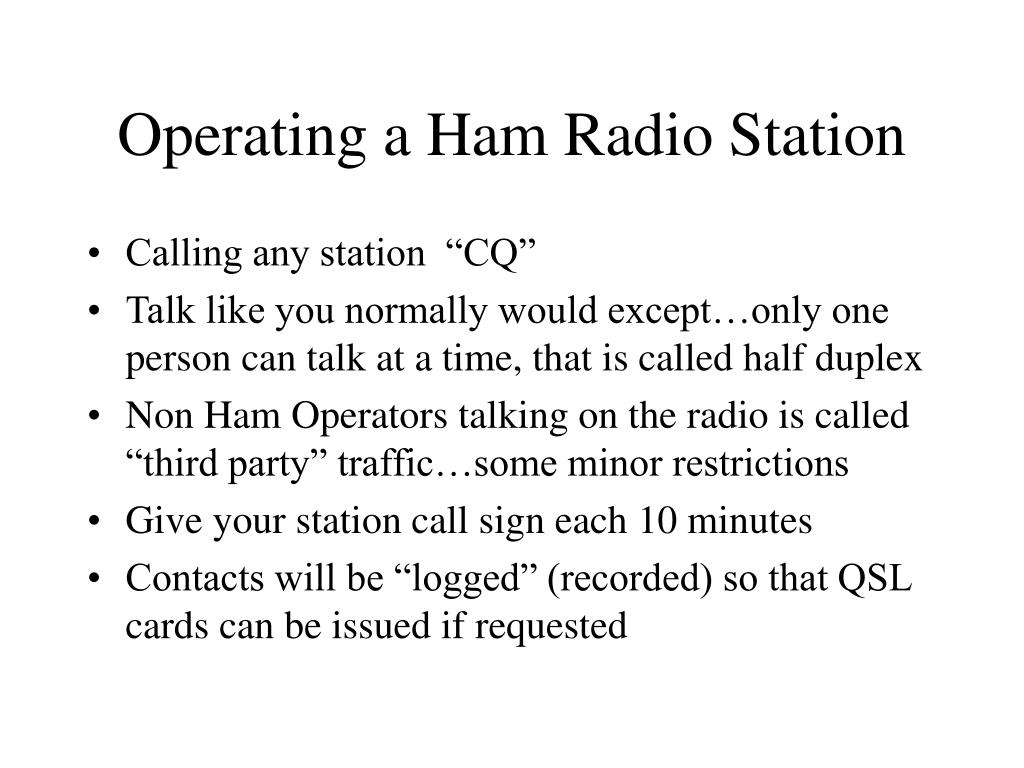

  36. Operating a Ham Radio Station • Calling any station “CQ” • Talk like you normally would except…only one person can talk at a time, that is called half duplex • Non Ham Operators talking on the radio is called “third party” traffic…some minor restrictions • Give your station call sign each 10 minutes • Contacts will be “logged” (recorded) so that QSL cards can be issued if requested

  37. Operating a Ham Radio Station • Don’t be afraid to talk, you won’t break anything! • Have fun meeting new people…across the street, around the world, or in space: Ham Radio
