Object and reference immutability using java generics

Object and Reference Immutability using Java Generics

Yoav Zibin(1), Alex Potanin(2), Shay Artzi(1), Adam Kiezun(1), and Michael D. Ernst(1)

1) MIT Computer Science and Artificial Intelligence Lab, USA

2) Victoria University of Wellington, New-Zealand

Presenting: Ori Arad ([email protected]) – 14/2/07


Immutability what for

Program comprehension

Verification

Compile & Run-time optimizations

Invariant detection

Refactoring

Test input generation

Regression oracle creation

Specification mining

Modeling

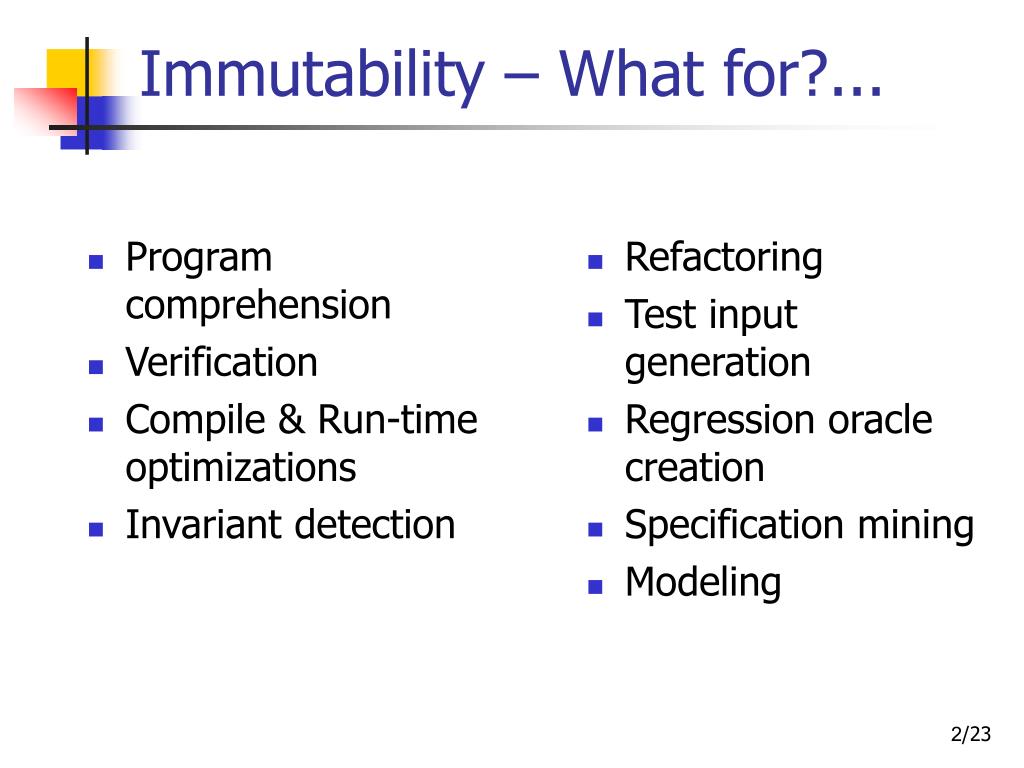

Immutability – What for?...


Immutability varieties

Immutability varieties

  • Class immutability

    • No instance of an immutable class may be change after creation (e.g. String, Integer etc.)

  • Object immutability

    • Immutable instances may not be changed, while other instances (of the same class) may…

  • Reference immutability

    • a given reference cannot be used to modify its referent.


Igj immutability generic java

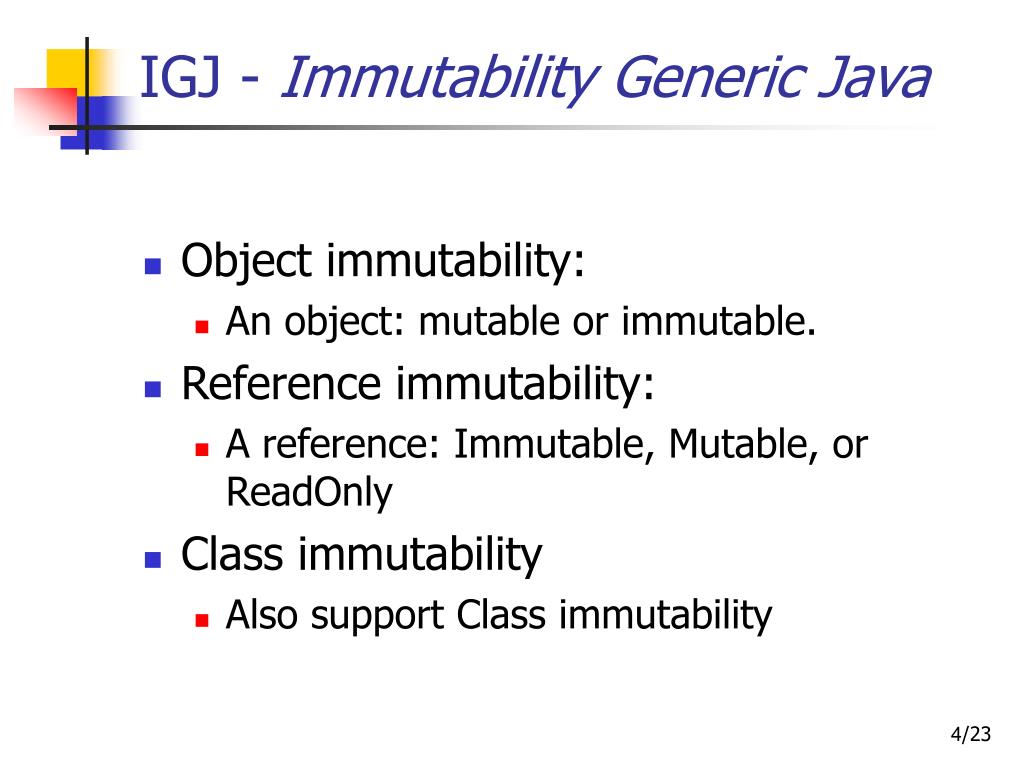

IGJ - Immutability Generic Java

  • Object immutability:

    • An object: mutable or immutable.

  • Reference immutability:

    • A reference: Immutable, Mutable, or ReadOnly

  • Class immutability

    • Also support Class immutability


Igj immutability generic java1

IGJ - Immutability Generic Java

1: // An immutable reference to an immutable date; side effects are prohibited

2: Date<Immutable> immutD = new Date<Immutable>();

3: // A mutable reference to a mutable date; side effects are permitted

4: Date<Mutable> mutD = new Date<Mutable>();

5: // A readonly reference to any date; side effects are prohibited

6: Date<ReadOnly> roD = ... ? immutD : mutD;

one new generic parameter (at the beginning of the list of generic parameters) was added


Igj main design principles

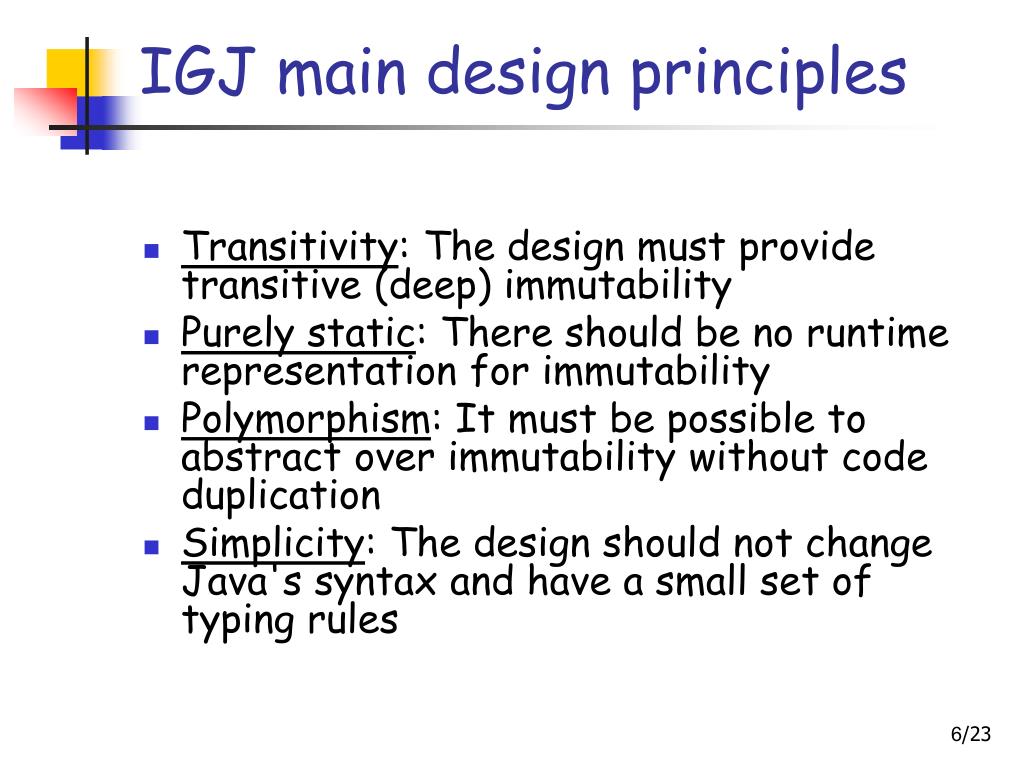

IGJ main design principles

  • Transitivity: The design must provide transitive (deep) immutability

  • Purely static: There should be no runtime representation for immutability

  • Polymorphism: It must be possible to abstract over immutability without code duplication

  • Simplicity: The design should not change Java's syntax and have a small set of typing rules


Type hierarchies for igj

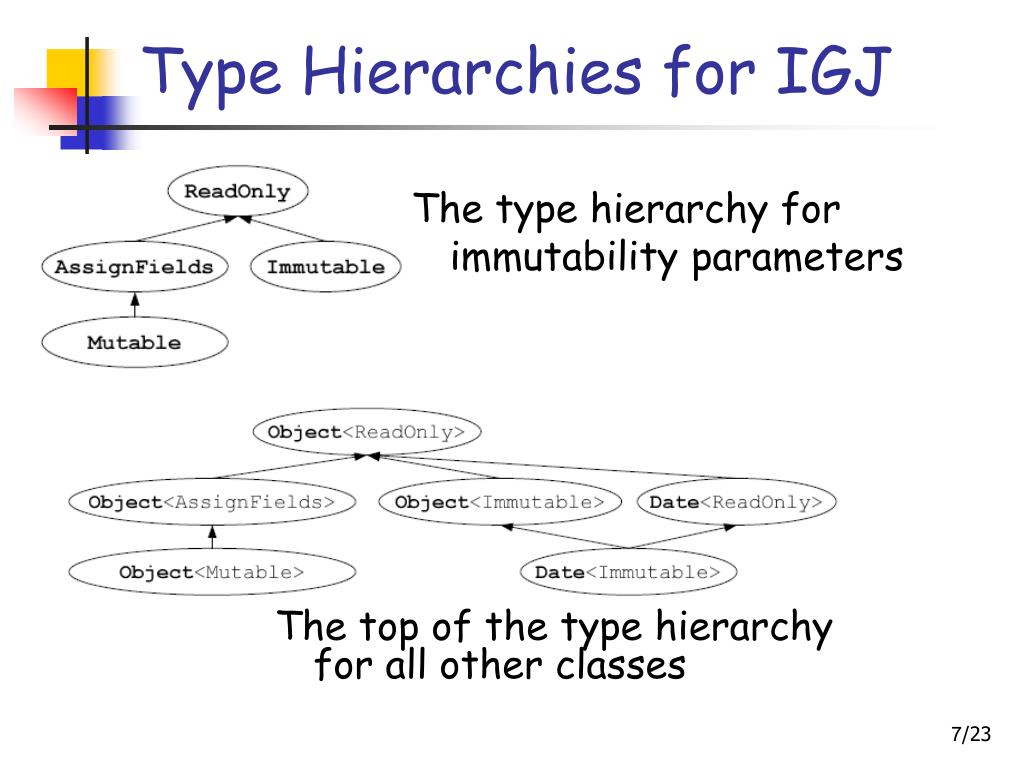

Type Hierarchies for IGJ

The type hierarchy for immutability parameters

The top of the type hierarchy for all other classes


Igj subtype hierarchy

IGJ Subtype hierarchy

Legend:

L List, O object, R ReadOnly

IM Immutable, M Mutable

For example:

L< R,O<M> > means

List<ReadOnly, Object<Mutable>>

// Demonstrates how to copy value of readonly roObj to mutable mutableObj

Object<ReadOnly> roObj = ...;

List<Mutable,Object<Mutable>> l = new List<Mutable,Object<Mutable>>();

((List<Mutable,Object<ReadOnly>>) l).add(roObj);

Object<Mutable> mutableObj = l.get(0); // mutableObj equals roObj


Java array co variance problem

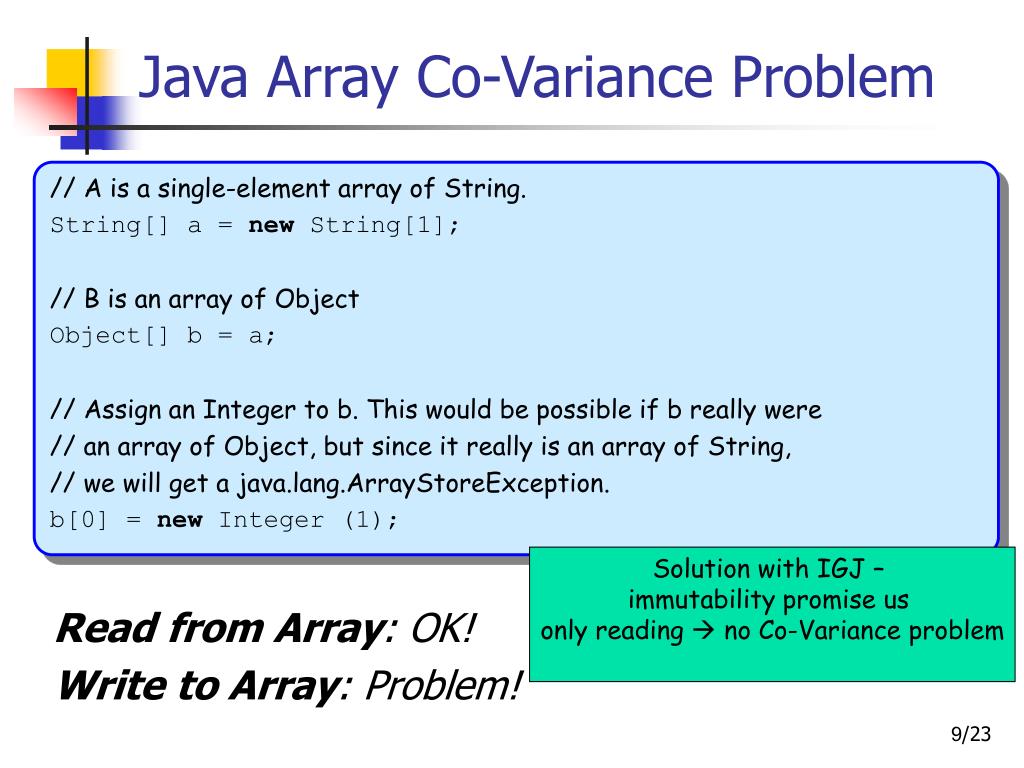

Java Array Co-Variance Problem

// A is a single-element array of String.

String[] a = new String[1];

// B is an array of Object

Object[] b = a;

// Assign an Integer to b. This would be possible if b really were

// an array of Object, but since it really is an array of String,

// we will get a java.lang.ArrayStoreException.

b[0] = new Integer (1);

Read from Array: OK!

Write to Array: Problem!

Solution with IGJ –

immutability promise us

only reading  no Co-Variance problem


The field rule

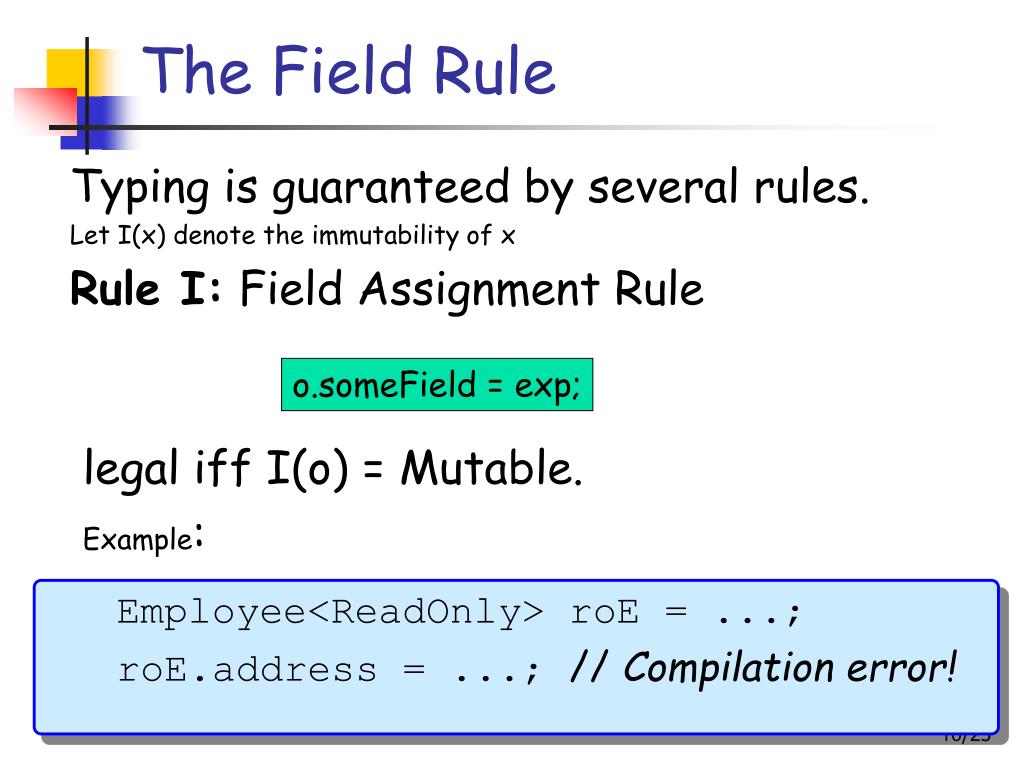

The Field Rule

Typing is guaranteed by several rules.

Let I(x) denote the immutability of x

Rule I: Field Assignment Rule

legal iff I(o) = Mutable.

Example:

o.someField = exp;

Employee<ReadOnly> roE = ...;

roE.address = ...; // Compilation error!


Immutability of methods

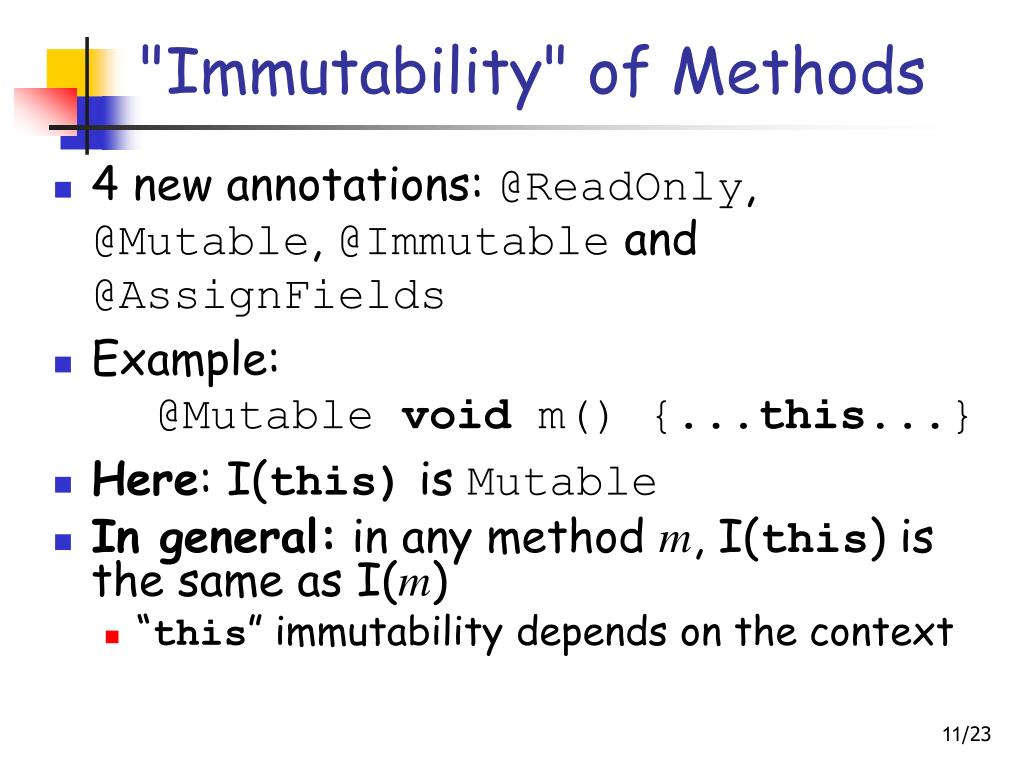

"Immutability" of Methods

  • 4 new annotations: @ReadOnly, @Mutable, @Immutable and @AssignFields

  • Example:@Mutable void m() {...this...}

  • Here: I(this) is Mutable

  • In general: in any method m, I(this) is the same as I(m)

    • “this” immutability depends on the context


Reference immutability rules

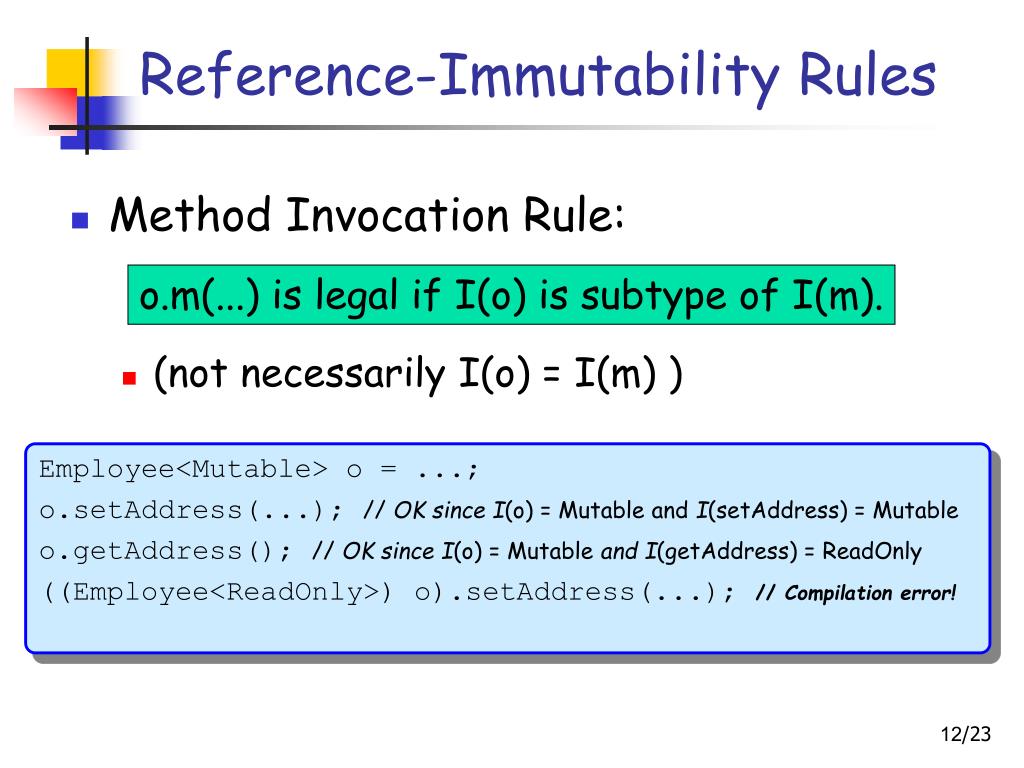

Reference-Immutability Rules

  • Method Invocation Rule:

    • (not necessarily I(o) = I(m) )

o.m(...) is legal if I(o) is subtype of I(m).

Employee<Mutable> o = ...;

o.setAddress(...); // OK since I(o) = Mutable and I(setAddress) = Mutable

o.getAddress(); // OK since I(o) = Mutable and I(getAddress) = ReadOnly

((Employee<ReadOnly>) o).setAddress(...); // Compilation error!


Object and reference immutability using java generics

ExampleIGJ classes Edge<I> and Graph<I>, with the immutability parameters (and annotations, for this) underlined.

1: class Edge<I extends ReadOnly> {

2: privatelong id;

3: public @AssignFields Edge(long id) { this.setId(id); }

4: public @AssignFields synchronized void setId(long id) {

5: this.id = id; }

6: public @ReadOnly synchronized long getId() { return id; }

7: public @Immutable long getIdImmutable() { return id; }

8: publicstatic void print(Edge<ReadOnly> n) {... }

9: }

10: class Graph<I extends ReadOnly> {

11: public Edge<I> lastN;

12: public List<I,Edge<I>> l;

13: public @AssignFields Graph(List<I,Edge<I>> l) { this.l = l; }

14: public @Mutable void addEdge(Edge<I> n) {

15: this.l.add(n); this.lastN = n; }

16: public @ReadOnly Edge<I> getLast() { return this.lastN; }

17: publicstatic <T extends ReadOnly>

18: Edge<T> findEdge(Graph<T> nl, long id) { ... }

19: }

For now:

Assume @Immutable is like @ReadOnly

And @AssignFields is like @Mutable


Example

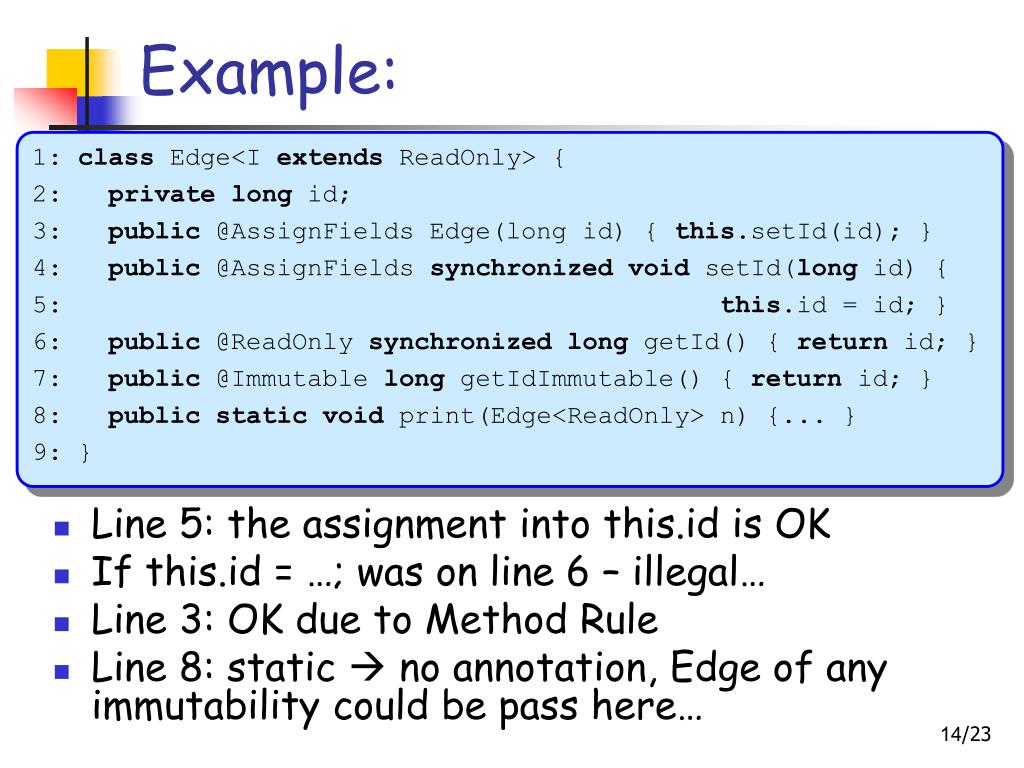

Example:

1: class Edge<I extends ReadOnly> {

2: private long id;

3: public @AssignFields Edge(long id) { this.setId(id); }

4: public @AssignFields synchronized void setId(long id) {

5: this.id = id; }

6: public @ReadOnly synchronizedlong getId() { return id; }

7: public @Immutable long getIdImmutable() { return id; }

8: publicstatic void print(Edge<ReadOnly> n) {... }

9: }

  • Line 5: the assignment into this.id is OK

  • If this.id = …; was on line 6 – illegal…

  • Line 3: OK due to Method Rule

  • Line 8: static  no annotation, Edge of any immutability could be pass here…


Example1

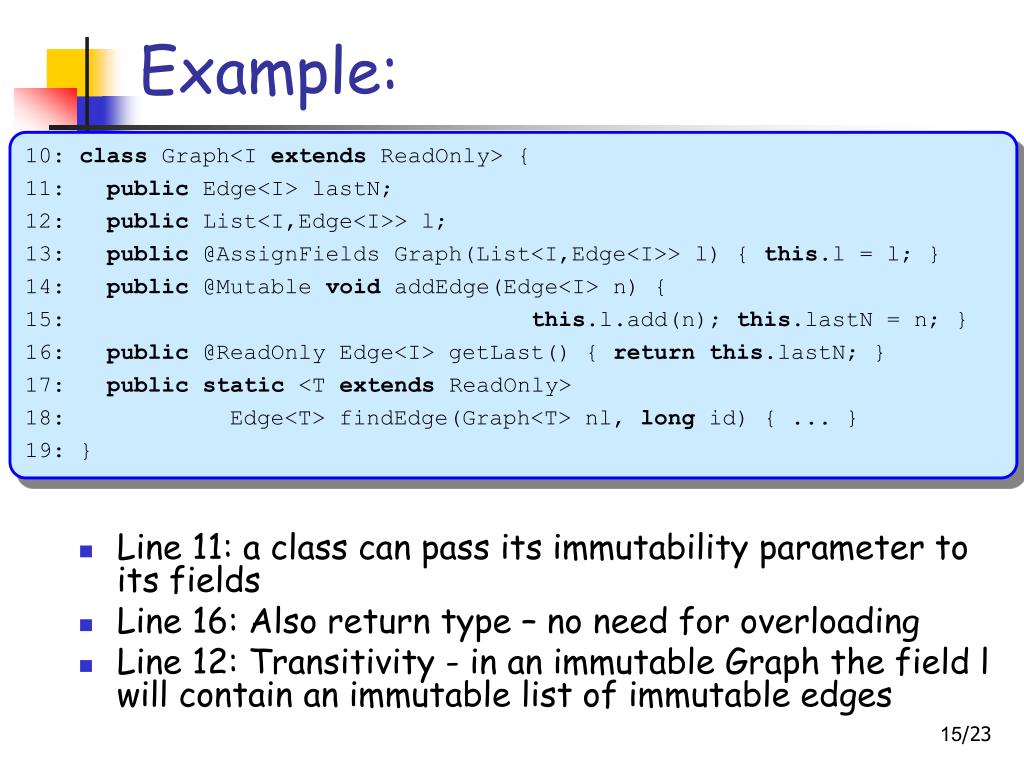

Example:

10: class Graph<I extends ReadOnly> {

11: public Edge<I> lastN;

12: public List<I,Edge<I>> l;

13: public @AssignFields Graph(List<I,Edge<I>> l) { this.l = l; }

14: public @Mutable void addEdge(Edge<I> n) {

15: this.l.add(n); this.lastN = n; }

16: public @ReadOnly Edge<I> getLast() { returnthis.lastN; }

17: publicstatic <T extends ReadOnly>

18: Edge<T> findEdge(Graph<T> nl, long id) { ... }

19: }

  • Line 11: a class can pass its immutability parameter to its fields

  • Line 16: Also return type – no need for overloading

  • Line 12: Transitivity - in an immutable Graph the field l will contain an immutable list of immutable edges


Object immutability constructors

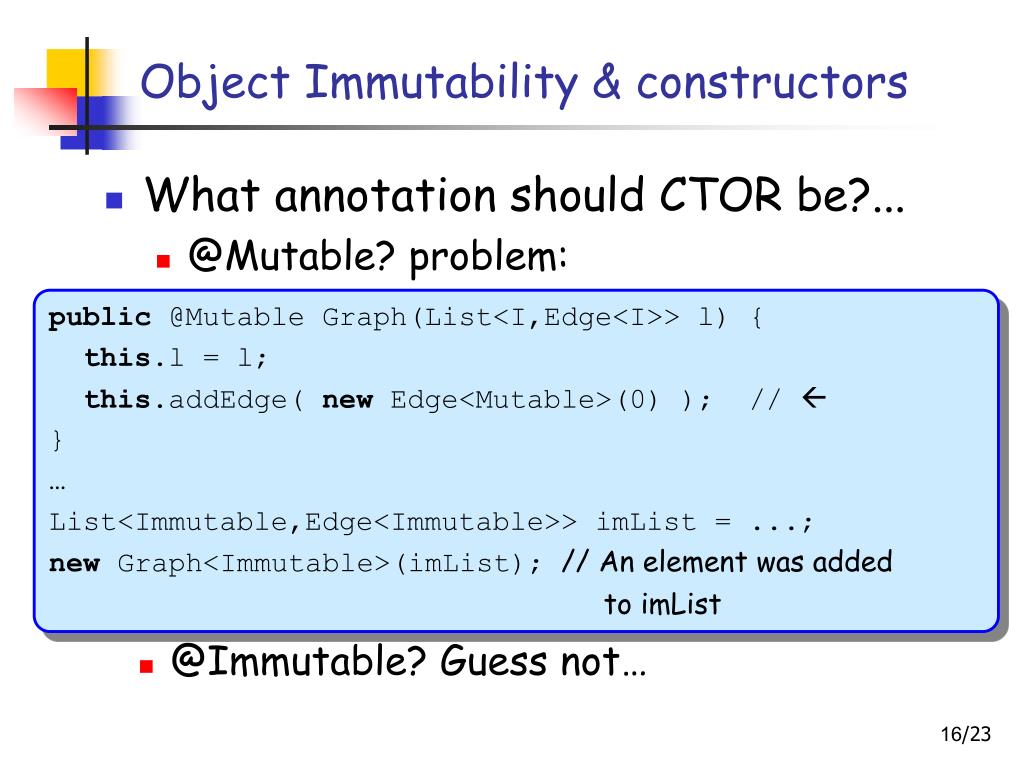

Object Immutability & constructors

  • What annotation should CTOR be?...

    • @Mutable? problem:

public @Mutable Graph(List<I,Edge<I>> l) {

this.l = l;

this.addEdge( new Edge<Mutable>(0) ); // 

}

List<Immutable,Edge<Immutable>> imList = ...;

new Graph<Immutable>(imList); // An element was added

to imList

  • @Immutable? Guess not…


Object immutability constructors1

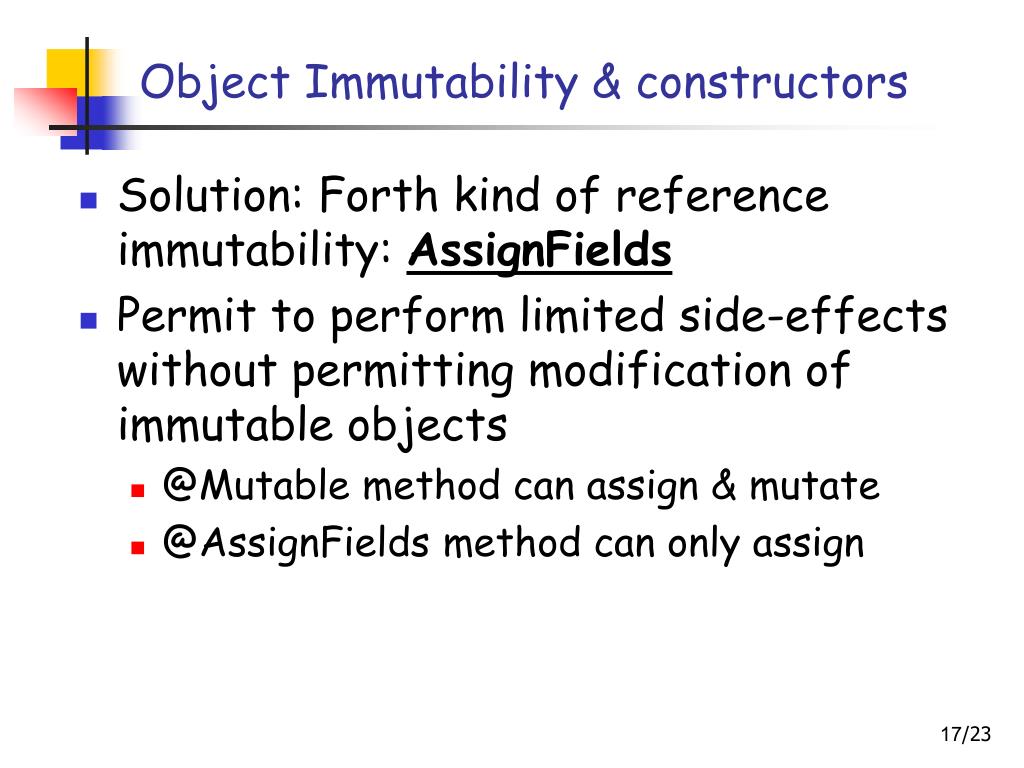

Object Immutability & constructors

  • Solution: Forth kind of reference immutability: AssignFields

  • Permit to perform limited side-effects without permitting modification of immutable objects

    • @Mutable method can assign & mutate

    • @AssignFields method can only assign


Immutability assignability

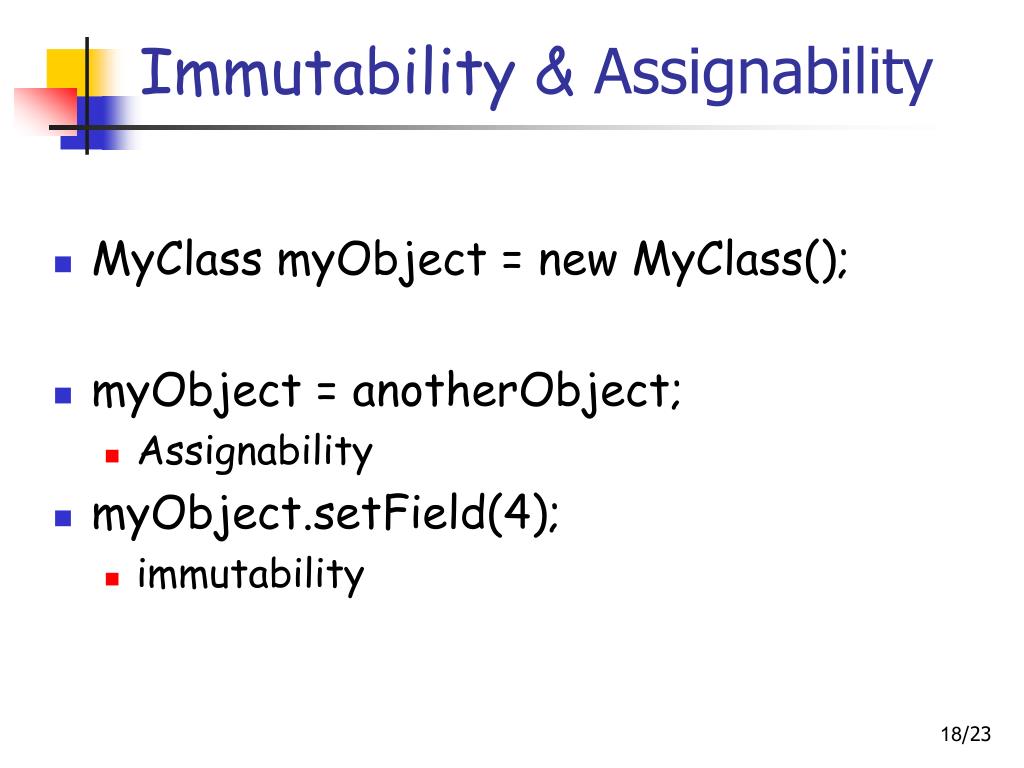

Immutability & Assignability

  • MyClass myObject = new MyClass();

  • myObject = anotherObject;

    • Assignability

  • myObject.setField(4);

    • immutability


Revised rules

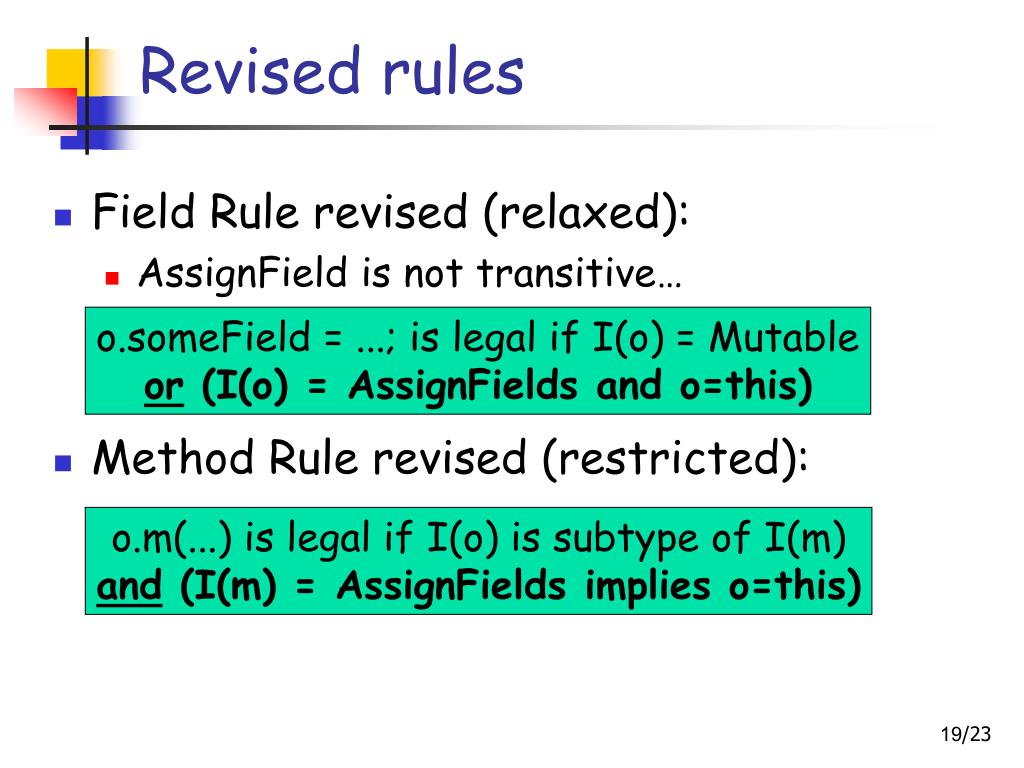

Revised rules

  • Field Rule revised (relaxed):

    • AssignField is not transitive…

  • Method Rule revised (restricted):

o.someField = ...; is legal if I(o) = Mutableor (I(o) = AssignFields and o=this)

o.m(...) is legal if I(o) is subtype of I(m)and (I(m) = AssignFields implies o=this)


Example2

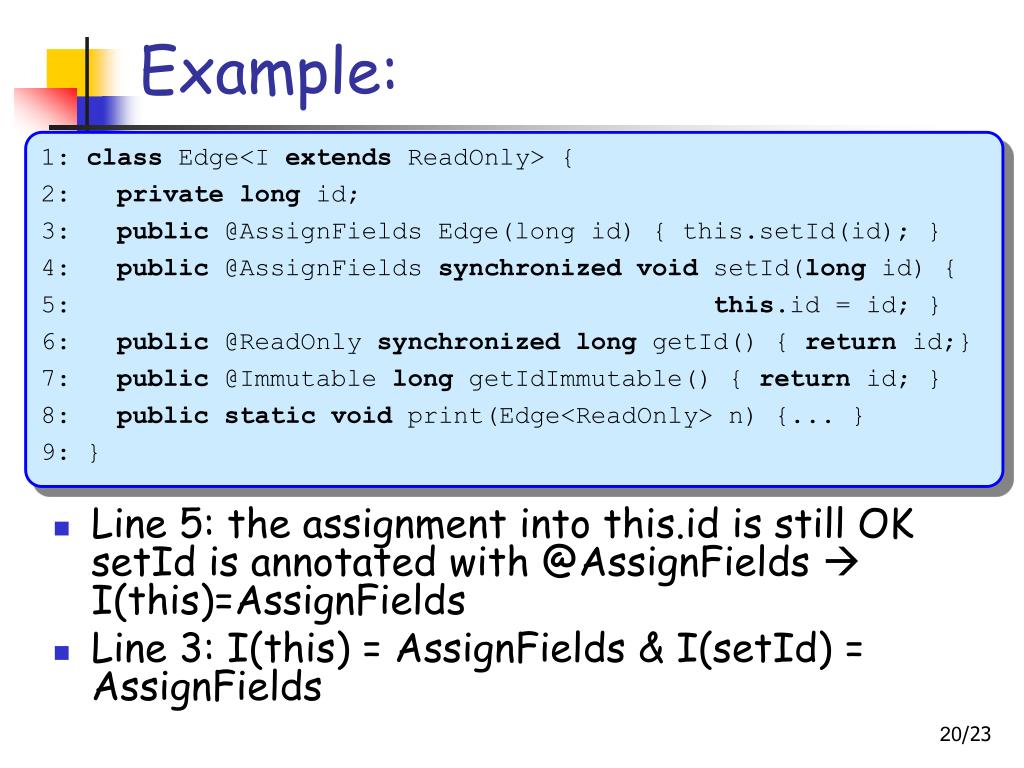

Example:

1: class Edge<I extends ReadOnly> {

2: privatelong id;

3: public @AssignFields Edge(long id) { this.setId(id); }

4: public @AssignFields synchronized void setId(long id) {

5: this.id = id; }

6: public @ReadOnly synchronized long getId() { return id;}

7: public @Immutable long getIdImmutable() { return id; }

8: publicstatic void print(Edge<ReadOnly> n) {... }

9: }

  • Line 5: the assignment into this.id is still OK setId is annotated with @AssignFields  I(this)=AssignFields

  • Line 3: I(this) = AssignFields & I(setId) = AssignFields


Example3

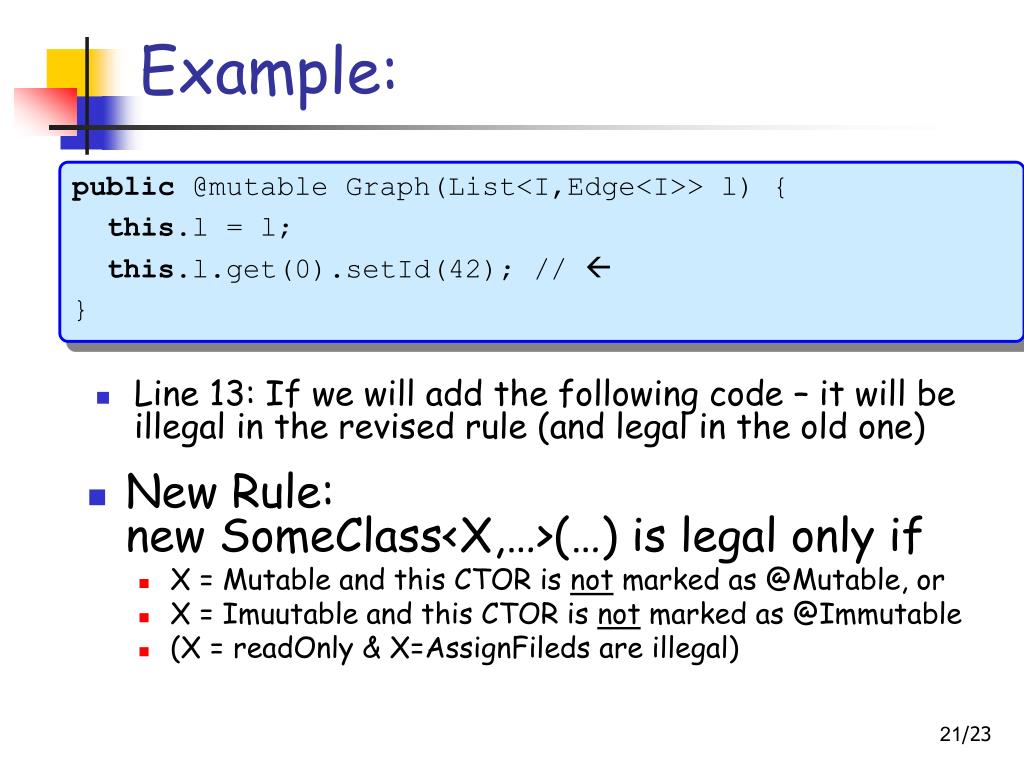

Example:

public @mutable Graph(List<I,Edge<I>> l) {

this.l = l;

this.l.get(0).setId(42); // 

}

  • Line 13: If we will add the following code – it will be illegal in the revised rule (and legal in the old one)

  • New Rule:new SomeClass<X,…>(…) is legal only if

    • X = Mutable and this CTOR is not marked as @Mutable, or

    • X = Imuutable and this CTOR is not marked as @Immutable

    • (X = readOnly & X=AssignFileds are illegal)


Future work

Future Work

  • Plug-in for IDE (e.g. Eclipse)

  • A WriteOnly immutability parameter

  • @readable notation for field

class Vector<I extends None, T> {

@readable int size; ...

@None int size() { return size; }

@WriteOnly void add(T t) { ... }

@WriteOnly void removeLast() { ... }

@Mutable void remove(T t) { ... }

@ReadOnly void get(int index) { ... }

}


Future work cont

Future Work (cont.)

  • Add default immutability

class Graph<I extends ReadOnly default Mutable>

  • An alternative syntax (Java 7?...)

@immutable Document[@readonly]

new @mutable ArrayList<@immutable Edge>(...)

  • Runtime support (e.g. down-cast)
