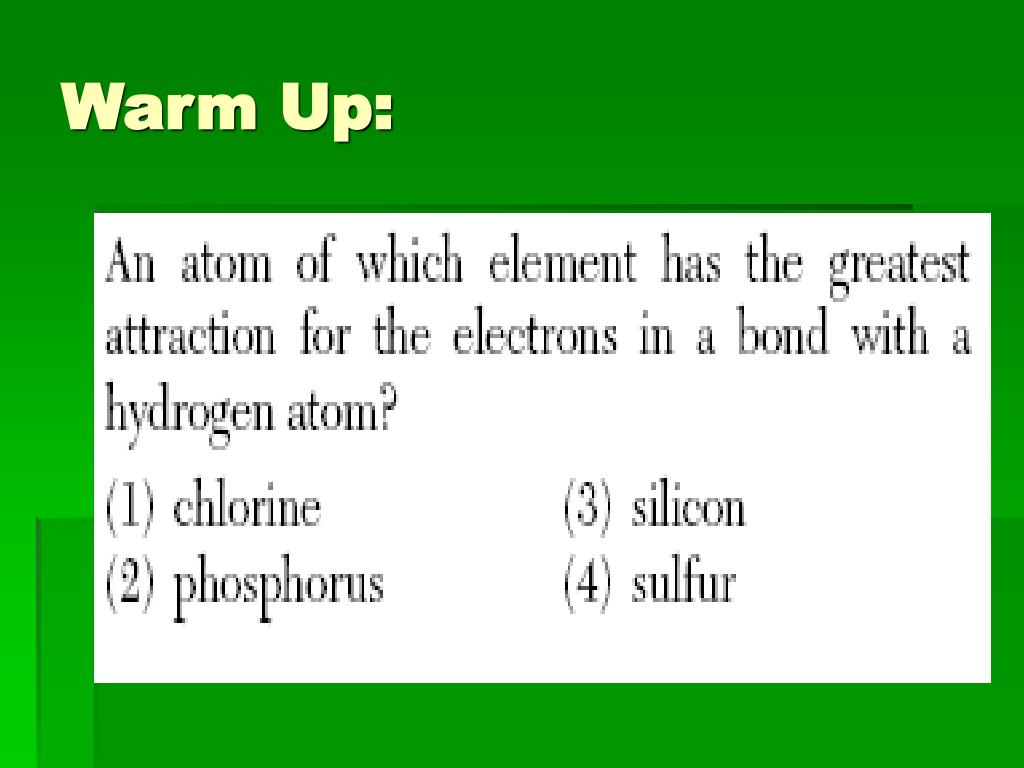

Warm Up:

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Warm Up:

  2. Octet Rule • a filled layer contains 8 electrons • Exceptions (After bonding…) • H and He will have 2 • Beryllium will have 4 • Boron will have 6 • Some transition metals can have more than 8

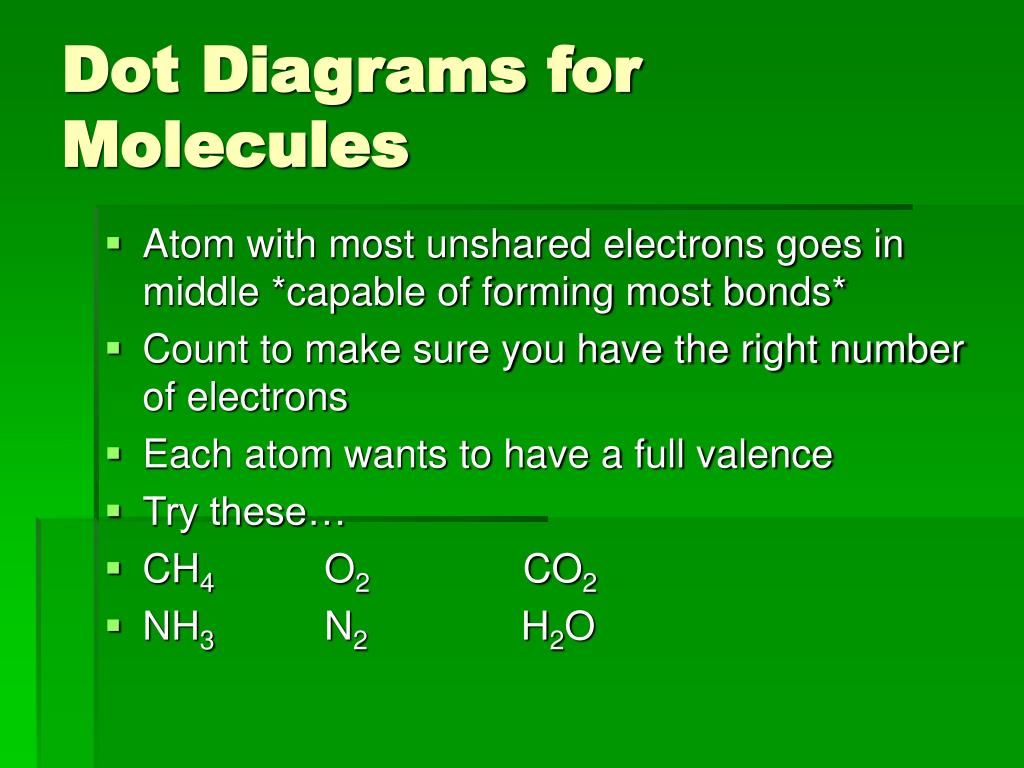

  3. Dot Diagrams for Molecules • Atom with most unshared electrons goes in middle *capable of forming most bonds* • Count to make sure you have the right number of electrons • Each atom wants to have a full valence • Try these… • CH4 O2 CO2 • NH3 N2 H2O

  4. Domains

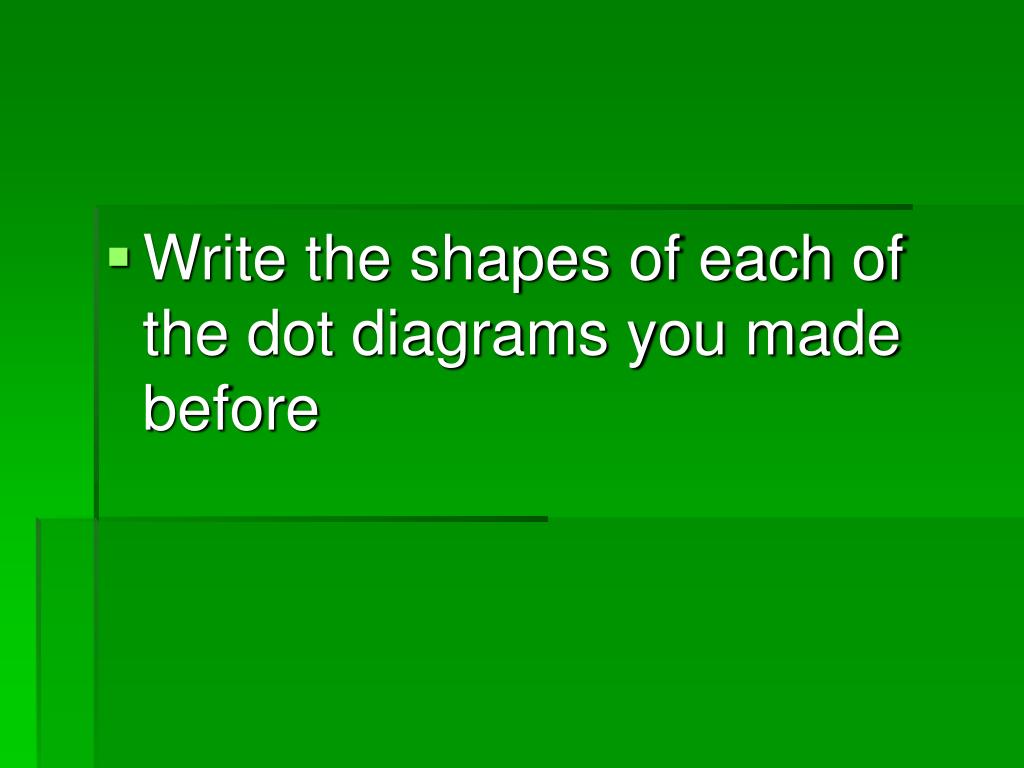

  5. Write the shapes of each of the dot diagrams you made before

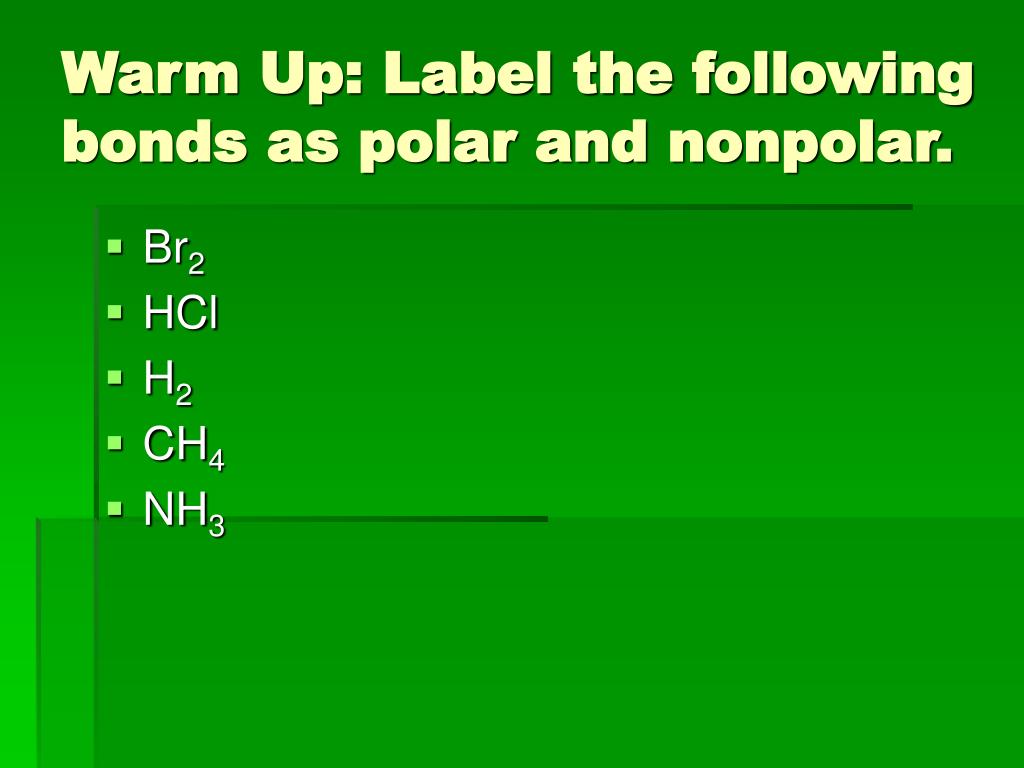

  6. Warm Up: Label the following bonds as polar and nonpolar. • Br2 • HCl • H2 • CH4 • NH3

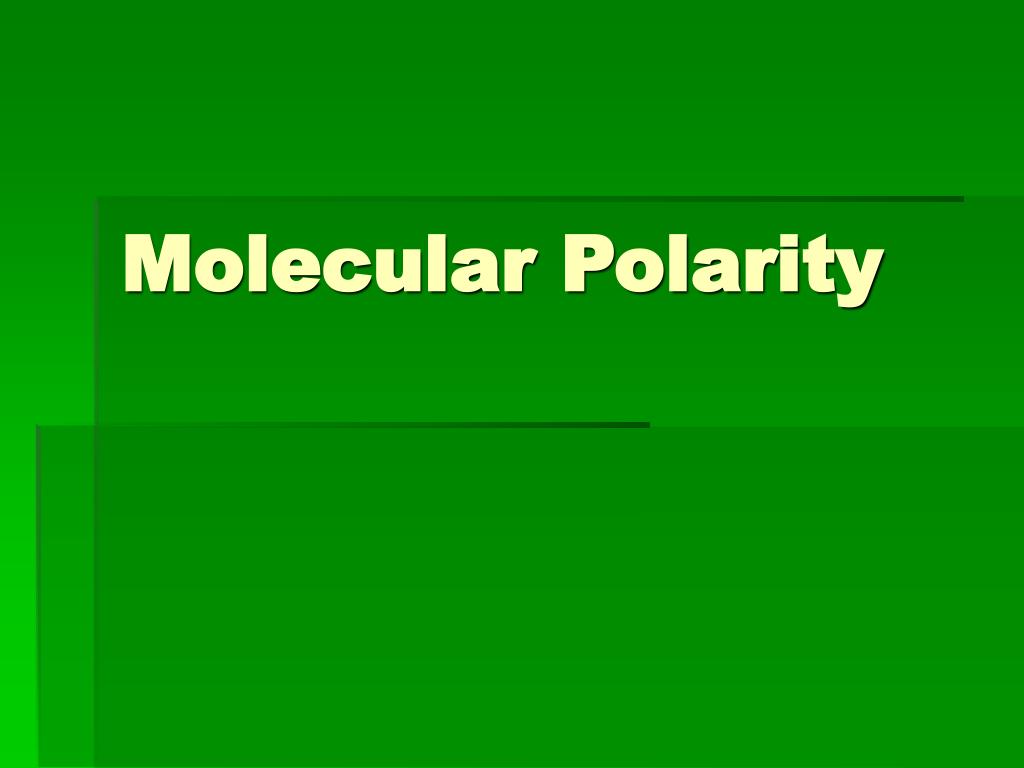

  7. Molecular Polarity

  8. Dipole • Molecule with an overall unequal distribution of electrons

  9. Two atom molecules • If the bond is non-polar, so is the molecule • If the bond is polar, the molecule has a dipole and is polar

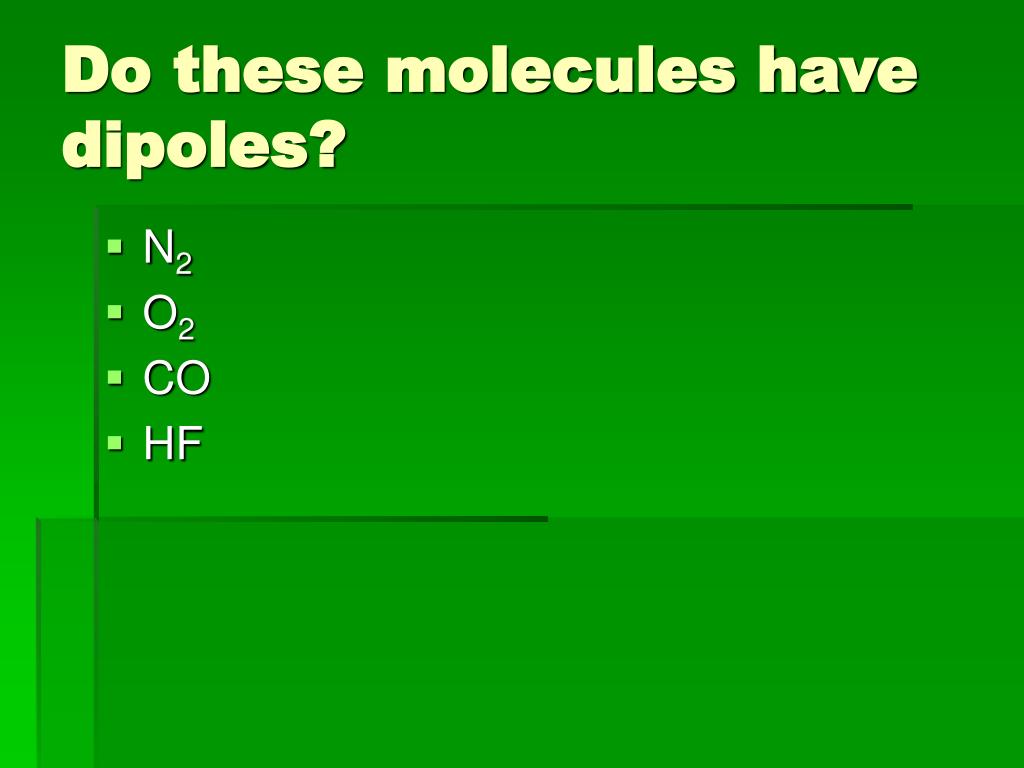

  10. Do these molecules have dipoles? • N2 • O2 • CO • HF

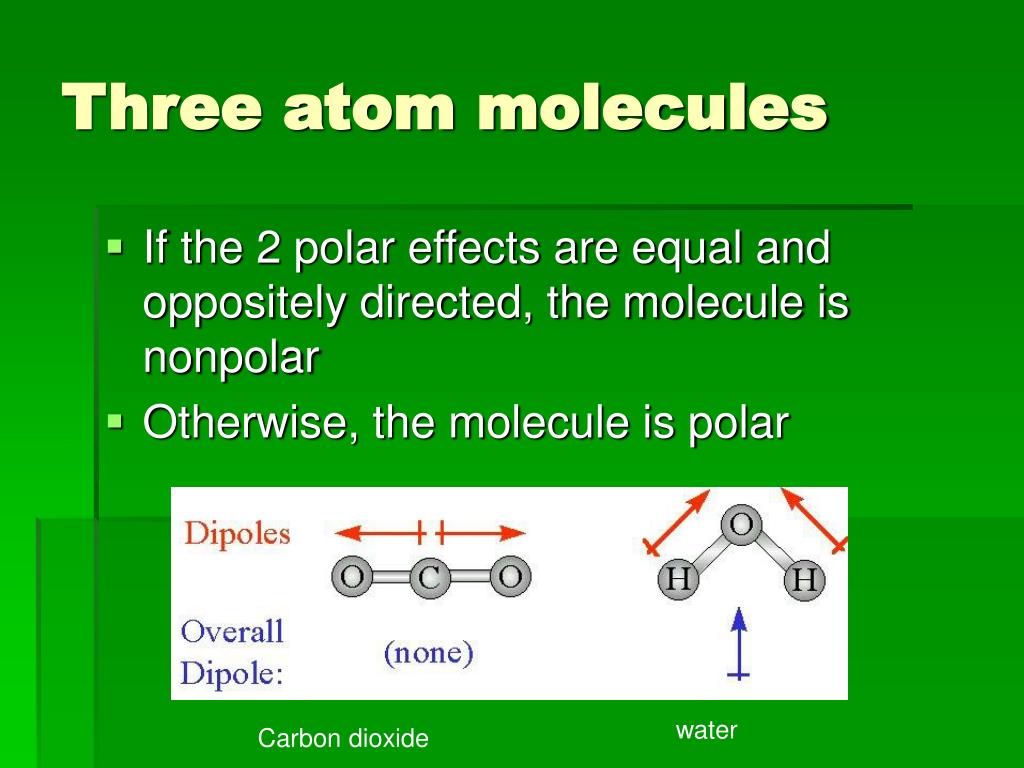

  11. Three atom molecules • If the 2 polar effects are equal and oppositely directed, the molecule is nonpolar • Otherwise, the molecule is polar water Carbon dioxide

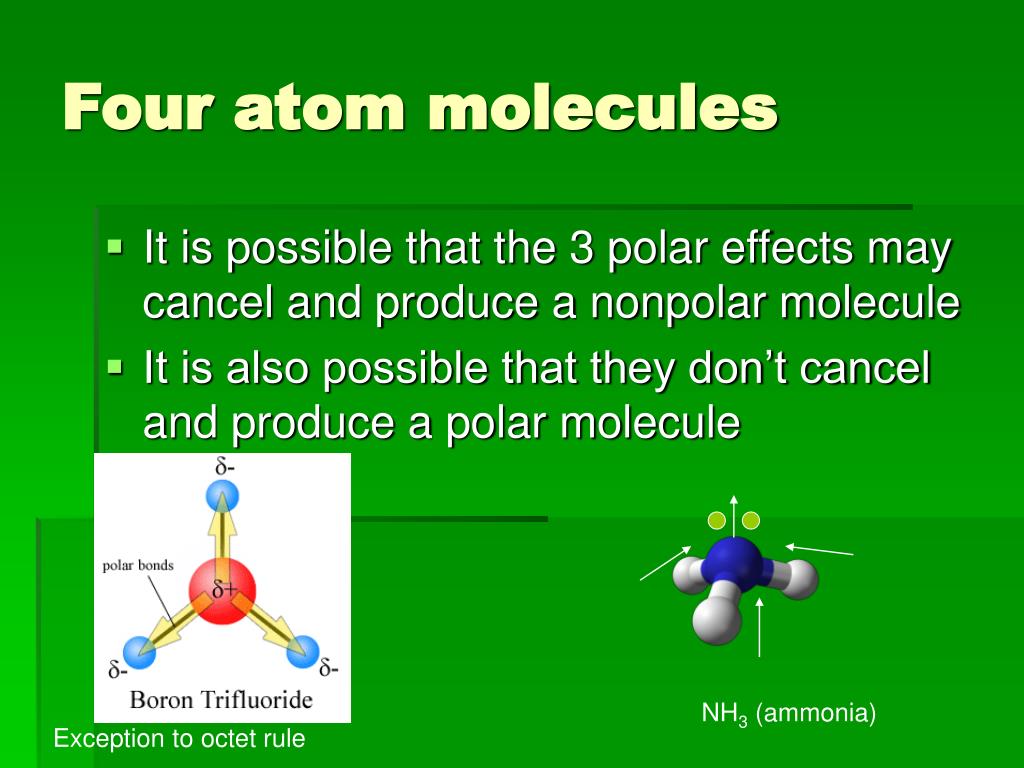

  12. Four atom molecules • It is possible that the 3 polar effects may cancel and produce a nonpolar molecule • It is also possible that they don’t cancel and produce a polar molecule NH3 (ammonia) Exception to octet rule

  13. Five atom molecules • It is possible that the 4 polar effects may cancel and produce a nonpolar molecule • It is also possible that they don’t cancel and produce a polar molecule CH4 CH3Cl

  14. Intermolecular Forces • Between molecules • Dipole-dipole • Hydrogen bonding • Van der Waals

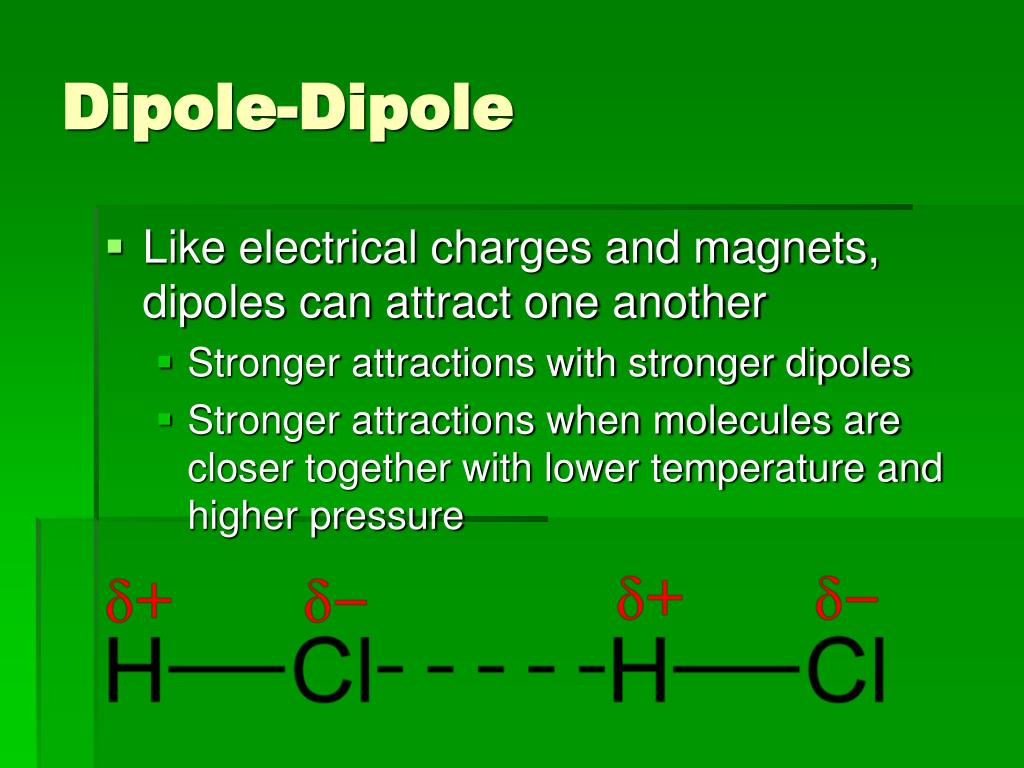

  15. Dipole-Dipole • Like electrical charges and magnets, dipoles can attract one another • Stronger attractions with stronger dipoles • Stronger attractions when molecules are closer together with lower temperature and higher pressure

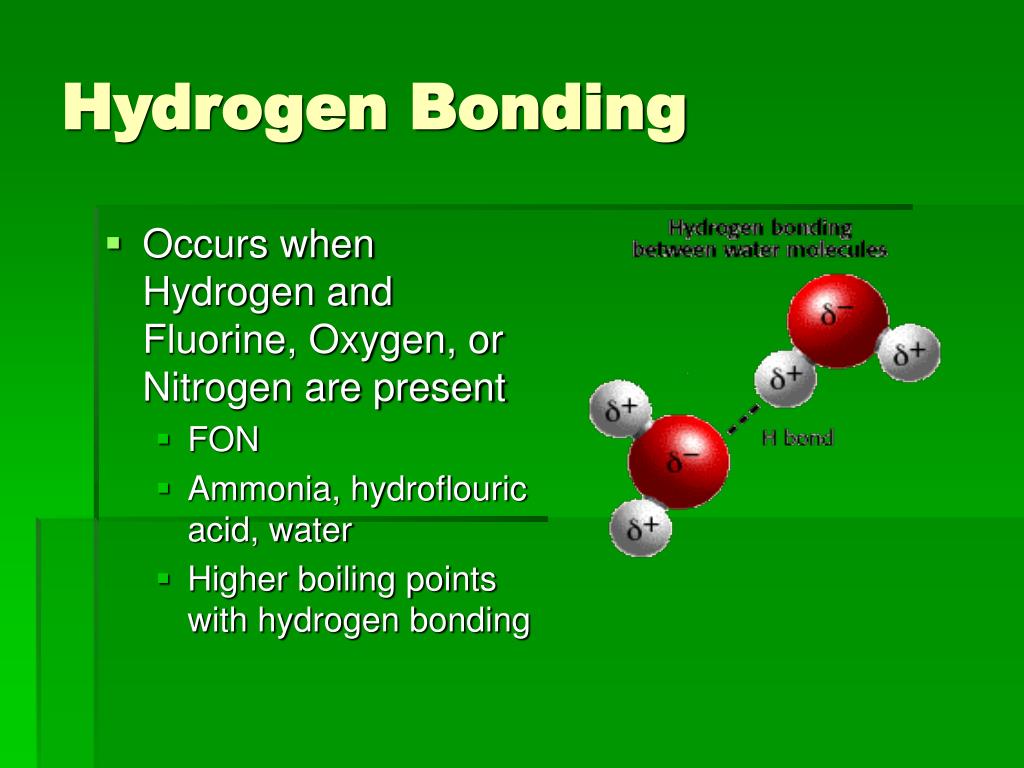

  16. Hydrogen Bonding • Occurs when Hydrogen and Fluorine, Oxygen, or Nitrogen are present • FON • Ammonia, hydroflouric acid, water • Higher boiling points with hydrogen bonding

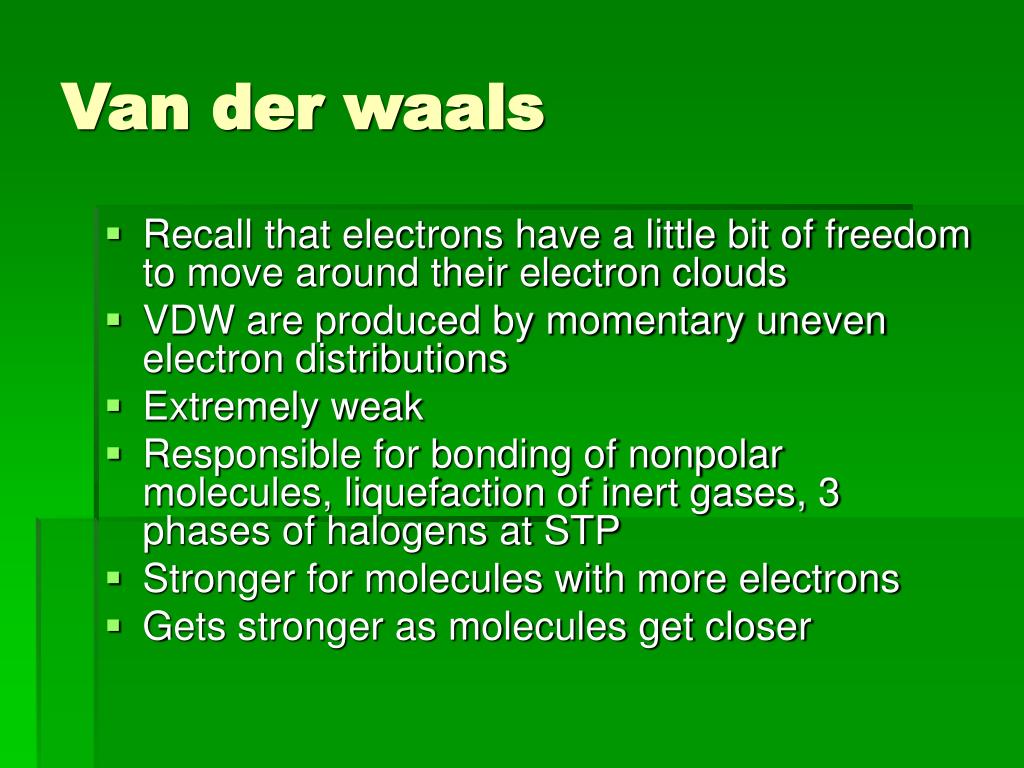

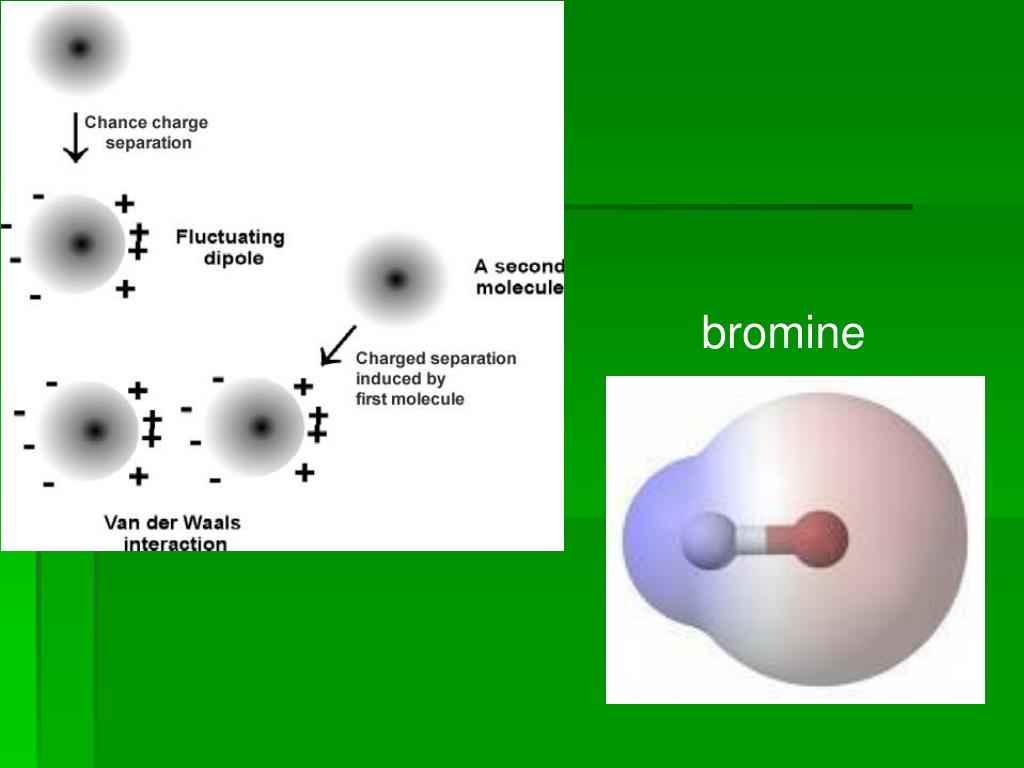

  17. Van der waals • Recall that electrons have a little bit of freedom to move around their electron clouds • VDW are produced by momentary uneven electron distributions • Extremely weak • Responsible for bonding of nonpolar molecules, liquefaction of inert gases, 3 phases of halogens at STP • Stronger for molecules with more electrons • Gets stronger as molecules get closer

  18. bromine
