1 / 48

Structure, bonding, and spectroscopy of actinides in crystals A quantum chemical perspective

Structure, bonding, and spectroscopy of actinides in crystals A quantum chemical perspective. Zoila Barandiarán Departamento de Química & Instituto Universitario de Ciencia de Materiales Nicolás Cabrera Universidad Autónoma de Madrid, Spain. http://www.uam.es/zoila.barandiaran .

shani
Download Presentation

Structure, bonding, and spectroscopy of actinides in crystals A quantum chemical perspective

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Structure, bonding, and spectroscopyof actinides in crystalsA quantum chemical perspective Zoila Barandiarán Departamento de Química & Instituto Universitario de Ciencia de Materiales Nicolás Cabrera Universidad Autónoma de Madrid, Spain. http://www.uam.es/zoila.barandiaran

  2. Structure, bonding, and spectroscopyof actinides in crystalsA quantum chemical perspective Actinides advanced nuclear energy systems challenge basic and applied research societal interest: controversial energy source; security & waste problems in crystals ions in crystals, solid fuel and fission products (UO2, PuO2) extreme conditions (temperature, pressure) spectroscopy open shells: 5f, 6d, 7s large manifolds of excited states: 5fN, 5fN-1 6d1, and others spectroscopy: a basic tool expected/exotic electronic structures beyond the gs figerprints of local structure and bonding models of coordination chemistry quantum chemical perspective

  3. U4+ in Cs2GeF6 Actinide ions doped in solids – an example point defect: + local distortion + new electronic states in the energy gap how many states ? how to calculate them ? N electrons formally in 5f, 6d shells in a crystal field

  4. f and d electrons in an octahedral field Pa4+ in Cs2ZrCl6

  5. f and d electrons in an octahedral field U4+ in Cs2ZrCl6 Pa4+ in Cs2ZrCl6

  6. Structure, bonding, and spectroscopyof actinides in crystalsA quantum chemical perspective A quantum chemical model (for ground and excited states) Results an overview type of results accuracies a show case Conclusions and what is next

  7. A quantum chemical model for ground and excited states • Relativistic (spin-orbit) • Electron correlation • Large fn and fn-1 d1 manifolds • relativistic core-AIMP (ECP) • wave-function based correlation methods • (CASSCF + MS-CASPT2) Defect cluster Embedding host embedding-AIMP fn , fn-1d1

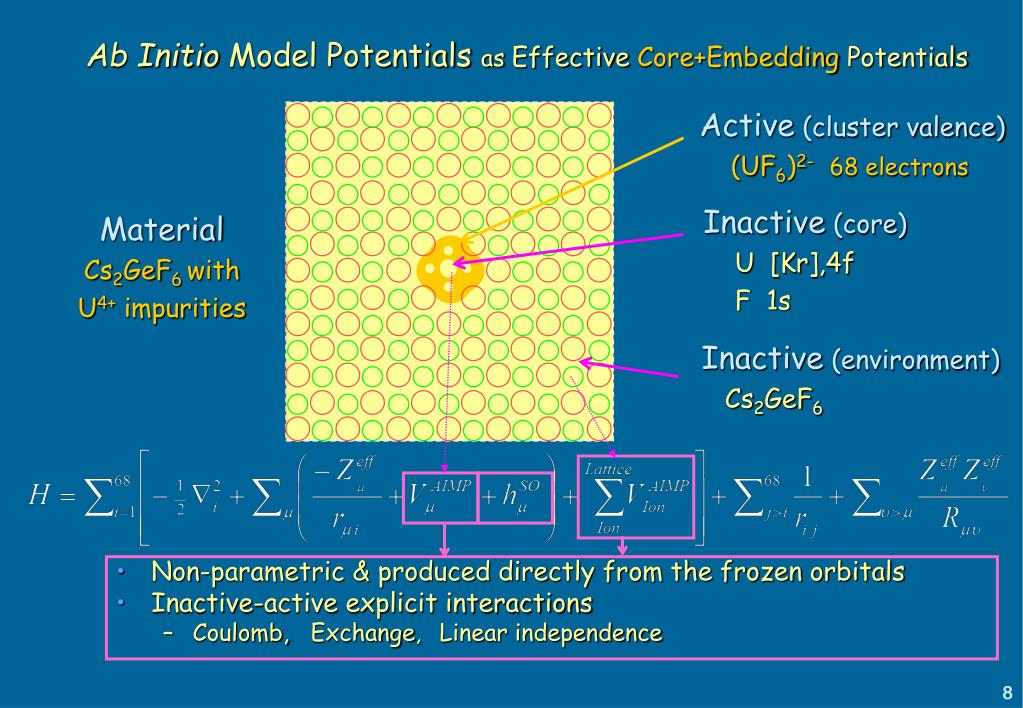

  8. Non-parametric & produced directly from the frozen orbitals Inactive-active explicit interactions Coulomb, Exchange, Linear independence Active (cluster valence) (UF6)2- 68 electrons Inactive (core) U [Kr],4f F 1s Material Cs2GeF6 with U4+ impurities Inactive (environment) Cs2GeF6 Ab Initio Model Potentials as Effective Core+Embedding Potentials

  9. long-range local  local Embedded Cluster Hamiltonian Relativistic Cowan-Griffin-Wood-Boring Hartree-Fock all-electron atomic calculations + Frozen core approximation + AIMP recipe for representation of operators Coulomb Exchange + scalar relativistic Linear independence

  10. short-range  spectral representation Embedded Cluster Hamiltonian Relativistic Cowan-Griffin-Wood-Boring Hartree-Fock all-electron atomic calculations + Frozen core approximation + AIMP recipe for representation of operators Coulomb Exchange + scalar relativistic Linear independence

  11. Embedded Cluster Hamiltonian Relativistic Cowan-Griffin-Wood-Boring Hartree-Fock all-electron atomic calculations + Frozen core approximation + AIMP recipe for representation of operators Coulomb Exchange + scalar relativistic Linear independence

  12. Embedded Cluster Hamiltonian Self-Consistent Embedded Ion calculations • Perfect crystal lattice • loop over lattice ions until convergence • perform a single embedded-ion calculation (SCF, CASSCF) • produce its embedding-AIMP out of its orbitals • update the lattice embedding potentials • end loop

  13. Embedded Cluster Hamiltonian

  14. depend on: spin-orbit couplings spin-free spectrum small CI space P large CI space G which demand: Spin-orbit coupling / electron correlation Spin-orbit splittings An aproximate decoupling ofcorrelationandspin-orbit Use Gspace for the spin-free spectrum Use Pspace for the spin-orbit couplings

  15. Spin-free state shifted Hamiltonian large CI space G small CI space P Use Gspace for the spin-free spectrum Use Pspace for the spin-orbit couplings

  16. Spin-free state shifted Hamiltonian large CI space G small CI space P   Use Gspace for the spin-free spectrum Use Pspace for the spin-orbit couplings

  17. Spin-free state shifted Hamiltonian • Codes: MOLCAS Björn O. Roos et al., Lund University COLUMBUS Russ M. Pitzer et al., Ohio State University EPCISO Valérie Vallet et al., Université de Lille Use Gspace for the spin-free spectrum Use Pspace for the spin-orbit couplings

  18. Details of the calculations • Embedded-cluster (embedding AIMP for ionic solids) • Effective core potential (Cowan-Griffin-Wood-Boring based AIMP) • spin-free: CASSCF/CASPT2 • spin-orbit: sfss-SOCI [MRCI(S)] • Embedding potentials: • Cluster: (AnL6)q- ~ 500 AIMPs + 3000 point charges atexperimental sites so that E(R) is stable

  19. Details of the calculations • Embedded-cluster (embedding AIMP for ionic solids) • Effective core potential (Cowan-Griffin-Wood-Boring based AIMP) • spin-free: CASSCF/CASPT2 • spin-orbit: sfss-SOCI [MRCI(S)] • Core AIMPs: An: [Xe,4f] 5d,6s,6p, 5f,6d,7s Cl: [Ne] 3s,3p • Valence basis sets: An: (14s10p12d9f3g)/[6s4p5d4f1g] Cl: (7s7p1d)/[3s4p1d]

  20. Details of the calculations • Embedded-cluster (embedding AIMP for ionic solids) • Effective core potential (Cowan-Griffin-Wood-Boring based AIMP) • spin-free: CASSCF/CASPT2 • spin-orbit: sfss-SOCI [MRCI(S)] • SA-CASSCF: [5f,6d,7s]N • MS-CASPT2: An: 5d106s26p6 [5f,6d,7s]N + 6 x Cl: 3s23p6

  21. Details of the calculations • Embedded-cluster (embedding AIMP for ionic solids) • Effective core potential (Cowan-Griffin-Wood-Boring based AIMP) • spin-free: CASSCF/CASPT2 • spin-orbit: sfss-SOCI [MRCI(S)] • spin-free-state-shifted Spin-Orbit CI: Wood-Boring spin-orbit operator scaled by 0.9 Basis of double-group adapted functions MRCI(S) CAS[5f,6d,7s]N

  22. Results: type of results Local structure (ground/excited states) bond lengths, vibrational frequencies

  23. Results: type of results Local structure (ground/excited states) bond lengths, vibrational frequencies Wave functions (and their analyses) bonding interactions

  24. Results: type of results Local structure (ground/excited states) bond lengths, vibrational frequencies Wave functions (and their analyses) bonding interactions Absorption/emission spectra transition energies, transition moments, emission lifetimes

  25. Results: type of results Green-to-blue light upconversion in Cs2ZrCl6: U4+ Local structure (ground/excited states) bond lengths, vibrational frequencies Wave functions (and their analyses) bonding interactions UO22+ impurities U4+ impurities Absorption/emission spectra transition energies, transition moments, emission lifetimes Mechanisms of energy transfer upconversion/quantum cutting mechanisms 5f16d1 levels 5f2 levels

  26. Cs2NaYCl6:Ce3+ under pressure Results: type of results Local structure (ground/excited states) bond lengths, vibrational frequencies Wave functions (and their analyses) bonding interactions Absorption/emission spectra transition energies, transition moments, emission lifetimes Mechanisms of energy transfer upconversion/quantum cutting mechanisms Pressure effects d(eg)1 d(t2g)1 P=25 kbar P=0 f1

  27. Results: type of results Local structure (ground/excited states) bond lengths, vibrational frequencies Wave functions (and their analyses) bonding interactions Absorption/emission spectra transition energies, transition moments, emission lifetimes Mechanisms of energy transfer upconversion/quantum cutting mechanisms Pressure effects

  28. Results: accuracies (validation + applications) presumably (no EXAFS available) Cs2NaYCl6 Bond distances 0.01Å Cs2ZrCl6 very good (exceptions?) Cs2ZrCl6:Pa4+ YAG:Ce3+ Bond length changes Cs2GeF6 Vibrational frequencies Ce3+,Pr3+,Sm2+,Pa4+ 5% SrF2 Electronic transitions Ce3+,Pa4+,U3+,U4+ 10% BaF2 Pressure induced shifts of electronic transitions semiquantitative Sm2+ YAG (Y3Al5O12) Intensidades relativas Ce3+,U3+,U4+ semiquantitative CsCaBr3

  29. Results: a show case Predicting the luminescence of a new material + experimental & theoretical study U4+ in fluorides U4+ 5f2, 5f16d1 manifolds ~90 excited states fluorides large transparency window Potentiality as ● UV solid state laser ● Phosphor based on quantum cutting or cascade luminescence

  30. UV solid state laser quantum cutting orcascade luminescence 5f16d1 levels 1S0 5f2 levels Weak, slow, two-step 5f→5f luminescence Strong, broad, fast 6d→5f luminescence YLiF4:U4+ YF3:U4+

  31. U4+ in Cs2GeF6 UV solid state laser quantum cutting orcascade luminescence • The electronic structure of the 5f2 manifold • The 5f1 6d1 manifold • Promote the synthesis and experimental study • An unexpected 5f1 7s1 manifold: U-trapped excitons

  32. Cs2GeF6:U4+, a potential quantum cutter or solid state laser ? 1S0 5f2 levels

  33. Cs2GeF2:U4+, a potential quantum cutter or solid state laser ? quantum cutting orcascade luminescence 1S0 5f16d1 levels 5f16d1 levels 1S0 5f2 levels 3P0 5f2 levels 3H4

  34. Cs2GeF2:U4+, a potential quantum cutter or solid state laser ? UV solid state laser 1S0 5f16d1 levels 5f16d1 levels 1S0 5f2 levels 5f2 levels Strong, broad, fast 6d→5f luminescence

  35. Absorption spectrum. Miroslaw Karbowiak, University of Wroklaw • growth of Cs2GeF6:U4+ single crystals • experimental absorption spectrum (7 K) • broad, intense bands 37000 – 45000cm-1 • most prominent at 38000 cm-1 • no appreciable fine vibronic structure

  36. Absorption spectrum. • Theoretical spectrum • Five 5f16d1 origins: 1A1g→ iT1u ( i = 1,5) • 2500cm-1 too high (0.3 eV) (7 %)

  37. Absorption spectrum. • Theoretical spectrum • Five 5f16d1 origins: 1A1g→ iT1u ( i = 1,5) • 2500cm-1 too high (0.3 eV) (7 %) • Intensities: + most prominent band 1A1g→ 1T1u + relative intensities ok, - except for 1A1g→ 2T1u

  38. Emission spectrum. 5f16d1 levels 1Eu 1T2g 5f2 levels 2T1g, 2T2g 3T2g 1T1g

  39. Emission spectrum. Large Stokes shift: 6200 cm-1 1Eu 1T2g 2T1g, 2T2g 3T2g 1T1g 1A1g

  40. Emission spectrum. Spontaneous emission lifetime:  Experiments underway

  41. An unexpected 5f17s1 manifold: U-trapped exciton? Å 2.09 2.154, 2.174, 2.21 U(IV) • Bond length ~ U(V) cluster • Very diffuse 7s orbital • Energy sensitive to basis set delocalization U - trapped exciton ?

  42. An unexpected 5f17s1 manifold: U-trapped exciton? Impurity-trapped exciton D. S. McClure, et al. Phys. Rev. B, 32, 8465 (1985)SrF2:Yb2+anomalous emission“The excited state ... could be called an impurity-trapped exciton, since it consists of a bound electron-hole pair with the hole localized on the impurity and the electron on nearby lattice sites...”“The trapped exciton geometry is probably that expected for a trivalent impurity ion, Yb3+...” Yb2+→ Yb3+ + 1e(Sr) very short bond length localised hole delocalised

  43. Analysis of the wavefunctions 7s AO [5f17s1-3F U4+] 7s MO [5f17s1-23A2u (UF6Cs8)6+]

  44. Microscopic description of an impurity trapped exciton • ~ U(V) bond length •Electronic density in the frontier of the UF6 unit • Hole localized in the U(5f) Diffuse orbitals of Ln/An in solids can lead to impurity trapped excitons

  45. Conclusions Wavefunction based ab initio embedded cluster calculations on Lnq+ and Anq+ impurities in ionic hosts • Reliable enough (complement experiments, predict) • Can be used to progress in the understanding of Advanced Nuclear Energy Systems What is next ? Nuclear fuel and nuclear wastes materials • UO2 (experimental spectroscopy available) , PuO2 • diluted UO2/PuO2 mixtures UO2:Pu4+, PuO2:U4+ Transuranium systems (the f7 configuration) • Cm3+ in Cs2NaYCl6 (experimental spectroscopy available) • and Am2+ and Bk4+

  46. Acknowledgments Noémi Barros Luis Seijo Belén Ordejón Ana Muñoz José Luis Pascual me José Gracia Fernando Ruipérez on campus, UAM 2006 Goar Sánchez in La Sierra, Madrid 2007 http://www.uam.es/quimica/aimp/

  47. Acknowledgments • Miroslaw Karbowiak, Faculty of Chemistry, University of Wroclaw, Wroclaw, Poland • Norman Edelstein,Lawrence Berkeley National Laboratory, Berkeley, California, USA • Björn Roos, Rolandh Lindh,(MOLCAS)Lund University, Lund, Sweden • Russell Pitzer, (COLUMBUS) Ohio State University, Columbus, Ohio, USA • Valérie Vallet, Jean-Pierre Flament (EPCISO) Université de Lille, Lille, France • Spanish Ministry of Education and Science, DGI-BQU2002-01316,DGI-CTQ2005-08550.

  48. Structure, bonding, and spectroscopy of actinides in crystals.A quantum chemical perspectiveUniversidad Autónoma de Madrid

More Related
