Presentation Transcript


Mips assembly language programming

CDA 3101 Fall 2010

Discussion Session 07

MIPS Assembly Language Programming

1


Mips assembly language programming

Instruction Register

Register – Format (add Rd, Rs, Rt)‏

Op-code

Rs

Rt

Rd

Shamt

Function-code

6

5

5

5

5

6

add $t0, $t1, $t2 ## RF[Rd] =RF[Rs] +RF[Rt]

2


Mips assembly language programming

Instruction Register

Immediate – Format (addi Rt, Rs, Imm)‏

Op-code

Rs

Rt

Immediate

6

5

5

16

2’s Complement ?

addi $t0, $t1, 100 ## RF[Rt] =RF[Rs] + se Imm

se Imm = {16 {immediate[15]}, immediate}

beq Rs, Rt, Label ##if(RF[Rs] == Rf[Rt]) PC = PC +4 + BranchAddr*

*BranchAddr = {14{immediate[15]}, immediate, 2’b0}

3


Mips assembly language programming

Instruction Register

Jump– Format (j addr)‏

Op-code

Address

6

26

j Label ## PC = JumpAddr

JumpAddr = { PC[31:28], address, 2’b0}

4


Mips assembly language programming

Problem

Assume the address start from 0x00400024, translate the

following MIPS code into the corresponding machine code.

lable1: addi $t0, $0, 1 0x00400024

sll $t0, $t0, 2 0x00400028

bgez $t0, lable1 0x0040002C

and $s0, $s0, $t0 0x00400030

lable2: bne $s0, $0, lable3 0x00400034

lb $t4, 8($s4) 0x00400038

sb $t4, -8($s4) 0x0040003C

lable3: j lable10x00400040

5


Mips assembly language programming

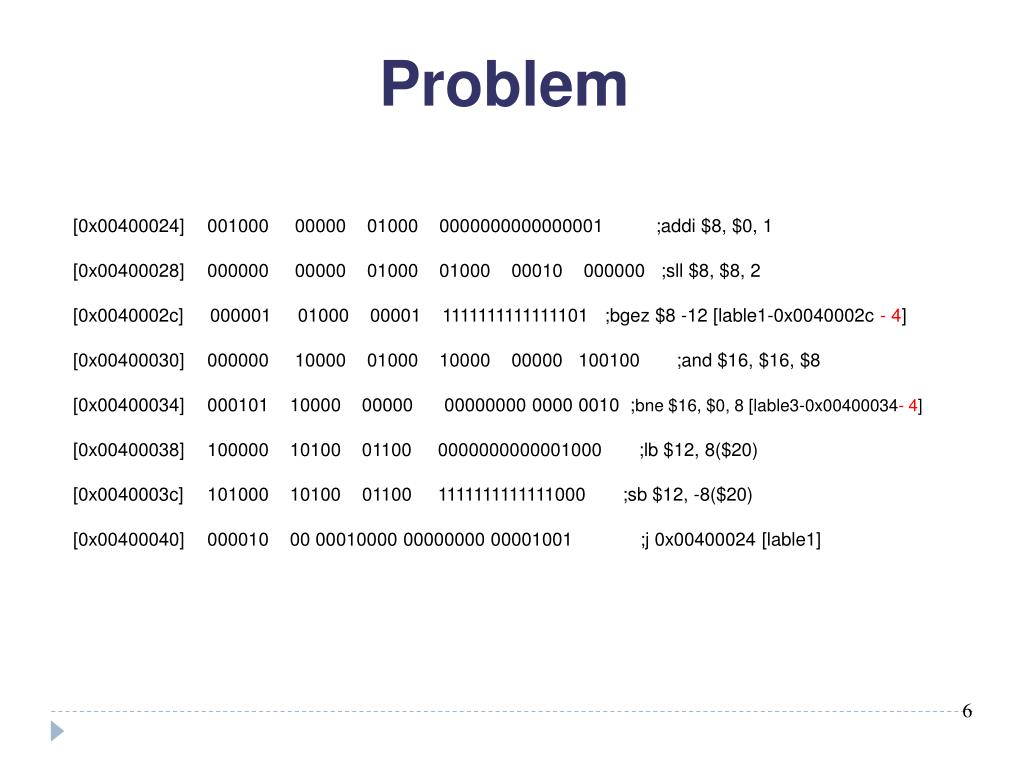

Problem

[0x00400024] 001000 00000 01000 0000000000000001 ;addi $8, $0, 1

[0x00400028] 000000 00000 01000 01000 00010 000000 ;sll $8, $8, 2

[0x0040002c] 000001 01000 00001 1111111111111101 ;bgez $8 -12 [lable1-0x0040002c - 4]

[0x00400030] 000000 10000 01000 10000 00000 100100 ;and $16, $16, $8

[0x00400034] 000101 10000 00000 00000000 0000 0010 ;bne $16, $0, 8 [lable3-0x00400034- 4]

[0x00400038] 100000 10100 01100 0000000000001000 ;lb $12, 8($20)

[0x0040003c] 101000 10100 01100 1111111111111000 ;sb $12, -8($20)

[0x00400040] 000010 00 00010000 00000000 00001001 ;j 0x00400024 [lable1]

6
