case of an anal problem

case of an anal problem. brought to you by the GI Consult Team friday april 25, 2008. ID : 61M HIV+ CD 4 =256 admitted to psychiatry awaiting LTC placement for HIV-related dementia RFR : “anal abnormality” with anal leakage

shani
Download Presentation

case of an anal problem

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. case of an anal problem brought to you by the GI Consult Teamfriday april 25, 2008

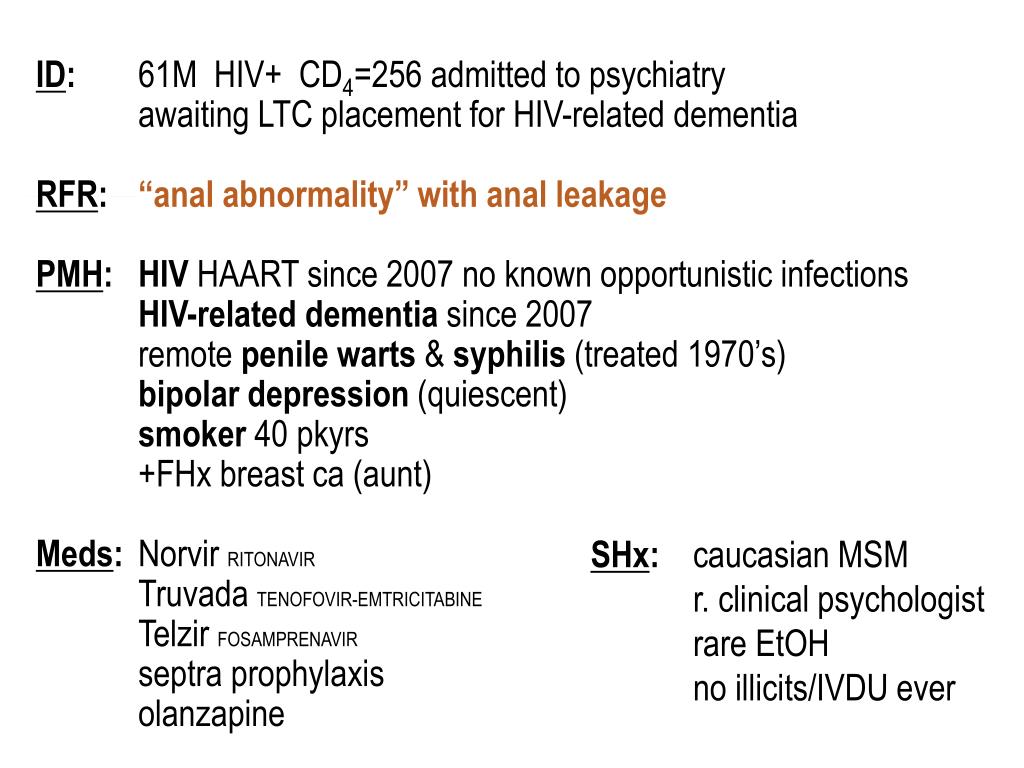

  2. ID: 61M HIV+ CD4=256 admitted to psychiatry awaiting LTC placement for HIV-related dementia RFR: “anal abnormality” with anal leakage PMH: HIV HAART since 2007 no known opportunistic infectionsHIV-related dementia since 2007 remote penile warts & syphilis (treated 1970’s) bipolar depression (quiescent) smoker 40 pkyrs +FHx breast ca (aunt) Meds: Norvir RITONAVIRTruvada TENOFOVIR-EMTRICITABINE Telzir FOSAMPRENAVIR septra prophylaxis olanzapine SHx: caucasian MSM r. clinical psychologist rare EtOH no illicits/IVDU ever

  3. HPI: Admitted for LTC placement Otherwise well, no fevers Constant anal leakage of fecal material ~1yr (+) sensation of discrete episodes of need to evacuate (+) has control over discrete bowel movements (+) formed BMs daily Never pain/bleeding FMD cannot recall doing DRE

  4. O/E: 120/70 82 RR16-100% RA Tmax 36.6 H+N no icterus, no oral or perioral lesions, no cerv/axill lymphadenopathy CVS normal Resp normal Abdo abdo soft & benign, no HSM(+) 2cm L non-tender inguinal lymph node On rectal exam…

  5. Photo Courtesy of Alex McDonald, St. Michael’s Hospital Media Centre

  6. differential diagnosis?

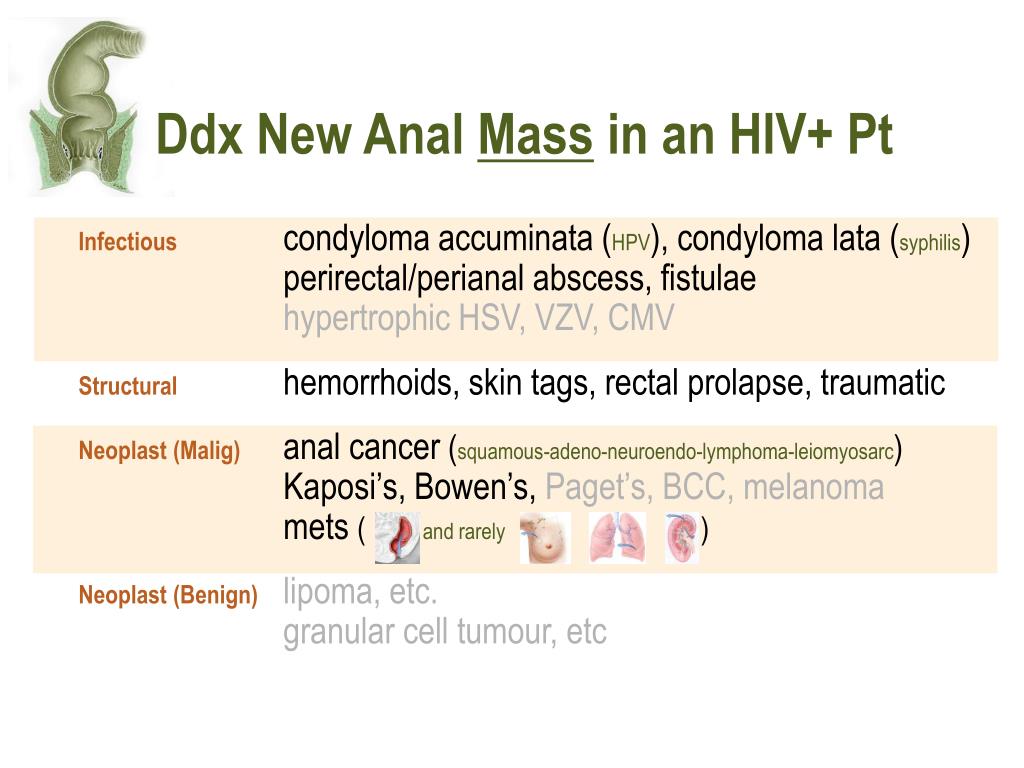

  7. Ddx New Anal Mass in an HIV+ Pt Infectiouscondyloma accuminata (HPV), condyloma lata (syphilis)perirectal/perianal abscess, fistulaehypertrophic HSV, VZV, CMV Structuralhemorrhoids, skin tags, rectal prolapse, traumatic Neoplast (Malig)anal cancer (squamous-adeno-neuroendo-lymphoma-leiomyosarc) Kaposi’s, Bowen’s, Paget’s, BCC, melanomamets ( and rarely ) Neoplast (Benign)lipoma, etc. granular cell tumour, etc

  8. anorectal disease in HIV+ patients

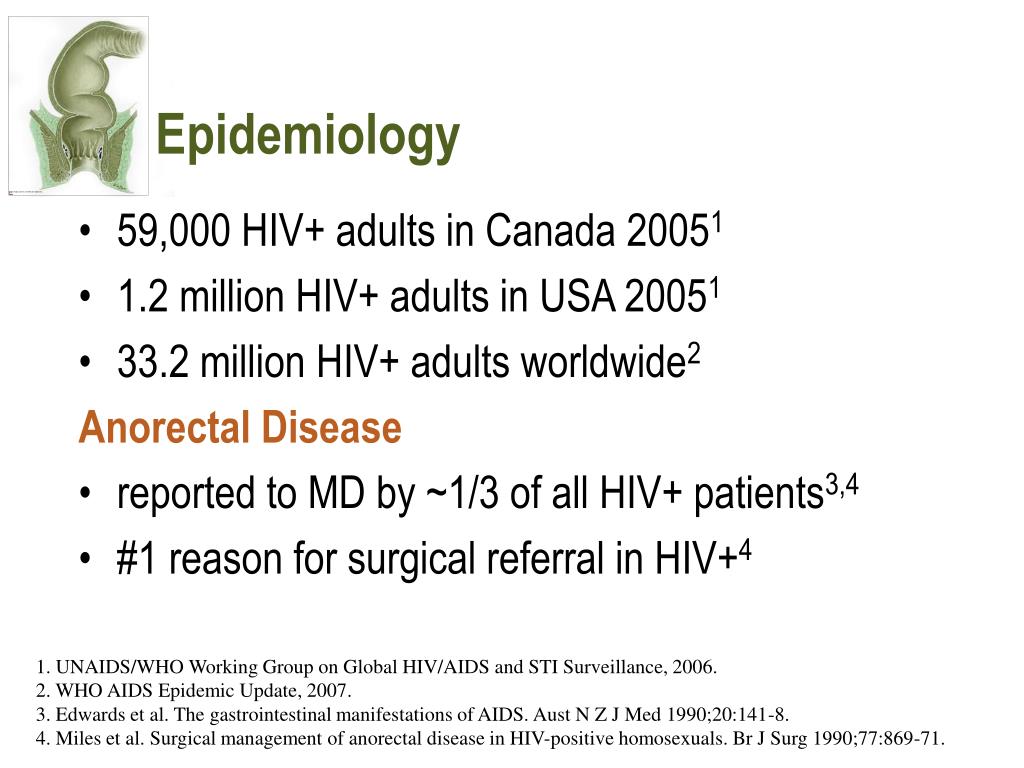

  9. Epidemiology • 59,000 HIV+ adults in Canada 20051 • 1.2 million HIV+ adults in USA 20051 • 33.2 million HIV+ adults worldwide2 Anorectal Disease • reported to MD by ~1/3 of all HIV+ patients3,4 • #1 reason for surgical referral in HIV+4 1. UNAIDS/WHO Working Group on Global HIV/AIDS and STI Surveillance, 2006.2. WHO AIDS Epidemic Update, 2007. 3. Edwards et al. The gastrointestinal manifestations of AIDS. Aust N Z J Med 1990;20:141-8. 4. Miles et al. Surgical management of anorectal disease in HIV-positive homosexuals. Br J Surg 1990;77:869-71.

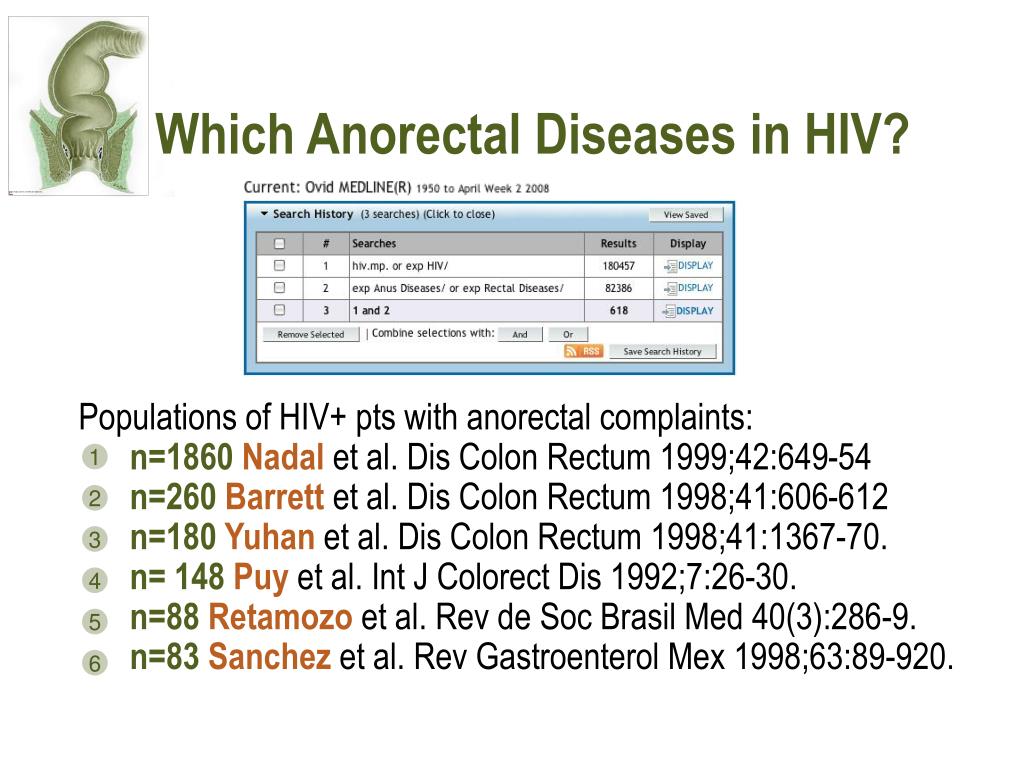

  10. Which Anorectal Diseases in HIV? Populations of HIV+ pts with anorectal complaints: n=1860 Nadal et al. Dis Colon Rectum 1999;42:649-54 n=260Barrett et al. Dis Colon Rectum 1998;41:606-612 n=180Yuhan et al. Dis Colon Rectum 1998;41:1367-70. n= 148Puy et al. Int J Colorect Dis 1992;7:26-30. n=88Retamozo et al. Rev de Soc Brasil Med 40(3):286-9. n=83Sanchez et al. Rev Gastroenterol Mex 1998;63:89-920. 1 2 3 4 5 6

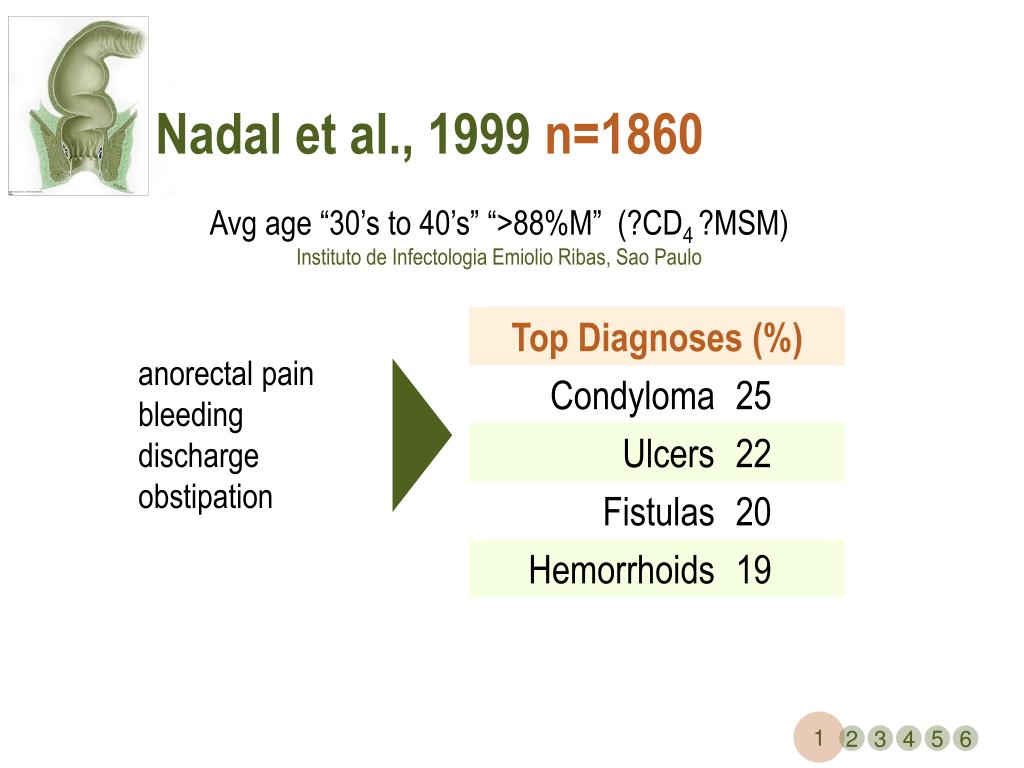

  11. Nadal et al., 1999 n=1860 Avg age “30’s to 40’s” “>88%M” (?CD4 ?MSM)Instituto de Infectologia Emiolio Ribas, Sao Paulo anorectal pain bleeding discharge obstipation 1 2 3 4 5 6

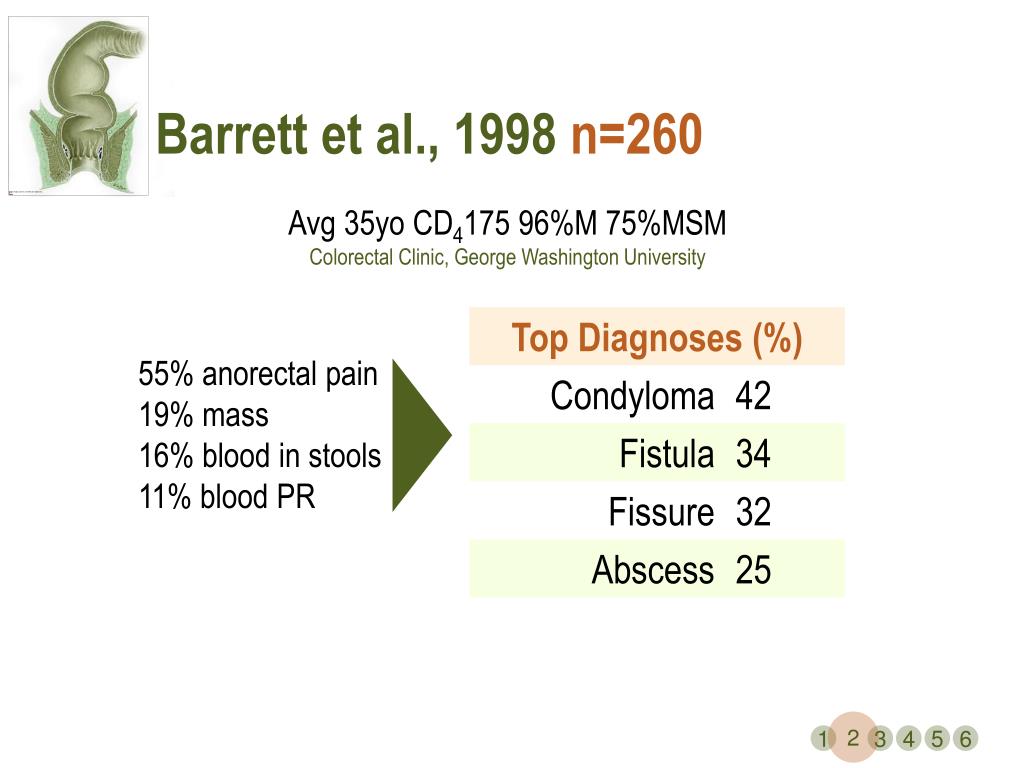

  12. Barrett et al., 1998 n=260 Avg 35yo CD4175 96%M 75%MSMColorectal Clinic, George Washington University 55% anorectal pain 19% mass 16% blood in stools 11% blood PR 2 1 3 4 5 6

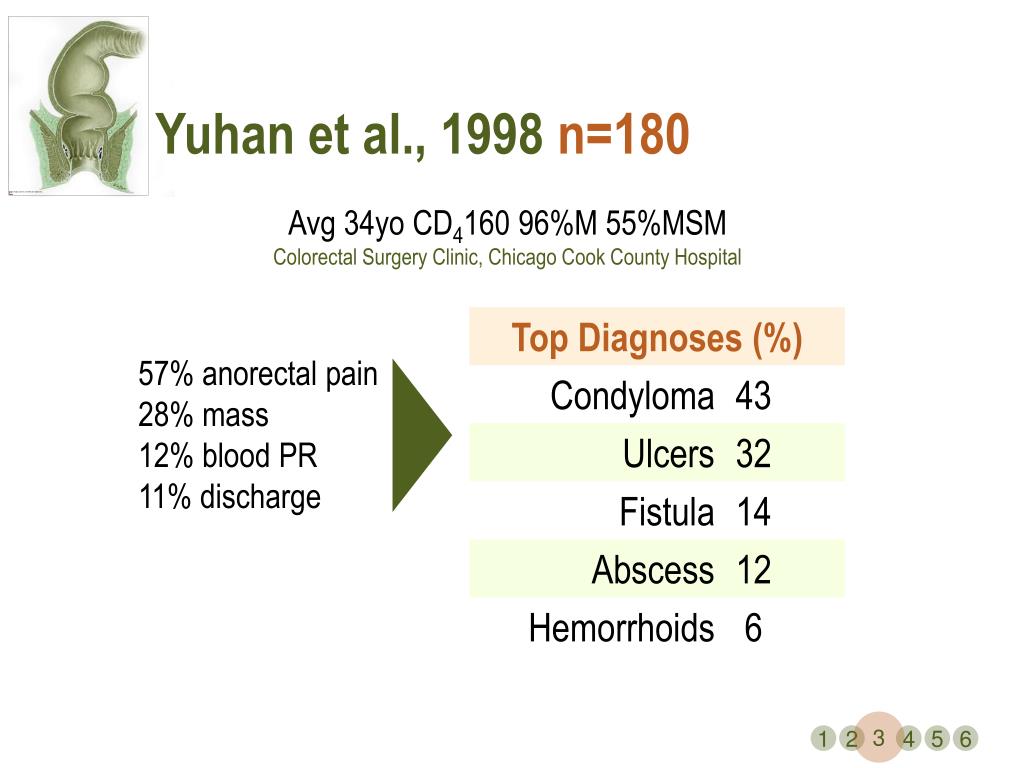

  13. Yuhan et al., 1998 n=180 Avg 34yo CD4160 96%M 55%MSMColorectal Surgery Clinic, Chicago Cook County Hospital 57% anorectal pain 28% mass 12% blood PR 11% discharge 3 1 2 4 5 6

  14. Puy-Montbrun et al., 1991 n=148 Avg 34yo CD4? 97%M 69%MSMColoproctology Department, Hopital Leopold Bellan, France anorectal pain pruritus discharge mass 4 1 2 3 5 6

  15. Other Conditions Reported • Molluscum, HSV, CMV, M. fortuitum • Proctitis • Pruritis ani, excoriation, lichenification • Anal sinus, rectal stenosis • Mucosal prolapse, sphincter atonia • Anal Crohn’s disease, ulcerative colitis • Various malignancies • Traumatic wound

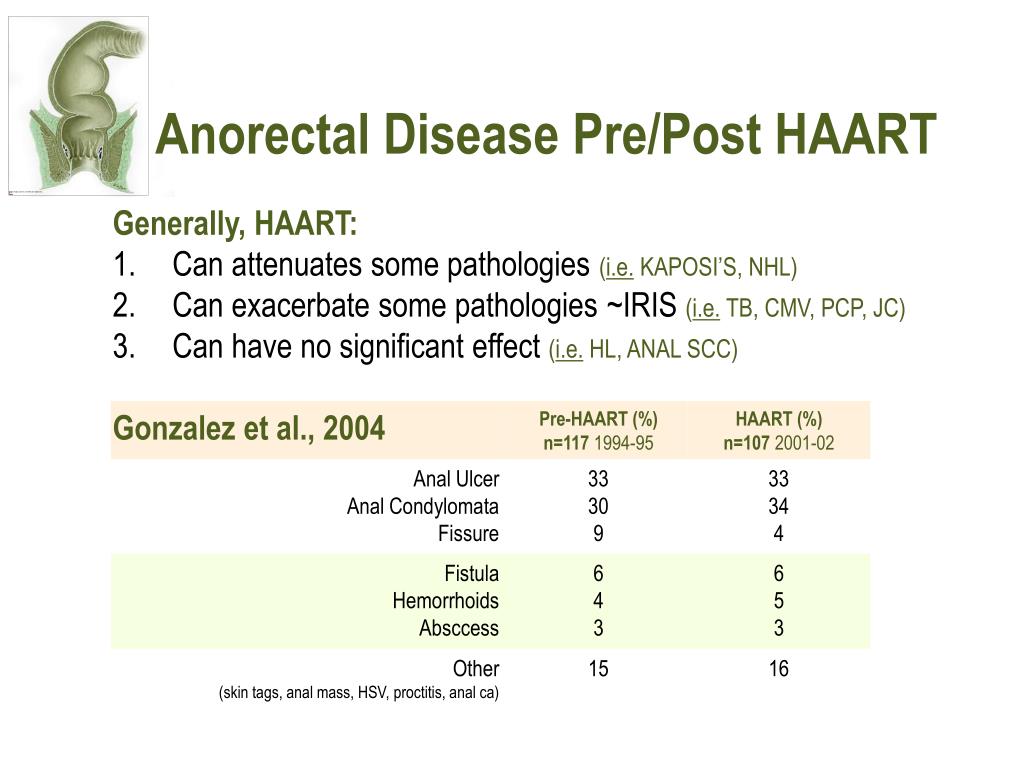

  16. Anorectal Disease Pre/Post HAART Generally, HAART: • Can attenuates some pathologies (i.e. KAPOSI’S, NHL) • Can exacerbate some pathologies ~IRIS (i.e. TB, CMV, PCP, JC) • Can have no significant effect (i.e. HL, ANAL SCC) Gonzalez et al., 2004

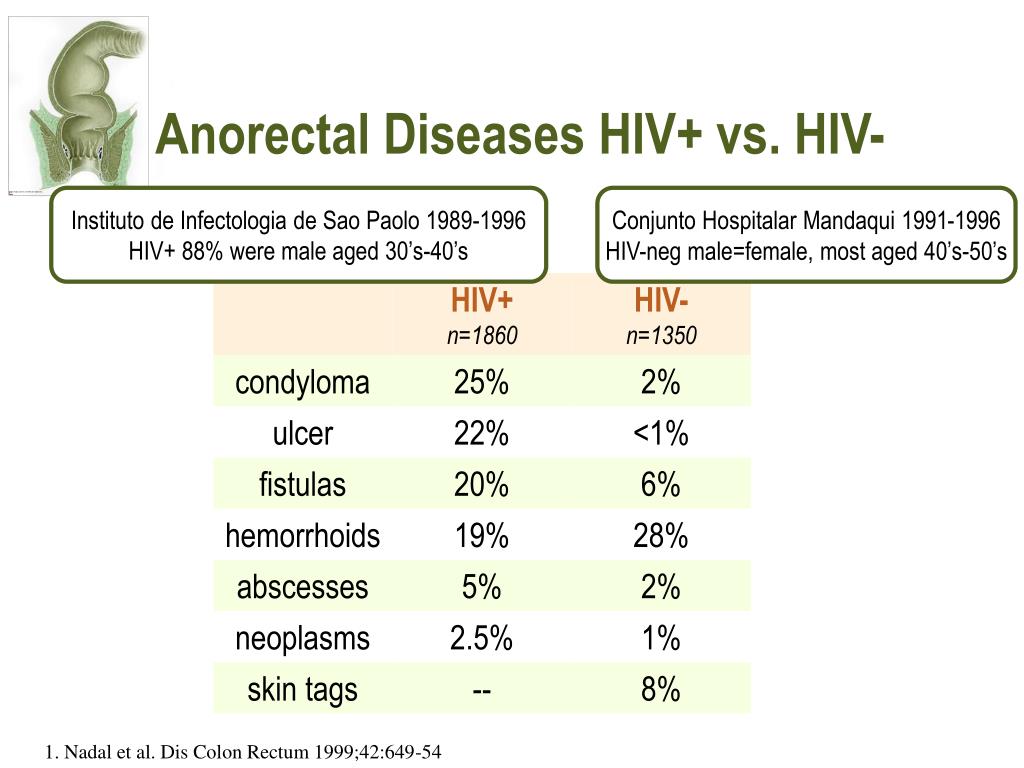

  17. Anorectal Diseases HIV+ vs. HIV- Instituto de Infectologia de Sao Paolo 1989-1996HIV+ 88% were male aged 30’s-40’s Conjunto Hospitalar Mandaqui 1991-1996HIV-neg male=female, most aged 40’s-50’s 1. Nadal et al. Dis Colon Rectum 1999;42:649-54

  18. Caveats of Anorectal Disease in AIDS • common probs exaggerated/atypical in appearance • rare conditions need to be considered in the Ddx • treatment complicated by immunosuppression

  19. infectious DeToma G et al. Eur Surg Res 2006;38:418-22.

  20. infectious Condylomata Acuminata of HPV • Previous photo: Giant Condyloma Acuminatum • Marked papillary proliferation • Tendency to deep invasion displacing surrounding tissues • not verrucous carcinoma • No infiltration of BM, lymphatics, blood vessels • No distant mets • possibly regional variant of verrucous carcinoma? 1. DeToma G et al. Surgical management of perianal giant condyloma acuminatum. Eur Surg Res 2006;38:418-22.

  21. infectious Begovac J. NEJM 2005;352(7):708.

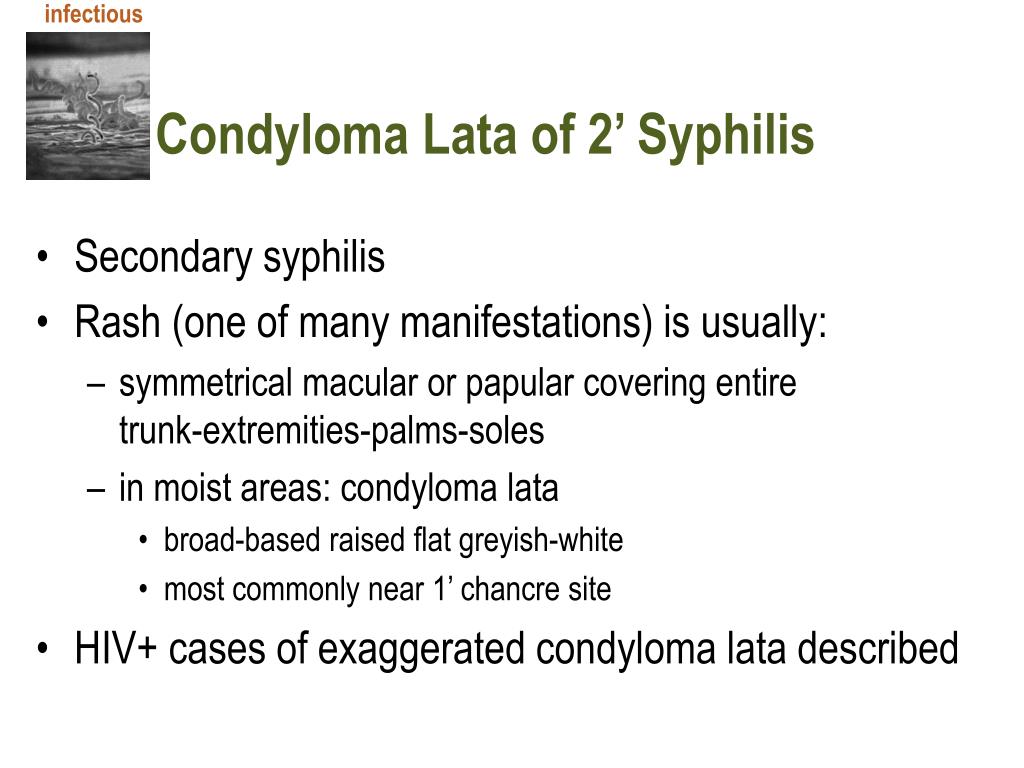

  22. infectious Condyloma Lata of 2’ Syphilis • Secondary syphilis • Rash (one of many manifestations) is usually: • symmetrical macular or papular covering entire trunk-extremities-palms-soles • in moist areas: condyloma lata • broad-based raised flat greyish-white • most commonly near 1’ chancre site • HIV+ cases of exaggerated condyloma lata described

  23. infectious Medscape.com

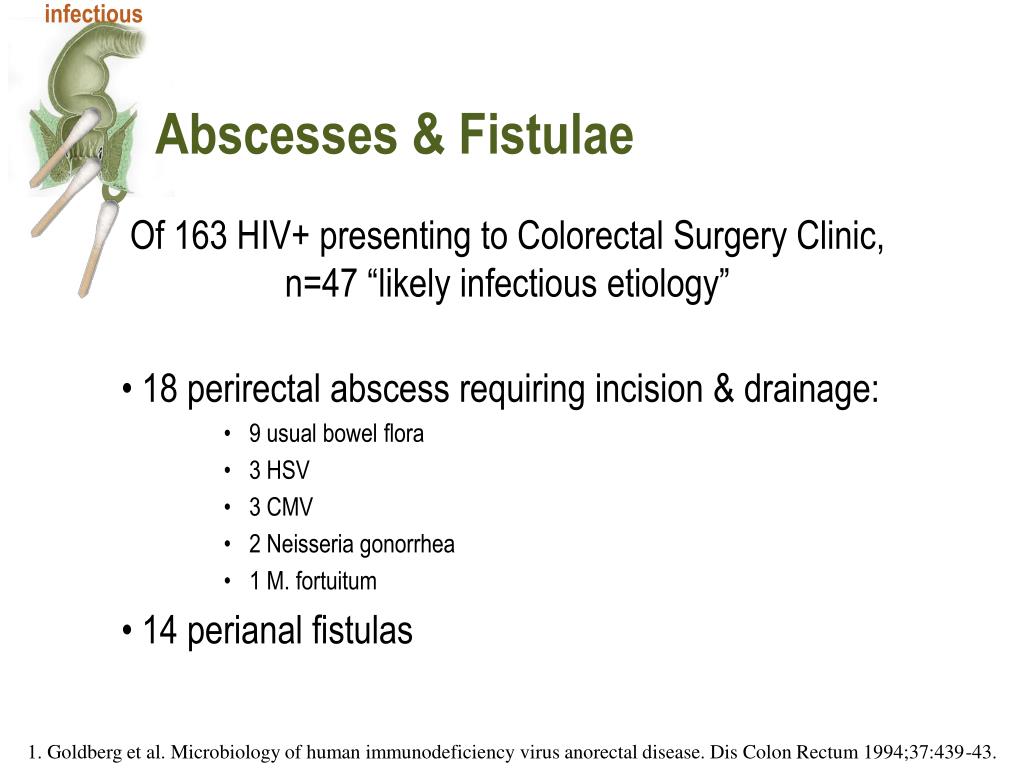

  24. infectious Abscesses & Fistulae Of 163 HIV+ presenting to Colorectal Surgery Clinic,n=47 “likely infectious etiology” • 18 perirectal abscess requiring incision & drainage: • 9 usual bowel flora • 3 HSV • 3 CMV • 2 Neisseria gonorrhea • 1 M. fortuitum • 14 perianal fistulas 1. Goldberg et al. Microbiology of human immunodeficiency virus anorectal disease. Dis Colon Rectum 1994;37:439-43.

  25. infectious Utdol.com

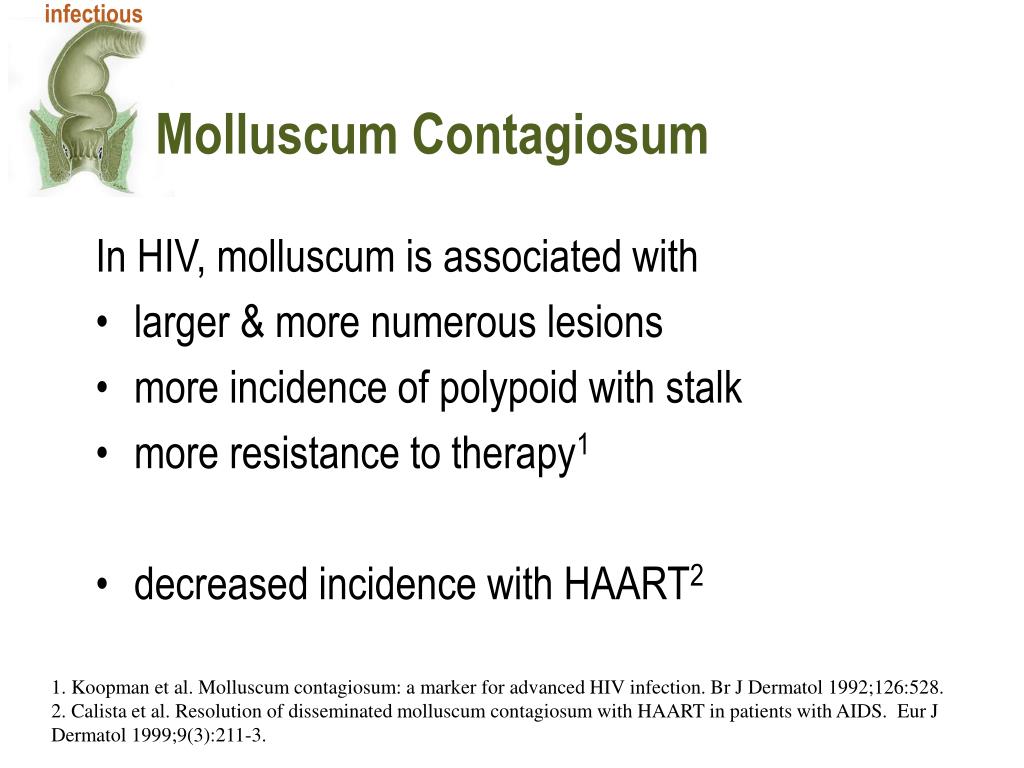

  26. infectious Molluscum Contagiosum In HIV, molluscum is associated with • larger & more numerous lesions • more incidence of polypoid with stalk • more resistance to therapy1 • decreased incidence with HAART2 1. Koopman et al. Molluscum contagiosum: a marker for advanced HIV infection. Br J Dermatol 1992;126:528. 2. Calista et al. Resolution of disseminated molluscum contagiosum with HAART in patients with AIDS. Eur J Dermatol 1999;9(3):211-3.

  27. infectious Simonsen et al. Clinics, 2008;63(1):143-6.

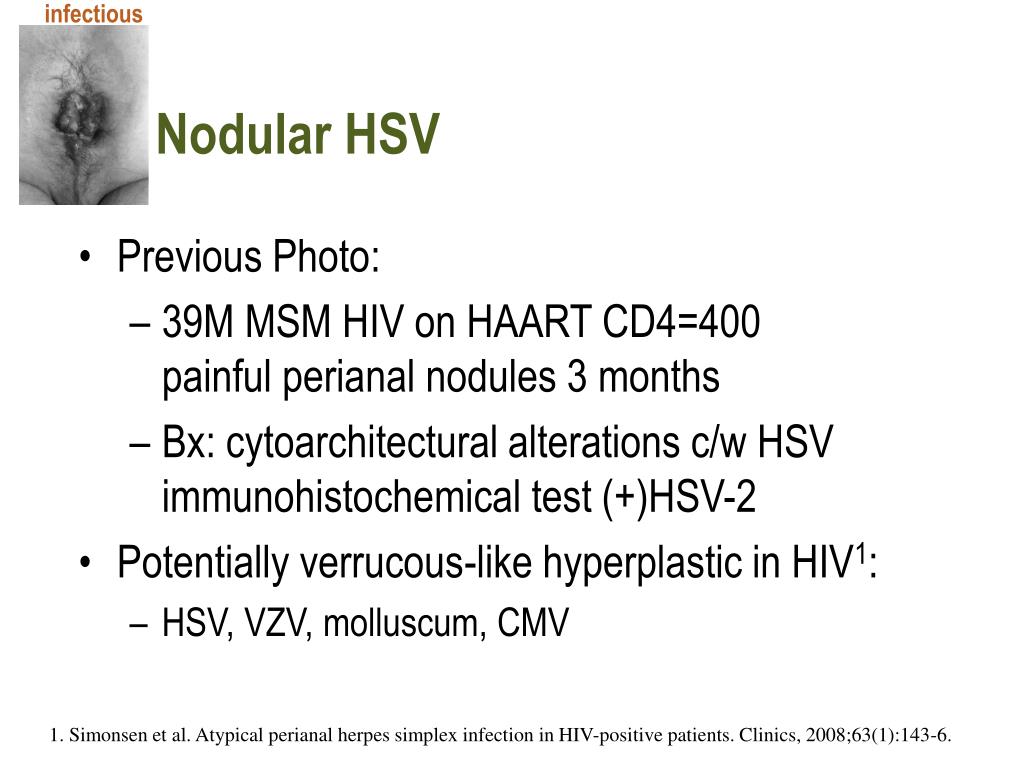

  28. infectious Nodular HSV • Previous Photo: • 39M MSM HIV on HAART CD4=400painful perianal nodules 3 months • Bx: cytoarchitectural alterations c/w HSVimmunohistochemical test (+)HSV-2 • Potentially verrucous-like hyperplastic in HIV1: • HSV, VZV, molluscum, CMV 1. Simonsen et al. Atypical perianal herpes simplex infection in HIV-positive patients. Clinics, 2008;63(1):143-6.

  29. structural Hemorrhoids

  30. structural http://www.stanford.edu/class/humbio103/ParaSites2002

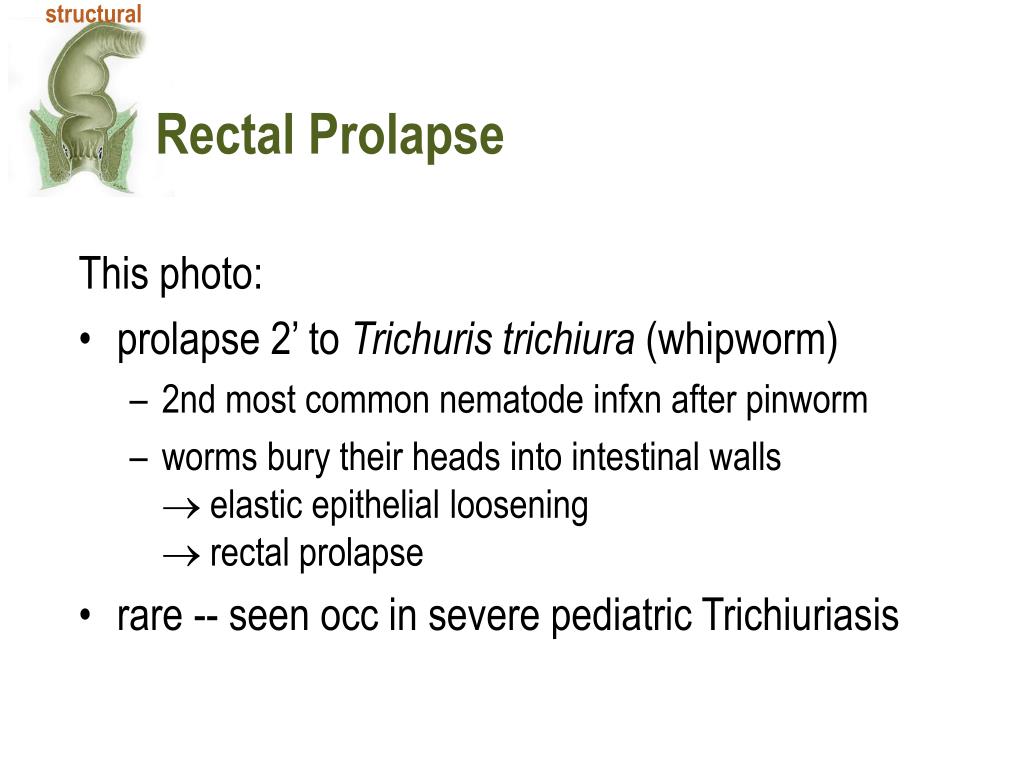

  31. structural Rectal Prolapse This photo: • prolapse 2’ to Trichuris trichiura (whipworm) • 2nd most common nematode infxn after pinworm • worms bury their heads into intestinal walls elastic epithelial loosening rectal prolapse • rare -- seen occ in severe pediatric Trichiuriasis

  32. neoplastic http://www.acthiv.org

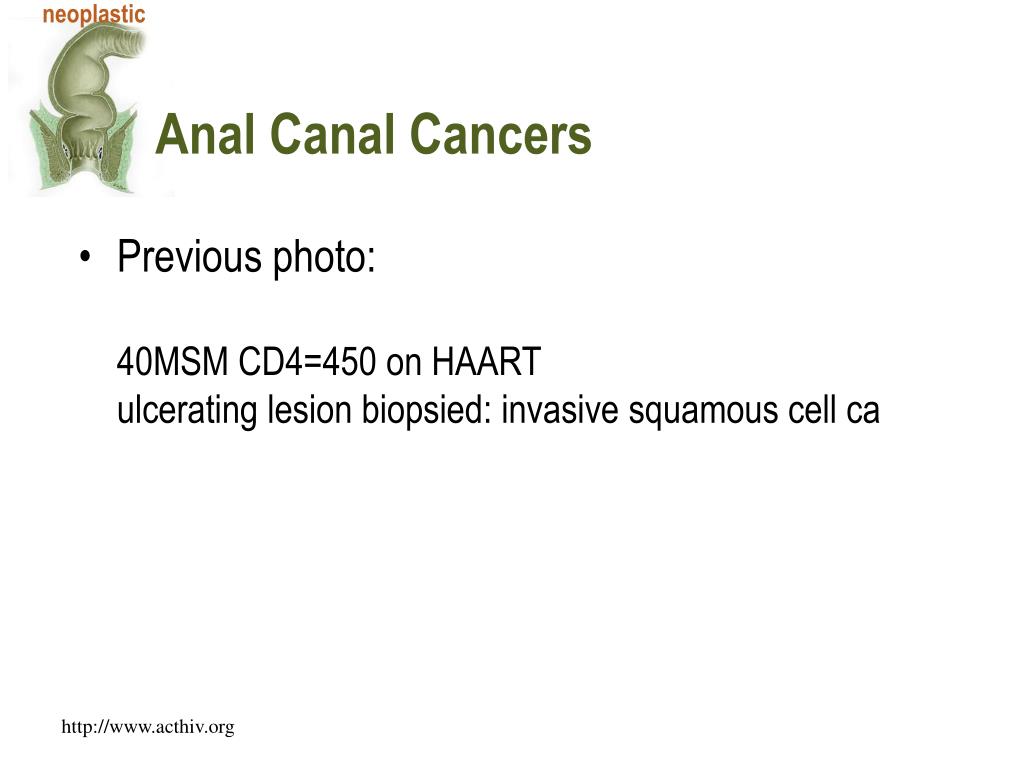

  33. neoplastic Anal Canal Cancers • Previous photo: 40MSM CD4=450 on HAARTulcerating lesion biopsied: invasive squamous cell ca http://www.acthiv.org

  34. neoplastic Rakoto. Annales de chirurgie, 2003;128:265-7..

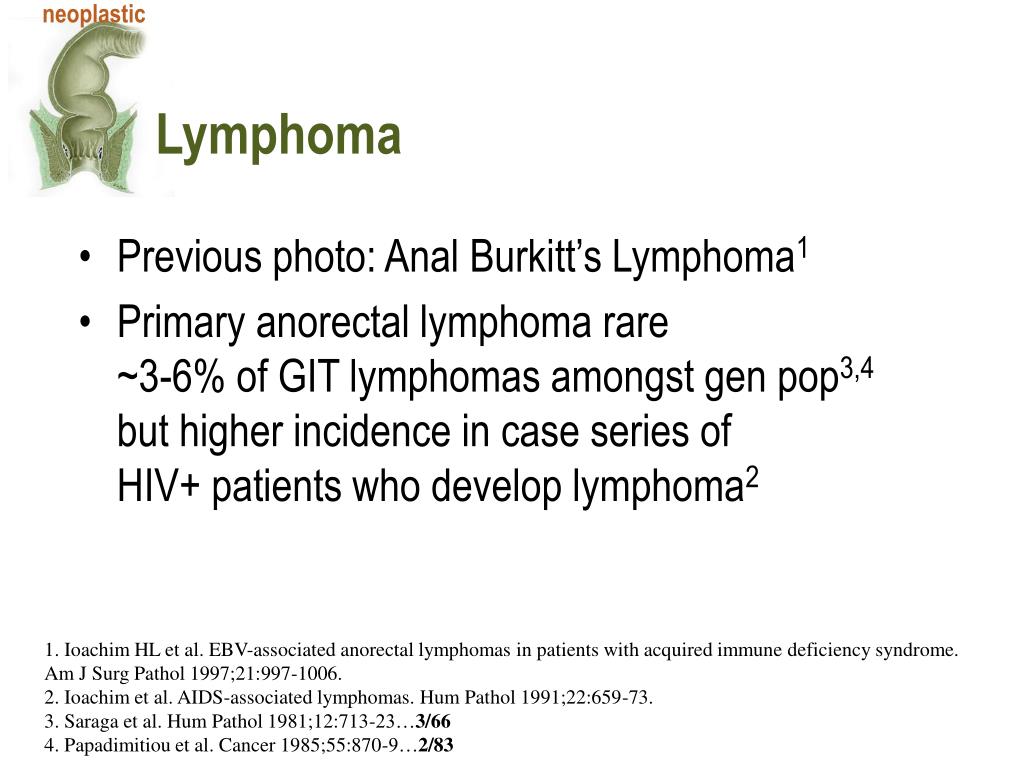

  35. neoplastic Lymphoma • Previous photo: Anal Burkitt’s Lymphoma1 • Primary anorectal lymphoma rare ~3-6% of GIT lymphomas amongst gen pop3,4but higher incidence in case series of HIV+ patients who develop lymphoma2 1. Ioachim HL et al. EBV-associated anorectal lymphomas in patients with acquired immune deficiency syndrome. Am J Surg Pathol 1997;21:997-1006. 2. Ioachim et al. AIDS-associated lymphomas. Hum Pathol 1991;22:659-73. 3. Saraga et al. Hum Pathol 1981;12:713-23…3/66 4. Papadimitiou et al. Cancer 1985;55:870-9…2/83

  36. back to our case…

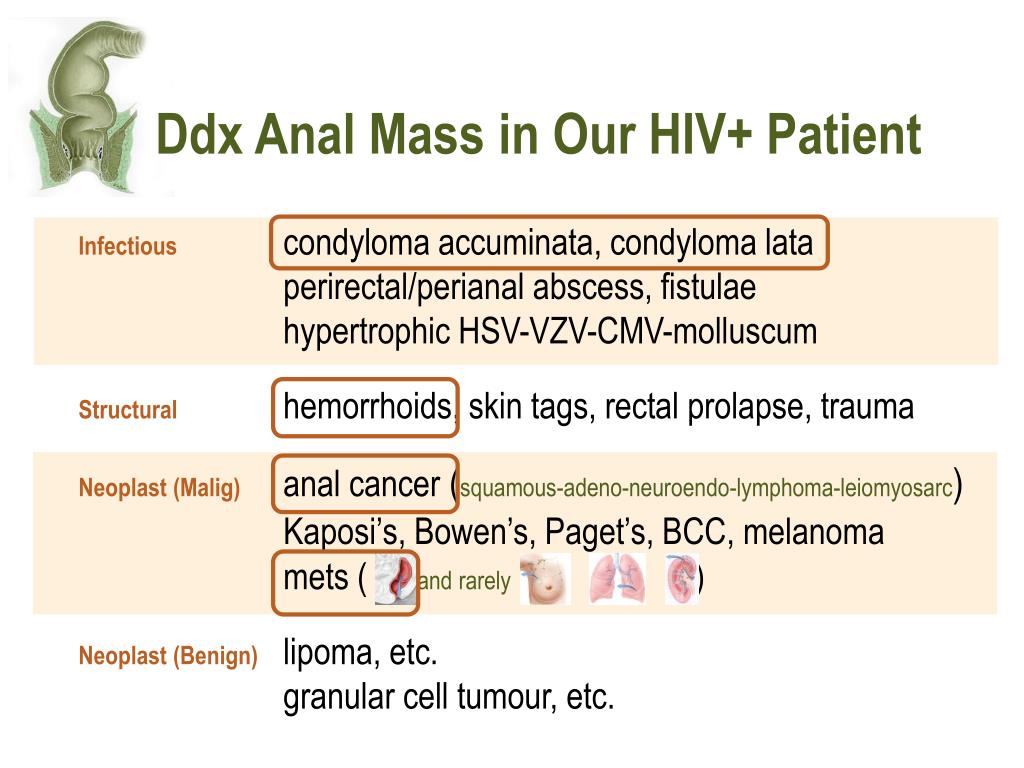

  37. Ddx Anal Mass in Our HIV+ Patient Infectiouscondyloma accuminata, condyloma lataperirectal/perianal abscess, fistulae hypertrophic HSV-VZV-CMV-molluscum Structuralhemorrhoids, skin tags, rectal prolapse, trauma Neoplast (Malig)anal cancer (squamous-adeno-neuroendo-lymphoma-leiomyosarc) Kaposi’s, Bowen’s, Paget’s, BCC, melanoma mets ( and rarely ) Neoplast (Benign)lipoma, etc. granular cell tumour, etc.

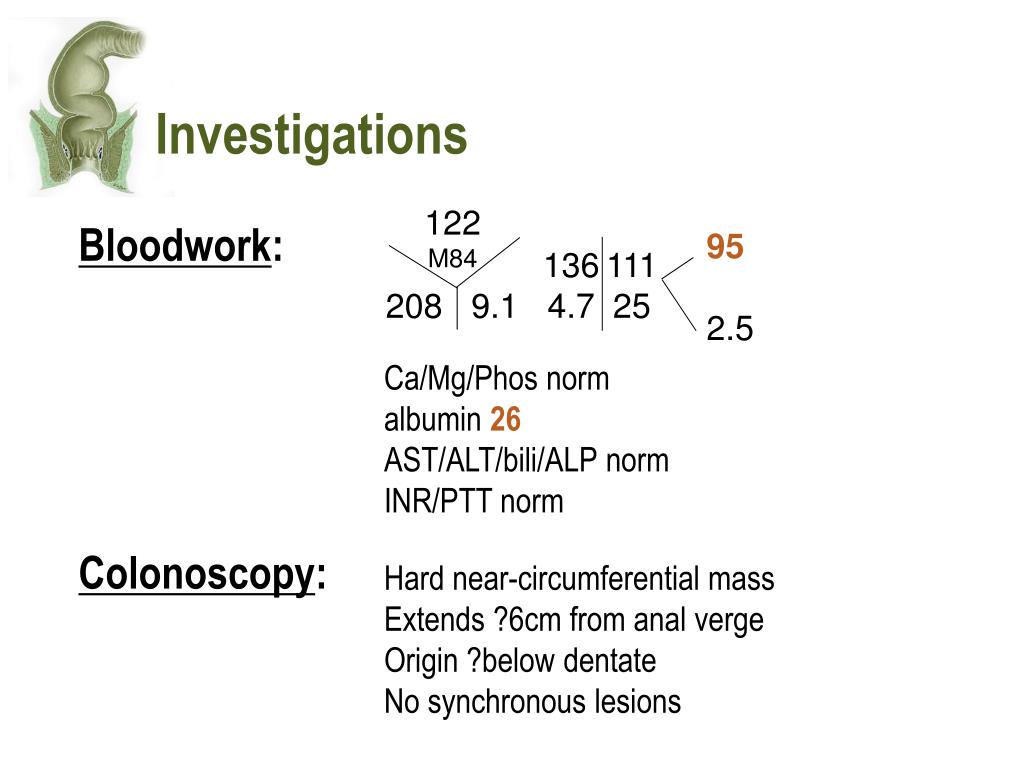

  38. Investigations 122M84 952.5 Bloodwork: Colonoscopy: 1364.7 11125 208 9.1 Ca/Mg/Phos normalbumin 26AST/ALT/bili/ALP norm INR/PTT norm Hard near-circumferential massExtends ?6cm from anal verge Origin ?below dentate No synchronous lesions

  39. Moderately-Differentiated Invasive Squamous Cell Carcinoma

  40. Moderately-Differentiated Invasive Squamous Cell Carcinoma

  41. CT Chest-Abdo-Pelvis

  42. MRI T2 Weighted

  43. MRI T2 Weighted

  44. MRI with Gadolinium

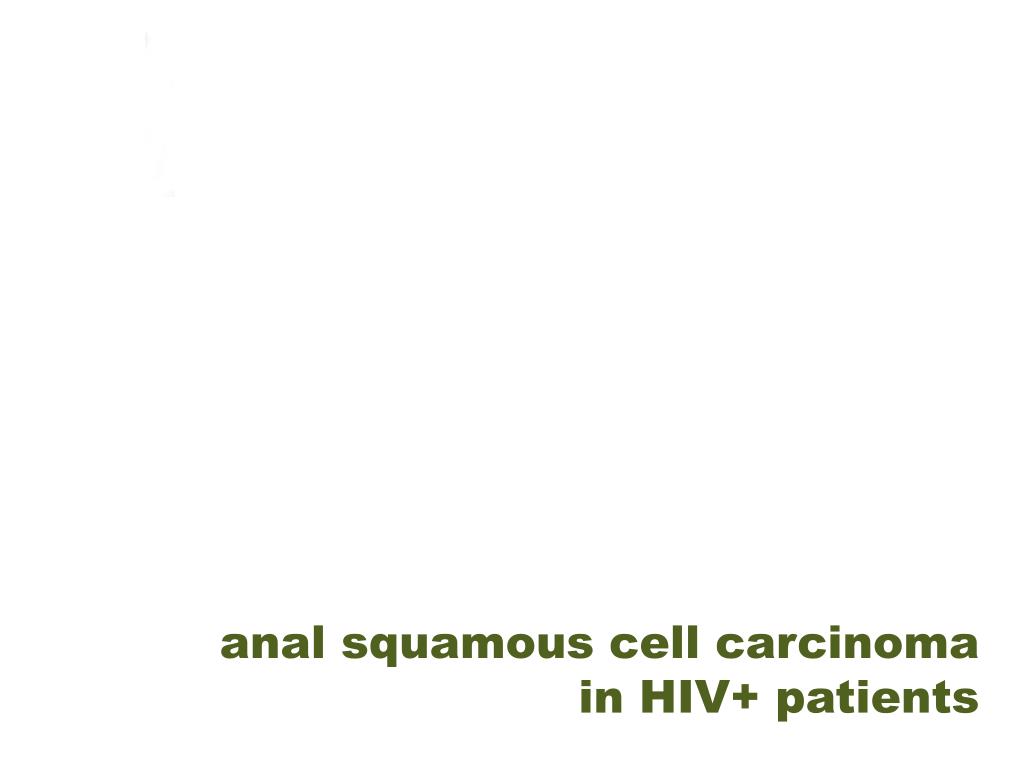

  45. anal squamous cell carcinomain HIV+ patients

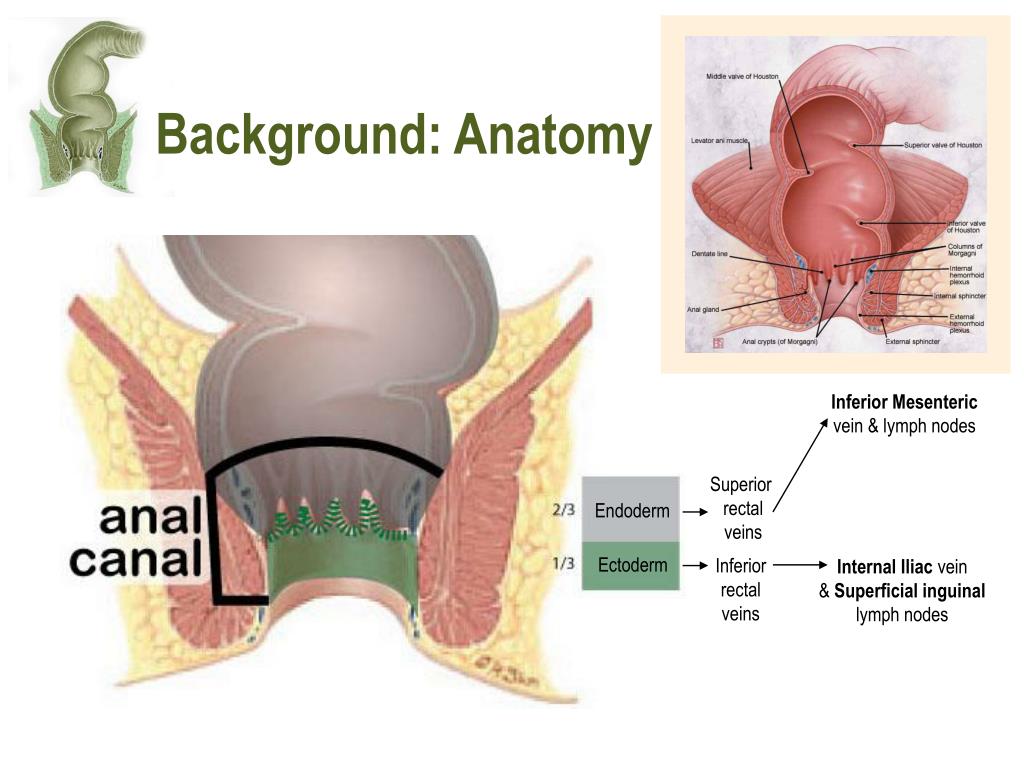

  46. Background: Anatomy Inferior Mesentericvein & lymph nodes Superior rectalveins Endoderm Ectoderm Inferiorrectalveins Internal Iliac vein & Superficial inguinallymph nodes

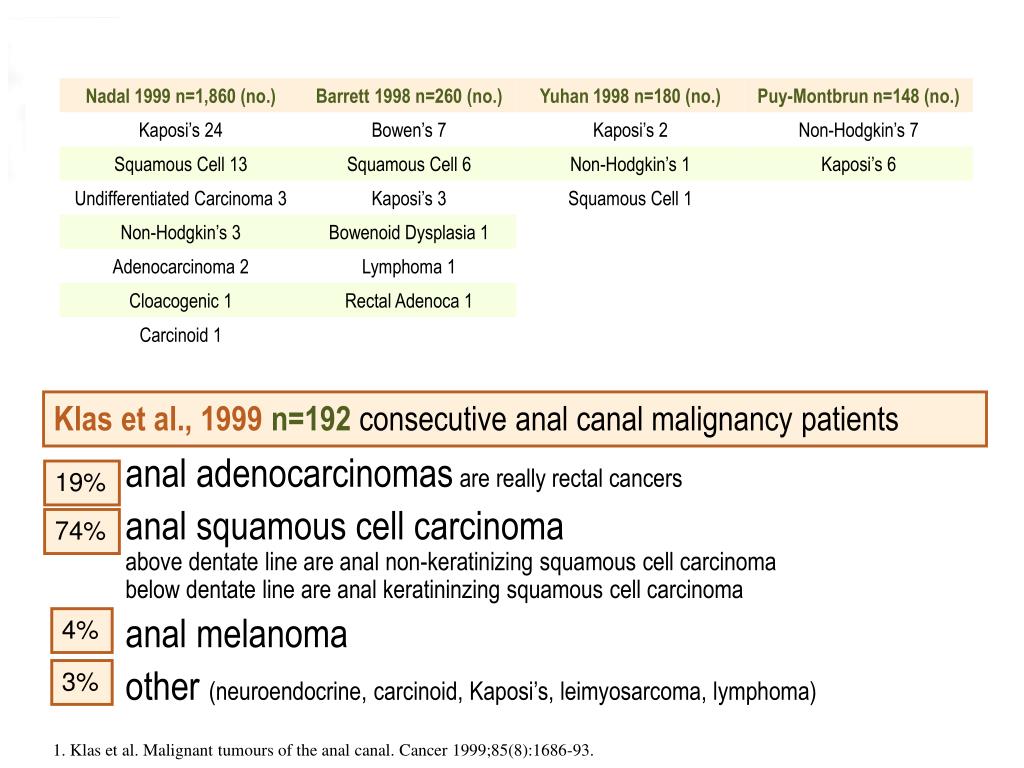

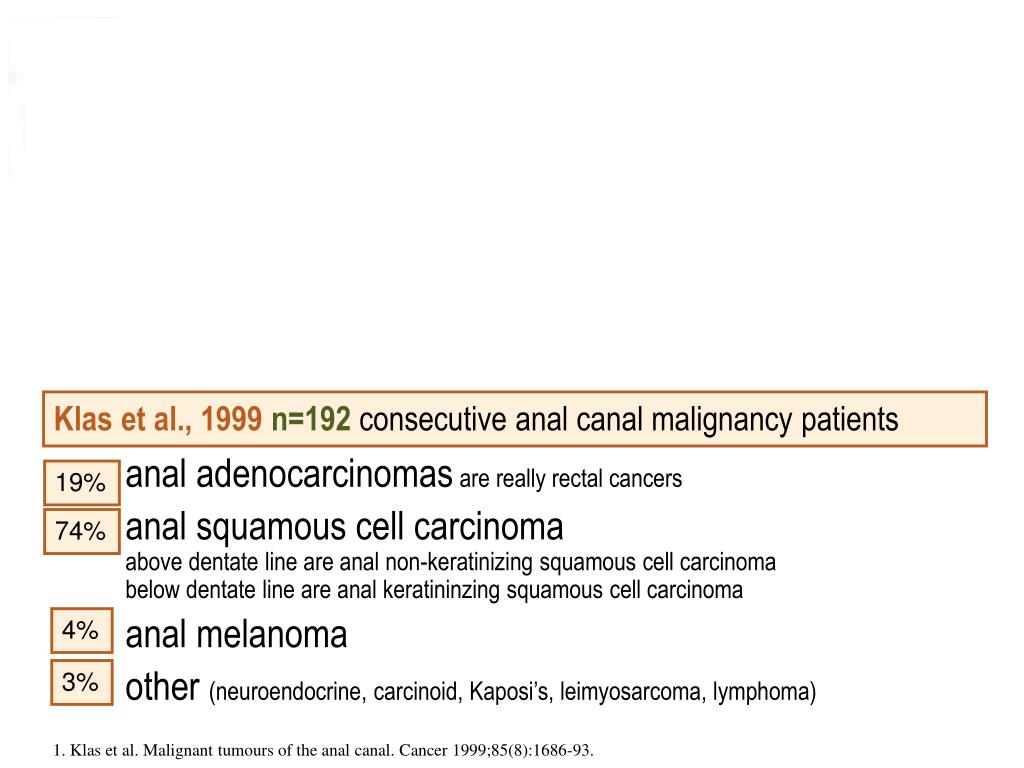

  47. Klas et al., 1999n=192 consecutive anal canal malignancy patients 19% 74% 4% 3% Background: Other Anal Cancers “rectal cancer” Roughly, Classification is actually histology-based • anal adenocarcinomas are really rectal cancers • anal squamous cell carcinomaabove dentate line are anal non-keratinizing squamous cell carcinomabelow dentate line are anal keratininzing squamous cell carcinoma • anal melanoma • other (neuroendocrine, carcinoid, Kaposi’s, leimyosarcoma, lymphoma) “anal cancer” 1. Klas et al. Malignant tumours of the anal canal. Cancer 1999;85(8):1686-93.

  48. Klas et al., 1999n=192 consecutive anal canal malignancy patients 19% 74% 4% 3% Background: Other Anal Cancers “rectal cancer” Roughly, Classification is actually histology-based • anal adenocarcinomas are really rectal cancers • anal squamous cell carcinomaabove dentate line are anal non-keratinizing squamous cell carcinomabelow dentate line are anal keratininzing squamous cell carcinoma • anal melanoma • other (neuroendocrine, carcinoid, Kaposi’s, leimyosarcoma, lymphoma) “anal cancer” 1. Klas et al. Malignant tumours of the anal canal. Cancer 1999;85(8):1686-93.

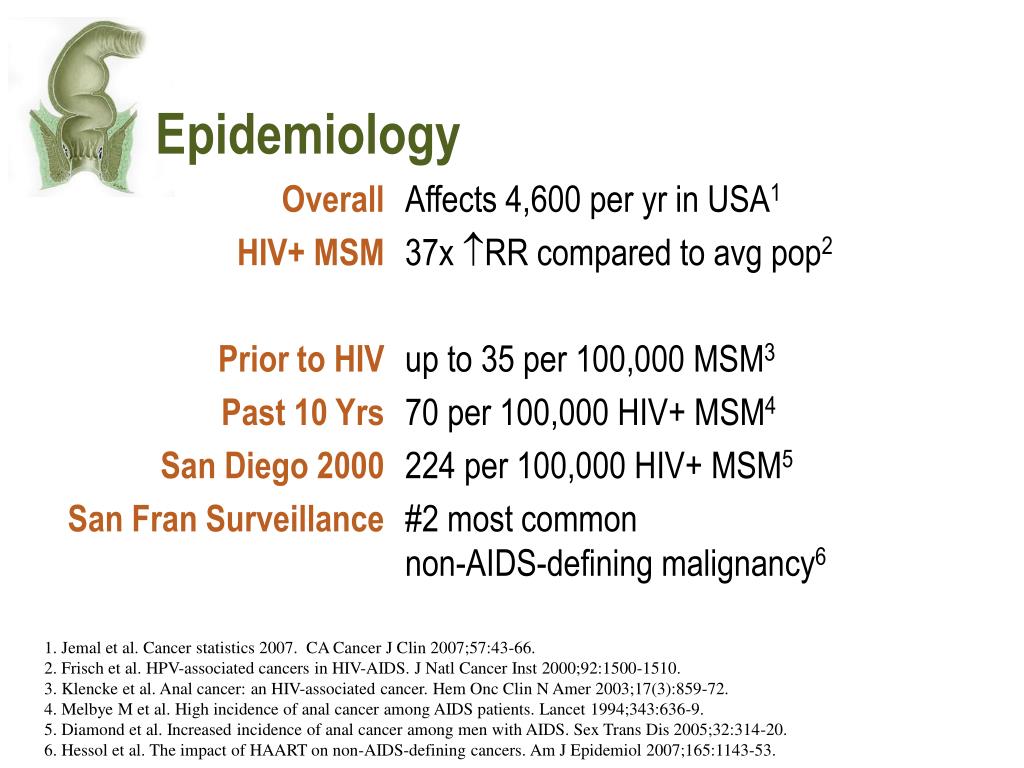

  49. Epidemiology 1. Jemal et al. Cancer statistics 2007. CA Cancer J Clin 2007;57:43-66. 2. Frisch et al. HPV-associated cancers in HIV-AIDS. J Natl Cancer Inst 2000;92:1500-1510. 3. Klencke et al. Anal cancer: an HIV-associated cancer. Hem Onc Clin N Amer 2003;17(3):859-72. 4. Melbye M et al. High incidence of anal cancer among AIDS patients. Lancet 1994;343:636-9. 5. Diamond et al. Increased incidence of anal cancer among men with AIDS. Sex Trans Dis 2005;32:314-20. 6. Hessol et al. The impact of HAART on non-AIDS-defining cancers. Am J Epidemiol 2007;165:1143-53.

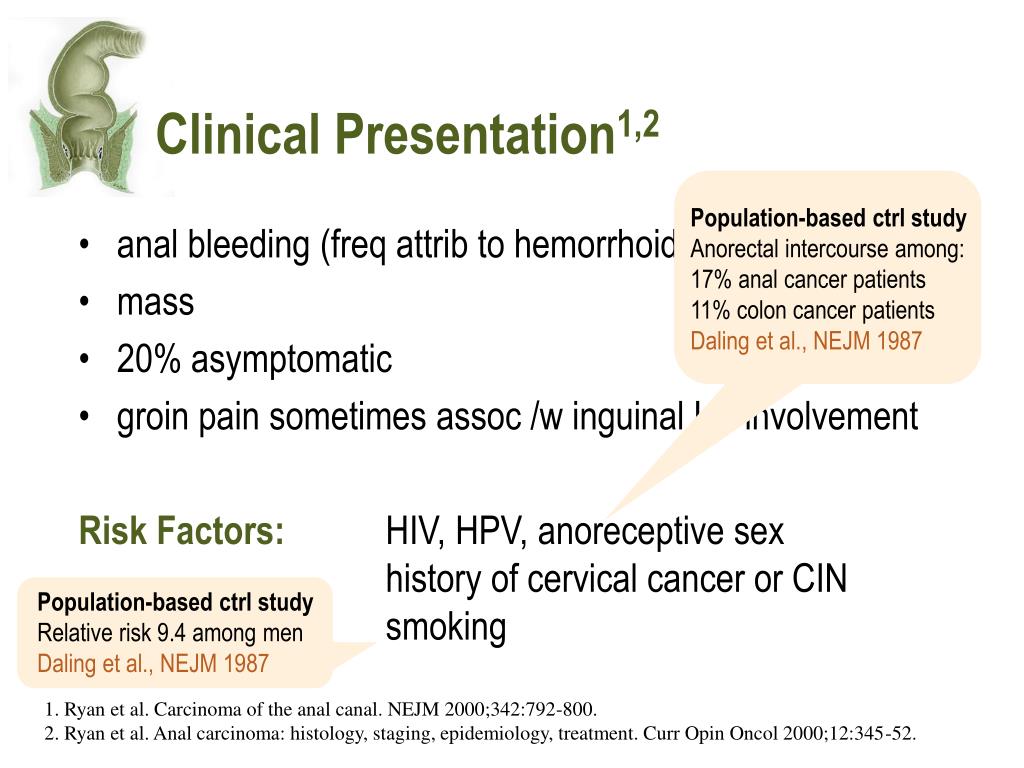

  50. Population-based ctrl studyAnorectal intercourse among: 17% anal cancer patients 11% colon cancer patients Daling et al., NEJM 1987 Population-based ctrl studyRelative risk 9.4 among men Daling et al., NEJM 1987 Clinical Presentation1,2 • anal bleeding (freq attrib to hemorrhoids) • mass • 20% asymptomatic • groin pain sometimes assoc /w inguinal LN involvement Risk Factors:HIV, HPV, anoreceptive sex history of cervical cancer or CIN smoking 1. Ryan et al. Carcinoma of the anal canal. NEJM 2000;342:792-800. 2. Ryan et al. Anal carcinoma: histology, staging, epidemiology, treatment. Curr Opin Oncol 2000;12:345-52.
