Kshemendra paul chief enterprise architect us doj

National Information Exchange Model (NIEM)Data Architecture SubcommitteeStatus and FutureSeptember 14, 2006

Kshemendra Paul

Chief Enterprise Architect

US DOJ


Web site www niem gov activity

Web Site (www.niem.gov) Activity

Web site activity for the period from June 1, 2006 to August 31, 2006

  • Average hits / day

  • 1,842 pre-beta

  • 10,923 currently

  • Average downloads / day

  • 11 pre-beta

  • ~100 currently


Agenda

Agenda

  • What is NIEM?

  • NIEM Goals and Objectives

  • NIEM Conceptual Architecture

  • NIEM Organization and Governance

  • NIEM Deliverables

  • NIEM Pilots

  • NIEM Status

  • NIEM Web Site

  • DAS / NIEM Opportunities to Collaborate

  • Lessons Learned

  • Next Steps

  • Discussion


What is niem

What is NIEM?

  • NIEM was launched on February 28, 2005, through a partnership agreement between the U.S. Department of Justice (DOJ) and the U.S. Department of Homeland Security (DHS)

  • NIEM brings Communities of Interest (COIs) together to:

    • Develop (and harmonize) (reusable) data exchange components

    • Leverage (NIEM and external) data exchange components to build information exchanges

    • Publish and discover reusable information exchanges

    • Provide public domain standards and technical tools to support the above

    • Provide training, technical assistance and implementation support services for enterprise-wide information exchange


Niem use cases

NIEM Use Cases

  • To effectively exchange information, there must be a common semantic understanding of data among participants, and the data must be formatted in a consistent manner.

  • NIEM provides reusable components and IEPDs for exchanges

    • Between NIEM domains (inter-domain).

    • Within NIEM domains (intra-domain)(where multiple sub communities exist within a single NIEM domain, e.g. justice).


Built on the global jxdm

Built on the Global JXDM

  • NIEM is deeply rooted in the GJXDM and Global Justice Community, and committed to maintaining and growing that relationship

  • The Global Justice XML Data Model (Global JXDM) has

    • A robust, mature framework that is rich, flexible, and extensible

    • An effective governance mechanism

    • Widespread recognition and use, especially among state and local agencies

  • NIEM builds on the demonstrated success of the GJXDM

    • NIEM 0.1 is based upon GJXDM 3.0.3

    • The Global JXDM will form the justice domain of NIEM (the jxdm namespace)

    • The GXSTF will continue to represent the Global JXDM within NIEM


Built on the global jxdm continued

Built on the Global JXDM, continued

NIEM = GJXDM + Expanded Scope + Lessons Learned

  • Incremental changes to GJXDM to address specific issues and expanded scope

  • A few examples:

    • Expanded Domains (Intel, International Trade, Emergency Mgt, Infrastructure Protection, etc.)

    • Better Modularity

    • Improve Reusability - Leveraging work of others – Discovery of IEPDs and components

    • Capturing Business Context

    • Incorporating feedback into the model - Model Refinement through use

    • Support for components from external standards

    • IEPD consistency


Niem ise and the drm

NIEM, ISE and the DRM

  • NIEM is an implementation of the cross-COI information sharing layer of the FEA DRM

  • The intelligence domain within NIEM is implementing the EO 13388 standards

  • The NIEM architectural goal is to allow independent governance of domain-specific standards via a “plug-in” architecture for domain data models.


Niem goals and objectives

NIEM Goals and Objectives

  • Deliver NIEM

    • Publish NIEM 1.0

    • Ramp up and implement governance

    • Develop validated and vetted product roadmap

  • Catalyze NIEM adoption and usage with stakeholders

    • State/Local/Tribal practitioners

    • Federal Agency information technology initiatives

    • Authoritative bodies that can sponsor reference information exchanges for their COI

  • Support the Program Manager – Information Sharing Environment

    • National priority counter-terrorism information exchange standards leveraging NIEM

  • Deepen partnerships with communities of interest

    • Update and extend DOJ / DHS MOA to other federal agencies & their state/local/tribal partners

    • Finalize and implement NIEM / GJXDM convergence

  • Become the standard, by choice, for government information exchange

    • Follow information exchange requirements from current to future stakeholders

    • For example, fusion centers as an information exchange nexus


Fit with federal enterprise architecture

Fit With Federal Enterprise Architecture

  • Business – standard information exchanges

    • Focus on reuse and modification

    • Authoritative vs. non-authoritative

    • Discover / register exchanges via repository

  • Data – common vocabulary for building information exchanges

    • Focus on reuse

    • Federated, hierarchical domain structure

    • Optional and over-inclusive augmentation

  • Performance – measure information sharing

    • Use/reuse of information exchanges

    • Use/reuse of data components (in/out of model)

    • Line of sight provides actionable feedback

Information Exchange

Architectural Profile

Policy

Performance

Influenced

By NIEM

Business

Focus of

NIEM

Scope

of

FEA

Data

Services

Technology


Niem federated domain architecture

NIEM Federated Domain Architecture

Data component - fundamental building block of NIEM. Data components are either Universal, Common, or Domain-specific.

Universal components - data components commonly understood and reused among all domains; subject to NIEM governance.

Common components - data components understood and potentially reused between two or more domains; subject to NIEM governance.

Domain-Specific - components managed by a specific Community of Interest (may be reused with COI, available for reuse by others).


Business driven approach

Business-driven Approach

Disaster Management

Homeland Security

BRM

Border & Transport Security

Emergency Response

LoBs

Dispatch Services

Person Screening

Subfunctions

Business processes

many-to-many

IEPD

IEPD

IEPD

IEPD

IEPD

IEPD

IEPD

IEPD

IEPD

IEPD

IEPD

IEPD

IEPD

IEPD

IEPD

IEPD

IEPD

IEPD

IEPD

IEPD

IEPD

IEPD

IEPD

IEPD

IEPD

IEPD

IEPD

IEPD

IEPD

IEPD

IEPD

IEPD

IEPD

IEPD

IEPD

IEPD

IEPD

IEPD

IEPD

IEPD Library

Consistent Classification

Independent Development

NIEM


Niem domains

NIEM Domains

  • NIEM Domains:

  • Represent a subset of components expected

  • to be used in NIEM for inter-domain,

  • intra-domain exchanges or both

  • Are governed by a cohesive group of data

  • stewards who are domain experts, have some

  • level of authority over the domain and

  • harmonize semantic conflicts

  • Govern their own content under guidelines

  • established by NIEM PMO

  • Are wrapped in a namespace to facilitate

  • governance and to serve as the primary

  • taxonomy.

NIEM

NIEM Core

Structures

Universal

Common

NIEM Domains

J

Intel

Im

Sc

IP

IT

EM

ZN

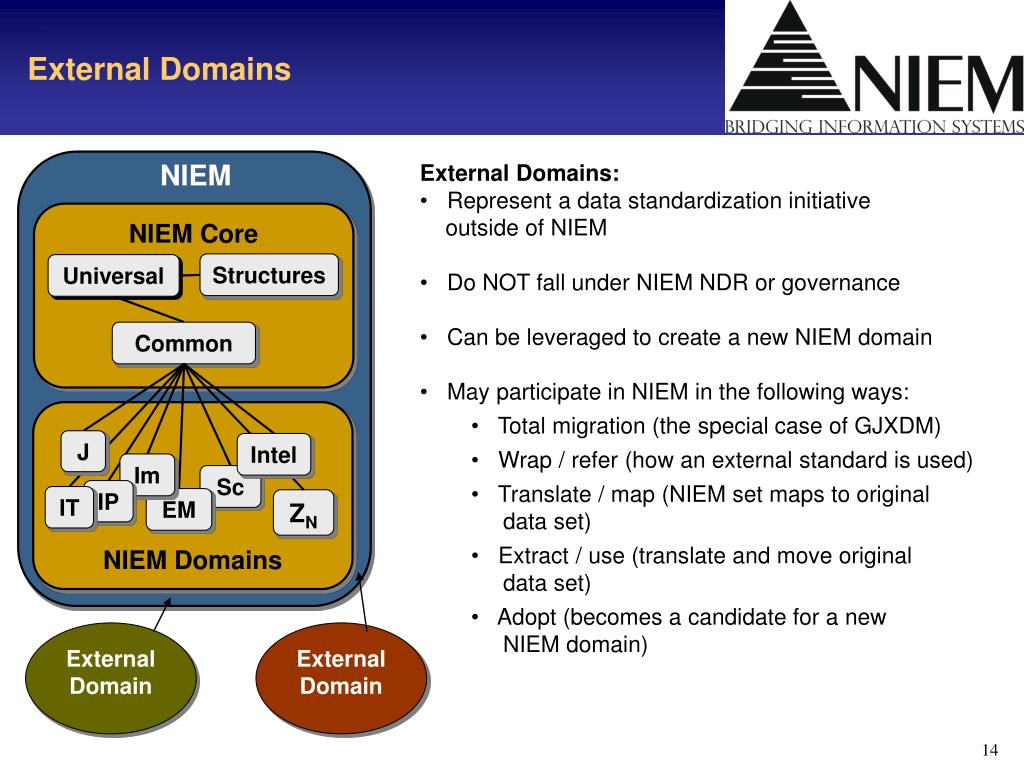

External domains

External Domains

NIEM

  • External Domains:

  • Represent a data standardization initiative

  • outside of NIEM

  • Do NOT fall under NIEM NDR or governance

  • Can be leveraged to create a new NIEM domain

  • May participate in NIEM in the following ways:

    • Total migration (the special case of GJXDM)

    • Wrap / refer (how an external standard is used)

    • Translate / map (NIEM set maps to original

    • data set)

    • Extract / use (translate and move original

    • data set)

    • Adopt (becomes a candidate for a new

    • NIEM domain)

NIEM Core

Structures

Universal

Common

NIEM Domains

J

Intel

Im

Sc

IP

IT

EM

ZN

External Domain

External Domain


Iepd development vs the model

NIEM

NDR

IEPD Development vs the Model

  • IEPD Development

  • National priorities (e.g. NDEx, TWPDES)

  • Authoritative sources (e.g. Rap Sheet)

  • Local requirements

The Model – NIEM reusablecomponents

reuse /revise

reuse

add /replace

add /replace

NIEM

IEPD Library

(virtual)


Iepds and data components

4

2

2

IEPDs and Data Components

IEPD

External 0

External 1

Extension

6

4

6

5

External domains or standards

Subset

External domains or standards

1

External 3

External 2

3

3

2

NIEM

1

3

1, 5 – create

2, 4 – wrap / refer

3 – translate / map

6 – adopt


Organization model external view

Organization Model: External View


Iepd lifecycle

Executive orders, mission statements, business requirements, business context, policies/procedures

Specific information exchange, high-level business requirements, existing IEPDs

NIEM

NDR

NIEM

IEPD for reuse library

Data requirements, business context,

exchange model

Submission of candidate NIEM components, component business context

Complete IEPD

ExistingIEPD artifacts

Gap analysis, specs for new components

IEPD artifacts to share/reuse,

metadata for discovery

NIEM

NDR

Valid IEPD schemas, example instances, documentation, metadata

IEPD Lifecycle

0 Scenarios,BRM Taxonomy

1 Info exchangerequirements

5 Publish +implement

NIEM IEPDLife Cycle

2 Map +model

4 Assembleto IEPD spec

3 Build +validate


Iepd lifecycle1

NIEM

NDR

NIEM

NIEM

NDR

IEPD Lifecycle

Specific information exchange, high-level business requirements, existing IEPDs

Executive orders, mission statements, business requirements, business context, policies/procedures

0 Scenarios,BRM Taxonomy

1 Info exchangerequirements

IEPD for reuse library

Data requirements, business context,

exchange model

5 Publish +implement

Submission of candidate NIEM components, component business context

NIEM IEPDLife Cycle

2 Map +model

Complete IEPD

ExistingIEPD artifacts

4 Assembleto IEPD spec

3 Build +validate

Gap analysis, specs for new components

IEPD artifacts to share/reuse,

metadata for discovery

Valid IEPD schemas, example instances, documentation, metadata


Iepd life cycle feeds the data model maturity life cycle

Topdown

Bottom

up

IEPDs

NBAC / NTAC:vet, harmonize,

conformance

NIEM Governance

Staging Area

Early Awareness

& coordination

NIEM

Groups with common data interests

IEPD Life Cycle Feeds the Data Model Maturity Life Cycle

0Scenarios,BRM taxonomies

1Info exchgrequirements

NIEM IEPDLife Cycle

2Map +model

5 Publish +implement

3Build +validate

4Assembleto IEPD spec

New component candidates & business context

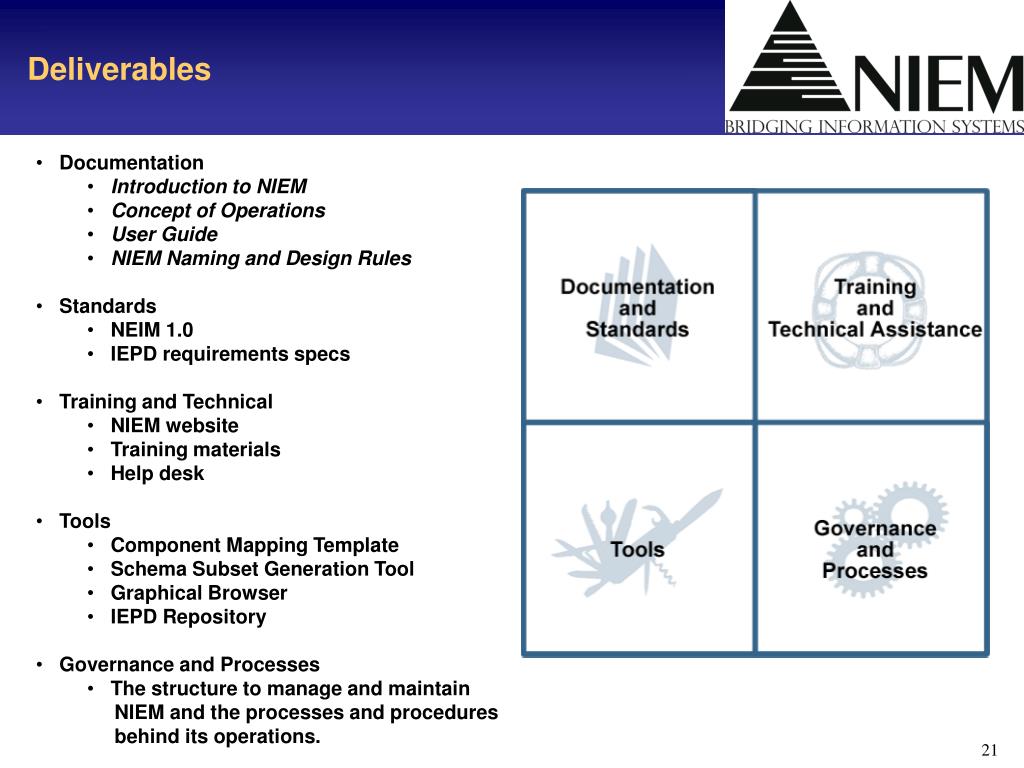

Deliverables

Deliverables

  • Documentation

    • Introduction to NIEM

    • Concept of Operations

    • User Guide

    • NIEM Naming and Design Rules

  • Standards

    • NEIM 1.0

    • IEPD requirements specs

  • Training and Technical

    • NIEM website

    • Training materials

    • Help desk

  • Tools

    • Component Mapping Template

    • Schema Subset Generation Tool

    • Graphical Browser

    • IEPD Repository

  • Governance and Processes

    • The structure to manage and maintain

    • NIEM and the processes and procedures

    • behind its operations.

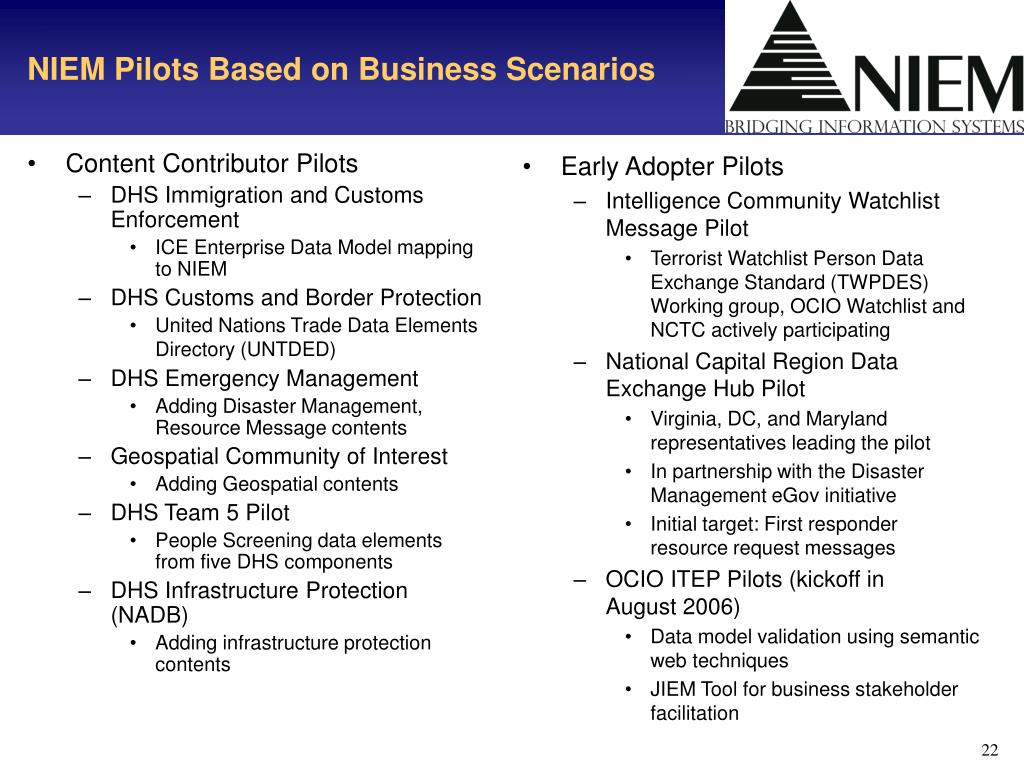

Niem pilots based on business scenarios

Content Contributor Pilots

DHS Immigration and Customs Enforcement

ICE Enterprise Data Model mapping to NIEM

DHS Customs and Border Protection

United Nations Trade Data Elements Directory (UNTDED)

DHS Emergency Management

Adding Disaster Management, Resource Message contents

Geospatial Community of Interest

Adding Geospatial contents

DHS Team 5 Pilot

People Screening data elements from five DHS components

DHS Infrastructure Protection (NADB)

Adding infrastructure protection contents

Early Adopter Pilots

Intelligence Community Watchlist Message Pilot

Terrorist Watchlist Person Data Exchange Standard (TWPDES) Working group, OCIO Watchlist and NCTC actively participating

National Capital Region Data Exchange Hub Pilot

Virginia, DC, and Maryland representatives leading the pilot

In partnership with the Disaster Management eGov initiative

Initial target: First responder resource request messages

OCIO ITEP Pilots (kickoff in August 2006)

Data model validation using semantic web techniques

JIEM Tool for business stakeholder facilitation

NIEM Pilots Based on Business Scenarios


Niem pilots based on business scenarios1

NIEM Pilots Based on Business Scenarios

With Funding & Support

*

*

As Is

(4Q FY06)

RED = not completed or significant problems present

YELLOW = initial activities either started or upgrades underway

GREEN = Completed

Interim To Be

(3Q FY07)

*

= New to NIEM; SAR Shading Indicates Higher Risk Outcome


Status

Status

  • NIEM 1.0 Beta 3 was released on September 11, 2006

  • NIEM 1.0 Release Candidate end of September or early October

  • Scaling up and implementing Governance structures

  • Pilot projects underway

  • GJXDM convergence plan promulgated

  • Cross Federal alignment discussions underway


Web site www niem gov

Web site – www.niem.gov


Training and technical

Training and Technical


Tools

Tools


Tools graphical browser

Tools: Graphical Browser


Tools schema subset generation tool

Tools: Schema Subset Generation Tool


Tools iepd tool

Tools: IEPD Tool


Tools iepd tool1

Tools: IEPD Tool


Das niem opportunities to collaborate

DAS / NIEM Opportunities to Collaborate

  • Number one priority – engagement from practitioners

    • Pilot projects – analysis through to implementation

  • Number two priority – feedback on products

    • NIEM 1.0 beta 3 / release candidate

    • Tools – available now

    • Introduction, Concept of Operations, & Naming and Design Rules

    • Enhanced, scaled-up Memorandum of Agreement

  • DAS has provided feedback on Concept of Operations

    • Substantial, comprehensive, and material feedback

    • Follow-up in place via Byron Waltham and Paul Embley

  • Data component harmonization

    • DAS and NIEM are looking at person object

    • DAS Governance (?) and NIEM Business Architecture Committee


Lessons learned

Lessons Learned

  • GJXDM Usage Base and Governance Structure Enables NIEM

  • Governance and policy are the critical path, not technology

    • They are both also really hard

    • Process cannot replace relationships and trust

    • Balance between: inside / outside the beltway; architectural / operational

    • We are making progress – lots more to do

  • State and local involvement as first rank partners

    • As practitioners, stakeholders, thought leaders

  • Role of industry, academic partners

  • Success = adoption and use

    • Never forget that the best way to get this is the simplest – listen!


Next steps

Next Steps

  • NIEM 1.0 Release Candidate in late September / early October

    • Scale Up Governance Activities

  • Catalyze Conversion of GJXDM IEPDs by Authoritative Bodies

    • ~58 IEPDs in OJP IEPD Clearinghouse (http://it.ojp.gov/iepd/)

  • PM-ISE national priority target outcomes

    • Counter-Terrorism Information Sharing Standards

  • Encourage and seed other independent adoption and use by COIs

    • Sponsored by Authoritative Bodies within a Communities of Interest

    • Driven by Practitioners with specific (inter-domain) information exchange requirements

  • Evolve and Scale DOJ / DHS MOA

  • Technical support

    • Help desk

    • Expand FAQ topics

    • Develop NIEM training materials

  • Expand communications and outreach efforts

    • Within existing COIs

    • Follow adoption to new domains and COIs

    • Executive, legislative, and judicial branches at the State, Local, Tribal and Federal levels


Conclusion

Conclusion

  • For more information visit the NIEM web site (http://www.niem.gov)

  • Contact NIEM by email at [email protected]

  • Questions and Discussion


  • Login
