1 / 16

Chapter Two

Chapter Two. Chemical Names and Formulas. '. '. * Introduction to Chemical Bonding *. Every substance is either an element or a compound A Compound consists of more than one kind of atom A compound is either molecular or ionic in nature. Characteristics of Molecular and Ionic Compounds:

shamus
Download Presentation

Chapter Two

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Chapter Two Chemical Names and Formulas

  2. ' ' *Introduction to Chemical Bonding* • Every substance is either an element or a compound • A Compound consists of more than one kind of atom • A compound is either molecular or ionic in nature Characteristics of Molecular and Ionic Compounds: CharacteristicMolecular CompoundIonic Compound Representative Unit Molecule Formula Unit Type of Elements Nonmetallic Metal/Non- metal Physical State Solid, Liquid, Gas Solid Melting Point Low(usually < 300 oC) High(>300 oC)

  3. Molecules and Molecular Compound • Molecule- the smallest electrically neutral unit of a substance that still has the same properties of that substance • Molecular compound- Atoms of different elements can combine chemically to form compounds • Atoms combine to form molecules • Compounds are composed of molecules

  4. Representing Chemical Compounds • Molecular compounds are composed of two or more nonmetals • A molecular formula shows the number and kinds of atoms present in a molecule of a compound • Ionic Compounds are composed of oppositely charged ions combined in electrically neutral groupings • A formula unit gives the lowest whole number ratio of ions in the compound.

  5. Periodic Table Facts • The # of the A Group = # of outer electrons • That is (1A,2A,3A-8A) OR (IUPAC 1,2,13-18) • Elements that: Lose electrons are positive • Elements that: Gain electrons are negative • Elements are most stable when they have 8 outer electrons—known as the Octet Rule Example: Chlorine has 7 electrons/ gains 1/has a negative 1 oxidation number Cl is in Group 7A

  6. Losing/Gaining Electrons • Atoms that have 1, 2 or 3 electrons in their outer levels will tend to lose them in interactions with atoms that have 5, 6 or 7 electrons in their outer levels. Atoms that have 5, 6 or 7 electrons in their outer levels will tend to gain electrons from atoms with 1, 2 or 3 electrons in their outer levels. Atoms that have 4 electrons in the outer most energy level will tend neither to totally lose nor totally gain electrons during interactions.

  7. b Ionic Charges a • The charges of the ions of the representative elements can be determined by the position of these elements in the periodic table • Most transition metals have more than one common ionic charge • A polyatomic ion is a group of atoms that behaves as a unit and has a charge + -

  8. Binary (two-element) ionic compounds are named by writing the name of the cation followed by the name of the anion. • When a cation can have more than one ionic charge, a Roman numeral is used in the name. • Ternary ionic compounds contain at least one polyatomic ion.

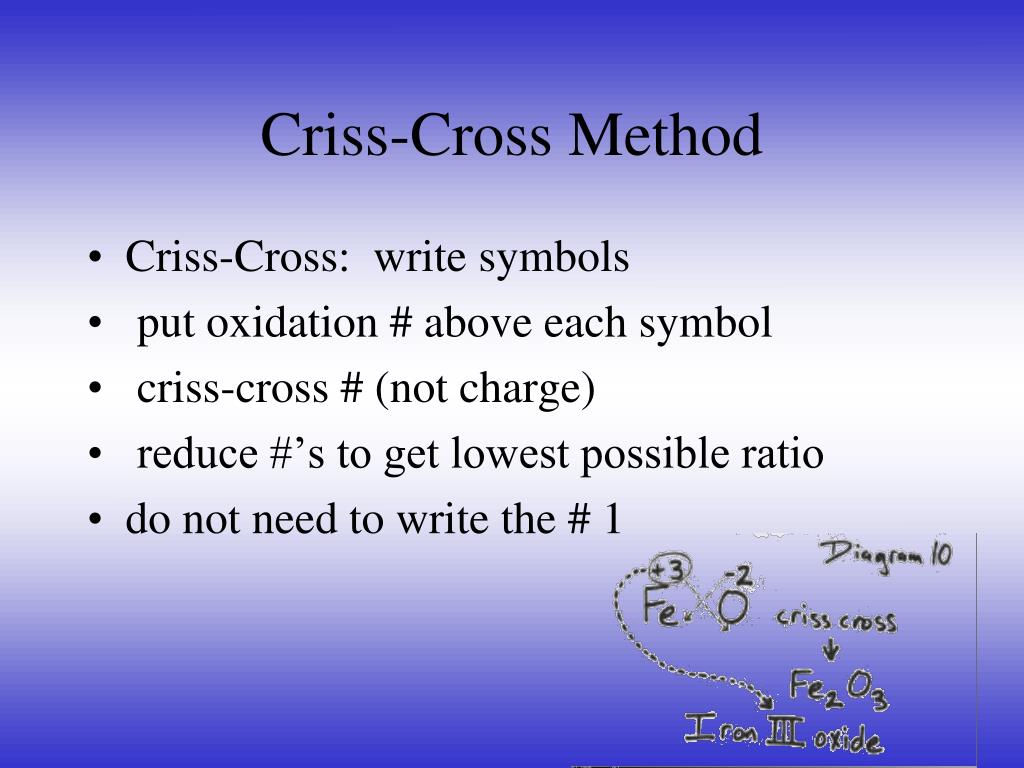

  9. Criss-Cross Method • Criss-Cross: write symbols • put oxidation # above each symbol • criss-cross # (not charge) • reduce #’s to get lowest possible ratio • do not need to write the # 1

  10. A Group Oxidation # Short-cut • 1A 2A 3A 4A 5A 6A 7A • +1 +2 +3 +4 -3 -2 -1

  11. Zinc sulfide Aluminum Chloride Barium Nitride Copper (II) bromide ZnS AlCl3 Ba3N2 CuBr2 EXAMPLES OF IONIC COMPOUNDS: 2

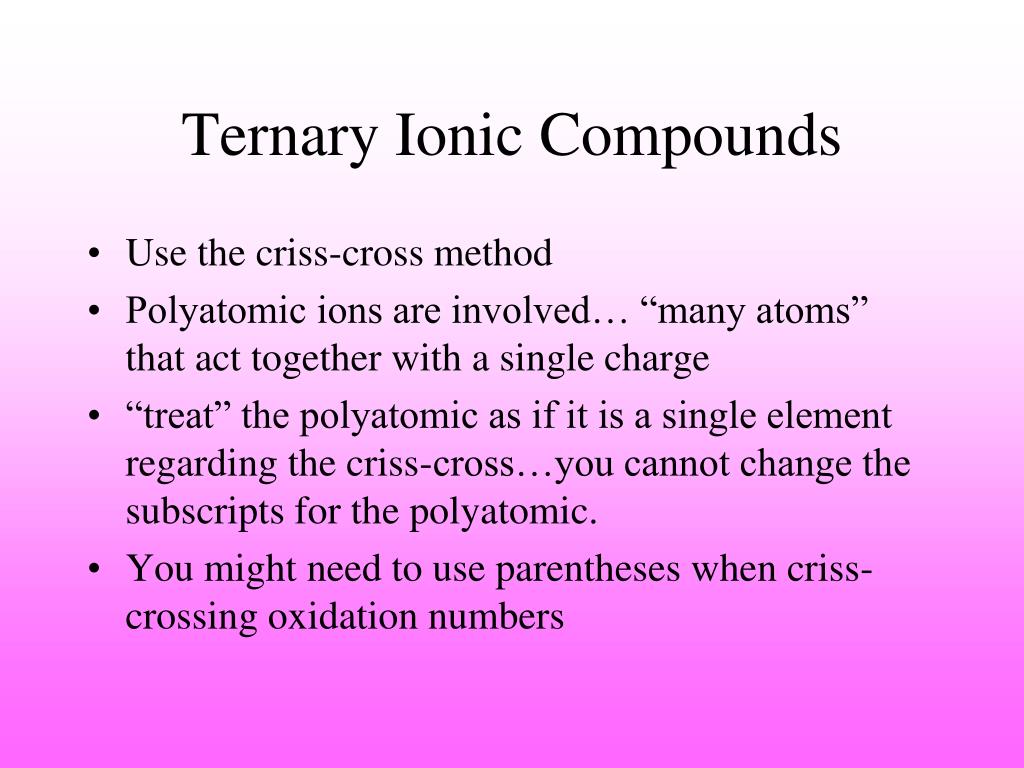

  12. Ternary Ionic Compounds • Use the criss-cross method • Polyatomic ions are involved… “many atoms” that act together with a single charge • “treat” the polyatomic as if it is a single element regarding the criss-cross…you cannot change the subscripts for the polyatomic. • You might need to use parentheses when criss-crossing oxidation numbers

  13. Ternary Ionic Compounds • Sodium Hydroxide…..NaOH • Calcium Nitrite……...Ca(NO2)2 • Magnesium Sulfate…..MgSO4 • Ammonium Nitrate…..NH4NO3 • Calcium Phosphate…..Ca3(PO4)2

  14. Molecular Compounds • Binary molecular compounds are composed of two nonmetallic elements. • Prefixes are used to show how many atoms of each element are present in a molecule of the compound. • DO NOT need to criss-cross for molecular compounds…Reason: prefix given

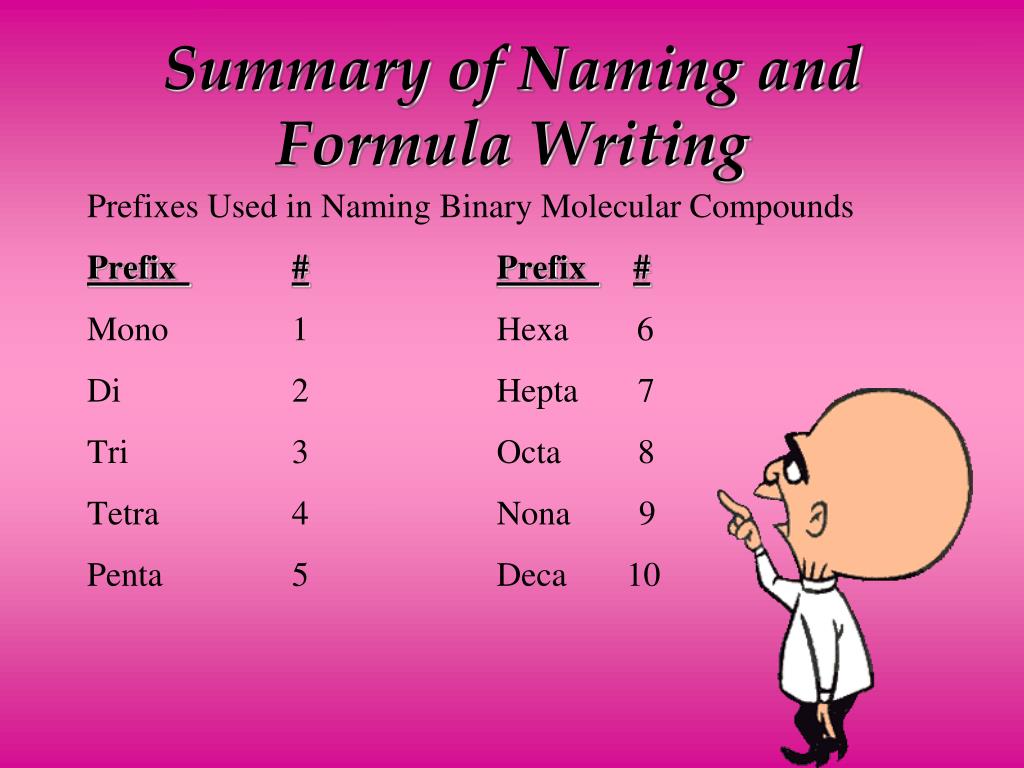

  15. Summary of Naming and Formula Writing Prefixes Used in Naming Binary Molecular Compounds Prefix #Prefix # Mono 1 Hexa 6 Di 2 Hepta 7 Tri 3 Octa 8 Tetra 4 Nona 9 Penta 5 Deca 10

  16. Name these binary molecular compounds: 1. OF2 SO3 Write formulas for the following binary molecular compounds: 3. Nitrogen trifluoride 4. Dinitrogen tetroxide Answers: oxygen difluoride sulfur trioxide 3. NF3 4.N2O4 Examples:
