Non-Functional Properties in Software Product Lines:A Framework for Developing Quality-centric Software Products

Mahdi Noorian

[email protected]

May 2014


Content

Content

  • Background

  • Motivation

  • Research Objectives

  • Approach Overviews

  • Conclusion

Mercedes-Benz Product Line


Background

Background

  • Software Product Line

    • Systematic reuse based development approach.

    • Commonalities and variabilities.

    • Developing families of software systems.

    • Consists of two main lifecycles:

      • Domain engineering

      • Application engineering


Background1

Background

Software product line based on FORM method.


Background2

Background

  • Feature Models

    • The main artefact of domain analysis.

    • Variability model.

    • Features are organized through a set of constraints.

      • Structural constraints (Mandatory, Optional, Alternative, OR)

      • Integrity constraints (Include, Exclude)

  • Feature Model Configuration

    • In application engineering, the process of selecting the desirable set of features from the feature model is called configuration process.

    • Configuration process depend on:

      • feature model constraints,

      • and users’ requirements.


Background3

Background


Background4

Background

  • Goal Models

    • Provide a framework for capturing and managing early stage system requirements.

    • Intentional variability.

    • It generally built over three important concepts:

      • Goals (a desired result for system under development that stakeholders plan to achieve),

      • Softgoals(refer to non-functional propertiesof system),

      • Tasks (tasks are the methods that can operationalize goals).


Background5

Background


Content1

Content

  • Background

  • Motivation

  • Research Objectives

  • Approach Overviews

  • Conclusion

Mercedes-Benz Product Line


Motivation

Motivation

  • Feature models are widely accepted as one of the important tools for domain modeling.

    • Mostly capture functional and operational variability of a system.

    • Non-functional properties of the system alongside with functional properties need to be captured and managed from the early stage of development process.

    • There is a lack of systematic approaches to deal with non-functional properties within feature models.


Motivation1

Motivation

  • Software product line configuration is an important step in application engineering.

    • selection of desirable set of features is very difficult task for the users and product designers.

      • Complexity of the variabilities represented by feature models.

      • Size of feature model configuration space.

    • The feature selection depends on the restrictions placed by users’ requirements (functional and non-functional), preferences and feature model constraints.

    • There is a lack of methods or processes that can help to identify the set of desirable features to fulfill the users’ needs.


Content2

Content

  • Background

  • Motivation

  • Research Objectives

  • Approach Overviews

  • Conclusion

Mercedes-Benz Product Line


Research objectives

Research Objectives

  • Quality-centric Feature Modeling

    • Addressing non-functional properties from the early stage of software product lines.

    • Connecting intentional variability models such as goal models with feature variability models in a target domain.

  • Quality-centric Feature Model Configuration

    • Developing optimized software products with respect to users’ objectives (functional and non-functional) and preferences.


Content3

Content

  • Background

  • Motivation

  • Research Objectives

  • Approach Overviews

  • Conclusion

Mercedes-Benz Product Line


Approach overview

Approach Overview

Integration Process

Domain Analysis

(Feature Modeling)

Domain Requirement Engineering

(Goal Modeling)

Domain Engineering

Quality-centric Feature Modeling

User Requirement Analysis

Feature Selection

Mapping

Application Engineering

û

ü

ü

OptimizedProduct

  • User’s

  • Objectives and

  • Preferences

Configuration


Quality centric feature modeling

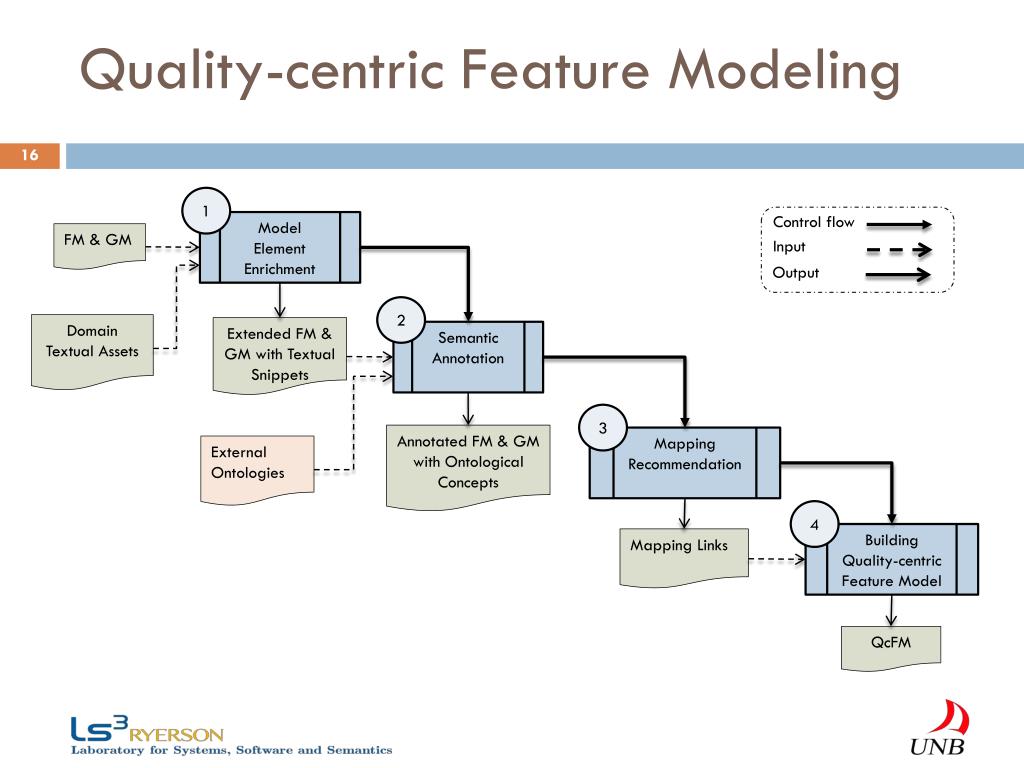

Quality-centric Feature Modeling

1

Control flow

Model Element Enrichment

FM & GM

Input

Output

2

Domain Textual Assets

Extended FM & GM with Textual Snippets

Semantic Annotation

3

Annotated FM & GM with Ontological Concepts

Mapping Recommendation

External Ontologies

4

Building Quality-centric Feature Model

Mapping Links

QcFM


Quality centric feature modeling1

Quality-centric Feature Modeling


Quality centric feature modeling2

Quality-centric Feature Modeling


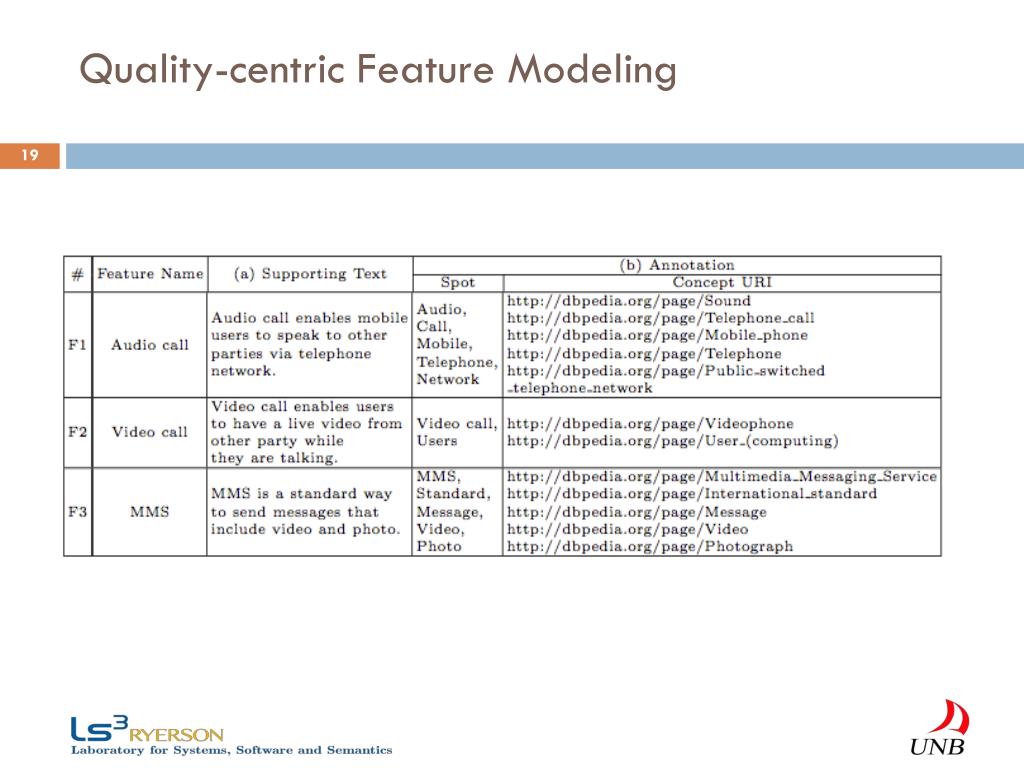

Quality centric feature modeling3

Quality-centric Feature Modeling


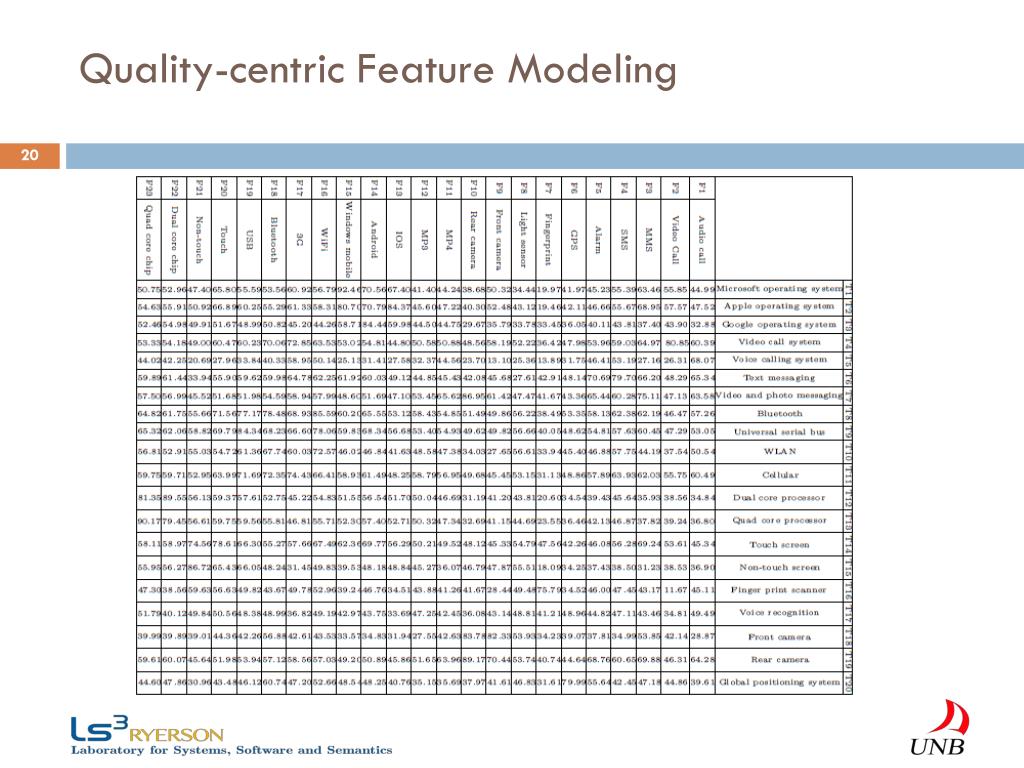

Quality centric feature modeling4

Quality-centric Feature Modeling


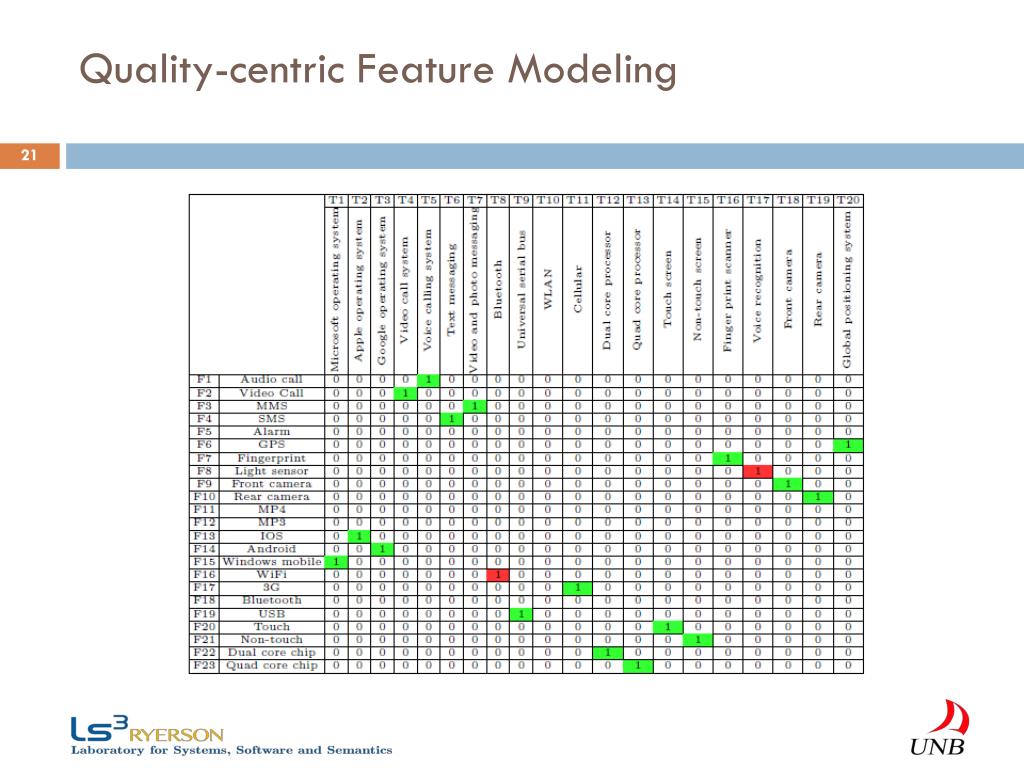

Quality centric feature modeling5

Quality-centric Feature Modeling


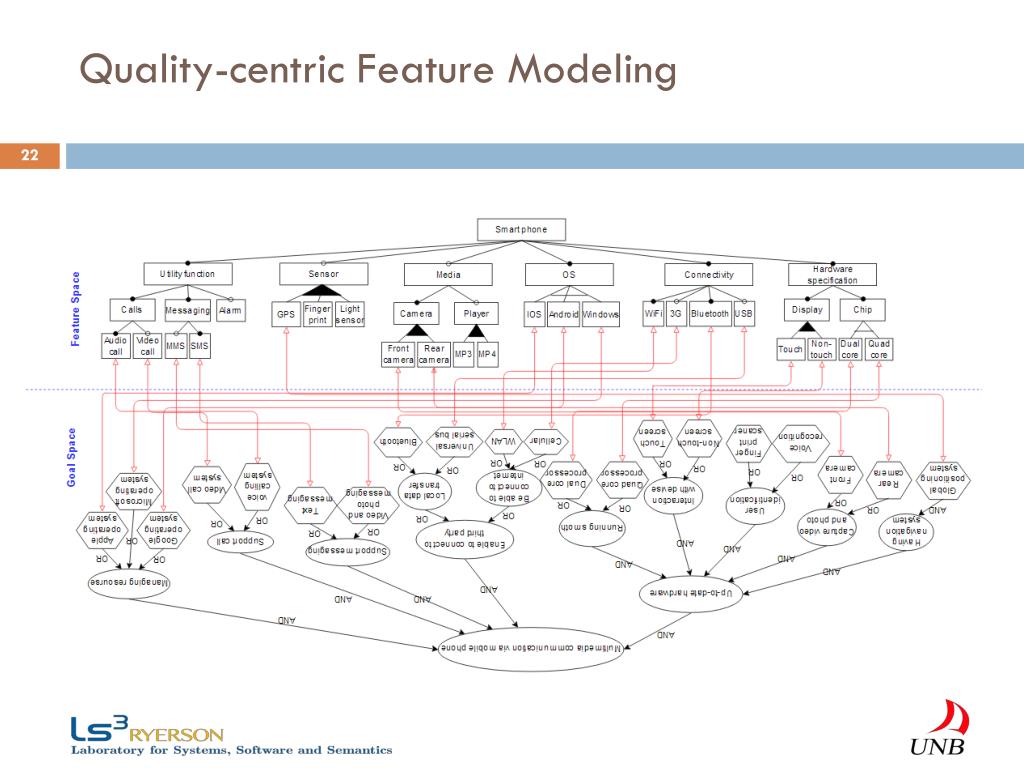

Quality centric feature modeling6

Quality-centric Feature Modeling


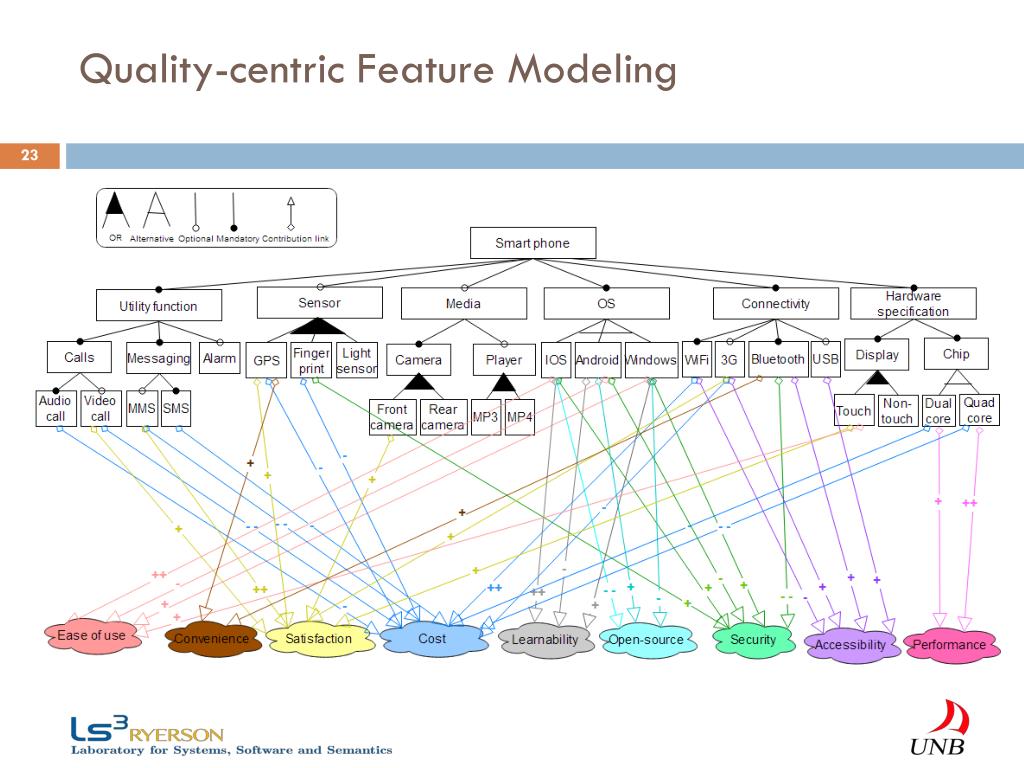

Quality centric feature modeling7

Quality-centric Feature Modeling


Content4

Content

  • Background

  • Motivation

  • Research Objectives

  • Approach Overviews

  • Conclusion

Mercedes-Benz Product Line


Conclusion

Conclusion

  • A semi-automatic approach to systematically integrate feature models, which represent functional aspects of a domain, and goal models, which represent non-functional properties.

    • Through this integration, the quality aspects of the domain can be captured from the early stage of SPL development.

  • An automated configuration process for developing optimized software product with respect to users’ functional properties, non-functional properties, and preferences.
