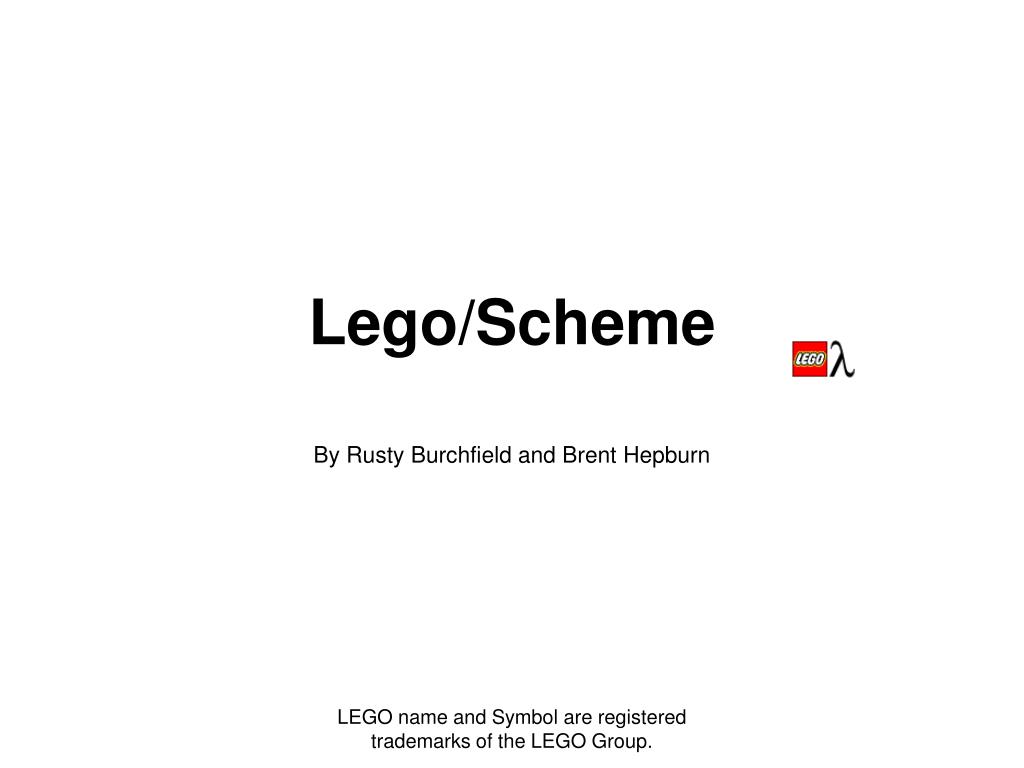

Lego scheme

Lego/Scheme

By Rusty Burchfield and Brent Hepburn

LEGO name and Symbol are registered trademarks of the LEGO Group.


Background
Background

  • Limited implementation of Scheme for the standard firmware

  • Developed at Indiana University by three CS undergraduates

  • Developed start to finish in three days

LEGO name and Symbol are registered trademarks of the LEGO Group.


Environment
Environment

  • Petite Chez Scheme 6.1

    • LegoScheme compiler

    • LegoScheme source

  • Lego Mindcontrol

    • Visual Basic output from LegoScheme

LEGO name and Symbol are registered trademarks of the LEGO Group.


Features
Features

  • 10 concurrent tasks

  • Support for most built-in scheme functions

  • Support for lambda definitions

  • Functions defined for direct interaction with RCX

LEGO name and Symbol are registered trademarks of the LEGO Group.


Limitations
Limitations

  • Requires Lego Mindcontrol

  • Tail-recursive ONLY and without parameters

  • Limited support for bindings

  • Only 8 functions

  • Only 30 signed integers available

  • Concurrency issues

LEGO name and Symbol are registered trademarks of the LEGO Group.

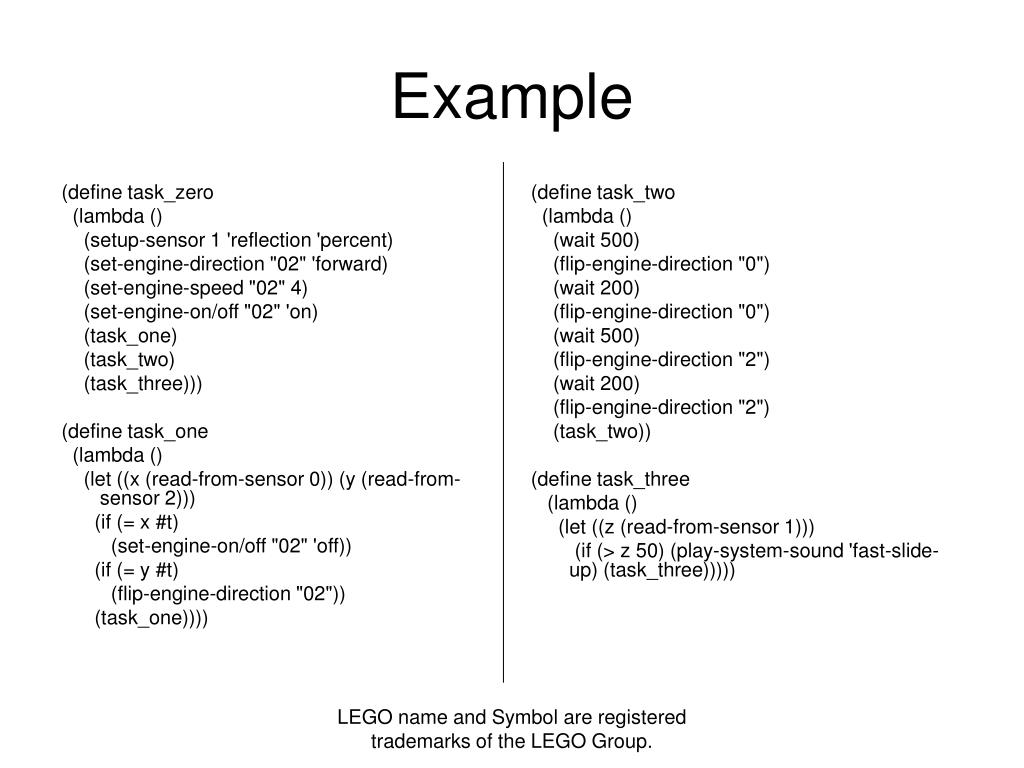

Example

(define task_zero

(lambda ()

(setup-sensor 1 'reflection 'percent)

(set-engine-direction "02" 'forward)

(set-engine-speed "02" 4)

(set-engine-on/off "02" 'on)

(task_one)

(task_two)

(task_three)))

(define task_one

(lambda ()

(let ((x (read-from-sensor 0)) (y (read-from-sensor 2)))

(if (= x #t)

(set-engine-on/off "02" 'off))

(if (= y #t)

(flip-engine-direction "02"))

(task_one))))

(define task_two

(lambda ()

(wait 500)

(flip-engine-direction "0")

(wait 200)

(flip-engine-direction "0")

(wait 500)

(flip-engine-direction "2")

(wait 200)

(flip-engine-direction "2")

(task_two))

(define task_three

(lambda ()

(let ((z (read-from-sensor 1)))

(if (> z 50) (play-system-sound 'fast-slide-up) (task_three)))))

Example

LEGO name and Symbol are registered trademarks of the LEGO Group.

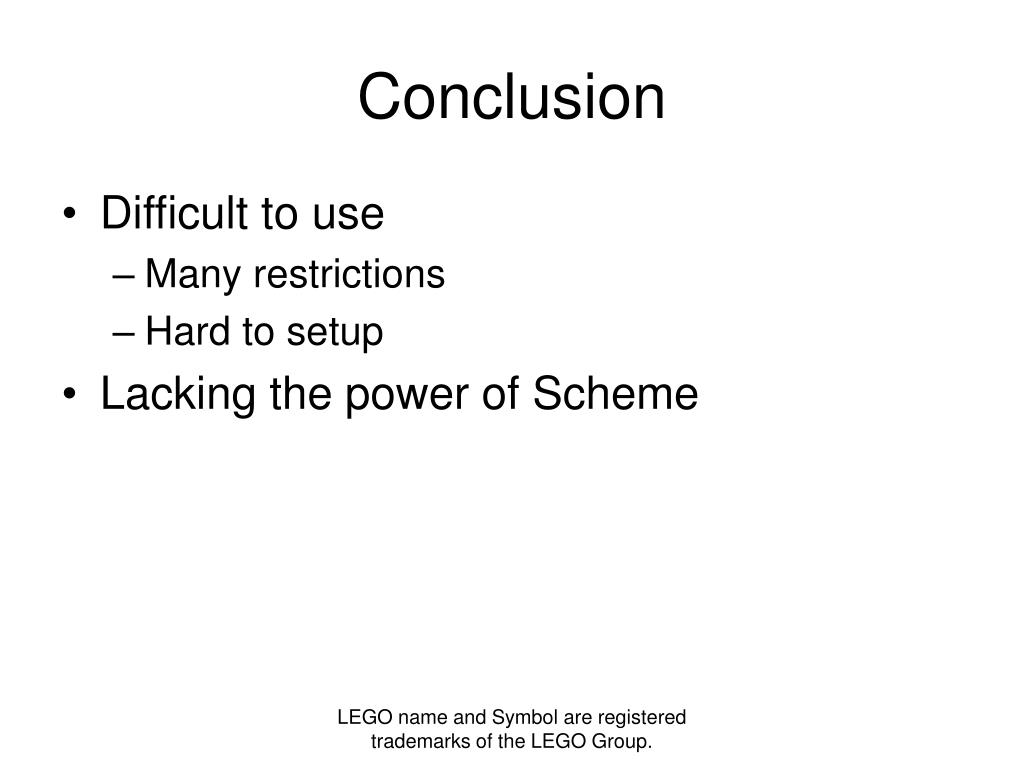

Conclusion
Conclusion

  • Difficult to use

    • Many restrictions

    • Hard to setup

  • Lacking the power of Scheme

LEGO name and Symbol are registered trademarks of the LEGO Group.


Resources
Resources

  • References

    • http://www.cs.indiana.edu/~mtwagner/legoscheme/

    • http://home.zonnet.nl/ericbrok/legomind/projects/robo/mindcontrol.htm

  • More Information

    • http://www.cs.rit.edu/~bah5108/
