Ch 4 chemical foundations

CH 4: Chemical Foundations

The Elements and the Periodic Table


The elements

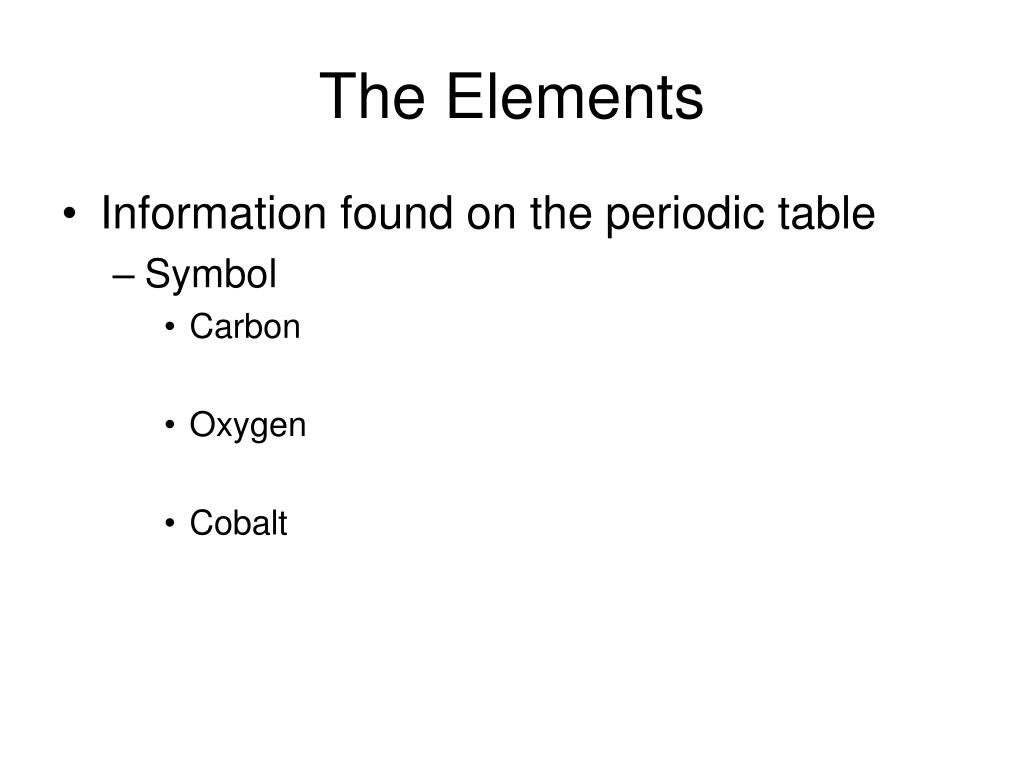

The Elements

  • Information found on the periodic table

    • Symbol

      • Carbon

      • Oxygen

      • Cobalt


The elements1
The Elements

  • Information found on the periodic table

    • State of matter

      • Color of symbol indicates state of matter

        • Black = solid

        • Blue = liquid

        • Red = gas

        • Outline = synthetically prepared

    • Density


Periodic table
Periodic Table

  • Periods – rows of elements on the periodic table

  • Groups – columns of elements on the periodic table

    • Elements in the same group have similar chemical properties

      • due to a similar arrangement of their outermost electrons (chapter 11)


Periodic table1
Periodic Table

  • Re-labeling of your periodic table!

  • Group Names

    • I A = Alkali metals

    • II A = Alkaline earth metals

    • VII A = Halogens

    • VIII (A) = Noble gases

      • Inert

  • Metals, nonmetals, and metalloids

    • Transition metals too!


Metals

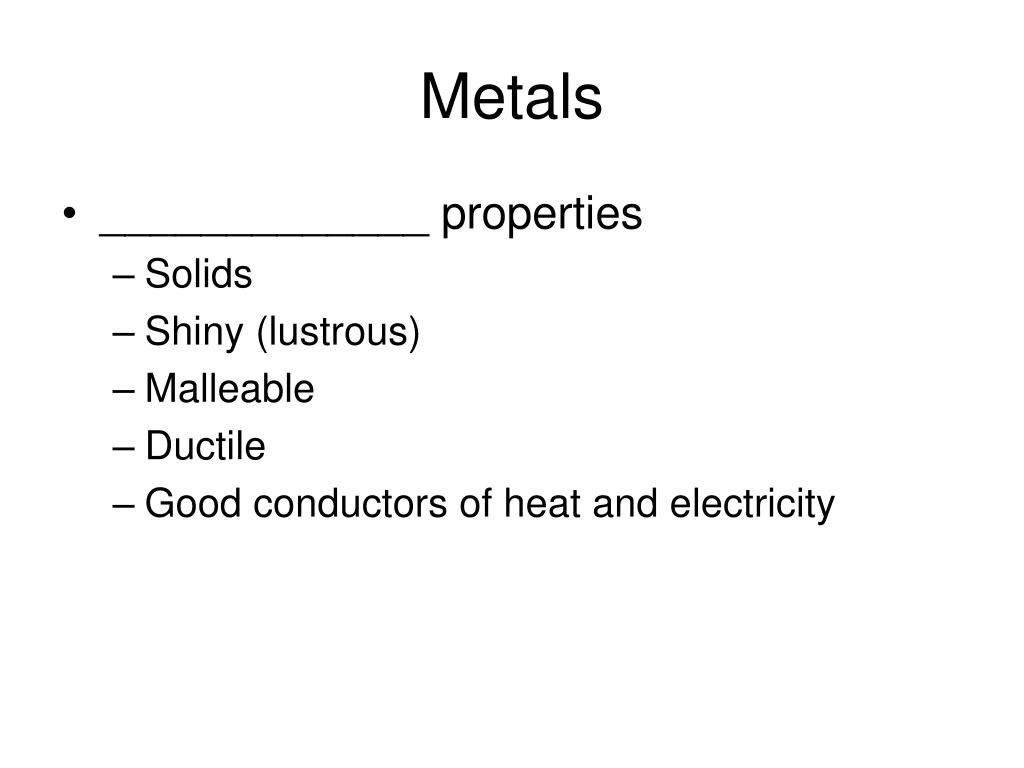

Metals

  • _____________ properties

    • Solids

    • Shiny (lustrous)

    • Malleable

    • Ductile

    • Good conductors of heat and electricity


Metals1

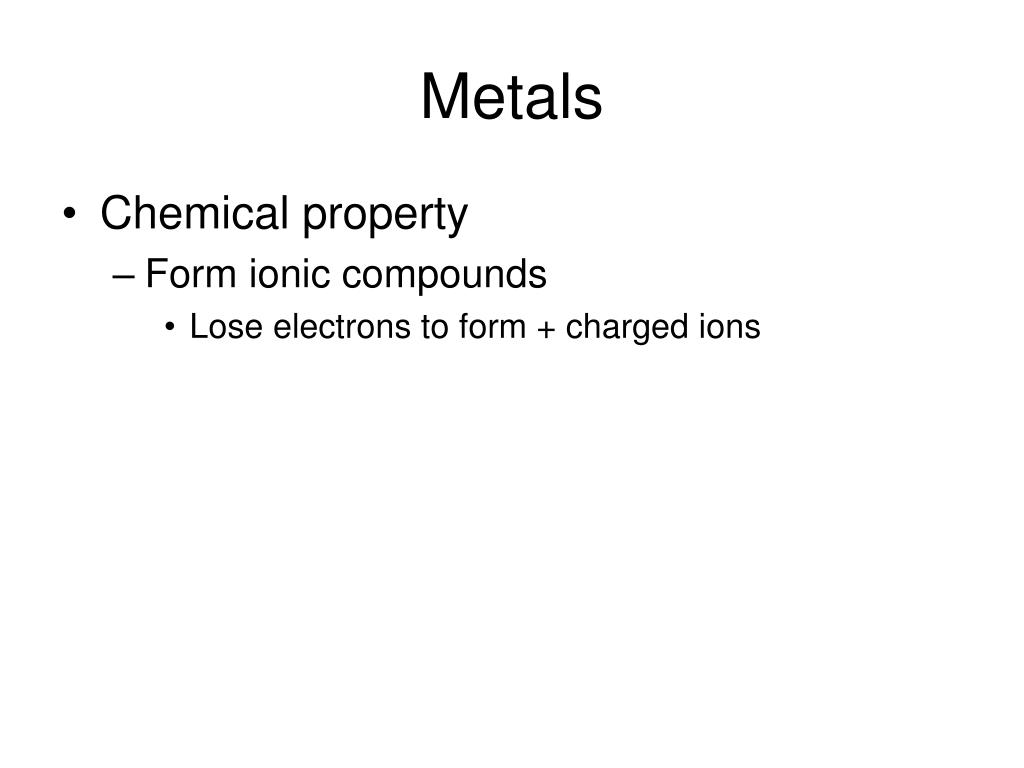

Metals

  • Chemical property

    • Form ionic compounds

      • Lose electrons to form + charged ions


Nonmetals

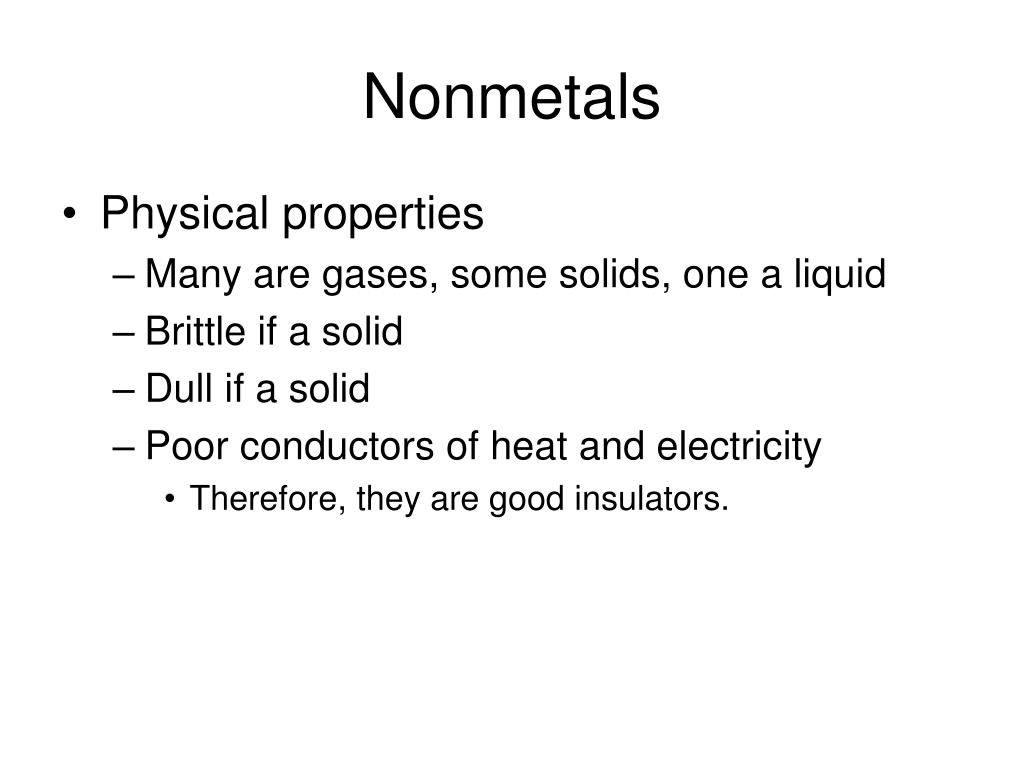

Nonmetals

  • Physical properties

    • Many are gases, some solids, one a liquid

    • Brittle if a solid

    • Dull if a solid

    • Poor conductors of heat and electricity

      • Therefore, they are good insulators.


Nonmetals1
Nonmetals

  • Chemical properties

    • Form ionic compounds

      • Gain electrons to form negatively charged ions

    • Form molecules when they react with nonmetals


Metalloids

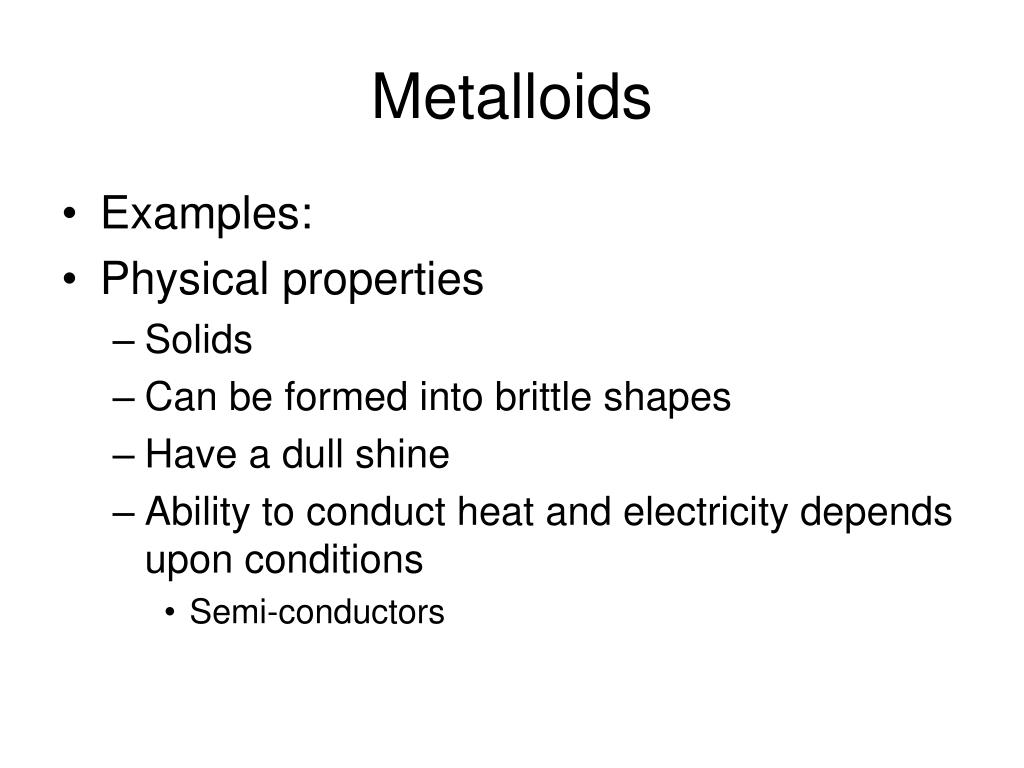

Metalloids

  • Examples:

  • Physical properties

    • Solids

    • Can be formed into brittle shapes

    • Have a dull shine

    • Ability to conduct heat and electricity depends upon conditions

      • Semi-conductors


Metalloids1

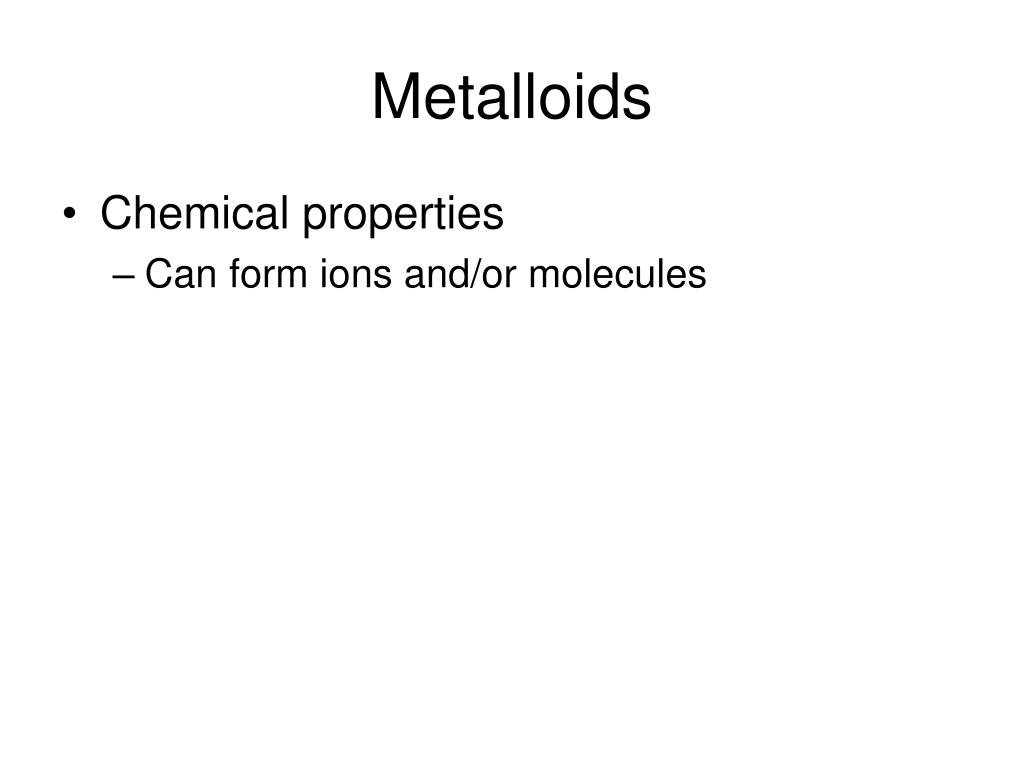

Metalloids

  • Chemical properties

    • Can form ions and/or molecules


Natural state of the elements
Natural State of the Elements

  • Atomic elements

    • Examples:

  • Molecular elements

    • Examples:


Molecules
Molecules

  • Molecule – 2 or more nonmetal atoms joined by chemical bonds

    • Molecules vs. compounds


Diatomic elements

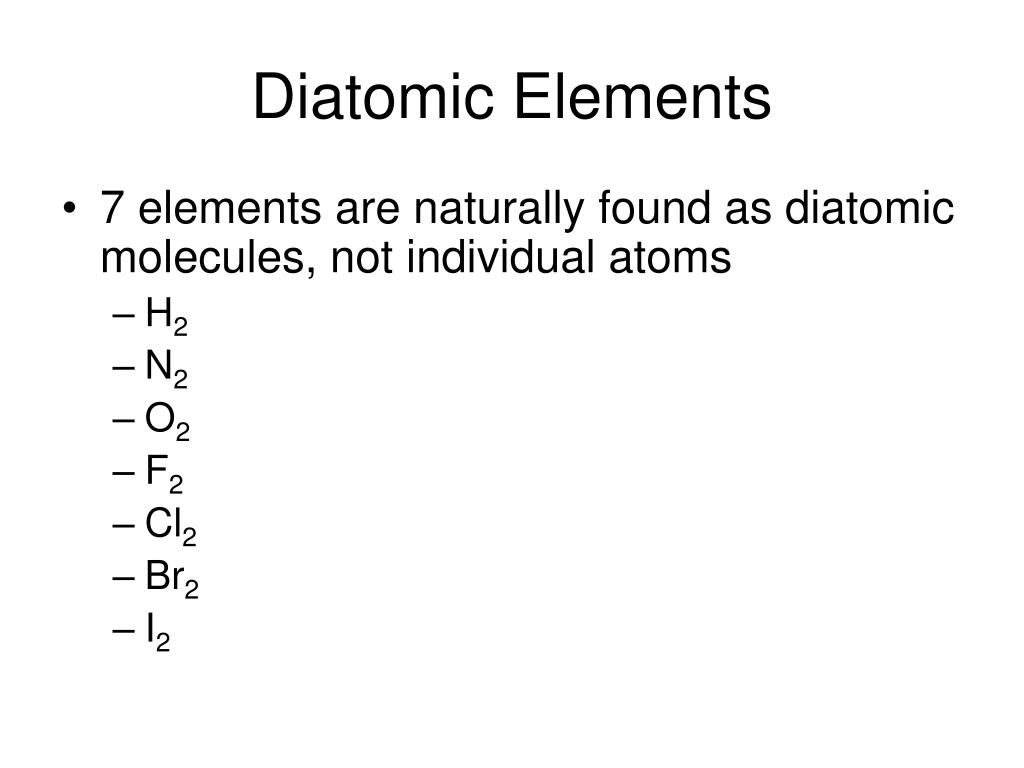

Diatomic Elements

  • 7 elements are naturally found as diatomic molecules, not individual atoms

    • H2

    • N2

    • O2

    • F2

    • Cl2

    • Br2

    • I2


Allotropes of carbon
Allotropes of Carbon

  • Allotrope – different forms of a given element

    • Graphite

    • Diamond

    • “Buckyballs”


Graphite

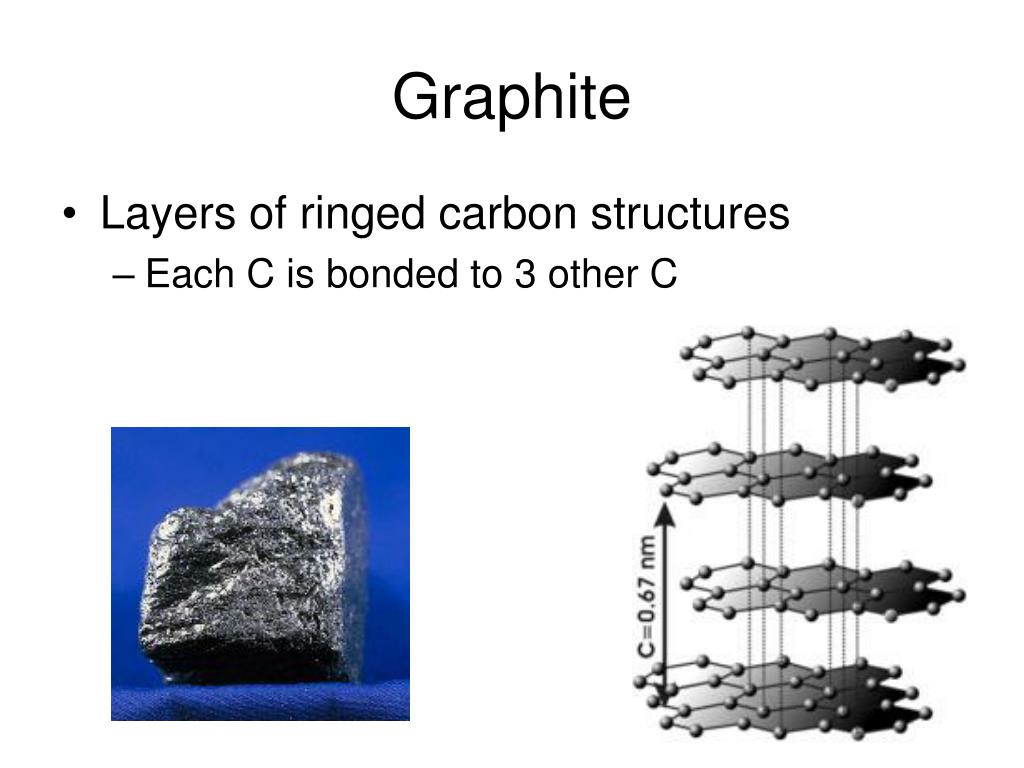

Graphite

  • Layers of ringed carbon structures

    • Each C is bonded to 3 other C


Diamond
Diamond

  • A diamond is a gigantic molecule, each C atom is bonded to 4 other C atoms


Buckminsterfullerene
Buckminsterfullerene

  • C60

  • “Buckyball”
