Dynamic clustering for acoustic target tracking in wireless sensor network

Dynamic Clustering forAcoustic Target Tracking inWireless Sensor Network

Wei-Peng Chen, Jennifer C. Hou, Lui Sha

Presented by Ray Lam

Oct 23, 2004


Outline

Outline

  • Introduction to sensor network

  • Technical background for the system

  • The dynamic clustering algorithm

  • Limitations of the system

  • Conclusion


Sensor network

Sensor Network

  • Nodes in the network

    • Sensor to sense physical environment

    • On-board processing, limited capability

    • Wireless communication

    • Limited power from batteries


The network

The Network

  • The network

    • 2 kinds of nodes: source and sink

    • Wireless network

      • Berkeley motes use CSMA MAC

    • Ad-hoc type

      • Multi-hop routing

      • Nodes sleep periodically


Data dissemination

Data Dissemination

  • Some research questions

    • How to coordinate sensors?

    • How to route data?

    • How to do in-network data fusion?

    • What to do with congestion?

    • How to do the above efficiently…

      • in terms of energy?

      • in terms of time?

  • We need distributed solutions


The acoustic target tracking system

The Acoustic Target Tracking System


Energy based localization

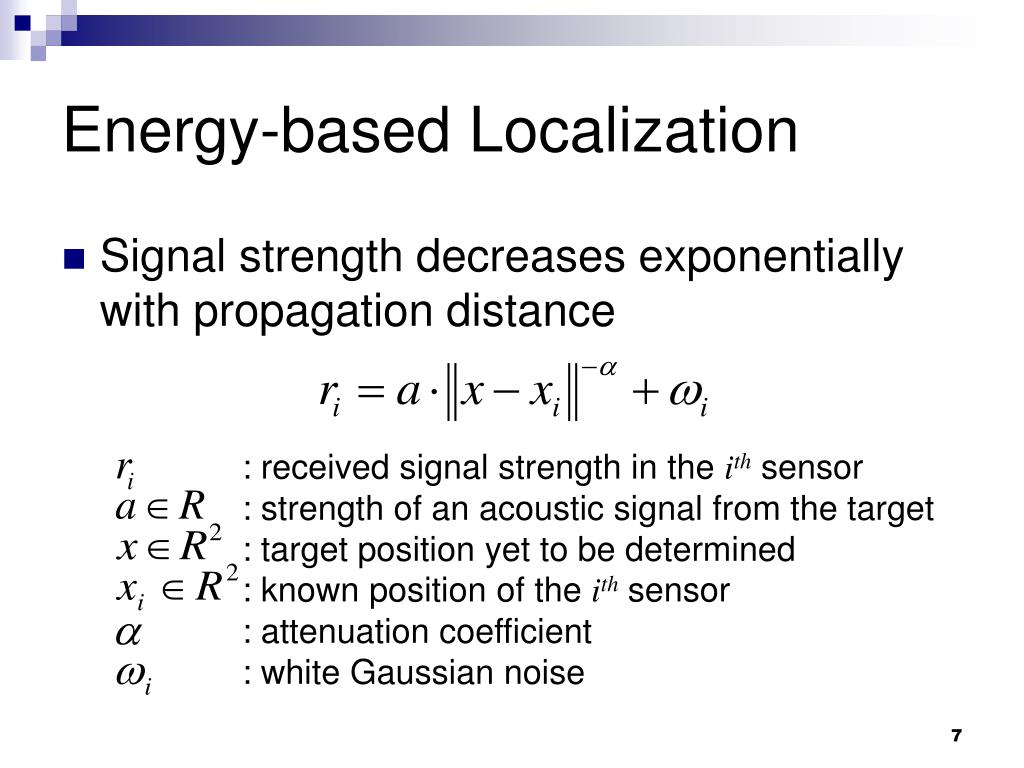

Energy-based Localization

  • Signal strength decreases exponentially with propagation distance

: received signal strength in the ith sensor: strength of an acoustic signal from the target: target position yet to be determined: known position of the ith sensor: attenuation coefficient: white Gaussian noise


Energy based localization1

Energy-based Localization

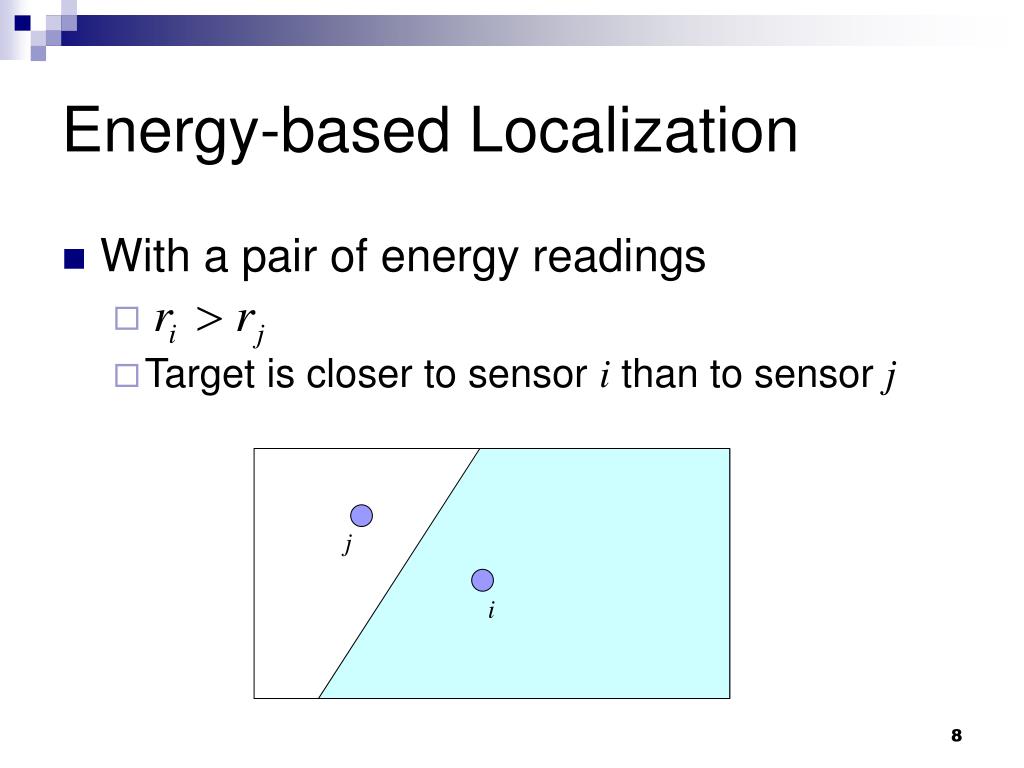

  • With a pair of energy readings

    • Target is closer to sensor i than to sensor j

j

i


Energy based localization2

Energy-based Localization

  • Voronoi diagram

    • 2-D space divided into Voronoi cells

    • V(pi): Voronoi cell containing node pi

    • V(pi) contains all points closer to pi than to any other pj

    • ri larger than all neighbors’ readings only if target in V(pi)


Network characteristics

Network Characteristics

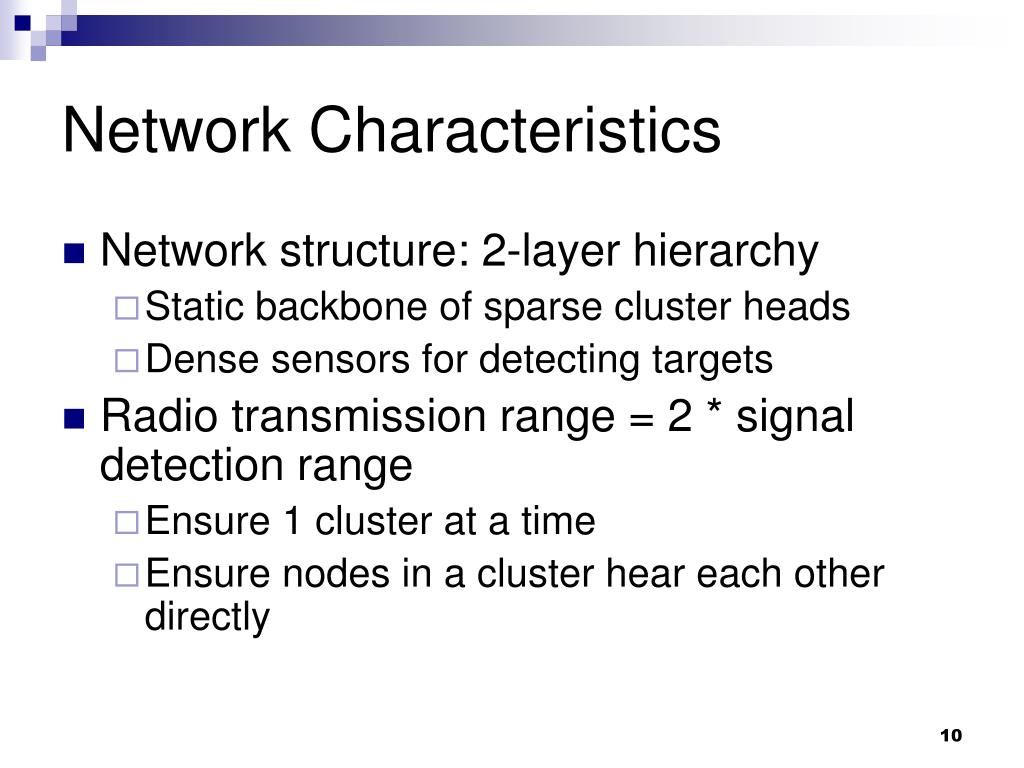

  • Network structure: 2-layer hierarchy

    • Static backbone of sparse cluster heads

    • Dense sensors for detecting targets

  • Radio transmission range = 2 * signal detection range

    • Ensure 1 cluster at a time

    • Ensure nodes in a cluster hear each other directly


The dynamic clustering algorithm

The Dynamic Clustering Algorithm

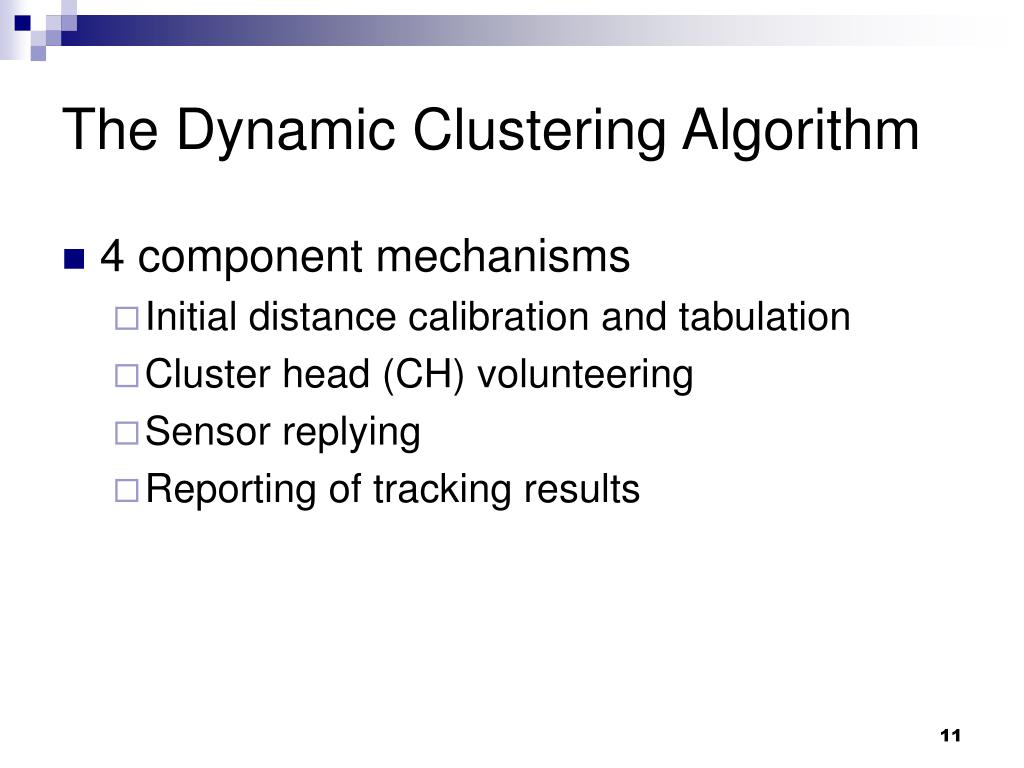

  • 4 component mechanisms

    • Initial distance calibration and tabulation

    • Cluster head (CH) volunteering

    • Sensor replying

    • Reporting of tracking results


Idea of the algorithm

Idea of the Algorithm

  • Objective: minimize messages sent in the network and avoid collisions

  • Given an energy reading, estimate distance from target

  • Using Voronoi diagram, estimate probability that target is in my Voronoi cell

  • In CH volunteering and sensor replying process

    • Nodes with high probability speak quickly

    • When you hear a higher energy reading from others, you give up speaking


Initial distance calibration and tabulation

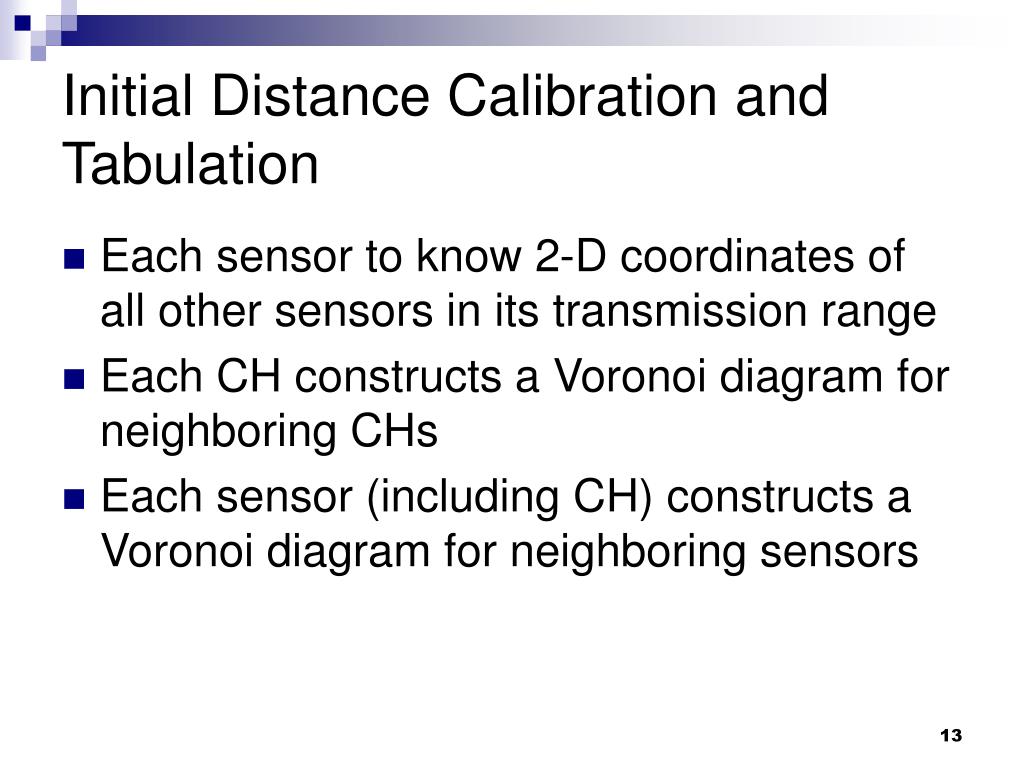

Initial Distance Calibration and Tabulation

  • Each sensor to know 2-D coordinates of all other sensors in its transmission range

  • Each CH constructs a Voronoi diagram for neighboring CHs

  • Each sensor (including CH) constructs a Voronoi diagram for neighboring sensors


Initial distance calibration and tabulation1

Initial Distance Calibration and Tabulation

  • Each CHi pre-computes for different d

    • Target on the circle centered at CHi with radius d

    • : conditional probability that target locates within V(CHi) given d

    • 3 cases…


Three cases

Three Cases

  • d< radius of inner circle:

  • d> radius of outer circle:

  • In between:

    • Take sample points on the circle

    • Check location of each point

    • Estimate as # of sample points inside V(CHi) / total # of sample points


Initial distance calibration and tabulation2

Initial Distance Calibration and Tabulation

  • Sensors do similarly

  • Each sensor Sj pre-computes for different

    • ri: energy reading from CHi

    • rj: energy reading of Sj

    • : conditional probability that target locates in V(Sj) given


Ch volunteering

CH Volunteering

  • Distributed election algorithm

  • CH closest to target should be elected

  • Solicitation packet

    • Request to form cluster and volunteer to be the cluster head

    • Contains signal signature

    • Contains signal strength detected by CH (CHi)


Ch volunteering1

CH Volunteering

  • Random delay-based broadcast mechanism

    • CHi detects a signal, estimates d, checks

    • Sets a back-off timer with back-off time

    • CHi does not broadcast solicitation packet until timer expires

    • If during back-off, hears other solicitation packets with higher energy readings, gives up volunteering


Sensor replying

Sensor Replying

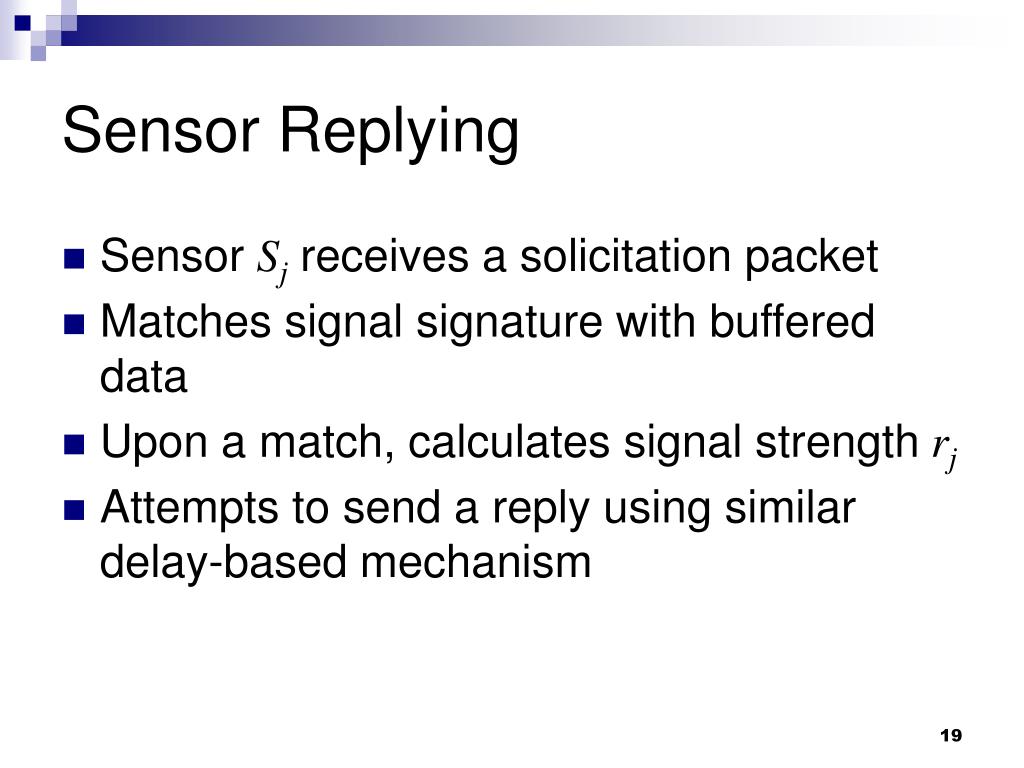

  • Sensor Sj receives a solicitation packet

  • Matches signal signature with buffered data

  • Upon a match, calculates signal strength rj

  • Attempts to send a reply using similar delay-based mechanism


Sensor replying1

Sensor Replying

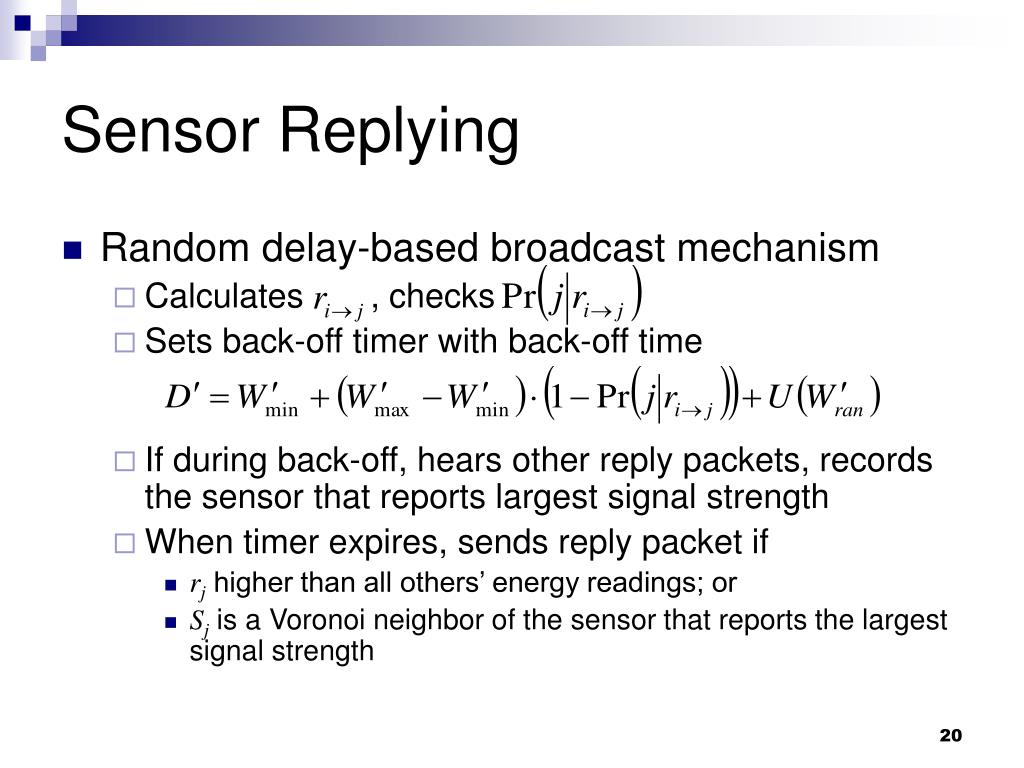

  • Random delay-based broadcast mechanism

    • Calculates , checks

    • Sets back-off timer with back-off time

    • If during back-off, hears other reply packets, records the sensor that reports largest signal strength

    • When timer expires, sends reply packet if

      • rj higher than all others’ energy readings; or

      • Sj is a Voronoi neighbor of the sensor that reports the largest signal strength


Reporting tracking results

Reporting Tracking Results

  • CH receives replies from sensors

  • Sufficient number of replies:

    • A reply from Sj with largest signal strength

    • Replies from all Sj’s Voronoi neighbors

  • Takes location of Sj as location of target

  • Sends result to sink through static backbone


Limitations

Limitations

  • Limited application space

    • Not applicable to general monitoring applications without “target”

    • Signals must attenuate with propagation distance

  • 1 cluster for 1 signal

    • Signals may come simultaneously

    • Multiple clusters may form simultaneously causing more collisions


Limitations1

Limitations

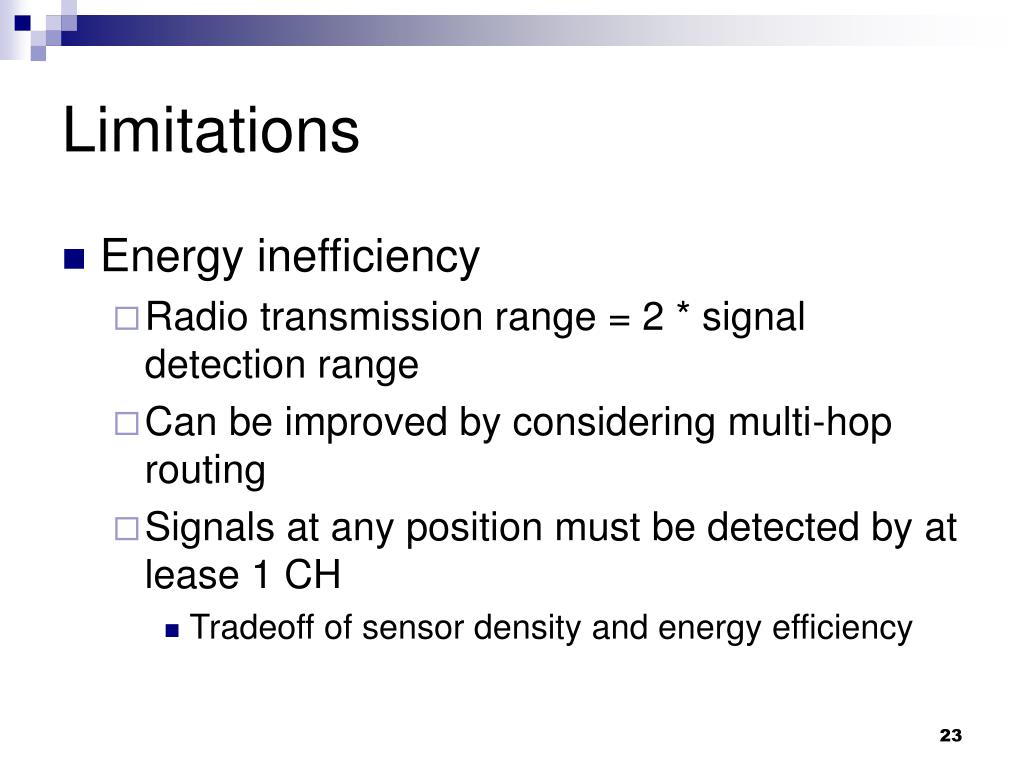

  • Energy inefficiency

    • Radio transmission range = 2 * signal detection range

    • Can be improved by considering multi-hop routing

    • Signals at any position must be detected by at lease 1 CH

      • Tradeoff of sensor density and energy efficiency


Conclusion

Conclusion

  • Data dissemination in sensor network

  • Dynamic clustering triggered per signal

  • More research on:

    • Collision behavior between clusters

    • Multi-hop routing

    • Time efficient data dissemination


Discussion

Discussion

The End

Thank you for coming!
