  1. Converting API 11B Specification for Sucker Rods to ISO 10428 Sid Thomas Wilson International Chairman API Sub-Committee 11

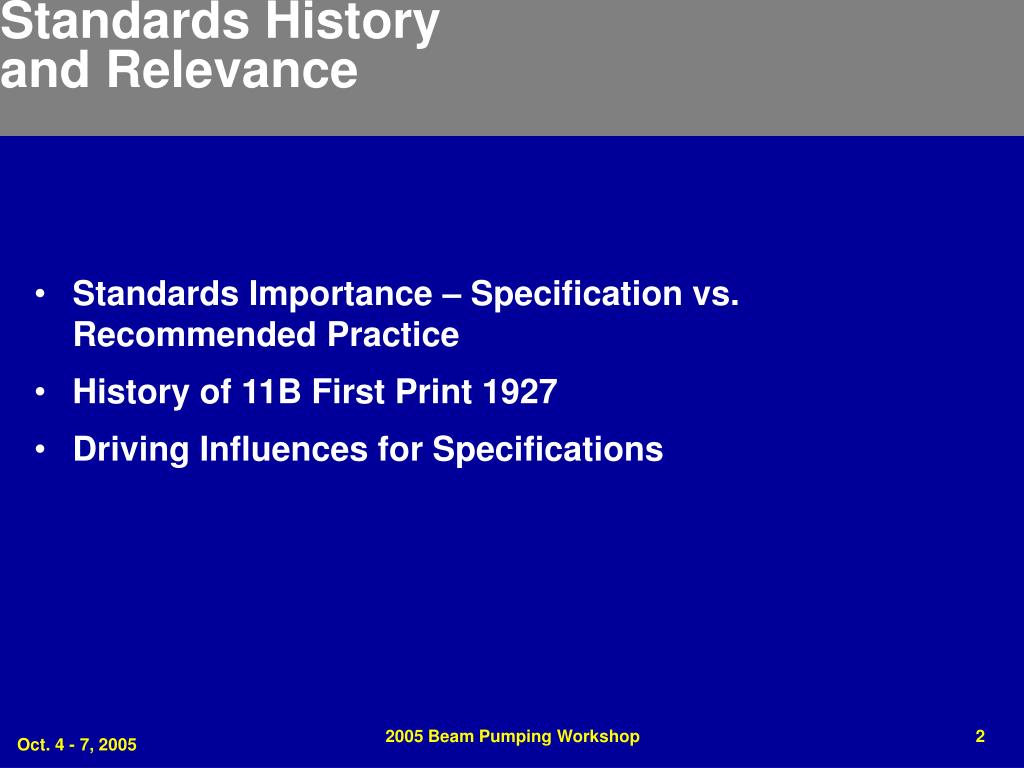

  2. Standards Historyand Relevance • Standards Importance – Specification vs. Recommended Practice • History of 11B First Print 1927 • Driving Influences for Specifications 2005 Beam Pumping Workshop

  3. Committee Members • API Membership Qualifications • Function and Responsibility • ISO and API Cooperation 2005 Beam Pumping Workshop

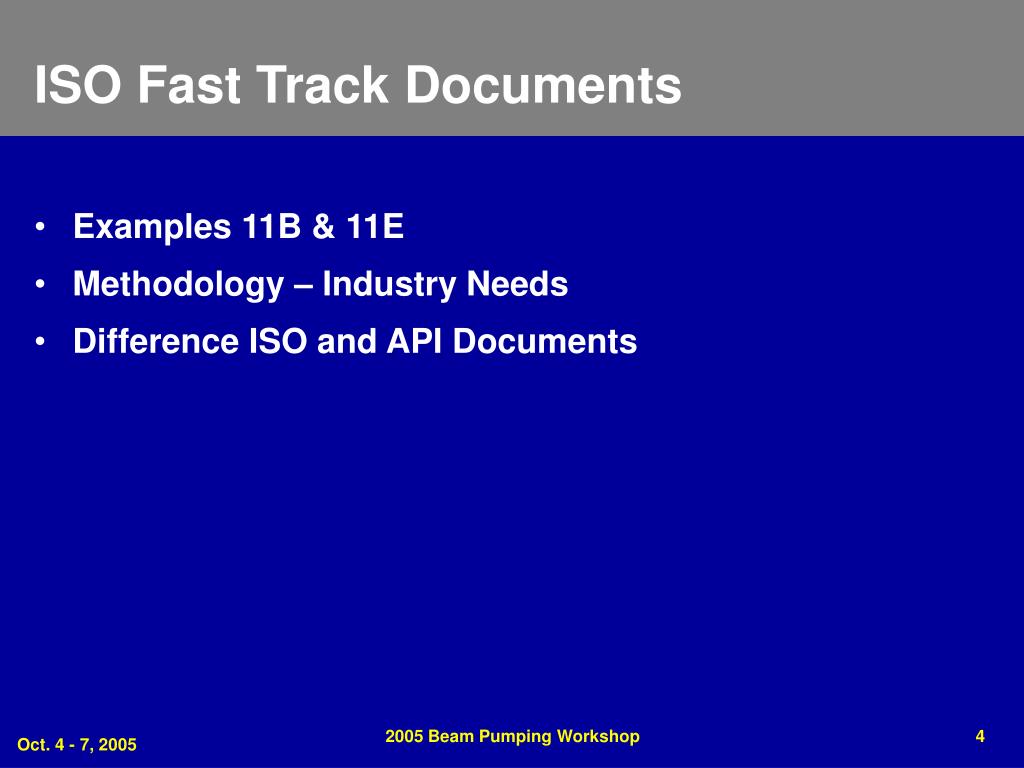

  4. ISO Fast Track Documents • Examples 11B & 11E • Methodology – Industry Needs • Difference ISO and API Documents 2005 Beam Pumping Workshop

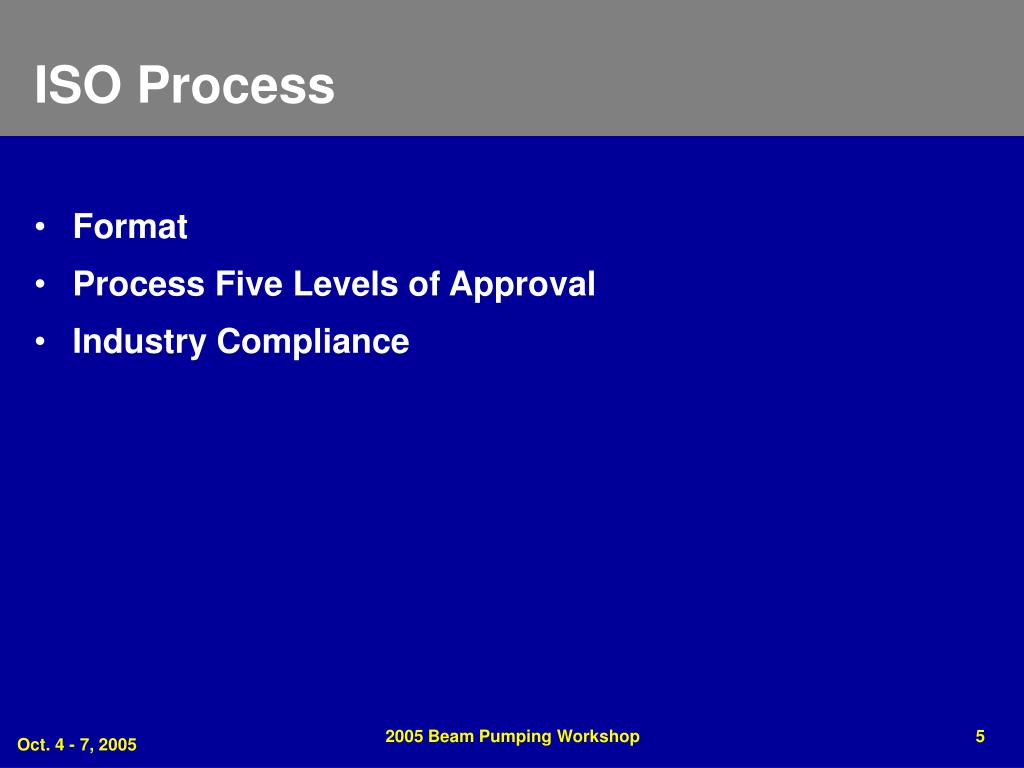

  5. ISO Process • Format • Process Five Levels of Approval • Industry Compliance 2005 Beam Pumping Workshop

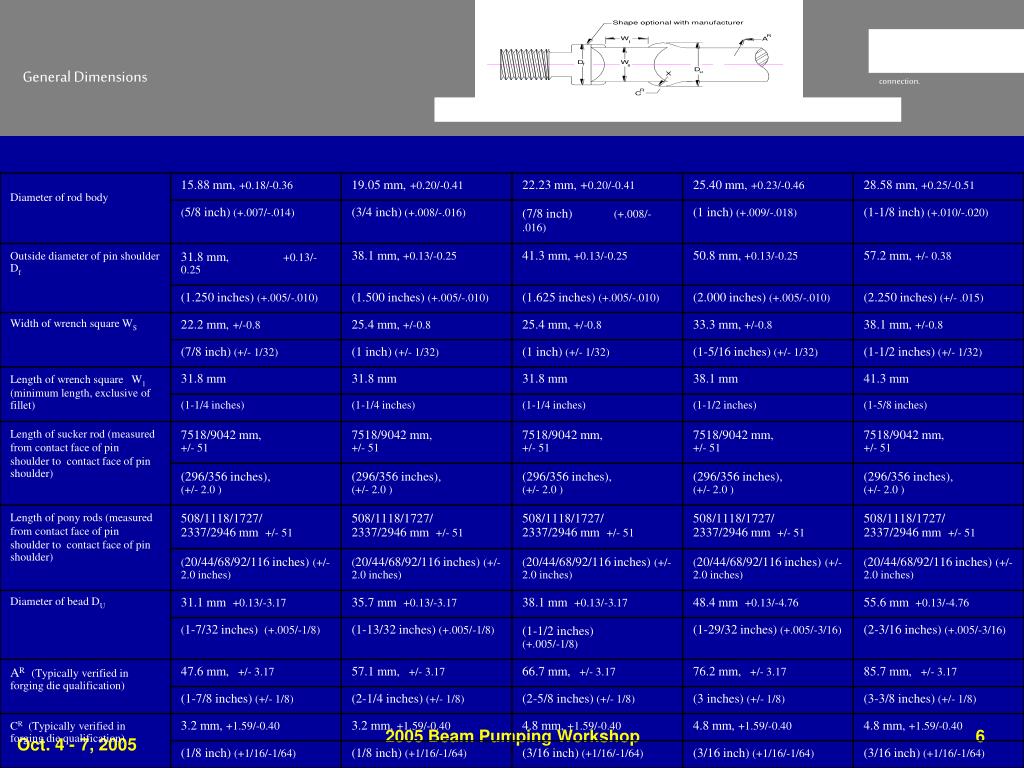

  6. Notes: See Table A-3. See Figure 3 for details of shoulder connection. Figure 1 – General dimensions for steel sucker rod pin ends General Dimensions 2005 Beam Pumping Workshop

  7. Changes Through the ISO Process • Allowing for New Technologies • Maintaining Interchangeability • Driving Factors 2005 Beam Pumping Workshop

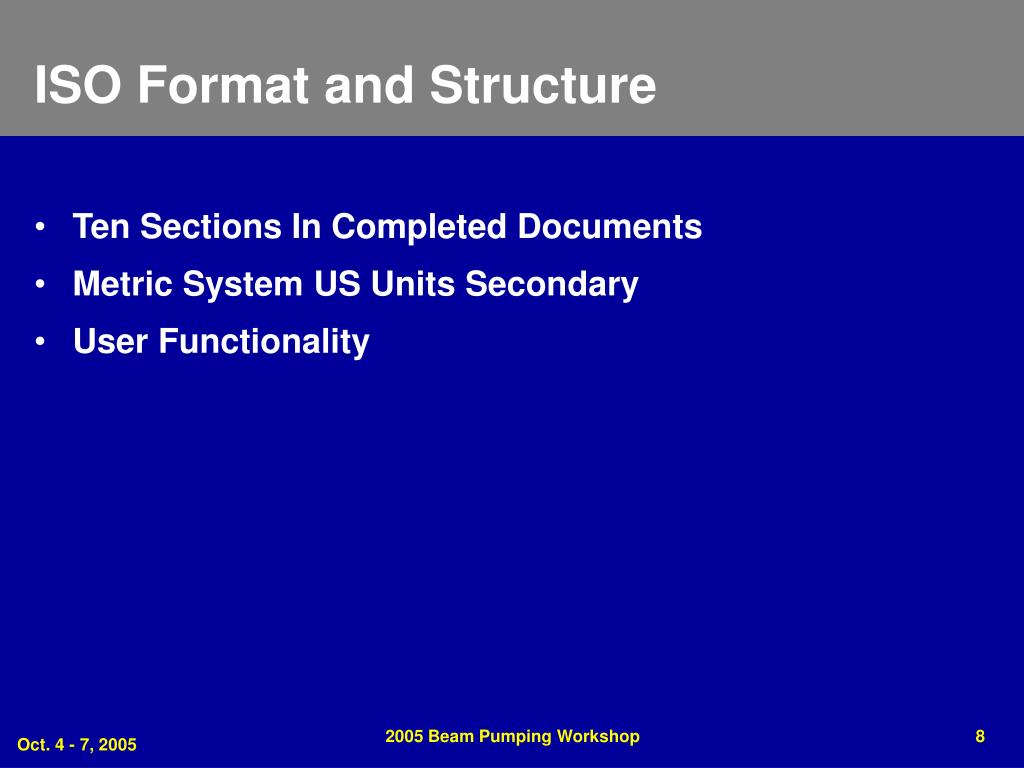

  8. ISO Format and Structure • Ten Sections In Completed Documents • Metric System US Units Secondary • User Functionality 2005 Beam Pumping Workshop

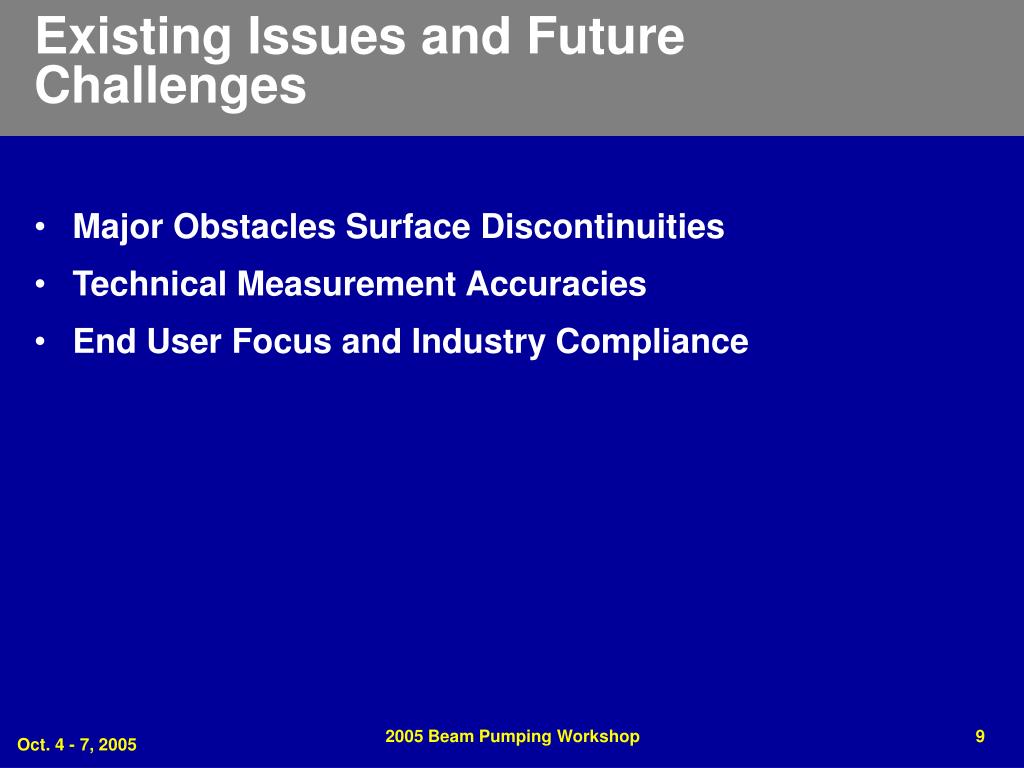

  9. Existing Issues and Future Challenges • Major Obstacles Surface Discontinuities • Technical Measurement Accuracies • End User Focus and Industry Compliance 2005 Beam Pumping Workshop

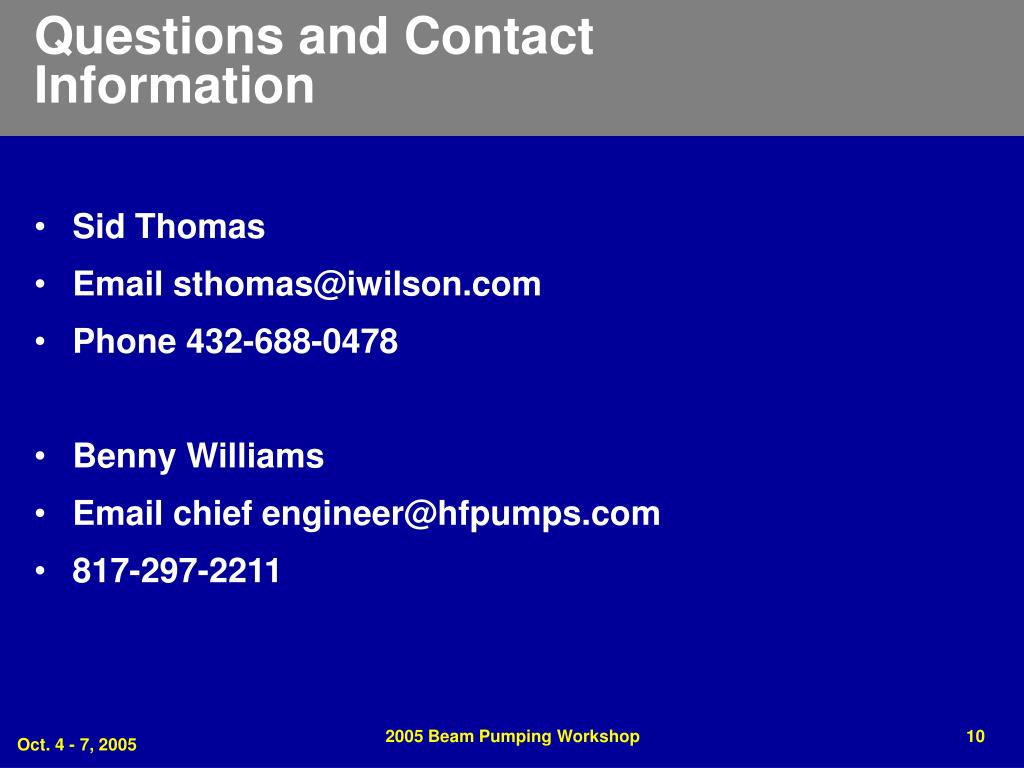

  10. Questions and Contact Information • Sid Thomas • Email sthomas@iwilson.com • Phone 432-688-0478 • Benny Williams • Email chief engineer@hfpumps.com • 817-297-2211 2005 Beam Pumping Workshop
