Presentation Transcript


Snmp c 7

Your Network Management Partner

SNMPc7

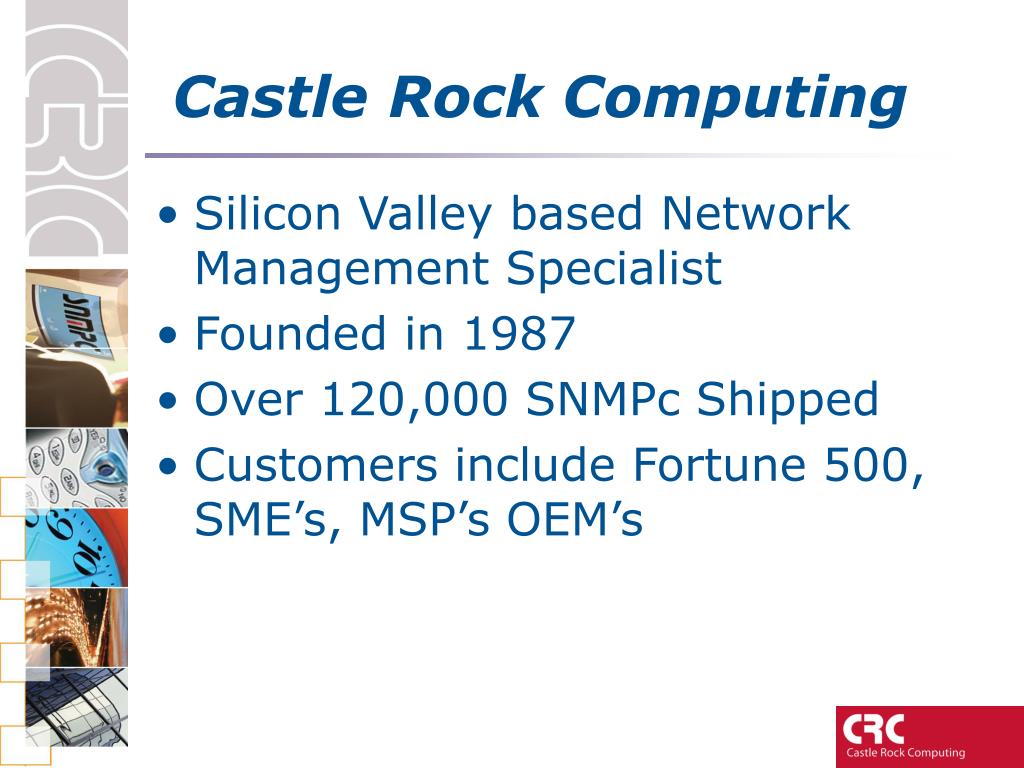

Castle rock computing

Castle Rock Computing

  • Silicon Valley based Network Management Specialist

  • Founded in 1987

  • Over 120,000 SNMPc Shipped

  • Customers include Fortune 500, SME’s, MSP’s OEM’s


The need for network management

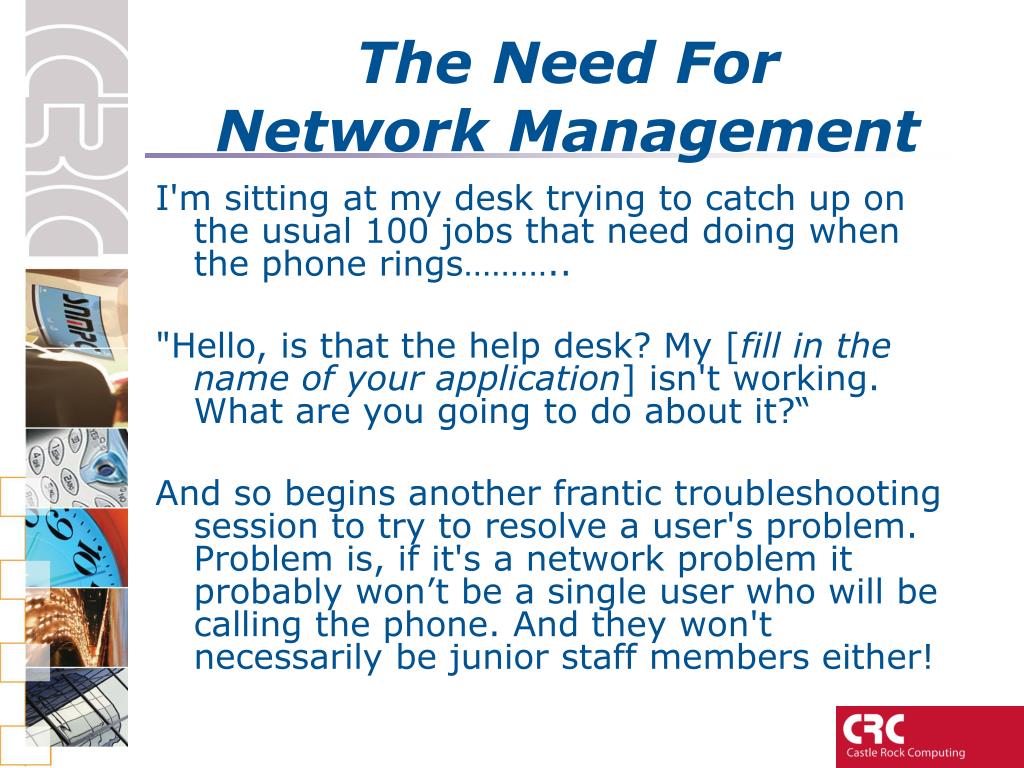

The Need ForNetwork Management

I'm sitting at my desk trying to catch up on the usual 100 jobs that need doing when the phone rings………..

"Hello, is that the help desk? My [fill in the name of your application] isn't working. What are you going to do about it?“

And so begins another frantic troubleshooting session to try to resolve a user's problem. Problem is, if it's a network problem it probably won’t be a single user who will be calling the phone. And they won't necessarily be junior staff members either!

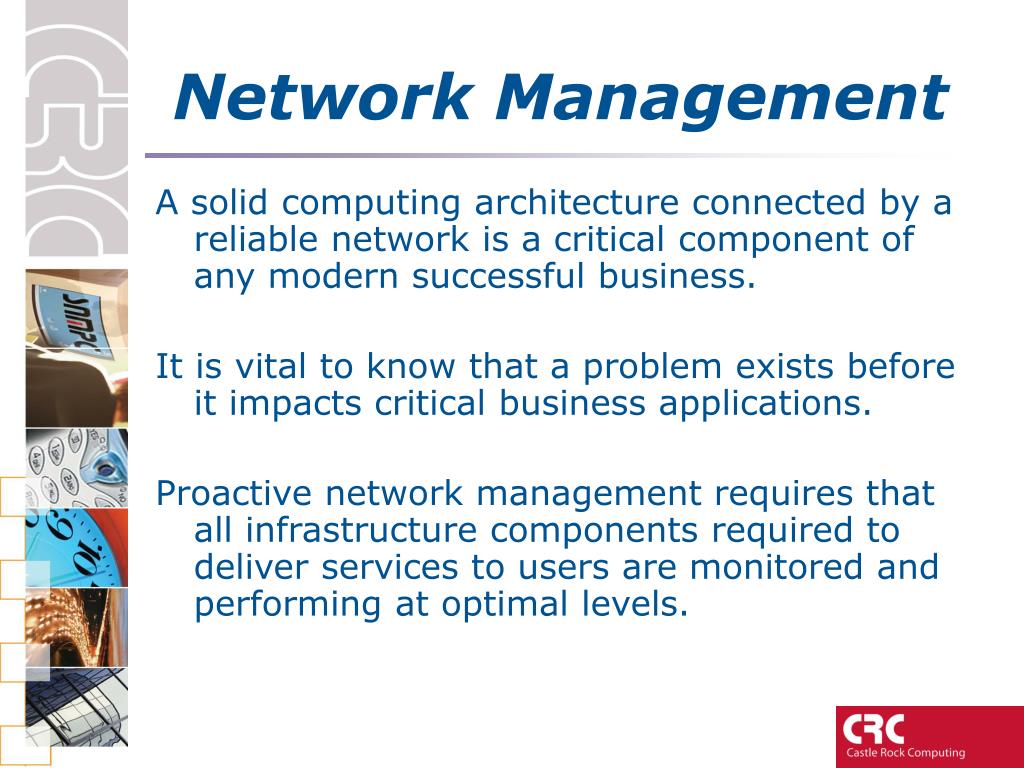

Network management

Network Management

A solid computing architecture connected by a reliable network is a critical component of any modern successful business.

It is vital to know that a problem exists before it impacts critical business applications.

Proactive network management requires that all infrastructure components required to deliver services to users are monitored and performing at optimal levels.


Aspects of network management

Aspects of Network Management

  • Fault Management

    • Whats Up & Whats Down?

  • Performance Management

    • How is my Network Performing?

  • Asset Management

    • What devices are on my network?

  • Capacity Management

    • How do I plan for consistent, reliable network growth?


Benefits to customers

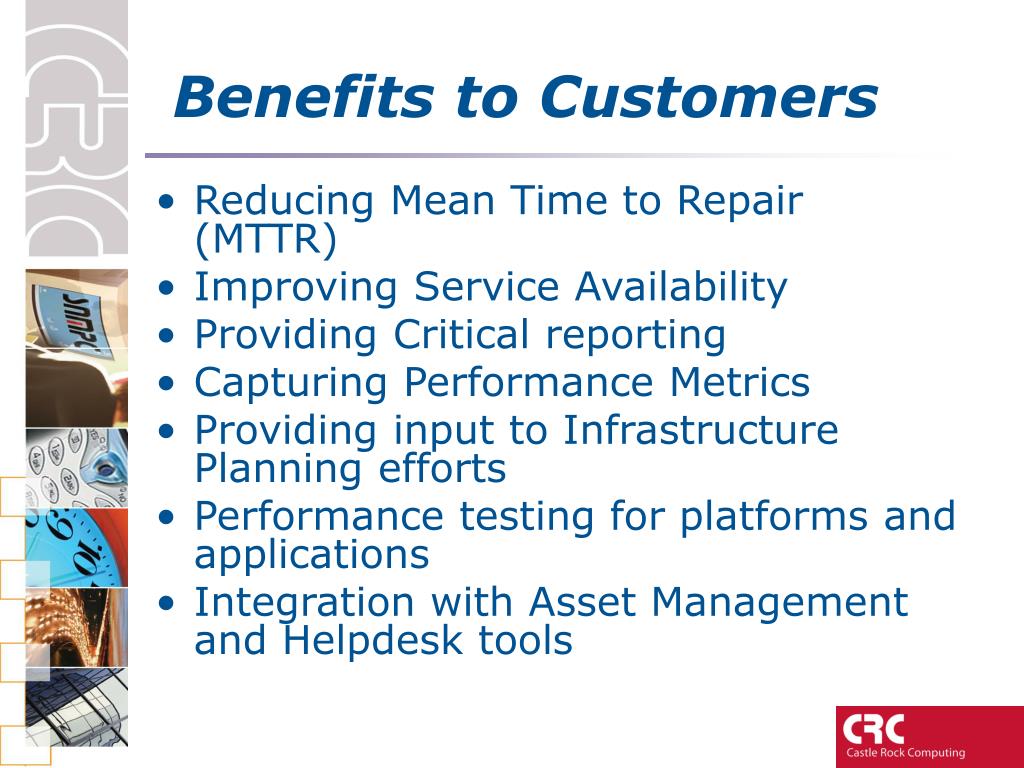

Benefits to Customers

  • Reducing Mean Time to Repair (MTTR)

  • Improving Service Availability

  • Providing Critical reporting

  • Capturing Performance Metrics

  • Providing input to Infrastructure Planning efforts

  • Performance testing for platforms and applications

  • Integration with Asset Management and Helpdesk tools


Common features

Common Features

  • Standards Based

    • SNMP v1, v2c,

    • SNMP v3 Secure DES encrypted management protocol

  • Vendor Independent

    • Manage any SNMP device from any Vendor

    • MIB Compiler/Custom Expressions

    • Receives SNMP alerts from any device


Snmpc

SNMPc

  • SNMPc Workgroup 7.0

    • Stand alone Network Management System for small to medium sized networks and developers

  • SNMPc Enterprise 7.0

    • Enterprise class Network Management System capable of managing tens of thousands of devices.

    • Distributed Console and Polling architecture.

    • Advanced Trend Reporting Capabilities

    • Live/Standby Disaster Recovery


  • Common features1

    Common Features

    • Simple to install

      • SNMPc can be installed and delivering results in a matter of hours.

    • Proactive Network Management

      • SNMPc monitors the network ‘health’ generating alerts when problems occur before the ‘phone starts ringing’

    • Cost Effective

    • Intuitive Graphical User Interface

      =Low Total Cost of Ownership


    Snmpc workgroup

    SNMPc Workgroup

    • Ideal for small to medium networks

    • Stand Alone System

    • Supports up to 1000 objects

    • Basic Trend Reporting

    • Can act as a feeder node for SNMPc Enterprise


    Snmpc enterprise

    SNMPc Enterprise

    • Basic System

      • SNMPc Server plus one remote polling agent and one remote console

    • Remote Access Extension

      • Unlimited Remote Polling agents.

      • Unlimited Remote Consoles

      • JAVA based Console


    Snmpc online

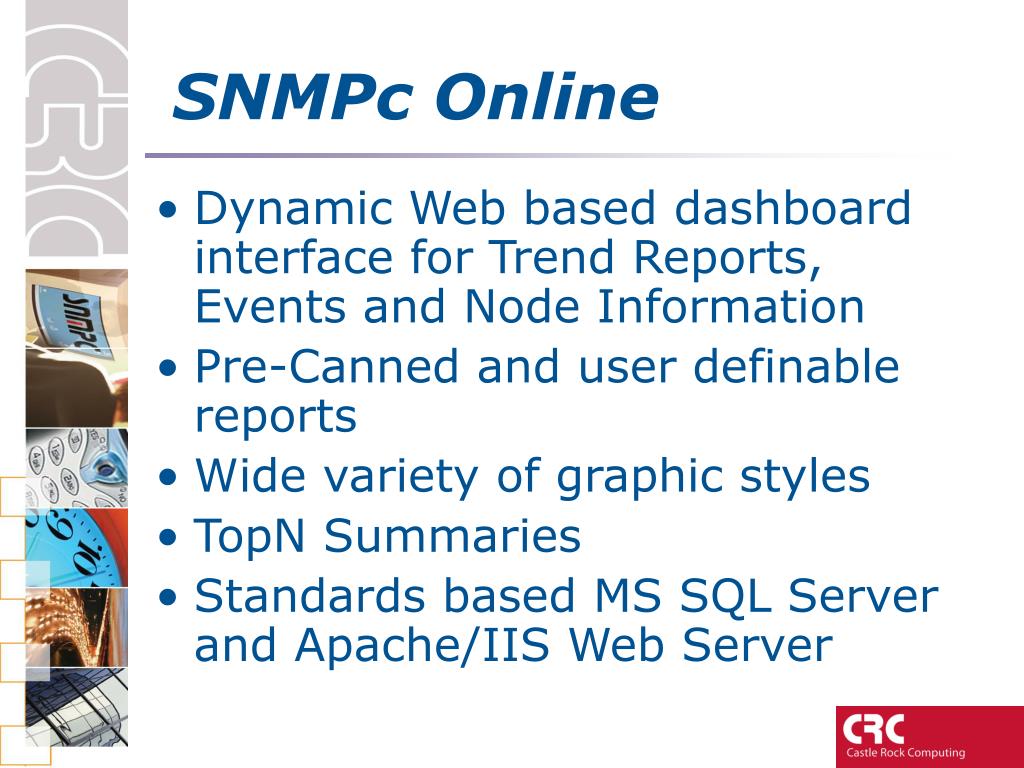

    SNMPc Online

    • Dynamic Web based dashboard interface for Trend Reports, Events and Node Information

    • Pre-Canned and user definable reports

    • Wide variety of graphic styles

    • TopN Summaries

    • Standards based MS SQL Server and Apache/IIS Web Server


    Enterprise functionality

    Enterprise Functionality

    • Supports up to 25,000 objects

    • Runs as a Windows Service

    • Enhanced Trend Reporting

      • Automatic Report Generation. Export to WEB Server, Printer, Excel etc

    • ‘Manager of Managers’ for scalable multi-user networking

    • Live/Standby Server Support for Disaster Recovery


    Distributed architecture

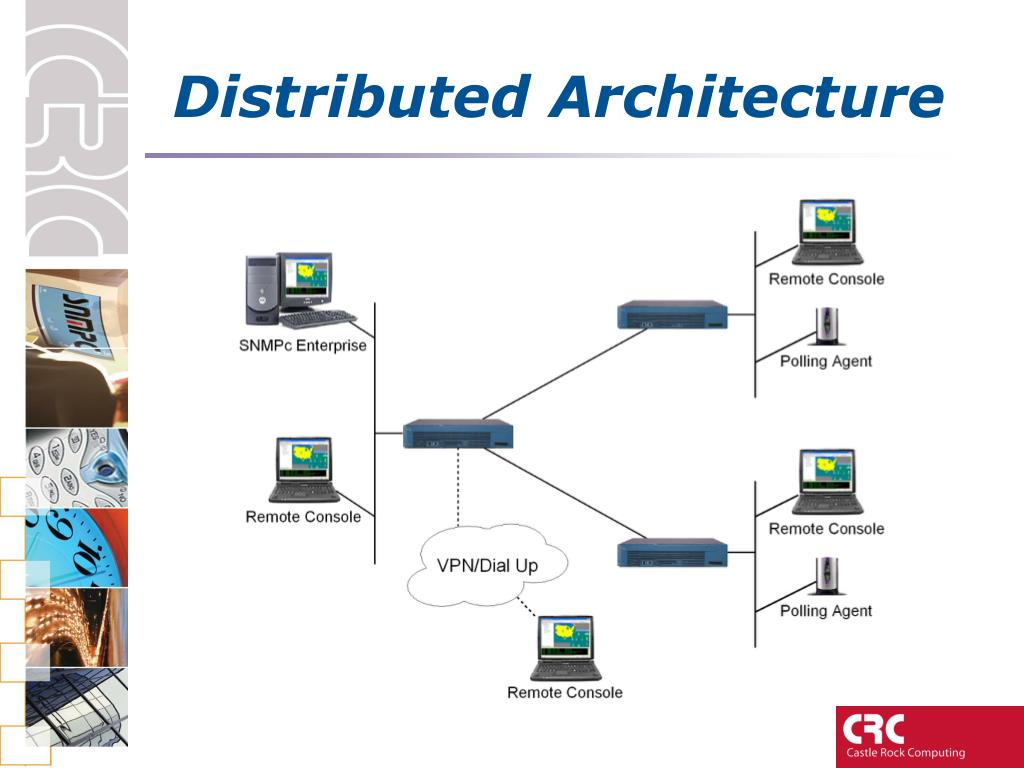

    Distributed Architecture


    Console restricted views

    Console Restricted Views

    Operator

    Supervisor

    SNMPc Enterprise

    Customer 1

    Customer 2


    Manager of managers

    Manager of Managers


    Snmpc online1

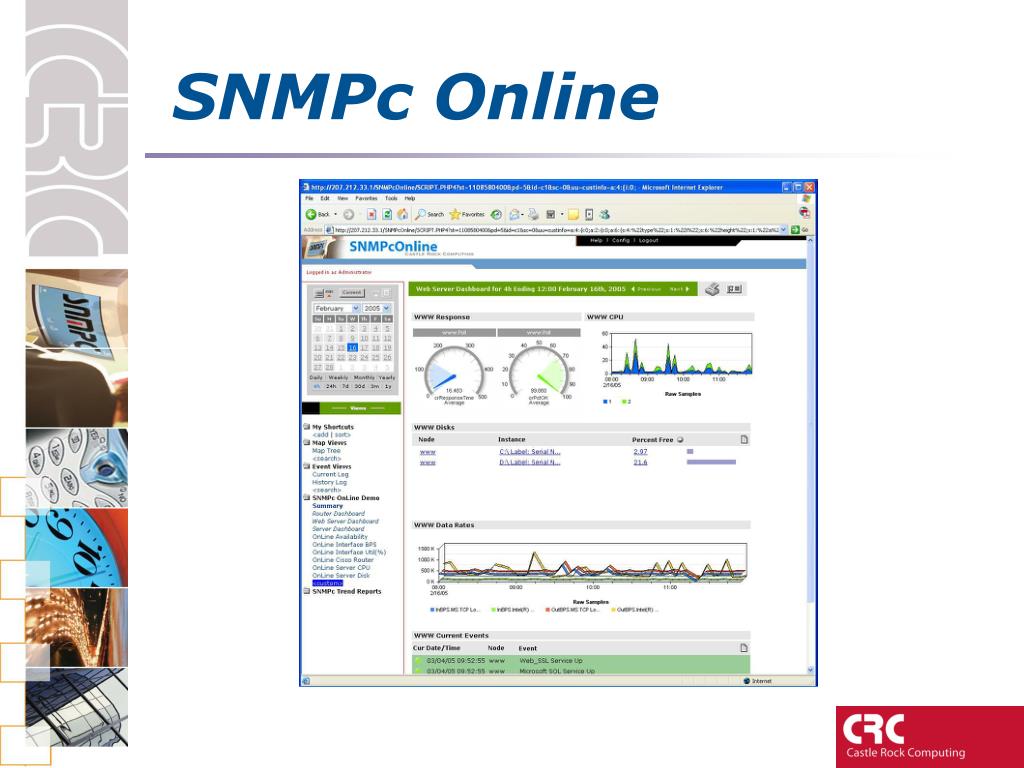

    SNMPc Online


    Common features2

    Common Features

    • Automatic Network Discovery

    • Network Status monitoring

    • Key network metrics stats for Switches, Routers, Servers, Cable Modems, Cisco Devices, ….

    • Real time network statistics

    • Historical Reporting

    • Email and Pager Alerting

    • Hubview/Bitview Applications


    Network discovery

    Network Discovery


    Network discovery1

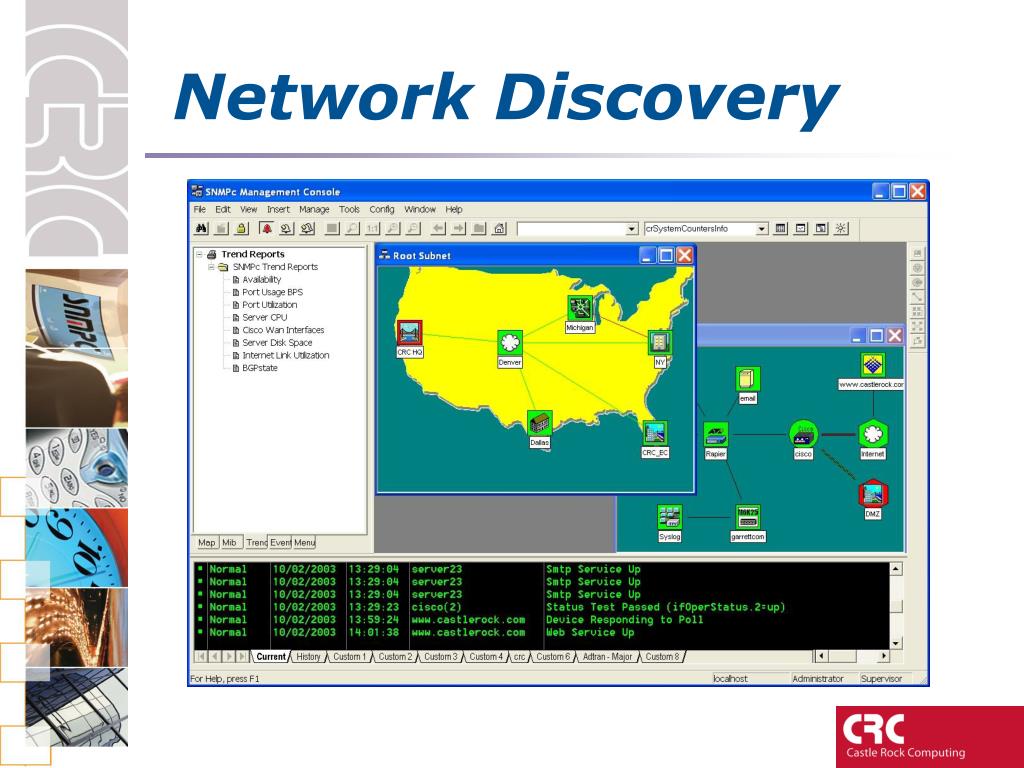

    Network Discovery

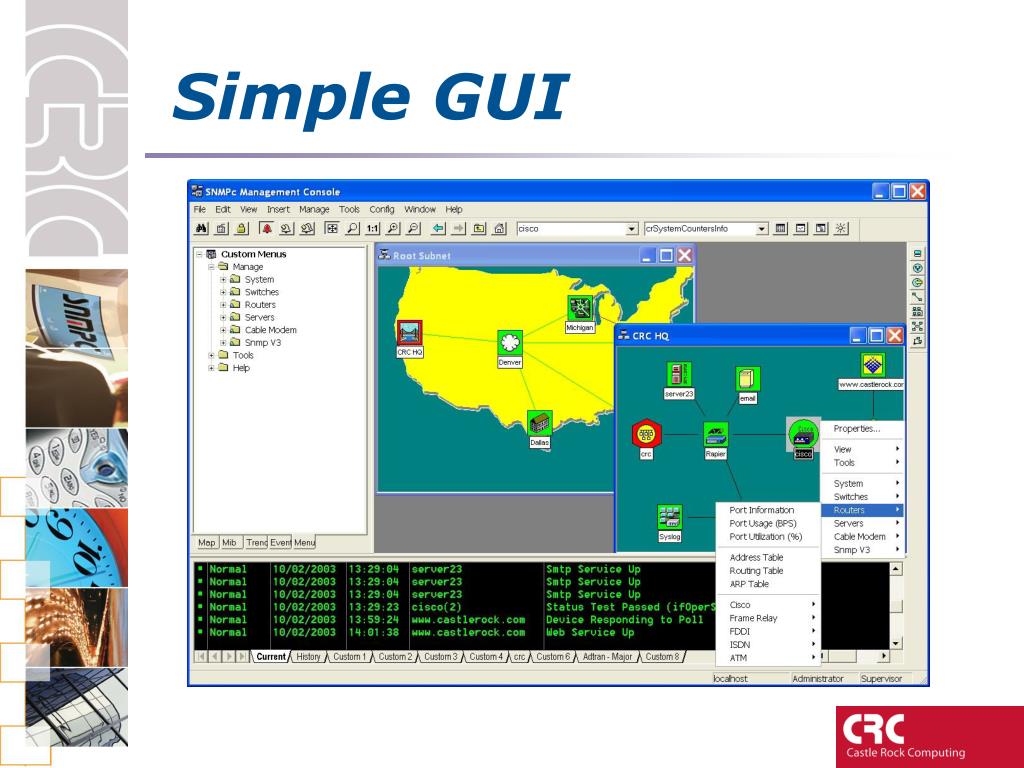

    Simple gui

    Simple GUI

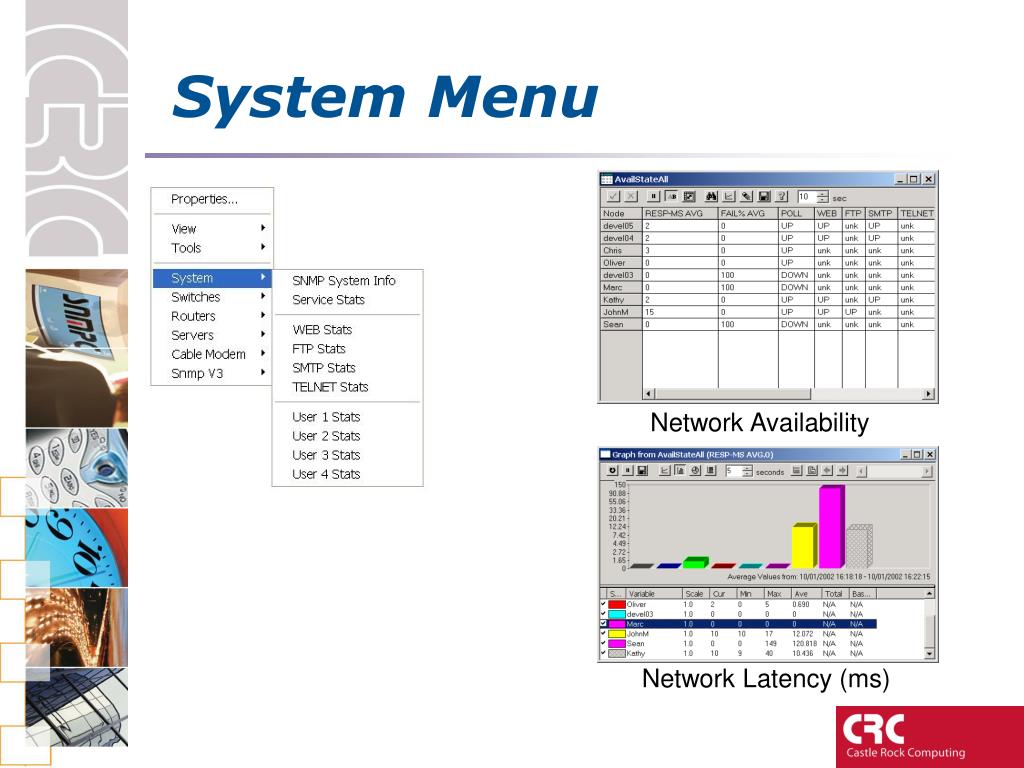

    System menu

    System Menu

    Network Availability

    Network Latency (ms)


    Switches menu

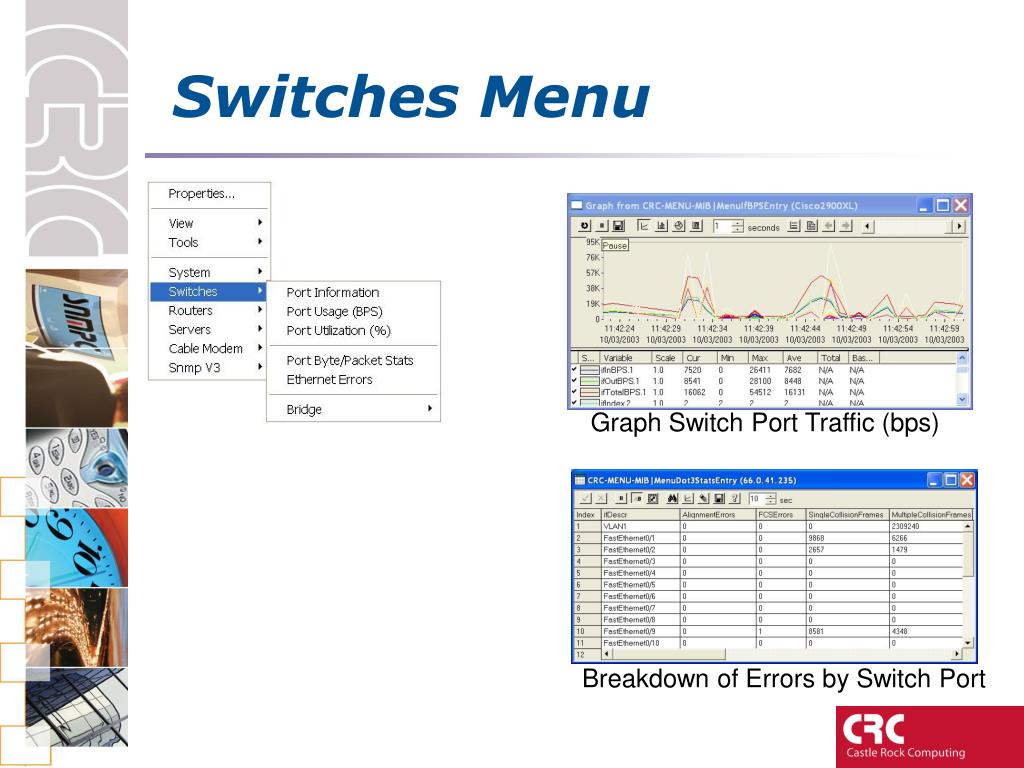

    Switches Menu

    Graph Switch Port Traffic (bps)

    Breakdown of Errors by Switch Port


    Routers menu

    Routers Menu

    Cisco Router CPU Utilization

    Port Utilization (%)


    Servers menu

    Servers Menu

    Server CPU Utilization (multiple Servers)

    Server Disk Capacity


    Configurable menus and tables

    Configurable Menus and Tables

    Wireless Access Point Configuration

    Printer Status


    Snmpc graphical views

    SNMPc Graphical Views


    Device management

    Device Management


    Trend reporting

    Trend Reporting

    • Pre-canned Reports include

      • Network availability and Round Trip Delay

      • WAN/LAN Interface Utilization

      • Traffic Volume

      • Server CPU & Disk Space

      • Cisco CPU & Free Memory


    Trend reporting1

    Trend Reporting

    • Set thresholds on any recorded variable

    • Define your own reports

      • Any variable from any SNMP device can be recorded

    • Automatic Base lining of data

    • Ability to view report can be configured by user

    • Easy to Configure using GUI


    Snmpc online2

    SNMPc OnLine

    • Available 04/14/05

    • Requires SNMPc Enterprise 7.08

    • Microsoft MDSE SQL Engine

    • Apache Webserver included (IIS also supported)

    • Windows 2000,XP,2003

    • Components can be distributed for scalability


    Topn dashboard

    TopN Dashboard


    Custom server report

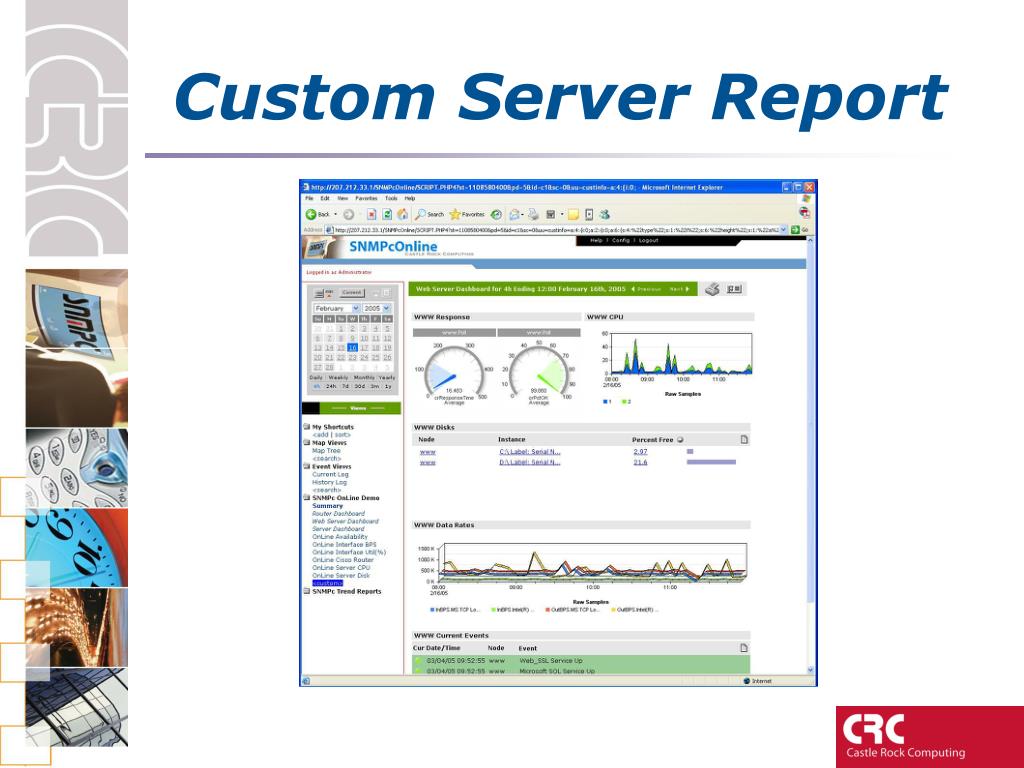

    Custom Server Report

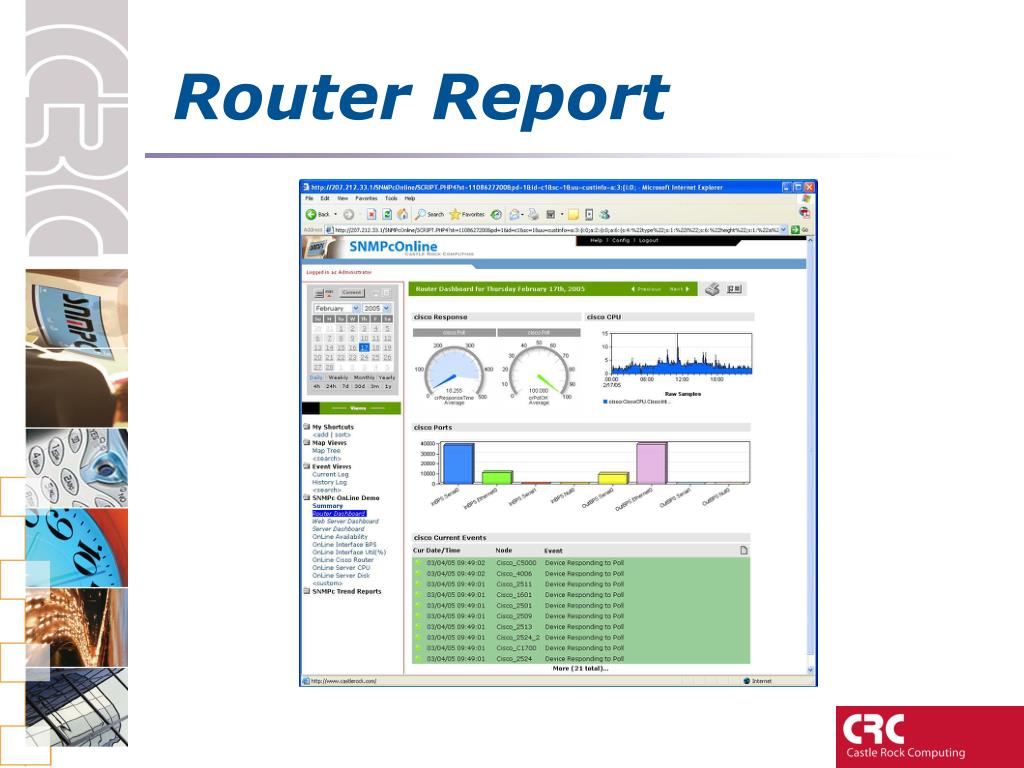

    Router report

    Router Report


    Cisco summary

    Cisco Summary


    Sla report

    SLA Report


    Detailed device view

    Detailed Device View


    Event viewer

    Event Viewer


    Event actions

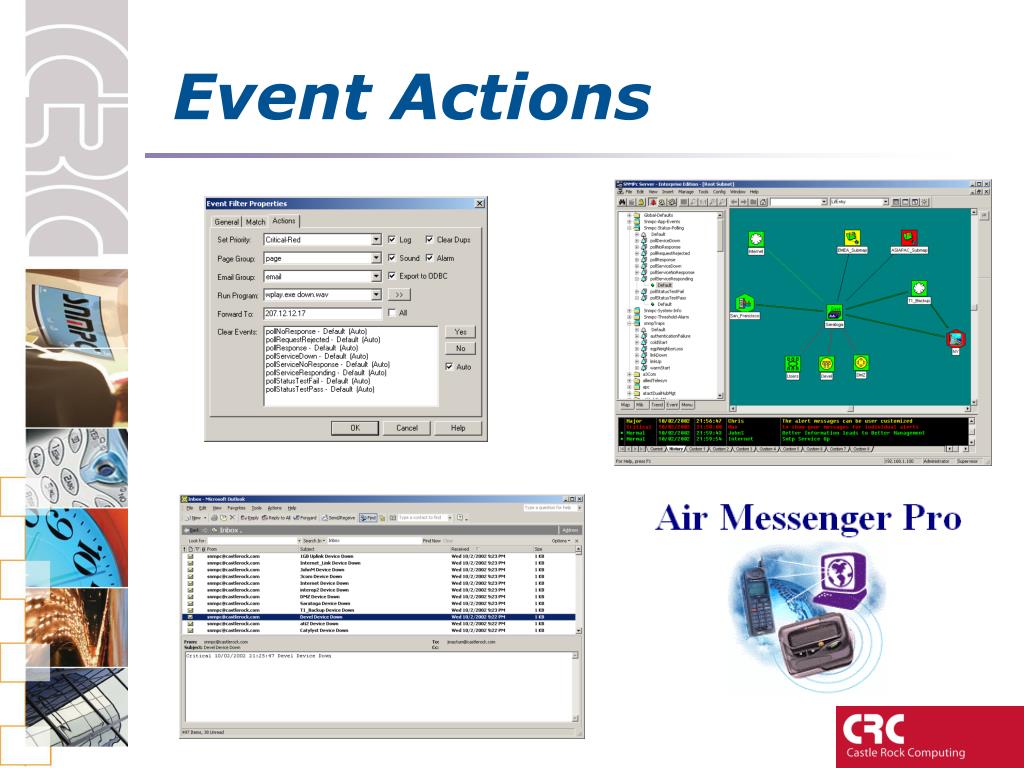

    Event Actions

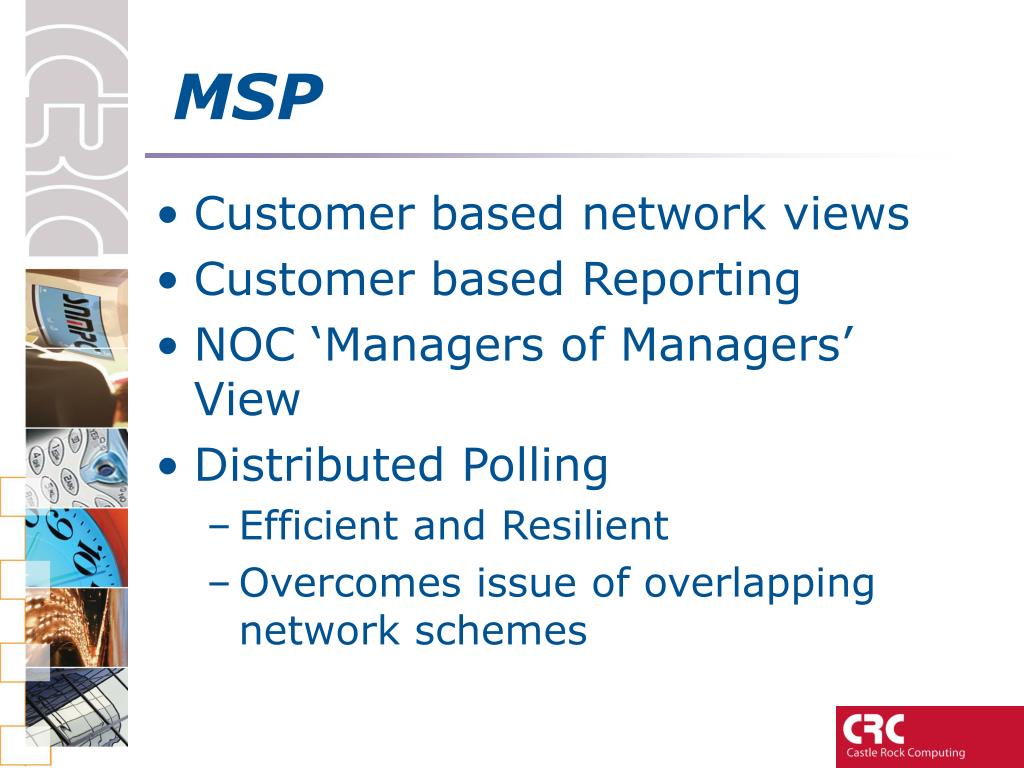

    Snmp c 7

    MSP

    • Customer based network views

    • Customer based Reporting

    • NOC ‘Managers of Managers’ View

    • Distributed Polling

      • Efficient and Resilient

      • Overcomes issue of overlapping network schemes


    Customers

    Allied Telesyn

    AT&T

    AOL-Time Warner

    BBC

    Cable and Wireless

    Cap Gemini

    Cisco

    CNN

    CNT

    Comcast

    EDS

    IBM

    Lucent

    Microsoft

    MTV Networks

    Nortel

    Reuters

    Texas Instruments

    US ARMY

    Ticketmaster

    Customers


    Customer comments

    Customer Comments

    “" MTV Europe scoured the market for an enterprise management solution that incorporated hardware and software monitoring, automated alerts and alarms, flexible trend analysis and ultimately proactive network management capabilities. Ultimately none could match the price and performance that was presented by Castle Rock Computing."

    David Jones, MTV Europe

    “SNMPc provides comprehensive SNMP v3 support and is a great tool to validate and manage SNMP v3 agents. The technical support and assistance we have received from Castle Rock has been excellent. I believe for the price SNMPc is the best NMS product.”

    Lead Software Engineer, MRV Communications

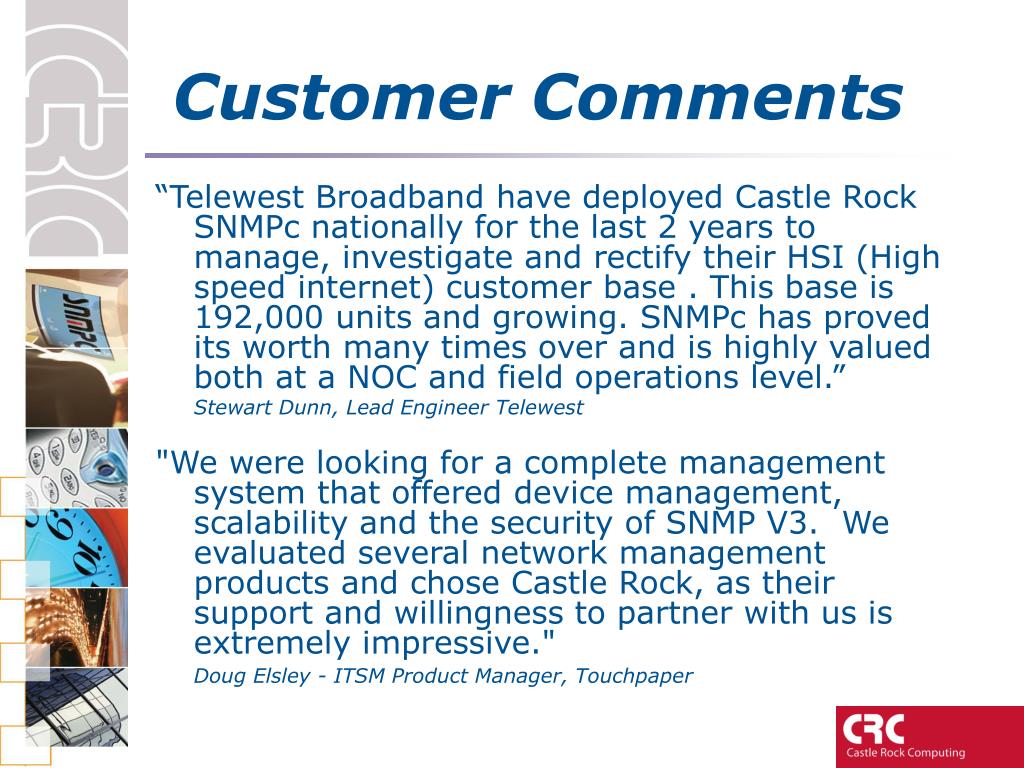

    Customer comments1

    Customer Comments

    “Telewest Broadband have deployed Castle Rock SNMPc nationally for the last 2 years to manage, investigate and rectify their HSI (High speed internet) customer base . This base is 192,000 units and growing. SNMPc has proved its worth many times over and is highly valued both at a NOC and field operations level.”

    Stewart Dunn, Lead Engineer Telewest

    "We were looking for a complete management system that offered device management, scalability and the security of SNMP V3.  We evaluated several network management products and chose Castle Rock, as their support and willingness to partner with us is extremely impressive."

    Doug Elsley - ITSM Product Manager, Touchpaper
