Lcd devices and optically polymeric membranes

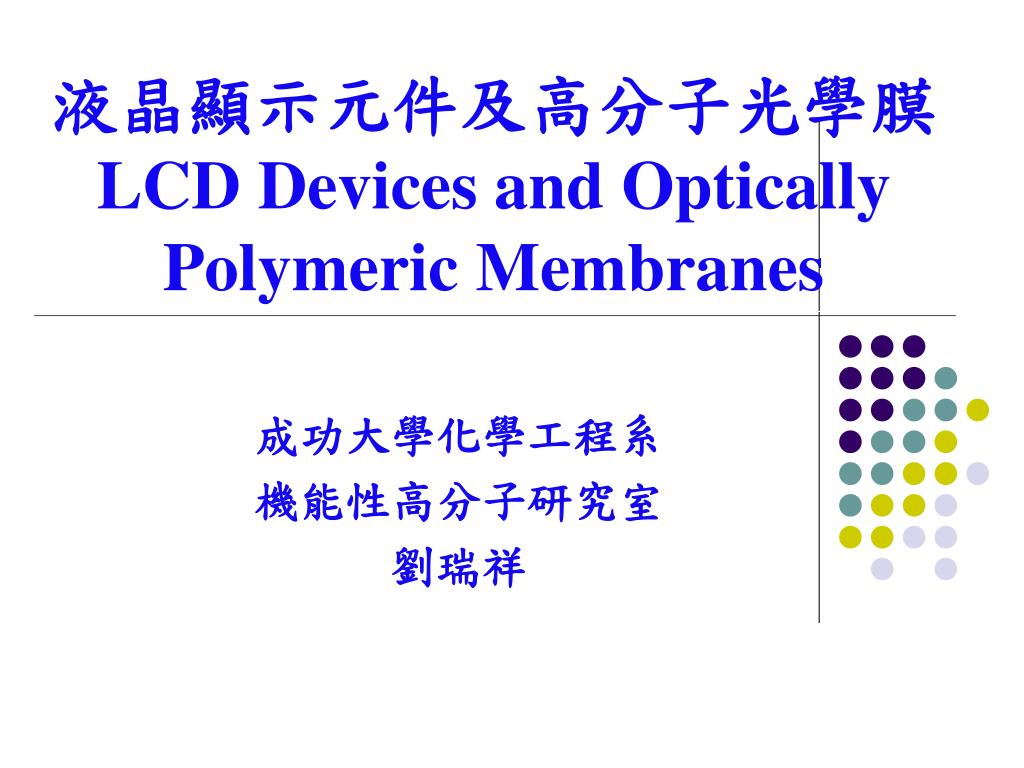

液晶顯示元件及高分子光學膜LCD Devices and Optically Polymeric Membranes

成功大學化學工程系

機能性高分子研究室

劉瑞祥


Applications of photopolymer

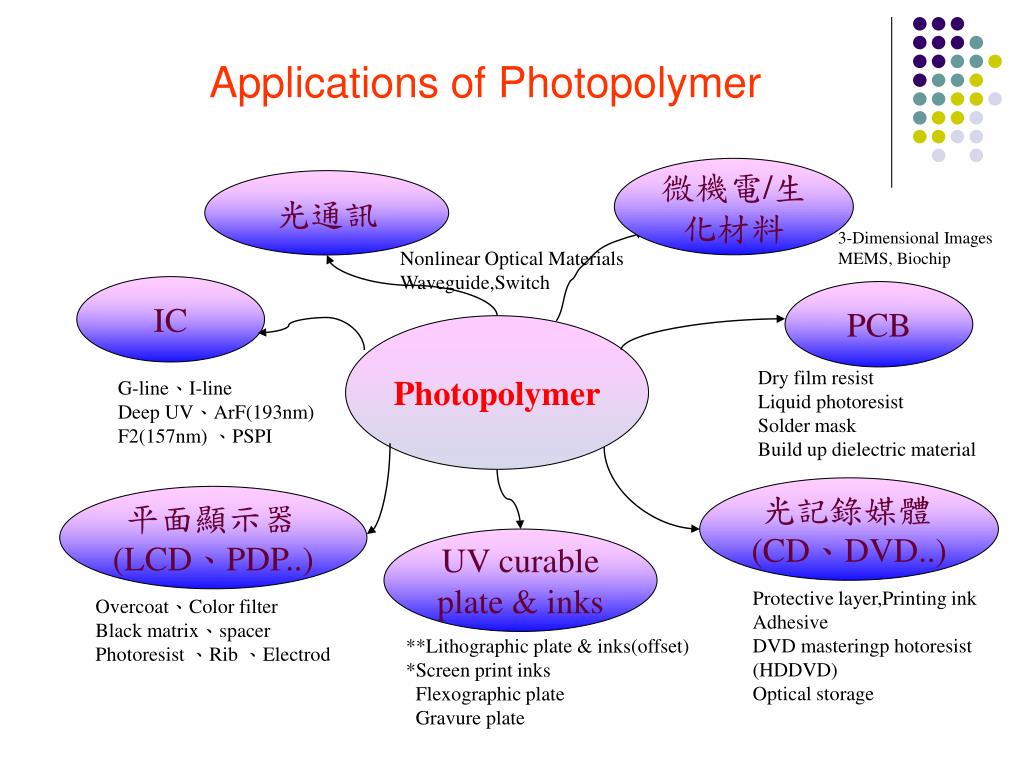

Applications of Photopolymer

微機電/生化材料

光通訊

3-Dimensional Images

MEMS, Biochip

Nonlinear Optical Materials

Waveguide,Switch

IC

PCB

Photopolymer

Dry film resist

Liquid photoresist

Solder mask

Build up dielectric material

G-line、I-line

Deep UV、ArF(193nm)

F2(157nm) 、PSPI

光記錄媒體

(CD、DVD..)

平面顯示器

(LCD、PDP..)

UV curable plate & inks

Protective layer,Printing ink

Adhesive

DVD masteringp hotoresist

(HDDVD)

Optical storage

Overcoat、Color filter

Black matrix、spacer

Photoresist 、Rib 、Electrod

**Lithographic plate & inks(offset)

*Screen print inks

Flexographic plate

Gravure plate


Lcd devices and optically polymeric membranes

Silicon wafer

Polished wafer

Photoresist coating

stripping

Etching

Development

Exposure

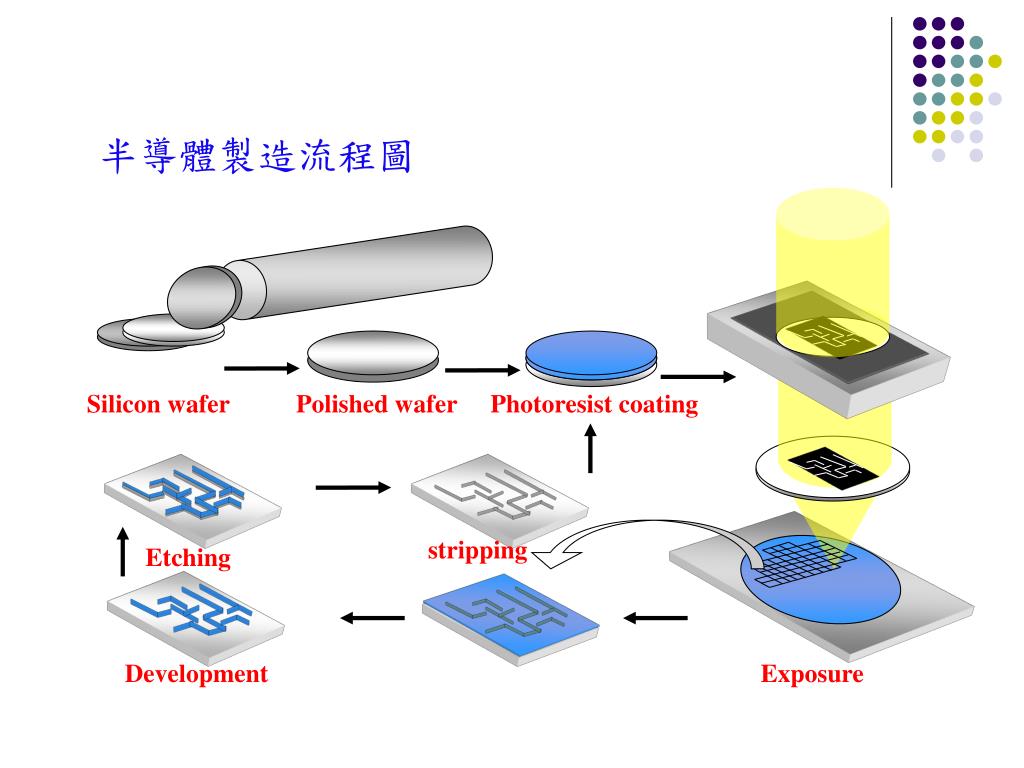

半導體製造流程圖


Photoresist

Photoresist

Photoresist

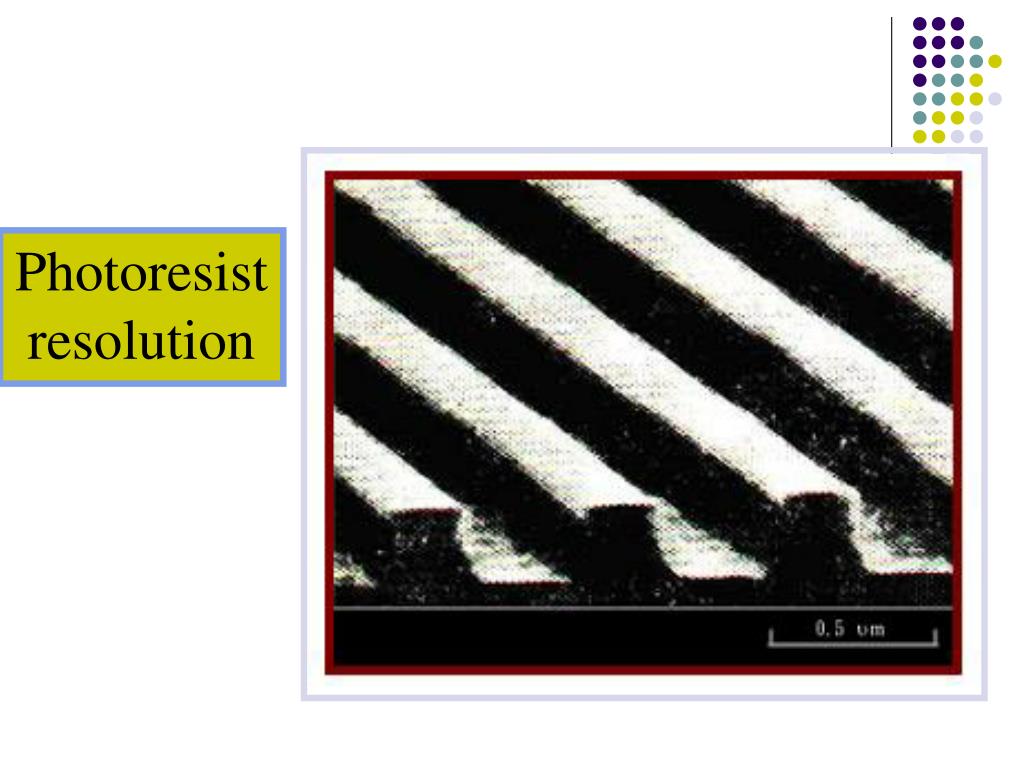

resolution

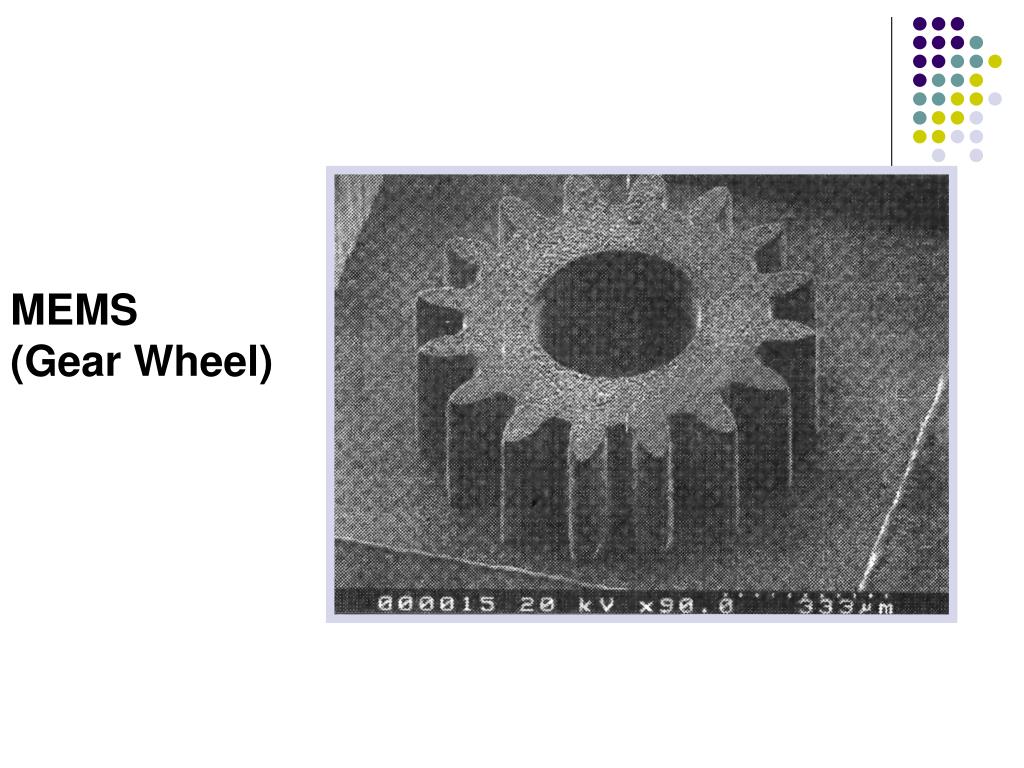

Mems gear wheel

MEMS(Gear Wheel)


Lcd devices and optically polymeric membranes

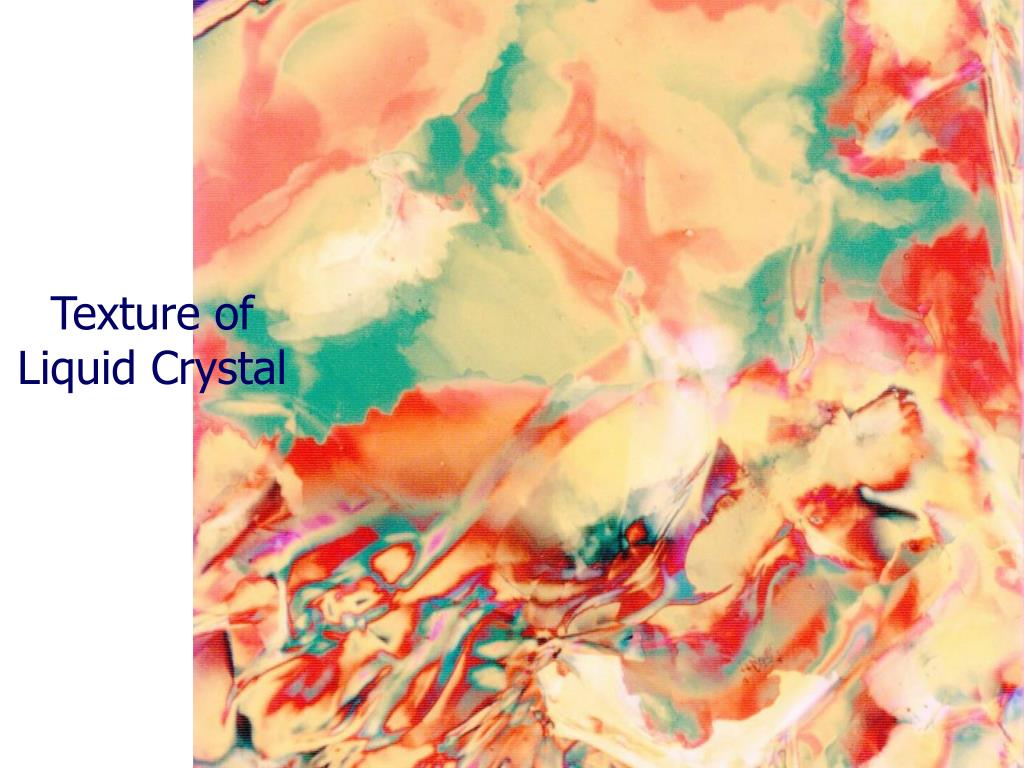

Texture of

Liquid Crystal


Lcd devices and optically polymeric membranes

Brightness Control


Lcd devices and optically polymeric membranes

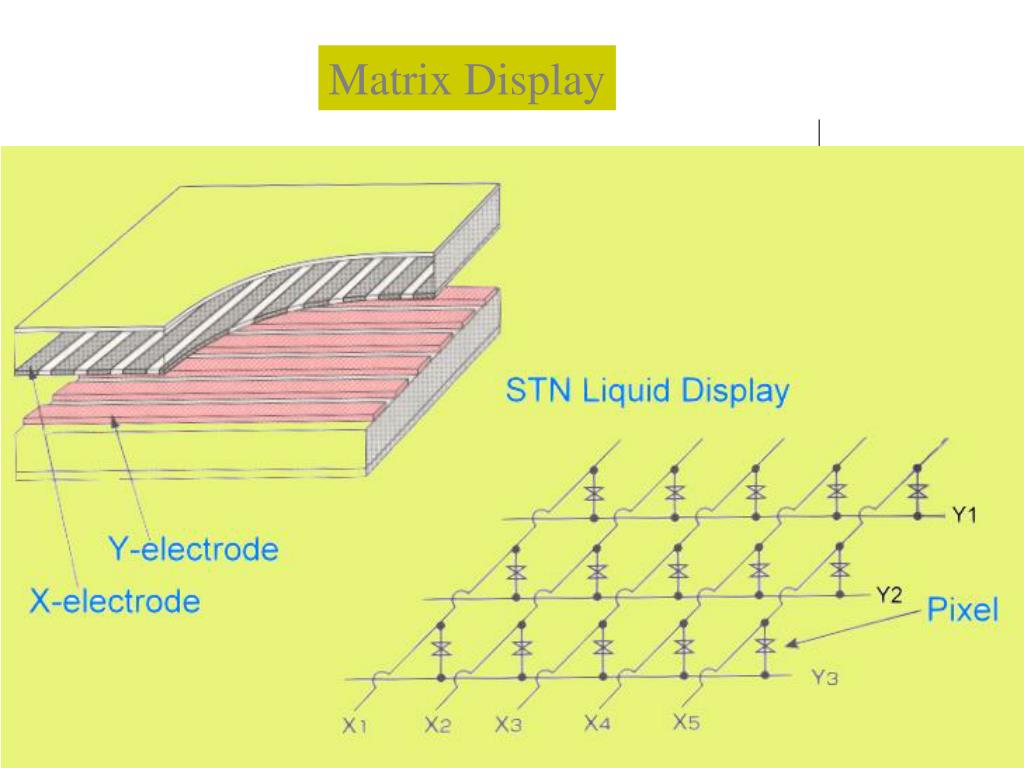

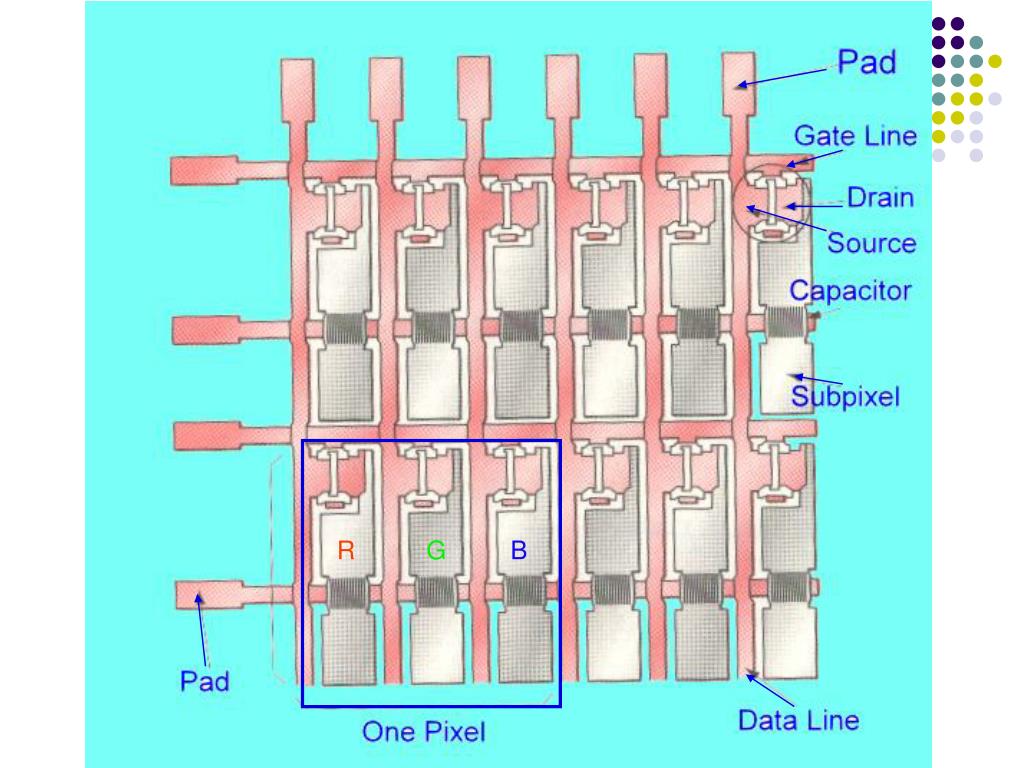

Matrix Display

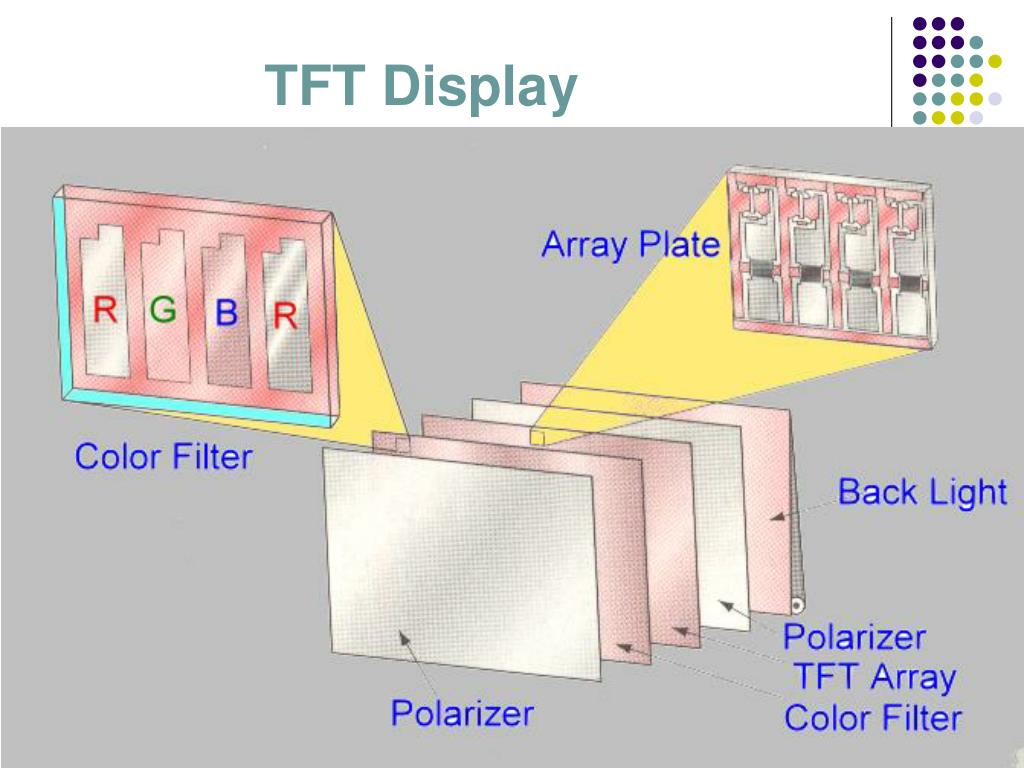

Tft display

TFT Display


Lcd devices and optically polymeric membranes

RG B


Lcd devices and optically polymeric membranes

Formation of

Polarizer


Lcd devices and optically polymeric membranes

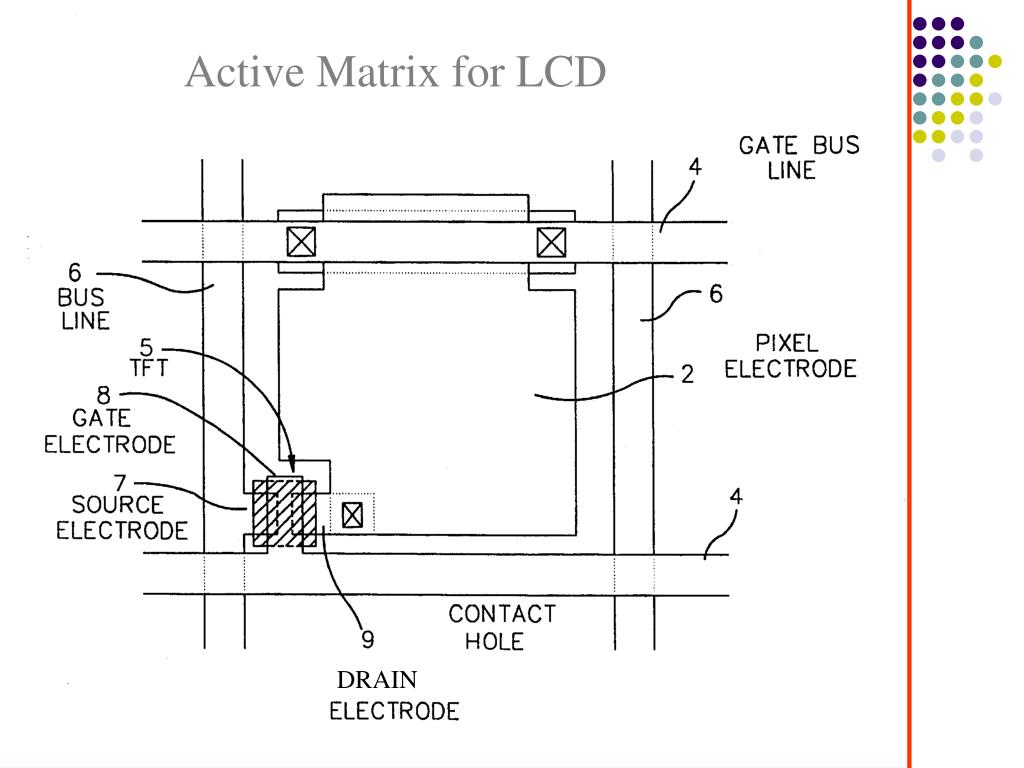

Active Matrix for LCD

DRAIN


Lcd devices and optically polymeric membranes

Photoimagable liquid

crystal membrane



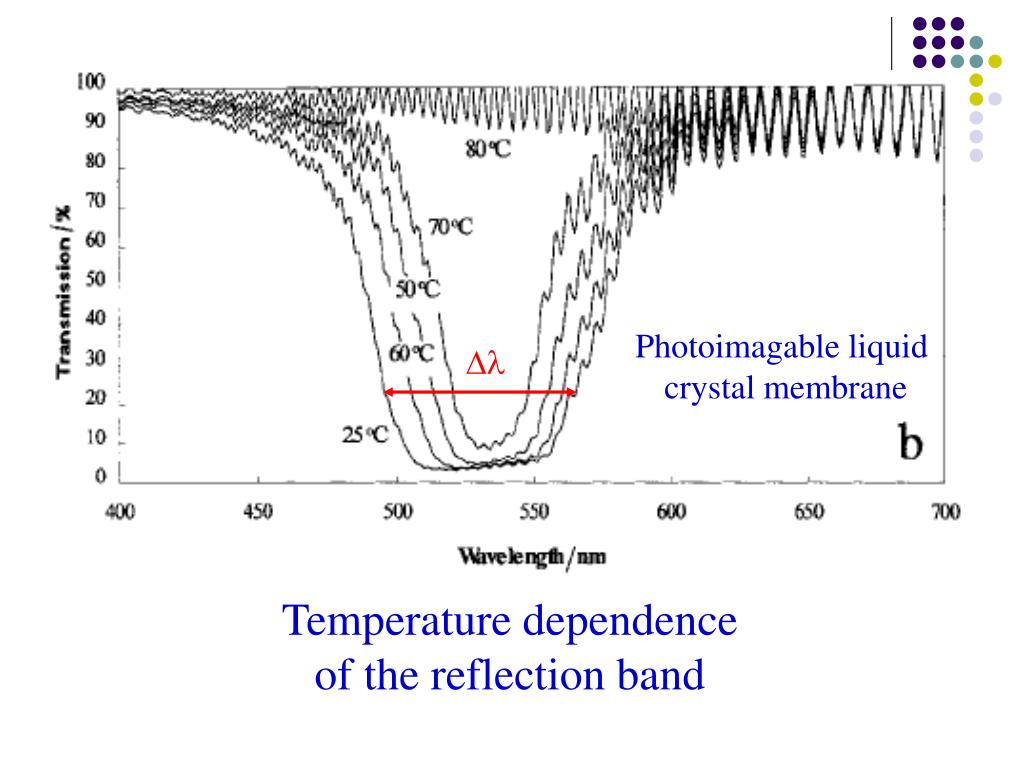

Temperature dependence

of the reflection band


Lcd devices and optically polymeric membranes

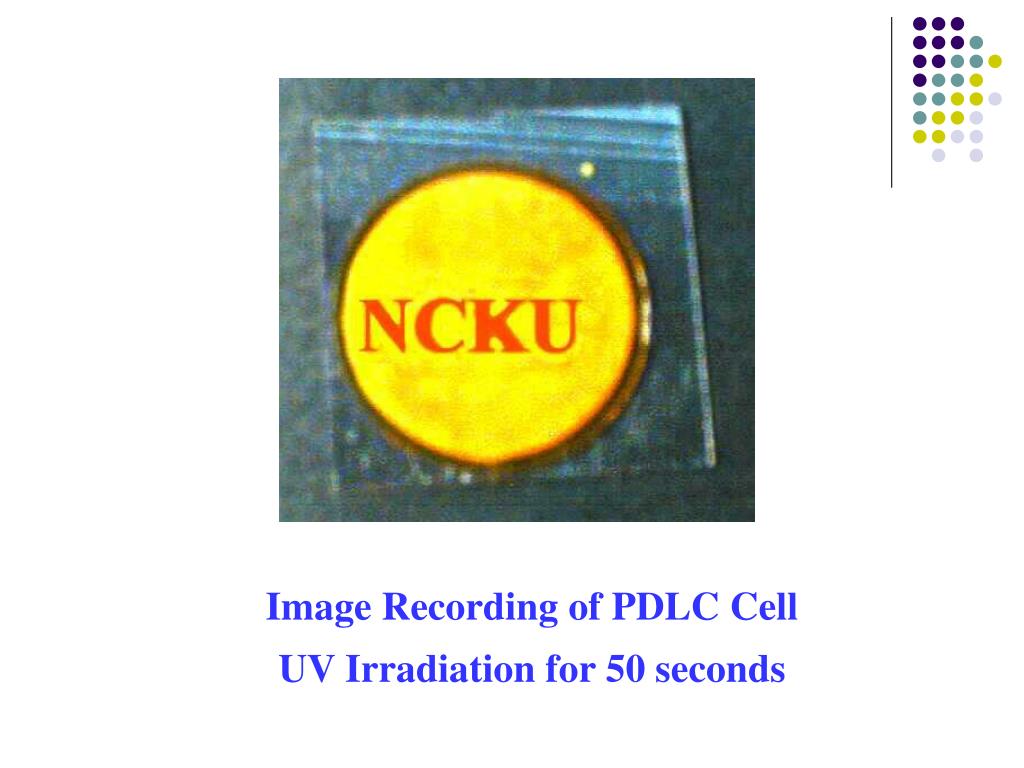

Image Recording of PDLC Cell

UV Irradiation for 50 seconds


Lcd devices and optically polymeric membranes

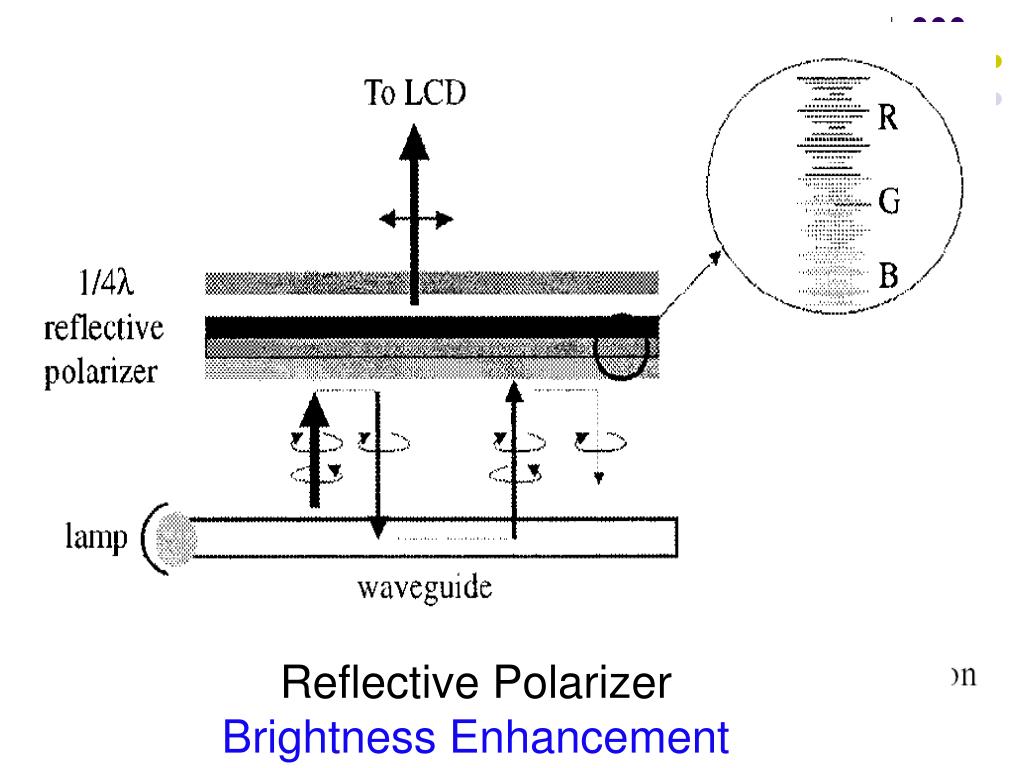

Reflective Polarizer

Brightness Enhancement


Light focusing

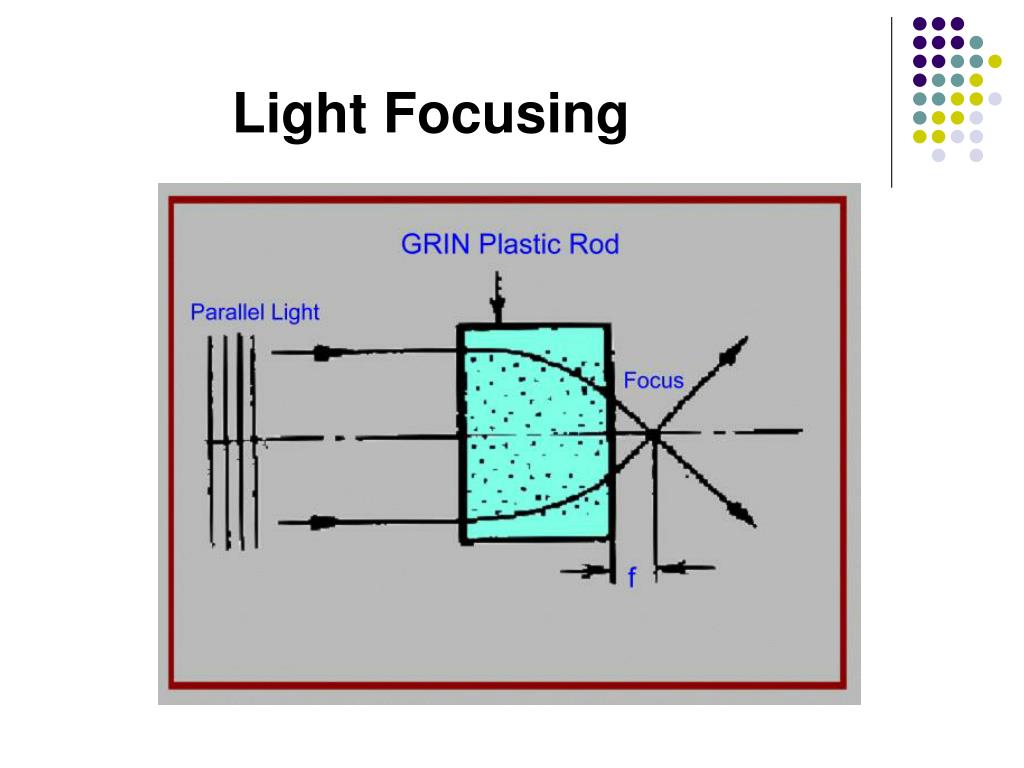

Light Focusing

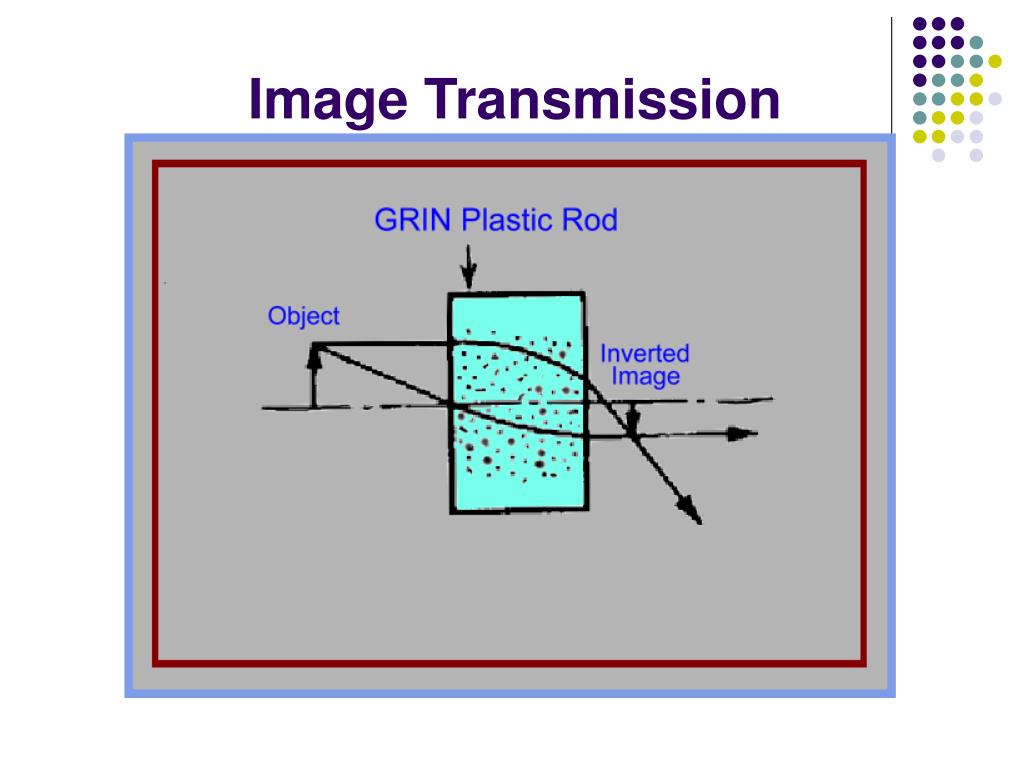

Image transmission

Image Transmission

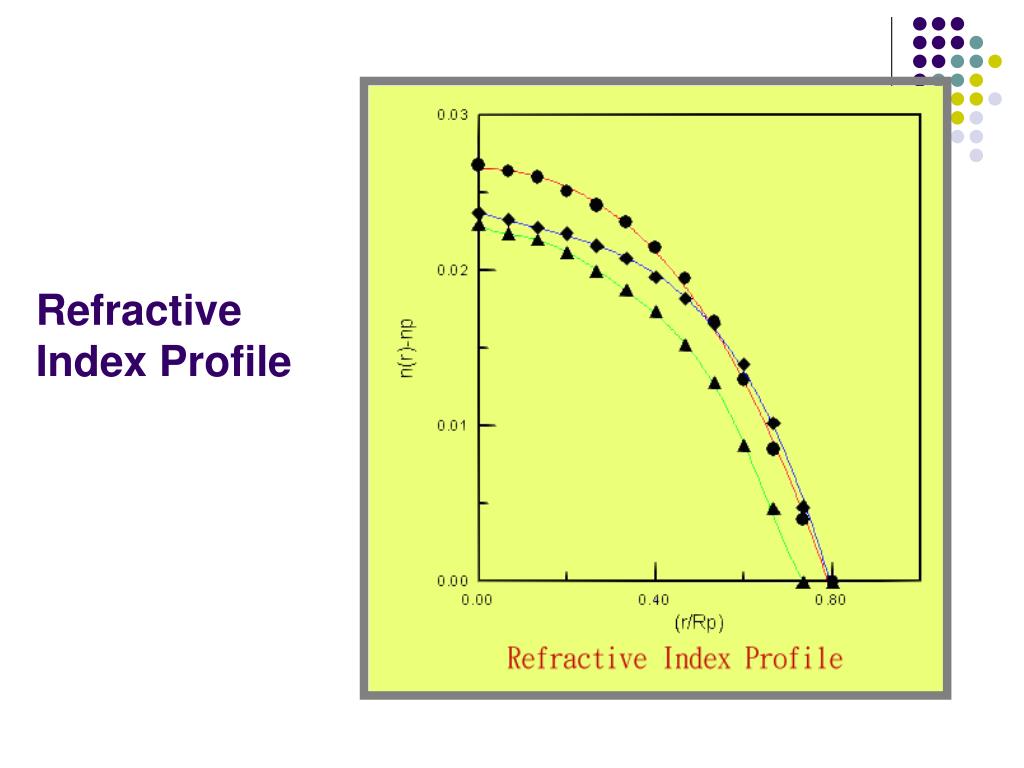

Refractive index profile

Refractive Index Profile


Image transmission1

Image Transmission


Laser light grating through interfered light recorded spot

Laser Light Grating Through Interfered Light Recorded Spot


Lcd devices and optically polymeric membranes

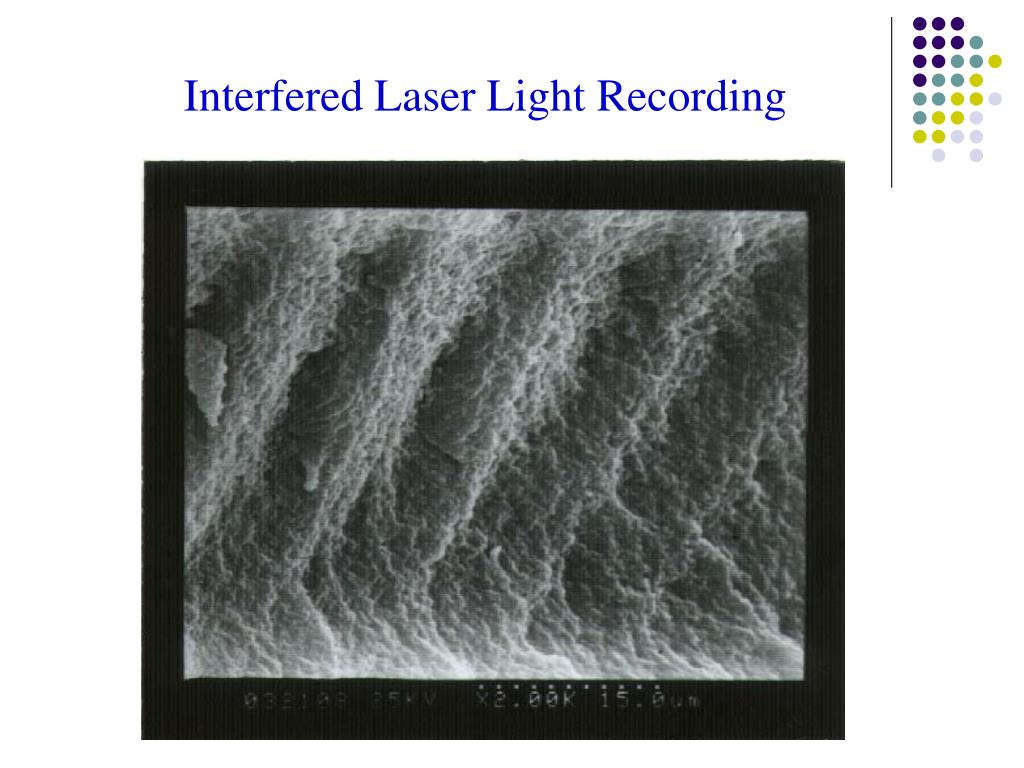

Interfered Laser Light Recording
