Presentation Transcript


Java

Java

234319 Course


Introduction

Introduction

  • Object oriented, imperative programming language.

  • Developed: 1990.

  • Inspired by C++ programming language.

  • Improvements:

    • Syntax

    • General purpose libraries

    • Garbage collection

    • Platform independence with ‘Java Virtual Machine’

  • Performance?

234319 Course


Oop basics

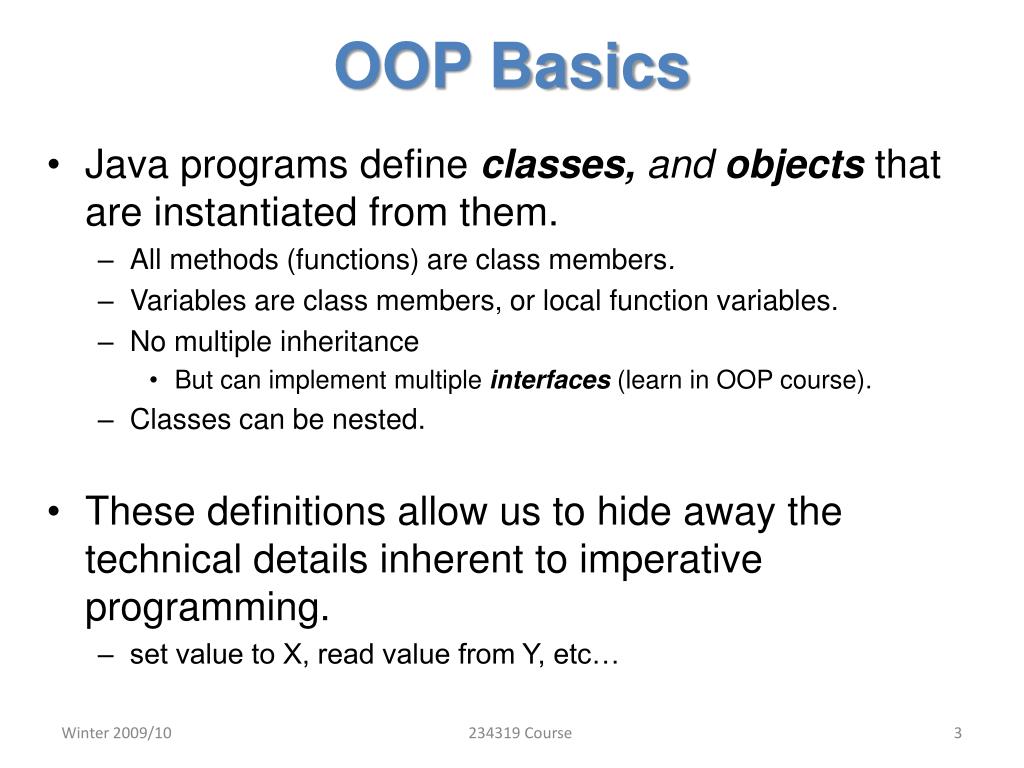

OOP Basics

  • Java programs define classes, and objects that are instantiated from them.

    • All methods (functions) are class members.

    • Variables are class members, or local function variables.

    • No multiple inheritance

      • But can implement multiple interfaces (learn in OOP course).

    • Classes can be nested.

  • These definitions allow us to hide away the technical details inherent to imperative programming.

    • set value to X, read value from Y, etc…

234319 Course


No pointers in java

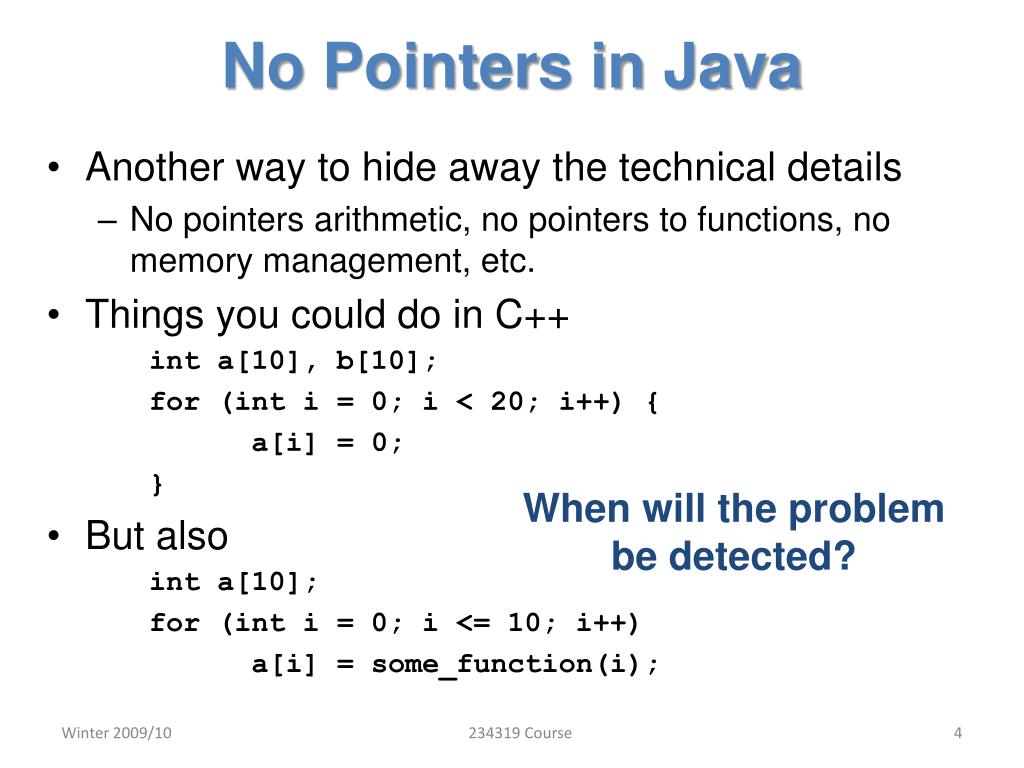

No Pointers in Java

  • Another way to hide away the technical details

    • No pointers arithmetic, no pointers to functions, no memory management, etc.

  • Things you could do in C++

    int a[10], b[10];

    for (int i = 0; i < 20; i++) {

    a[i] = 0;

    }

  • But also

    int a[10];

    for (int i = 0; i <= 10; i++)

    a[i] = some_function(i);

When will the problem be detected?

234319 Course


Java has a safe array access

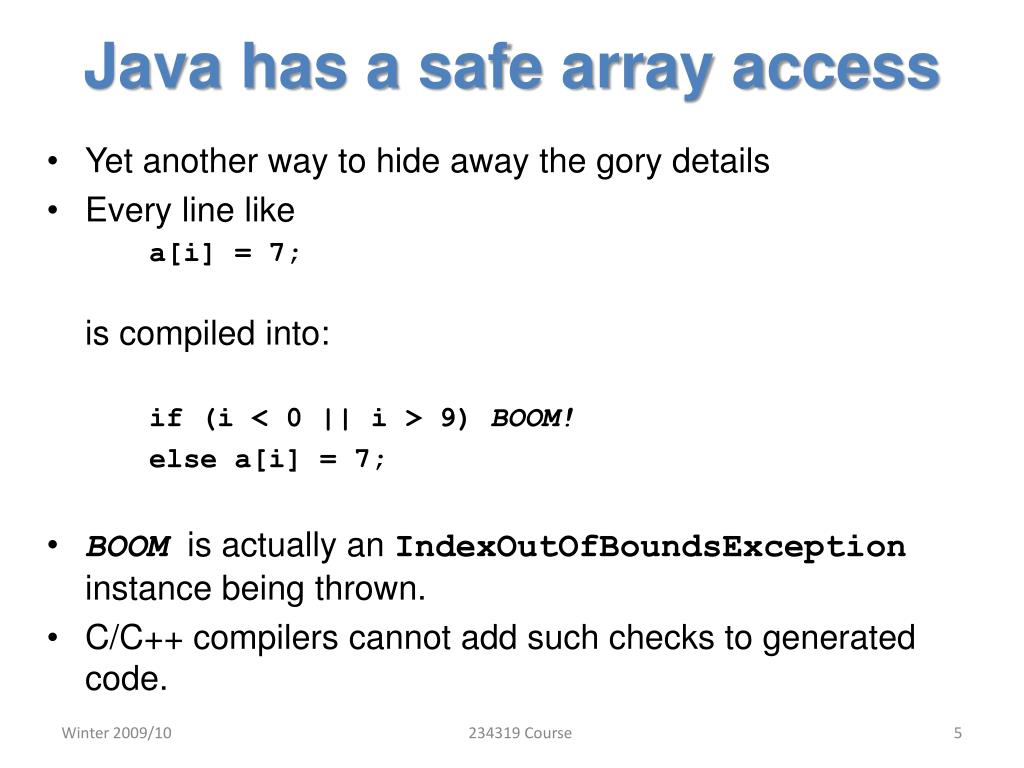

Java has a safe array access

  • Yet another way to hide away the gory details

  • Every line like

    a[i] = 7;

    is compiled into:

    if (i < 0 || i > 9) BOOM!

    else a[i] = 7;

  • BOOM is actually an IndexOutOfBoundsExceptioninstance being thrown.

  • C/C++ compilers cannot add such checks to generated code.

234319 Course


Java performance

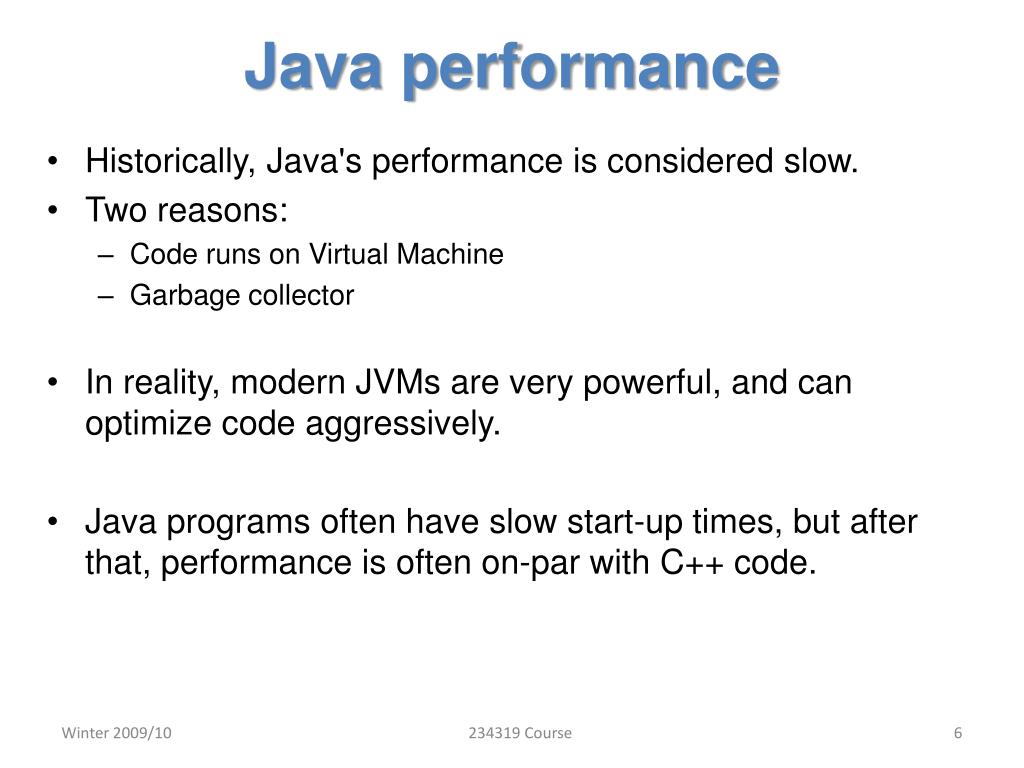

Java performance

  • Historically, Java's performance is considered slow.

  • Two reasons:

    • Code runs on Virtual Machine

    • Garbage collector

  • In reality, modern JVMs are very powerful, and can optimize code aggressively.

  • Java programs often have slow start-up times, but after that, performance is often on-par with C++ code.

234319 Course


Saying hello

Saying Hello!

class Hello {

public static void main(String[] args) {

System.out.println(“Hello World”);

}

}

234319 Course


Saying hello1

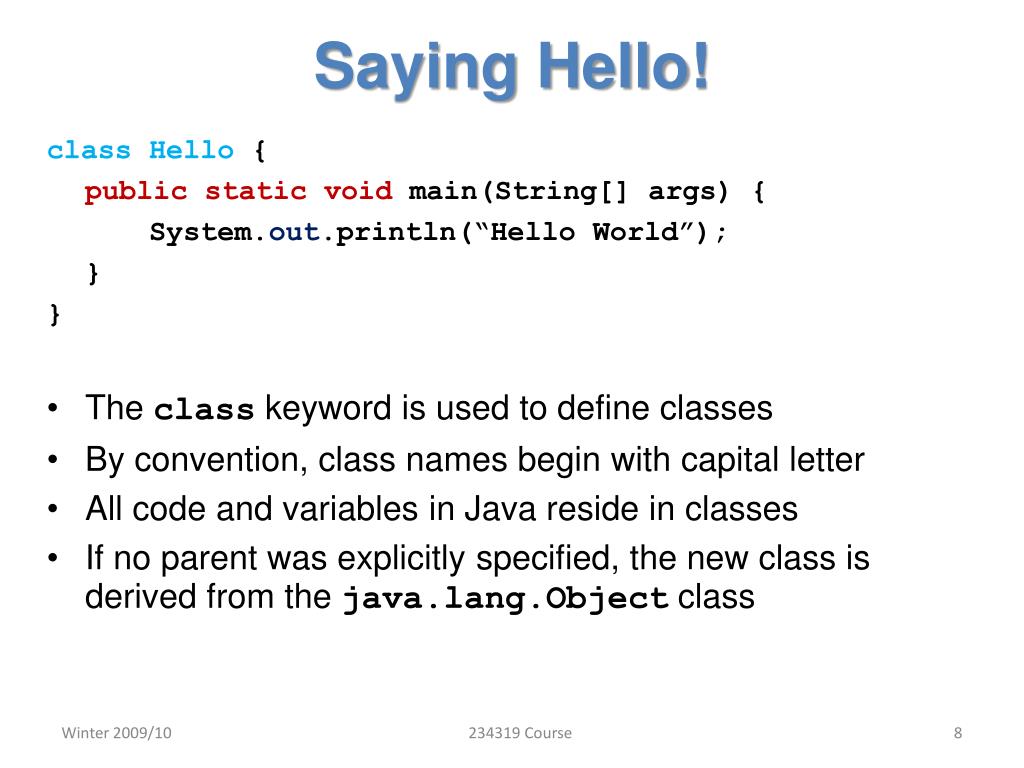

Saying Hello!

class Hello {

public static void main(String[] args) {

System.out.println(“Hello World”);

}

}

  • The class keyword is used to define classes

  • By convention, class names begin with capital letter

  • All code and variables in Java reside in classes

  • If no parent was explicitly specified, the new class is derived from the java.lang.Object class

234319 Course


Saying hello2

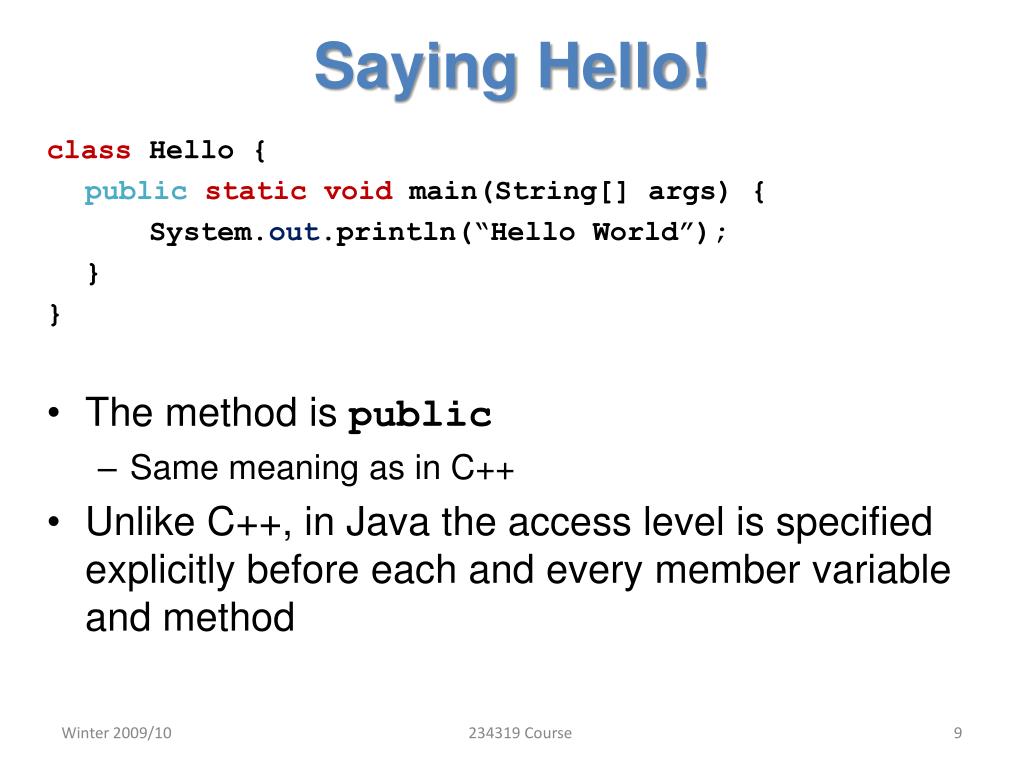

Saying Hello!

class Hello {

public static void main(String[] args) {

System.out.println(“Hello World”);

}

}

  • The method is public

    • Same meaning as in C++

  • Unlike C++, in Java the access level is specified explicitly before each and every member variable and method

234319 Course


Saying hello3

Saying Hello!

class Hello {

public static void main(String[] args) {

System.out.println(“Hello World”);

}

}

  • The method isstatic

    • Same meaning as in C++

    • Can be accessed without a class instance

  • static can be applied both to methods and member variables

234319 Course


Saying hello4

Saying Hello!

class Hello {

public static voidmain(String[] args) {

System.out.println(“Hello World”);

}

}

  • We are defining a voidmethod

    • Meaning it does not return a value

    • Like void functions in C++, or procedures in Pascal

234319 Course


Saying hello5

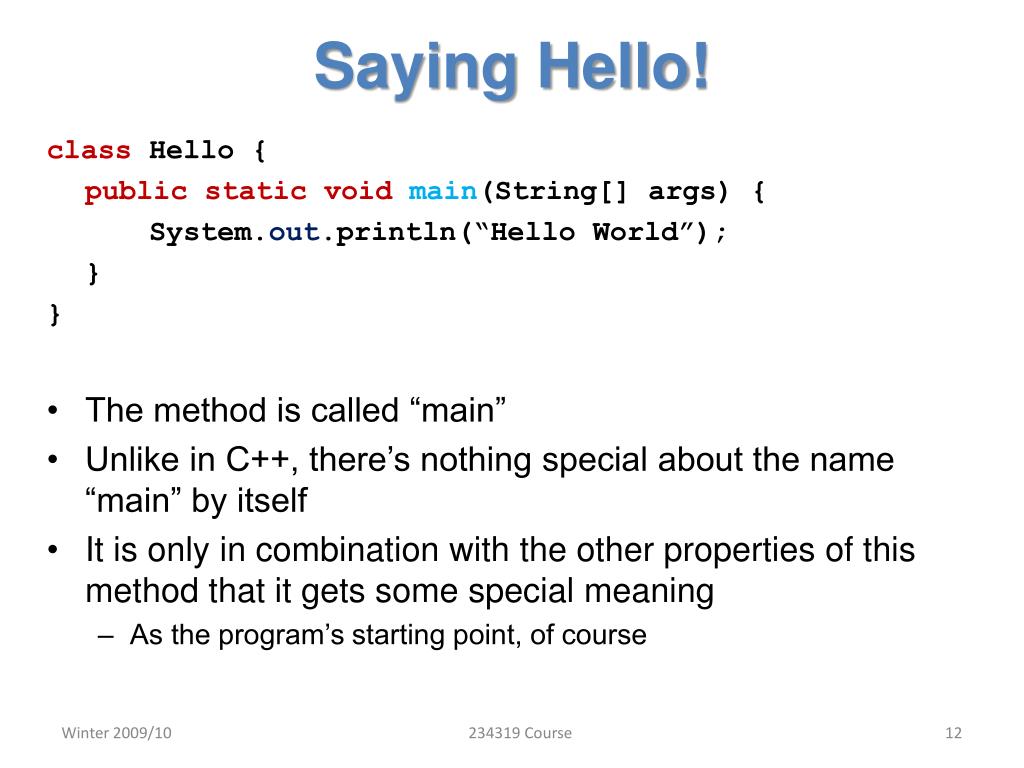

Saying Hello!

class Hello {

public static void main(String[] args) {

System.out.println(“Hello World”);

}

}

  • The method is called “main”

  • Unlike in C++, there’s nothing special about the name “main” by itself

  • It is only in combination with the other properties of this method that it gets some special meaning

    • As the program’s starting point, of course

234319 Course


Saying hello6

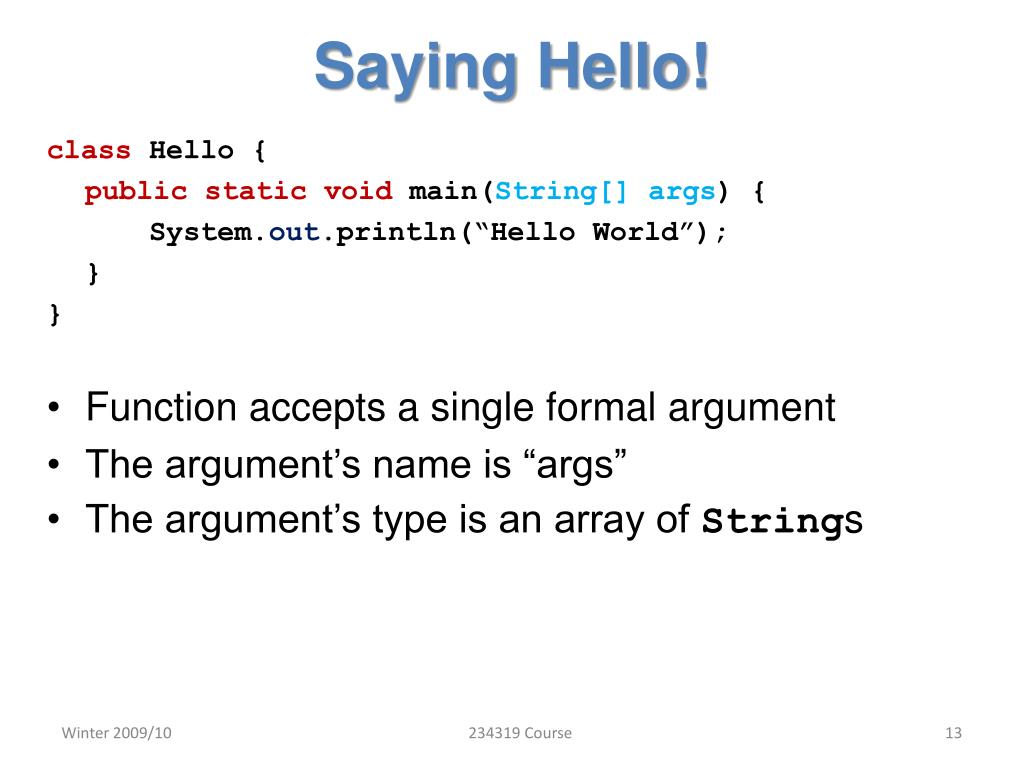

Saying Hello!

class Hello {

public static void main(String[] args) {

System.out.println(“Hello World”);

}

}

  • Function accepts a single formal argument

  • The argument’s name is “args”

  • The argument’s type is an array of Strings

234319 Course


Saying hello7

Saying Hello!

class Hello {

public static void main(String[] args) {

System.out.println(“Hello World”);

}

}

  • System is the name of a class

    • From thejava.langpackage

  • This class contains many basic system-related objects

    • Such as the console I/O objects

234319 Course


Saying hello8

Saying Hello!

class Hello {

public static void main(String[] args) {

System.out.println(“Hello World”);

}

}

  • The class Systemhas a member field called out

    • of type PrintStream

    • It is static, so we can access it without an instance of theSystem class

    • It is also public, otherwise we would have been unable to access it

234319 Course


Saying hello9

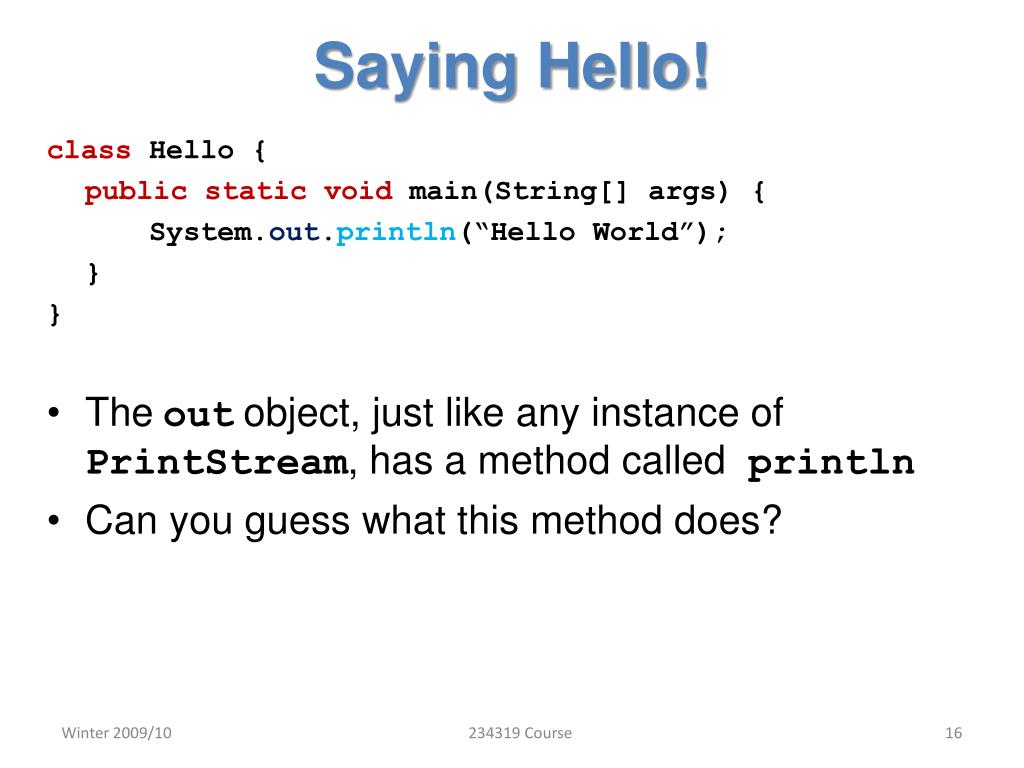

Saying Hello!

class Hello {

public static void main(String[] args) {

System.out.println(“Hello World”);

}

}

  • Theoutobject, just like any instance of PrintStream, has a method called println

  • Can you guess what this method does?

234319 Course


Remember simple problem

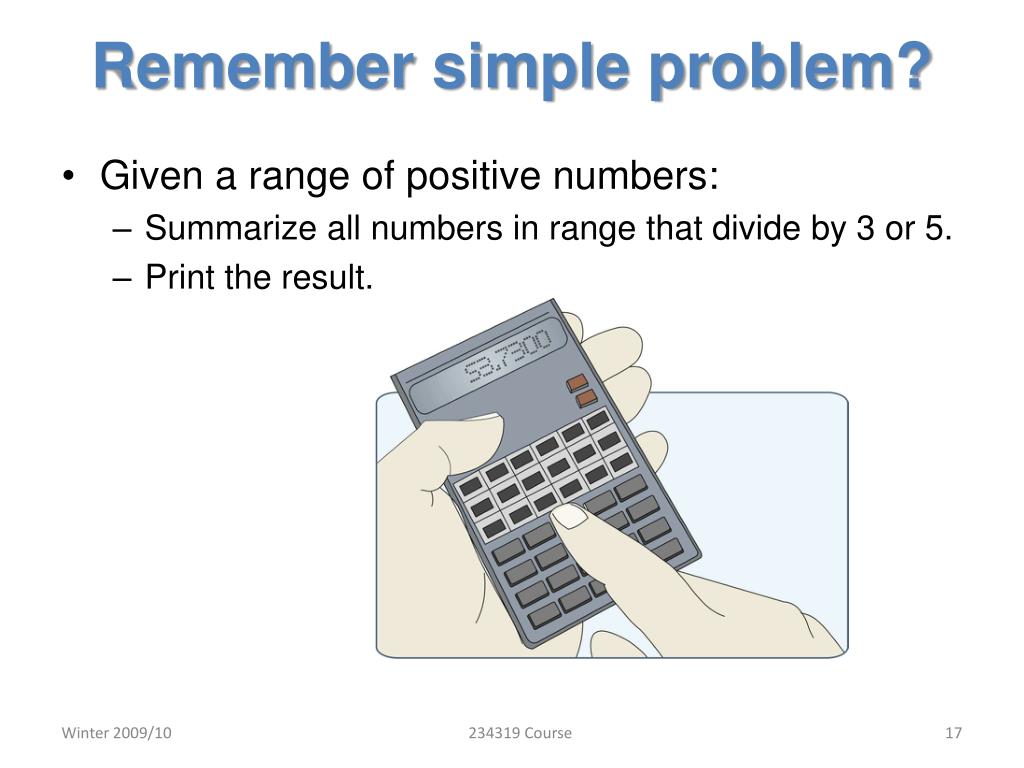

Remember simple problem?

  • Given a range of positive numbers:

    • Summarize all numbers in range that divide by 3 or 5.

    • Print the result.

234319 Course


Version 1

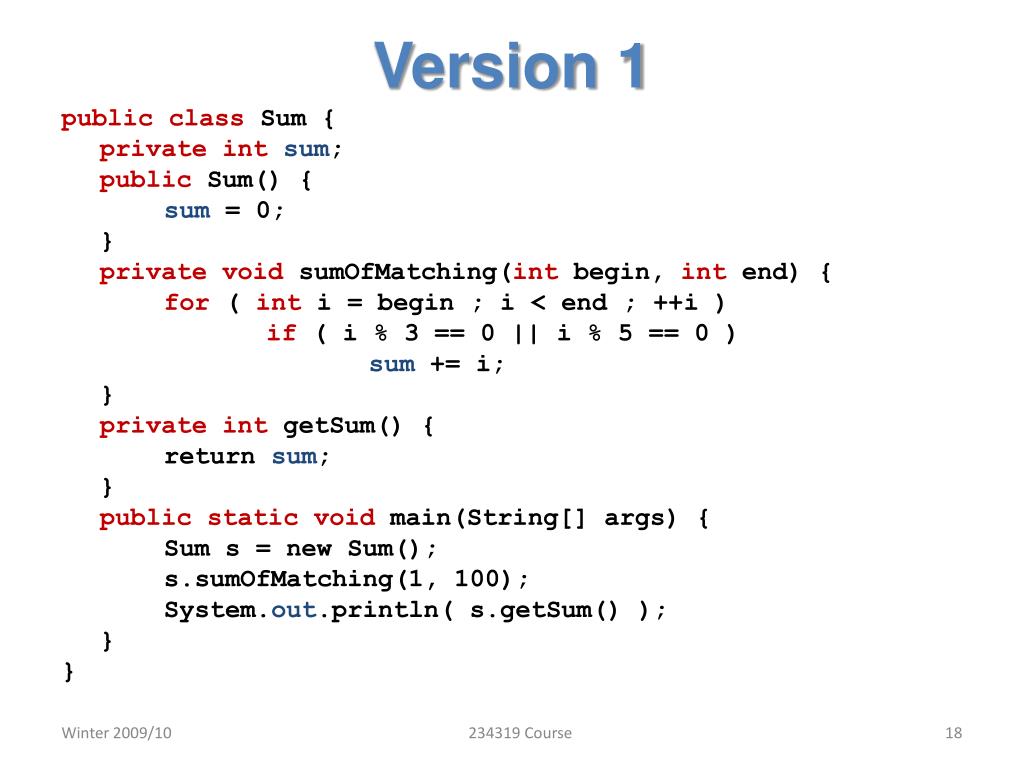

Version 1

publicclass Sum {

privateintsum;

public Sum() {

sum = 0;

}

privatevoid sumOfMatching(int begin, intend) {

for ( inti = begin ; i < end ; ++i )

if ( i % 3 == 0 || i % 5 == 0 )

sum += i;

}

privateintgetSum() {

return sum;

}

publicstaticvoid main(String[] args) {

Sum s = new Sum();

s.sumOfMatching(1, 100);

System.out.println( s.getSum() );

}

}

234319 Course


Version 11

Version 1

Private field

publicclass Sum {

private int sum;

public Sum() {

sum = 0;

}

privatevoid sumOfMatching(int begin, intend) {

for ( inti = begin ; i < end ; ++i )

if ( i % 3 == 0 || i % 5 == 0 )

sum += i;

}

privateintgetSum() {

return sum;

}

publicstaticvoid main(String[] args) {

Sum s = new Sum();

s.sumOfMatching(1, 100);

System.out.println( s.getSum() );

}

}

234319 Course


Version 12

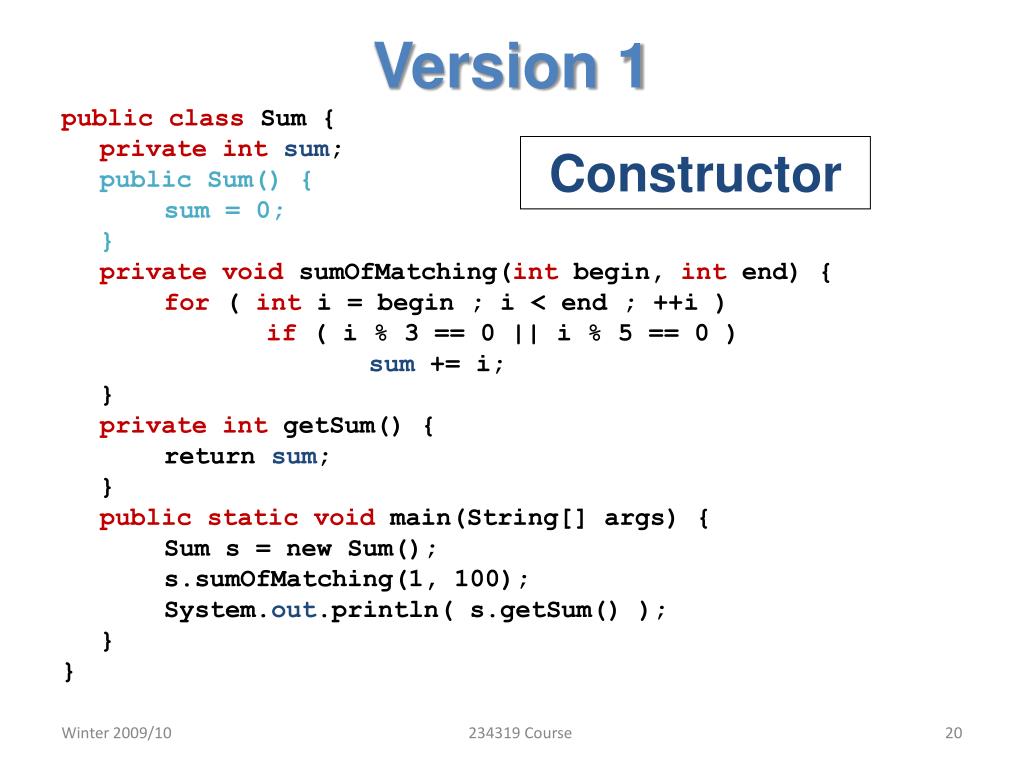

Version 1

Constructor

publicclass Sum {

privateintsum;

public Sum() {

sum = 0;

}

privatevoid sumOfMatching(int begin, intend) {

for ( inti = begin ; i < end ; ++i )

if ( i % 3 == 0 || i % 5 == 0 )

sum += i;

}

privateintgetSum() {

return sum;

}

publicstaticvoid main(String[] args) {

Sum s = new Sum();

s.sumOfMatching(1, 100);

System.out.println( s.getSum() );

}

}

234319 Course


Version 13

Version 1

Private methods

publicclass Sum {

privateintsum;

public Sum() {

sum = 0;

}

private void sumOfMatching(int begin, int end) {

for ( inti = begin ; i < end ; ++i )

if ( i % 3 == 0 || i % 5 == 0 )

sum += i;

}

private intgetSum() {

return sum;

}

publicstaticvoid main(String[] args) {

Sum s = new Sum();

s.sumOfMatching(1, 100);

System.out.println( s.getSum() );

}

}

234319 Course


Version 14

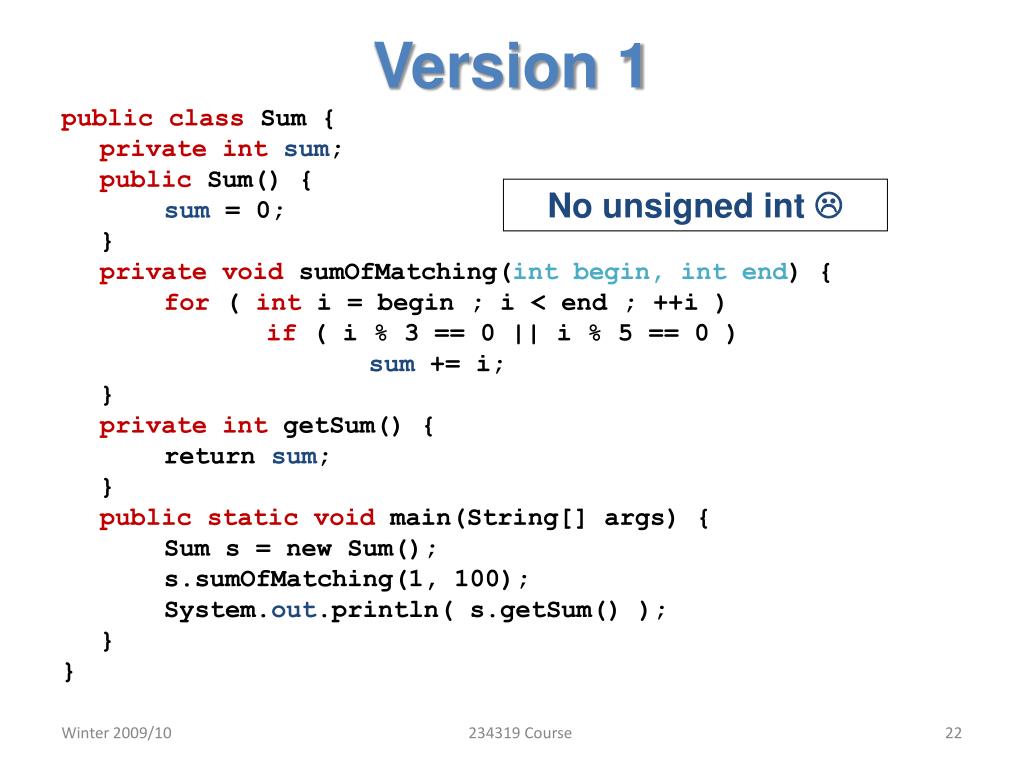

Version 1

publicclass Sum {

privateintsum;

public Sum() {

sum = 0;

}

privatevoid sumOfMatching(int begin, int end) {

for ( inti = begin ; i < end ; ++i )

if ( i % 3 == 0 || i % 5 == 0 )

sum += i;

}

privateintgetSum() {

return sum;

}

publicstaticvoid main(String[] args) {

Sum s = new Sum();

s.sumOfMatching(1, 100);

System.out.println( s.getSum() );

}

}

No unsigned int 

234319 Course


Version 15

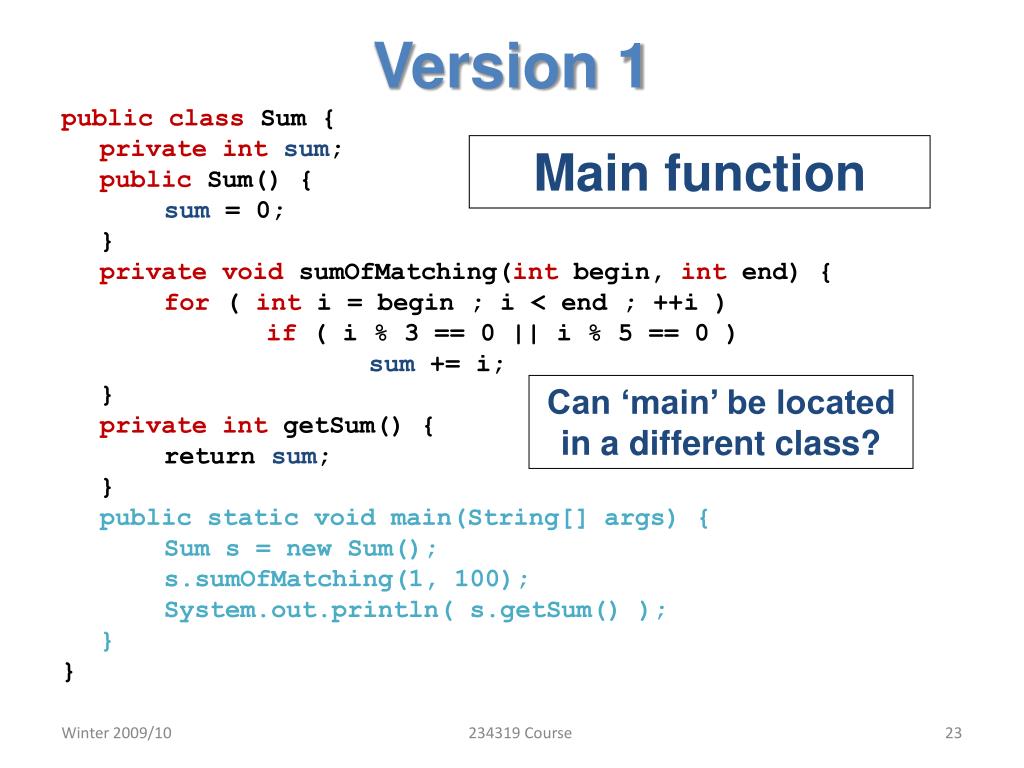

Version 1

Main function

publicclass Sum {

privateintsum;

public Sum() {

sum = 0;

}

privatevoid sumOfMatching(int begin, intend) {

for ( inti = begin ; i < end ; ++i )

if ( i % 3 == 0 || i % 5 == 0 )

sum += i;

}

privateintgetSum() {

return sum;

}

public static void main(String[] args) {

Sum s = new Sum();

s.sumOfMatching(1, 100);

System.out.println( s.getSum() );

}

}

Can ‘main’ be located in a different class?

234319 Course


Version 2

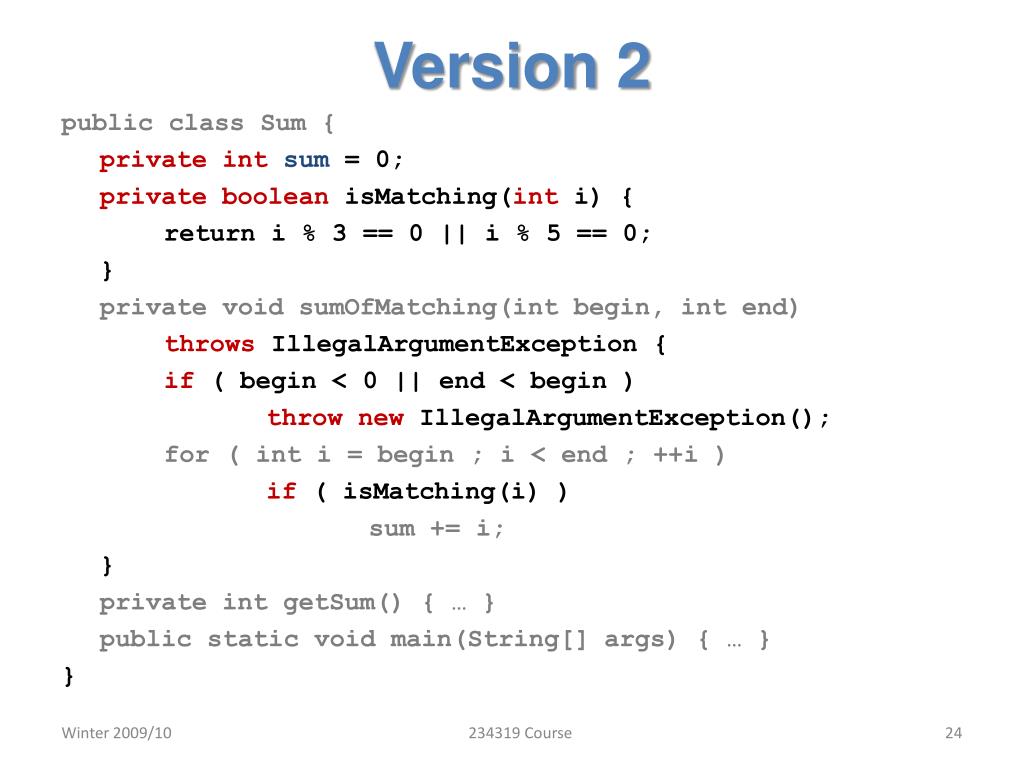

Version 2

public class Sum {

private intsum= 0;

private booleanisMatching(inti) {

return i % 3 == 0 || i % 5 == 0;

}

private void sumOfMatching(int begin, int end)

throwsIllegalArgumentException {

if ( begin < 0 || end < begin )

throw new IllegalArgumentException();

for ( inti = begin ; i < end ; ++i )

if ( isMatching(i) )

sum += i;

}

private intgetSum() { … }

public static void main(String[] args) { … }

}

234319 Course


Version 21

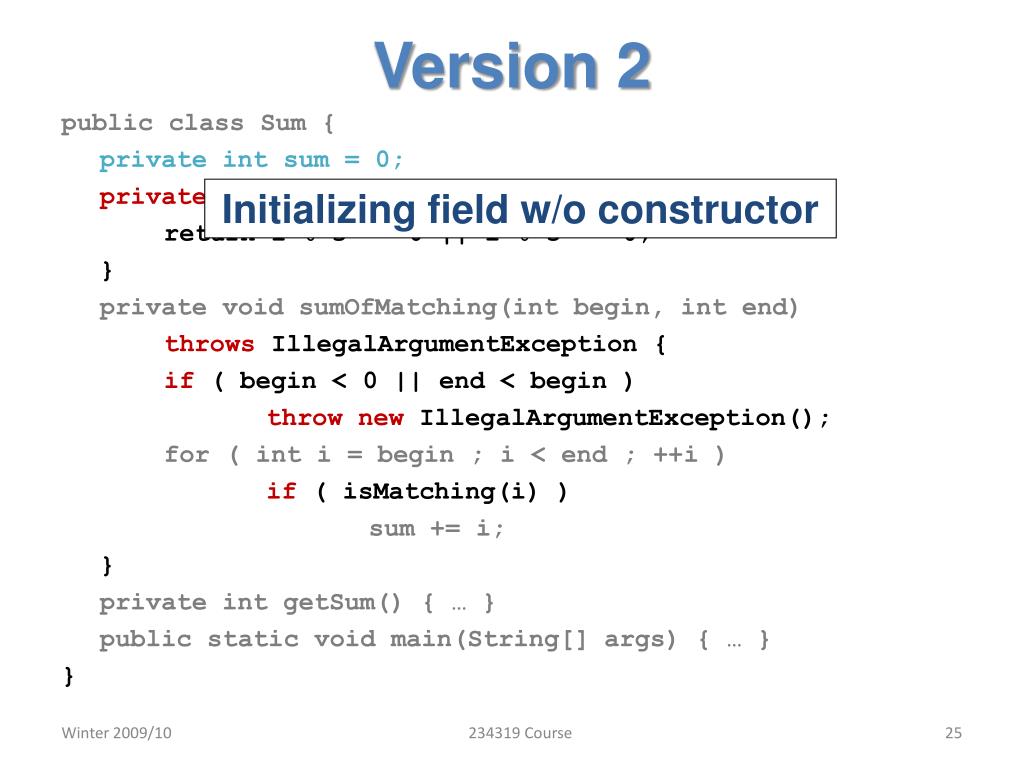

Version 2

public class Sum {

private int sum = 0;

private booleanisMatching(inti) {

return i % 3 == 0 || i % 5 == 0;

}

private void sumOfMatching(int begin, int end)

throwsIllegalArgumentException {

if ( begin < 0 || end < begin )

throw new IllegalArgumentException();

for ( inti = begin ; i < end ; ++i )

if ( isMatching(i) )

sum += i;

}

private intgetSum() { … }

public static void main(String[] args) { … }

}

Initializing field w/o constructor

234319 Course


Version 22

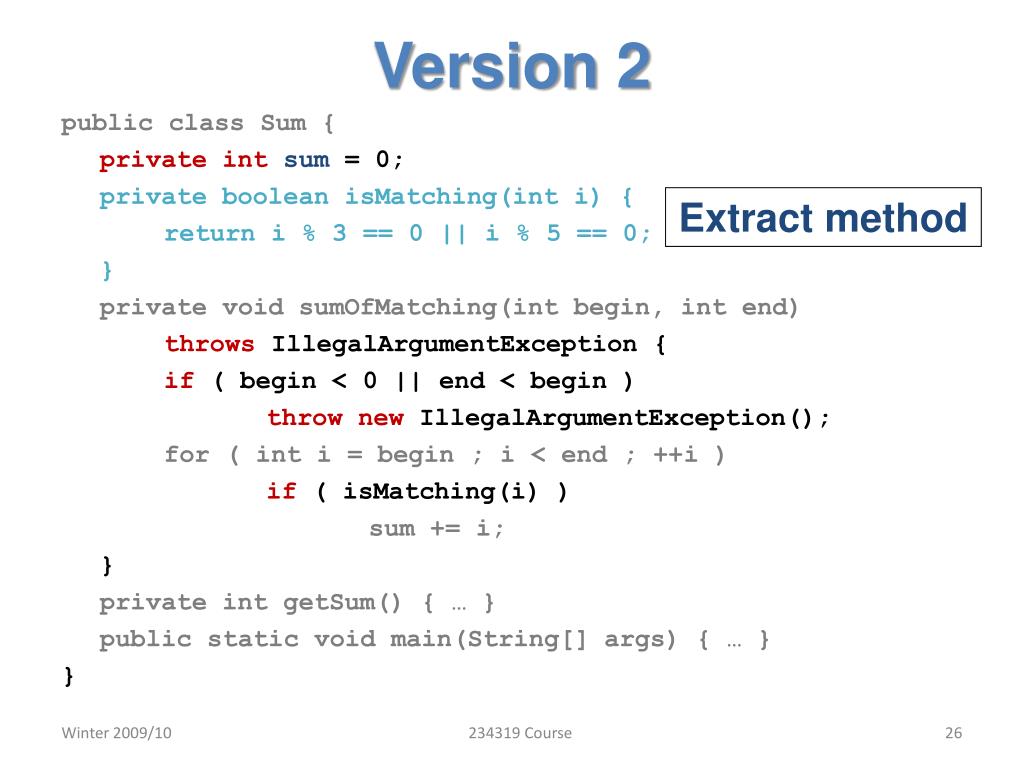

Version 2

public class Sum {

private intsum= 0;

private booleanisMatching(inti) {

return i % 3 == 0 || i % 5 == 0;

}

private void sumOfMatching(int begin, int end)

throwsIllegalArgumentException {

if ( begin < 0 || end < begin )

throw new IllegalArgumentException();

for ( inti = begin ; i < end ; ++i )

if ( isMatching(i) )

sum += i;

}

private intgetSum() { … }

public static void main(String[] args) { … }

}

Extract method

234319 Course


Version 23

Version 2

public class Sum {

private intsum= 0;

private booleanisMatching(inti) {

return i % 3 == 0 || i % 5 == 0;

}

private void sumOfMatching(int begin, int end)

throws IllegalArgumentException{

if ( begin < 0 || end < begin )

throw new IllegalArgumentException();

for ( inti = begin ; i < end ; ++i )

if ( isMatching(i) )

sum += i;

}

private intgetSum() { … }

public static void main(String[] args) { … }

}

Exception

declaration

234319 Course


Version 24

Version 2

public class Sum {

private intsum= 0;

private booleanisMatching(inti) {

return i % 3 == 0 || i % 5 == 0;

}

private void sumOfMatching(int begin, int end)

throwsIllegalArgumentException {

if ( begin < 0 || end < begin )

throw new IllegalArgumentException();

for ( inti = begin ; i < end ; ++i )

if ( isMatching(i) )

sum += i;

}

private intgetSum() { … }

public static void main(String[] args) { … }

}

Throwing exception

234319 Course


More improvements

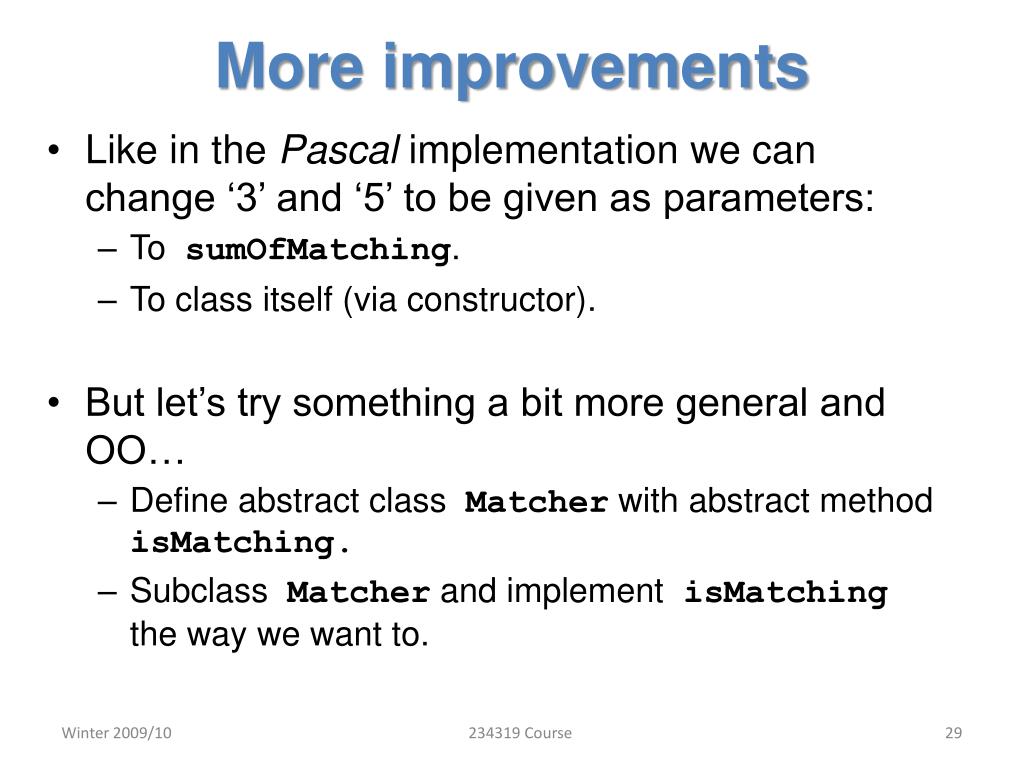

More improvements

  • Like in the Pascal implementation we can change ‘3’ and ‘5’ to be given as parameters:

    • To sumOfMatching.

    • To class itself (via constructor).

  • But let’s try something a bit more general and OO…

    • Define abstract class Matcher with abstract method isMatching.

    • Subclass Matcher and implement isMatchingthe way we want to.

234319 Course


Version 3

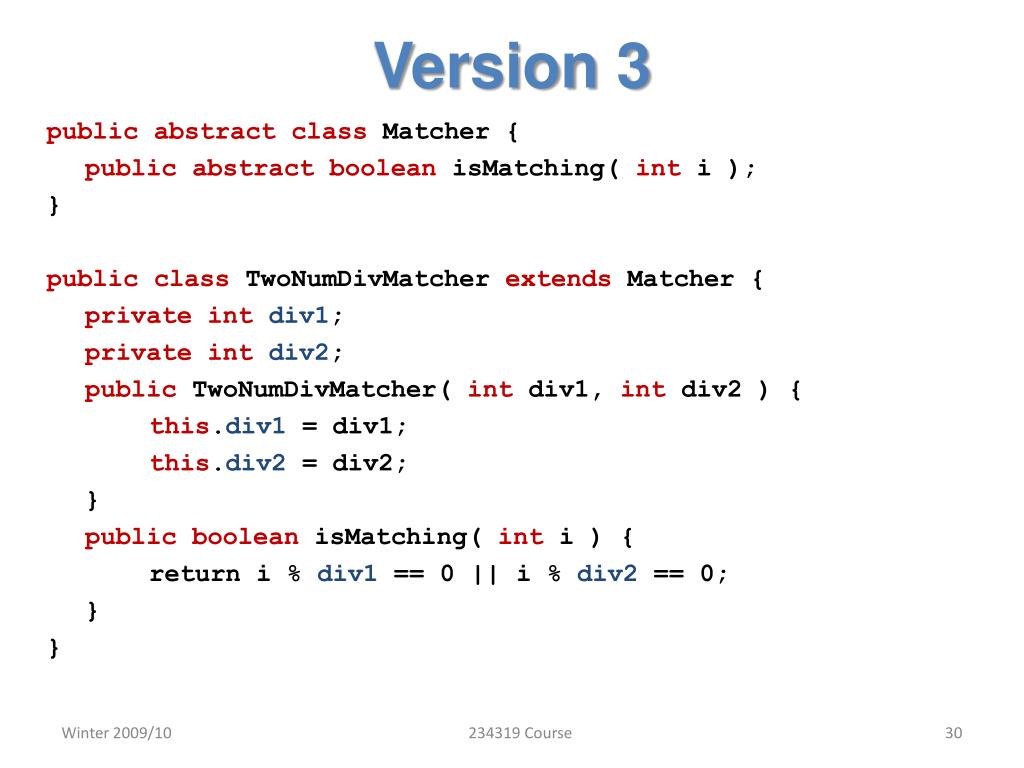

Version 3

public abstract class Matcher {

public abstract boolean isMatching( int i );

}

public class TwoNumDivMatcher extends Matcher {

private int div1;

private int div2;

public TwoNumDivMatcher( int div1, int div2 ) {

this.div1 = div1;

this.div2 = div2;

}

public boolean isMatching( int i ) {

return i % div1 == 0 || i % div2 == 0;

}

}

234319 Course


Version 31

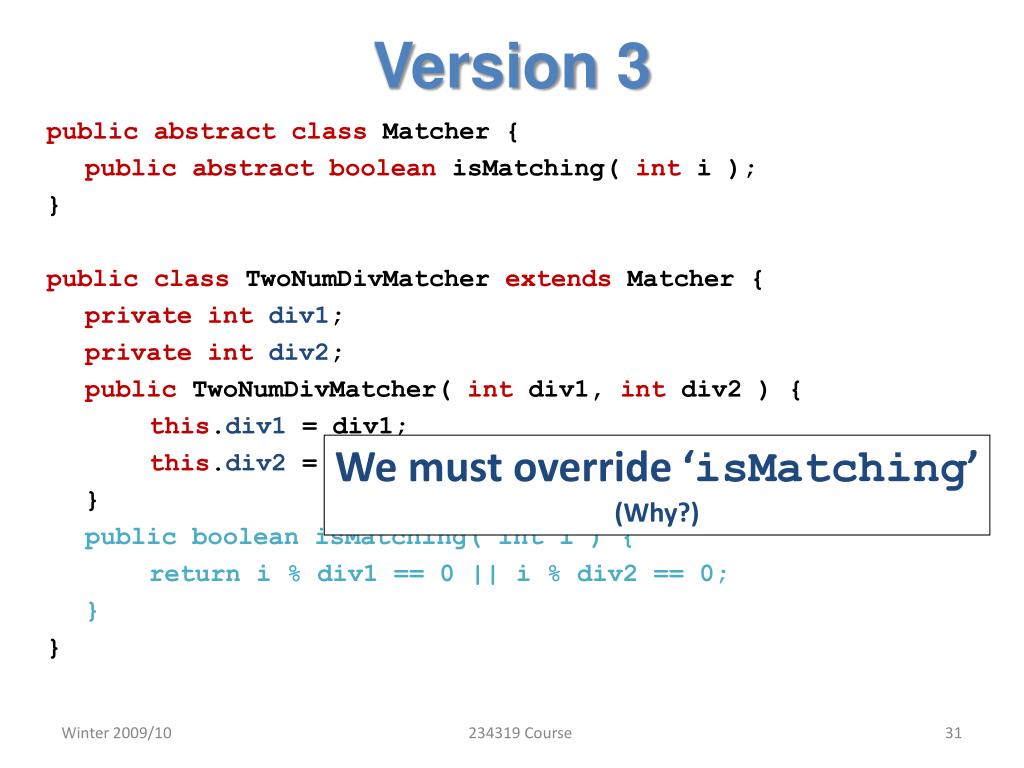

Version 3

public abstract class Matcher {

public abstract booleanisMatching( inti );

}

public class TwoNumDivMatcherextends Matcher {

private intdiv1;

private intdiv2;

publicTwoNumDivMatcher(int div1, int div2 ) {

this.div1 = div1;

this.div2 = div2;

}

public booleanisMatching( inti ) {

return i % div1 == 0 || i % div2 == 0;

}

}

We must override ‘isMatching’(Why?)

234319 Course


Version 3 cont

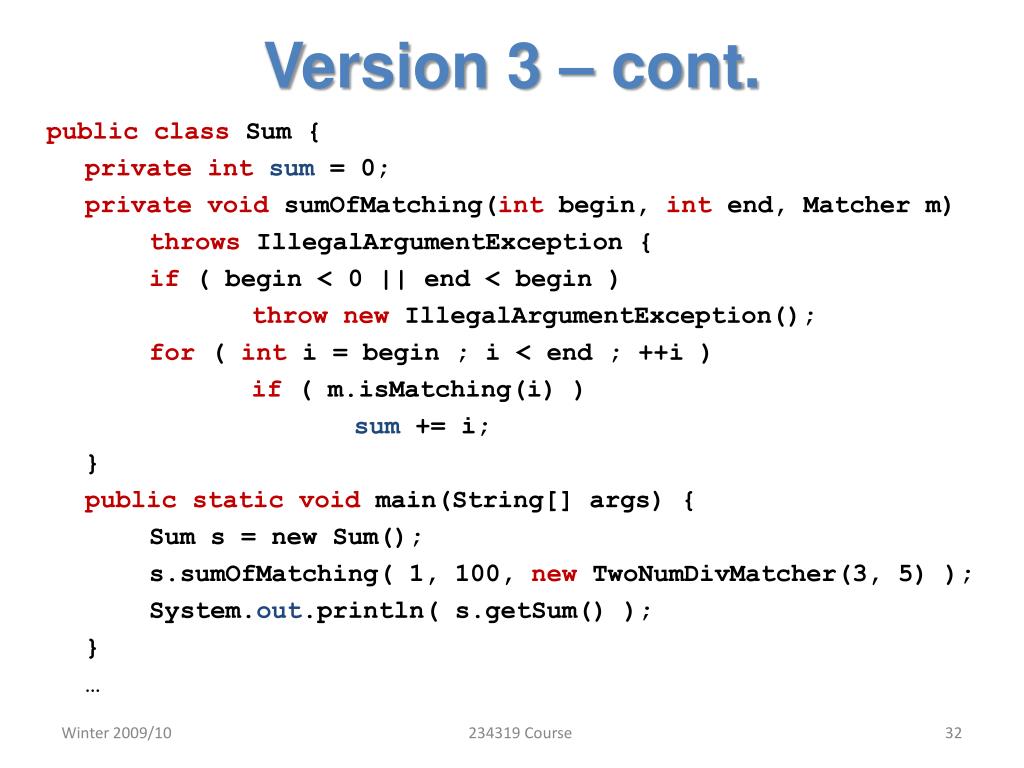

Version 3 – cont.

public class Sum {

private intsum = 0;

privatevoidsumOfMatching(int begin, int end, Matcher m)

throwsIllegalArgumentException {

if ( begin < 0 || end < begin )

thrownewIllegalArgumentException();

for ( inti = begin ; i < end ; ++i )

if ( m.isMatching(i) )

sum+= i;

}

public static void main(String[] args) {

Sum s = new Sum();

s.sumOfMatching( 1, 100, newTwoNumDivMatcher(3, 5) );

System.out.println( s.getSum() );

}

234319 Course


Version 3 cont1

Version 3 – cont.

public class Sum {

private intsum = 0;

privatevoidsumOfMatching(int begin, int end, Matcher m)

throwsIllegalArgumentException {

if ( begin < 0 || end < begin )

thrownewIllegalArgumentException();

for ( inti = begin ; i < end ; ++i )

if ( m.isMatching(i) )

sum+= i;

}

public static void main(String[] args) {

Sum s = new Sum();

s.sumOfMatching( 1, 100, new TwoNumDivMatcher(3, 5) );

System.out.println( s.getSum() );

}

234319 Course


  • Login
