Active and passive transport

Active and Passive Transport

Chapter 5


1 passive transport

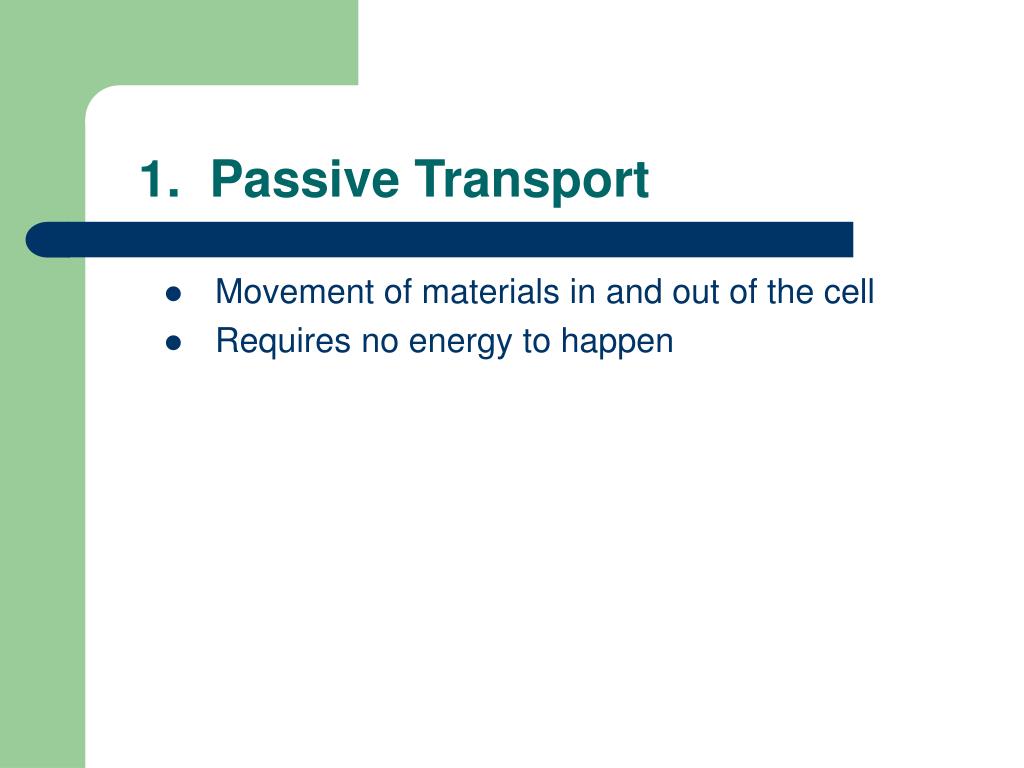

1. Passive Transport

  • Movement of materials in and out of the cell

  • Requires no energy to happen


Two types of passive transport

Two Types of Passive Transport

  • Diffusion: When substance moves that is dissolved in water

  • Osmosis: When water moves across the membrane


Solutions are made of 2 parts

Solutions are made of 2 parts:

  • Solute: Substance that is dissolved in water

  • Solvent: Liquid it is dissolved in (usually water)


Active and passive transport

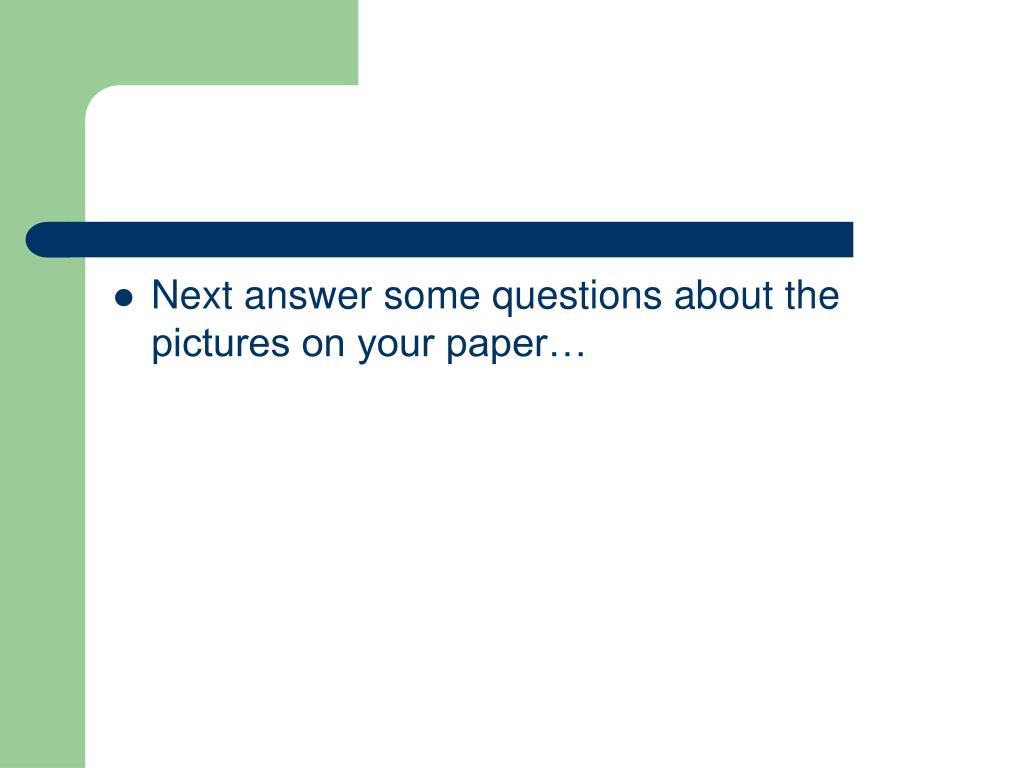

  • Next answer some questions about the pictures on your paper…


Vocab

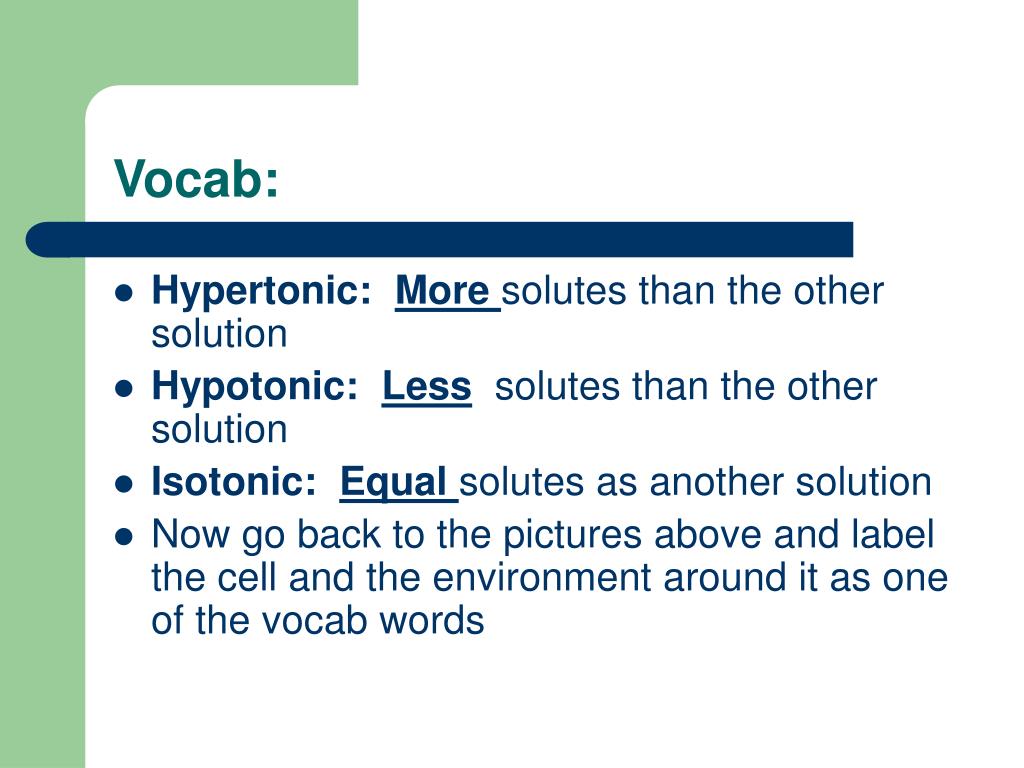

Vocab:

  • Hypertonic:More solutes than the other solution

  • Hypotonic: Lesssolutes than the other solution

  • Isotonic: Equal solutes as another solution

  • Now go back to the pictures above and label the cell and the environment around it as one of the vocab words


Active and passive transport

Molecules of dye

Membrane (cross section)

WATER

Equilibrium

Net diffusion

Net diffusion

Net diffusion

Equilibrium

Net diffusion

Osmosis

Net diffusion

Net diffusion

Equilibrium

(a)

(b)


Active and passive transport

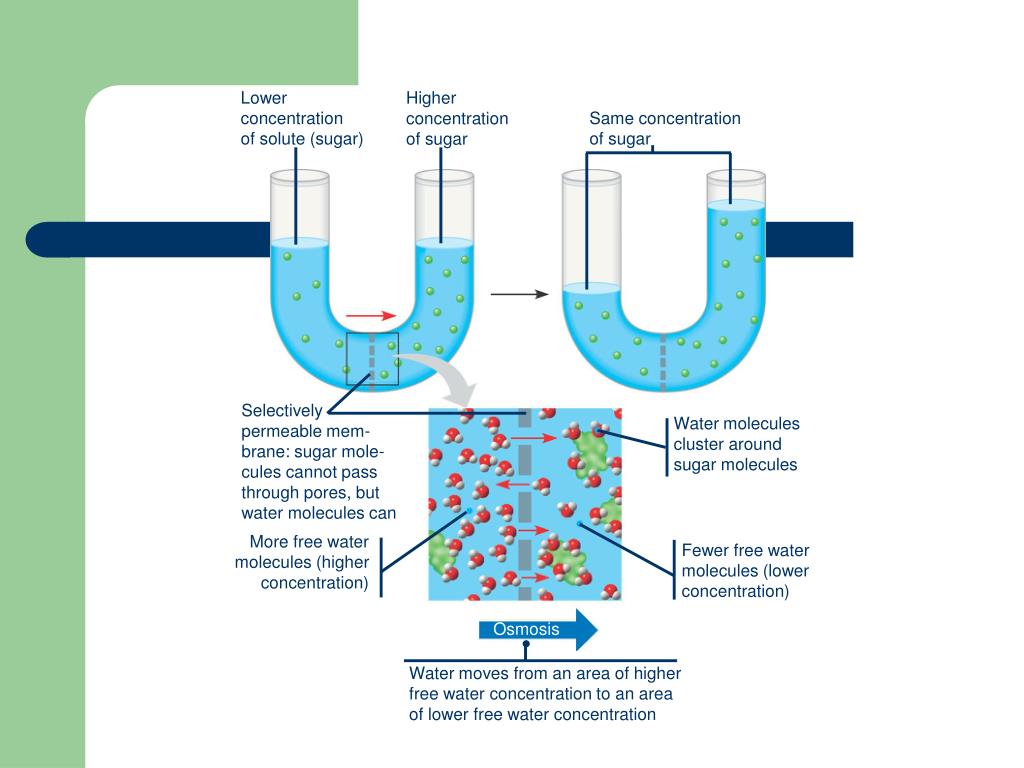

Lower

concentration

of solute (sugar)

Higher

concentration

of sugar

Same concentration

of sugar

Selectively

permeable mem-

brane: sugar mole-

cules cannot pass

through pores, but

water molecules can

Water molecules

cluster around

sugar molecules

More free water

molecules (higher

concentration)

Fewer free water

molecules (lower

concentration)

Osmosis

Water moves from an area of higher

free water concentration to an area

of lower free water concentration


Describing a solution

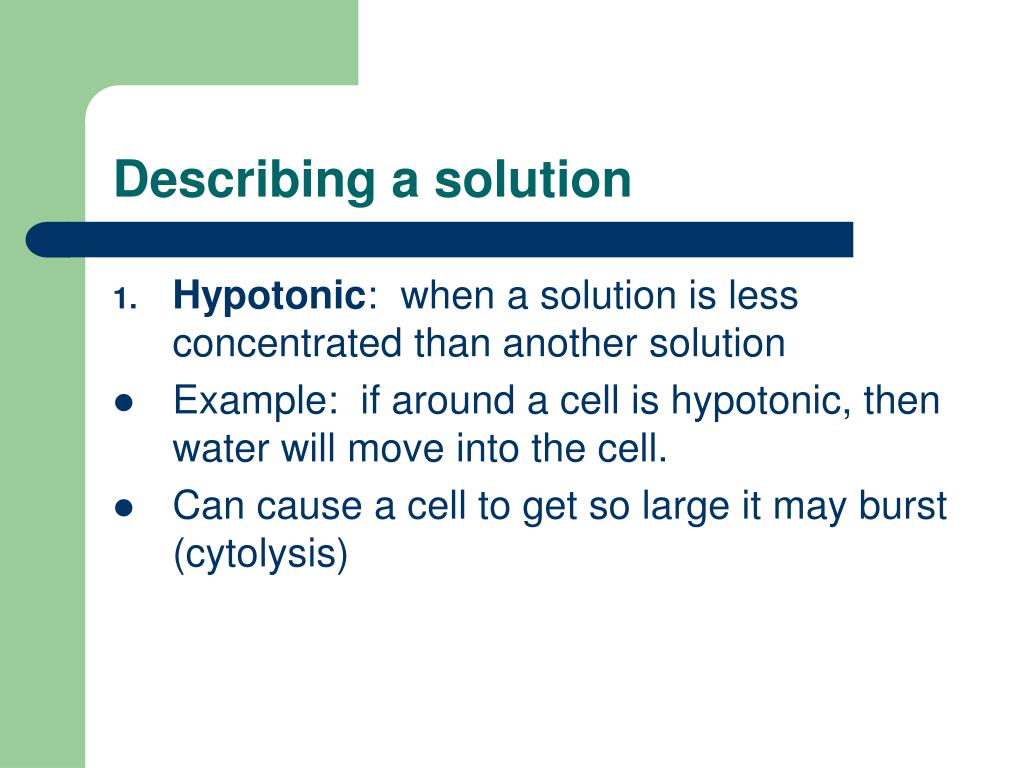

Describing a solution

  • Hypotonic: when a solution is less concentrated than another solution

  • Example: if around a cell is hypotonic, then water will move into the cell.

  • Can cause a cell to get so large it may burst (cytolysis)


Active and passive transport

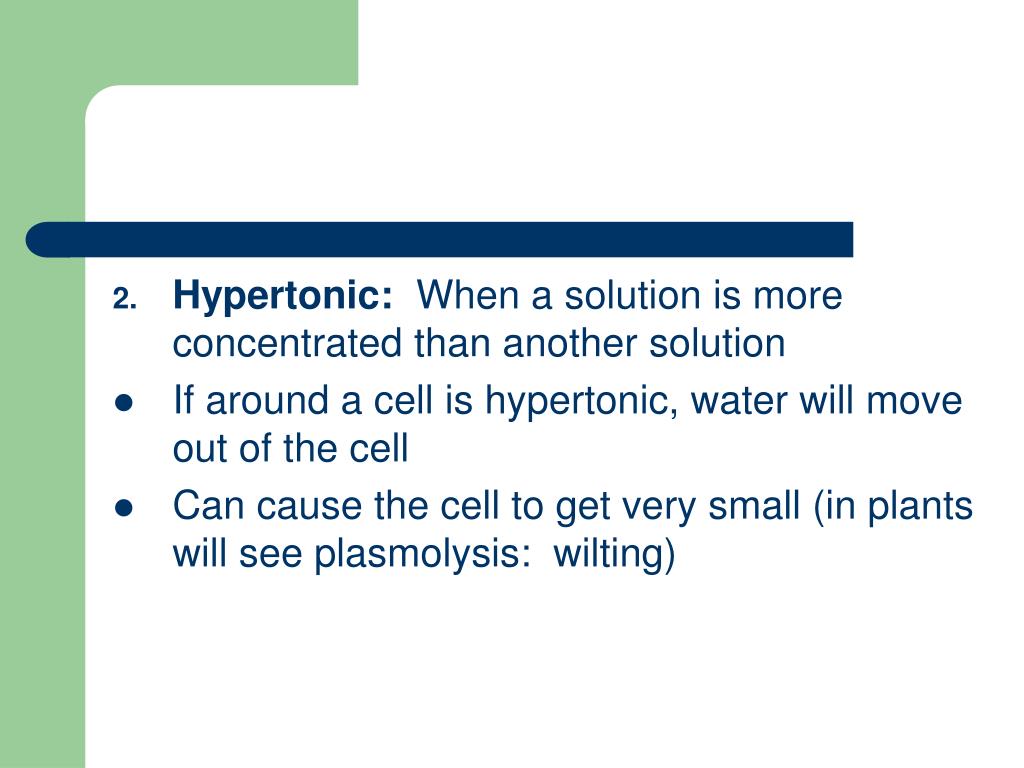

  • Hypertonic: When a solution is more concentrated than another solution

  • If around a cell is hypertonic, water will move out of the cell

  • Can cause the cell to get very small (in plants will see plasmolysis: wilting)


Active and passive transport

  • Isotonic: when two solutions have the same concentration (are at equilibrium)

  • Causes water to move in and out equally

  • The cell maintains its shape


Active and passive transport

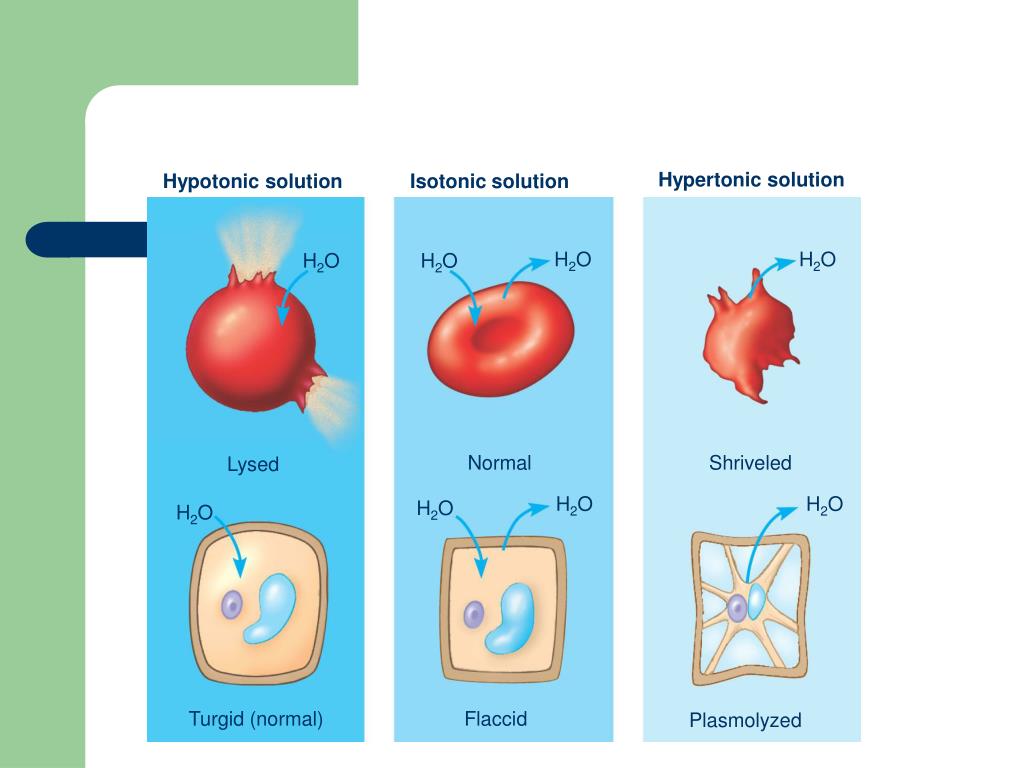

Hypertonic solution

Hypotonic solution

Isotonic solution

(a)

H2O

H2O

H2O

H2O

Normal

Shriveled

Lysed

H2O

H2O

H2O

(b)

H2O

Turgid (normal)

Flaccid

Plasmolyzed


Active and passive transport

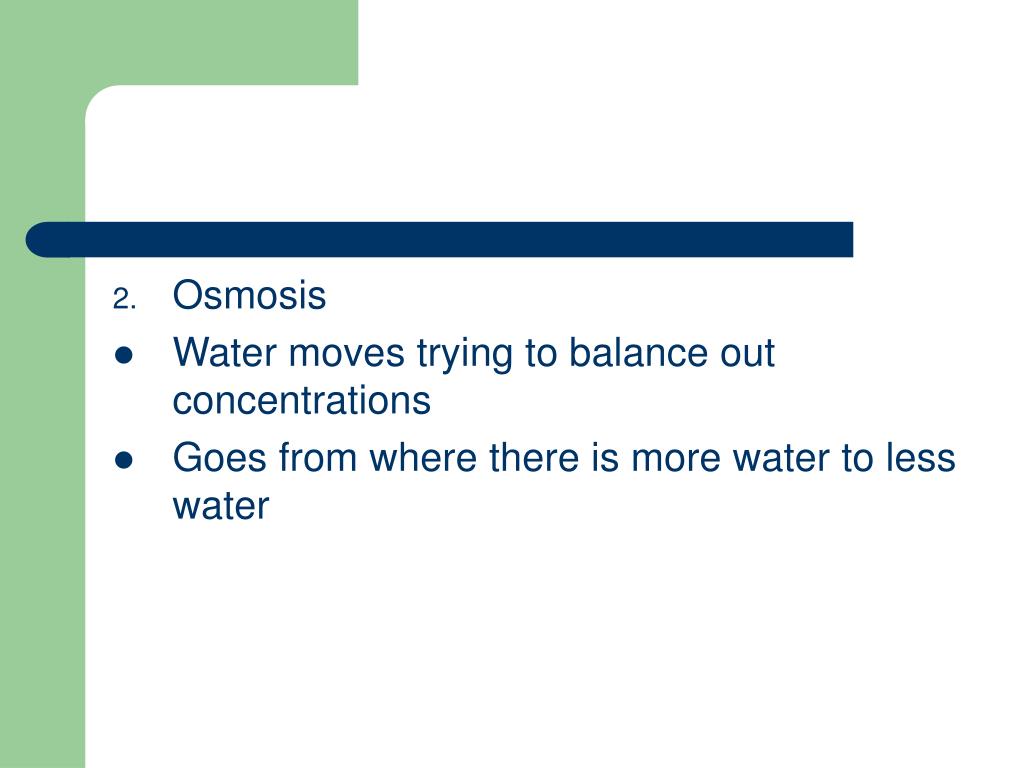

  • Osmosis

  • Water moves trying to balance out concentrations

  • Goes from where there is more water to less water


What if

What if…..

  • Environment around a cell is hypotonic. What direction will the water move?

  • Salt?


What if1

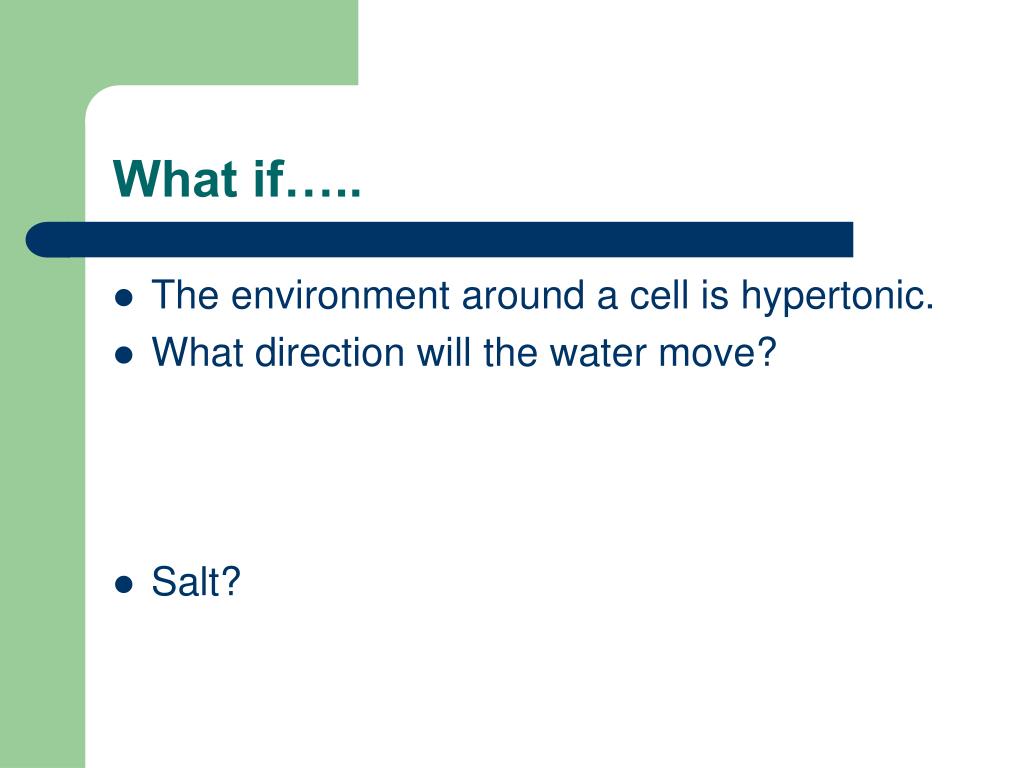

What if…..

  • The environment around a cell is hypertonic.

  • What direction will the water move?

  • Salt?


2 active transport

2. Active Transport

  • Requires energy

  • Goes against the concentration gradient (from lower concentration to higher concentration)


Figure 7 16 the sodium potassium pump a specific case of active transport

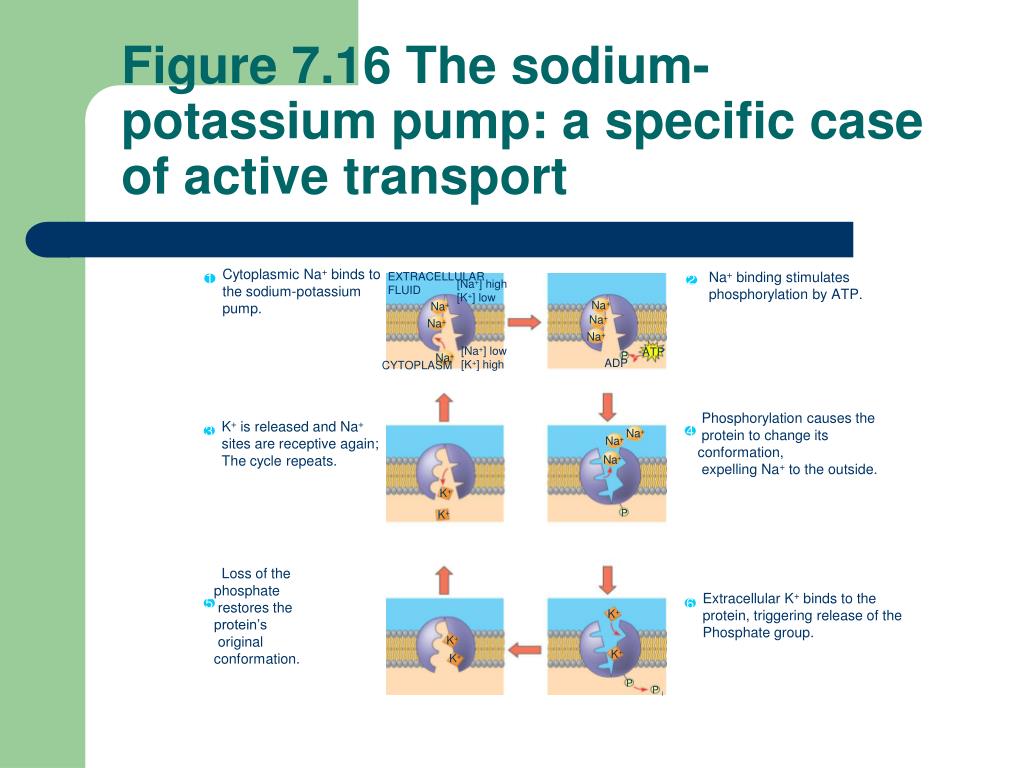

Figure 7.16 The sodium-potassium pump: a specific case of active transport

Cytoplasmic Na+ binds to

the sodium-potassium pump.

EXTRACELLULAR

FLUID

[Na+] high

[K+] low

Na+ binding stimulates phosphorylation by ATP.

Na+

Na+

Na+

Na+

Na+

[Na+] low

[K+] high

ATP

P

Na+

5

2

1

6

4

3

ADP

CYTOPLASM

Phosphorylation causes the

protein to change its conformation, expelling Na+ to the outside.

K+ is released and Na+

sites are receptive again;

The cycle repeats.

Na+

Na+

Na+

K+

P

K+

Loss of the phosphate

restores the protein’s

original conformation.

Extracellular K+ binds to the

protein, triggering release of the

Phosphate group.

K+

K+

K+

K+

P

P i


Active and passive transport

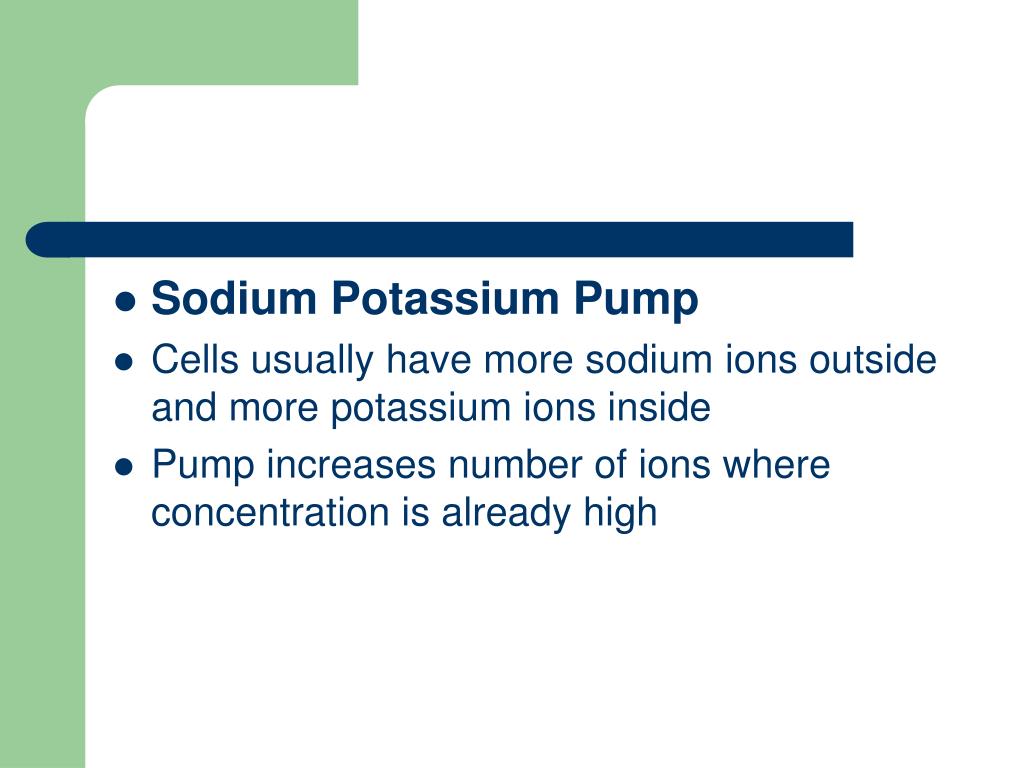

  • Sodium Potassium Pump

  • Cells usually have more sodium ions outside and more potassium ions inside

  • Pump increases number of ions where concentration is already high


Active and passive transport

  • When substances are too large to pass through the cell membrane, use endocytosis or exocytosis

  • Membrane folds around substances and release into cell or out of cell


Figure 7 20 exploring endocytosis in animal cells

PHAGOCYTOSIS

EXTRACELLULAR

FLUID

1 µm

CYTOPLASM

Pseudopodium

Pseudopodium

of amoeba

“Food” or

other particle

Bacterium

Food

vacuole

Food vacuole

An amoeba engulfing a bacterium via

phagocytosis (TEM).

PINOCYTOSIS

0.5 µm

Plasma

membrane

Pinocytosis vesicles

forming (arrows) in

a cell lining a small

blood vessel (TEM).

Vesicle

Figure 7.20 Exploring Endocytosis in Animal Cells


Active and passive transport

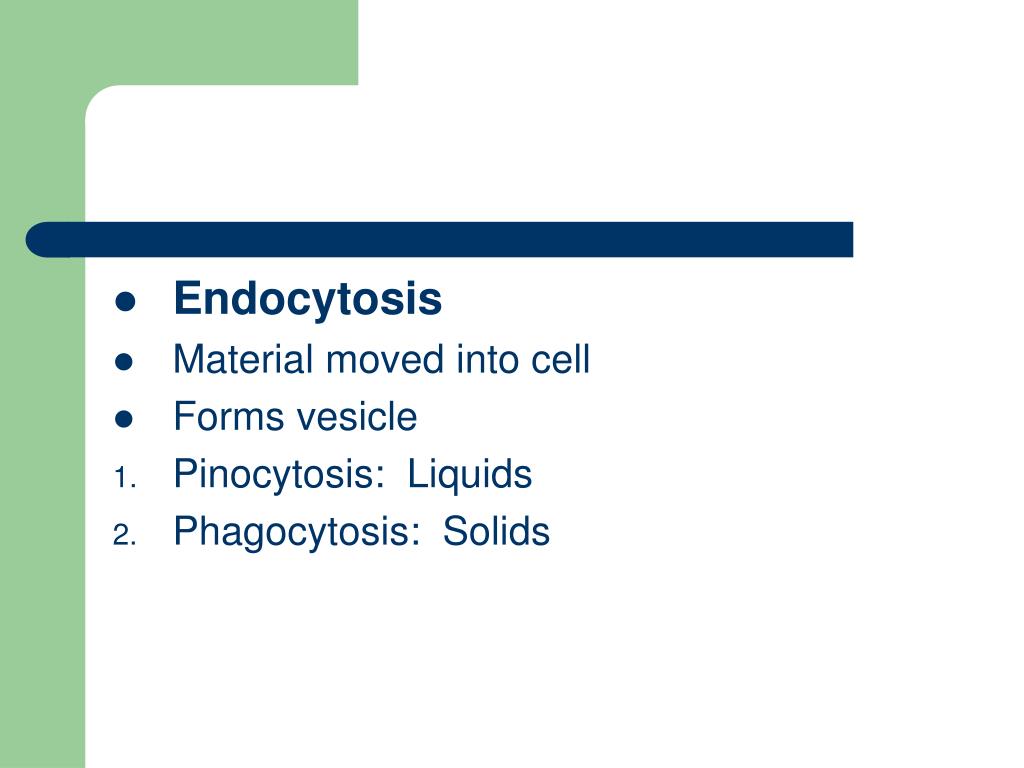

  • Endocytosis

  • Material moved into cell

  • Forms vesicle

  • Pinocytosis: Liquids

  • Phagocytosis: Solids


Active and passive transport

  • Exocytosis

  • Material released to outside of cell
