Presentation Transcript

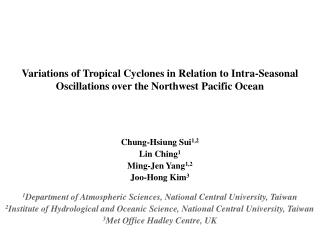

Slide1 l.jpg

Chung-Hsiung Sui1,2

Lin Ching1

Ming-Jen Yang1,2

Joo-Hong Kim3

1Department of Atmospheric Sciences, National Central University, Taiwan

2Institute of Hydrological and Oceanic Science, National Central University, Taiwan

3Met Office Hadley Centre, UK

Variations of Tropical Cyclones in Relation to Intra-Seasonal Oscillations over the Northwest Pacific Ocean


Outline l.jpg

Outline

1. Climate background-Modulation of TC activities by ENSO & Decadal Oscillations2. Modulation of TC activities by MJO  Composite TC activities in 2004 in the western North Pacific


Slide3 l.jpg

Climate background

1

Warm minus Cold

Warm

Cold

  • Modulation of TC byEl Niño and Southern Oscillation (ENSO)

    • significantly affects the seasonal mean genesis location (Lander 1994; Chan 2000; Wang and Chan 2002; etc.), tracks (Wang and Chan 2002; Ho et al. 2005), mean lifetime and intensity (Wang and Chan 2002; Camargo and Sobel 2005; Chen et al. 2006), and landfall (Saunders et al. 2000; Wu et al. 2004; Fudeyasu et al. 2006), but does not have a clear relationship with the mean genesis frequency (Chan 1985; Dong 1988; Wu and Lau 1992; Lander 1994; etc.).

Wang and Chan (2002)

Ho et al. (2005)

Camargo and Sobel (2005)


Slide4 l.jpg

Climate background

2

(1980-2001) - (1951-1979)

(1980-2001) - (1951-1979)

JJAS (1971-2000)

TS+TY (Vmax>17 m/s)

Typhoon formation frequency

~ 80 tropical cyclones (TC) with Vmax exceeding 17.3 m/s are annually generatedd over the globe (Gray 1979).

~ 1/3 of all TCs over the globe occur in the WNP (27.2 during 1971-2000)

  • Modulation of TC by Tropical Pacific multi-decadal variability

    • ID1 (1951–79) to ID2 (1980–2001)Typhoon passage frequency


Slide5 l.jpg

Climate background

2

TS+TY (Vmax>17 m/s)

The interdecadal variability of TC activity in the WNP correlates with long-term variations in SST in the tropical central Pacific and with the monsoon trough that appears over the tropical WNP during the typhoon season of July to October. The westerly wind anomalies at near 10N show positive feedback with the SSTA in the central Pacific.

  • Modulation of TC by Tropical Pacific multi-decadal variability

  • Significantly affects the frequency of tropical cyclogenesis

    (Matsuura et al. 2003).


Slide6 l.jpg

ENSO

High level

Decadal Variability

Seasonal mean genesis location

and tracks

cold

Low level

warm

Eq

Seasonal mean genesis location


Slide7 l.jpg

High level

Low level

warm

Eq

Decadal Variability

Seasonal genesis number

Seasonal mean genesis location and tracks

General mechanism is similar!


M odulation of tc by mjo l.jpg

TC-MJO: composite

 Modulation of TC by MJO

  • Gray (1979), Nakazawa (1986), Liebmann et al. (1994), Sobel and Maloney 2000; Hartmann and Maloney 2001; Maloney and Hartmann 2001; Aiyyer and Molinari 2003; Maloney and Dickinson 2003).

  • the barotropic wave accumulation, from the mean flow to the eddy kinetic energy, during MJO westerly phase.

The modulation is more evident in East Pacific than in west Pacific


M odulation of tc by mjo9 l.jpg

TC-MJO: composite

  • # of TCs increases significantly in June-July from B to C, but not so in Aug-Sept likely due to other modulation factors

  • The genesis locations modulated by the heating-induced circulation.

  • The MJO modulate TC tracks so when the MJO convection center is found in the equatorial Indian Ocean (the tropical WNP), a portion of tracks migrates eastward (westward).

  • A statistical analysis of TC landfalls by MJO category: a robust and significant modulation in the number of TC landfalls is observed in south China, Korea, and Japan, the modulation is marginal in the remaining four subareas.

  • Category

  • A

  • B

  • C

  • D

 Modulation of TC by MJO

Positions of TC geneses (o)


Slide10 l.jpg

June 2004 vs Climate

A record-breaking five tropical cyclones (TC) formed in the northwestern Pacific (NWP) Ocean in June 2004 (climatological value 1.8) and two of them made landfall over Japan.

In this study, we analyze the weather and climate oscillations of this particular month in relation to other years from 1982 to 2006 to investigate the possible causes of this unusual event.

A

B

C

D

E

D 23 12z

A 5 12z

B 9 00z

E 26 06z

C 13 18z


Slide11 l.jpg

Table 1. Numbers of Western North Pacific Tropical Cyclones in June. Red (blue) boxes represent ENSO warm (cold) years based on Oceanic Niño Index (ONI). The TC numbers in red represent TC-active years (more than 3 TCs occur). Those for TC-inactive years (no TC) are denoted in blue. The average number of TC in June from 1982 to 2006 is 1.8. The MJO-active and inactive June are marked “act” in red and “inact” in blue along with measures of MJO strength (numbers below) based on RMM indices, i.e. the summation of amplitude of active phase (5, 6, 7) or inactive phase (1, 2, 3) in June larger than 2/3 of mean MJO amplitude in June (19.58).


Slide12 l.jpg

TC tends to be more active in El Niño developing June and suppressed in La Niña.

1994

2006

2004

1991

2002

1988

TC-active years : 1982, 1990, 1997, 2002, 2004

TC-inactive years : 1996, 1998, 2000, 2005

Normal years : 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1991, 1992, 1993, 1994, 1995, 1999, 2001, 2003, 2006

1987

2000

1999

1998

1984

1997

1983

1995

1982

0

5

3

3

0

0

3

0

3


Slide13 l.jpg

TC-active years : 1982, 1990, 1997, 2002,2004

TC-inactive years : 1996, 1998, 2000, 2005

Normal years : 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1991, 1992, 1993, 1994, 1995, 1999, 2001, 2003, 2006

Typical El Niño : 1982, 1987, 1991, 1997

El Niño Modoki : 1994, 2002, 2004, 2006

1.8

3.4

5

0

2.25

3

1.75


Slide14 l.jpg

A

B

C

D

E

D 23 12z

A 5 12z

B 9 00z

E 26 06z

C 13 18z


Slide15 l.jpg

Total OLR (5N-15N)

Black line : MJO

Green line : Rossby wave

Purple line : MRG wave


Slide16 l.jpg

Easterly wave →

TD-type disturbance

MJO cyclonic shear zone

Rossby wave

A, B →Rossby wave energy dispersion

MRGW →

TD-type disturbance

TD-type disturbance

Monsoon cyclonic shear zone


Slide17 l.jpg

Summary and Discussions

  • TC activities (genesis, track, intensity) modulated by ENSO and decadal scale oscillations, through SST, circulation, and heating

  • MJO modulation in summer monsoon season relatively weaker , through heating

  • The large-scale modulation in June is more evident due to the state of June in season transition

  • TC genesis in June 2004 is a combined result of favorable large-scale environment provided by a developing El Niño warming condition and a MJO

  • Effect of TC on intraseaonal oscillations ?


Slide18 l.jpg

Cyclogenesis Mechanism

In June 2004

Rossby wave in easterly flow


Slide19 l.jpg

TC A

Warning : 2004/06/04 06UTC @ 15.7N, 116.6E

Contour 30-60 OLR

Rossby wave

in eastery flow

TD-type disturbance


Slide20 l.jpg

TC A

Warning : 2004/06/04 06UTC @ 15.7N, 116.6E

TC B

Warning : 2004/06/05 12UTC @ 6.7N, 141.7E

Eastery wave

Monsoon confluence zone


Slide21 l.jpg

TC C

Warning : 2004/06/11 18UTC @ 6.4N, 140.0E

Rosssby wave

energy

dispersion

B

Monsoon shear line


Slide22 l.jpg

TC D

Warning : 2004/06/21 18UTC @ 13.0N, 147.3E

MRGW

TD-type disturbance


Slide23 l.jpg

TC E

Warning : 2004/06/24 18UTC @ 11.6N, 153.8E

TD-type

disturbance

Monsoon shear line
