Odor complaint viewer leak investigation techniques

Odor Complaint Viewer & Leak Investigation Techniques

August 22, 2012

Dave Jones &

Mike Gruenberg


Odor complaint viewer

Odor Complaint Viewer


Purpose

Purpose

  • The Odor Complaint Viewer (OCV) is a tool for Dispatch to monitor odor calls/complaints

  • The system will graphically display odor and priority/emergency orders

    • Automatically posted when created in our customer information system

    • Manually posted for all other odor complaints

  • New orders posted to the map will appear as a bull's-eye

  • Previous orders will appear as either a red flag or red push-pin as clear visual reference


Legend

Legend


Order location

Order Location


Process

Process

  • The dispatcher will enter the address, city & state OR the cross streets.

  • Verify the date range – three-months

  • Evaluate the area around the new order

    • Check the attributes of the push-pins and flags within a 500 ft. radius.


Process1

Process


Process2

Process


Process3

Process

  • If there are flags and/or pins and these orders were all inside odor complaints that showed repair, turn off, etc., and the underground leakage investigation was negative, then no further action is required for those addresses

  • If the object on the map was a flag and the order was an outside odor call, then these addresses require an automatic recheck of the facilities

  • Any pins that show no resolution, either research the original order to find the resolution and input that information into the system or route the address for a recheck


Manual input

Manual Input


Manual input1

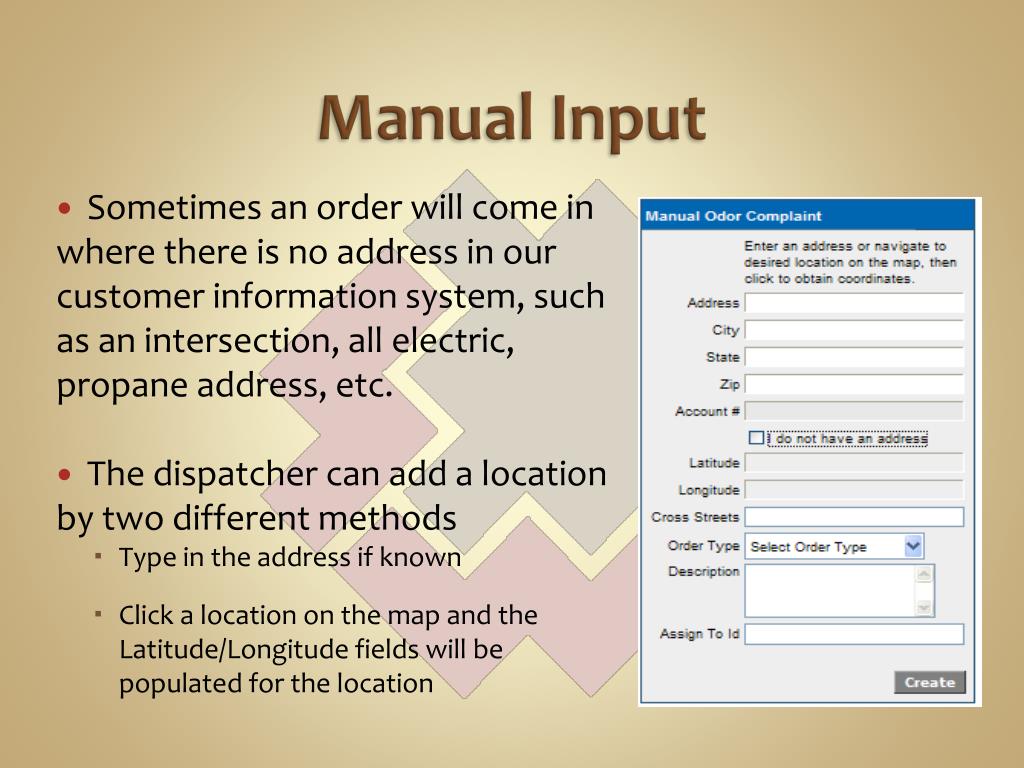

Manual Input

  • Sometimes an order will come in where there is no address in our customer information system, such as an intersection, all electric, propane address, etc.

  • The dispatcher can add a location by two different methods

    • Type in the address if known

    • Click a location on the map and the Latitude/Longitude fields will be populated for the location


Resolution comments

Resolution Comments

  • Computer generated orders will automatically update with field technician comments when completed

  • Manually input odor locations must be updated by the dispatcher


Other tools

Other Tools


Other tools1

Other Tools

  • Zoom into a specific area

  • Determine the distance between two points

  • Identify the boundaries of an outage

  • Identify restoration within the outage boundary


Leak investigation techniques

Leak Investigation Techniques


Purpose1

Purpose

  • To investigate the report of a natural gas odor or possible leak

  • Company representatives respond to all reports of:

    • Natural gas leakage

    • Suspected leakage or odor complaints

    • Miscellaneous hazards relating to natural gas and/or natural gas appliances


Knowledge requirements

Knowledge Requirements

  • Detection Methods

  • Leak Migration Behavior

  • Soil Types

  • Policy

  • Investigation Procedures

    • Training/Qualification

  • Evacuation Procedure


Policy

Policy

  • Responding personnel will only perform procedures for which they have been trained and are qualified

  • A leak investigation will not end until the leak/odor has been either:

    • Repaired, eliminated and/or graded/classified

    • Positively determined NOT to be natural gas


360 leak investigation procedure

360° Leak Investigation Procedure

Conduct the leak investigation by using a Search or Confirmation Instrument from the base of the structure to a point approximately 5 ft away from the base of the structure


Outdoor leak investigation

Outdoor Leak Investigation

General

  • Two types of leakage instruments used:

    • Search

    • Confirmation

  • Three types of Outdoor Leak Investigations:

    • Intersection

    • Single Family Residential or structure less than 250 feet wide

    • All others

  • What to do when leakage is found


Indoor leak investigation

Indoor Leak Investigation

Types of instruments used

Search Instrument – Rover (only)

Confirmation Instrument

Two types of Indoor Leak Investigations:

1- Inside structure and access is available

2- Inside structure and access is NOT available


Indoor leak investigation1

Indoor Leak Investigation

  • Upon entering any structure on any leak/odor investigation, a Confirmation Instrument will be used to:

    • Check for the presence of gas inside

      • This is to provide for an early warning in the event there is gas buildup inside the structure

  • FI units must not be used inside buildings, confined spaces or any structure or substructure where gas may accumulate. FI units are not intrinsically safe.
