  1. Secure Generic Connection Brokering SGCBenhancing secure submission of grid jobs across firewalls David Front, Lorne Levinson, Morton Taragin Weizmann Institute of Science, RehovotMiron Livny, Se-Chang Son, University of Wisconsin, MadisonItzhak Ben-Akiva, Tel Aviv University, Tel Aviv Secure Generic Connection Brokering – SGCB JPDPS Tel-Aviv Dec 2003

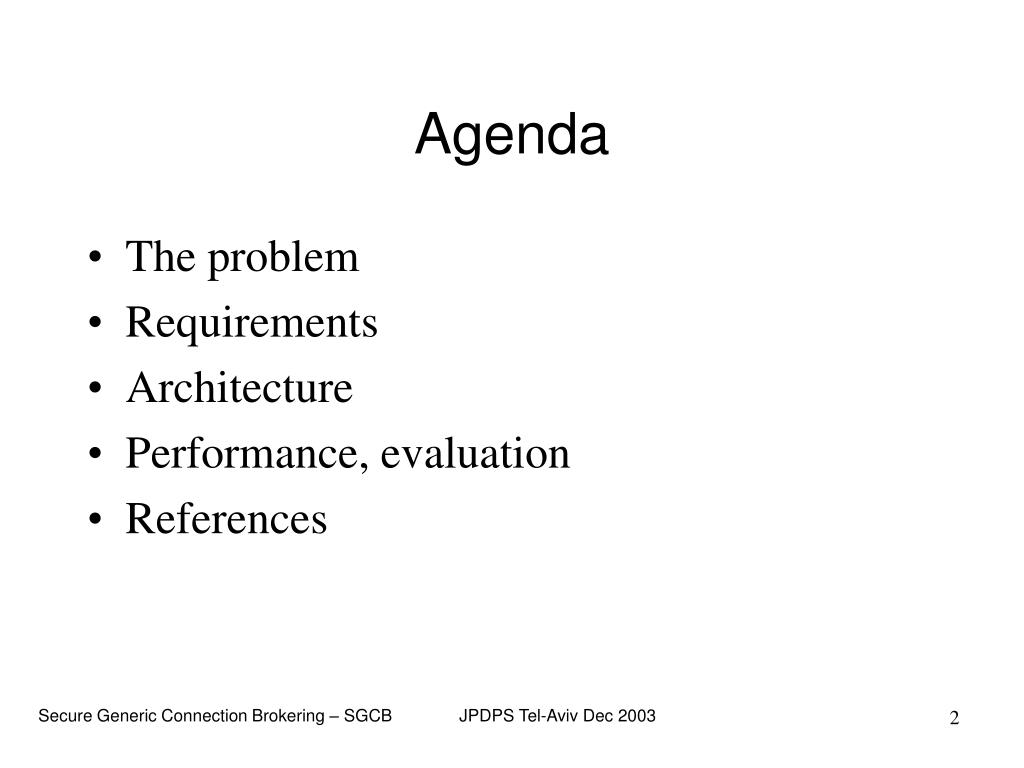

  2. Agenda • The problem • Requirements • Architecture • Performance, evaluation • References Secure Generic Connection Brokering – SGCB JPDPS Tel-Aviv Dec 2003

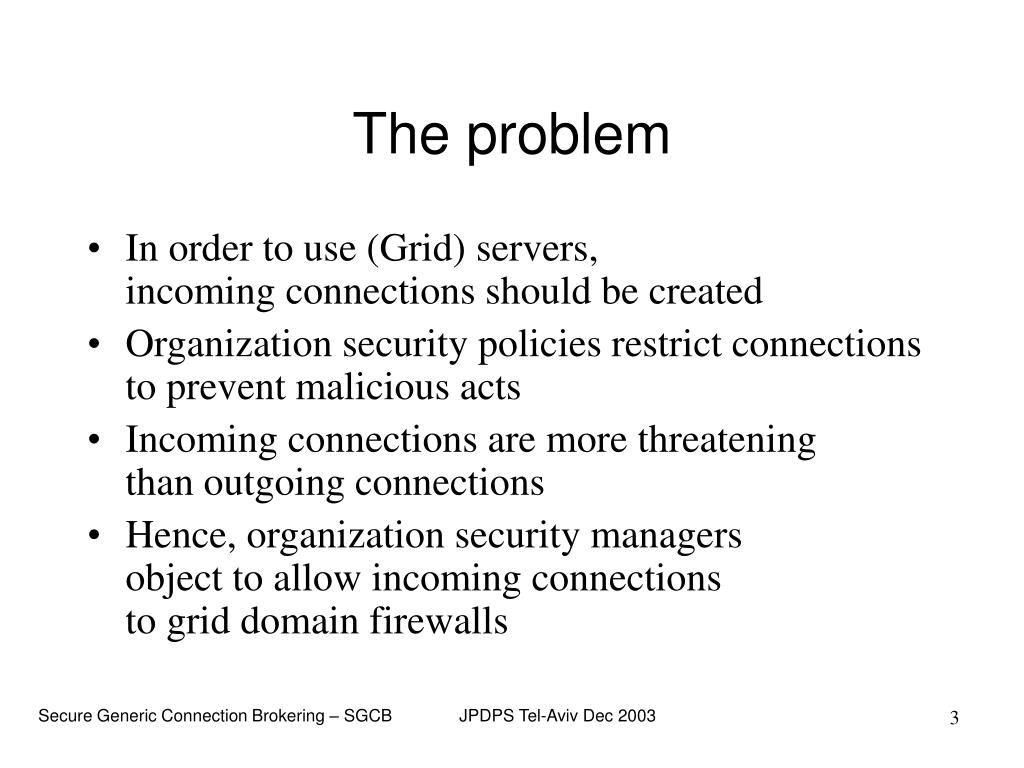

  3. The problem • In order to use (Grid) servers, incoming connections should be created • Organization security policies restrict connections to prevent malicious acts • Incoming connections are more threatening than outgoing connections • Hence, organization security managers object to allow incoming connections to grid domain firewalls Secure Generic Connection Brokering – SGCB JPDPS Tel-Aviv Dec 2003

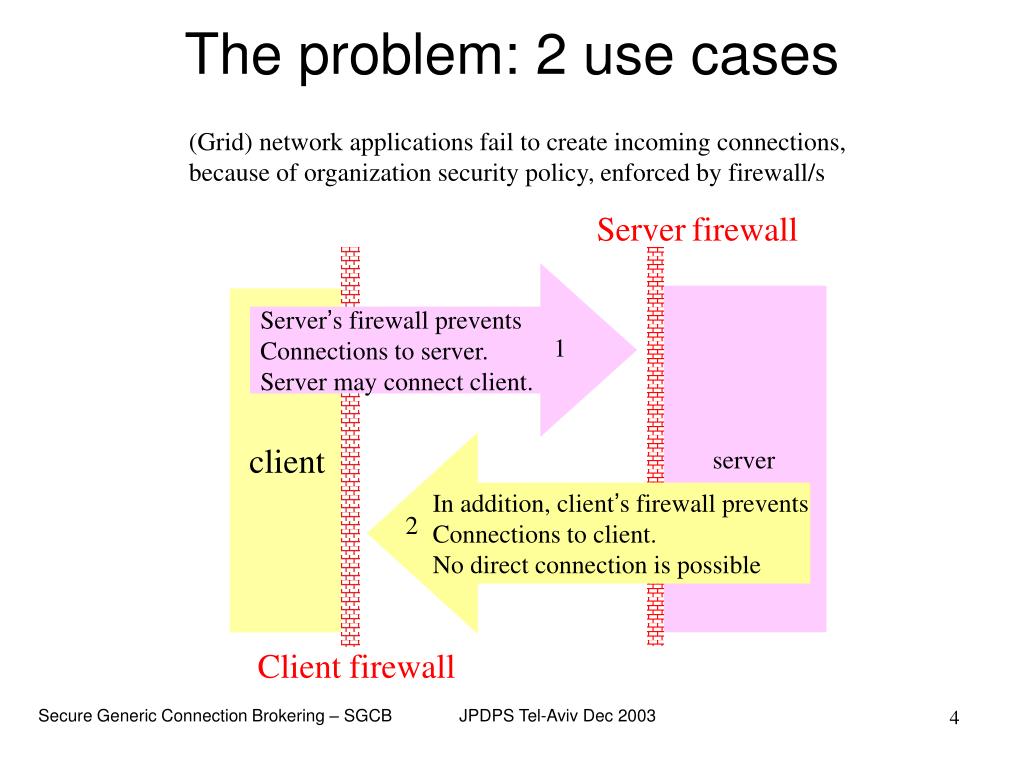

  4. In addition, client’s firewall prevents Connections to client. No direct connection is possible 2 Client firewall The problem: 2 use cases (Grid) network applications fail to create incoming connections, because of organization security policy, enforced by firewall/s Serverfirewall Server’s firewall prevents Connections to server. Server may connect client. server client 1 Secure Generic Connection Brokering – SGCB JPDPS Tel-Aviv Dec 2003

  5. Requirements A solution to securely submit jobs across firewalls should: • Satisfy security managers: allow incoming connections, yet not violate security policies • Not require dynamic firewall changes • Support communication with standard sockets • Not require changes at communicating applications • Not require kernel changes • Supportvarious security schemes • Not require root privilege to install/run Secure Generic Connection Brokering – SGCB JPDPS Tel-Aviv Dec 2003

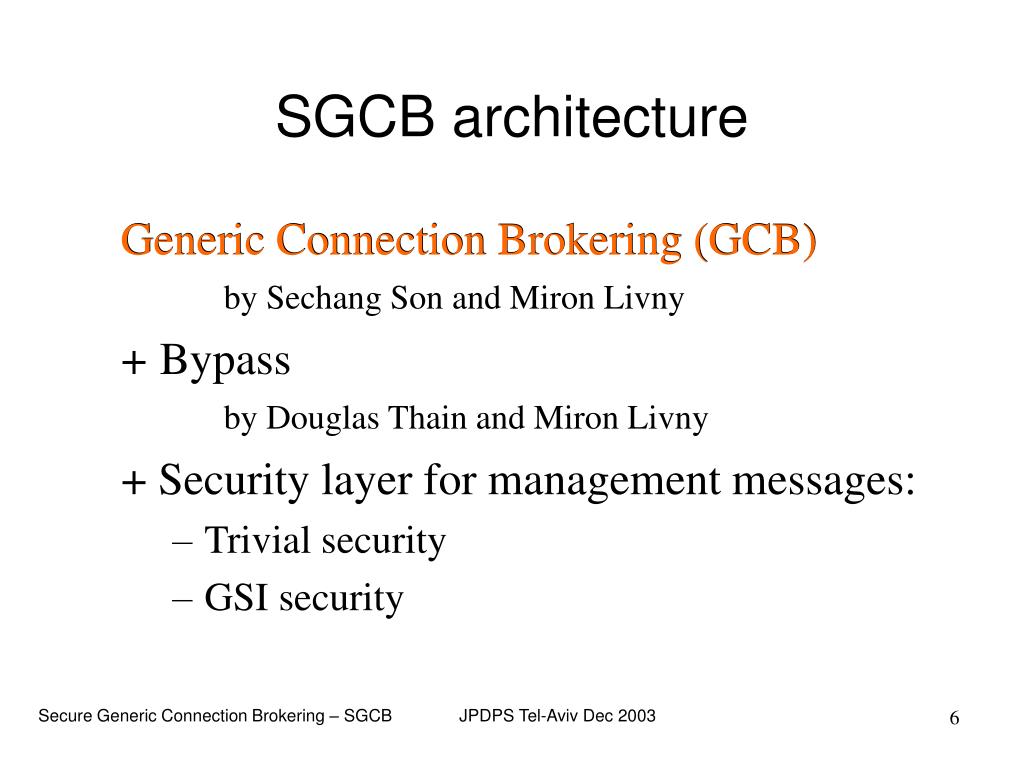

  6. SGCB architecture Generic Connection Brokering (GCB) Generic Connection Brokering (GCB)by Sechang Son and Miron Livny + Bypassby Douglas Thain and Miron Livny + Security layer for management messages: • Trivial security • GSI security Secure Generic Connection Brokering – SGCB JPDPS Tel-Aviv Dec 2003

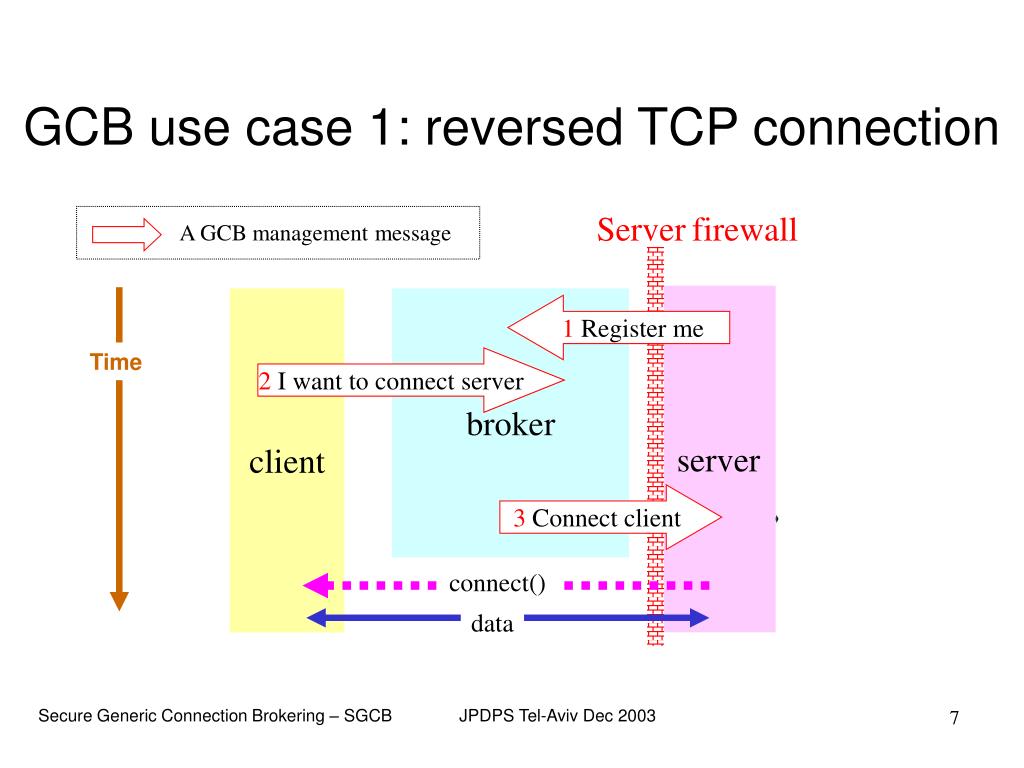

  7. GCB use case 1: reversed TCP connection Serverfirewall A GCB management message server client broker 1 Register me Time 2 I want to connect server 3 Connect client connect() data Secure Generic Connection Brokering – SGCB JPDPS Tel-Aviv Dec 2003

  8. GCB use case 2: relayed TCP connection Serverfirewall A GCB management message server client 1 Register me 2 I want to connect server Time 3 Connect me Connect() broker 4 Connect me Connect() Data is relayed Clientfirewall Secure Generic Connection Brokering – SGCB JPDPS Tel-Aviv Dec 2003

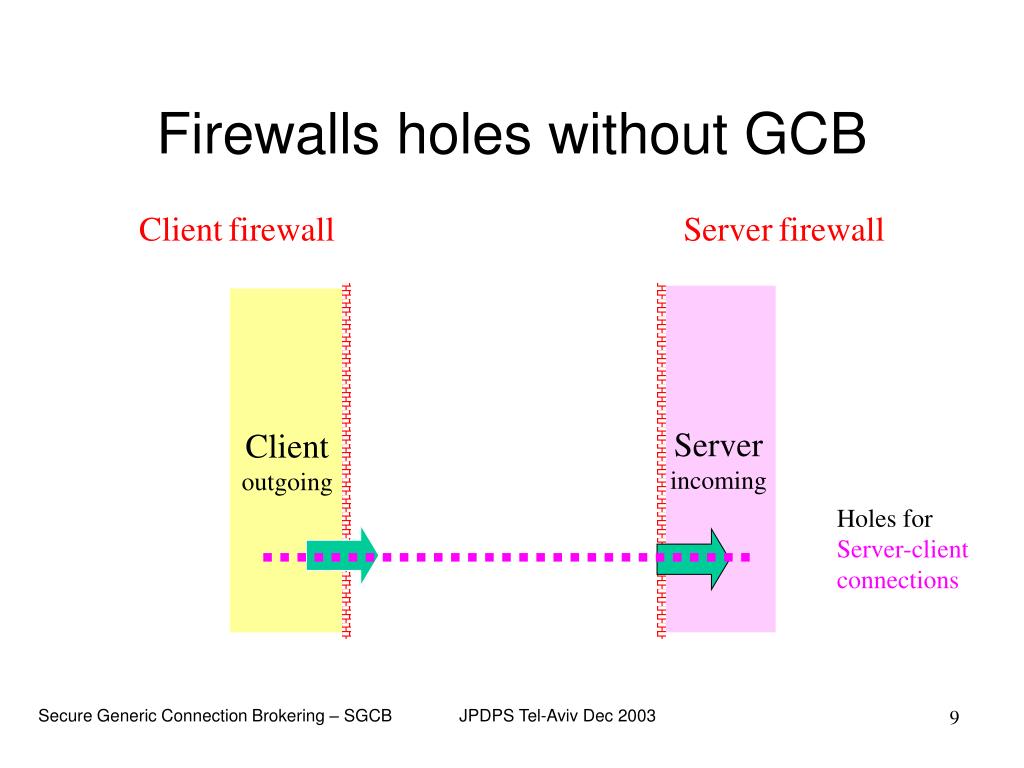

  9. Firewalls holes without GCB Clientfirewall Serverfirewall Server incoming Client outgoing Holes for Server-client connections Secure Generic Connection Brokering – SGCB JPDPS Tel-Aviv Dec 2003

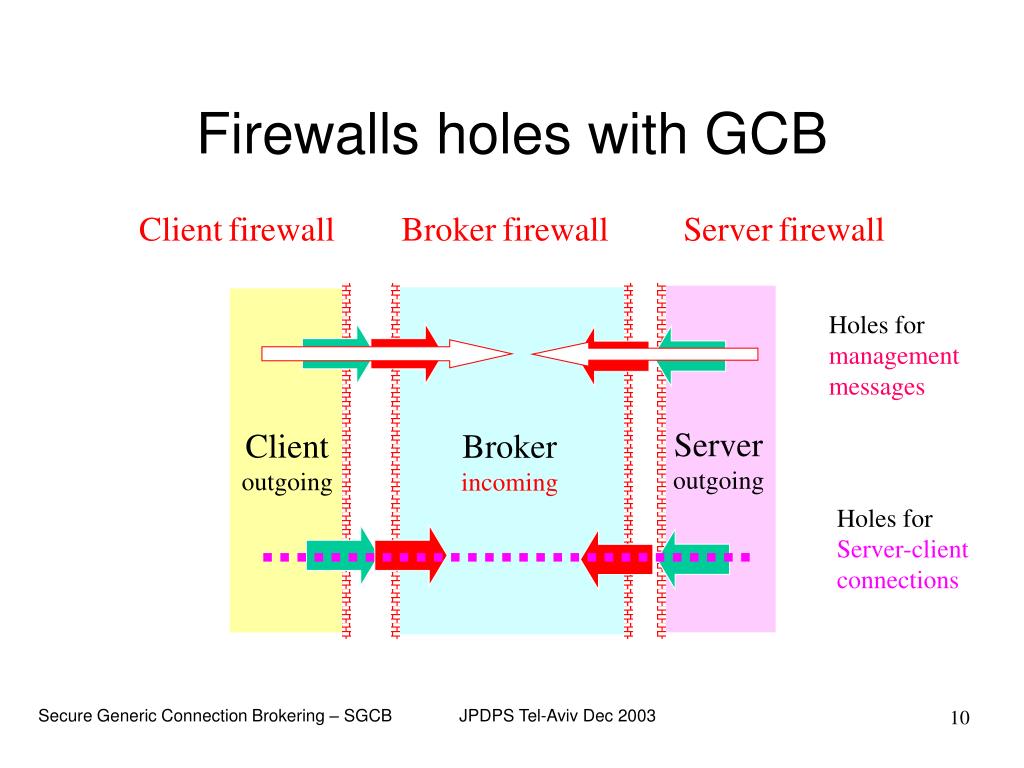

  10. Firewalls holes with GCB Clientfirewall Brokerfirewall Serverfirewall Server outgoing Broker incoming Client outgoing Holes for management messages Holes for Server-client connections Secure Generic Connection Brokering – SGCB JPDPS Tel-Aviv Dec 2003

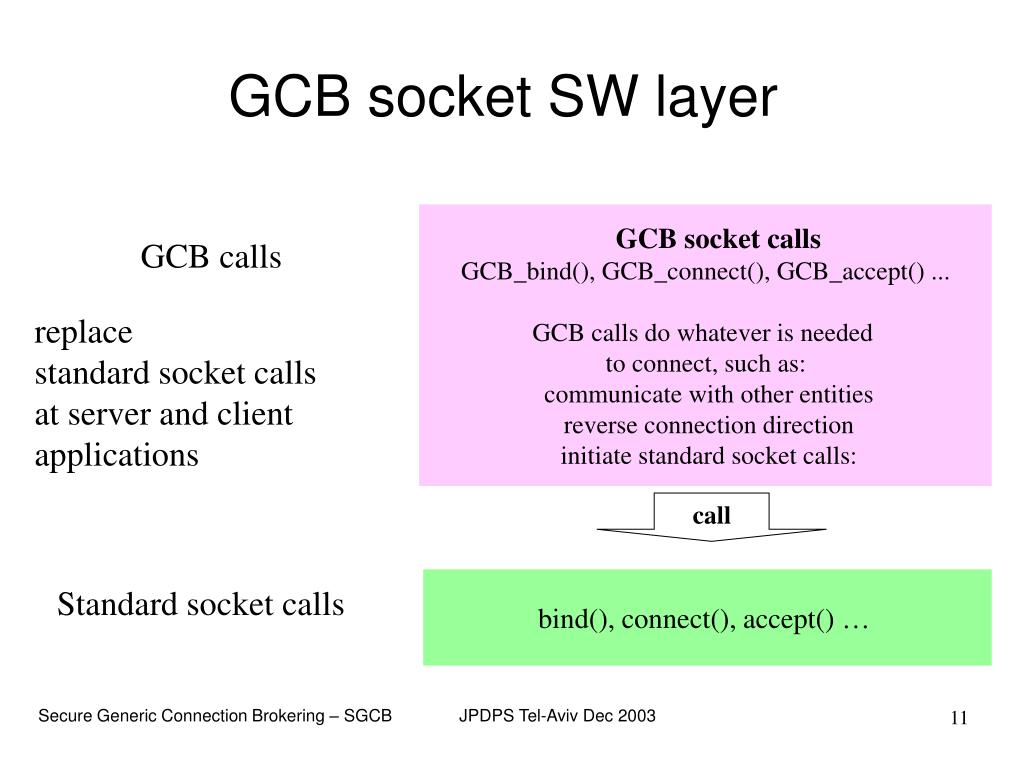

  11. GCB socket SW layer GCB socket calls GCB_bind(), GCB_connect(), GCB_accept() ... GCB calls do whatever is needed to connect, such as: communicate with other entities reverse connection direction initiate standard socket calls: GCB calls replace standard socket calls at server and client applications call bind(), connect(), accept() … Standard socket calls Secure Generic Connection Brokering – SGCB JPDPS Tel-Aviv Dec 2003

  12. GCB layer: reversed TCP connection client machine broker machine server machine GCB_socket Time GCB_bind GCB_listen GCB_connect GCB_accept Secure Generic Connection Brokering – SGCB JPDPS Tel-Aviv Dec 2003

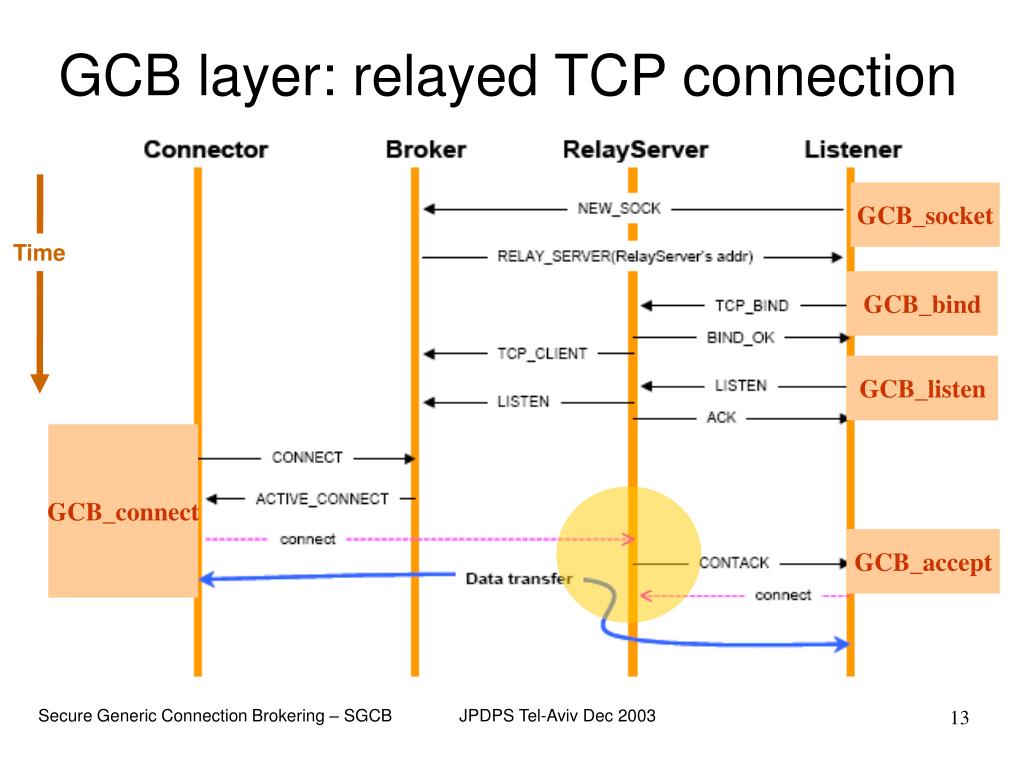

  13. GCB layer: relayed TCP connection GCB_socket Time GCB_bind GCB_listen GCB_connect GCB_accept Secure Generic Connection Brokering – SGCB JPDPS Tel-Aviv Dec 2003

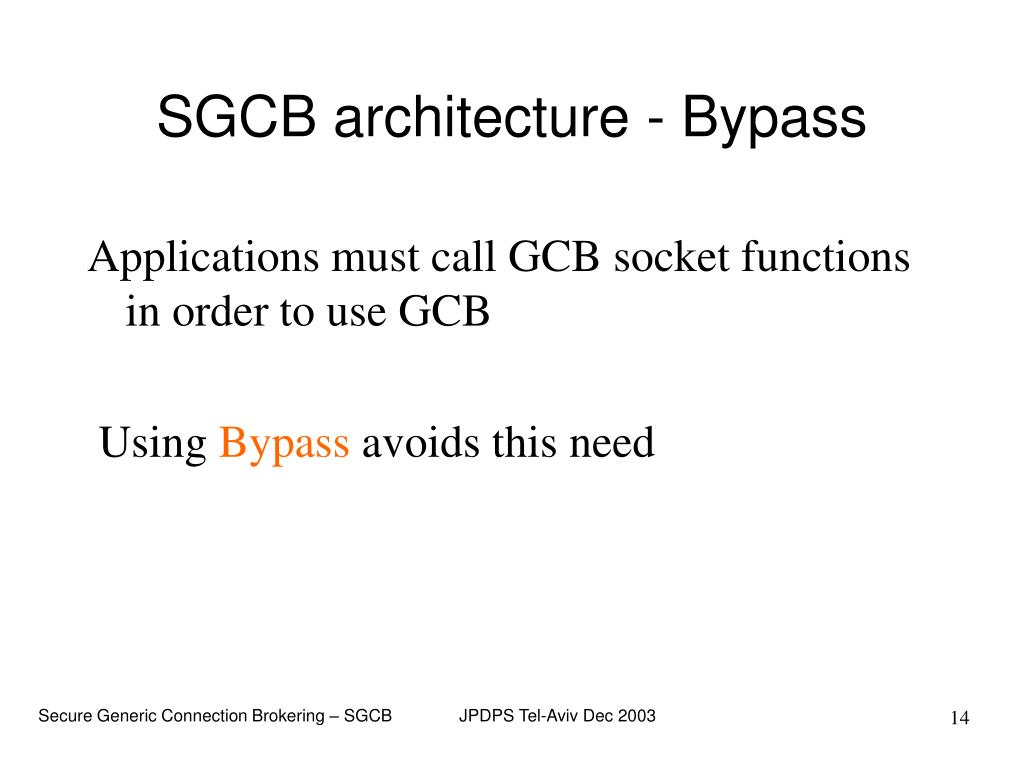

  14. SGCB architecture - Bypass Applications must call GCB socket functions in order to use GCB Using Bypass avoids this need Secure Generic Connection Brokering – SGCB JPDPS Tel-Aviv Dec 2003

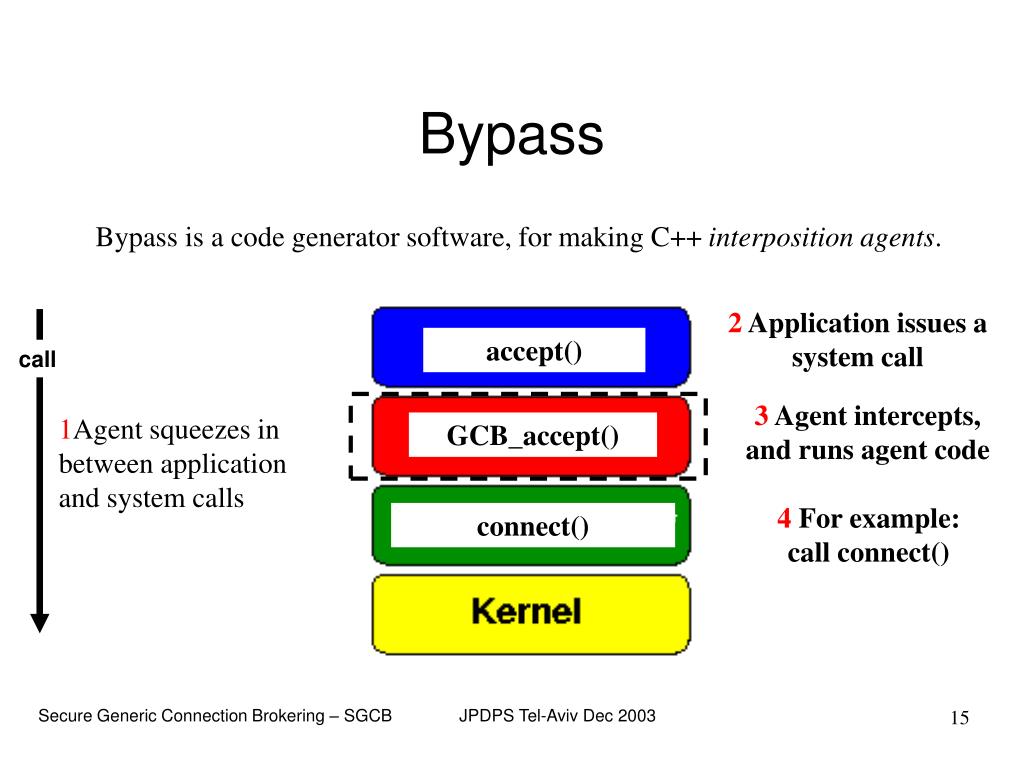

  15. 1Agent squeezes in between application and system calls 3 Agent intercepts, and runs agent code GCB_accept() 4 For example:call connect() connect() Bypass Bypass is a code generator software, for making C++ interposition agents. 2 Application issues a system call accept() call Secure Generic Connection Brokering – SGCB JPDPS Tel-Aviv Dec 2003

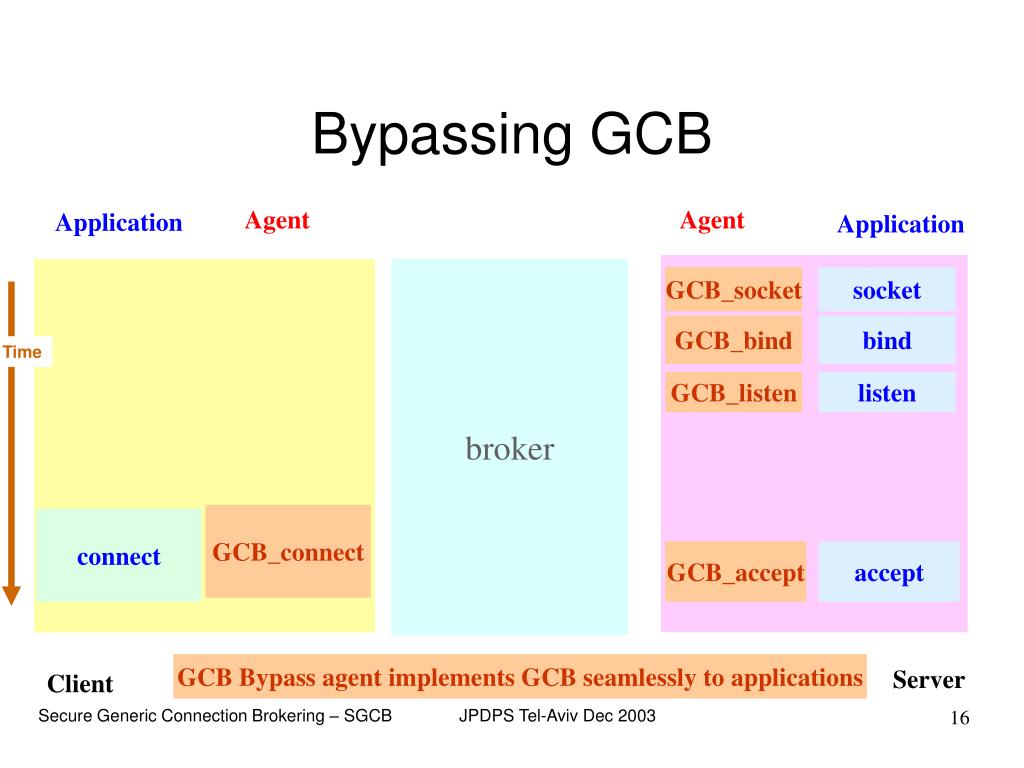

  16. Agent Agent GCB_socket GCB_bind GCB_listen GCB_connect GCB_accept GCB Bypass agent implements GCB seamlessly to applications Bypassing GCB Application Application broker socket bind Time listen connect accept Server Client Secure Generic Connection Brokering – SGCB JPDPS Tel-Aviv Dec 2003

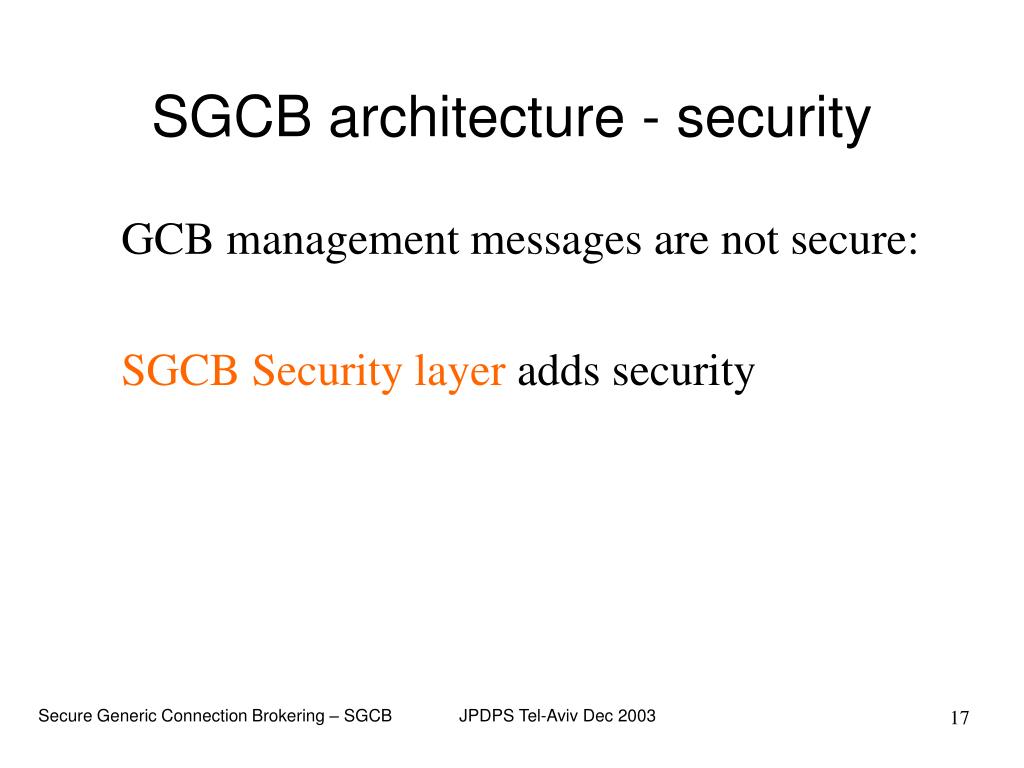

  17. SGCB architecture - security GCB management messages are not secure: SGCB Security layer adds security Secure Generic Connection Brokering – SGCB JPDPS Tel-Aviv Dec 2003

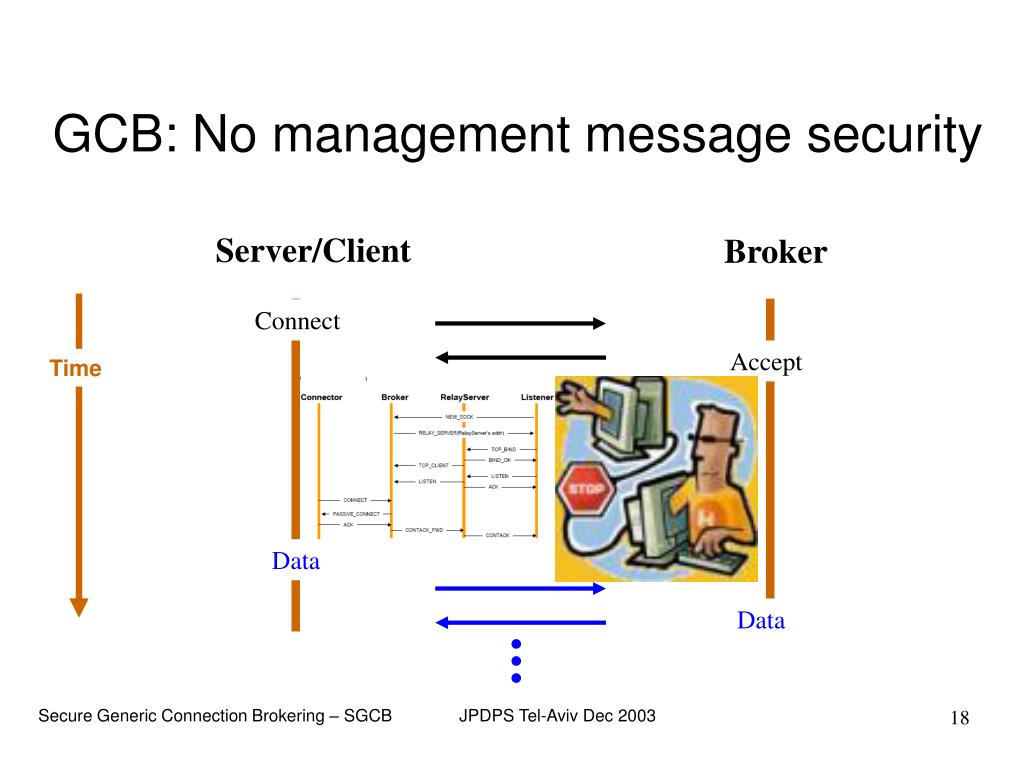

  18. GCB: No management message security Server/Client Broker Connect Accept Time Data Data Secure Generic Connection Brokering – SGCB JPDPS Tel-Aviv Dec 2003

  19. SGCB security scheme 1: trivial security Applicable for management messages Server/Client Broker Connect Time Accept AUTH_assert userid@hostname AUTH_accept userid@hostname Data Data Secure Generic Connection Brokering – SGCB JPDPS Tel-Aviv Dec 2003

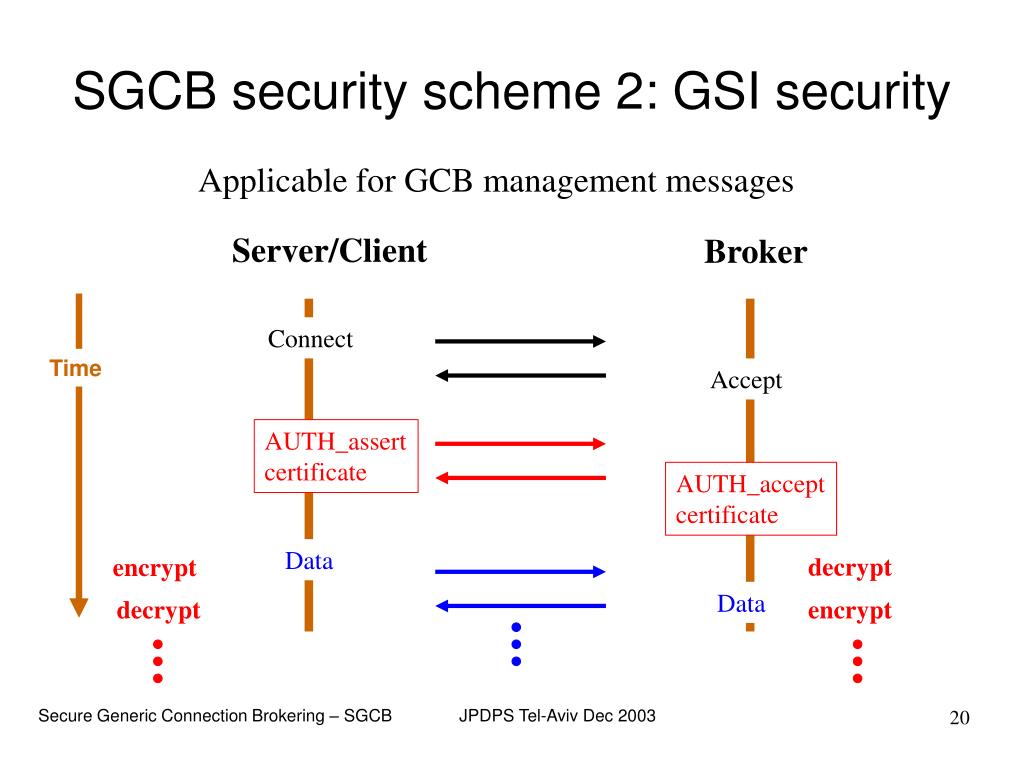

  20. SGCB security scheme 2: GSI security Applicable for GCB management messages Server/Client Broker Connect Time Accept AUTH_assert certificate AUTH_accept certificate Data decrypt encrypt Data decrypt encrypt Secure Generic Connection Brokering – SGCB JPDPS Tel-Aviv Dec 2003

  21. Broker location BrokerDMZ Server outgoing Broker incoming Client outgoing • A brokers has relaxed security policy, allowing incoming connections • It is recommended to locate a broker at a DMZ with no other computers Secure Generic Connection Brokering – SGCB JPDPS Tel-Aviv Dec 2003

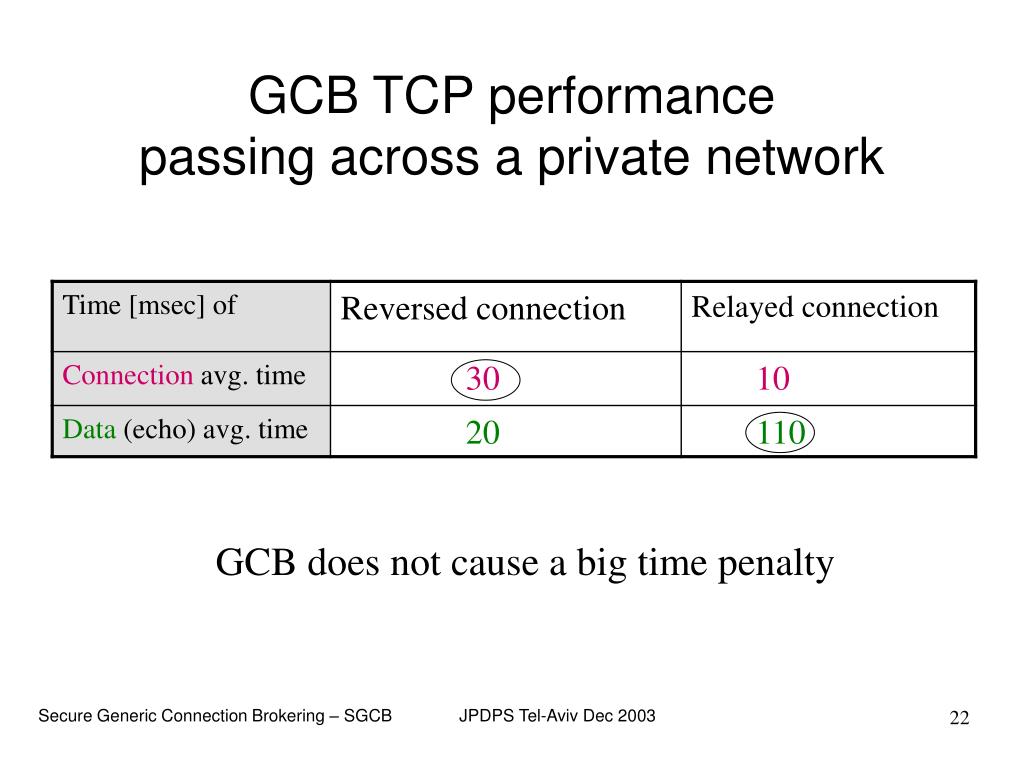

  22. GCB TCP performancepassing across a private network GCB does not cause a big time penalty Secure Generic Connection Brokering – SGCB JPDPS Tel-Aviv Dec 2003

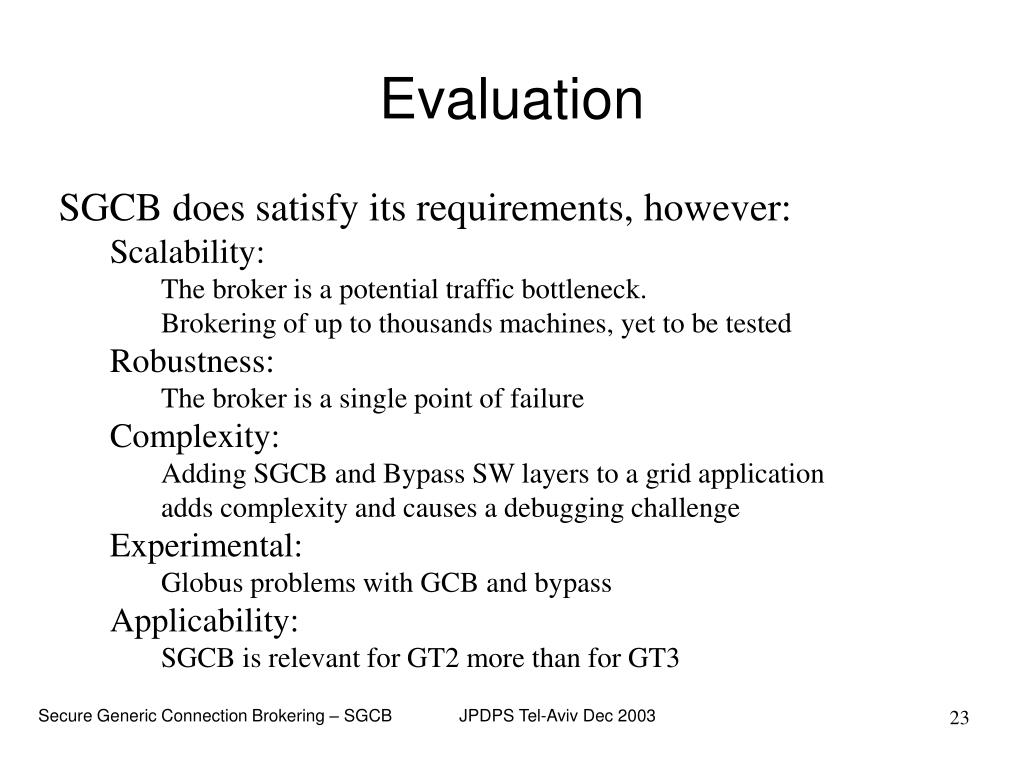

  23. Evaluation SGCB does satisfy its requirements, however: Scalability: The broker is a potential traffic bottleneck. Brokering of up to thousands machines, yet to be tested Robustness: The broker is a single point of failure Complexity: Adding SGCB and Bypass SW layers to a grid application adds complexity and causes a debugging challenge Experimental: Globus problems with GCB and bypass Applicability: SGCB is relevant for GT2 more than for GT3 Secure Generic Connection Brokering – SGCB JPDPS Tel-Aviv Dec 2003

  24. Status SGCB works with test applications: creates Bypass’ed connections across firewalls with trivial or GSI security. SGCB support for Globus is under development Secure Generic Connection Brokering – SGCB JPDPS Tel-Aviv Dec 2003

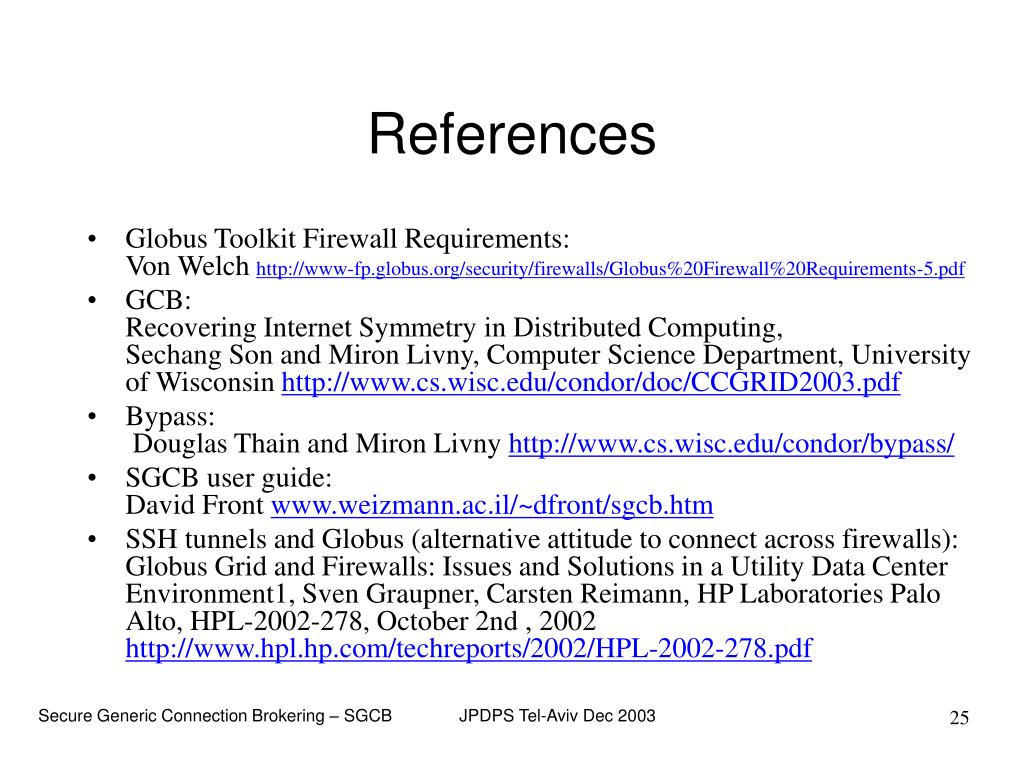

  25. References • Globus Toolkit Firewall Requirements:Von Welch http://www-fp.globus.org/security/firewalls/Globus%20Firewall%20Requirements-5.pdf • GCB: Recovering Internet Symmetry in Distributed Computing,Sechang Son and Miron Livny, Computer Science Department, University of Wisconsin http://www.cs.wisc.edu/condor/doc/CCGRID2003.pdf • Bypass: Douglas Thain and Miron Livny http://www.cs.wisc.edu/condor/bypass/ • SGCB user guide:David Front www.weizmann.ac.il/~dfront/sgcb.htm • SSH tunnels and Globus (alternative attitude to connect across firewalls):Globus Grid and Firewalls: Issues and Solutions in a Utility Data Center Environment1, Sven Graupner, Carsten Reimann, HP Laboratories Palo Alto, HPL-2002-278, October 2nd , 2002 http://www.hpl.hp.com/techreports/2002/HPL-2002-278.pdf Secure Generic Connection Brokering – SGCB JPDPS Tel-Aviv Dec 2003
