6.5.4 Define resting potential and action potential (depolarization and repolarization ).

6.5.4 Define resting potential and action potential (depolarization and repolarization ). The resting potential is measured in mV ( millivolts ) across a cell membrane when it’s not involved in an impulse. It is the membrane potential energy of a neuron membrane.

sereno
Download Presentation

6.5.4 Define resting potential and action potential (depolarization and repolarization ).

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

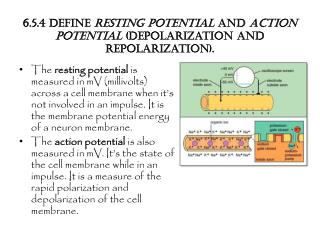

  1. 6.5.4 Define resting potential and action potential (depolarization and repolarization). • The resting potential is measured in mV (millivolts) across a cell membrane when it’s not involved in an impulse. It is the membrane potential energy of a neuron membrane. • The action potential is also measured in mV. It’s the state of the cell membrane while in an impulse. It is a measure of the rapid polarization and depolarization of the cell membrane.

  2. 6.5.5 Explain how a nerve impulse passes along a non-myelinated neuron. • If the resting potential rises above the threshold level, voltage gated channels open and sodium can diffuse into the cell down its concentration gradient. • This reduces the membrane potential and results in more sodium channels opening. Sodium ions are positively charged and so the inside of the cell develops a net positive charge (depolarization).

  3. Continued… • After this, voltage gated potassium channels open and potassium ions flow out of the cell down the concentration gradient. • Potassium ions are positively charged. The potential across the membrane is restored (repolarization). • The concentration gradients of both ions are now restored by the sodium-potassium pump. Sodium is pumped out of the cell while potassium is pumped in. The resting potential is restored and the neuron is ready to conduct another nerve impulse.
