IBM RDz (7.6) with CA Endevor Eclipse Plug-In(The Latest Update)

Helping customers achieve the consistent Application Lifecycle Management ‘workflow’ with measurable returns

Keith Allen

CA EMEA

Team Lead ALM Activities


Objective l.jpg

Objective

  • Introduce you to the Updated (Sept 09)Endevor Plug-in for working within the IBM RDz (7.5 and above)

  • Review the CA CMEW r12 integration through the Eclipse Plug in

  • Review the IBM RDz Endevor Eclipse view

  • Understand the benefits and target audience

  • See the plug-in in action, through a live demo

  • Discuss installation and support issues


Agenda l.jpg

Agenda

  • Introduction

  • Architecture

  • Demo

  • Infrastructure

  • Endevor RDz Plug in with IBM’s RDz

  • Debugging aids and tips

  • Queues and contacts

  • Q&A


Introduction l.jpg

Introduction

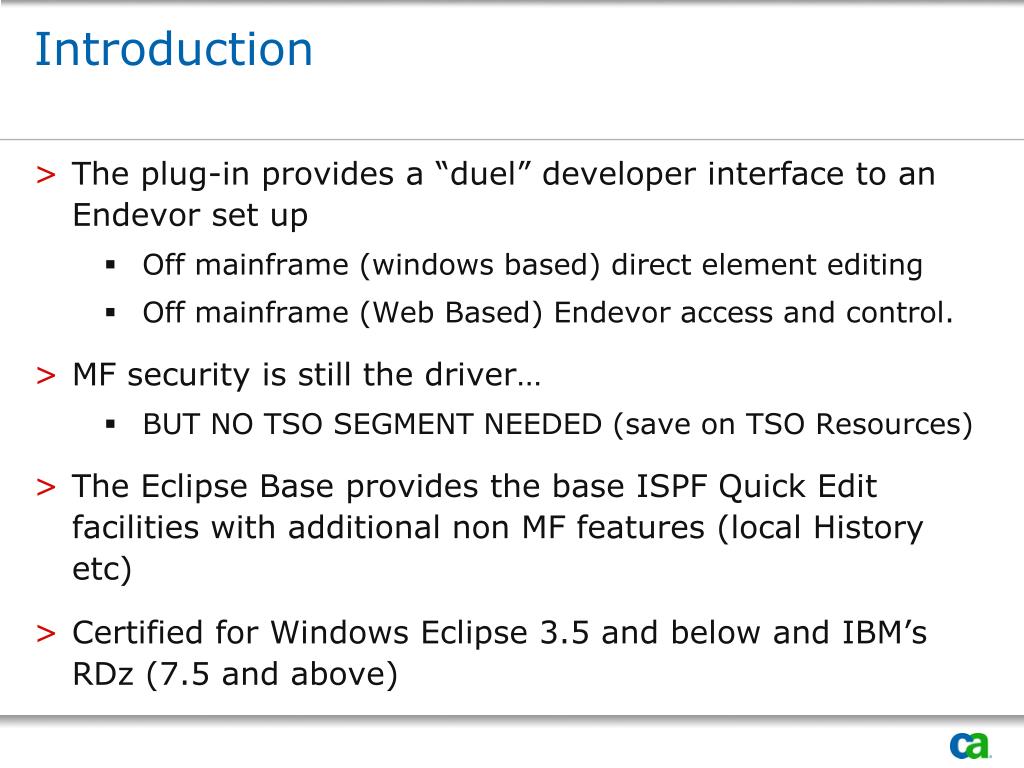

  • The plug-in provides a “duel” developer interface to an Endevor set up

    • Off mainframe (windows based) direct element editing

    • Off mainframe (Web Based) Endevor access and control.

  • MF security is still the driver…

    • BUT NO TSO SEGMENT NEEDED (save on TSO Resources)

  • The Eclipse Base provides the base ISPF Quick Edit facilities with additional non MF features (local History etc)

  • Certified for Windows Eclipse 3.5 and below and IBM’s RDz (7.5 and above)


Introduction5 l.jpg

Introduction

  • What do developers do?

    • Browse elements

    • View processor output

    • Modify elements and rebuild executables

    • Require remote debugging facilities


What is the endevor with rdz plug in l.jpg

What is the Endevor with RDz Plug-in?


Architecture diagram l.jpg

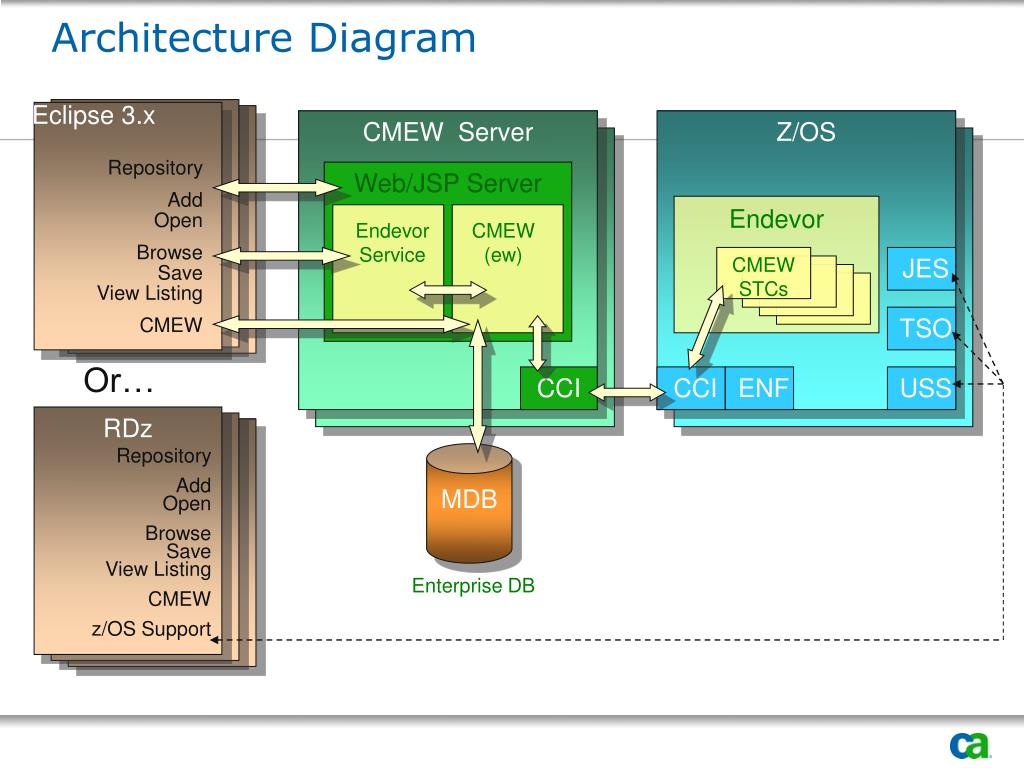

Architecture Diagram

Eclipse 3.x

CMEW Server

Z/OS

Repository

AddOpen

BrowseSaveView Listing

CMEW

Web/JSP Server

Endevor

EndevorService

CMEW(ew)

CMEW STCs

JES

TSO

Or…

CCI

CCI

ENF

USS

RDz

Repository

AddOpen

BrowseSaveView Listing

CMEW

z/OS Support

MDB

Enterprise DB


Prerequisites for the plug in l.jpg

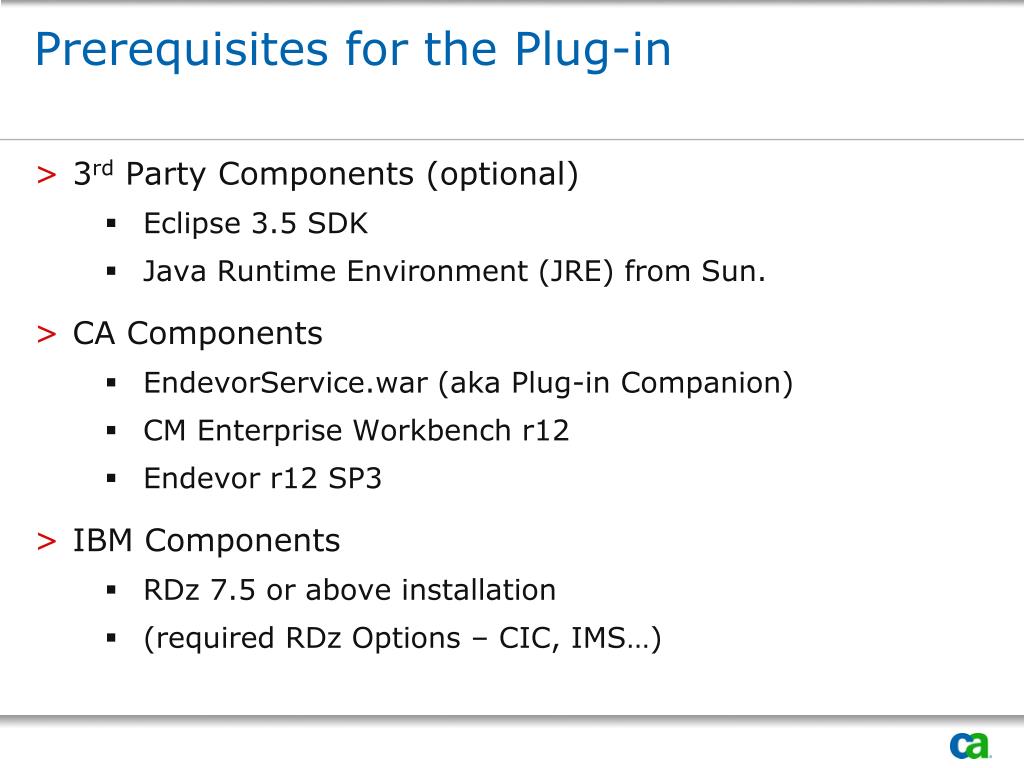

Prerequisites for the Plug-in

  • 3rd Party Components (optional)

    • Eclipse 3.5 SDK

    • Java Runtime Environment (JRE) from Sun.

  • CA Components

    • EndevorService.war (aka Plug-in Companion)

    • CM Enterprise Workbench r12

    • Endevor r12 SP3

  • IBM Components

    • RDz 7.5 or above installation

    • (required RDz Options – CIC, IMS…)


It s demo time l.jpg

IT’S Demo Time!

  • Workflow detailed in online help

    • Create Repository

    • Create Project(s)

    • Select elements of interest

    • Wash, Rinse, Repeat

    • Delete Project

    • Delete Repository


Slide10 l.jpg

Demo


The technical elements l.jpg

The Technical Elements


The endevor rdz perspective l.jpg

The Endevor RDz Perspective


The general endevor perspective view l.jpg

The General Endevor Perspective View


Defining the repository l.jpg

Defining the Repository


And the results l.jpg

And the results

Repository View

Search Map View

Endevor Log View

Element View


Define a project l.jpg

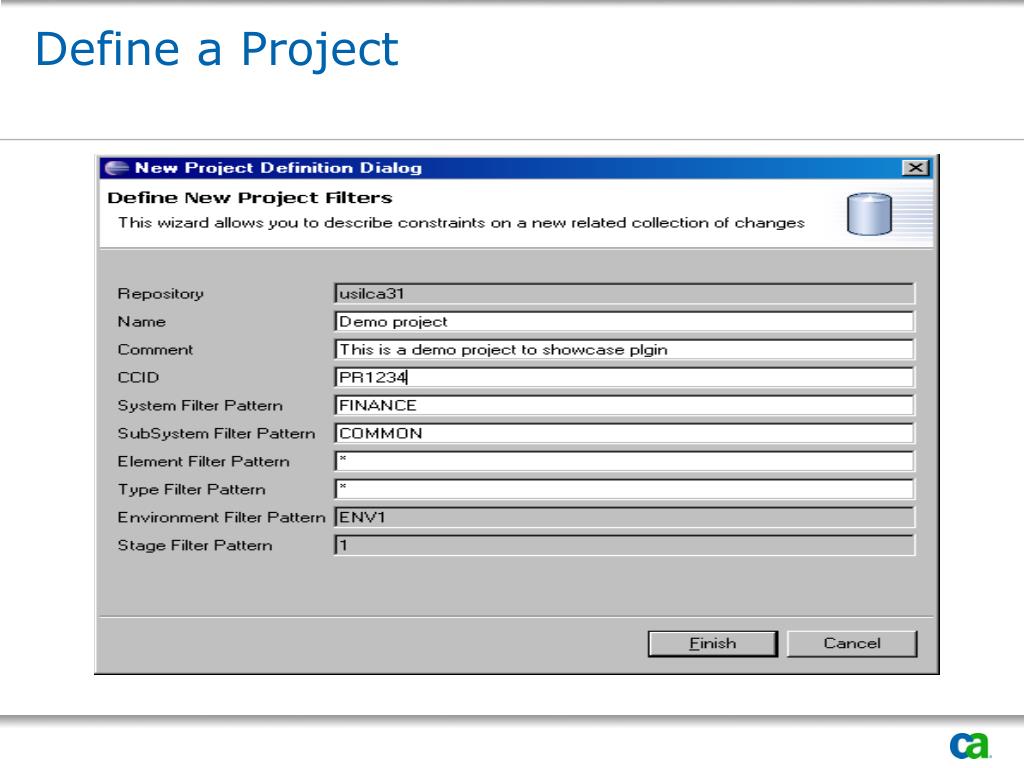

Define a Project


Again the results l.jpg

Again, the results


Add an element to a project l.jpg

Add an element to a project

The Element View


New element in sandbox entry stage l.jpg

New element in sandbox (entry stage)


Endevor log entry l.jpg

Endevor Log entry


Browse element l.jpg

Browse Element


Deleting a project l.jpg

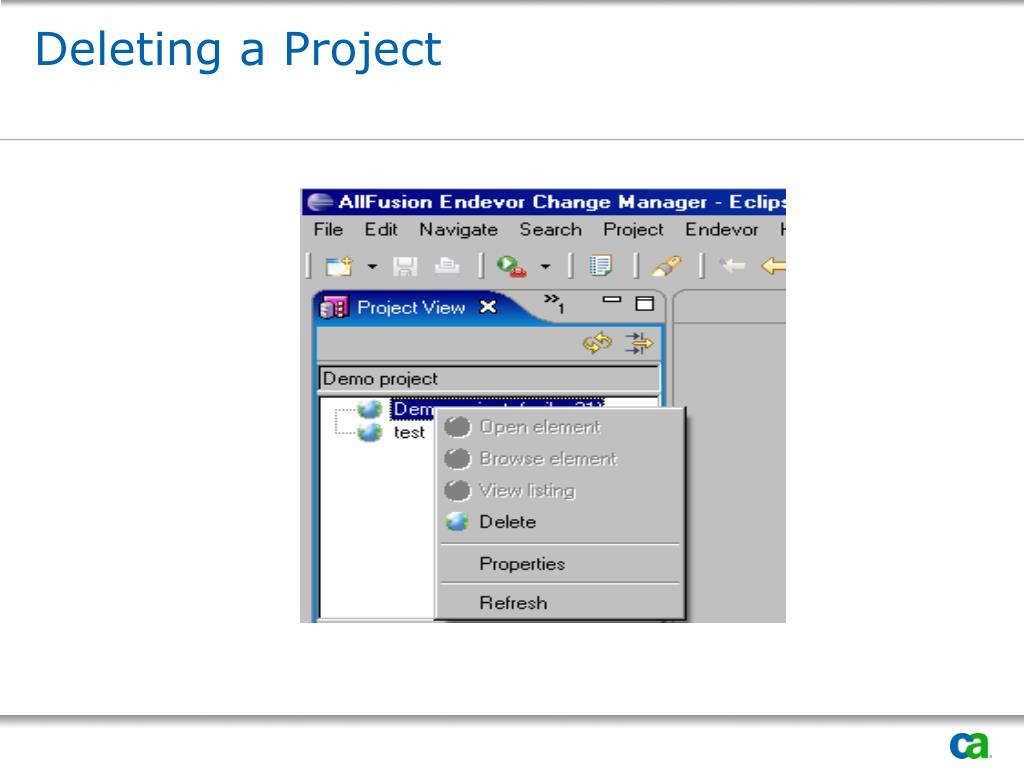

Deleting a Project


Adding element to project l.jpg

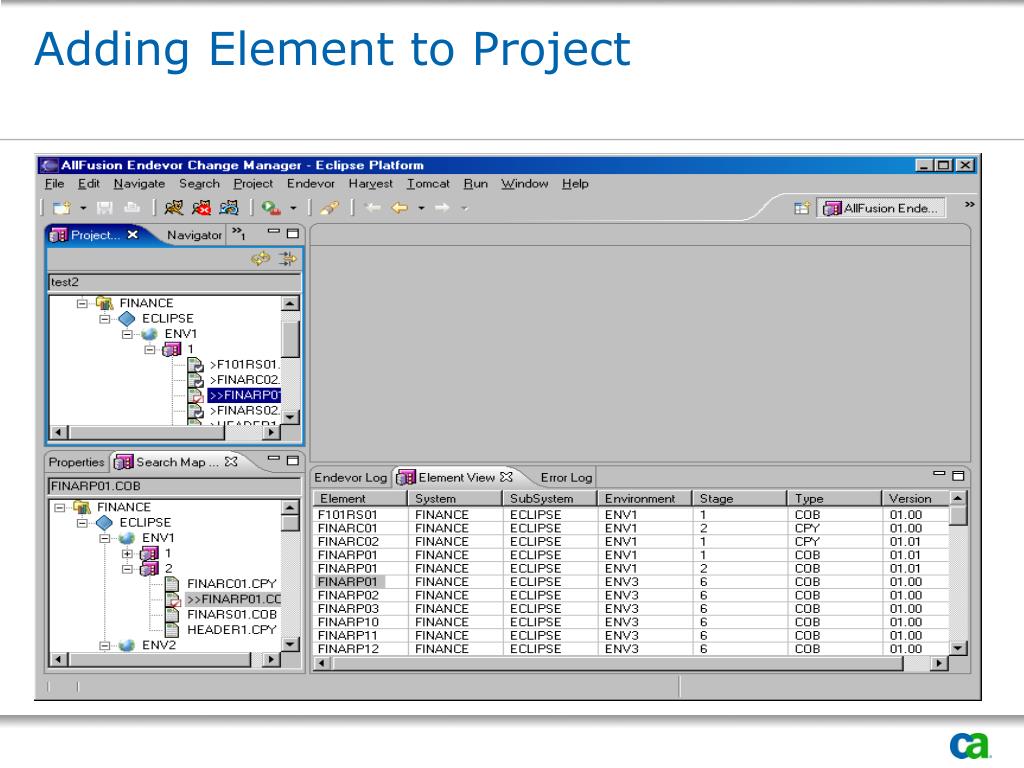

Adding Element to Project

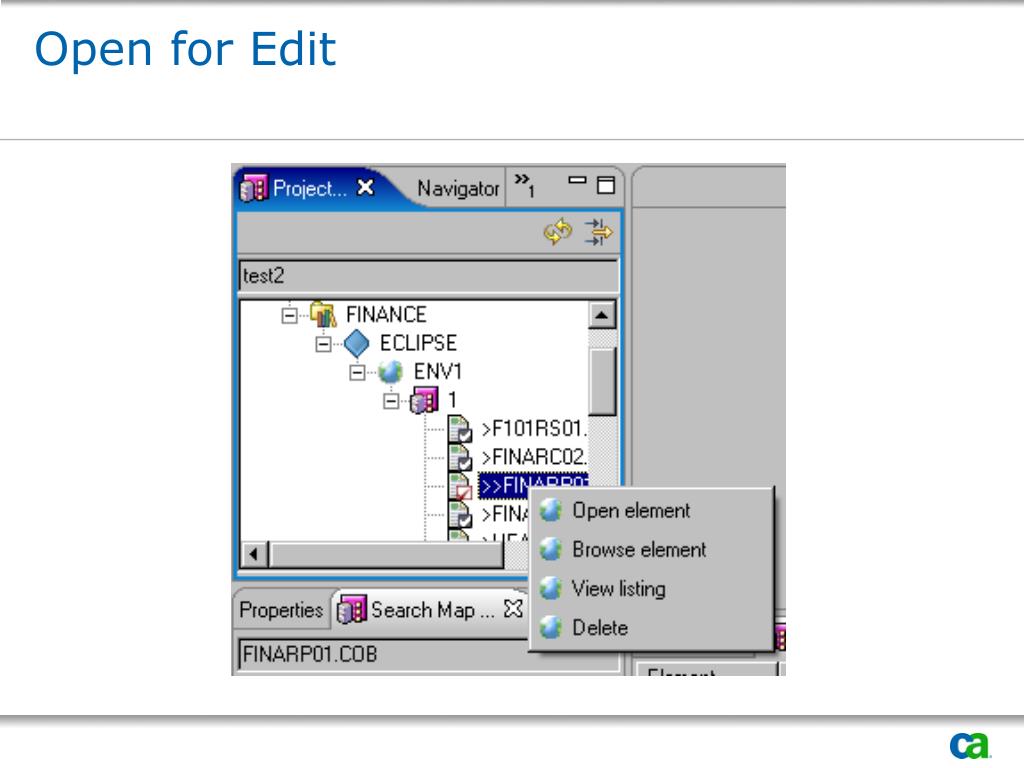

Open for edit l.jpg

Open for Edit

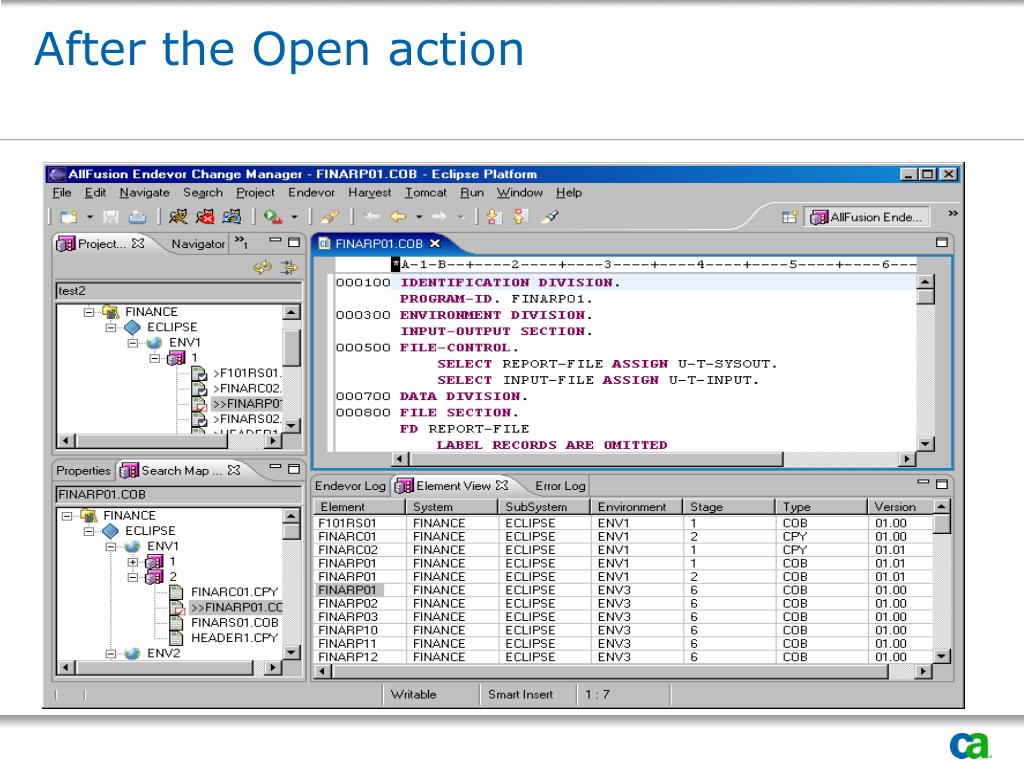

After the open action l.jpg

After the Open action


Slide26 l.jpg

Save


Check the output l.jpg

Check the output


Repeat as necessary l.jpg

Repeat as necessary


Default context actions l.jpg

Default Context Actions

  • Project View – Open (for update)

  • Search Map and Element Views - Browse


Adding a new element l.jpg

Adding a new element

  • Add Navigator View to perspective (Windows->add View->Navigator

  • Select file to add or File->new->File

  • Edit new file

  • On Navigator view select new file right click->Team->add to Endevor


Access to cmew l.jpg

Access to CMEW

  • Endevor->AllFusion Enterprise CM


Global settings l.jpg

Global settings


Entry stage cleanup l.jpg

Entry Stage Cleanup

  • Delete on the element context menu deletes the element from the entry stage.


The rdz perspective l.jpg

The RDz Perspective


The general rdz view opening rdz l.jpg

The General RDz View – Opening RDz


The general rdz view l.jpg

The General RDz View


The general rdz view37 l.jpg

The General RDz View


The general rdz view38 l.jpg

The General RDz View


The general rdz view39 l.jpg

The General RDz View


The general rdz view40 l.jpg

The General RDz View


Slide41 l.jpg

CA Software Change Manager Interface with Eclipse

Schematic of Eclipse RDz à  CA CMEW à CA Endevor


Slide42 l.jpg

Preview: RDz with Endevor Plug-In Adding EGL Source via CMEW


Slide43 l.jpg

Preview: RDz with Endevor Plug-In Adding EGL Source via CMEW

Package EGL Source and Store In Endevor

Within the RDz Project Explorer it is a simple Copy from the EGL Package and Paste over the Endevor Project to prepare to add EGL into CA Endevor on z/OS. Then Update the Endevor Project with the appropriate Change Control Identifier (CCID to relate all objects) from your existing Change number for the new application (or enhancement). Then use the Team (drop-down) to add to Endevor). The only prompt is for the Processor Group – EGL. Then the egl (with the long or short names) are propagated to CA Endevor. The Endevor Log will identify the results.

Ensure Relationship Between EGL Source and Generated Cobol

As part of the RDz Generate – COBOL source (and any ancillary files) are passed to a JCL processes executed on the z/OS. This process has an Endevor step that adds these objects into Endevor and runs a Process (Pre-compile, Compile and optional Bind) using the CCID specified as a comment. Now the EGL and COBOL source is related with the CCID.  All elements (current and previous) can be returned to RDz via this unique CCID.

(Note: DB2 DDL can also be implemented as objects in CA Endevor from RDz).


Slide44 l.jpg

Q&A
