  1. Plate Tectonics 6.E.2.2 Explain how crustal plates and ocean basins are formed, moveand interact using earthquakes, heat flow and volcanoes to reflect forces within the earth.

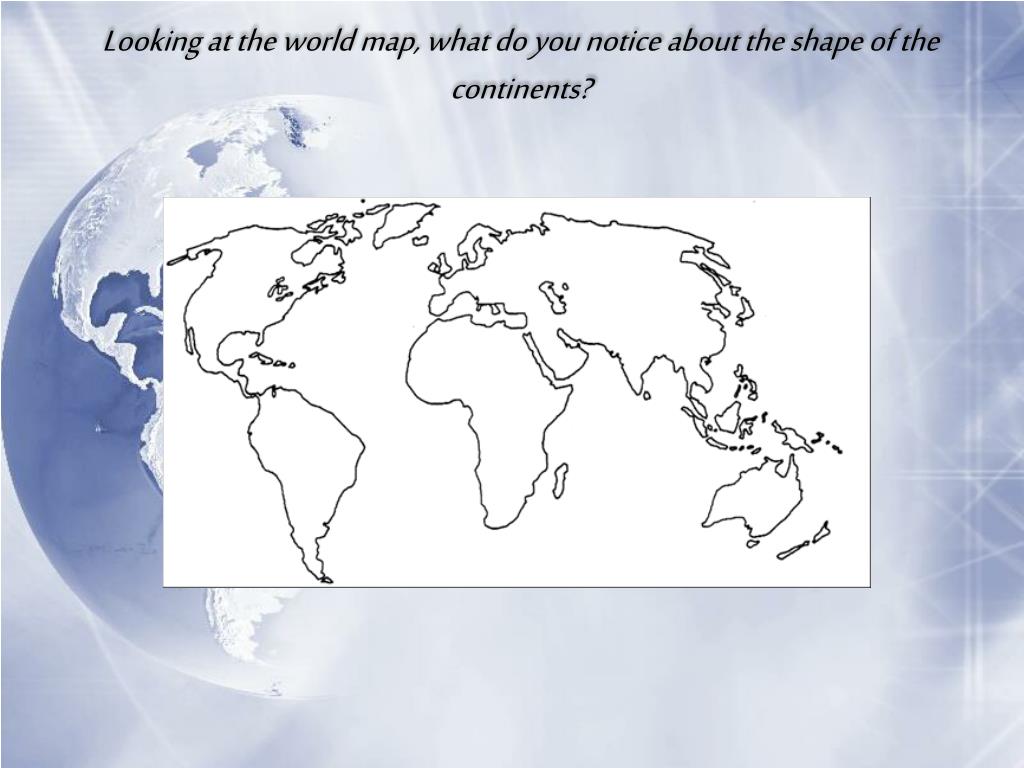

  2. Looking at the world map, what do you notice about the shape of the continents?

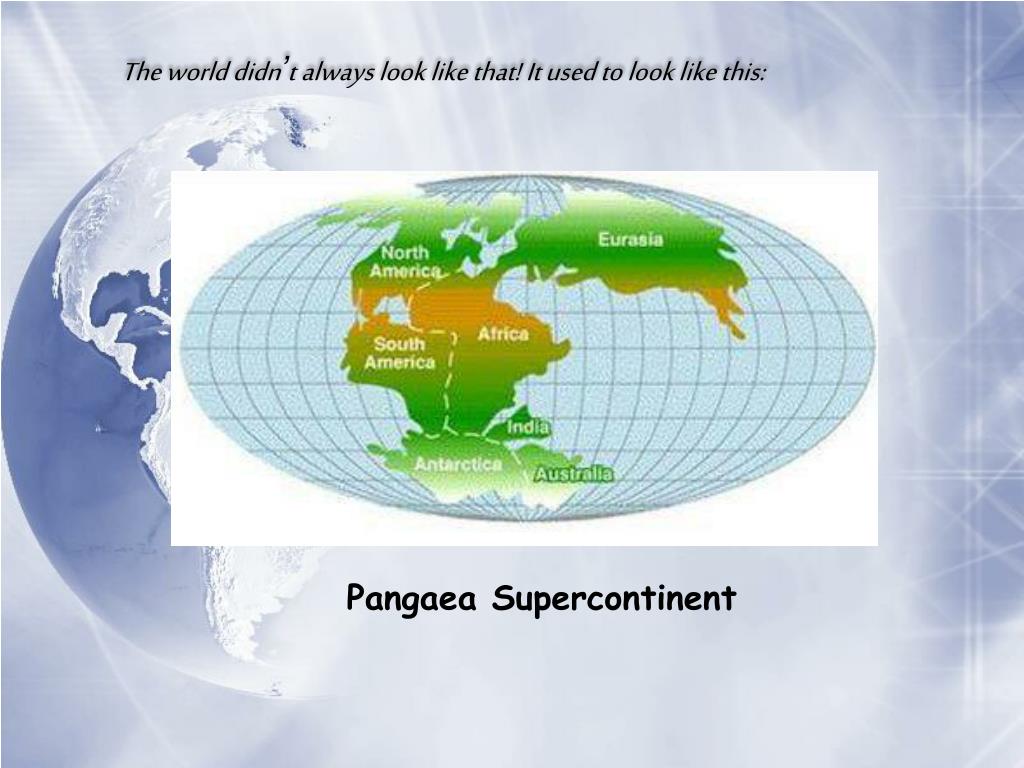

  3. The world didn’t always look like that! It used to look like this: Pangaea Supercontinent

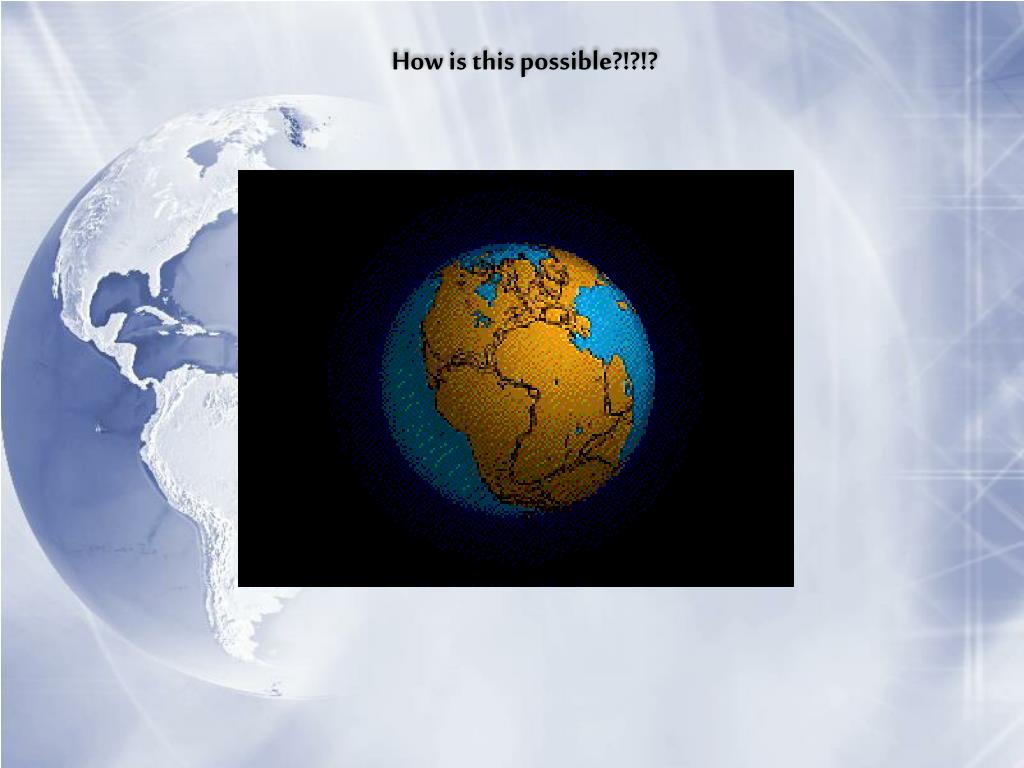

  4. How is this possible?!?!?

  5. Plate Tectonics Theory The lithosphere is divided into a number of large and small plates and the plates are floating on the mantle Lithosphere = the Earth’scrustplus the upper portion of themantlelayer

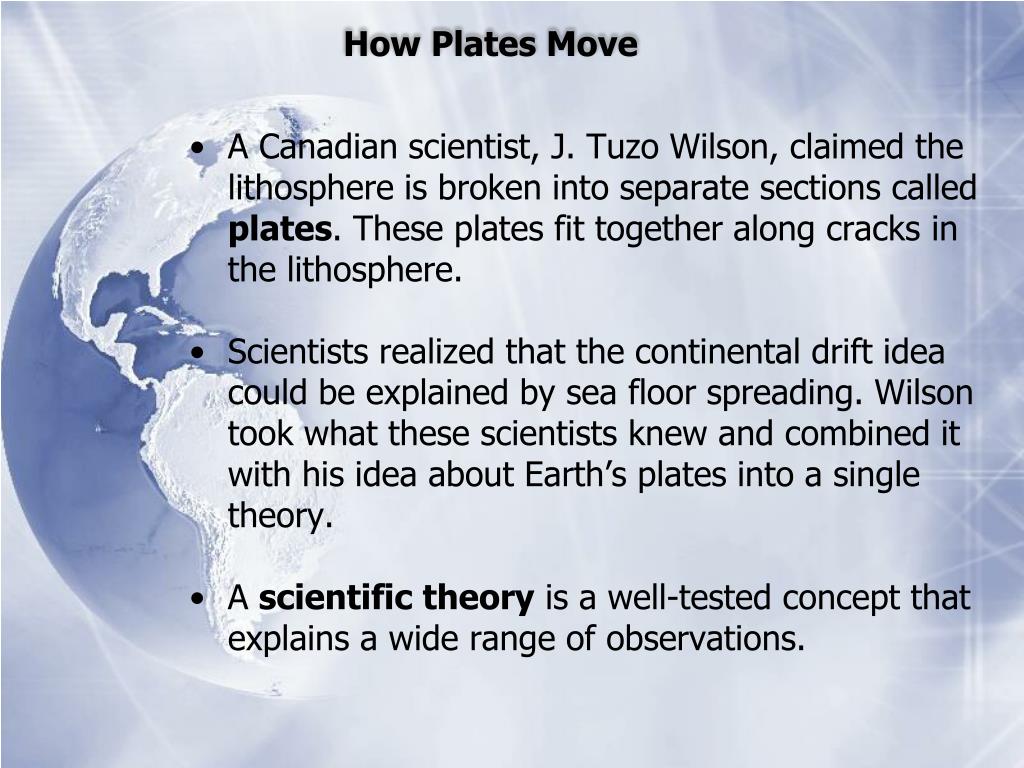

  6. How Plates Move • A Canadian scientist, J. Tuzo Wilson, claimed the lithosphere is broken into separate sections called plates. These plates fit together along cracks in the lithosphere. • Scientists realized that the continental drift idea could be explained by sea floor spreading. Wilson took what these scientists knew and combined it with his idea about Earth’s plates into a single theory. • A scientific theory is a well-tested concept that explains a wide range of observations.

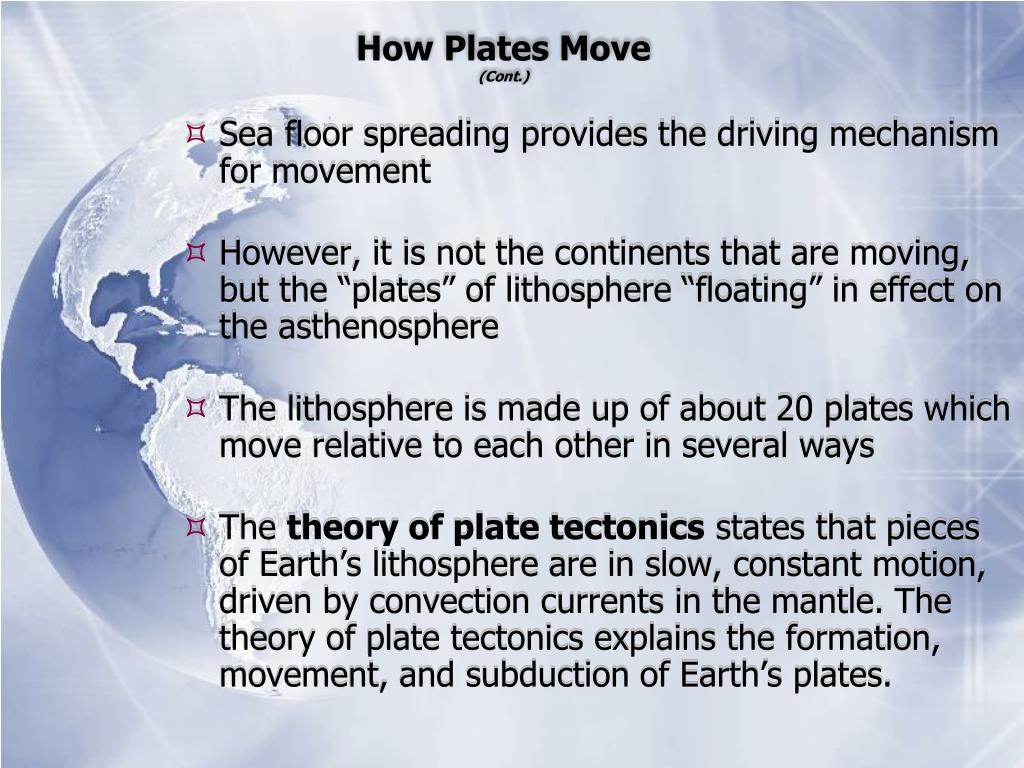

  7. How Plates Move(Cont.) • Sea floor spreading provides the driving mechanism for movement • However, it is not the continents that are moving, but the “plates” of lithosphere “floating” in effect on the asthenosphere • The lithosphere is made up of about 20 plates which move relative to each other in several ways • The theory of plate tectonics states that pieces of Earth’s lithosphere are in slow, constant motion, driven by convection currents in the mantle. The theory of plate tectonics explains the formation, movement, and subduction of Earth’s plates.

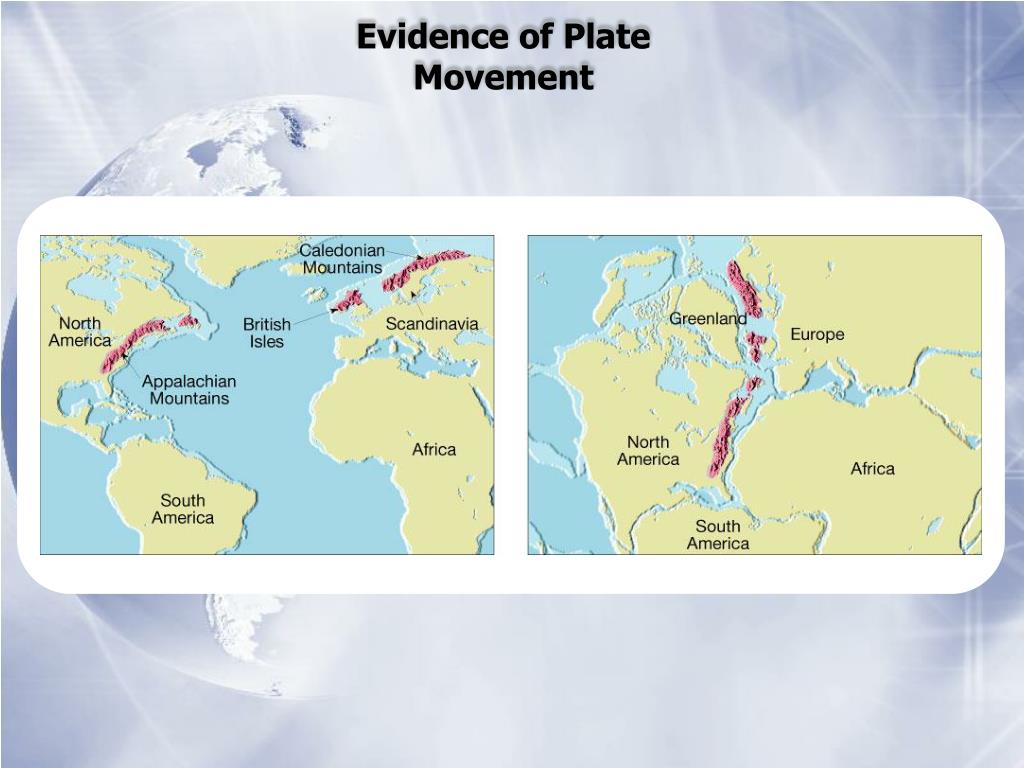

  8. Evidence of Plate Movement

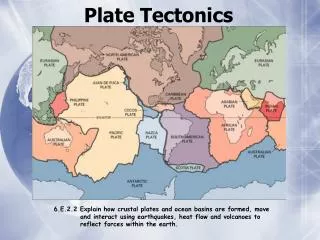

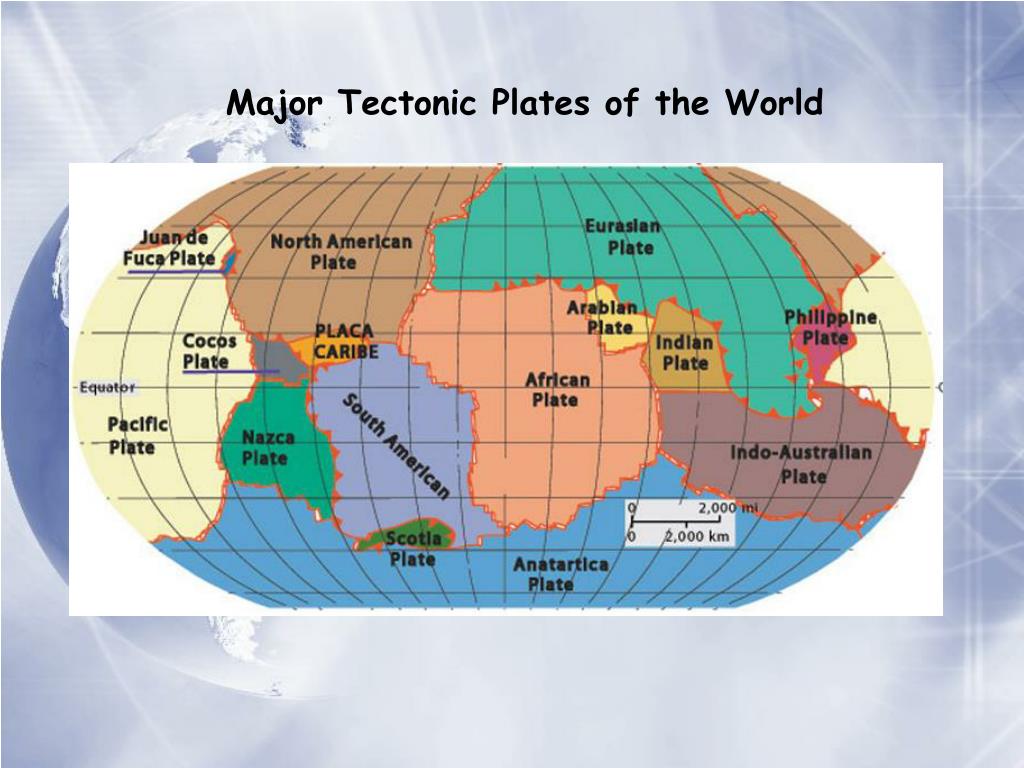

  9. Major Tectonic Plates of the World

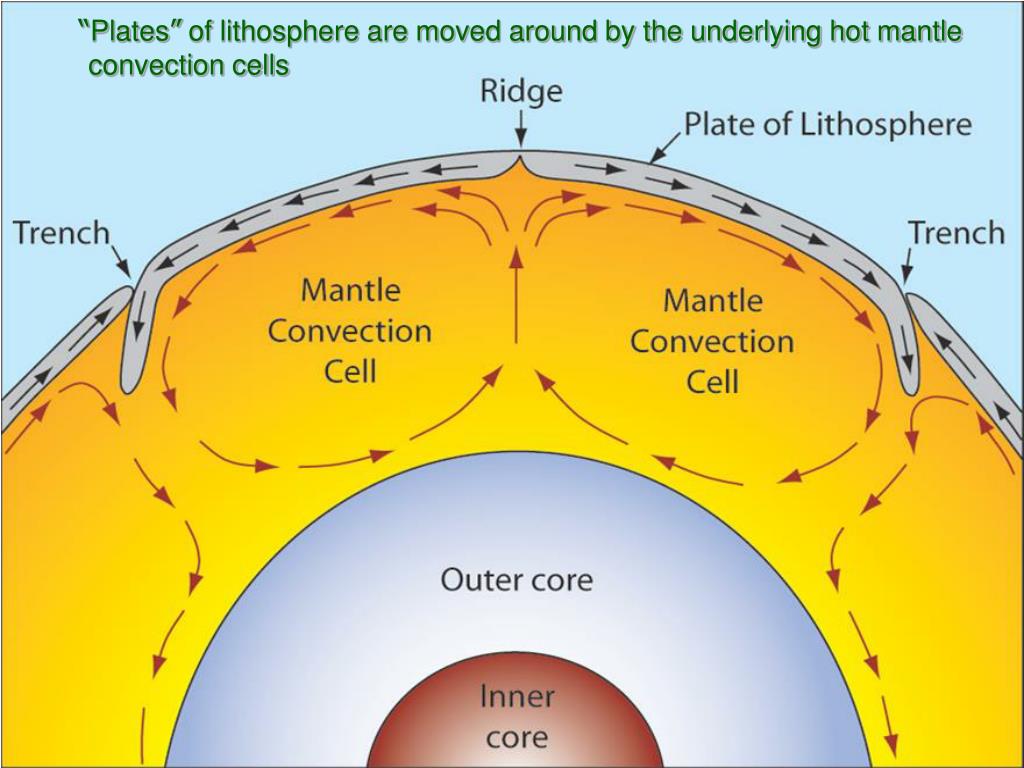

  10. “Plates” of lithosphere are moved around by the underlying hot mantleconvection cells

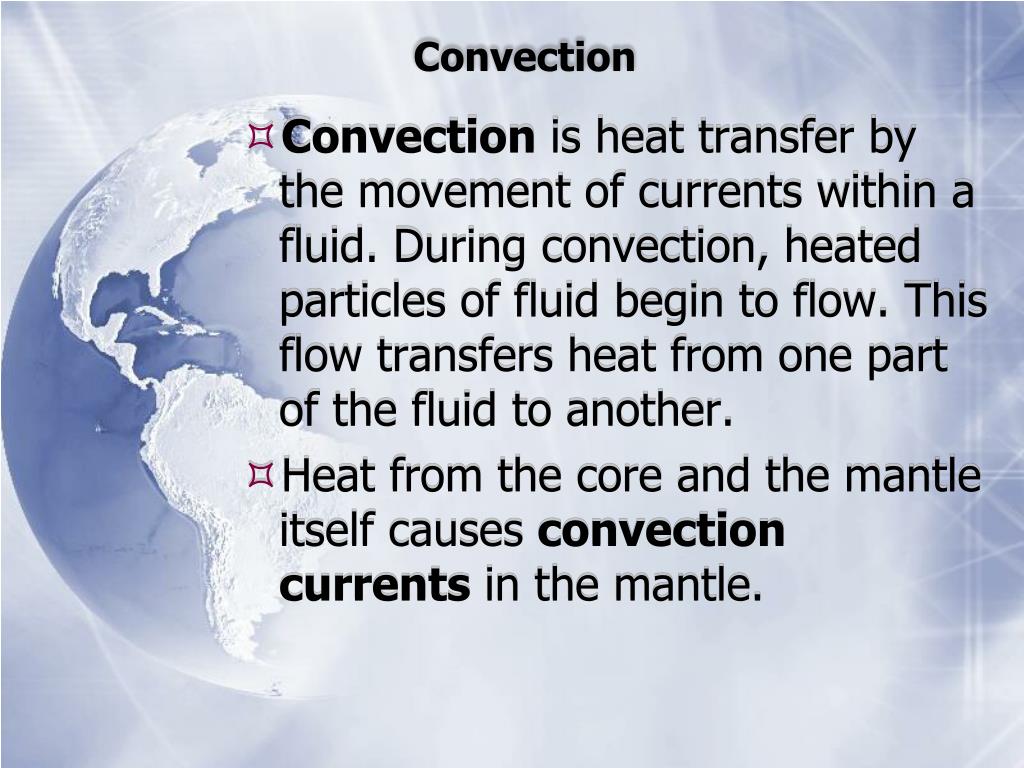

  11. Convection • Convection is heat transfer by the movement of currents within a fluid. During convection, heated particles of fluid begin to flow. This flow transfers heat from one part of the fluid to another. • Heat from the core and the mantle itself causes convection currents in the mantle.

  12. Examples of Convection

  13. Examples of Convection(Cont.)

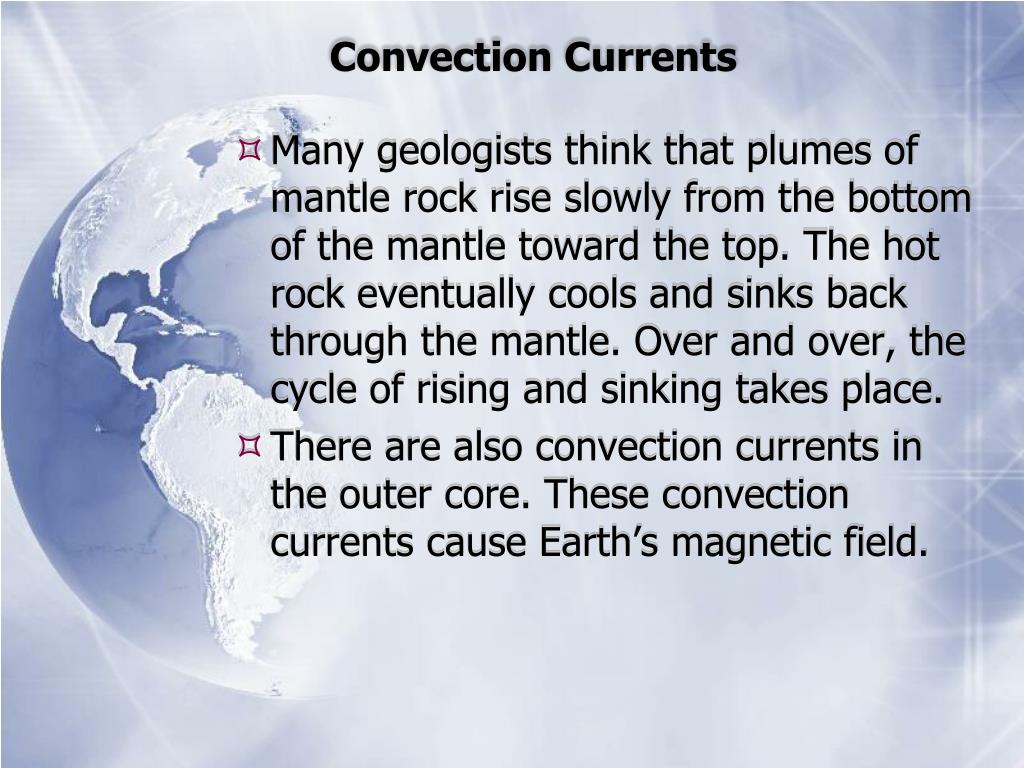

  14. Convection Currents • Many geologists think that plumes of mantle rock rise slowly from the bottom of the mantle toward the top. The hot rock eventually cools and sinks back through the mantle. Over and over, the cycle of rising and sinking takes place. • There are also convection currents in the outer core. These convection currents cause Earth’s magnetic field.

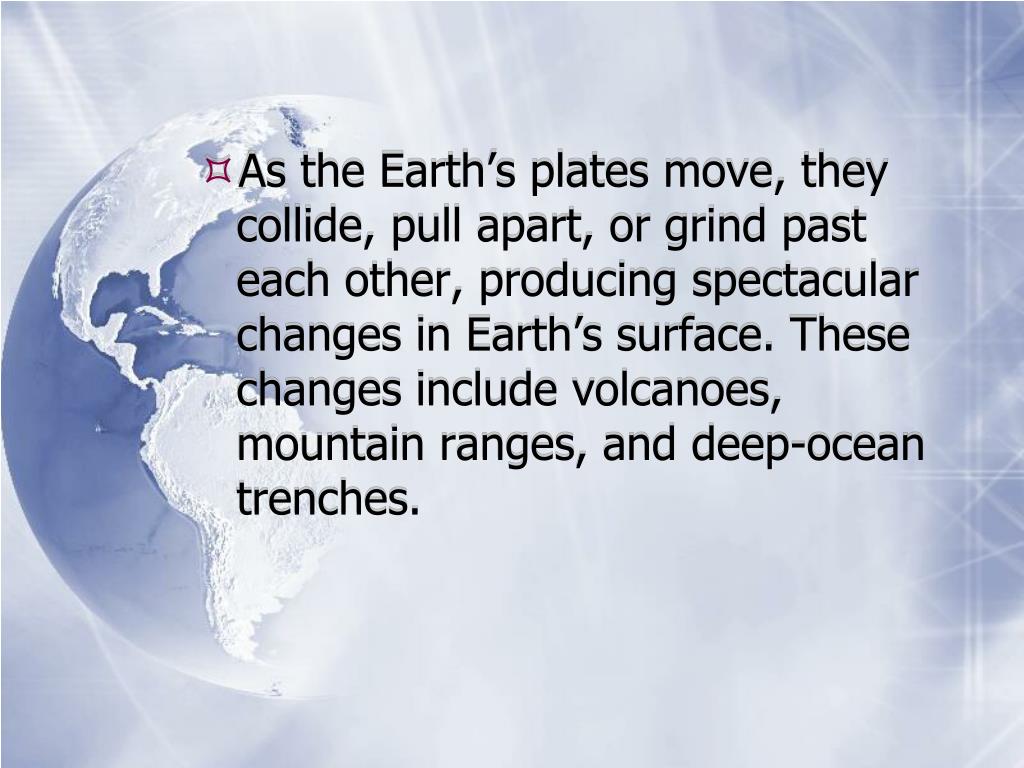

  15. As the Earth’s plates move, they collide, pull apart, or grind past each other, producing spectacular changes in Earth’s surface. These changes include volcanoes, mountain ranges, and deep-ocean trenches.

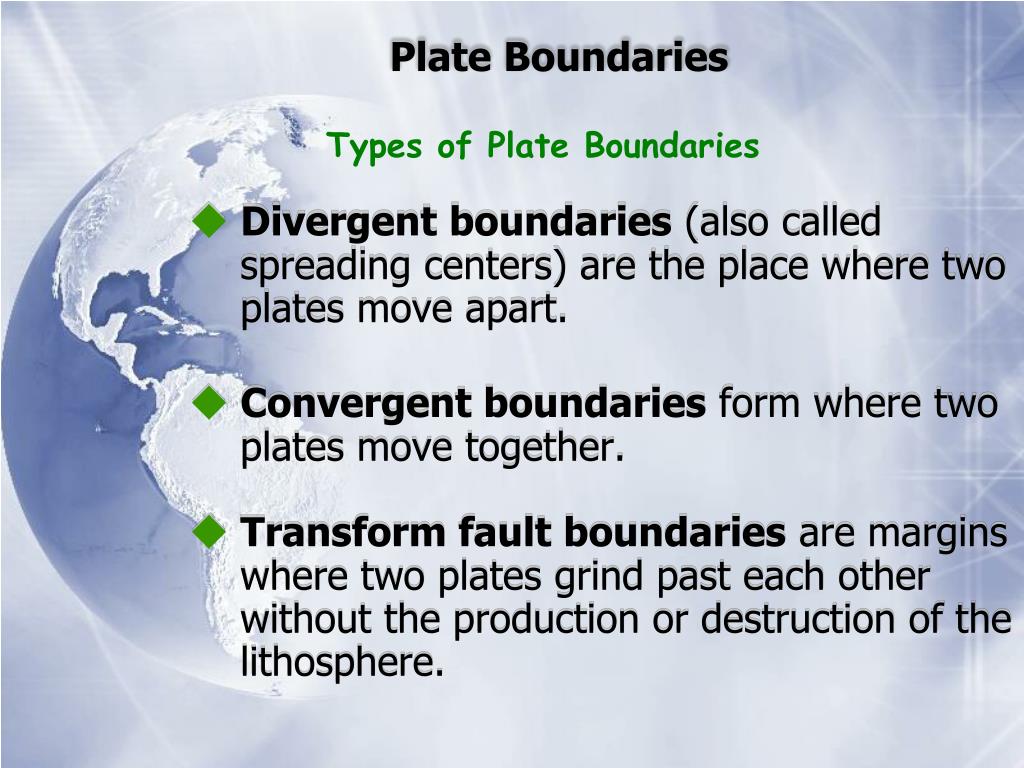

  16. Plate Boundaries Types of Plate Boundaries  Divergent boundaries (also called spreading centers) are the place where two plates move apart.  Convergent boundaries form where two plates move together.  Transform fault boundaries are margins where two plates grind past each other without the production or destruction of the lithosphere.

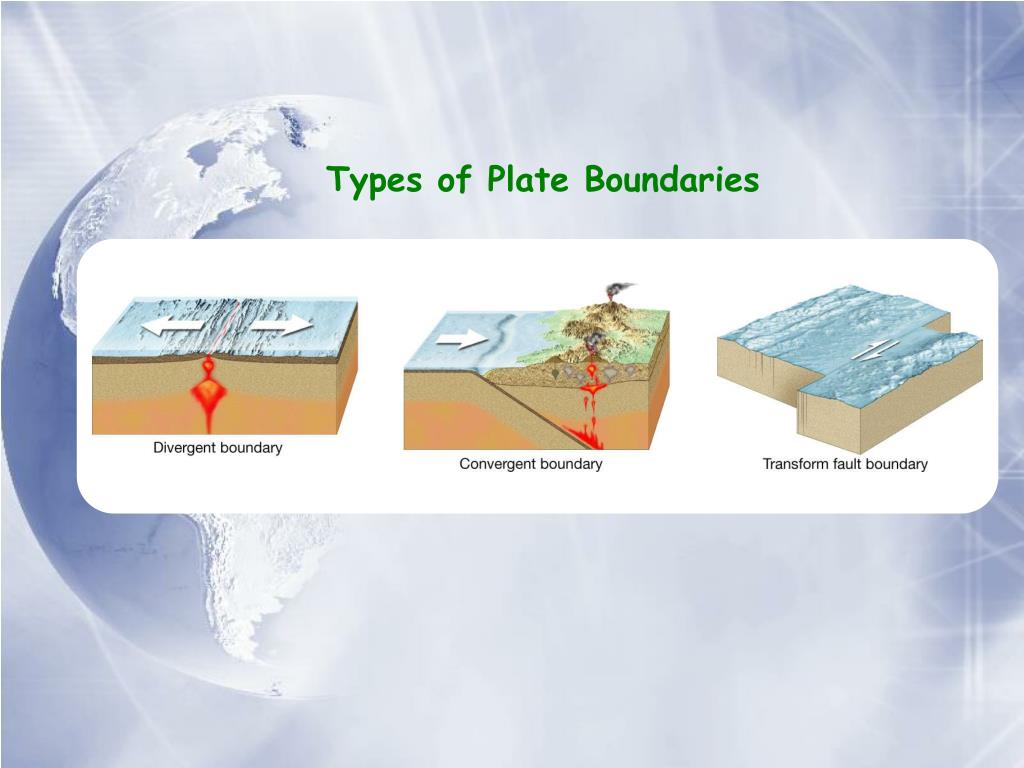

  17. Types of Plate Boundaries

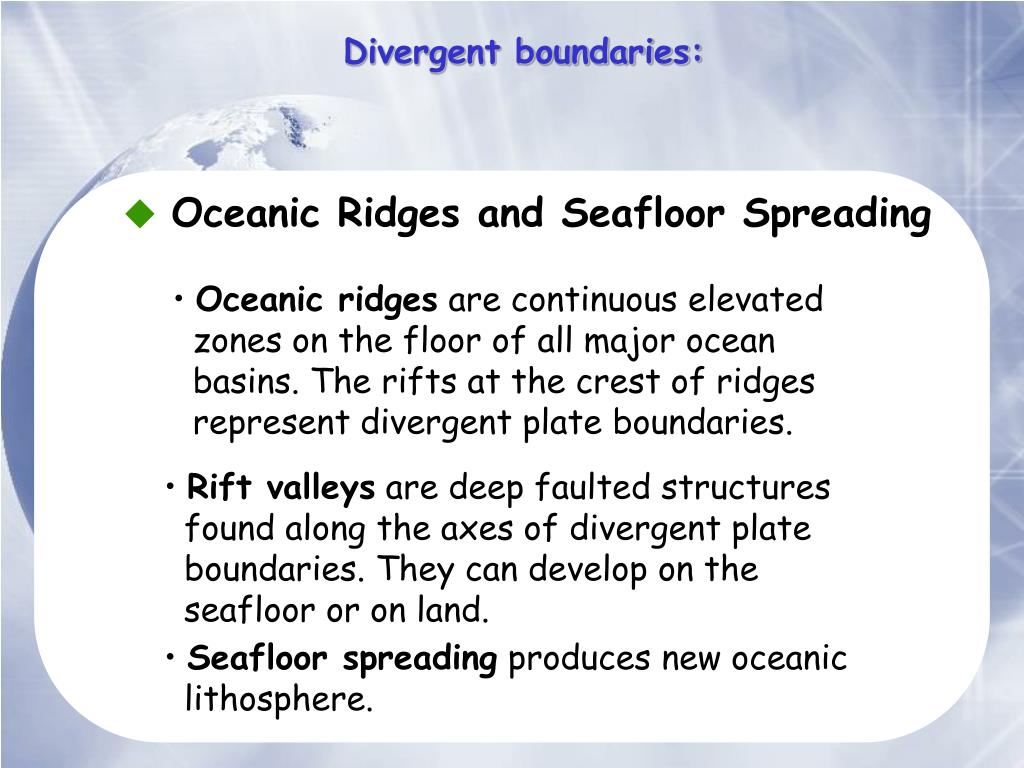

  18.  Oceanic Ridges and Seafloor Spreading Divergent boundaries: • Oceanic ridges are continuous elevated zones on the floor of all major ocean basins. The rifts at the crest of ridges represent divergent plate boundaries. • Rift valleys are deep faulted structures found along the axes of divergent plate boundaries. They can develop on the seafloor or on land. • Seafloor spreading produces new oceanic lithosphere.

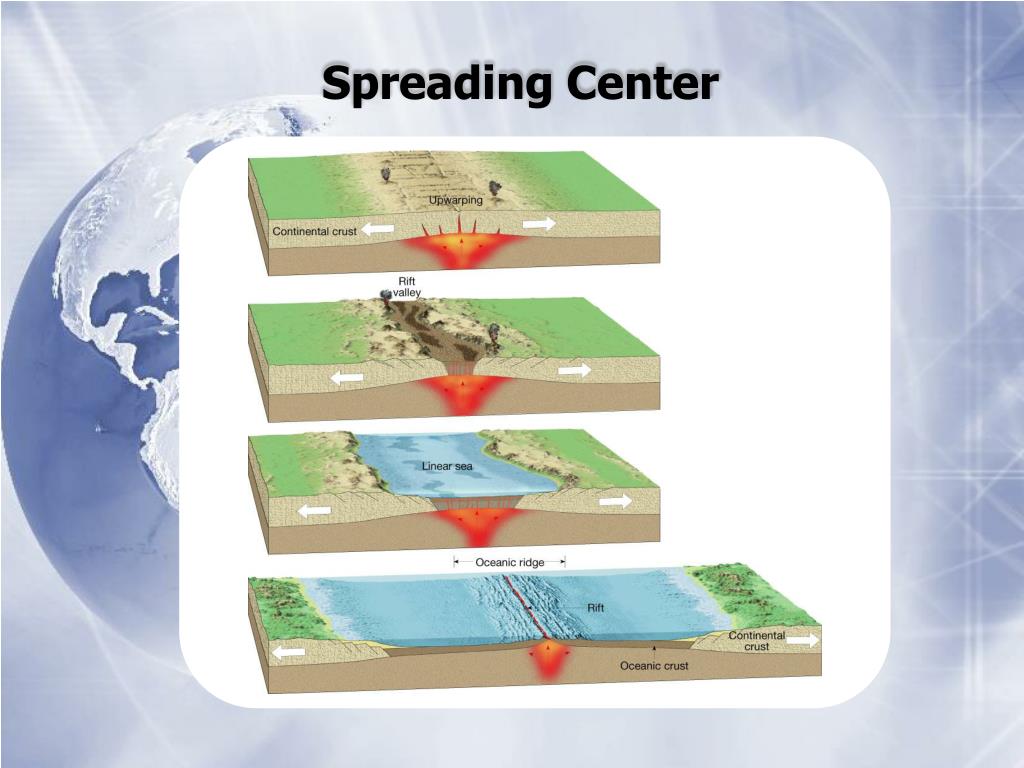

  19. Spreading Center

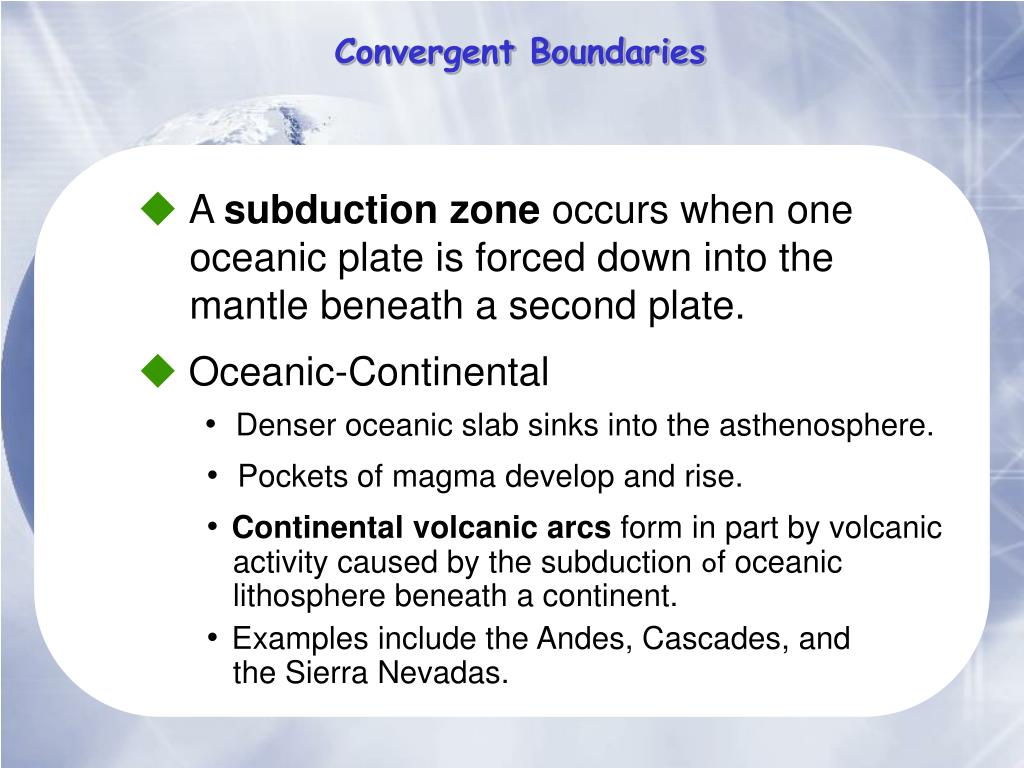

  20. Convergent Boundaries  A subduction zone occurs when one oceanic plate is forced down into the mantle beneath a second plate.  Oceanic-Continental • Denser oceanic slab sinks into the asthenosphere. • Pockets of magma develop and rise. • Continental volcanic arcs form in part by volcanic activity caused by the subduction of oceanic lithosphere beneath a continent. • Examples include the Andes, Cascades, and the Sierra Nevadas.

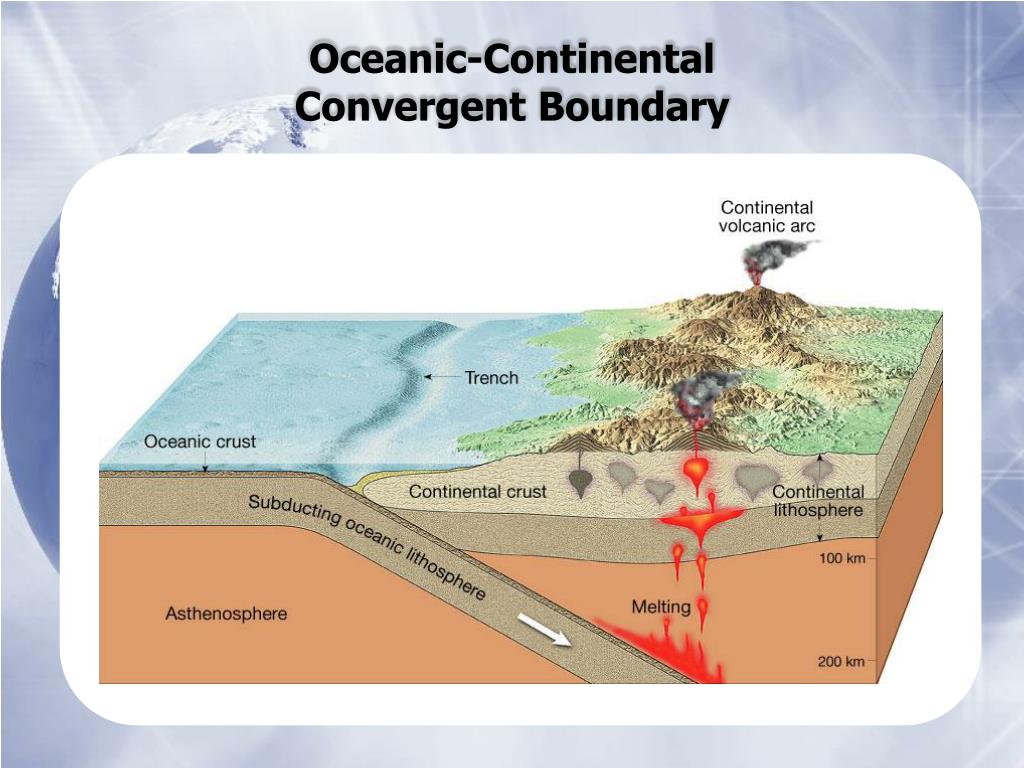

  21. Oceanic-Continental Convergent Boundary

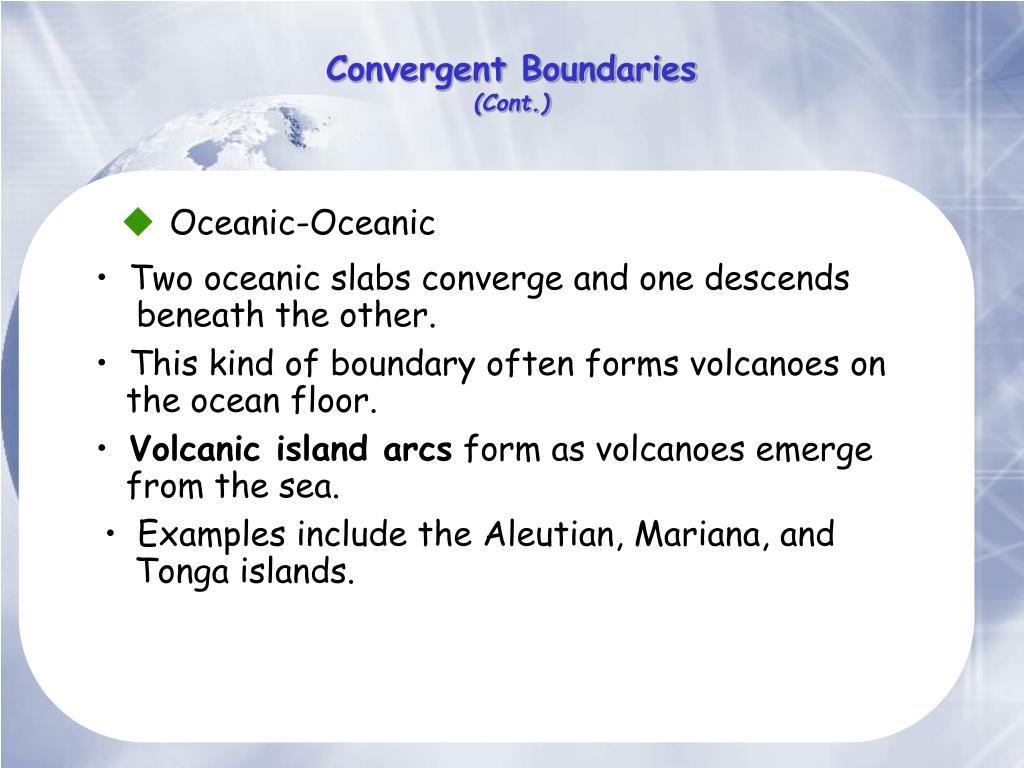

  22. Convergent Boundaries(Cont.)  Oceanic-Oceanic • Two oceanic slabs converge and one descends beneath the other. • This kind of boundary often forms volcanoes on the ocean floor. • Volcanic island arcs form as volcanoes emerge from the sea. • Examples include the Aleutian, Mariana, and Tonga islands.

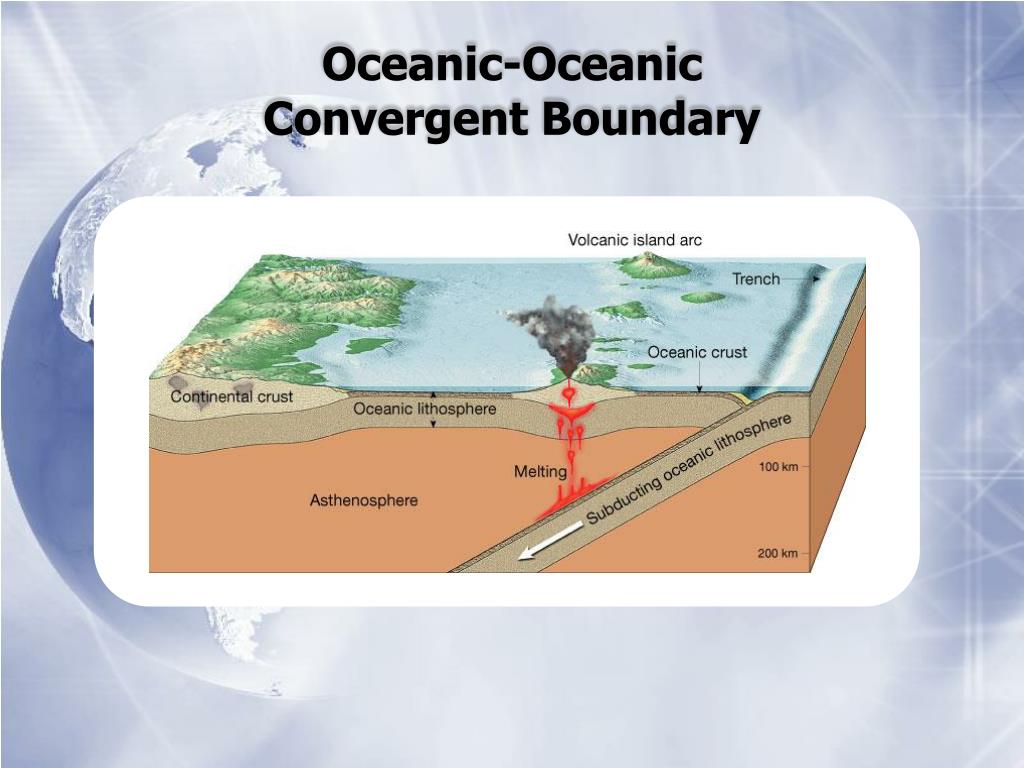

  23. Oceanic-Oceanic Convergent Boundary

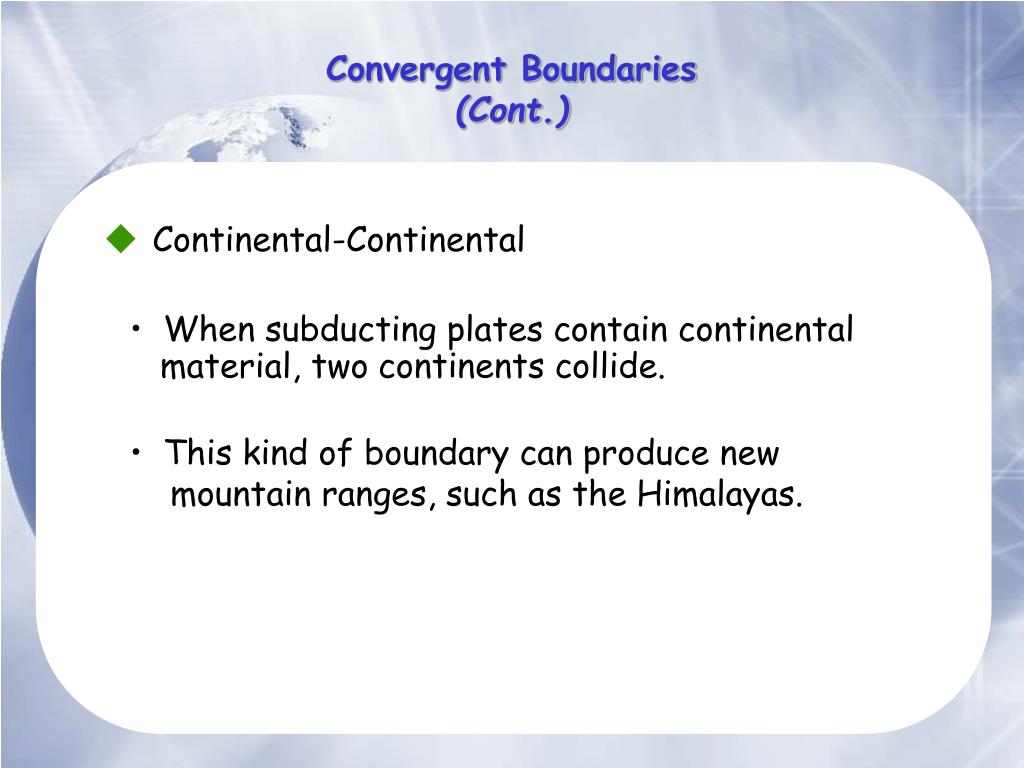

  24. Convergent Boundaries(Cont.)  Continental-Continental • When subducting plates contain continental material, two continents collide. • This kind of boundary can produce new mountain ranges, such as the Himalayas.

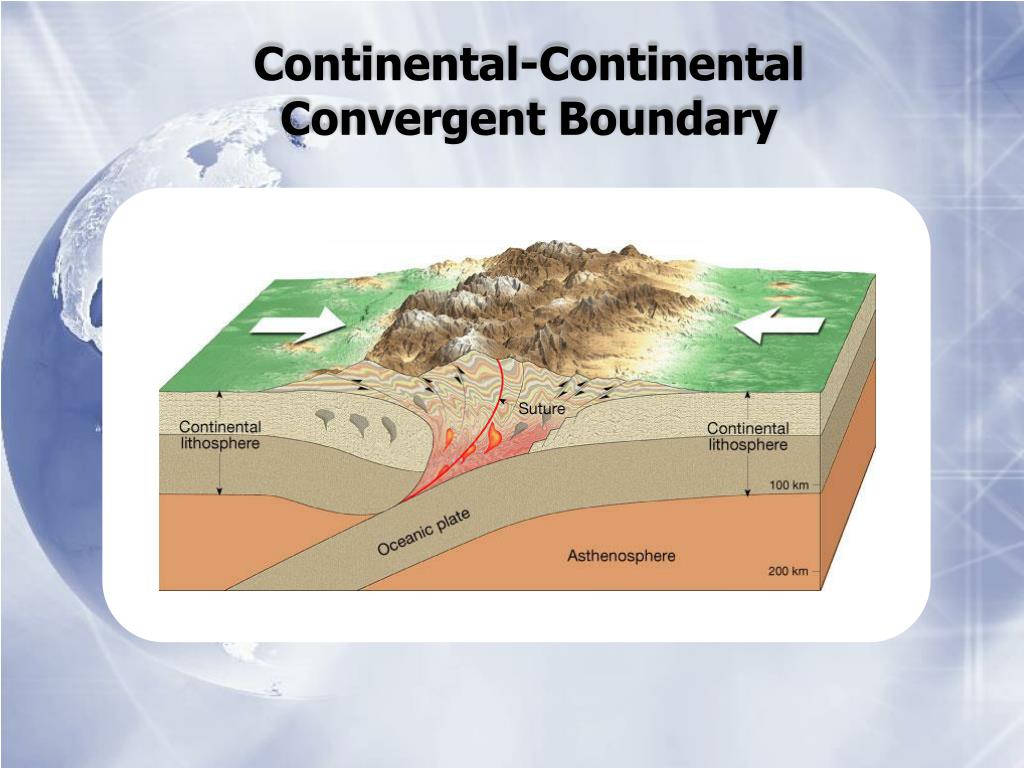

  25. Continental-Continental Convergent Boundary

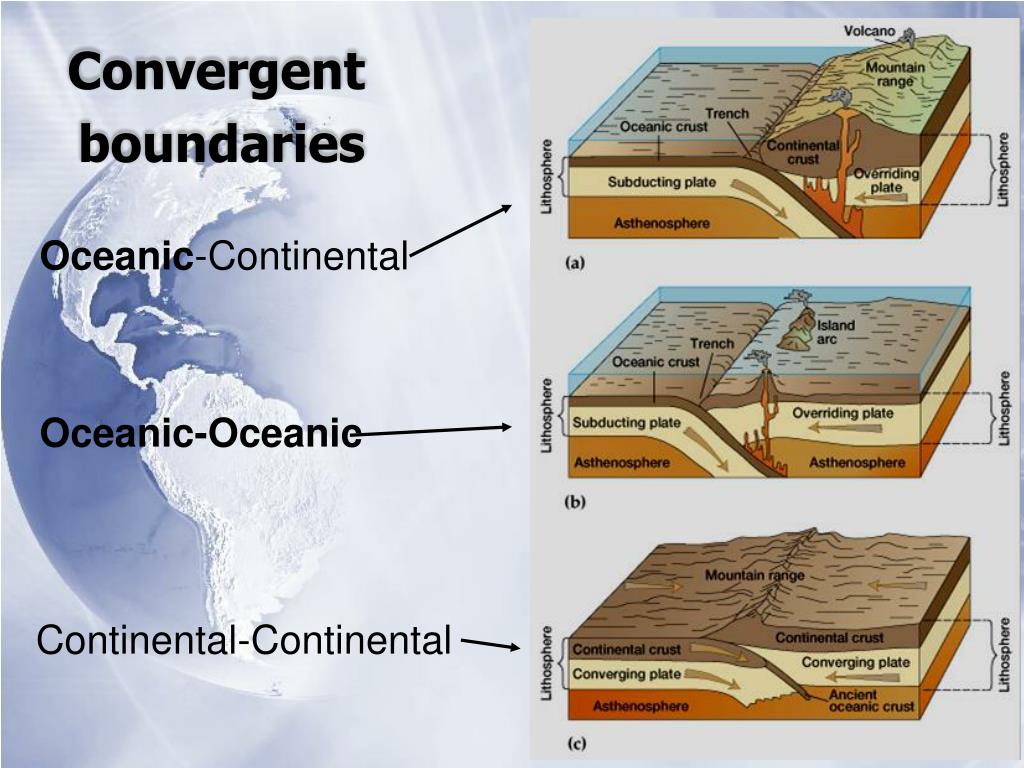

  26. Convergent boundaries Oceanic-Continental Oceanic-Oceanic Continental-Continental

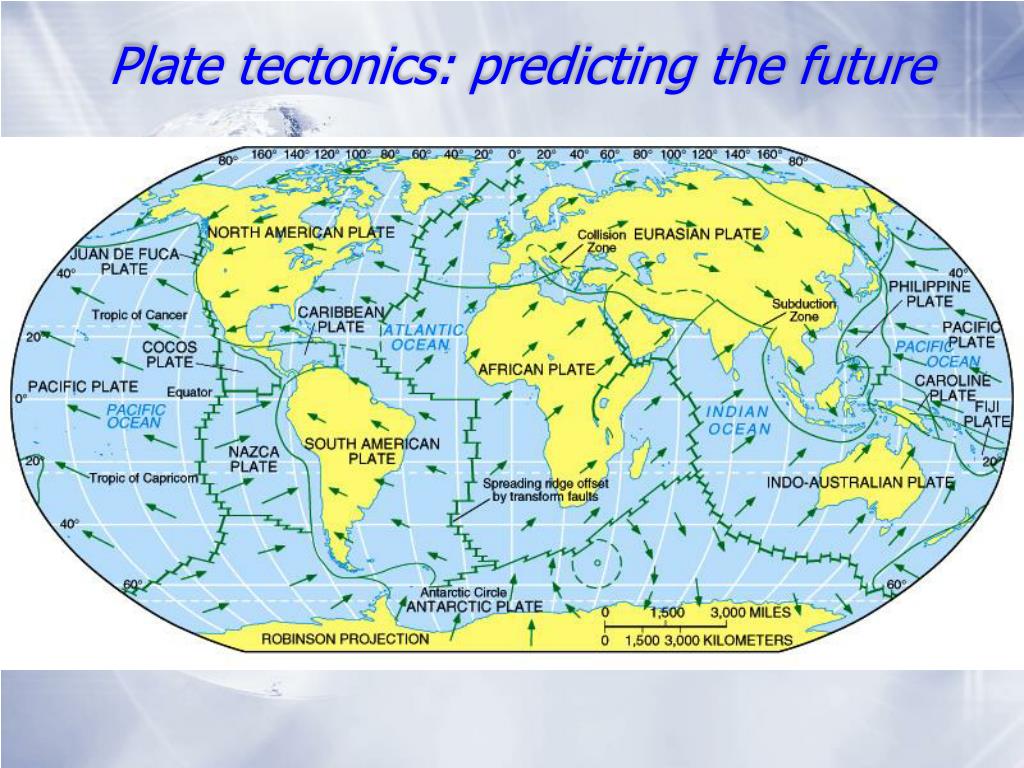

  27. Plate tectonics: predicting the future

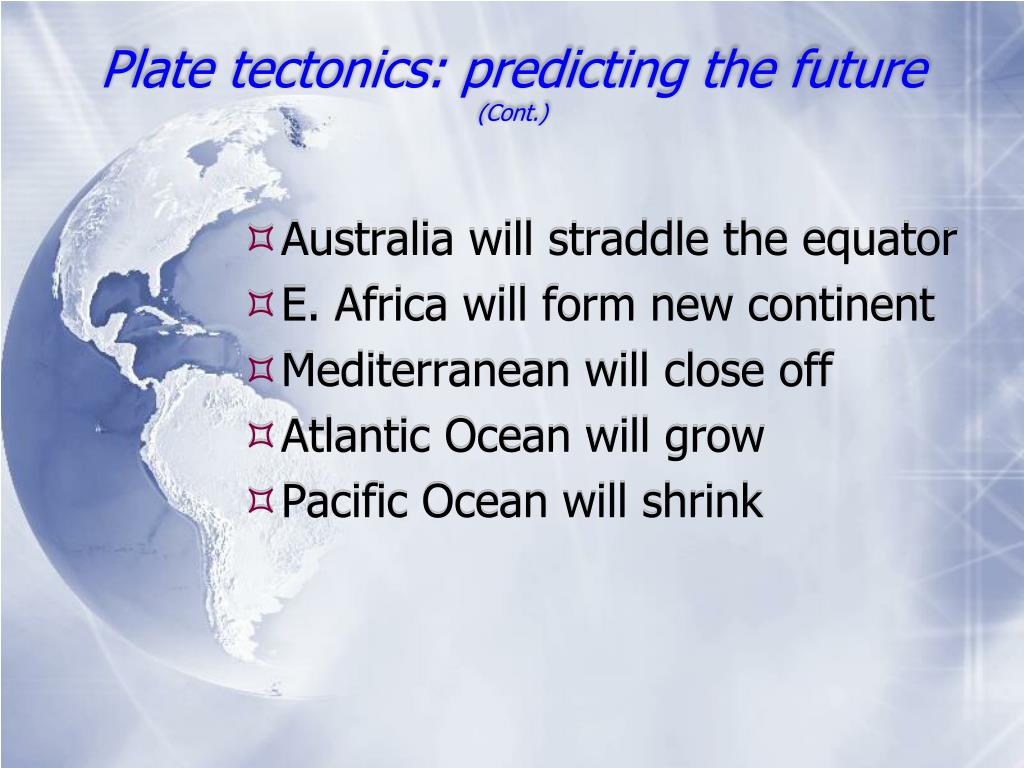

  28. Plate tectonics: predicting the future(Cont.) • Australia will straddle the equator • E. Africa will form new continent • Mediterranean will close off • Atlantic Ocean will grow • Pacific Ocean will shrink

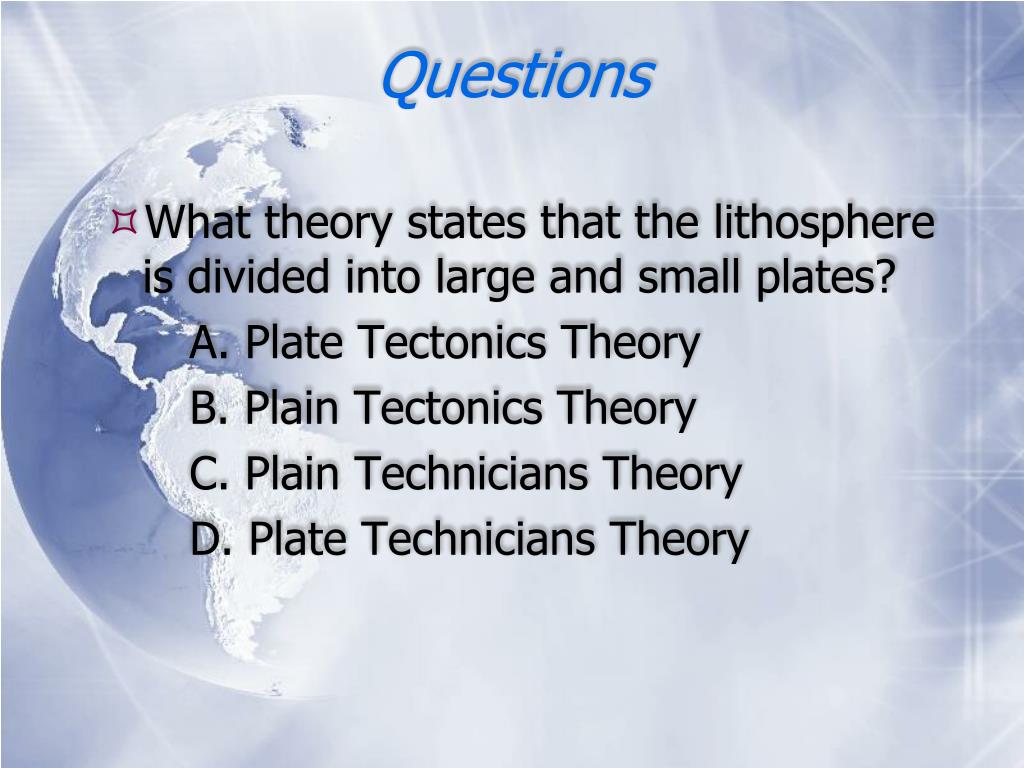

  29. Questions • What theory states that the lithosphere is divided into large and small plates? A. Plate Tectonics Theory B. Plain Tectonics Theory C. Plain Technicians Theory D. Plate Technicians Theory

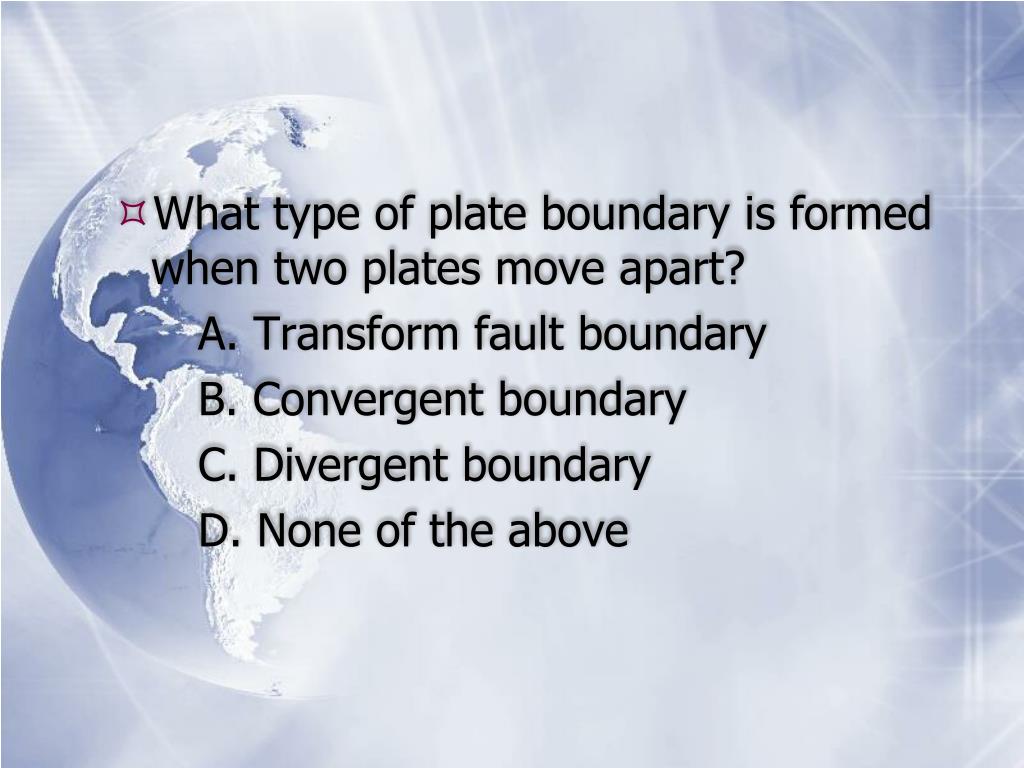

  30. What type of plate boundary is formed when two plates move apart? A. Transform fault boundary B. Convergent boundary C. Divergent boundary D. None of the above

  31. A _______________ Zone occurs when one oceanic plate is forced down into the mantle beneath a second plate. A. Continental B. Convection C. Subtraction D. Subduction

  32. The End
