  1. All the Magic Knobs Low Effort, High Return Tuning Cindy Gross Microsoft Certified Master : SQL Server Dedicated Support Engineer (DSE) Microsoft Premier Field Engineering (PFE) Cindy.Gross@microsoft.com http://blogs.msdn.com/cindygross/ @SQLCindy

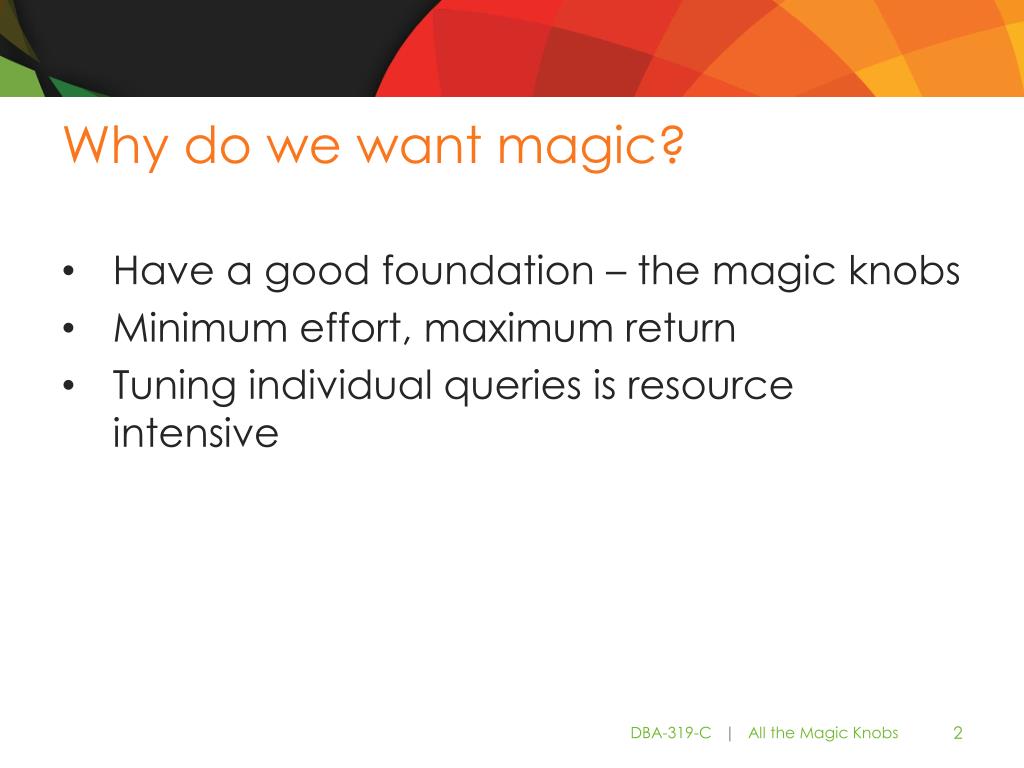

  2. Why do we want magic? • Have a good foundation – the magic knobs • Minimum effort, maximum return • Tuning individual queries is resource intensive DBA-319-C| All the Magic Knobs

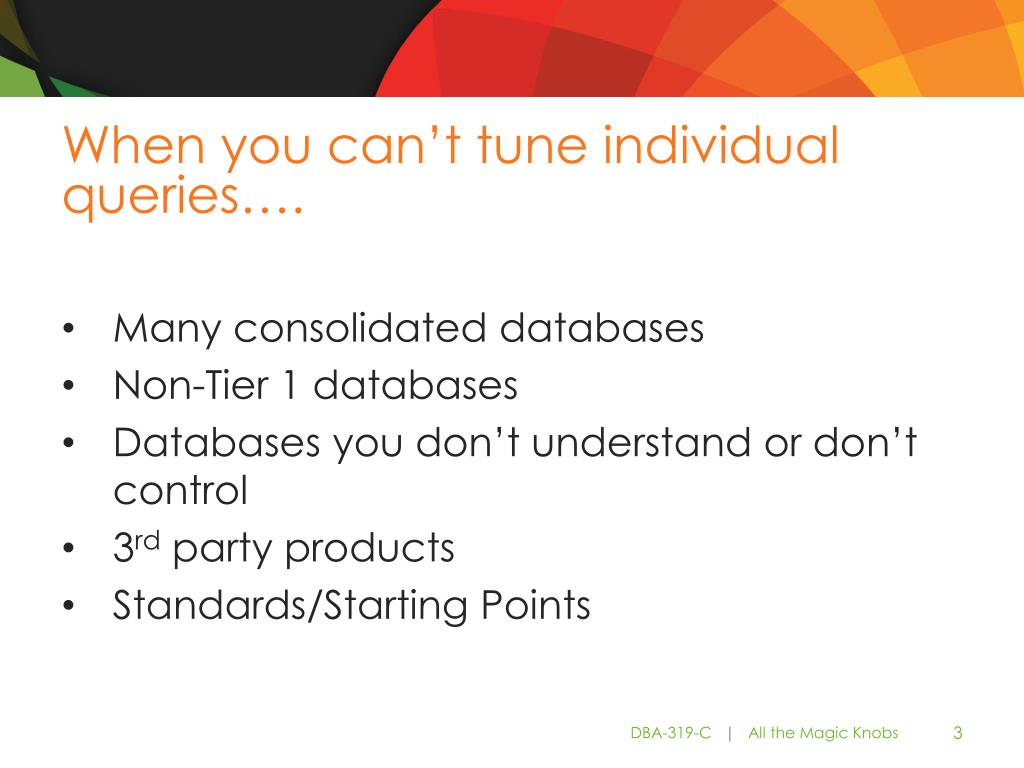

  3. When you can’t tune individual queries…. • Many consolidated databases • Non-Tier 1 databases • Databases you don’t understand or don’t control • 3rd party products • Standards/Starting Points DBA-319-C| All the Magic Knobs

  4. Where is the Magic? • Instance and database settings • Hardware • Windows configuration • User rights • Object settings that don’t require code changes • Maintenance DBA-319-C| All the Magic Knobs

  5. What is our goal? Low effort, high impact choices DBA-319-C| All the Magic Knobs

  6. Make it easy • Run the SQL Best Practices Analyzer • Run System Center Advisor • Do what they recommend DBA-319-C| All the Magic Knobs

  7. Power Savings • Power option set to High Performance • Bios and Windows levels • Uneven or oddly high CPU • Can set back to balanced off hours DBA-319-C| All the Magic Knobs

  8. IO • Fastest IO path(s) possible • Disk partition alignment • 64k block size • Understand degree of isolation from other apps • Understand tradeoff of many spindles vs. isolation • Bottleneck = - load, +capacity, or ignore DBA-319-C| All the Magic Knobs

  9. Virtual Machines • Set VM memory to avoid ballooning • No over-committing • Know where the VM does/can reside • Evaluate tradeoff of disk types DBA-319-C| All the Magic Knobs

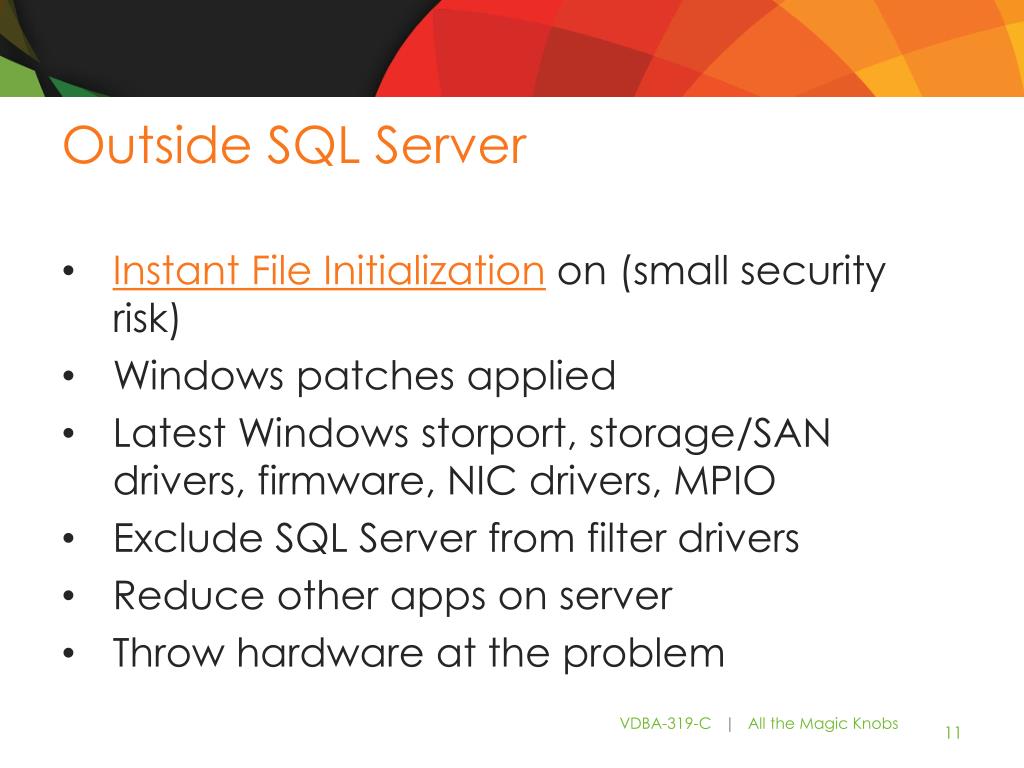

  10. Outside SQL Server • Instant File Initialization on (small security risk) • Windows patches applied • Latest Windows storport, storage/SAN drivers, firmware, NIC drivers, MPIO • Exclude SQL Server from filter drivers • Reduce other apps on server • Throw hardware at the problem VDBA-319-C| All the Magic Knobs

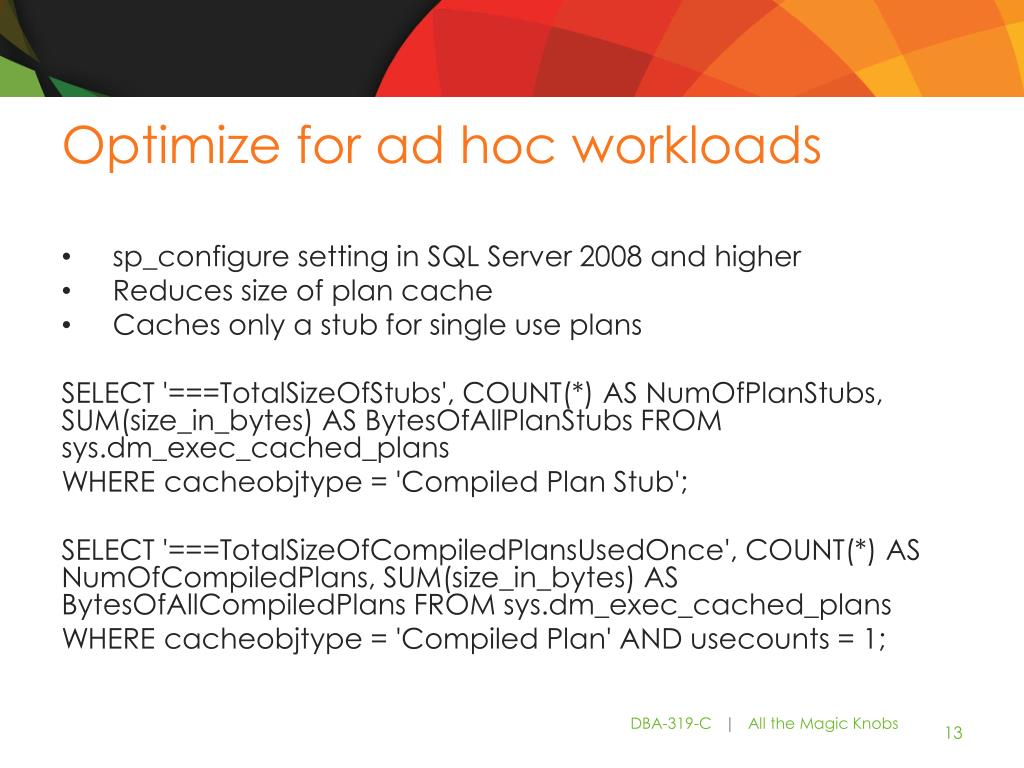

  11. Optimize for ad hoc workloads • sp_configure setting in SQL Server 2008 and higher • Reduces size of plan cache • Caches only a stub for single use plans • SELECT '===TotalSizeOfStubs', COUNT(*) AS NumOfPlanStubs, SUM(size_in_bytes) AS BytesOfAllPlanStubs FROM sys.dm_exec_cached_plans • WHERE cacheobjtype = 'Compiled Plan Stub'; • SELECT '===TotalSizeOfCompiledPlansUsedOnce', COUNT(*) AS NumOfCompiledPlans, SUM(size_in_bytes) AS BytesOfAllCompiledPlans FROM sys.dm_exec_cached_plans • WHERE cacheobjtype= 'Compiled Plan' AND usecounts = 1; DBA-319-C| All the Magic Knobs

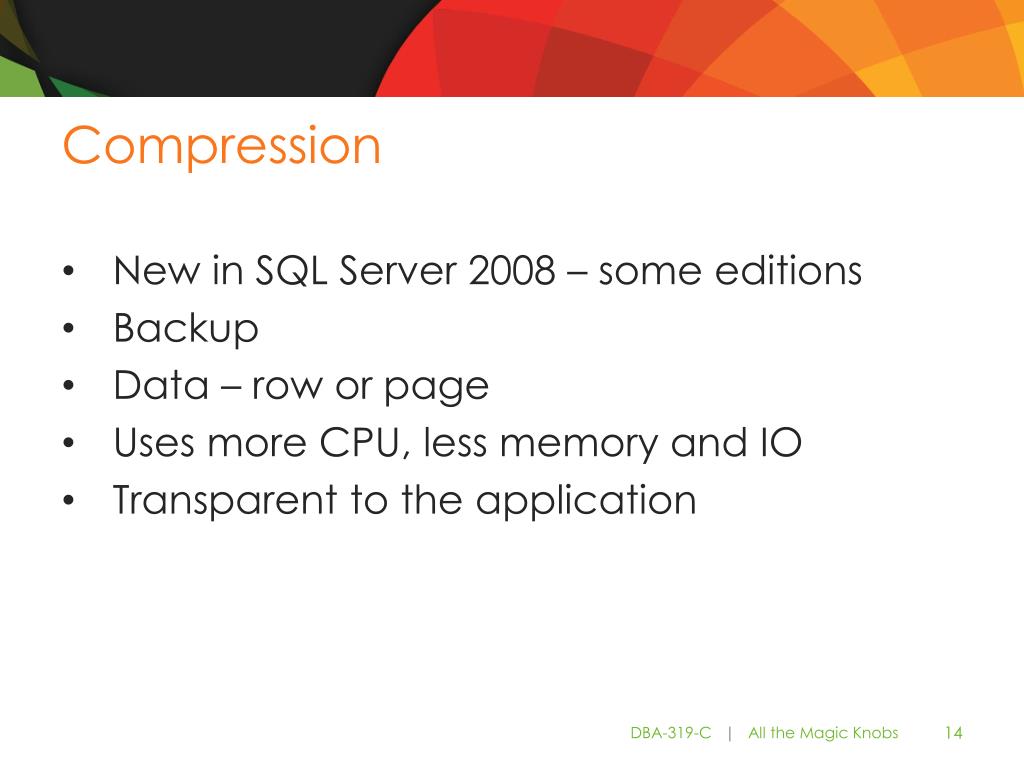

  12. Compression • New in SQL Server 2008 – some editions • Backup • Data – row or page • Uses more CPU, less memory and IO • Transparent to the application DBA-319-C| All the Magic Knobs

  13. Memory • Lock Pages in Memory (LPIM) • Max Server Memory set to allow other apps/services enough memory • Pagefile size generally irrelevant for SQL, though may be needed for other apps or kernel dumps DBA-319-C| All the Magic Knobs

  14. Database Sizing • Pre-size data and log files • Autogrow is a failsafe only • Set autogrow increments big enough to happen once but small enough to be fast • Alert on Autogrow occurrences • Avoid shrink unless you will never grow again or are cleaning up VLFs • Avoid Autoshrink DBA-319-C| All the Magic Knobs

  15. VLFs • Virtual Log Files (VLFs) – boundaries within a physical log file • View with DBCC LOGINFO • “Too many” = slow restore, online/start, transactional replication, mirroring, CDC • Shrink once, pre-size DBA-319-C| All the Magic Knobs

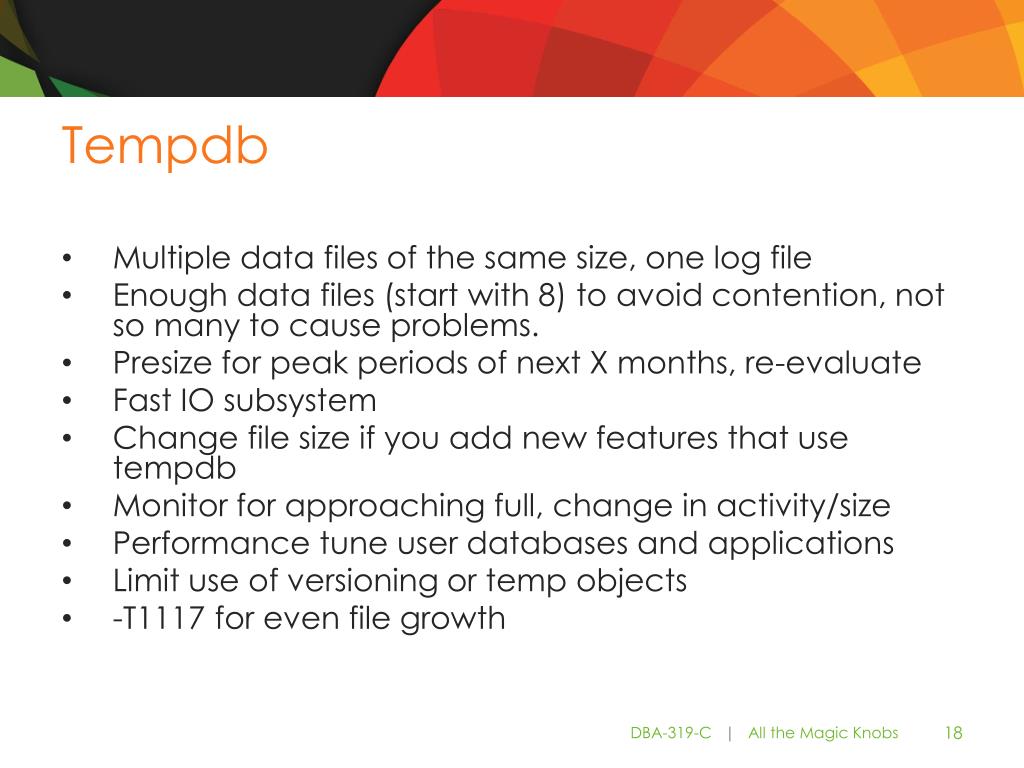

  16. Tempdb • Multiple data files of the same size, one log file • Enough data files (start with 8) to avoid contention, not so many to cause problems. • Presize for peak periods of next X months, re-evaluate • Fast IO subsystem • Change file size if you add new features that use tempdb • Monitor for approaching full, change in activity/size • Performance tune user databases and applications • Limit use of versioning or temp objects • -T1117 for even file growth DBA-319-C| All the Magic Knobs

  17. Maintenance • Rebuild Indexes • Reorg Indexes • Update Statistics (but not after rebuild) • Auto update/create statistics • Async update stats • Backup frequency DBA-319-C| All the Magic Knobs

  18. What magic tricks are in your hat? • Power Savings = High Performance • Smart Virtualization • Enough Hardware • Control other apps, filter drivers • Optimize for ad hoc workloads = ON • Compression = ON • Set LPIM + Max Server Memory • Pre-size files, avoid shrink and autogrow • Fast Tempdb • Proper Maintenance DBA-319-C| All the Magic Knobs

  19. Audience Tips and Questions • Share your tips • Questions? Cindy Gross Dedicated Support Engineer (DSE) Microsoft Premier Field Engineering (PFE) Cindy.Gross@microsoft.com http://blogs.msdn.com/cindygross/ DBA-319-C| All the Magic Knobs

  20. Hands-on Labs Get experienced through self-paced & instructor-led labs on our cloud based lab platform - bring your laptop or use HP provided hardware Microsoft SQL Server Clinic Work through your technical issues with SQL Server CSS & get architectural guidance from SQLCAT Expert Pods Meet Microsoft SQL Server Engineering team members & SQL MVPs Microsoft Product Pavilion Talk with Microsoft SQL Server & BI experts to learn about the next version of SQL Server and check out the new Database Consolidation Appliance Room611 ExpoHall 6th Floor Lobby Room 618-620 Session Code | Session Title

  21. Microsoft Certified Master

  22. DBA-319-C| All the Magic Knobs Microsoft CSS @ PASS 2011 Breakout Sessions Pre-Con • Winning with Kerberos • Mon 10/10 8:30am-4:30pm • Adam Saxton • Inside TempDB • DBA-500-HD • Wed 10/12 1:30-4:30pm • Bob Ward All the Magic Knobs DBA-319-C Thurs 10/13 3:00-4:15pm Cindy Gross “Denali” Performance Dashboard Reports DBA-215-C Fri 10/14 10:15-11:30pm Keith Elmore Boris Baryshnikov • Getting your Mind Wrapped Around • SQL Azure • AZ-301-C • Fri 10/14 1:00-2:15pm • Evan Basalik • Room 611 • 10/12 – 10/14 • After Keynote • Until 6:00pm…ish

  23. Complete the Evaluation Form to Win! Sponsored by Dell • Win a Dell Mini Netbook – every day – just for submitting your completed form. Each session evaluation form represents a chance to win. • Pick up your evaluation form: • In each presentation room • Online on the PASS Summit website • Drop off your completed form: • Near the exit of each presentation room • At the Registration desk • Online on the PASS Summit website Session Code | Session Title

  24. Thank you for attending this session and the 2011 PASS Summit in Seattle
