The unix time sharing system

The Unix Time-sharing System

Chuck Davin

Software Design & Engineering

CSE 350

Spring 2001


The unix time sharing system1

The Unix Time-sharing System

  • D. M. Ritchie and K. Thompson.

    The Unix time-sharing system.

    BSTJ, 57:6 (July-August, 1978), 1905-1929.

  • K. Thompson.

    Unix implementation.

    BSTJ, 57:6 (July-August, 1978), 1931-1946.


Features

Features

  • A hierarchical filesystem incorporating demountable volumes

  • Compatible file, device, interprocess communication

  • The ability to initiate asynchronous processes

  • System command language selectable on a per-user basis

  • Over 100 subsystems including a dozen languages

  • High degree of portability


Unix history

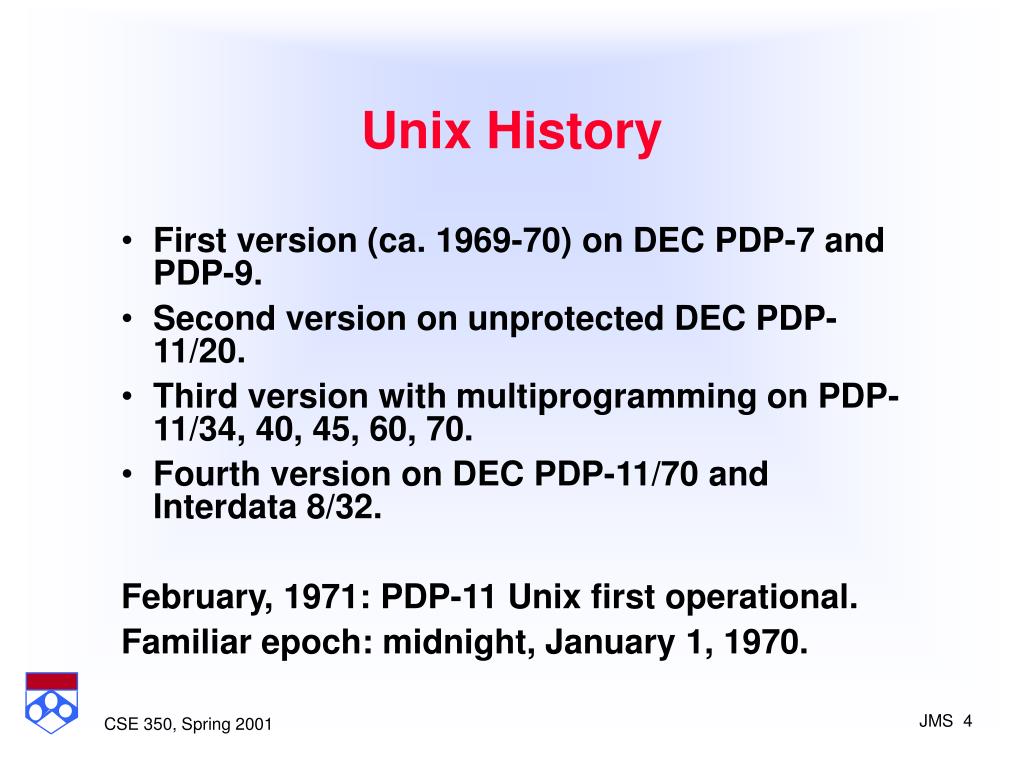

Unix History

  • First version (ca. 1969-70) on DEC PDP-7 and PDP-9.

  • Second version on unprotected DEC PDP-11/20.

  • Third version with multiprogramming on PDP-11/34, 40, 45, 60, 70.

  • Fourth version on DEC PDP-11/70 and Interdata 8/32.

    February, 1971: PDP-11 Unix first operational.

    Familiar epoch: midnight, January 1, 1970.


Economics of the 1970s

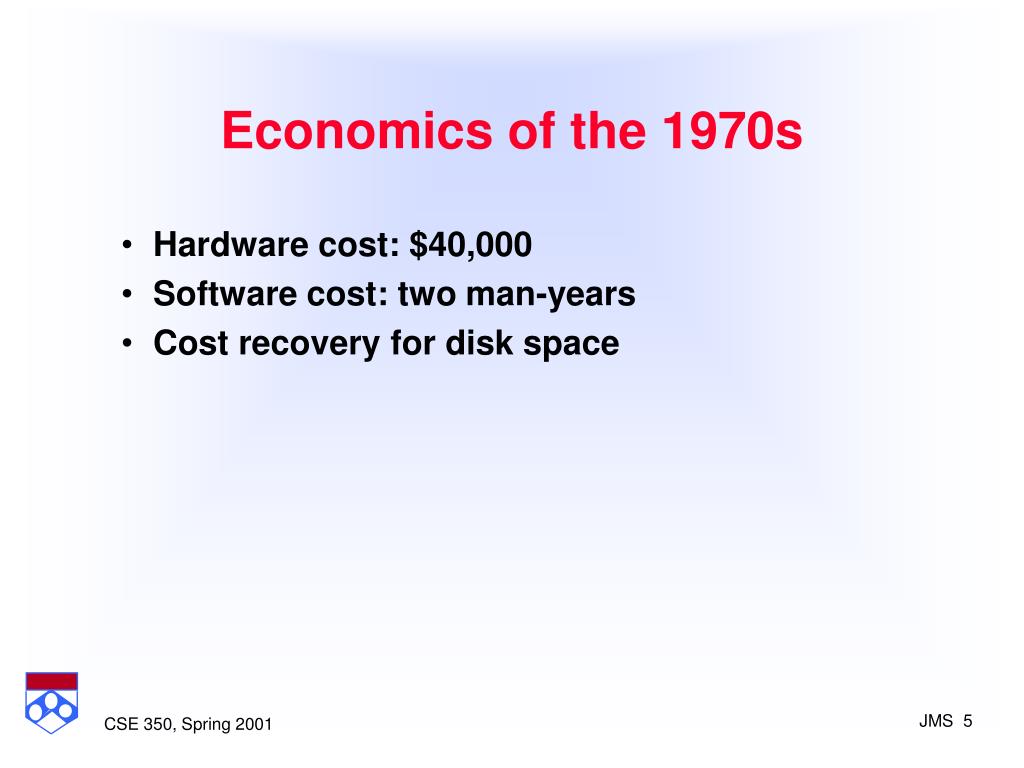

Economics of the 1970s

  • Hardware cost: $40,000

  • Software cost: two man-years

  • Cost recovery for disk space


Pdp 11 70 platform

PDP-11/70 Platform

  • 16-bit word (8-bit byte)

  • 768 KBytes core memory

  • System kernel 90 KBytes

  • Minimal system 96 Kbytes

  • Two 200 MByte moving-head disks

  • 20 variable speed (300 to 1200 baud) communication interfaces

  • 12 communication lines (9600 baud)

  • Synchronous interfaces (2400 and 4800 baud) for inter-machine file transfer

  • Nine-track tape, line printer, phototypesetter

  • Voice synthesizer, digital switching network, chess machine


A unix system in 1978

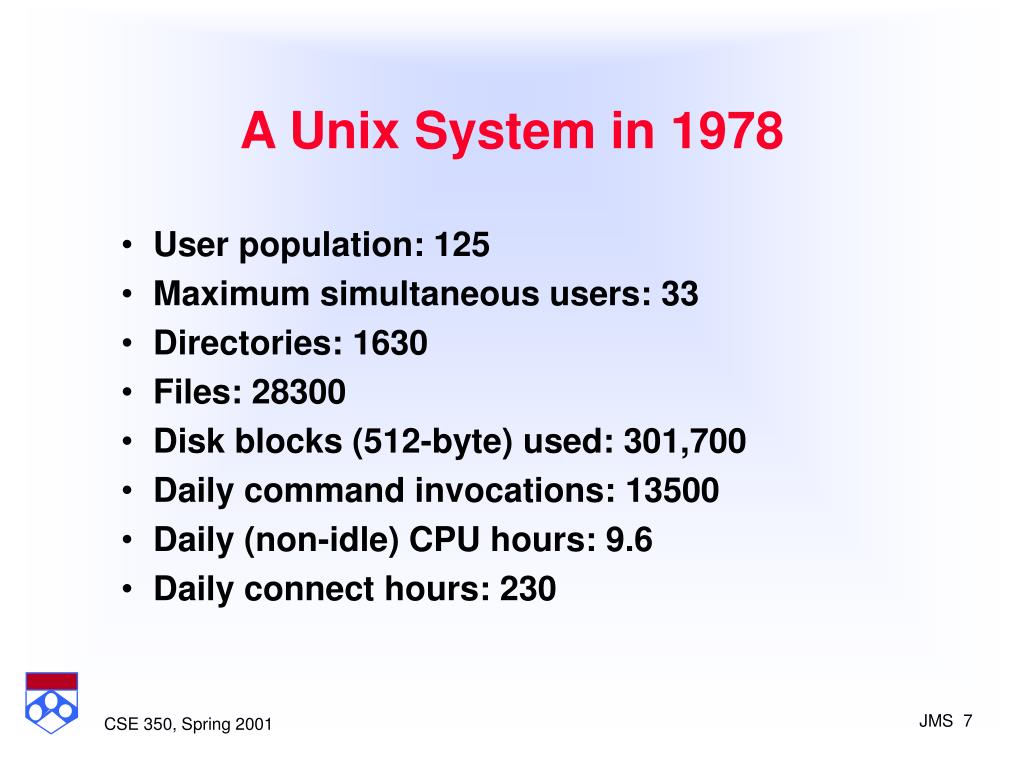

A Unix System in 1978

  • User population: 125

  • Maximum simultaneous users: 33

  • Directories: 1630

  • Files: 28300

  • Disk blocks (512-byte) used: 301,700

  • Daily command invocations: 13500

  • Daily (non-idle) CPU hours: 9.6

  • Daily connect hours: 230

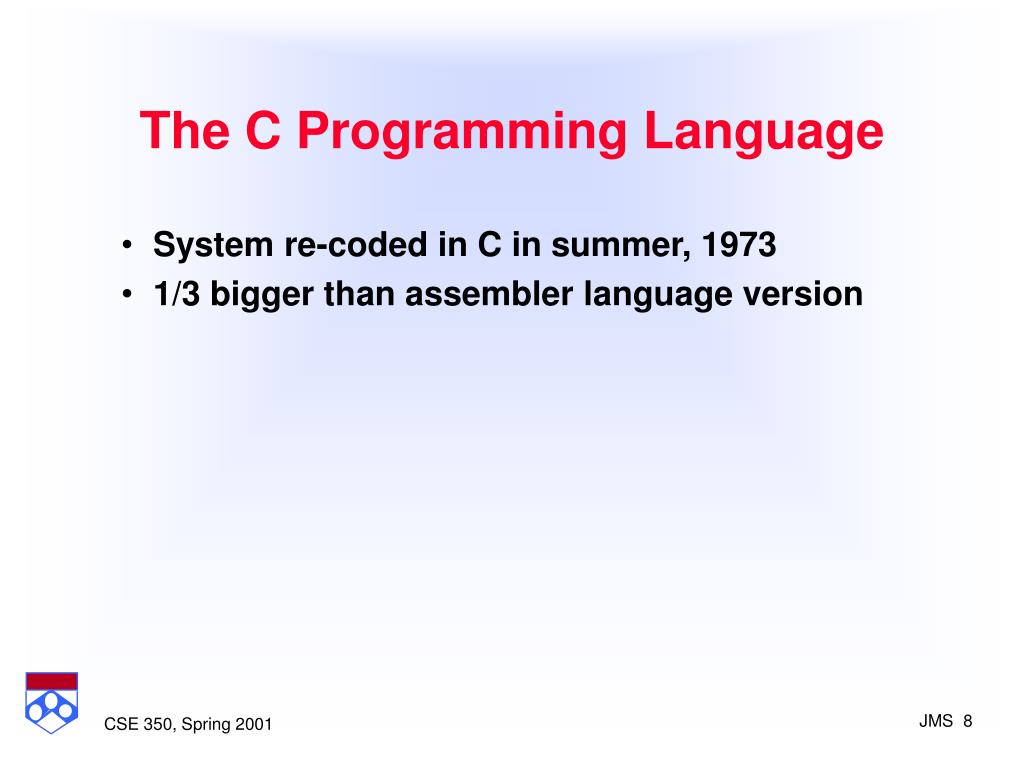

The c programming language

The C Programming Language

  • System re-coded in C in summer, 1973

  • 1/3 bigger than assembler language version


Observation

Observation

"The most important role of the system is to provide a file system."

(Page 1907)


Filesystem properties

Filesystem Properties

  • Internal file structure controlled by application programs

  • Internal file structure not imposed by system

  • Hierarchy

  • Directories as files

  • "." and ".." convention

  • Links

  • Restrictions on namespace topology

  • Mountable volumes

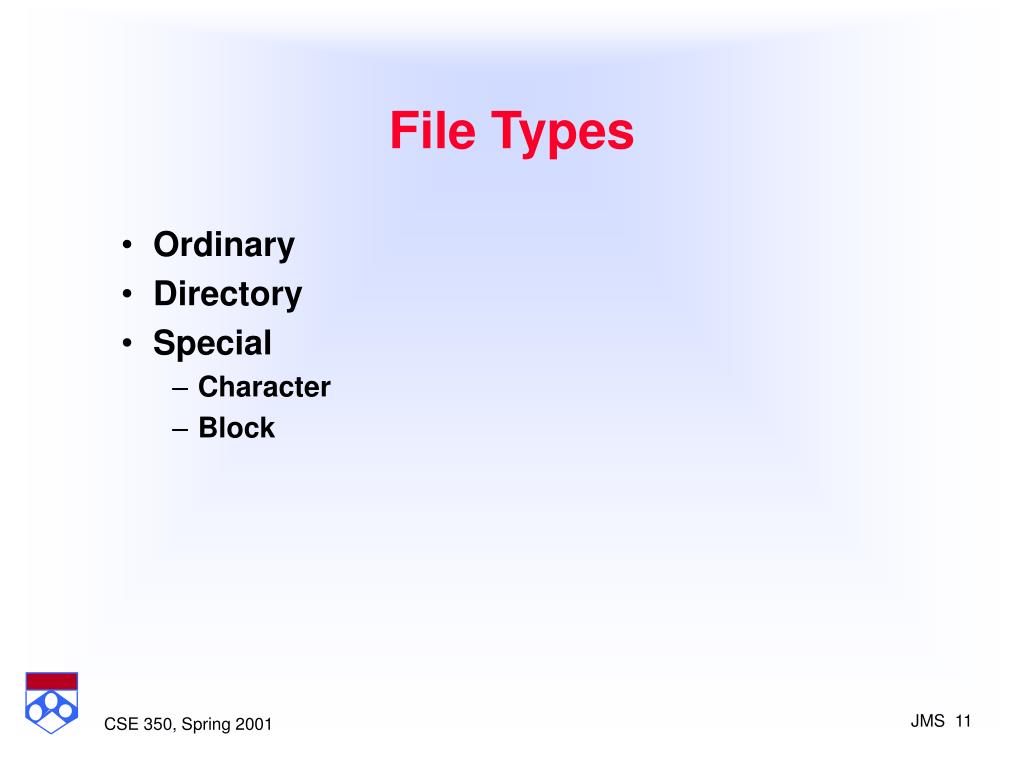

File types

File Types

  • Ordinary

  • Directory

  • Special

    • Character

    • Block

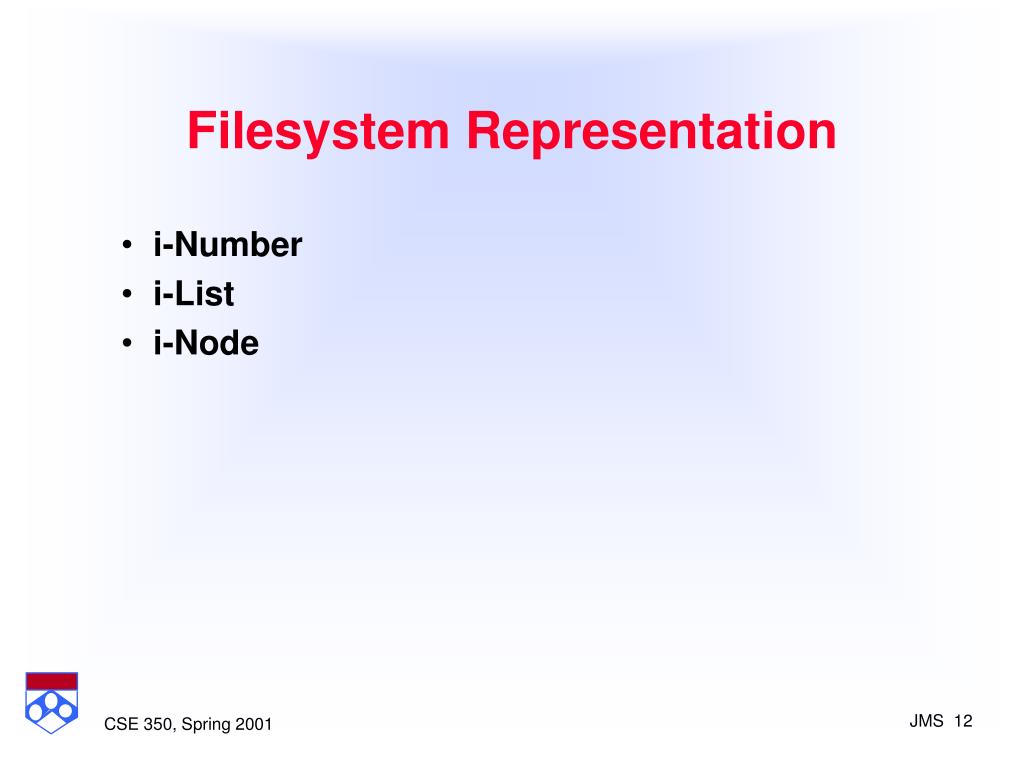

Filesystem representation

Filesystem Representation

  • i-Number

  • i-List

  • i-Node


File properties

File Properties

  • Owner user-id

  • Owner group-id

  • Protection bits

  • Physical disk (or tape) address of contents

  • Size

  • Time of creation

  • Time of last use

  • Time of last modification

  • Number of links

  • File type

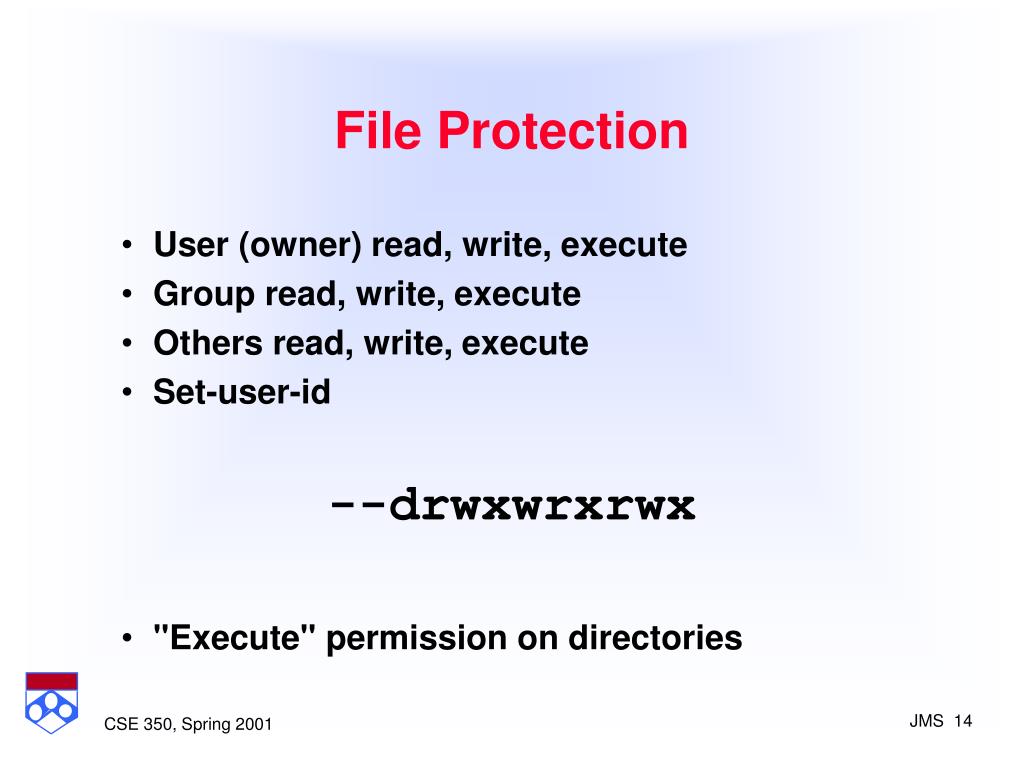

File protection

File Protection

  • User (owner) read, write, execute

  • Group read, write, execute

  • Others read, write, execute

  • Set-user-id

    --drwxwrxrwx

  • "Execute" permission on directories


Filesystem api

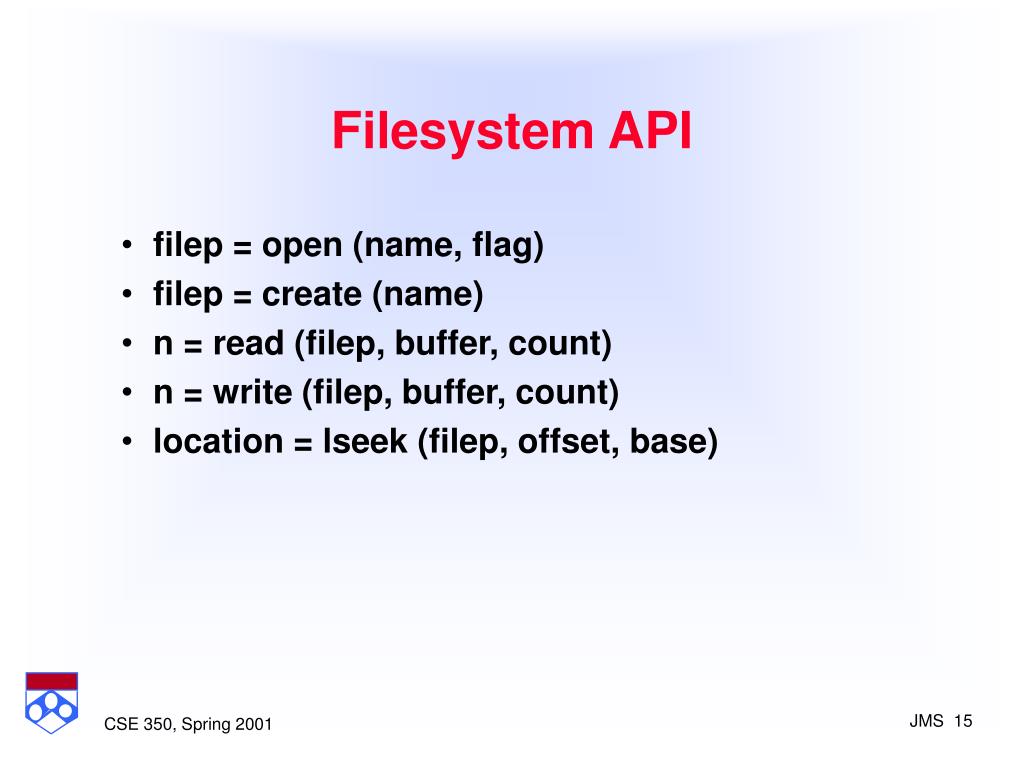

Filesystem API

  • filep = open (name, flag)

  • filep = create (name)

  • n = read (filep, buffer, count)

  • n = write (filep, buffer, count)

  • location = lseek (filep, offset, base)


File space management

File Space Management

  • Blocks 0 through 9 indicated in i-Node

  • Blocks 10 through 137 indicated indirectly

  • Blocks 138 through 16521 indicated doubly indirectly

  • Blocks 16522 and higher indicated triply indirectly

    Performance Techniques: caching and read-ahead


Special file naming

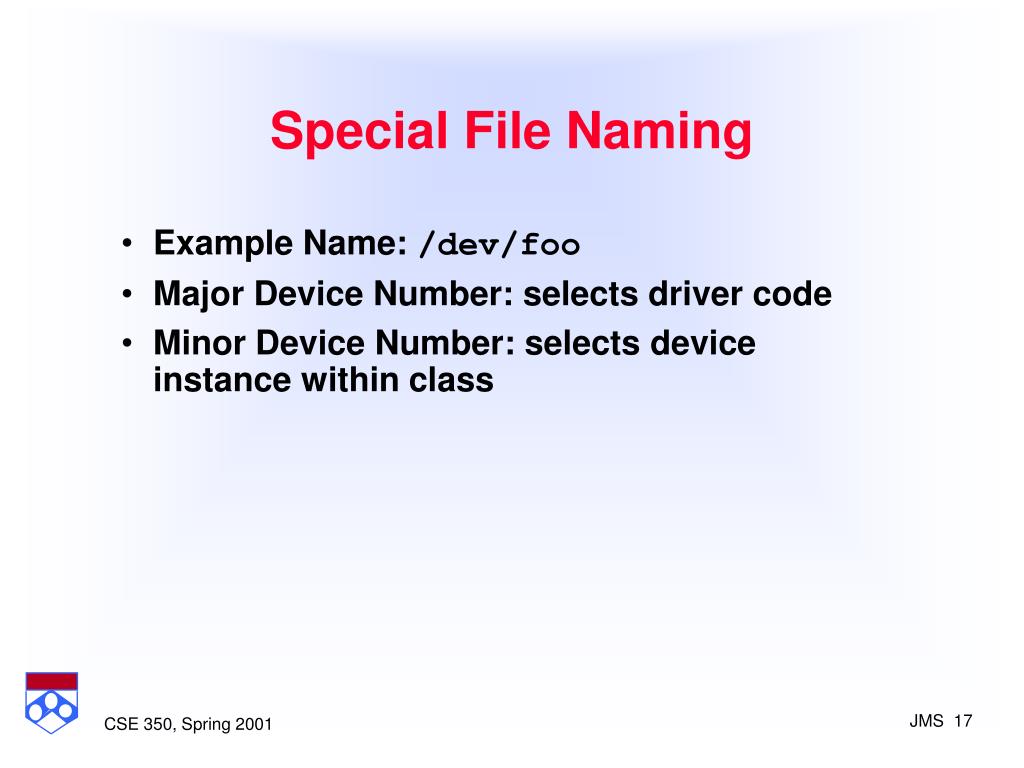

Special File Naming

  • Example Name: /dev/foo

  • Major Device Number: selects driver code

  • Minor Device Number: selects device instance within class


File system data structure

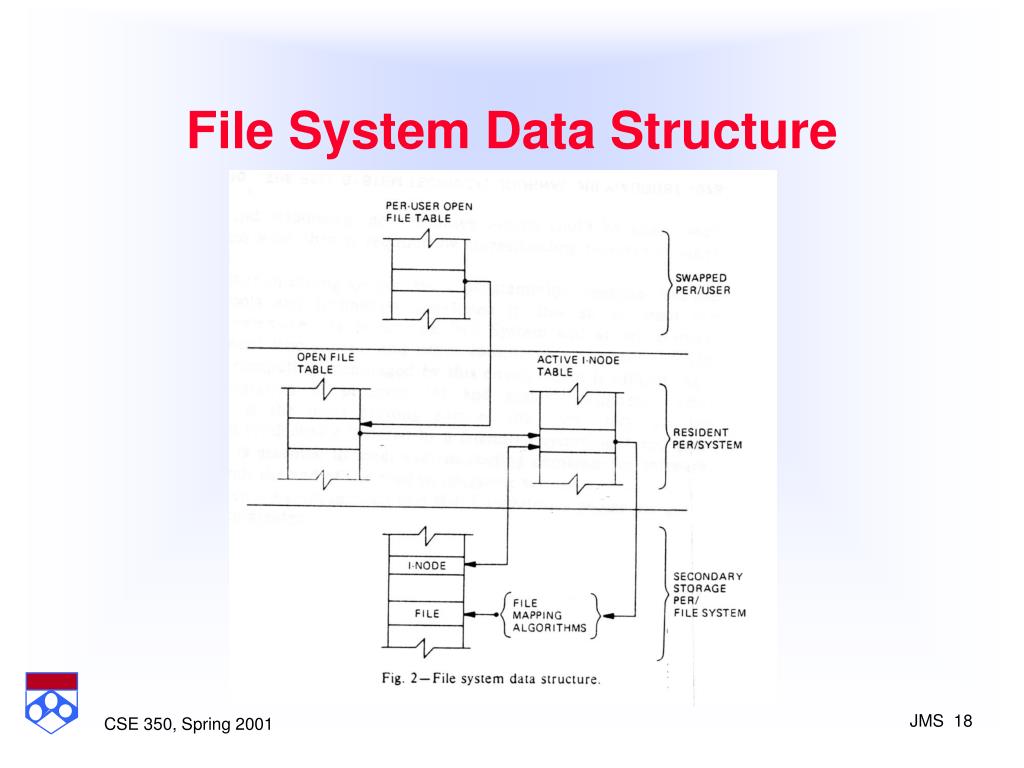

File System Data Structure


Process management api

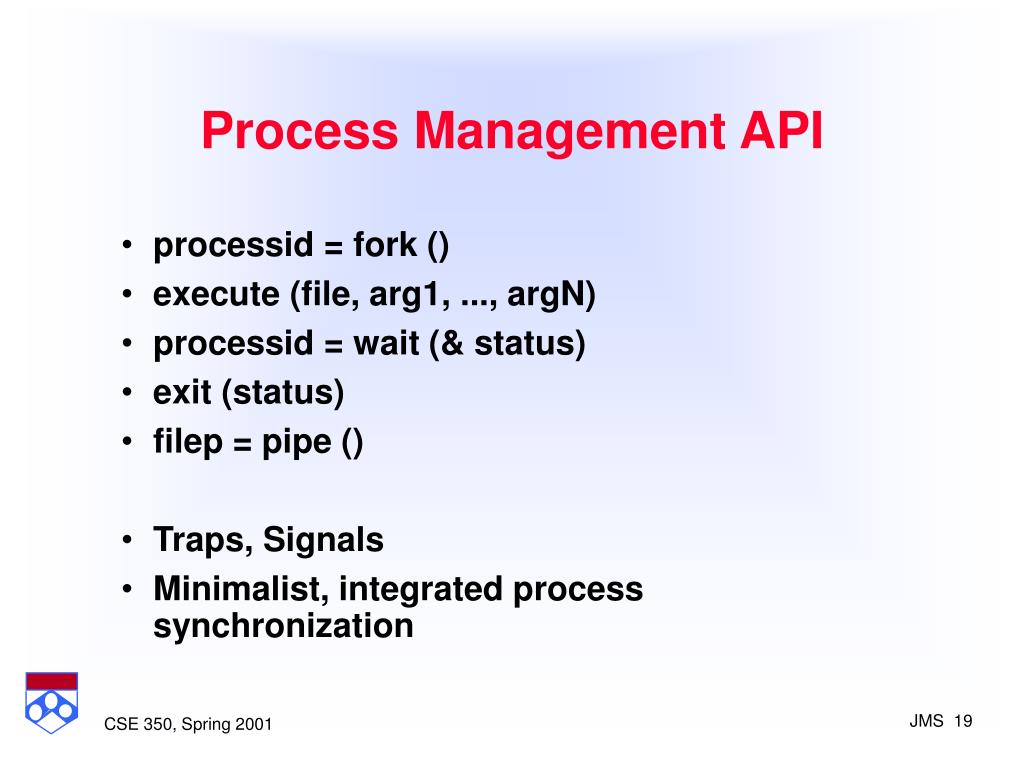

Process Management API

  • processid = fork ()

  • execute (file, arg1, ..., argN)

  • processid = wait (& status)

  • exit (status)

  • filep = pipe ()

  • Traps, Signals

  • Minimalist, integrated process synchronization


Process control data structure

Process Control Data Structure

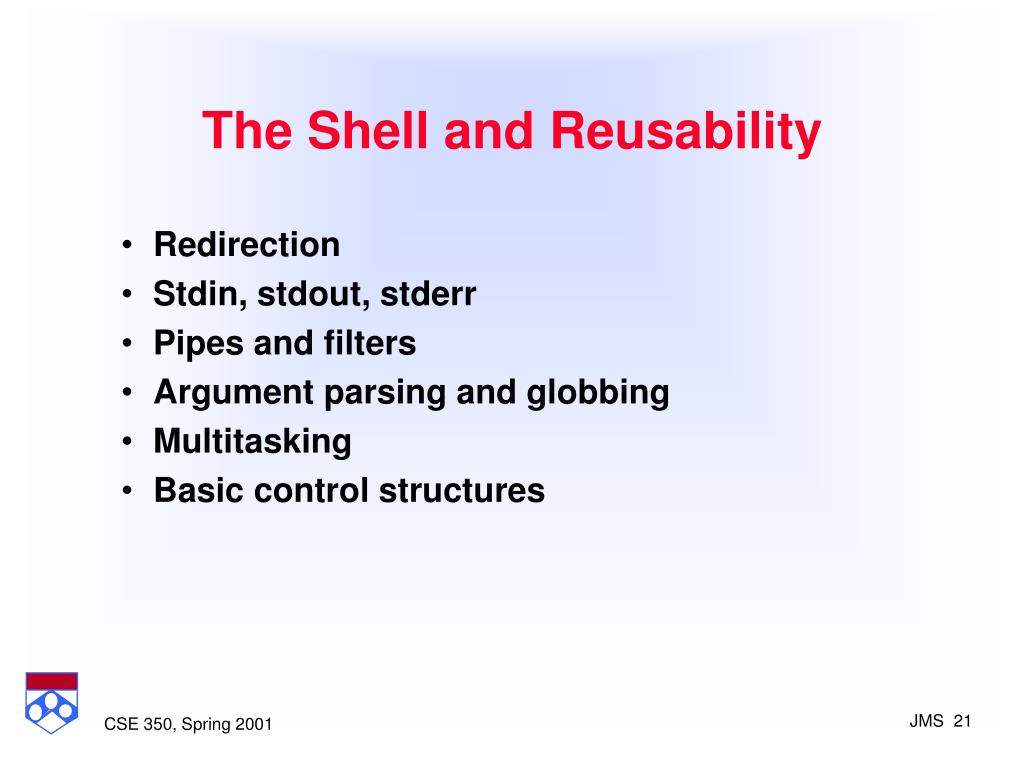

The shell and reusability

The Shell and Reusability

  • Redirection

  • Stdin, stdout, stderr

  • Pipes and filters

  • Argument parsing and globbing

  • Multitasking

  • Basic control structures


Perspective

Perspective

"The success of the Unix system is largely due to the fact that it was not designed to meet any predefined objectives.“

(Page 1926)

Motivation: dissatisfaction with existing facilities.


Retrospective design considerations

Retrospective Design Considerations

  • Easy to write, test, run programs

    • Interactive use

  • Constraints on size

  • Self-maintenance

    • Available source code

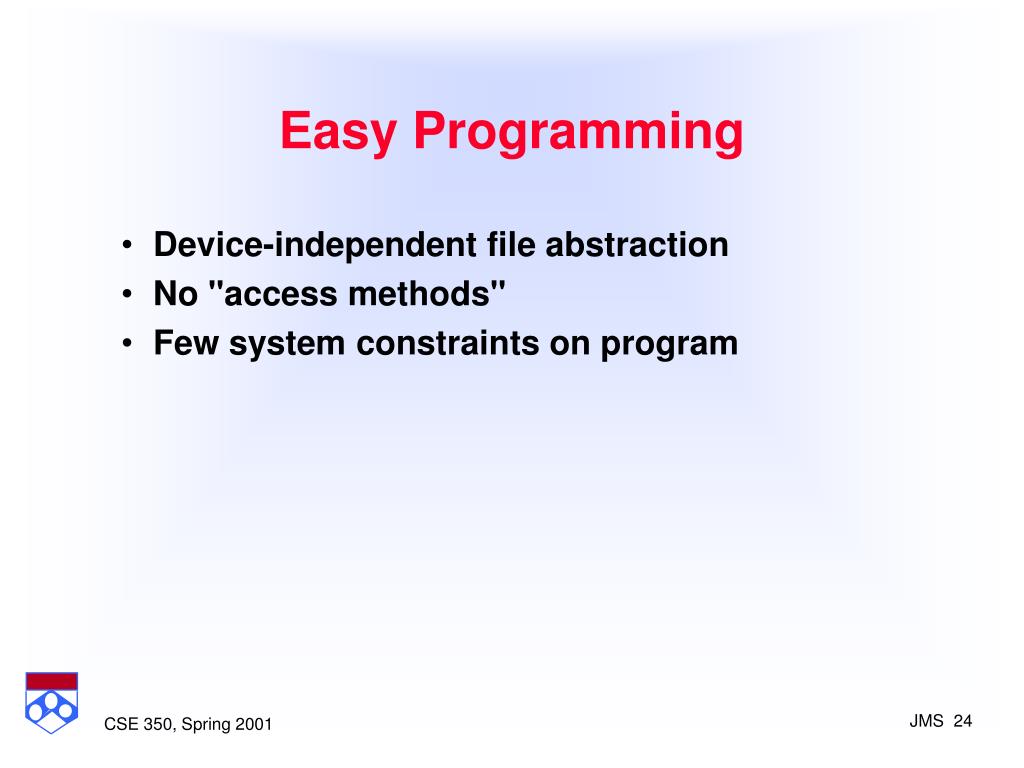

Easy programming

Easy Programming

  • Device-independent file abstraction

  • No "access methods"

  • Few system constraints on program


Influences

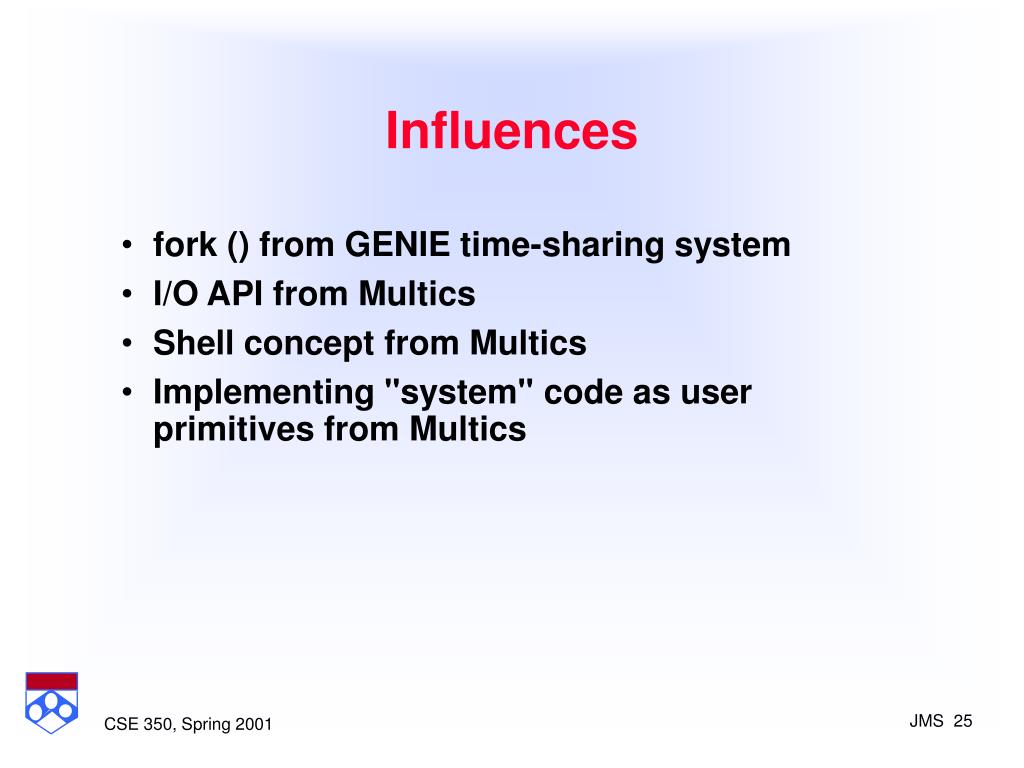

Influences

  • fork () from GENIE time-sharing system

  • I/O API from Multics

  • Shell concept from Multics

  • Implementing "system" code as user primitives from Multics


Unix implementation

Unix Implementation

  • 10,000 lines of C code

  • 1,000 lines of assembler code

    • 800 lines not possible in C

    • 200 lines for efficiency


Observation1

Observation

"Throughout, simplicity has been substituted for efficiency."

(Page 1932)

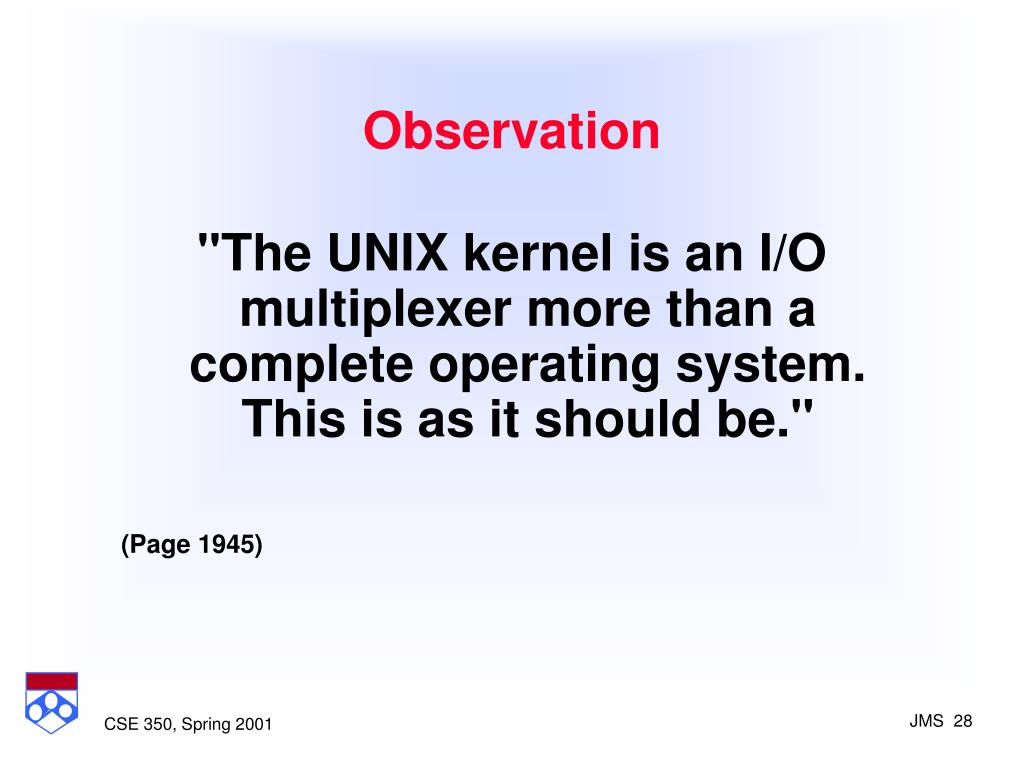

Observation2

Observation

"The UNIX kernel is an I/O multiplexer more than a complete operating system. This is as it should be."

(Page 1945)

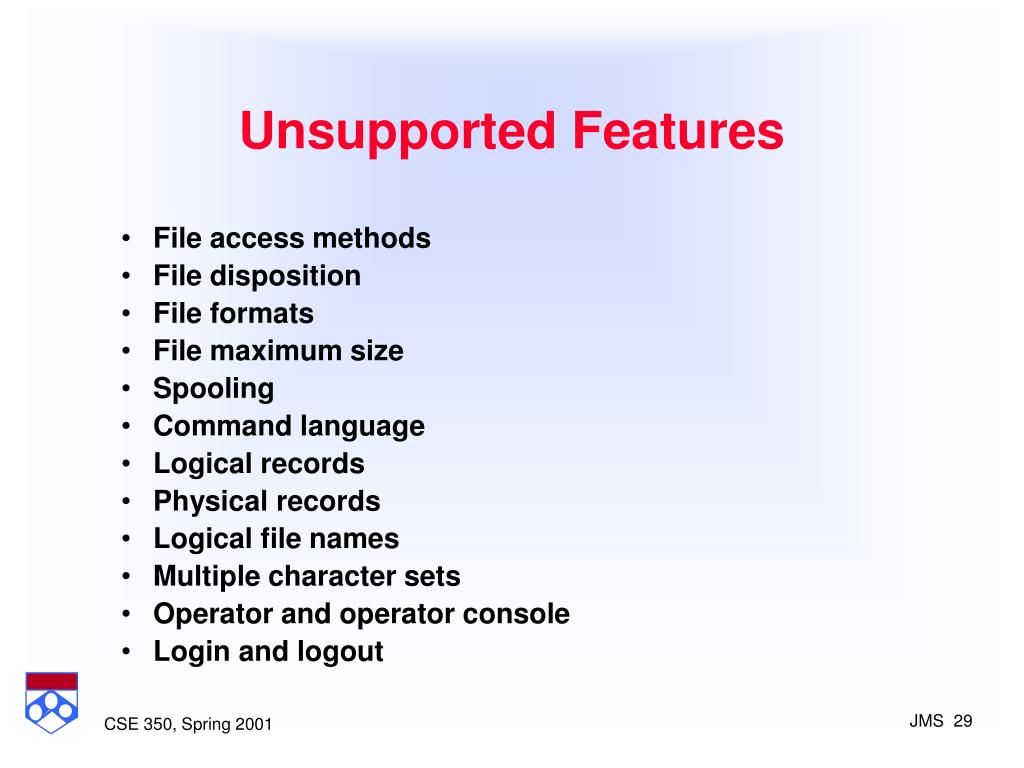

Unsupported features

Unsupported Features

  • File access methods

  • File disposition

  • File formats

  • File maximum size

  • Spooling

  • Command language

  • Logical records

  • Physical records

  • Logical file names

  • Multiple character sets

  • Operator and operator console

  • Login and logout


  • Login
