  1. X-dek Instructions for mounting, panel – use and accessories

  2. Number 1 and 2 are important and tot be fitted in this order. After the first 3 positions the others can be fitted in any order. When neccesary the tool can be used to mount the panels together. 2nd stitch 3rd stitch 1st stitch

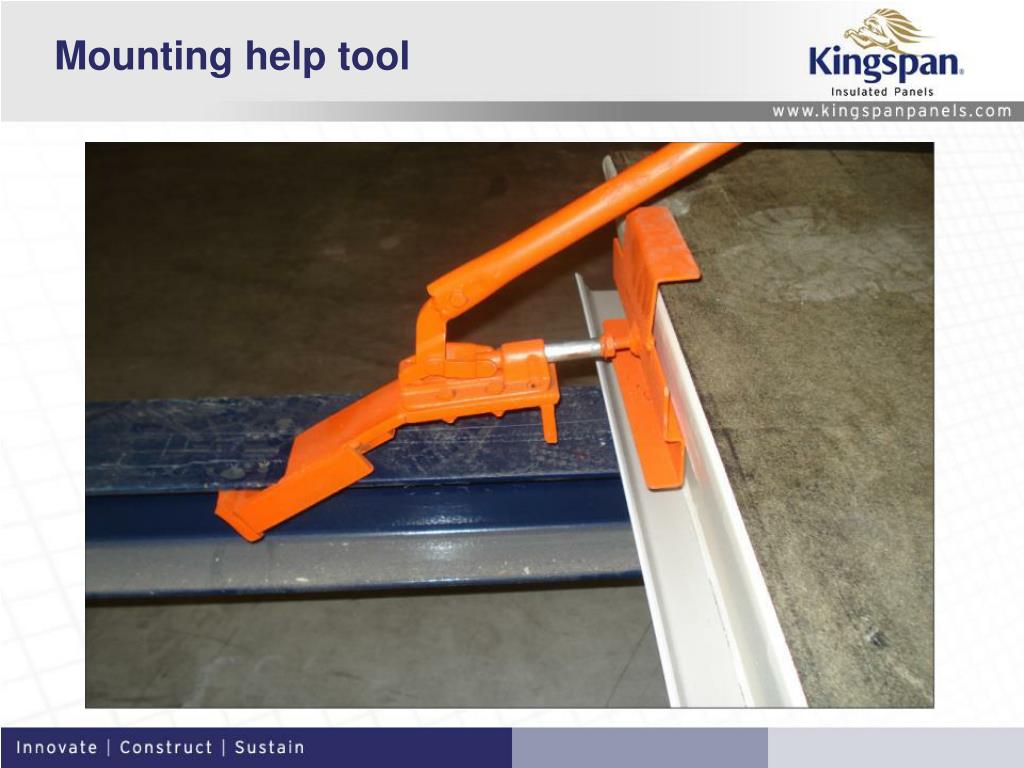

  3. Mounting help tool

  4. Air-tight fillers

  5. Air and condens tight filler

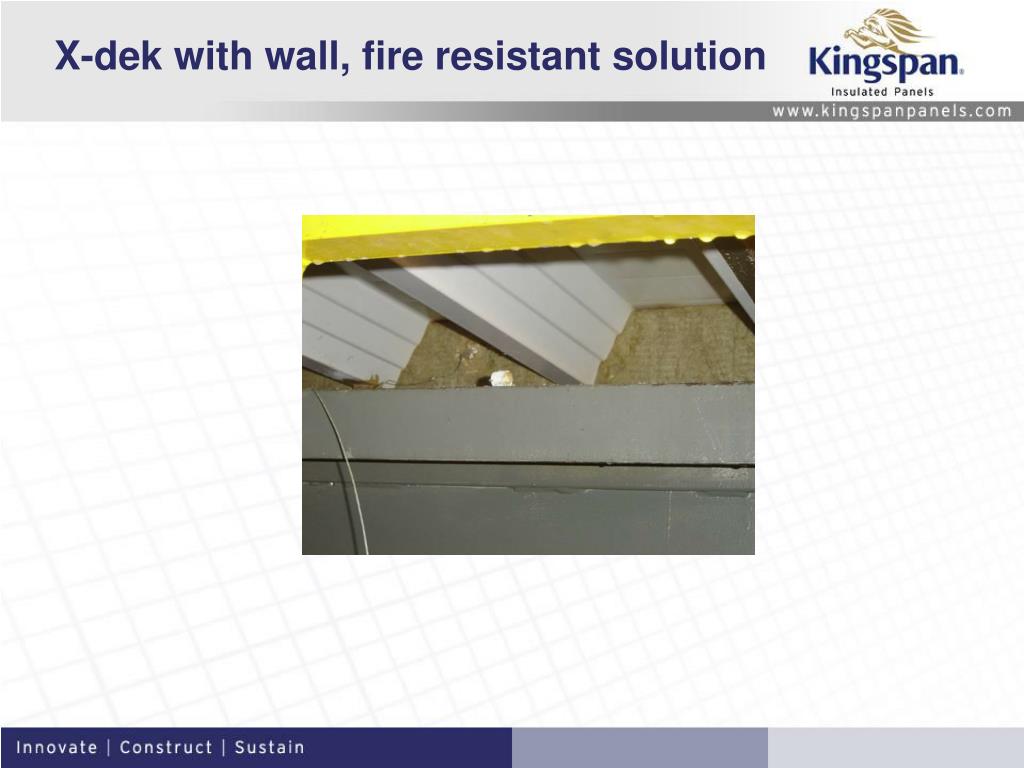

  6. X-dek with wall, fire resistant solution

  7. Single Skin for the overlap

  8. Extreme fitting

  9. PVC as top layer

  10. EPDM as top layer

  11. X-dek with bitume top layer

  12. X-dek as an envirodek

  13. X-dek under a sloop

  14. X-dek as a renovation solution

  15. Via-Vac for lifting X-dek

  16. Safety on X-dek Longspan

  17. Result safety post

  18. Pluvia system in X-dek

  19. Stitchers and accessoires

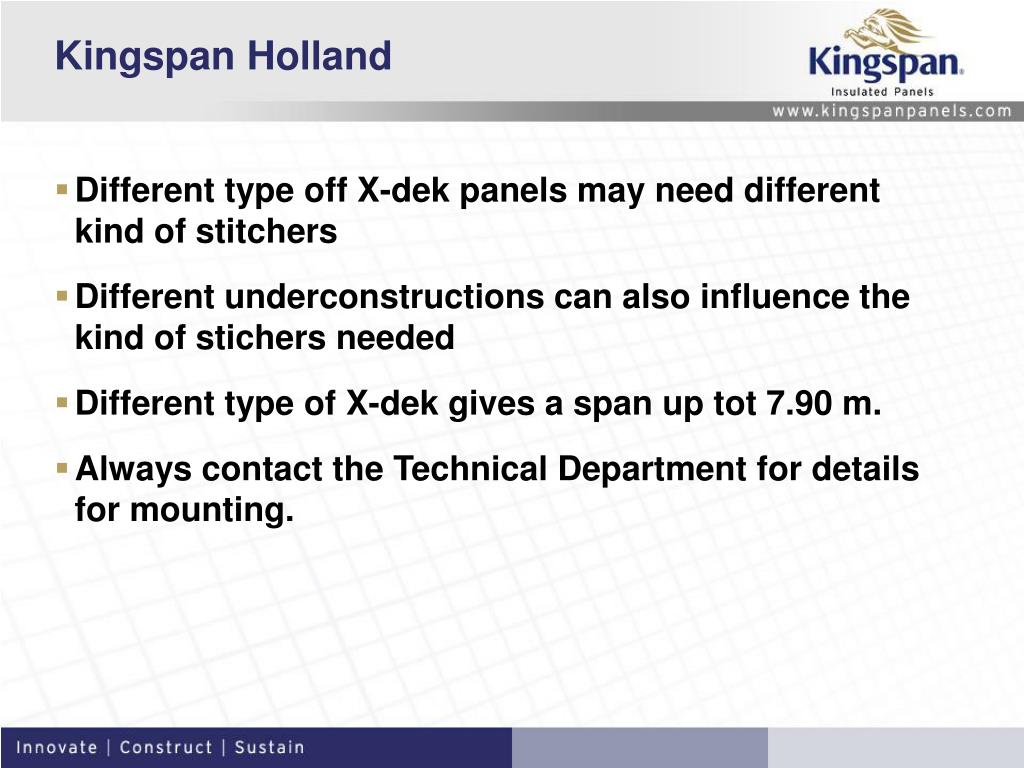

  20. Kingspan Holland • Different type off X-dek panels may need different kind of stitchers • Different underconstructions can also influence the kind of stichers needed • Different type of X-dek gives a span up tot 7.90 m. • Always contact the Technical Department for details for mounting.

  21. Types There are four types of X-dek • Kingspan X-dek Multispan Basic (with a ‘paper’ scrim as outer skin) • Kingspan X-dek Multispan Bitumen (with a bitumen as outer skin) • Kingspan X-dek Longspan (with a steel weather sheet outer skin) • Kingspan Envirodek (same product as X-dek Longspan) *(as well in the UK there is Wards Topspan which is the same as X-dek Longspan)
