Tetra cern s safety radio communication network speaker aur lie pascal it cs

TETRA

(CERN’s Safety Radio Communication Network)

Speaker : Aurélie PASCAL IT-CS

Tetra forum 7th of February 2013


Tetra infrastructure

TETRA Infrastructure

Components of a TETRA Network :

DMO

Direct Mode Operation

SwMI

= Switching and Management Infrastructure

Network Manager

Tetra Base Station (TBS)

DMO

Gateway/Repeater

TMO

Trunked Mode Operation

TBS

Gateway PABX/GSM

Base stations controller

Dispatcher

Aurélie PASCAL IT-CS / TETRA Forum 07-02-2013 2


Tetra @ cern

TETRA @ CERN

FREQUENCIES :TETRA (Terrestrial Trunked Radio) for European market (except Public safety services) works in the bandwidth : 410-430MHz

VOICE CAPACITY:17 simultaneous group calls (TDMA Multiplexing) / 500 devices

  • Scalable to many

    DATA CAPACITY:

  • Short Data Service : SDS

  • Packet Data Service : maximum data rate 19.2kb/s

    High resiliency:

  • Backup of eachactive equipmentand interconnections

  • Redundant TETRA coreequipmentlocatedon different sites

    Interconnection with PABX : ISDN (2 redundant gateways)

     Consuming of frequencies, reserved to heads of the Fire Brigade

    Relay of Swiss and French TETRAPOL frequencies :

  • Strong cooperation with Geneva Police, Customs, Swiss and French Public Safety services

Aurélie PASCAL IT-CS / TETRA Forum 07-02-2013 3


Network design

Network Design

Aurélie PASCAL IT-CS / TETRA Forum 07-02-2013 4


Tetra cern s safety radio communication network speaker aur lie pascal it cs

Indoor coverage

TBS A: Water Tower

FA1+FA2

TBS B : LHC4

FB1+FB2

No active equipment in LHC/SPS/PS

TETRAPOL

FA1+FA2

+Tetrapol

FB1+FB2

+Tetrapol

FA1+FA2

+Tetrapol

Site n

Site n+1

Site n+2

LHC / SPS

Aurélie PASCAL IT-CS / TETRA Forum 07-02-2013 5


Tetra cern s safety radio communication network speaker aur lie pascal it cs

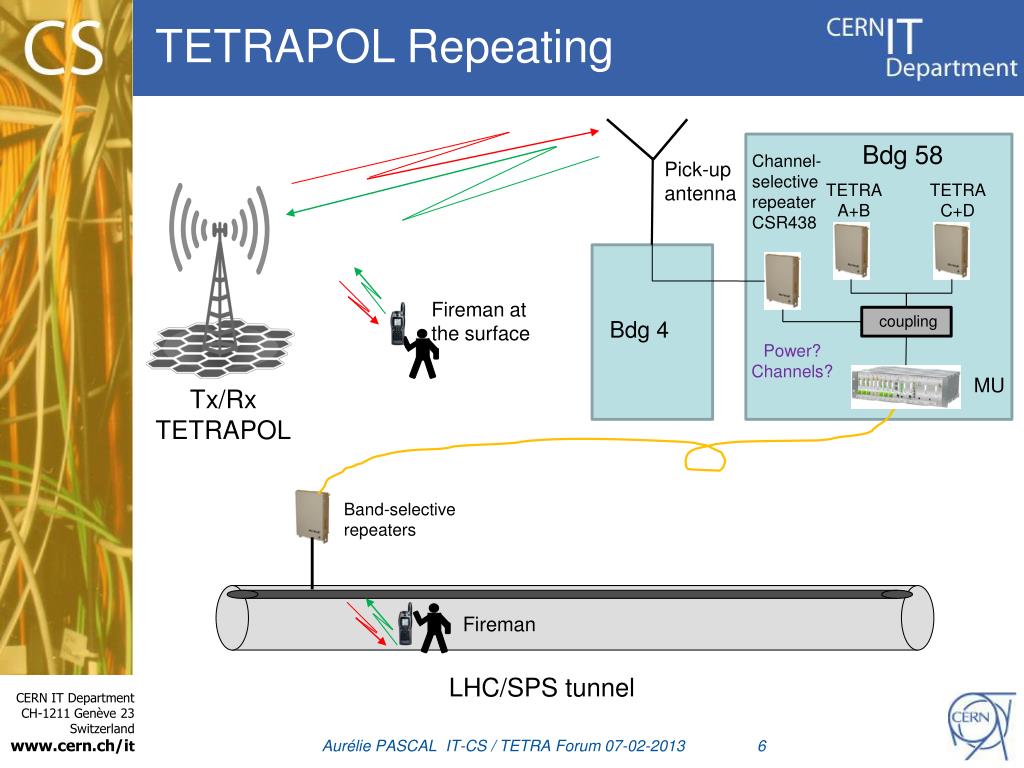

TETRAPOL Repeating

Bdg 58

Channel-selectiverepeater CSR438

Pick-up antenna

TETRA A+B

TETRA C+D

Firemanat the surface

coupling

Bdg 4

Power?

Channels?

MU

Tx/Rx TETRAPOL

Band-selectiverepeaters

Fireman

LHC/SPS tunnel

Aurélie PASCAL IT-CS / TETRA Forum 07-02-2013 6


Tetra cern s safety radio communication network speaker aur lie pascal it cs

TETRA Calls

Standard group call :

Guard LHC8

One virtual group of communication

Guardgate B

CSA Dispatcher

Half-duplex call

Aurélie PASCAL IT-CS / TETRA Forum 07-02-2013 7


Tetra cern s safety radio communication network speaker aur lie pascal it cs

TETRA Calls

Dynamic group call :

One group of communication

Contrôle room EXCR

CSA

Fireman

Intervention Area

Fire Brigade Dispatcher

Electrical piquet

Fireman

Half-duplex call

Aurélie PASCAL IT-CS / TETRA Forum 07-02-2013 8


Tetra cern s safety radio communication network speaker aur lie pascal it cs

TETRA Calls

Individual call :

Electrical piquet

Half-duplex call

TI Dispatcher

Aurélie PASCAL IT-CS / TETRA Forum 07-02-2013 9


Tetra calls emergency issue at surface

TETRA Calls :Emergency issue at surface

L1 (1 575,42 MHz) & L2 (1 227,60 MHz)

TETRA BS

SDS : GPS positioning

DISPATCHER / FB

Emergency call or Lose of verticality

SDS : last known GPS positioning

Accuracy ~ couple of meters

Alarm& SDS received and automaticindividual call established

Dedicated IP Network

User entered in a building with TETRA coverage

Aurélie PASCAL IT-CS / TETRA Forum 07-02-2013 10


Tetra cern s safety radio communication network speaker aur lie pascal it cs

TETRA Calls :Emergency issue in underground facilities

Infrastructure for Indoor localization not yet ready

Alarm & SDS received and automaticindividual call established

SDS: positioning

Emergency call or Lose of verticality

Aurélie PASCAL IT-CS / TETRA Forum 07-02-2013 11


Tetra cern s safety radio communication network speaker aur lie pascal it cs

Example in LHC

DISPATCHER / FB

2. Whencatching the ID from the beacon, the terminal forwardsits location to the Dispatcher Workstation at the Fire Brigade

2

3

1

3. When incident : lose of verticalitydetected or emergency buttonpressed emergency SDS sent to the Fire Brigade Dispatcher and individual call established

1. The Beaconlocated in an alcovesendsits ID through a remoteantenna to TETRA terminal

Aurélie PASCAL IT-CS / TETRA Forum 07-02-2013 12


Tetra cern s safety radio communication network speaker aur lie pascal it cs

Surface radio coverage

Lose of communication due to forest

Base Station

Repeater

Lack of coverage due to relief

Software: ProManfrom AWE

Aurélie PASCAL IT-CS / TETRA Forum 07-02-2013 13


Tetra cern s safety radio communication network speaker aur lie pascal it cs

Indoor radio coverage

  • LHC experiments, LHC, SPS, PS, Booster, Linac tunnels… are covered with TETRA services but few minor issues are still to fix:

    • in LHC6 and LHC8, in the middle of the arc section, short area where the signal strength is quite low and communications may be lost.

    • SPS6 section of tunnel (from the middle of section SPS5-SPS6 to the middle of section SPS6-SPS7) is not yet covered by TETRA.

      These issues will be fixed during LS1

  • Some areas are not covered for now:

    • The North area : tunnels TT81, TT82, TT83, TT84, TT85, TDC85

    • The transversal galleries in PS complex

Aurélie PASCAL IT-CS / TETRA Forum 07-02-2013 14


Support maintenance

Support / Maintenance

Infrastructure:

  • monitored 24/7 via the Computer Center over

    Spectrum

    • no need for specific software tools

  • 1st level of maintenance doneby the First-Line team

  • 2nd levelof maintenance performed by CERN

  • 3rd level of maintenance performedby ourcontractor3T

    Terminals:

  • Spare parts, repairingand configuration managed

    by IT-CS for allterminalsthroughourcontracts

  • 1st batch provided by CERN

  • For furtherneeds, canbeboughtatCERN’s stores

  • Online training and practical one (Firebrigade) on radio delivery

Aurélie PASCAL IT-CS / TETRA Forum 07-02-2013 15


Tetra cern s safety radio communication network speaker aur lie pascal it cs

2013 Planning

January:TETRA system operational for CSA & firemen!

First semester:

  • Deployment of Indoor Geolocalisation solution in one Arc section of the LHC and one Experiment

  • Installation of mobiles in firemen’svehicles

  • Distribution of terminals (Experiments, piquets…) and trainings

  • ESD distribution in all sites and new batteries for 4h of autonomy

  • Microwave Backup linkbetween the 2 main BS  coordination between ARCEP and OFCOM for the allocation of the frequency

    And…:

  • Deployment of the Indoor Geolocalisation solution in LHC, SPS, PS, Booster, Linac.. tunnels, Experiments and critical areas (Computer Center…)

  • Development of a new fullyintegrated software platform ILDA (Indoor Localisation and DispatchAdd-On)

Aurélie PASCAL IT-CS / TETRA Forum 07-02-2013 16


Tetra cern s safety radio communication network speaker aur lie pascal it cs

ILDA

The Integrated Localisation and DispatchAdd-On (ILDA) is a client-server system, withdedicatedaccounts and specificpriviledges, whichwillintegrate:

  • The display of the localisation of TETRA radios (via GPS or Indoor Localisation System) on a fixedgeographical area or for a fixedlist of talk groups

  • The Dispatching featureswhichwillenable to establish calls and send SDS messages to defined radios through a Phonebook

  • An incident mode reserved to Firebrigadewithwiderfeaturessuch as direct interaction with the TETRA radios displayed on the maps (calls, SDS sending, selection of multiple radios to createdynamic group of communication…), a tracking mode, search of a specificmap (interconnectionwith GIS portal), transmit inhibition of a radio…, for which all actions willbelogged

  • An interconnectionwith CSAM centralizelevel 3 alarms: TETRA emergency alarms

Aurélie PASCAL IT-CS / TETRA Forum 07-02-2013 17


Tetra cern s safety radio communication network speaker aur lie pascal it cs

QUESTIONS

Aurélie PASCAL IT-CS / TETRA Forum 07-02-2013 18


Tetra cern s safety radio communication network speaker aur lie pascal it cs

Underground radio coverage / issues

LHC8:

Lose of communication in the middle of the section

LHC6:

Lose of communication in the middle of the section

Aurélie PASCAL IT-CS / TETRA Forum 07-02-2013 19


Tetra cern s safety radio communication network speaker aur lie pascal it cs

Underground radio coverage / issues

Experiments: the emergeny exits to access the PM lift, closed to the « trémie », are not coveredyet

SPS6:

No TETRA coverage

Aurélie PASCAL IT-CS / TETRA Forum 07-02-2013 20


Tetra cern s safety radio communication network speaker aur lie pascal it cs

Underground radio coverage / issues

PS:

No coverage in the transversal galeries nor in the chicane of door 102

Aurélie PASCAL IT-CS / TETRA Forum 07-02-2013 21


Tetra cern s safety radio communication network speaker aur lie pascal it cs

Indoor geo-localisation :

available solutions

  • STProtect:

  • SYSOCO & SEPURA partnership

  • Beaconusing 868MHz frequency

  • Receiverintegratedinto the STP8000 terminal

  • Advantages:

  • Solution alreadycommercialised and evenbetter by SEPURA (recognizedplayer on TETRA market)

    • durabilityof the solution

  • Drawbacks:

  • Receiver not yetintegrated in the STP8X (ATEX)  on going

  • The beaconmayneed to beadaptedto enable a remoteextendedantennaand an externalPower Supply

Aurélie PASCAL IT-CS / TETRA Forum 07-02-2013
