  1. Steiner’s Alternative: An Introduction to Inversive Geometry David Sklar San Francisco State University dsklar@sfsu.edu Bruce Cohen Lowell High School, SFUSD bic@cgl.ucsf.edu http://www.cgl.ucsf.edu/home/bic Asilomar - December 2005

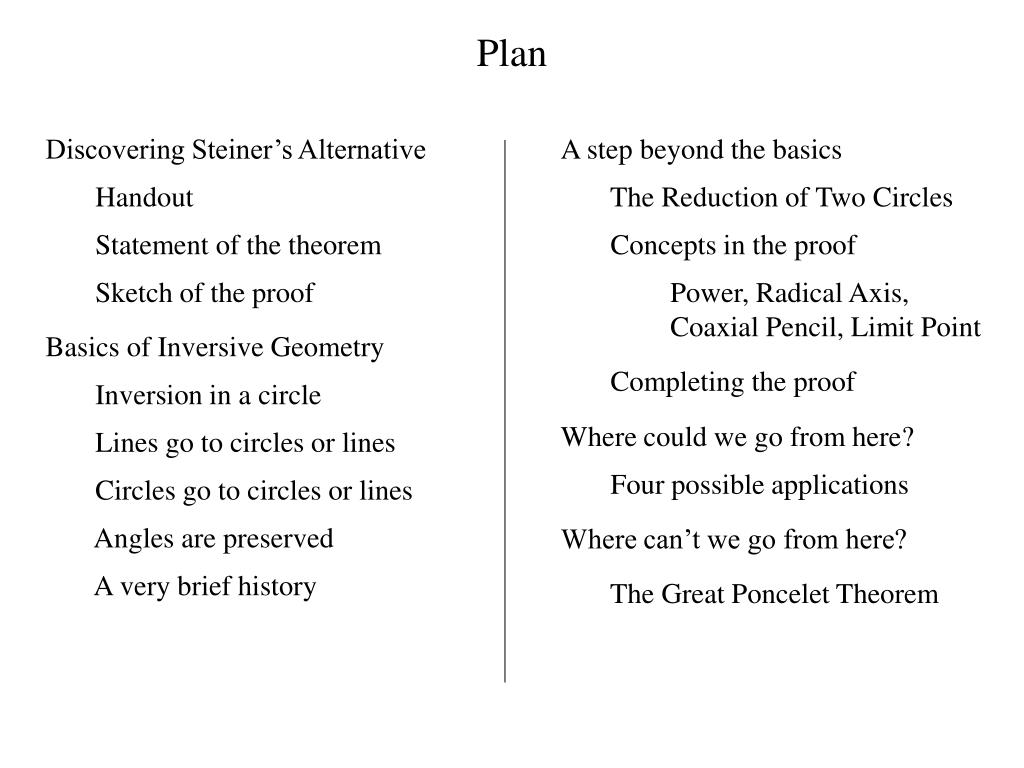

  2. Plan Discovering Steiner’s Alternative Handout Statement of the theorem Sketch of the proof A step beyond the basics The Reduction of Two Circles Concepts in the proof Power, Radical Axis, Coaxial Pencil, Limit Point Completing the proof Basics of Inversive Geometry Inversion in a circle Lines go to circles or lines Circles go to circles or lines Angles are preserved A very brief history Where could we go from here? Four possible applications Where can’t we go from here? The Great Poncelet Theorem

  3. Part I Discovering Steiner’s Alternative

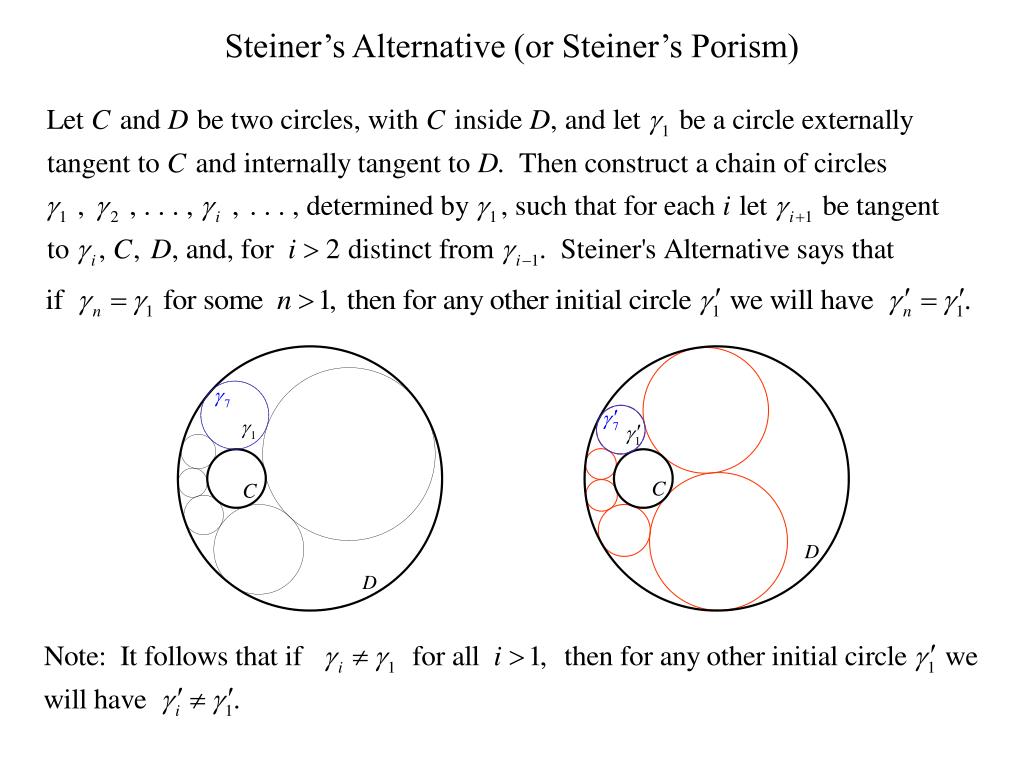

  4. Steiner’s Alternative (or Steiner’s Porism)

  5. Porism: … a finding of conditions that render an existing theorem indeterminate or capable of many solutions. -- Steven Schwartzman, The Words of Mathematics

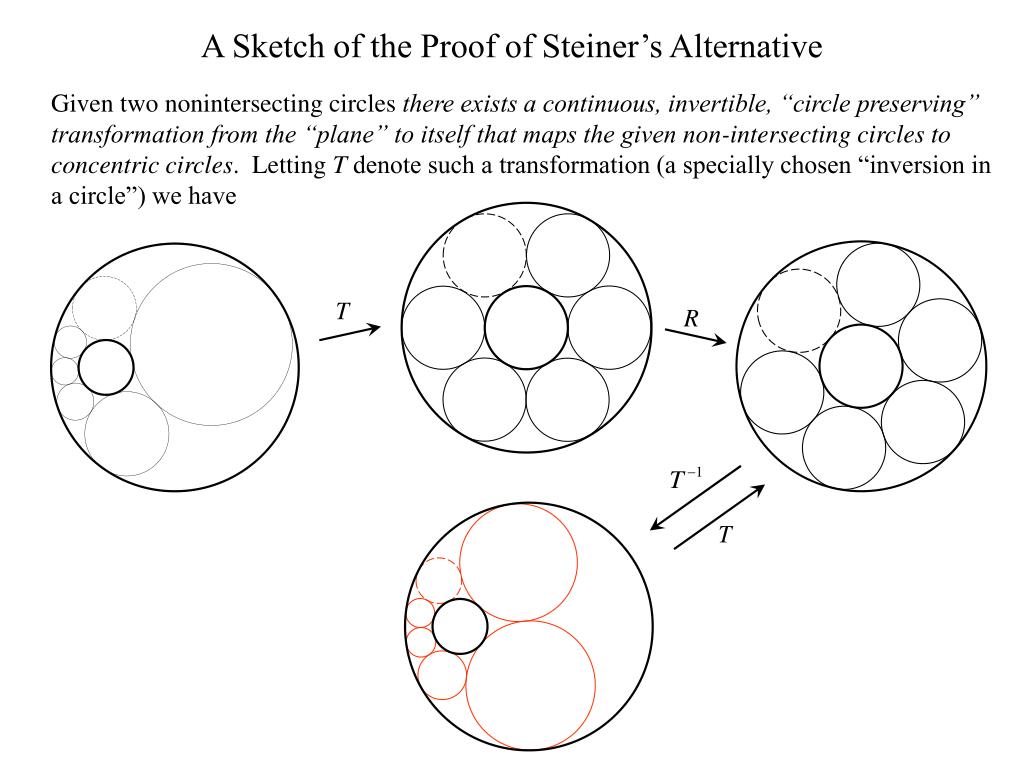

  6. A Sketch of the Proof of Steiner’s Alternative Given two nonintersecting circles there exists a continuous, invertible, “circle preserving” transformation from the “plane” to itself that maps the given non-intersecting circles to concentric circles. Letting T denote such a transformation (a specially chosen “inversion in a circle”) we have

  7. Part II Basics of Inversive Geometry

  8. Inversion in a Circle

  9. Lines go to Circles or Lines

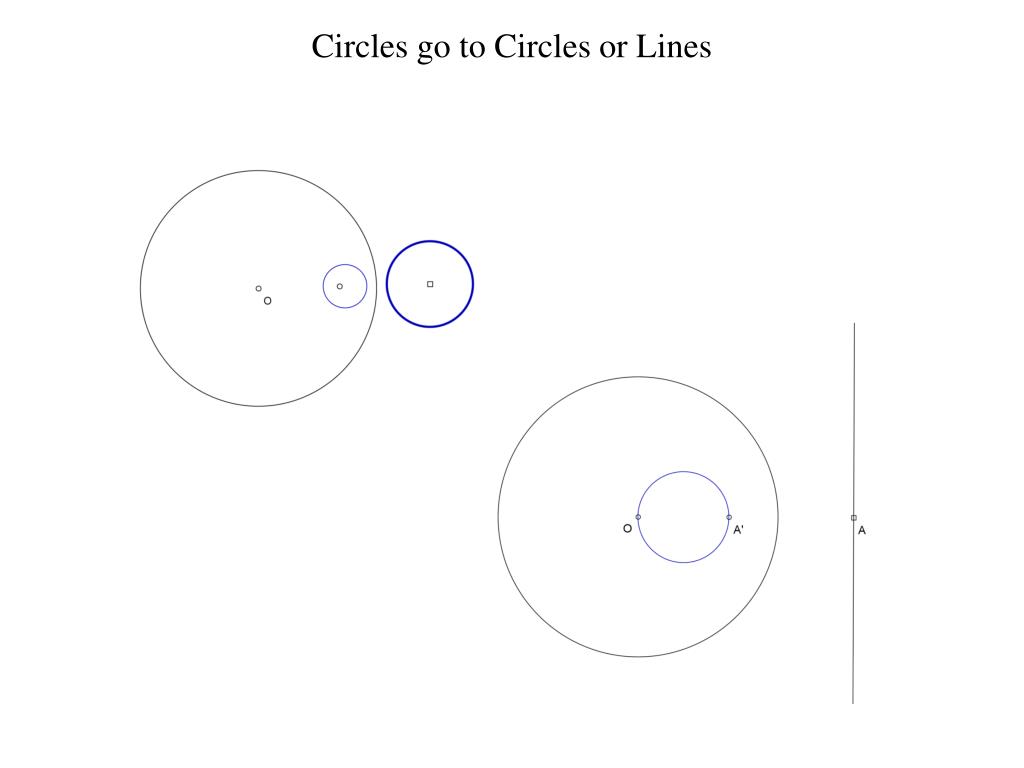

  10. Circles go to Circles or Lines

  11. Angles are Preserved

  12. Summary: Properties of Inversion Points inside the circle of inversion go to points outside, points outside go to points inside, points on the circle are fixed and, like reflection, the transformation is self inverse Inversion preserves the family of circles and lines. Specifically: Circles that don’t pass through the center of the circle of inversion are mapped to circles that don’t pass through the inversion center (but inversion does not send centers to centers) Circles that pass through the center of the circle of inversion are mapped to lines that don’t pass through the inversion center Lines that don’t pass through the center of the circle of inversion are mapped to circles that pass through the inversion center Lines that pass through the center of the circle of inversion are mapped to themselves (although their points are not fixed points) Inversion is an angle preserving map, like reflection, the angle between the tangent lines of two intersecting curves is the same as the angle between the tangent lines of their image curves

  13. “Jakob Steiner’s mathematical work was confined to geometry. This he treated synthetically, to the total exclusion of analysis, which he hated, and he is said to have considered it a disgrace to synthetical geometry if equal or higher results were obtained by analytical methods.” -- Source: Wikipedia A Brief History of Inversive Geometry The idea of inversion is ancient, and was used by Apollonius of Perga about 200 BC. The invention of Inversive Geometry is usually credited to Jakob Steiner whose work in the 1820’s showed a deep understanding of the subject. The first explicit description of inversion as a transformation of the punctured plane was presented by Julius Plücker in 1831. The first comprehensive geometric theory is due to August F. Möbius in 1855. The first modern synthetic-axiomatic construction of the subject is due to Mario Pieri in 1910. -- Source: Jim Smith

  14. Part III A Step Beyond the Basics

  15. Theorem Two non-intersecting circles C and D can always be transformed, by an inversion, into two concentric circles The Reduction of Two Circles Theorem The proof is (really) constructive. We will show how to find by a compass and straight-edge construction, from the given circles, two points such that inversion in a circle centered at either point sends the given circles to concentric circles. To help understand why the construction works it’s useful to introduce some interesting, and perhaps unfamiliar, concepts about circles. These concepts are power, radical axis, pencil, and limit point.

  16. The Power of a Point with Respect to a Circle The power of a point A outside of the circle is positive and equal to the square of the distance from A to the point of tangency B. The power of a point on the circle is zero. The power of a point A inside of the circle is negative and equal to the negative of the square of the distance from A to the point where the chord perpendicular to the radius through A intersects the circle.

  17. The Radical Axis of Two Non-Concentric Circles The locus of points that have the same power with respect to two non-concentric circles is a line perpendicular to their line of centers. Proof Without loss of generality introduce a coordinate system with the x-axis as the line of centers, the origin at the center of one circle and the center of the other at the point (h, 0). a line perpendicular to the line of centers The locus of points that have the same power with respect to two non-concentric circles is called the Radical Axis of the two circles.

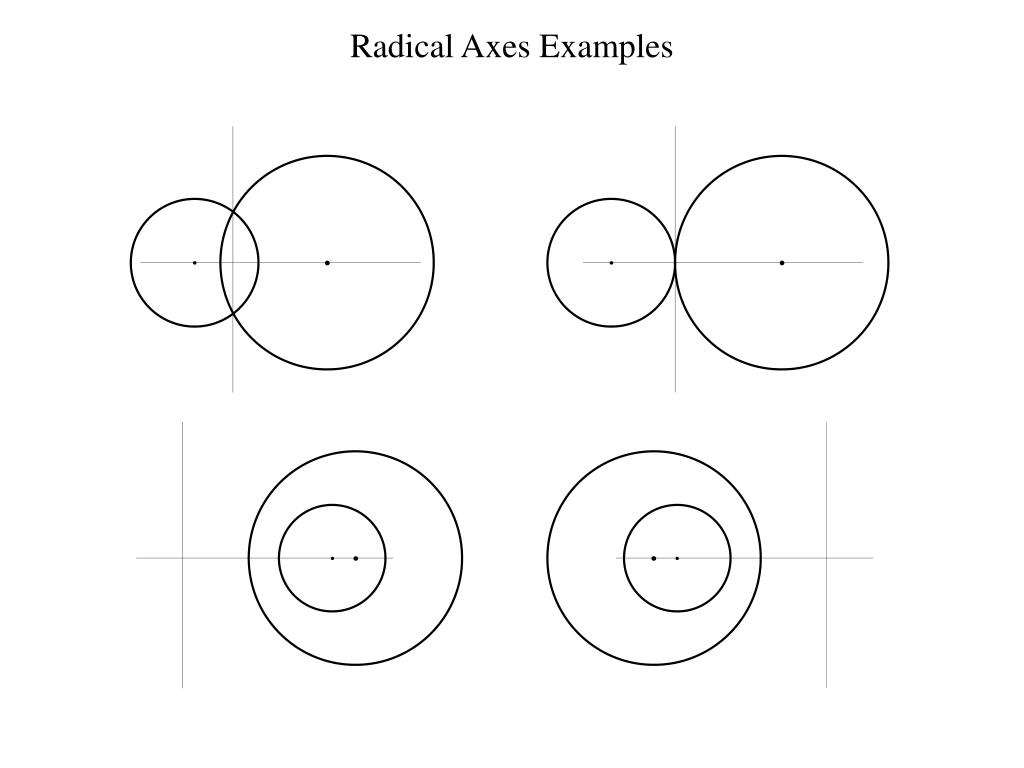

  18. Radical Axes Examples

  19. Constructing the Radical Axis of Two Non-intersecting Circles

  20. Intersecting Pencil Non-Intersecting Pencil Pencils of Coaxial Circles The Pencil of Circles determined by two non-concentric circles C and D is the set of all circles whose centers lie on their line of centers, and such that the radical axis of any pair of circles in the set is the same as the radical axis of C and D.

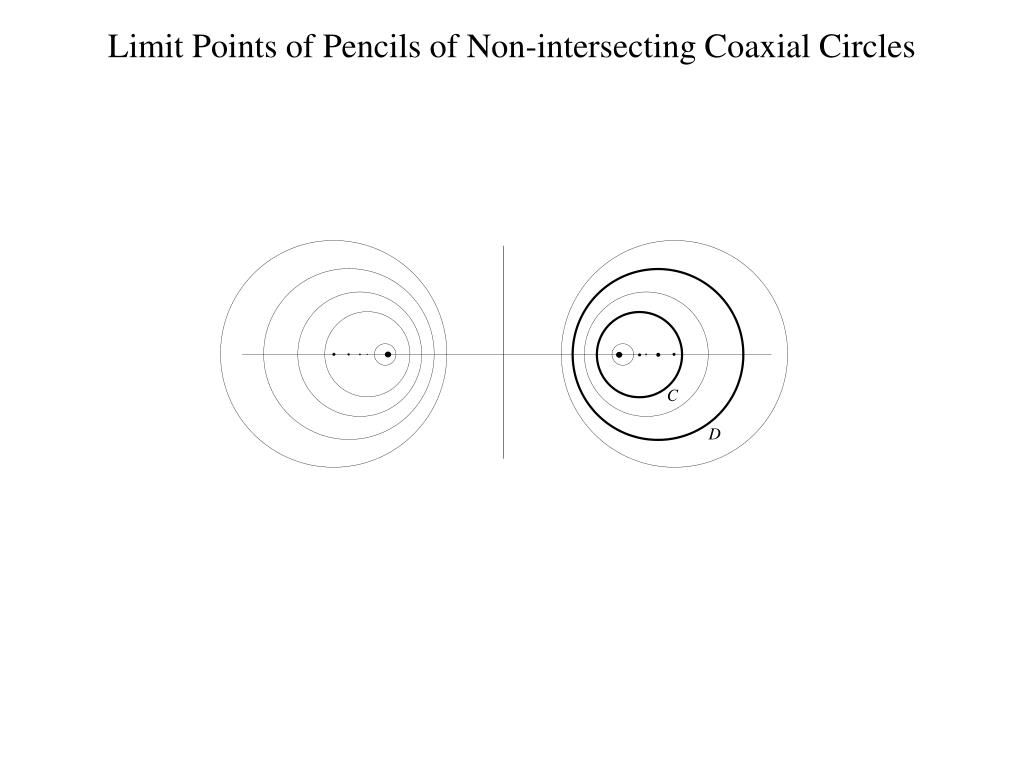

  21. Limit Points of Pencils of Non-intersecting Coaxial Circles

  22. Theorem Two non-intersecting circles C and D can always be transformed, by an inversion, into two concentric circles Proof of the Reduction of Two Circles Theorem

  23. Theorem Two non-intersecting circles C and D can always be transformed, by an inversion, into two concentric circles Proof of the Reduction of Two Circles Theorem

  24. Theorem Two non-intersecting circles C and D can always be transformed, by an inversion, into two concentric circles Proof of the Reduction of Two Circles Theorem

  25. Theorem Two non-intersecting circles C and D can always be transformed, by an inversion, into two concentric circles Proof of the Reduction of Two Circles Theorem

  26. Theorem Two non-intersecting circles C and D can always be transformed, by an inversion, into two concentric circles Proof of the Reduction of Two Circles Theorem

  27. Theorem Two non-intersecting circles C and D can always be transformed, by an inversion, into two concentric circles Proof of the Reduction of Two Circles Theorem

  28. Theorem Two non-intersecting circles C and D can always be transformed, by an inversion, into two concentric circles Proof of the Reduction of Two Circles Theorem

  29. Theorem Two non-intersecting circles C and D can always be transformed, by an inversion, into two concentric circles Proof of the Reduction of Two Circles Theorem

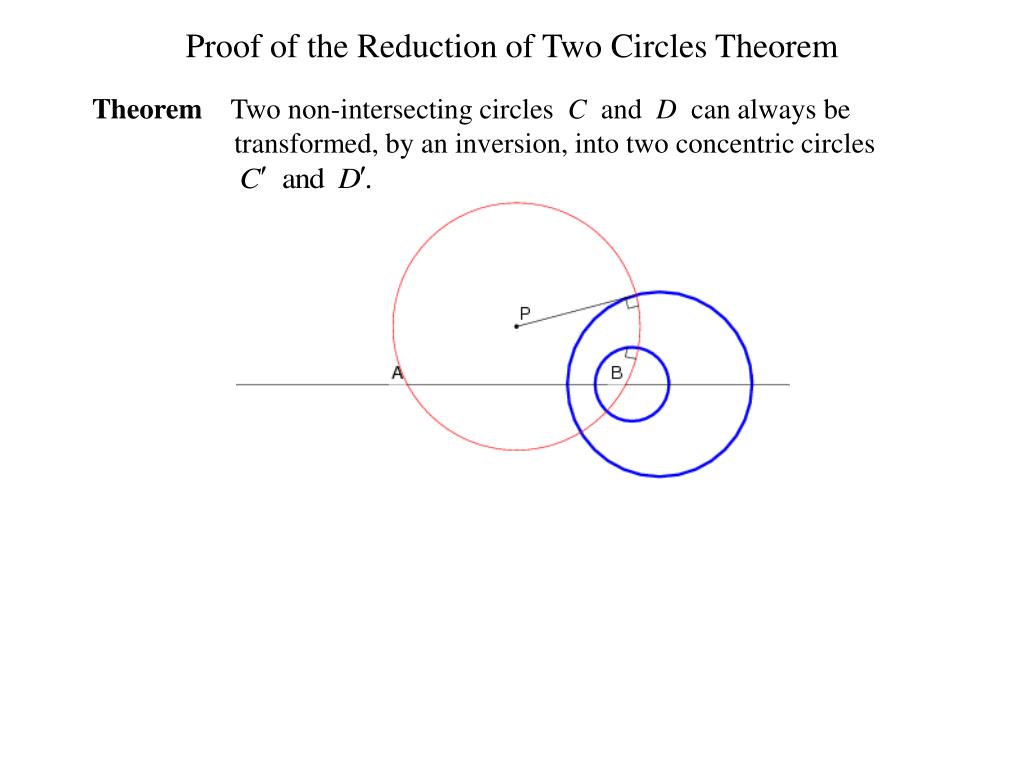

  30. Theorem Two non-intersecting circles C and D can always be transformed, by an inversion, into two concentric circles Proof of the Reduction of Two Circles Theorem

  31. Theorem Two non-intersecting circles C and D can always be transformed, by an inversion, into two concentric circles Proof of the Reduction of Two Circles Theorem

  32. Theorem Two non-intersecting circles C and D can always be transformed, by an inversion, into two concentric circles Proof of the Reduction of Two Circles Theorem

  33. Theorem Two non-intersecting circles C and D can always be transformed, by an inversion, into two concentric circles Proof of the Reduction of Two Circles Theorem

  34. Theorem Two non-intersecting circles C and D can always be transformed, by an inversion, into two concentric circles Proof of the Reduction of Two Circles Theorem

  35. Part IV Where Could We Go from Here?

  36. Higher dimensional inversive geometry: Four Possibilities A more quantitative development of inversive geometry including the concept of the inversive distance between two circles. This would allow the use of a quick computation to tell whether a Steiner chain is finite. William Thomson (Lord Kelvin) used inversion to compute the effect of a point charge on a nearby conductor consisting of two intersecting planes An application of pencils of nonintersecting circles in the study of the three-sphere

  37. From Marcel Berger’s Geometry II

  38. Part V Where Can’t We Go from Here?

  39. “Poncelet’s Alternative”: The Great Poncelet Theorem for Circles

  40. Bibliography 1. M. Berger, Geometry I and Geometry II, Springer-Verlag, New York, 1987 • H.S.M. Coxeter & S.L. Greitzer, Geometry Revisited, The Mathematical • Association of America, Washington, D.C., 1967 3. I. J. Schoenberg, “On Jacobi-Bertrand’s Proof of a Theorem of Poncelet”, in Studies in Pure Mathematics to the Memory of Paul Turán (xxx edition), Hungarian Academy of Sciences, Budapest, pages 623-627. 4. C.S. Ogilvy, Excursions in Geometry, Dover, New York, Dover 1990 5. S.Schwartzman, The Words of Mathematics, The Mathematical Association of America, Washington, D.C., 1994 6. J.T. Smith & E.A. Marchisotto, The Legacy of Mario Pieri in Geometry and Arithmetic, Manuscript (email smith@math.sfsu.edu for access)

  41. The Concentric Case

  42. Warm-up Problem 1 (b) The locus of centers of circles tangent to circles C and D is an ellipse with foci at the centers of C and D such that the sum of the distance to the foci is the sum of the radii of C and D.
