  1. Tara-Scale CMP • Intel’s Tara-scale computing project • 100 cores, >100 threads • Datacenter-on-a-chip • Sun’s Niagara2 • 8 cores, 64 Threads • Key design issues • Architecture Challenges and Tradeoffs • Packaging and off-chip memory bandwidth • Software and runtime environment CDA6159fa07 peir

  2. Many-Core CMPs – High-level View Cores • On-die interconnect • Cache organization & Cache coherence • I/O and Memory architecture What are the key architecture issues in many-cores CMP L1I/D L2 CDA6159fa07 Peir 2

  3. The General Block Diagram FFU: Fixed Function Unit, Mem C: Memory Controller, PCI-E C: PCI-based Controller, R: Router, ShdU: Shader Unit, Sys I/F: System Interface, TexU: Texture Unit CDA6159fa07 Peir 3

  4. On-Die Interconnect 2D Embedding of a 64-core 3D-mesh network The longest hop of the topological distance is extended from 9 to 18!

  5. On-Die Interconnect • Must satisfy bandwidth and latency within power/area • Ring or 2D mesh/torus are good candidate topology • Wiring density, router complexity, design complexity • Multiple source/dest. pairs can be switched together; avoid packets stop and buffered, save power, help throughput • Xbar, general router are power hungry • Fault-tolerant interconnect • Provide spare modules, allow fault-tolerant routing • Partition for performance isolation

  6. Performance Isolation in 2D mesh • Performance isolation in 2D mesh with partition • 3 rectangular partitions • Intra-communication confined within partition • Traffic generated in a partition will not affect others • Virtualization of network interfaces • Interconnect as an abstraction of applications • Allow programmers fine-tune application’s inter-processor communication

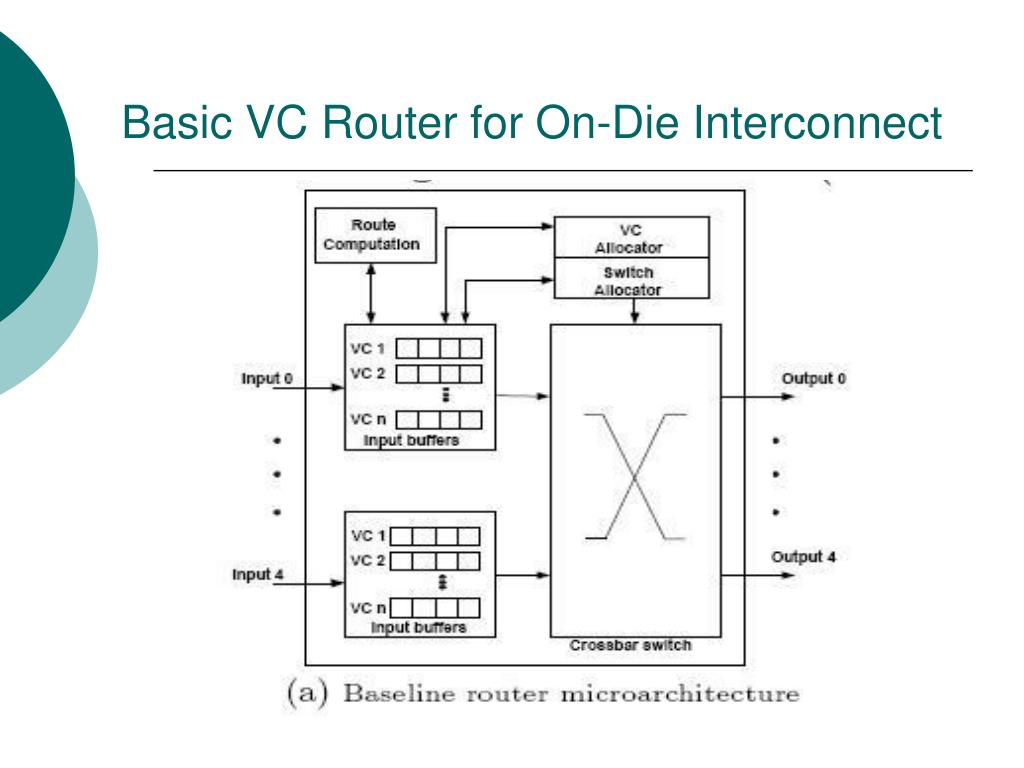

  7. Basic VC Router for On-Die Interconnect

  8. 2-D Mesh Router Layout

  9. Router Pipeline • Micro-architecture optimization on Router pipeline • Use Express Virtual Channel for intermediate hops • Eliminate VA and SA stages, Bypass buffers • Static EVC vs. dynamic EVC • Intelligent inconnect topologies

  10. Many-Core CMPs Cores • Shared vs. Private • Cache capacity vs. accessibility • Data replication vs. block migration • Cache partition How about on-die cache organization with so many cores? L1I/D L2

  11. CMP Cache Organization

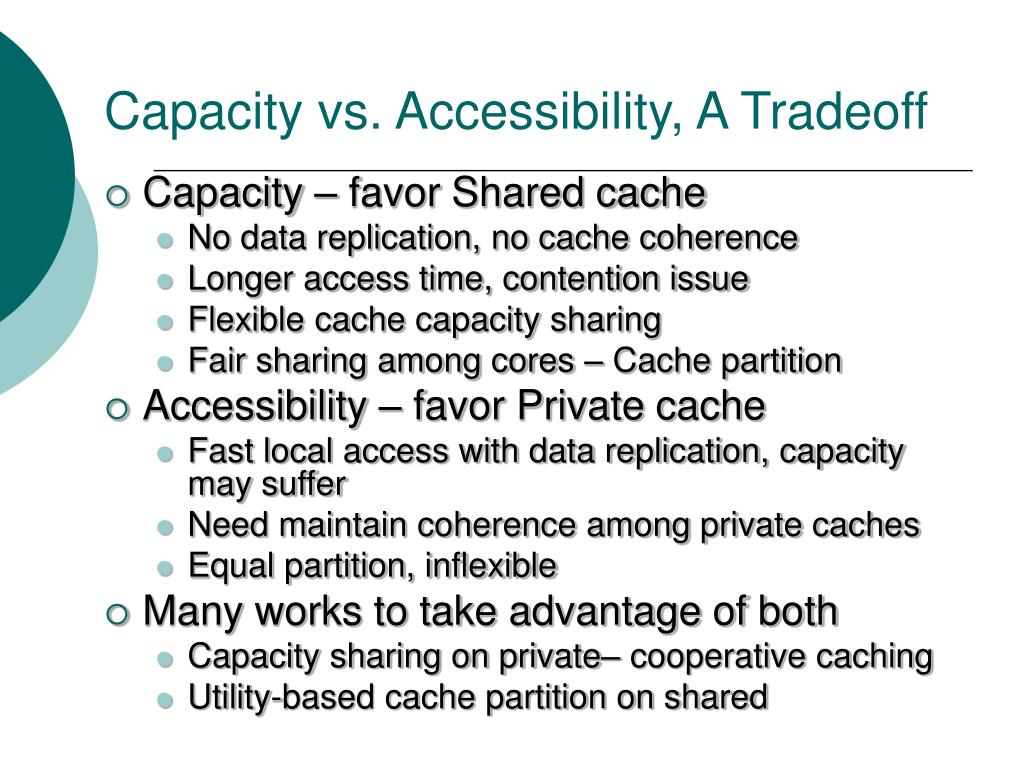

  12. Capacity vs. Accessibility, A Tradeoff • Capacity – favor Shared cache • No data replication, no cache coherence • Longer access time, contention issue • Flexible cache capacity sharing • Fair sharing among cores – Cache partition • Accessibility – favor Private cache • Fast local access with data replication, capacity may suffer • Need maintain coherence among private caches • Equal partition, inflexible • Many works to take advantage of both • Capacity sharing on private– cooperative caching • Utility-based cache partition on shared

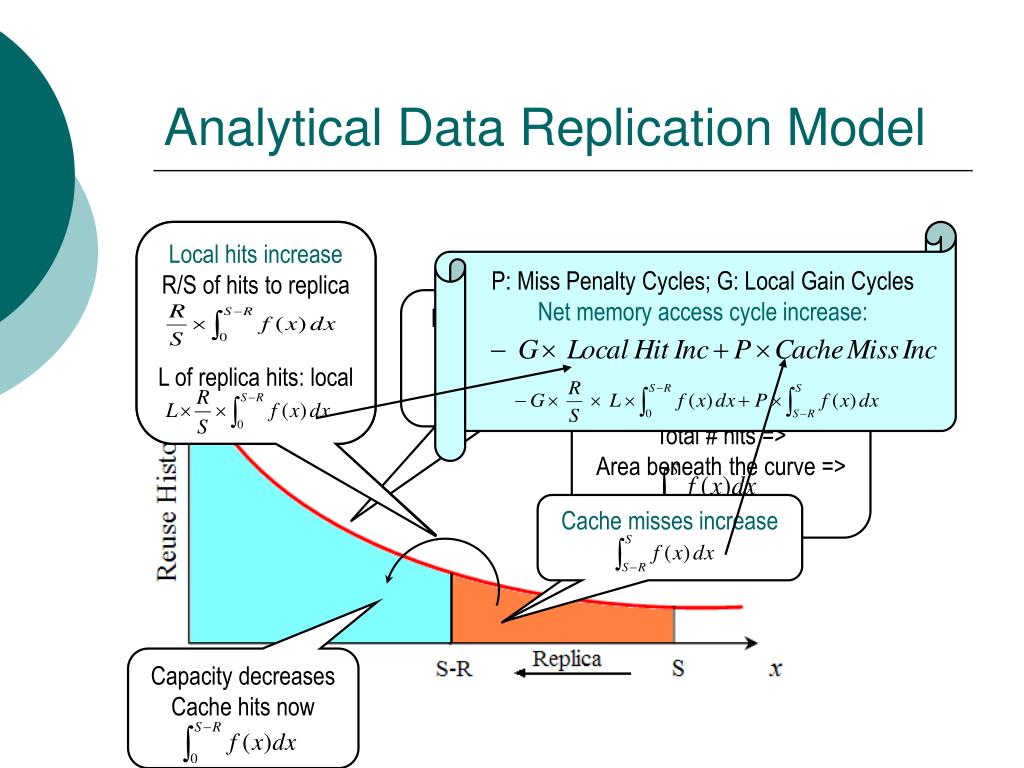

  13. Analytical Data Replication Model Local hits increase R/S of hits to replica Local hits increase R/S of hits to replica L of replica hits: local P: Miss Penalty Cycles; G: Local Gain Cycles Net memory access cycle increase: Reuse distance histogram f(x): # of accesses with distance x Cache size S: Total # hits => Area beneath the curve => Cache misses increase Capacity decreases Cache hits now

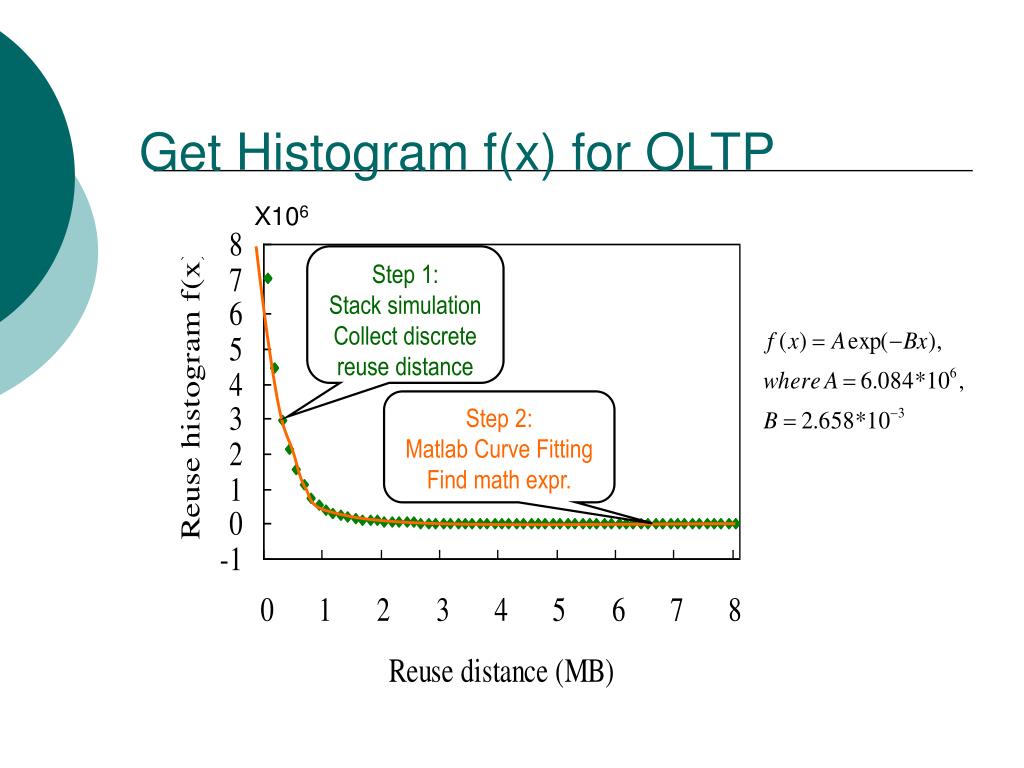

  14. Get Histogram f(x) for OLTP X106 Step 1: Stack simulation Collect discrete reuse distance Step 2: Matlab Curve Fitting Find math expr.

  15. Data Replication Effects f(x) G =15 P = 400 L = 0.5 Data Replication Impacts vary with different cache sizes S = 2M S = 2M 0% best S = 4M S = 4M 40% best S = 8M: S = 8M 65% best (R/S)

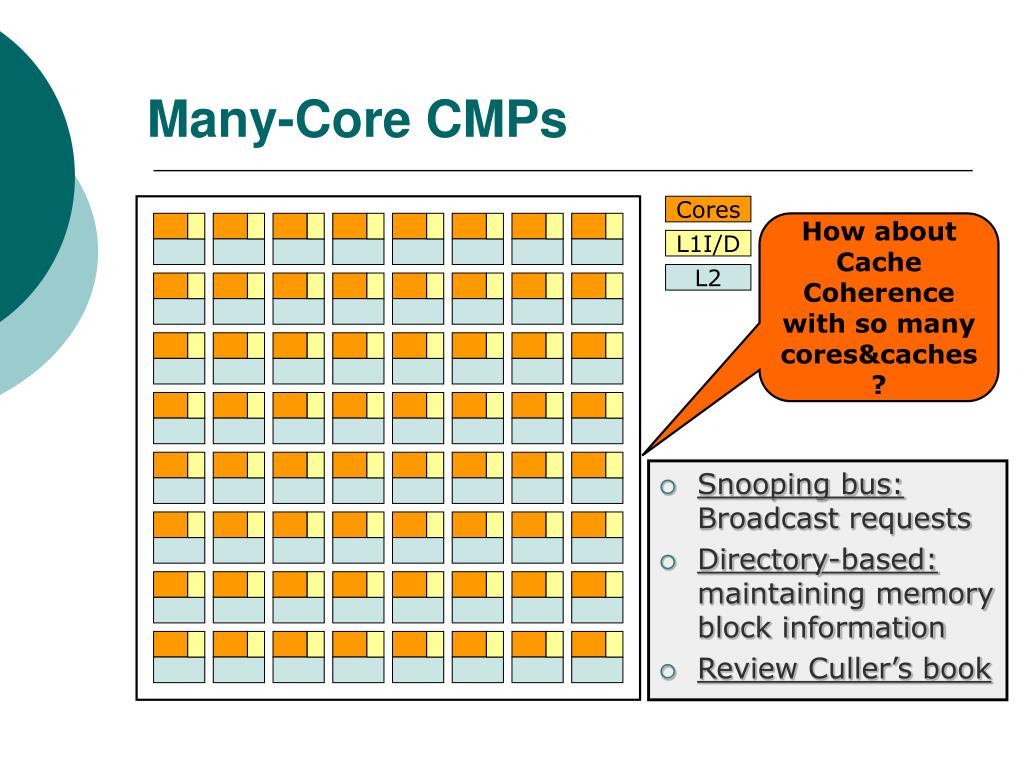

  16. Many-Core CMPs Cores • Snooping bus: Broadcast requests • Directory-based: maintaining memory block information • Review Culler’s book How about Cache Coherence with so many cores&caches? L1I/D L2

  17. Simplicity: Shared L2, Write-through L1 • Existing designs • IBM Power4 & 5 • Sun Niagara & Niagara 2 • Small number of cores, Multiple L2 banks, Xbar • Still need L1 coherence!! • Inclusive L2, use L2 directory record L1 sharers in Power4&5 • Non-inclusive L2, Shadow L1 directory in Niagara • L2 (shared) coherence among multiple CMPs • Private L2 is assumed

  18. Other Considerations • Broadcast • Snooping Bus: loading, speed, space, power, scalability, etc. • Ring: slow traversal, ordering, scalability • Memory-based directory • Huge directory space • Directory cache, extra penalty • Shadow L2 Directory: copy all local L2s • Aggregated associativity = Cores * Ways/Core; 64*16 = 1024 way • High power

  19. Directory-Based Approach • Directory needs to maintain the state and location of all cached blocks • Directory is checked when the data cannot be accessed locally, e.g. cache miss, write-to-shared • Directory may route the request to remote cache to fetch the requested block

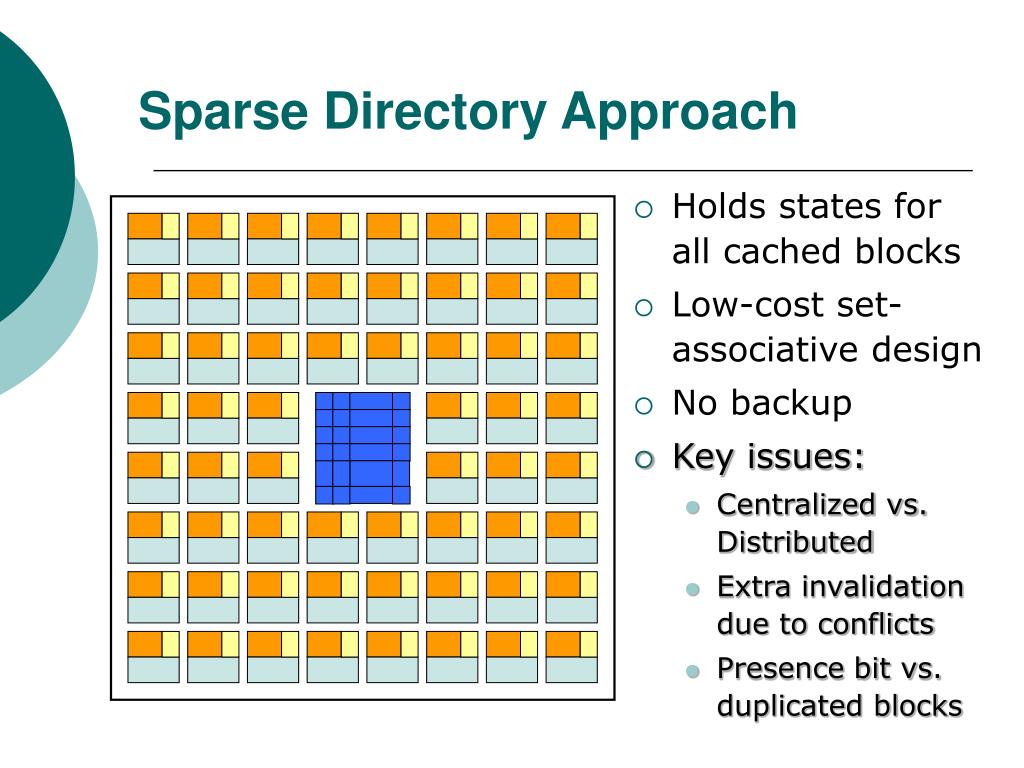

  20. Sparse Directory Approach • Holds states for all cached blocks • Low-cost set-associative design • No backup • Key issues: • Centralized vs. Distributed • Extra invalidation due to conflicts • Presence bit vs. duplicated blocks

  21. Conflict Issues in Coherence Directory • Coherence directory must be a superset of all cached blocks • Uneven distribution of cached blocks in each directory set cause invalidations • Potential solutions: • High set associativity – costly • Directory + victim directory • Randomization and Skew associativity • Bigger directory - Costly • Others?

  22. Impact of Invalidation due to Directory Conflict • 8-core CMP, 1MB 8-way private L2 (total 8MB) • Set-associative dir; # of dir entry = total # of cache blocks • Each cached block occupies a directory entry 96% 93% 75% 72%

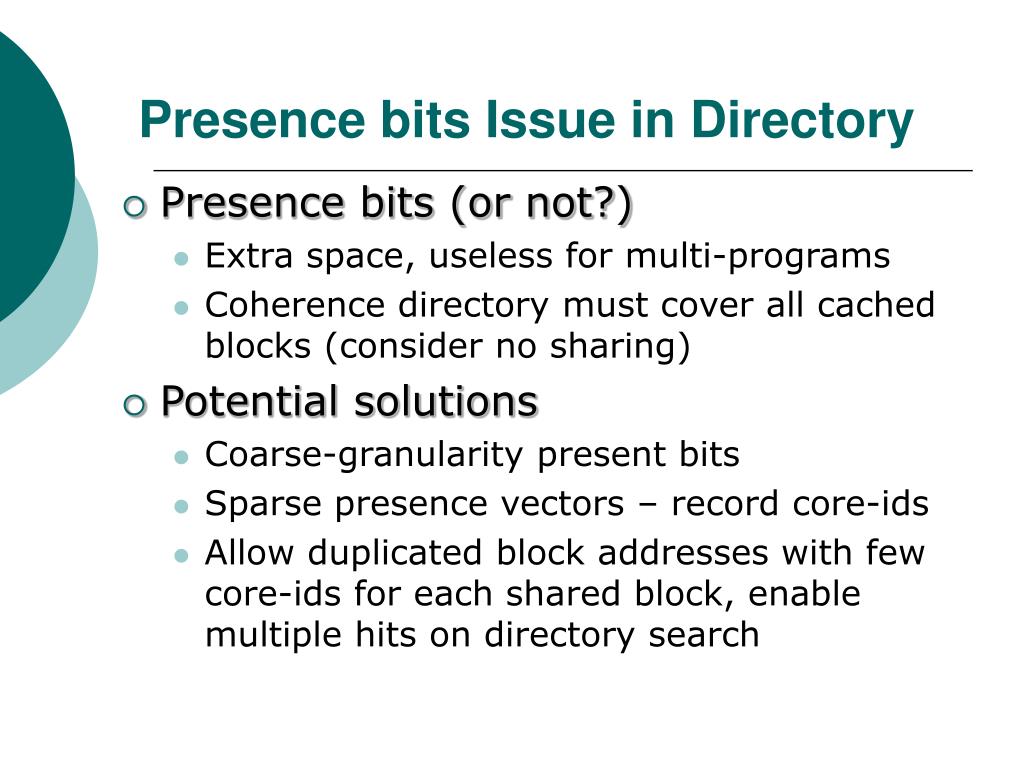

  23. Presence bits Issue in Directory • Presence bits (or not?) • Extra space, useless for multi-programs • Coherence directory must cover all cached blocks (consider no sharing) • Potential solutions • Coarse-granularity present bits • Sparse presence vectors – record core-ids • Allow duplicated block addresses with few core-ids for each shared block, enable multiple hits on directory search

  24. Presence Bit: Multiprogrammed -> No Multithreaded -> Yes Valid Blocks Skew, and 10w-1/4 helps; No difference 64v

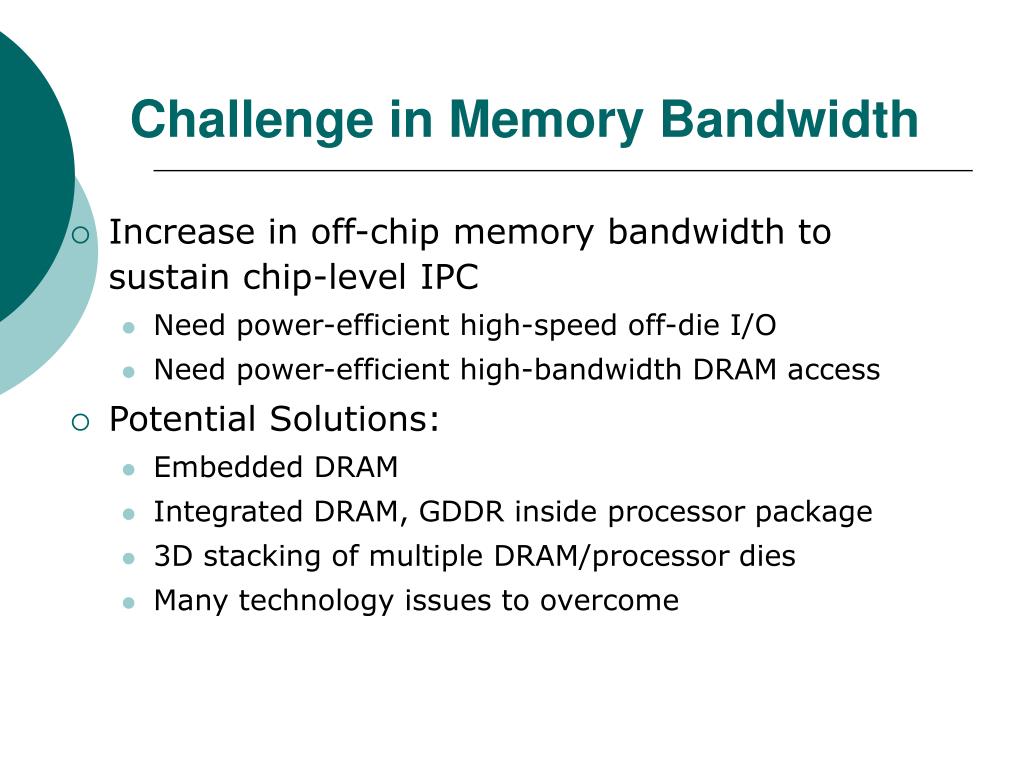

  25. Challenge in Memory Bandwidth • Increase in off-chip memory bandwidth to sustain chip-level IPC • Need power-efficient high-speed off-die I/O • Need power-efficient high-bandwidth DRAM access • Potential Solutions: • Embedded DRAM • Integrated DRAM, GDDR inside processor package • 3D stacking of multiple DRAM/processor dies • Many technology issues to overcome

  26. Memory Bandwidth Fundamental • BW = # of bits x bit rate • A typical DDR2 bus is 16 bytes (128 bits) wide and operating at 800Mb/s. The memory bandwidth of that bus is 16 bytes x 800Mb/s, which is 12.8GB/s • Latency and Capacity • Fast, but small capacity on-chip SRAM (caches) • Slow large capacity off-chip DRAM

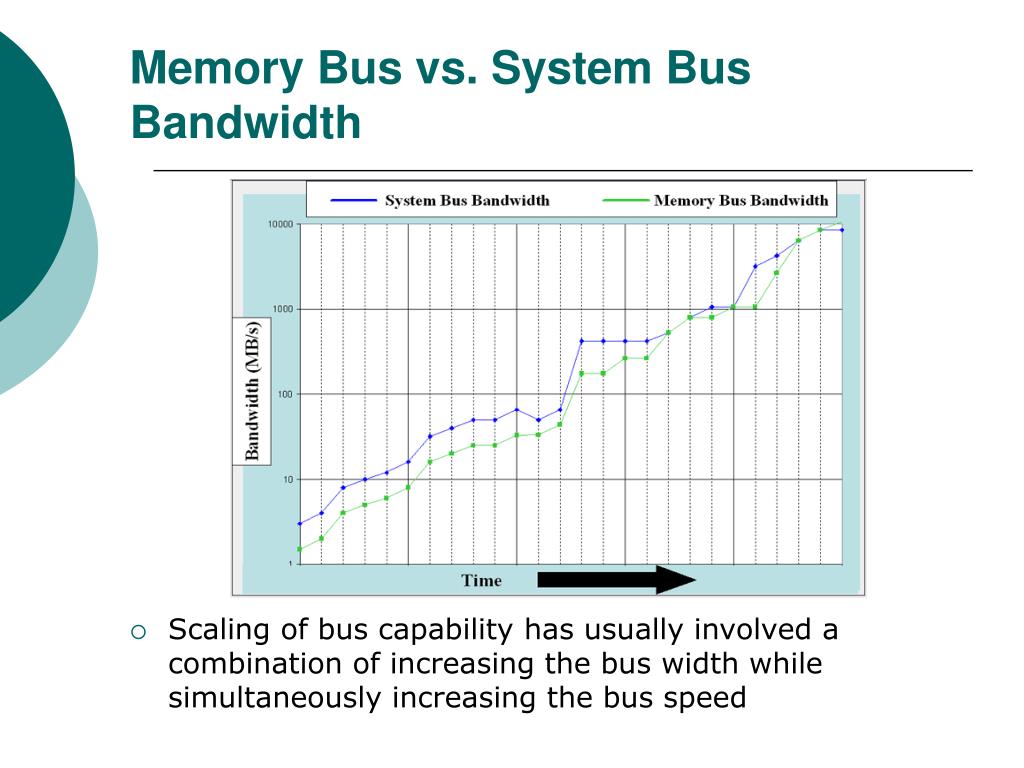

  27. Memory Bus vs. System Bus Bandwidth • Scaling of bus capability has usually involved a combination of increasing the bus width while simultaneously increasing the bus speed

  28. Integrated CPU with Memory Controller • Eliminate off-chip controller delay • Fast, but difficult to adapt new DRAM technology • The entire burden of pin count and interconnect speed to sustain increases in memory bandwidth requirements now falls on the CPU package alone

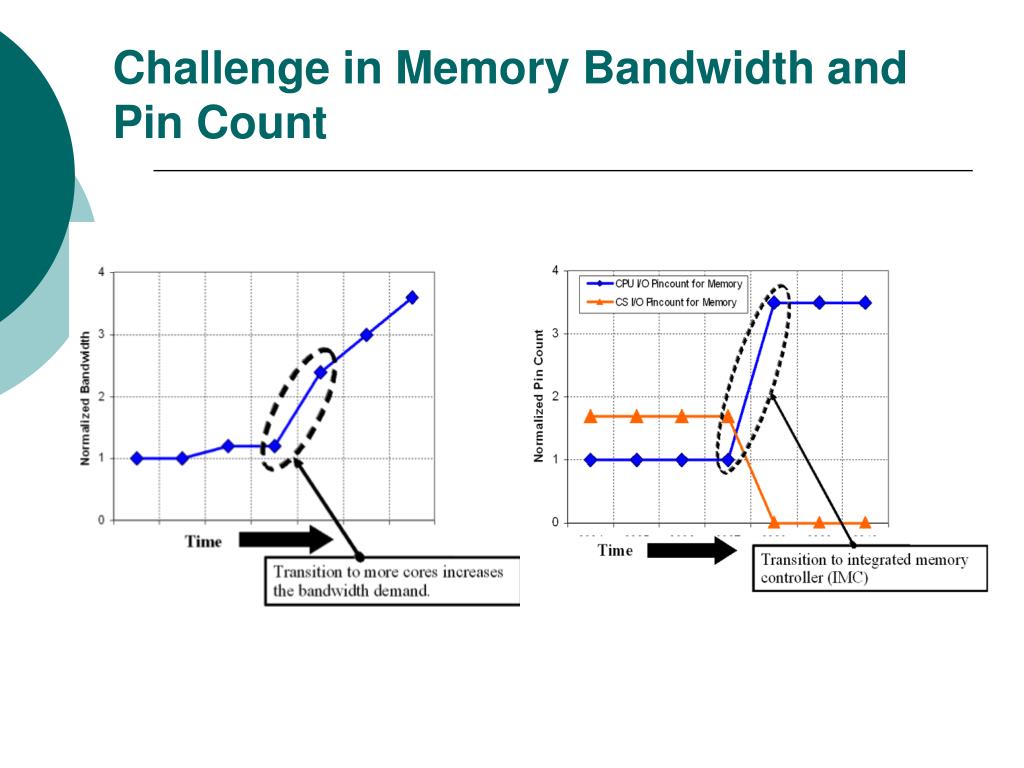

  29. Challenge in Memory Bandwidth and Pin Count

  30. Challenge in Memory Bandwidth • Historical trend for memory bandwidth demand • Current generation: 10-20 GB/s • Next generation: >100GB/s and could go 1TB/s

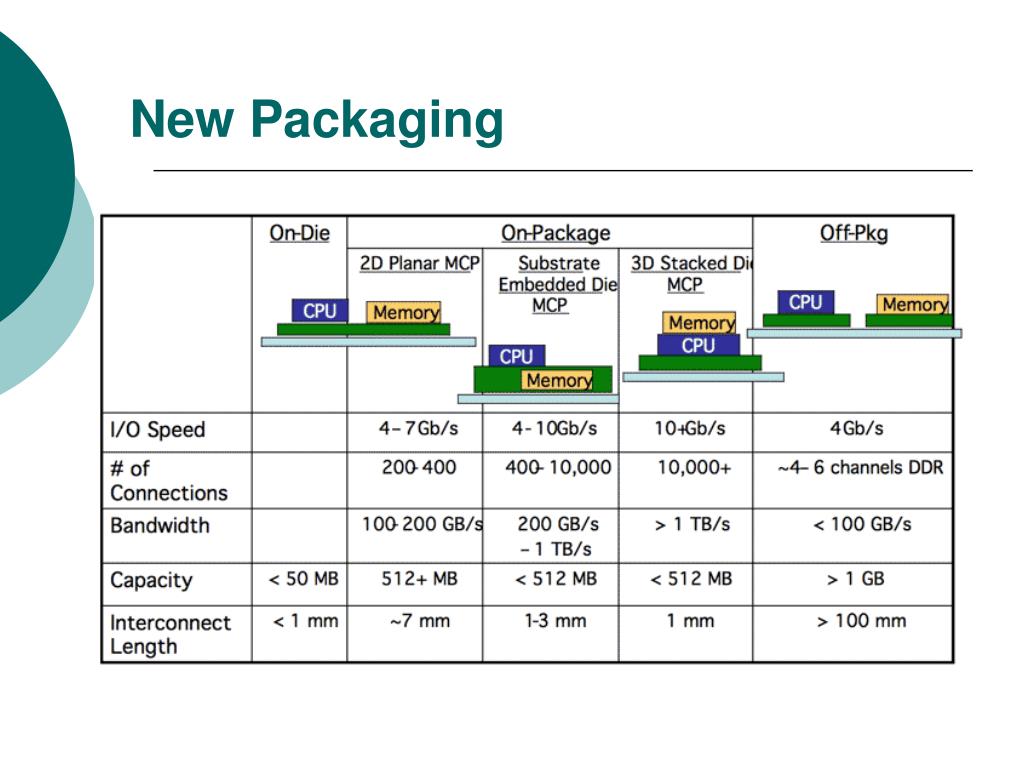

  31. New Packaging

  32. New Packaging

  33. New Packaging
