Plumbed or Portable units available. Decaffeinated box. ½ Kg Bean Hopper capacity. Multifunctional LCD Display. Soft touch Panel. Hot-Water & Steam Wand. Stainless Steel body. Used grounds drawer. Lockable Door. Delivery Nozzle adjustable for cup height. Compact Dimension

Download Presentation

Soft touch Panel

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Soft touch panel

Plumbed or Portable units available

Decaffeinated box

½ Kg Bean Hopper capacity

Multifunctional LCD Display

Soft touch Panel

Hot-Water & Steam Wand

Stainless Steel body

Used

grounds drawer

Lockable Door

Delivery Nozzle adjustable for cup height

Compact Dimension

320 mm x 450mm x h480mm

320 mm

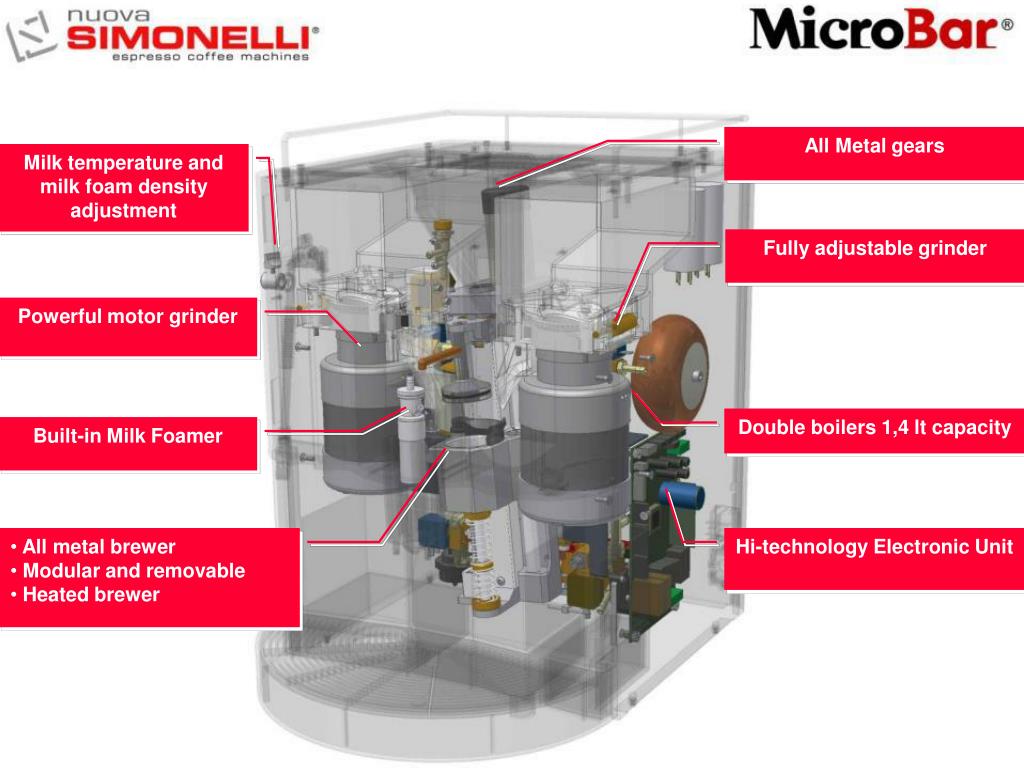

Soft touch panel

All Metal gears

Milk temperature and milk foam density adjustment

Fully adjustable grinder

Powerful motor grinder

Double boilers 1,4 lt capacity

Built-in Milk Foamer

  • All metal brewer

  • Modular and removable

  • Heated brewer

Hi-technology Electronic Unit


Soft touch panel

Electronic features

  • CPU Thomson

  • Display LCD double blue line

  • Rich beverage menù

  • User friendly Software;

  • On-Off planning

  • Self diagnostic system

  • Automatic wash

  • Electronic regulation of grinder

  • Adjustable temperature settings

  • Setting of machine to individual beverage requirements

  • Energy Saving Mode

  • Smart Card (Optional)

  • Program. Tamping force

  • Decalcification Cycle


Soft touch panel

Pre-Set Menu Cappuccino Version


Soft touch panel

HI!

I AM MICROBAR

DESIGNED FOR

EVERYONE...


Soft touch panel

  • INNOVATIVE DESIGN

  • SMALL FOOTPRINT – VAST APPLICATIONS

  • SOLID APPEARANCE

  • EASY TO ACCESS AND MAINTAIN

  • MODULAR COMPONENTS


Soft touch panel

  • IBREWING HEAD

    • DIECAST ALLUMINUM WITH STAINLESS STEEL SLEAVE

    • THERMALLY COMPENSATED

    • EASY TO EXTRACT

    • ADJUSTABLE TAMPING PRESSURE (FROM CONTROL PANEL)

    • PRE - INFUSION

    • STAINLESS STEEL MECANICS

    • EASY TO INSPECT AND CLEAN

    • 43 mm INFUSION CHAMBER – HOLDS UP TO 15 g OF COFFEE GROUNDS

    • BOTTOM – UP INFUSION SYSTEM:

    • ELIMINATES GROUNDS IN THE CUP

  • -         INCREASES EXTRACTION QUALITY

  • -         DRY COFFEE GROUNDS AFTER EXTRACTION

  • -         REDUCES GROUP GASKETS CONSUMPTION


Soft touch panel

  • HYDRAULIC SYSTEM

  • SERIAL TWIN BOILERS SYSTEM:

  • 0,9lt CAPACITY WATER BOILER + 0.9lt STEAM BOILER WITH SERIAL CONNECTION

  •  INSULATED BOILERS FOR ENERGY SAVING AND FAST RECOVERY

  •  VIBRATION PUMP WITH BY PASS ADJUSTMENT FOR WATER PRESSURE CONTROL

  • SIMULTANEOUS BREWING OF COFFEE AND STEAM


Soft touch panel

  • GRINDER

  • 1 0R 2 GRINDERS

  • 50 mm DIAMETER TITANIUM COATED FLAT BURRS RATED FOR 25000 CUPS / 440 lbs OF COFFEE)

  • 150 W MOTOR/S

  • SELF ADJUSTING SYSTEM COMPENSATES BURRS CONSUMPTION INCREASING GRINDING TIME

  • MICROMETRIC GRINDING ADJUSTMENT TO OPTIMIZE EXTRACTION

  • 1 POUND BEAN HOPPERS WITH REMOVABLE EXTENTION (ADDITIONAL 1 POUND)


Soft touch panel

ELECTRONIC FEATURES

·        ●THOMPSON MULTI-LAYER CPU WITH ENHANCED MEMORY AND

INSULATED CIRCUITS

·        ●ENERGY SAVING MODE

·        ●TAMPING PRESSURE ELECTRONIC ADJUSTMENT

·        ●TWO LINES EASY TO READ LCD DISPLAY (BLUE COLOR)

●SELF DIAGNOSTIC SYSTEM

·      ●FUNCTIONS VISUALIZED AND CONTROLLED ON LCD DISPLAY:

-


Soft touch panel

  • GENERAL FEATURES

  • VOLUMETRIC DOSING

  • EXTRACTABLE BREWING HEAD ADJUSTABLE HEIGHT UP TO 5 INCHES

  • 5L WATER RESERVOIR OR DIRECT CONNECT TO WATER LINE

  • WATER DISPOSAL TRAY UP TO 1 lt.

  • STAINLESS STEEL BODY


Soft touch panel

  • OPTIONAL FEATURES

  • CAPPUCCINO / COFFEE VERSION

  • SMART CARD SYSTEM

  • DIRECT DISCHARGE OPTION

  • DIRECT CONNECTION TO HYDRIC LINE

  • METAL GRAY COLOR
