  1. CC5212-1ProcesamientoMasivo de DatosOtoño2014 Aidan Hogan aidhog@gmail.com Lecture XI: 2014/06/11

  2. Me vs. Google

  3. RECAP: NoSQL

  4. NoSQL

  5. NoSQL vs. Relational Databases What are the big differences between relational databases and NoSQL systems? What are the trade-offs?

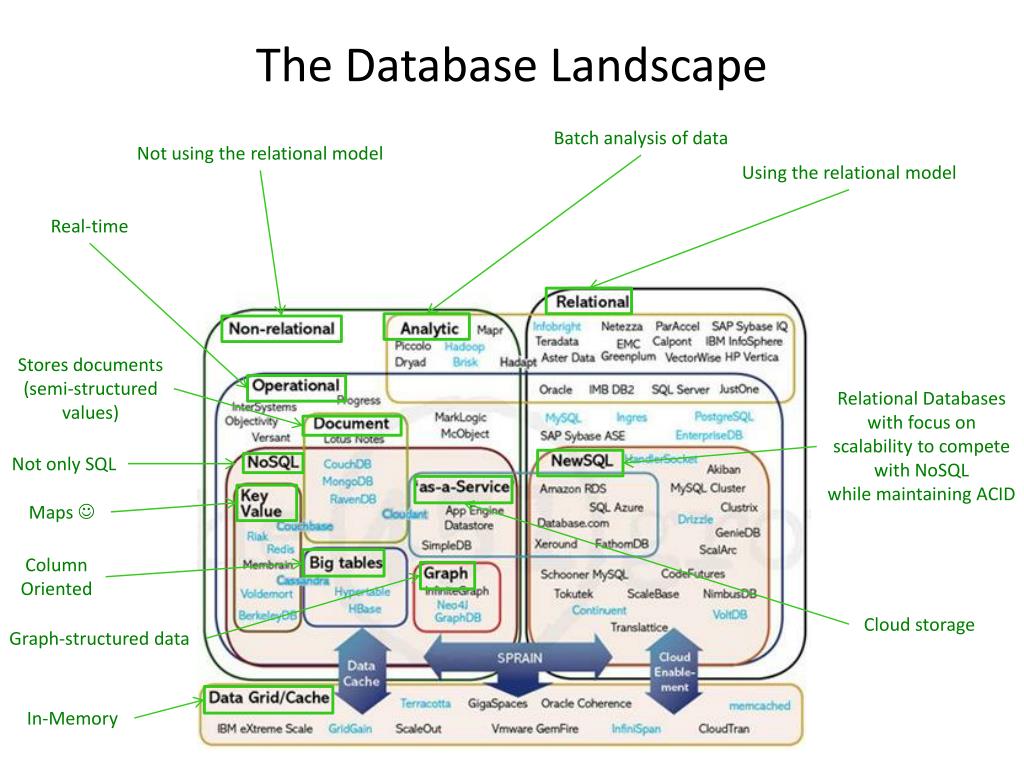

  6. The Database Landscape Batch analysis of data Not using the relational model Using the relational model Real-time Stores documents (semi-structured values) Relational Databases with focus on scalability to compete with NoSQL while maintaining ACID Not only SQL Maps  Column Oriented Cloud storage Graph-structured data In-Memory

  7. RECAP: KEY–VALUE

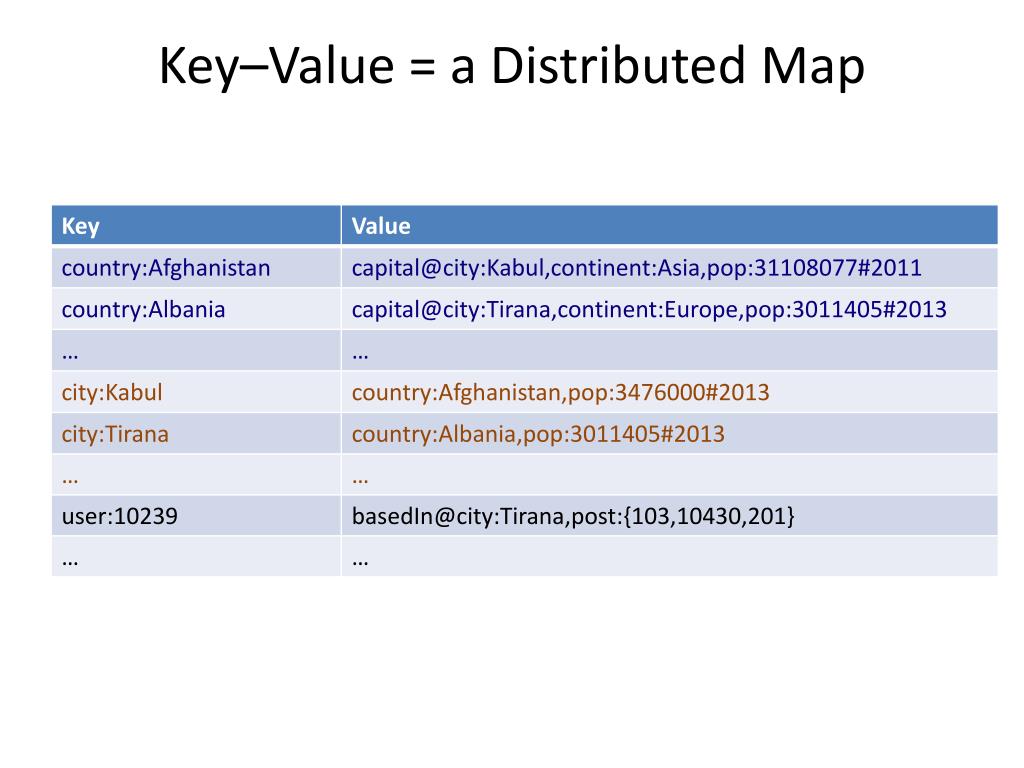

  8. Key–Value = a Distributed Map

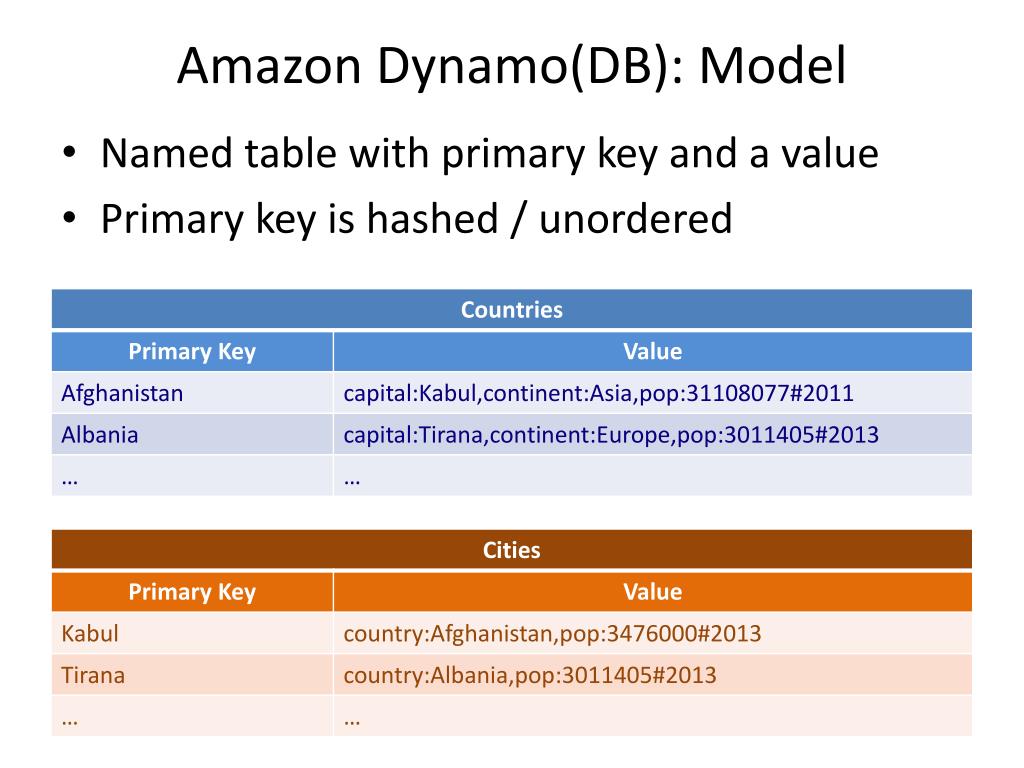

  9. Amazon Dynamo(DB): Model • Named table with primary key and a value • Primary key is hashed / unordered

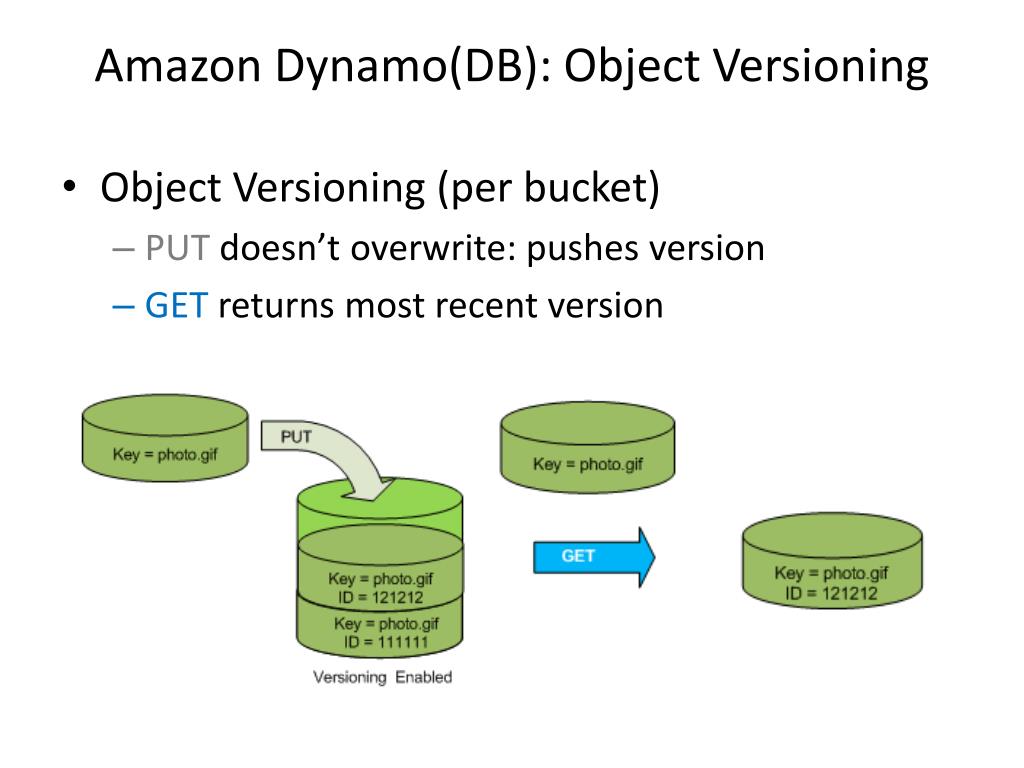

  10. Amazon Dynamo(DB): Object Versioning • Object Versioning (per bucket) • PUT doesn’t overwrite: pushes version • GET returns most recent version

  11. Other Key–Value Stores

  12. RECAP: DOCUMENT STORES

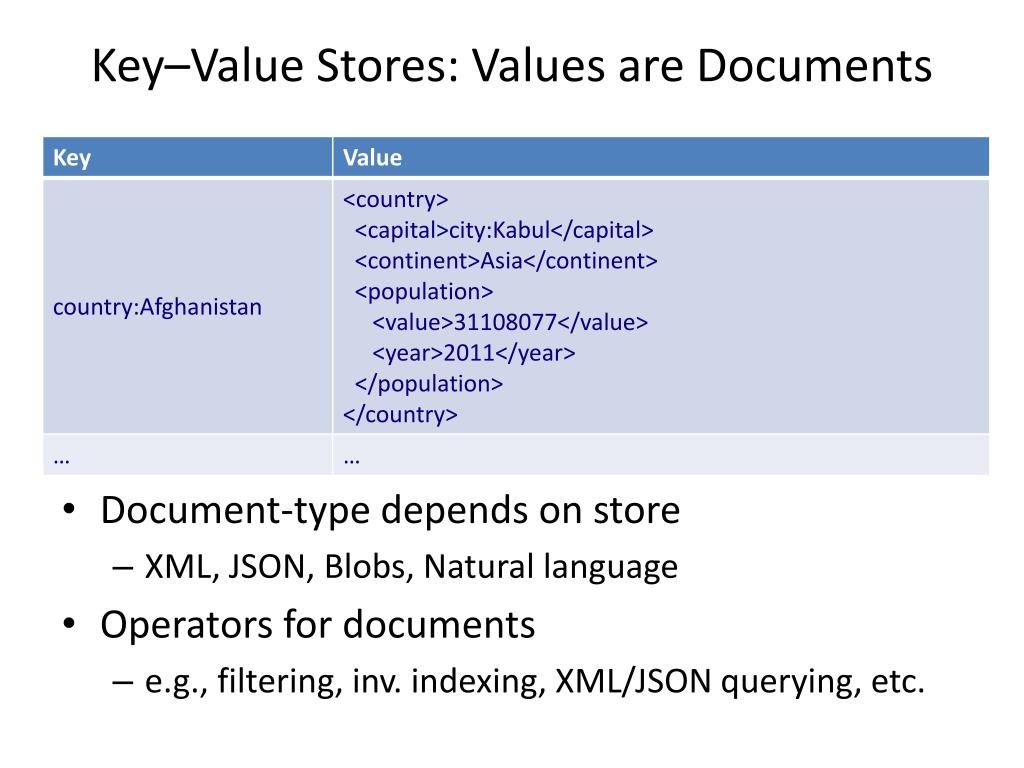

  13. Key–Value Stores: Values are Documents • Document-type depends on store • XML, JSON, Blobs, Natural language • Operators for documents • e.g., filtering, inv. indexing, XML/JSON querying, etc.

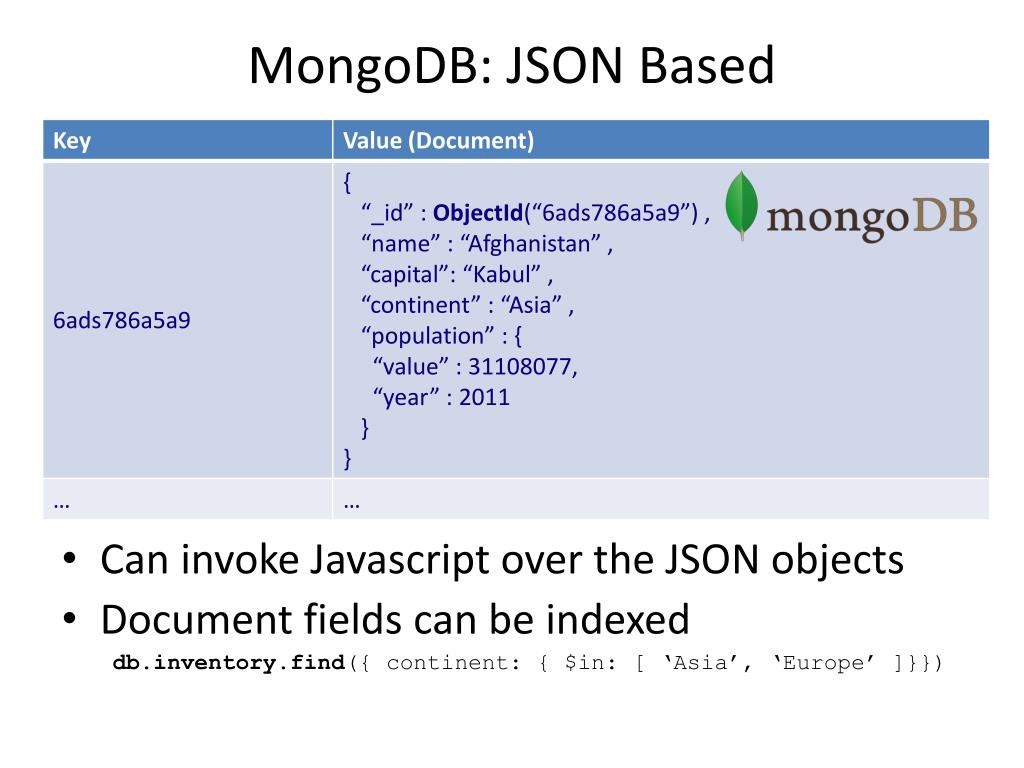

  14. MongoDB: JSON Based o • Can invoke Javascript over the JSON objects • Document fields can be indexed db.inventory.find({ continent: { $in: [ ‘Asia’, ‘Europe’ ]}})

  15. Document Stores

  16. TABLULAR / COLUMN FAMILY

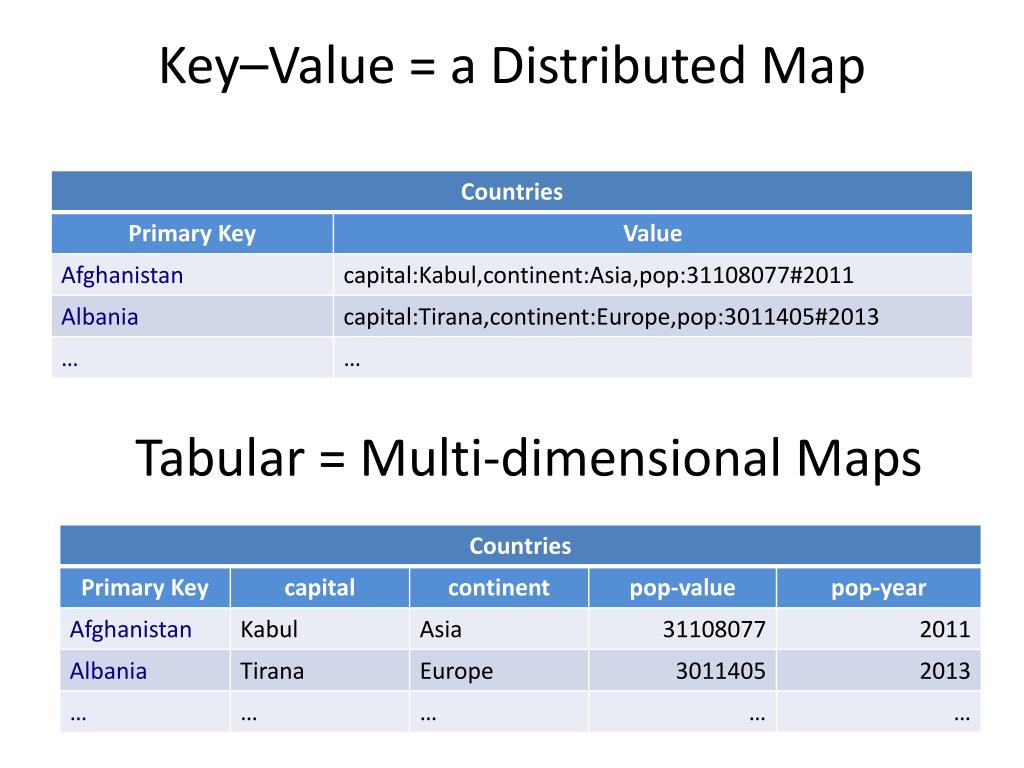

  17. Key–Value = a Distributed Map Tabular = Multi-dimensional Maps

  18. Bigtable: The Original Whitepaper Why did they write another paper? MapReduce solves everything, right? MapReduce authors

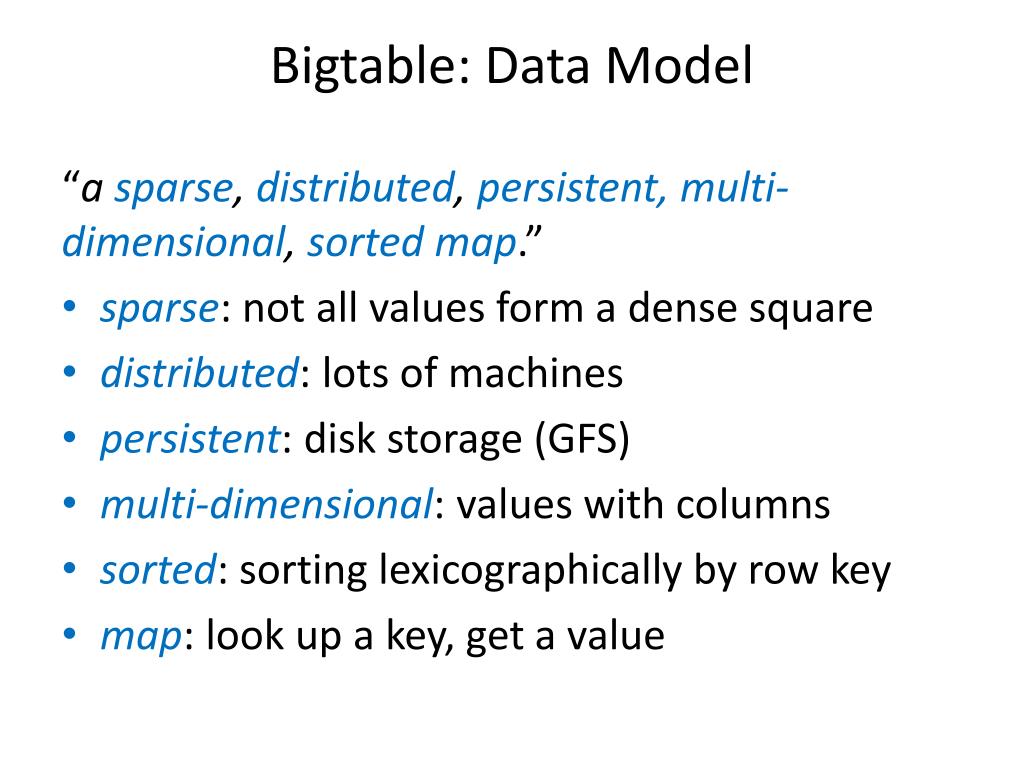

  19. Bigtable: Data Model “a sparse, distributed, persistent,multi-dimensional, sortedmap.” • sparse: not all values form a dense square • distributed: lots of machines • persistent: disk storage (GFS) • multi-dimensional: values with columns • sorted: sorting lexicographically by row key • map: look up a key, get a value

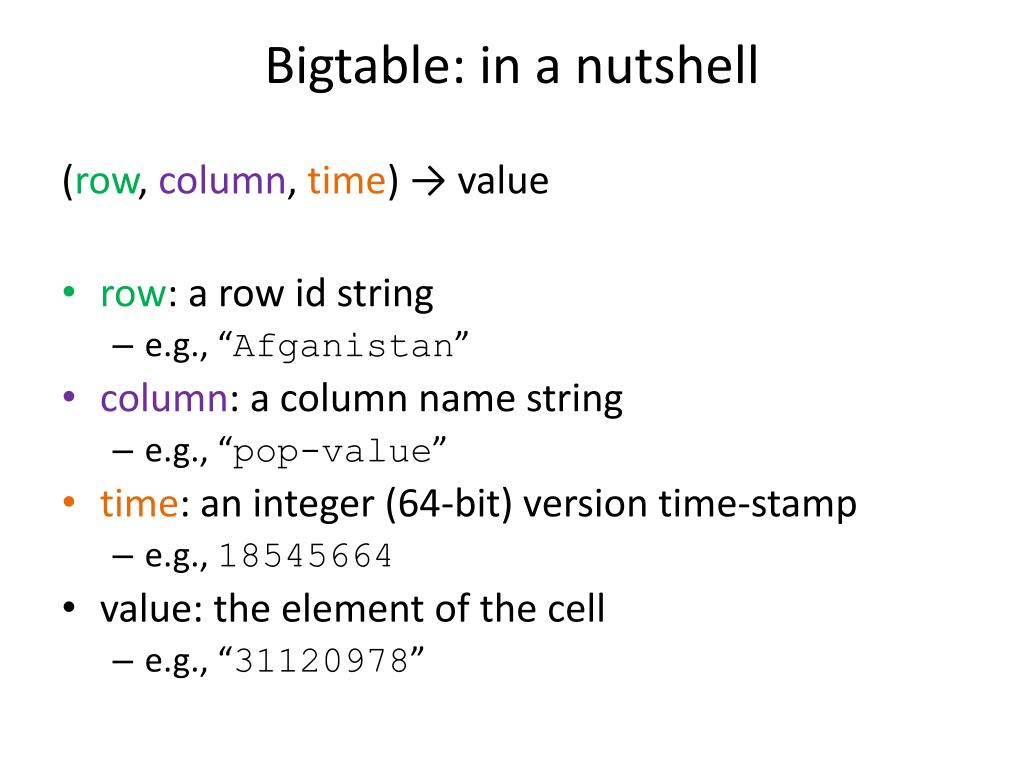

  20. Bigtable: in a nutshell (row, column, time) → value • row: a row id string • e.g., “Afganistan” • column: a column name string • e.g., “pop-value” • time: an integer (64-bit) version time-stamp • e.g., 18545664 • value: the element of the cell • e.g., “31120978”

  21. Bigtable: in a nutshell (row, column, time) → value (Afganistan,pop-value,t4) → 31108077

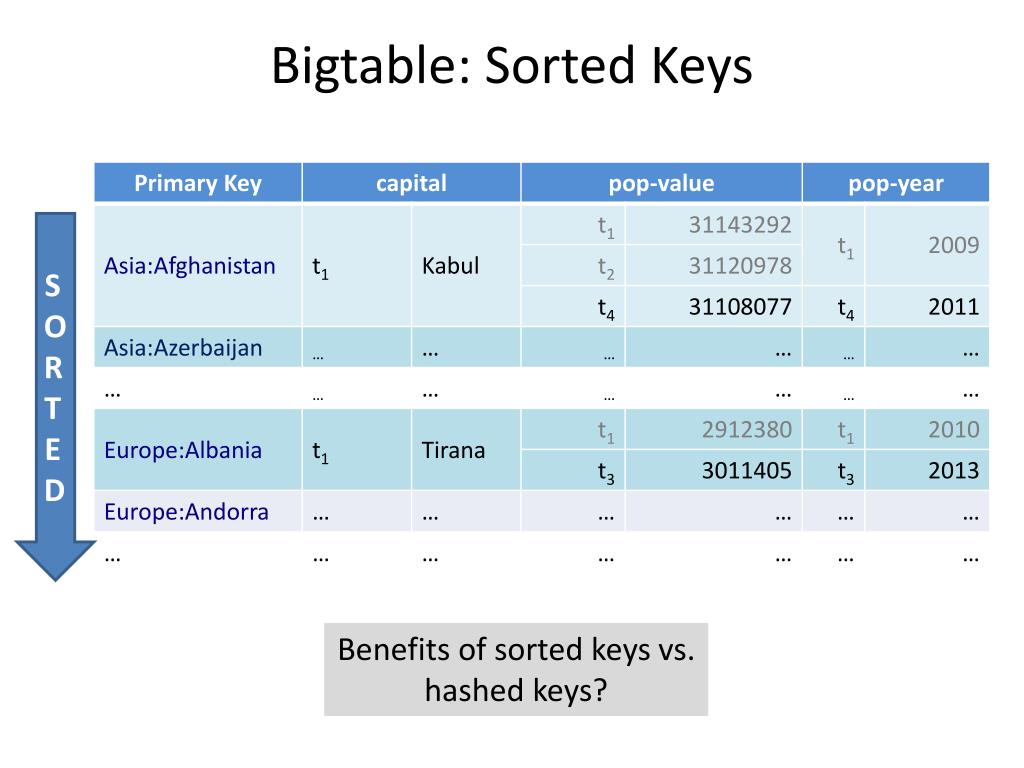

  22. Bigtable: Sorted Keys S O R T E D Benefits of sorted keys vs. hashed keys?

  23. Bigtable: Tablets Take advantage of locality of processing! A S I A E U R O P E

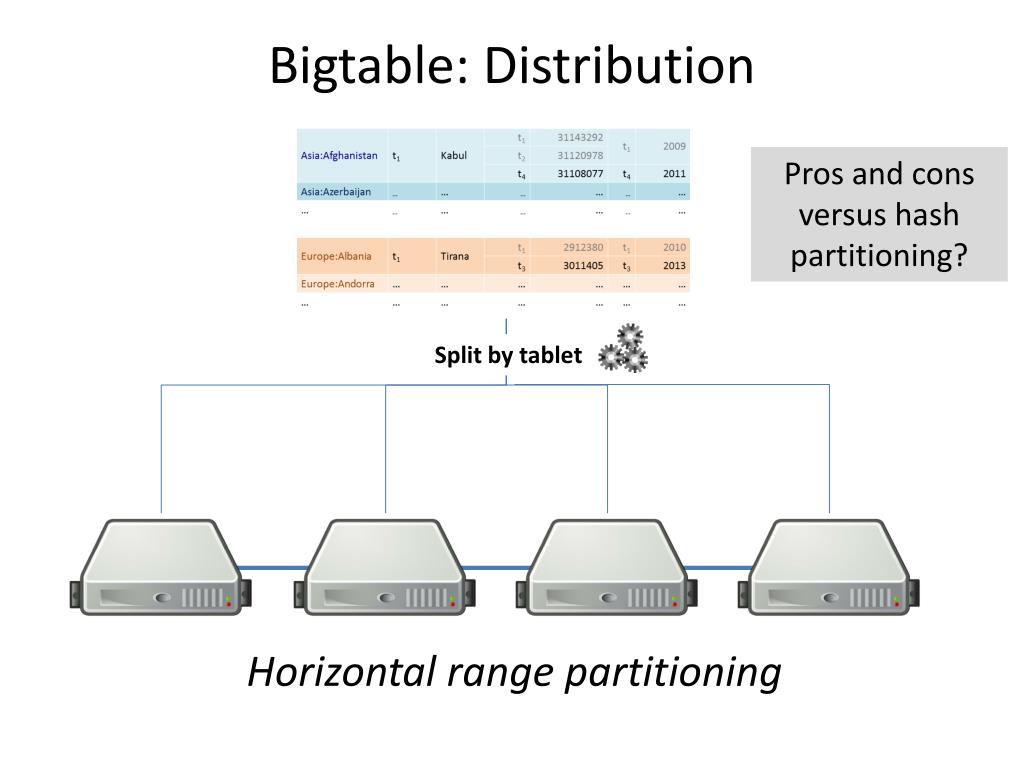

  24. Bigtable: Distribution Pros and cons versus hash partitioning? Horizontal range partitioning Split by tablet

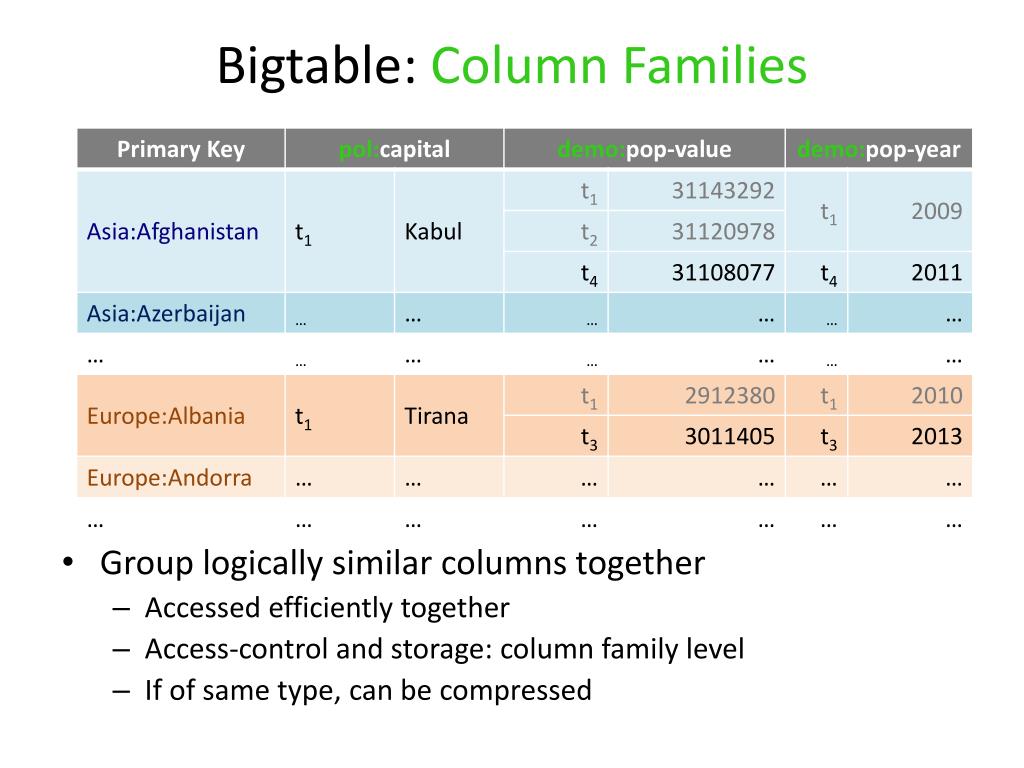

  25. Bigtable: Column Families • Group logically similar columns together • Accessed efficiently together • Access-control and storage: column family level • If of same type, can be compressed

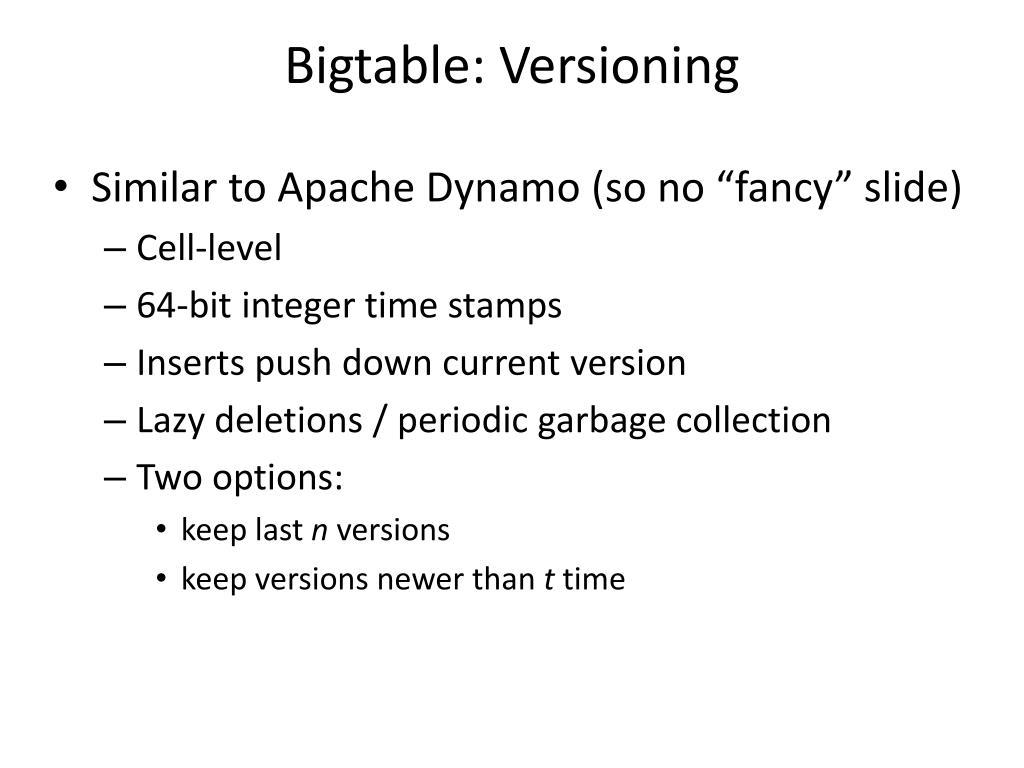

  26. Bigtable: Versioning • Similar to Apache Dynamo (so no “fancy” slide) • Cell-level • 64-bit integer time stamps • Inserts push down current version • Lazy deletions / periodic garbage collection • Two options: • keep last n versions • keep versions newer than t time

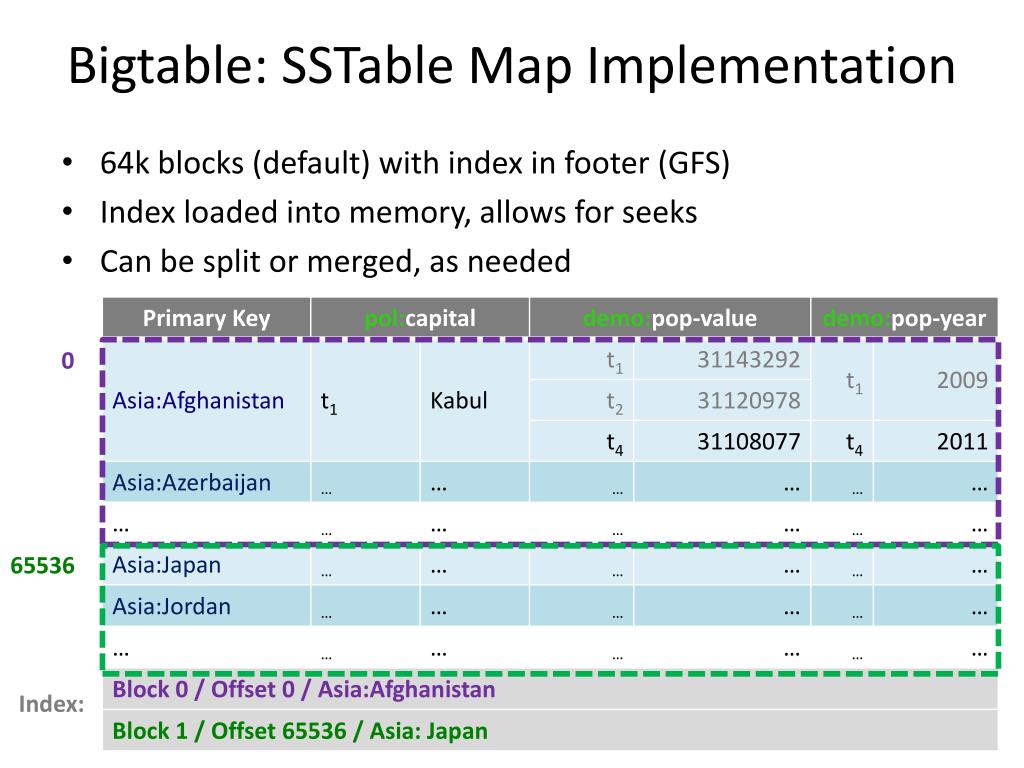

  27. Bigtable: SSTable Map Implementation • 64k blocks (default) with index in footer (GFS) • Index loaded into memory, allows for seeks • Can be split or merged, as needed 0 65536 Index:

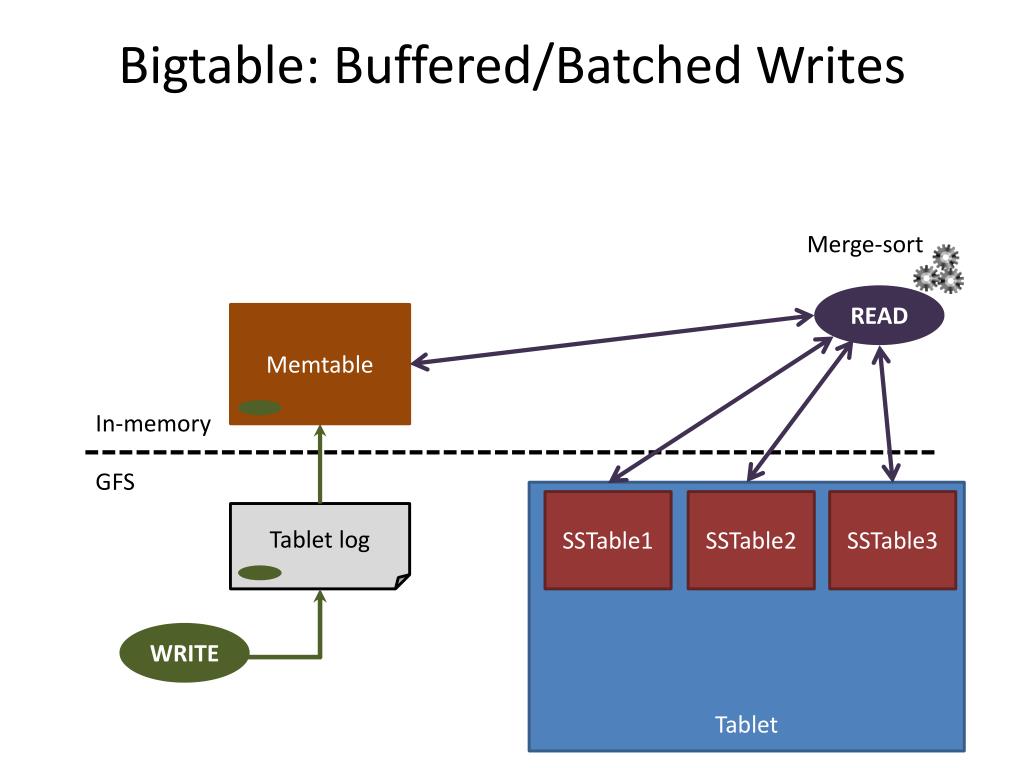

  28. Bigtable: Buffered/Batched Writes Merge-sort READ Memtable In-memory GFS Tablet SSTable1 SSTable2 SSTable3 Tablet log WRITE

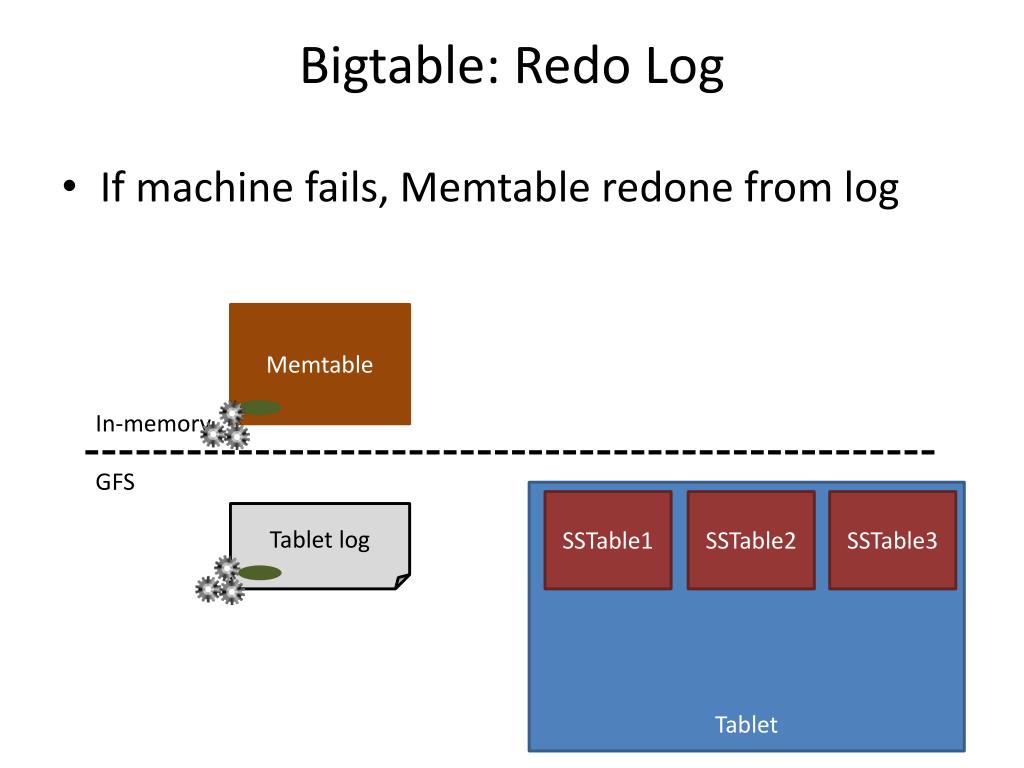

  29. Bigtable: Redo Log • If machine fails, Memtable redone from log Memtable In-memory GFS Tablet SSTable1 SSTable2 SSTable3 Tablet log

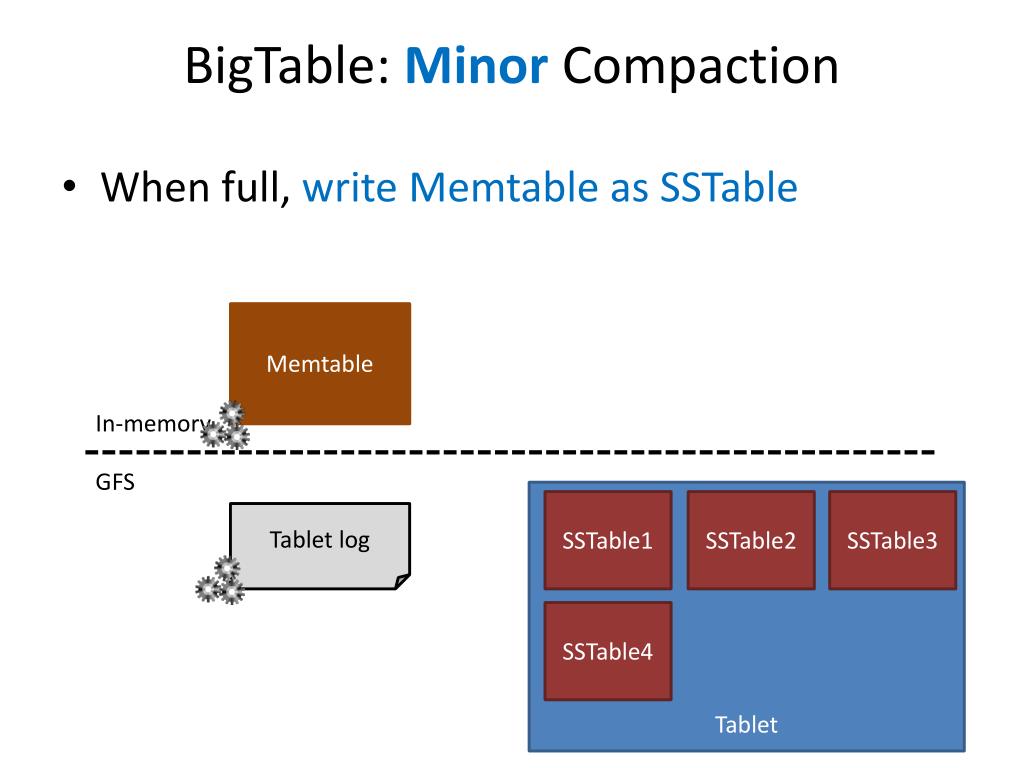

  30. BigTable: Minor Compaction • When full, write Memtable as SSTable Memtable Memtable In-memory GFS Tablet SSTable1 SSTable2 SSTable3 Tablet log SSTable4

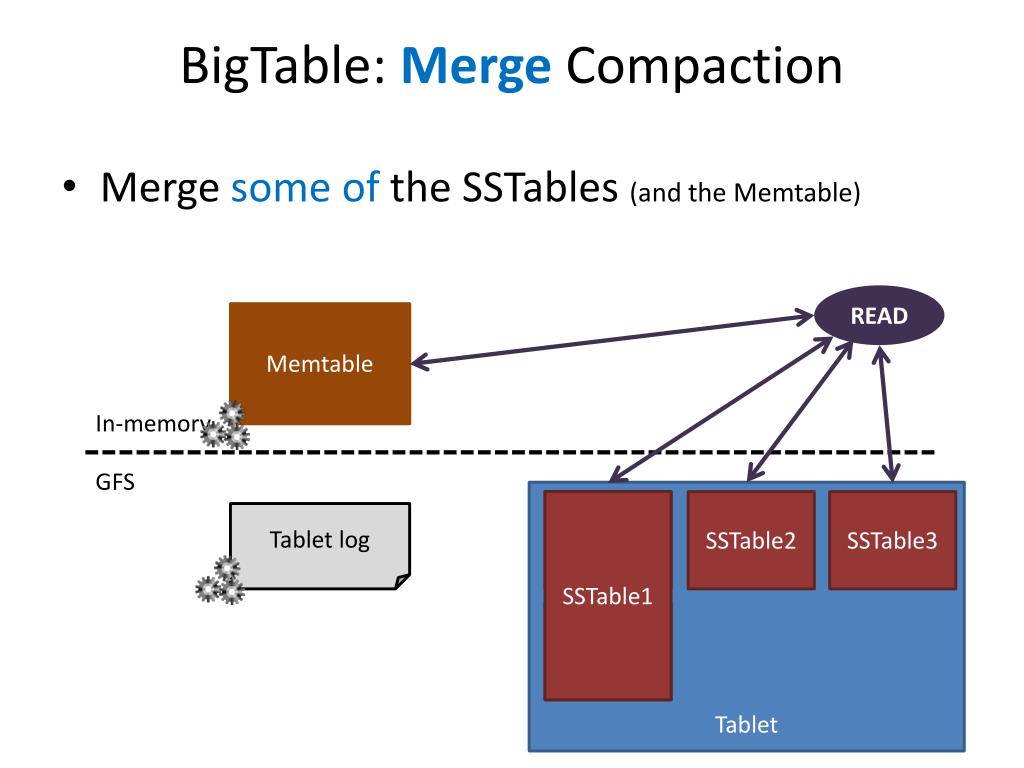

  31. BigTable: Merge Compaction • Merge some of the SSTables(and the Memtable) READ Memtable Memtable In-memory GFS Tablet SSTable1 SSTable1 SSTable2 SSTable3 Tablet log SSTable4

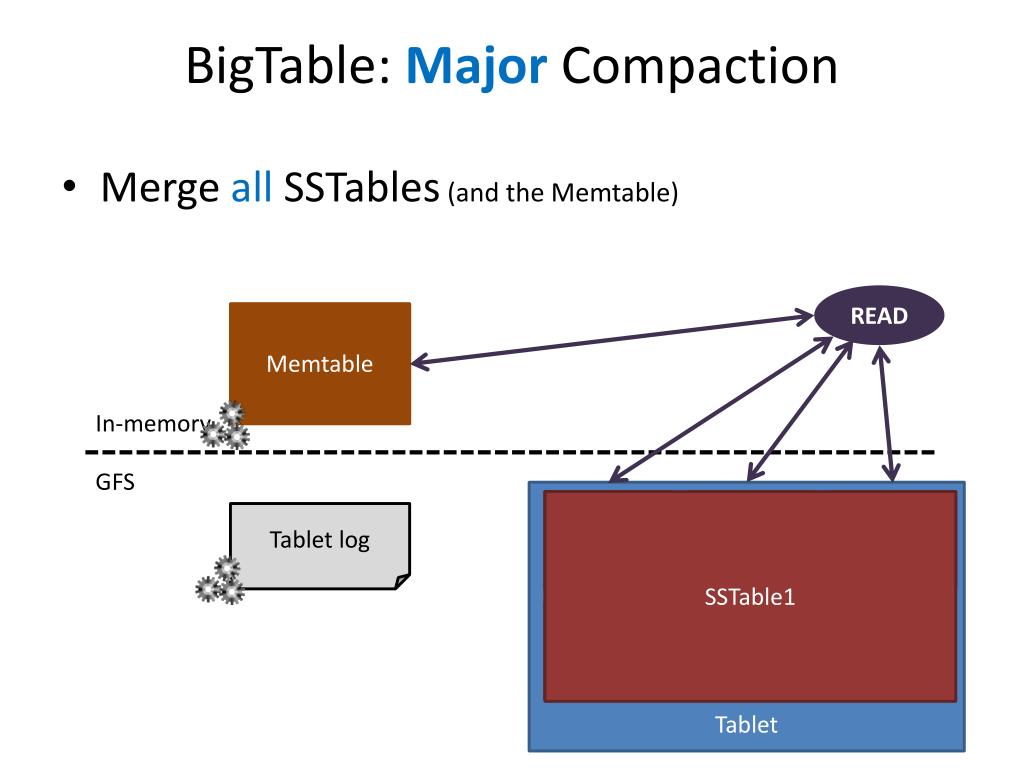

  32. BigTable: Major Compaction • Merge allSSTables (and the Memtable) READ Memtable Memtable In-memory GFS Tablet SSTable1 SSTable1 SSTable2 SSTable3 SSTable1 Tablet log SSTable4

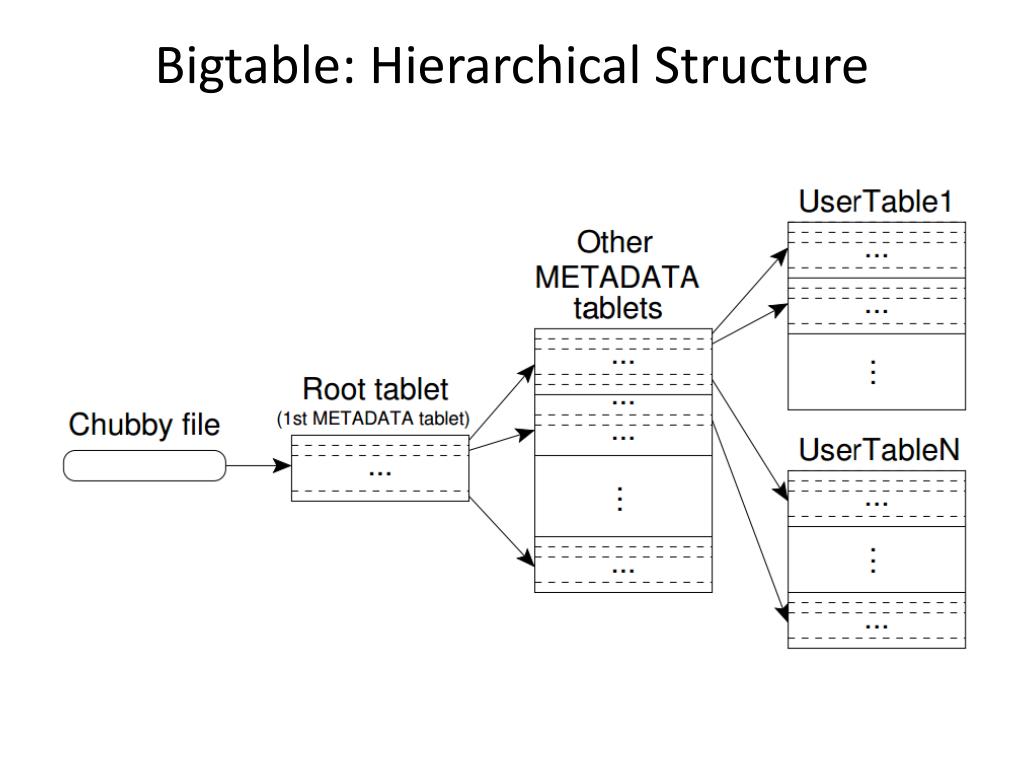

  33. Bigtable: Hierarchical Structure

  34. Bigtable: Consistency • CHUBBY: Distributed consensus tool based on PAXOS • Maintains consistent replicas • Five replicas: one master and four slaves • Co-ordinates distributed locks • Stores location of main “root tablet” Do we think it’s a CP system or an AP system?

  35. Bigtable: A Bunch of Other Things • Locality groups: Group multiple column families together; assigned a separate SSTable • Select storage: SSTables can be persistent or in-memory • Compression: Applied on blocks; custom compression can be chosen • Caches: SSTable-level and block-level • Bloom filters: Find negatives cheaply …

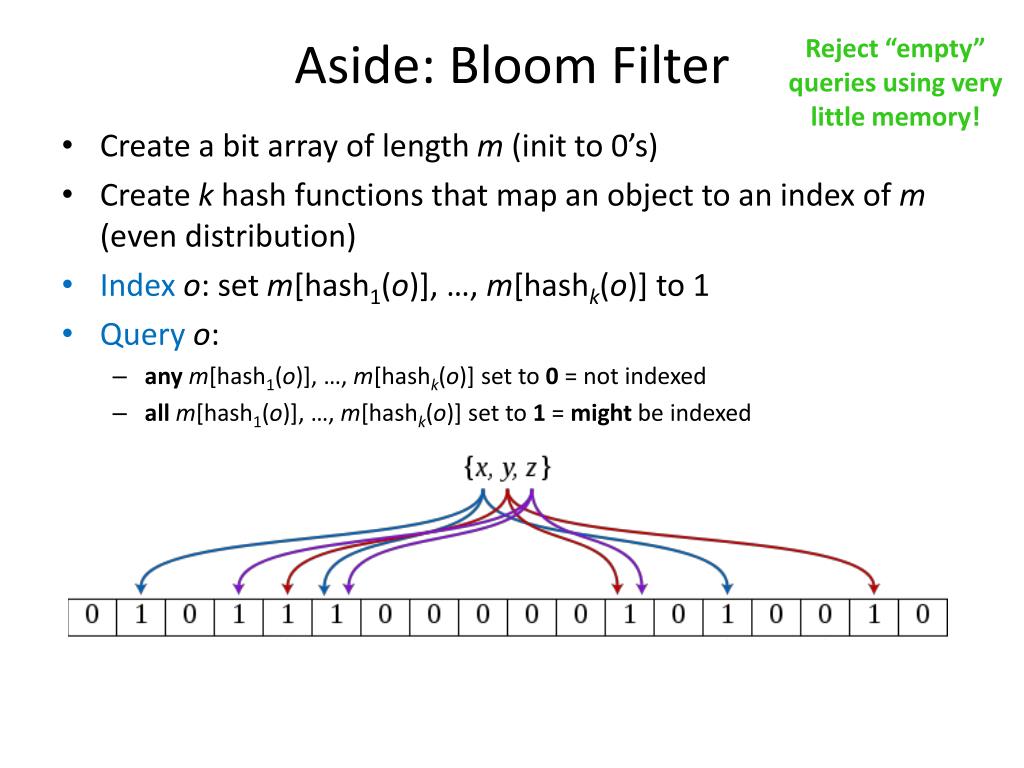

  36. Aside: Bloom Filter Reject “empty” queries using very little memory! • Create a bit array of length m (init to 0’s) • Create k hash functions that map an object to an index of m (even distribution) • Index o: set m[hash1(o)], …, m[hashk(o)] to 1 • Queryo: • anym[hash1(o)], …, m[hashk(o)] set to 0 = not indexed • allm[hash1(o)], …, m[hashk(o)] set to 1 = might be indexed

  37. Bigtable: Apache HBase Open-source implementation of Bigtable ideas

  38. The Database Landscape Batch analysis of data Not using the relational model Using the relational model Real-time Stores documents (semi-structured values) Relational Databases with focus on scalability to compete with NoSQL while maintaining ACID Not only SQL Maps  Column Oriented Cloud storage Graph-structured data In-Memory

  39. GRAPH DATABASES

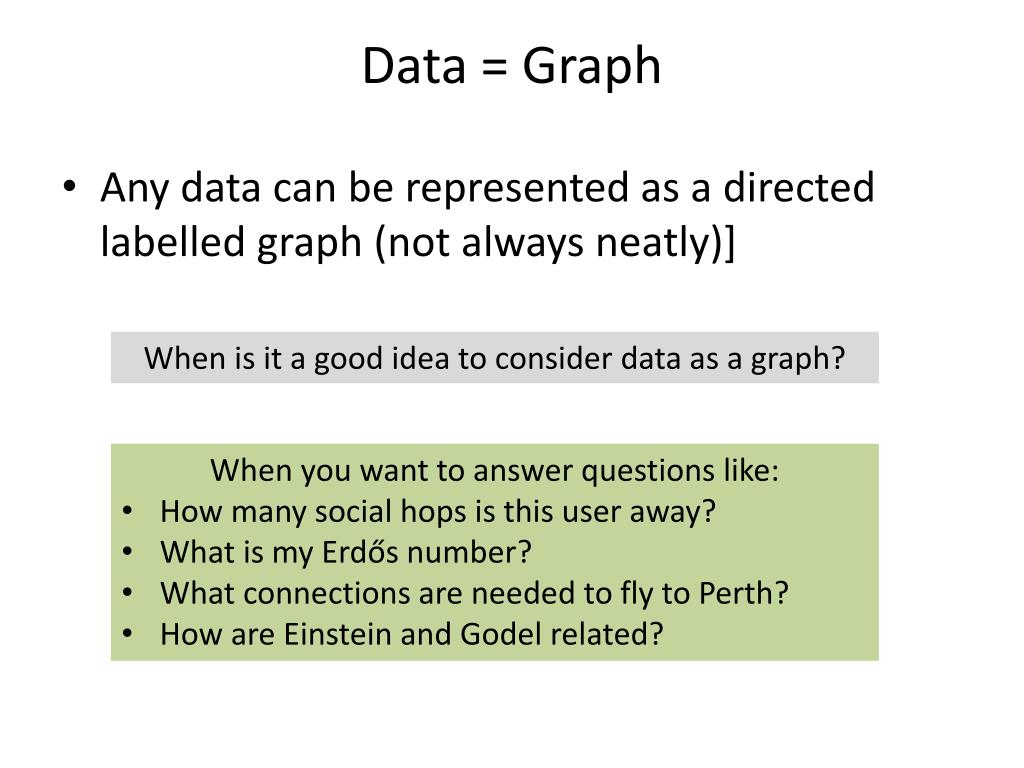

  40. Data = Graph • Any data can be represented as a directed labelled graph (not always neatly)] When is it a good idea to consider data as a graph? • When you want to answer questions like: • How many social hops is this user away? • What is my Erdős number? • What connections are needed to fly to Perth? • How are Einstein and Godel related?

  41. RelFinder

  42. Graph Databases (Fred,IS_FRIEND_OF,Jim) (Fred,IS_FRIEND_OF,Ted) (Ted,LIKES,Zushi_Zam) (Zuzhi_Zam,SERVES,Sushi) …

  43. Graph Databases: Index Nodes (Fred,IS_FRIEND_OF,Jim) (Jim,LIKES,iSushi) Fred ->

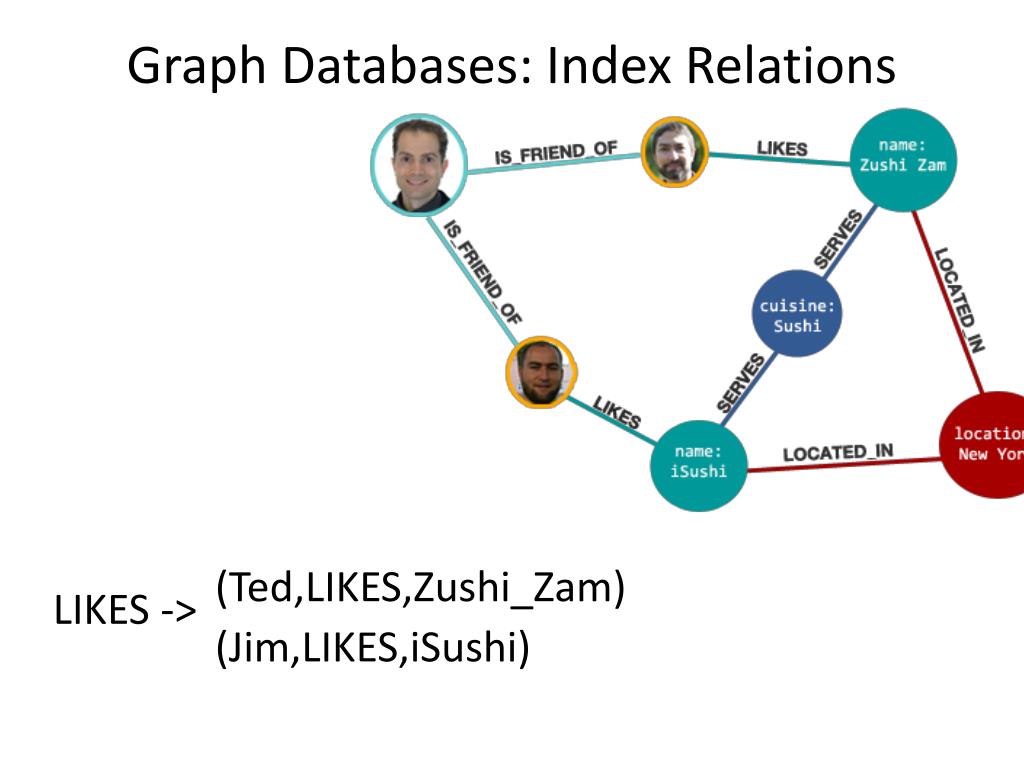

  44. Graph Databases: Index Relations (Ted,LIKES,Zushi_Zam) (Jim,LIKES,iSushi) LIKES ->

  45. Graph Databases: Graph Queries (Fred,IS_FRIEND,?friend) (?friend,LIKES,?place) (?place,SERVES,?sushi) (?place,LOCATED_IN,New_York)
