  1. Windows Graphics Architecture Leonardo Blanco Development Lead Desktop and Graphics Team Microsoft Corporation

  2. Session Outline • Windows graphics big picture • Windows Display Driver Model • Rendering APIs (D3D, OpenGL, GDI) • Device APIs (DXGI) • Media APIs (DirectX Video Acceleration) • Presentation APIs (WPF) • Desktop Window Manager

  3. The Vision • Windows delivers unparalleled graphics and multimedia experience in all application areas • Games • Workstation (CAD, Content Creation, etc) • Presentation • Imaging • Video • Eagerly driving new technologies together with our hardware and software partners

  4. Graphics/Gaming/Multimedia/Presentation Stacks Game (e.g. Halo) HEWS/DCC (e.g. Maya) Imaging (e.g. DIS) Video (e.g., WMP) Presentation (e.g. Office) User Application MCE Desktop WM Shell/UX System Application Control Panels Help IE 3rd party Game Engine WinForms WPF MFC/ATL Application Framework Splash DUser User WPF/E Avalon CoreUI Common Controls High-Level Abstraction Trident MS HTML Managed DirectX MILCore PIX/ DaVinci Media Foundation CLR Mid-Level Abstraction Windows Codecs D3DX/ HLSL WCS DShow GDI+ Low-Level Abstraction OpenGL Direct3D DXVA DDraw GDI DDI/User Mode Driver DDI/user-mode Driver Memory Management, Scheduling, Device Management Win32k kstream Kernel Display Controller 3D Engine 2D Engine/ De-interlace… Video Decode Video Encode Print Driver/ Hardware

  5. Big PictureSimplified Workstation(Inventor) Games(Oblivion) Imaging(PhotoViewer) Video(MediaPlayer) Presentation(Office) … UIFrameworks WindowsPresentationFoundation WindowsExplorer DesktopWindowManager WIC PIX MediaFoundation DShow MIL TextLayout Windows Color System GDI+ OpenGL Direct3D DXVA DXGI User GDI XPDM WDDM PrintTerminal ServerRemote Assistance…

  6. Graphics Core In Windows Vista Microsoft-writtencode IHV-writtencode WPF DWM GDI+ MediaFoundation PIX WIC MIL OpenGLICD GDI D3D<9 DXVA D3D9 D3D9Ex D3D10 DXGI OpenGL User-modedriver Common pipeline (DDI) User mode Kernel mode Kernel-modedriver Win32 Kernel DXG Kernel

  7. Windows Display Driver Model Microsoft-writtencode IHV-writtencode WPF DWM GDI+ MediaFoundation PIX WIC MIL OpenGLICD GDI D3D<9 DXVA D3D9 D3D9Ex D3D10 DXGI OpenGL User-modedriver Common pipeline (DDI) User mode Kernel mode Kernel-modedriver Win32 Kernel DXG Kernel

  8. Windows Display Driver Model • Bedrock upon which all graphics are built • Fundamental principle • Graphics Just Works • Re-architect entire driver stack • Consolidate 10 years of evolution • New driver model delivers • Stability • Security • Availability (application virtualization) • Performance

  9. Windows Display Driver Model • Staged evolution of driver model • WDDM 1.0 model supports current hardware • E.g., pre-Windows Vista hardware • Advanced model (WDDM 2.x) utilizes new hardware features • Post Windows Vista • More efficient virtualization • Old Windows XP driver model still supported for compatibility • No new features

  10. Rendering APIs • Lots to choose from • GDI/GDI+ • DirectDraw • Direct3D [3..10] • OpenGL • Windows Presentation Foundation • Break into categories • Legacy • Mainline (GDI, Direct3D 9/9Ex) • New (Direct3D 10, WPF)

  11. GDI And GDI+ Microsoft-writtencode IHV-writtencode WPF DWM GDI+ MediaFoundation PIX WIC MIL OpenGLICD GDI D3D<9 DXVA D3D9 D3D9Ex D3D10 DXGI OpenGL User-modedriver Common pipeline (DDI) User mode Kernel mode Kernel-modedriver Win32 Kernel DXG Kernel

  12. GDI/GDI+ • Workhorse for Windows • Presentation/UI, device control, etc • Reduced hardware acceleration in Windows Vista • Necessary to accomplish WDDM implementation • Continue to invest in GDI in future • Protect API investment • Enhance where feasible

  13. Legacy Direct3D APIs Microsoft-writtencode IHV-writtencode WPF DWM GDI+ MediaFoundation PIX WIC MIL OpenGLICD GDI D3D<9 DXVA D3D9 D3D9Ex D3D10 DXGI OpenGL User-modedriver Common pipeline (DDI) User mode Kernel mode Kernel-modedriver Win32 Kernel DXG Kernel

  14. Legacy Direct3D APIs • Older Direct3D immediate mode APIs supported • D3DRM (retained mode) API retired • Map older runtimes onto Direct3D 9 DDIs • E.g., runtimes ≤ Direct3D 8, DirectDraw • Fixed-function onto shaders, etc • Direct3D9 interface matches DirectX 9.0c • Same behavior as Direct3D 9 on Windows XP • Maintain application compatibility

  15. Direct3D9Ex Microsoft-writtencode IHV-writtencode WPF DWM GDI+ MediaFoundation PIX WIC MIL OpenGLICD GDI D3D<9 DXVA D3D9 D3D9Ex D3D10 DXGI OpenGL User-modedriver Common pipeline (DDI) User mode Kernel mode Kernel-modedriver Win32 Kernel DXG Kernel

  16. Direct3D9Ex • Enhanced version of Direct3D 9 • Also known as “DX9.L” • Cross-process shared surfaces • “Unlimited memory” • All memory resources are “managed” • Resource management controls • Prioritization of resources • Antialiased text rendering support • Monochrome texture filter with large kernel size • No more “device lost” • Less frequent “device removed”

  17. OpenGL Microsoft-writtencode IHV-writtencode WPF DWM GDI+ MediaFoundation PIX WIC MIL OpenGLICD GDI D3D<9 DXVA D3D9 D3D9Ex D3D10 DXGI OpenGL User-modedriver Common pipeline (DDI) User mode Kernel mode Kernel-modedriver Win32 Kernel DXG Kernel

  18. OpenGL • Three options for Windows Vista Developers • OpenGL 1.1 software implementation • Windows XP driver model OpenGL ICDs • Not DWM-compatible, DWM shuts off • 3rd party WDDM OpenGL ICDs • DWM compliant • Limited inbox support for application compatibility • Using Direct3D 9

  19. Direct3D 10 And DXGI Microsoft-writtencode IHV-writtencode WPF DWM GDI+ MediaFoundation PIX WIC MIL OpenGLICD GDI D3D<9 DXVA D3D9 D3D9Ex D3D10 DXGI OpenGL User-modedriver Common pipeline (DDI) User mode Kernel mode Kernel-modedriver Win32 Kernel DXG Kernel

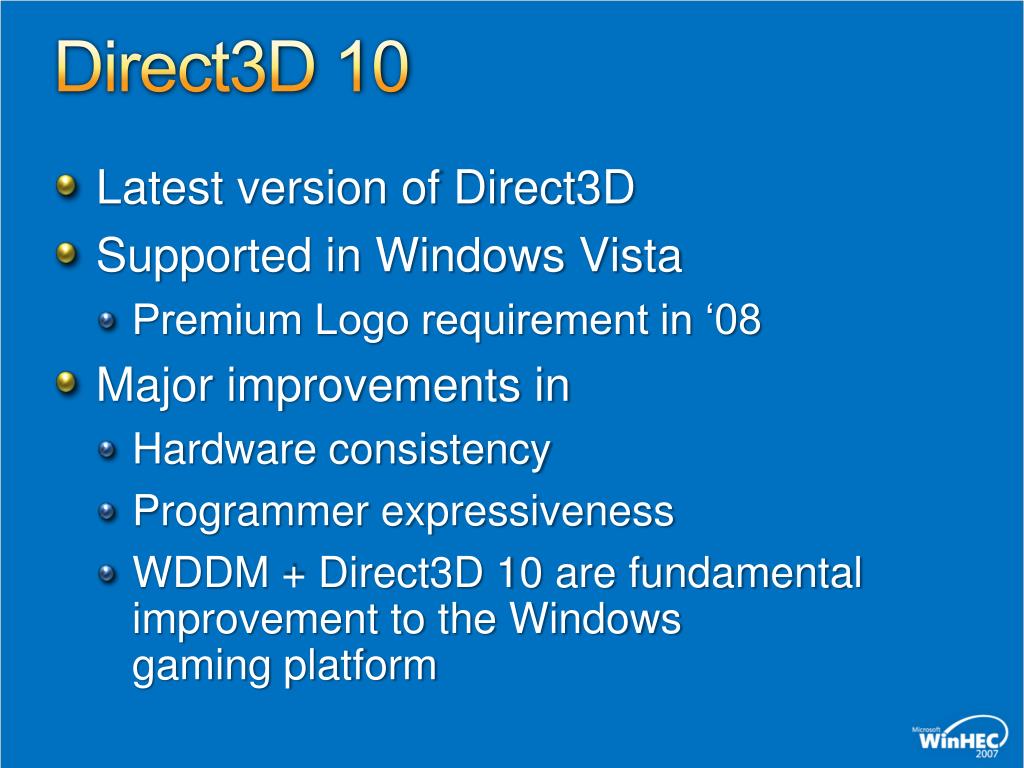

  20. Direct3D 10 • Latest version of Direct3D • Supported in Windows Vista • Premium Logo requirement in ‘08 • Major improvements in • Hardware consistency • Programmer expressiveness • WDDM + Direct3D 10 are fundamental improvement to the Windows gaming platform

  21. DXGI • Separate rendering from device management • DXGI (eventually) does • Adapter management • Display mode management • Present to monitor • Output management • Gamma/Color • Improvements of GDI 256 entry table • Monitor controls • Long term, subsumes functionality from GDI • Currently only works with Direct3D 10

  22. Media Integration Layer Microsoft-writtencode IHV-writtencode WPF DWM GDI+ MediaFoundation PIX WIC MIL OpenGLICD GDI D3D<9 DXVA D3D9 D3D9Ex D3D10 DXGI OpenGL User-modedriver Common pipeline (DDI) User mode Kernel mode Kernel-modedriver Win32 Kernel DXG Kernel

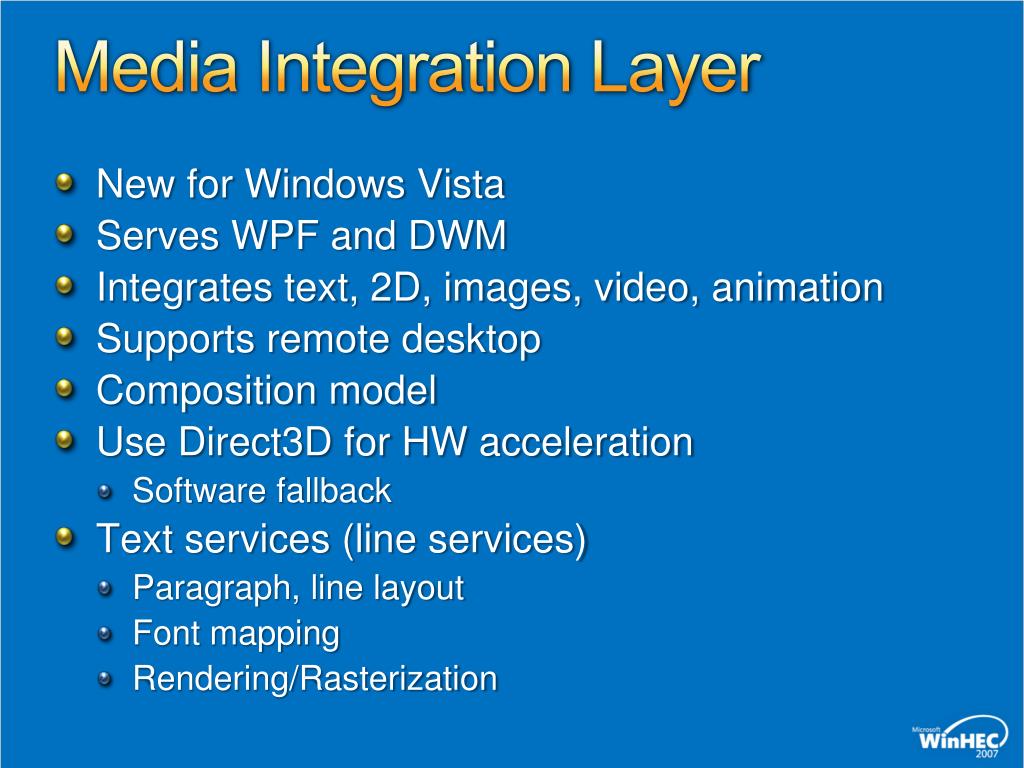

  23. Media Integration Layer • New for Windows Vista • Serves WPF and DWM • Integrates text, 2D, images, video, animation • Supports remote desktop • Composition model • Use Direct3D for HW acceleration • Software fallback • Text services (line services) • Paragraph, line layout • Font mapping • Rendering/Rasterization

  24. Windows Presentation Foundation • Highly integrated stack • Layout, text, video, audio, imaging • Builds on other parts of stack • Media Integration Layer • Media Foundation • Imaging • Direct3D9Ex • Windows Color System

  25. Media And Imaging Microsoft-writtencode IHV-writtencode WPF DWM GDI+ MediaFoundation PIX WIC MIL OpenGLICD GDI D3D<9 DXVA D3D9 D3D9Ex D3D10 DXGI OpenGL User-modedriver Common pipeline (DDI) User mode Kernel mode Kernel-modedriver Win32 Kernel DXG Kernel

  26. Video Acceleration • Relies on more specialized hardware support • Decode: IDCT, motion compensation • Processing: Deinterlace, denoise, scale, mixing • Content protection of high value data • OPM, Protected Video Path • Supported through DirectX Video Acceleration (DXVA) APIs • Media Center and Media Player use same pipeline

  27. Imaging • Hardware accelerated photo experience • 12-16Mpix @ 60 fps • Builds on Direct3D 9 API • Uses texture mapping + shading for image processing • Rely on Shader Model 2.0 capabilities • Float16 processing • Lots of accelerator memory • Large texture images (> 2Kx2K)

  28. Image Codecs • Image I/O, parsing • Metadata, thumbnails • Compress, Decompress • Popular formats built-in • Extension for others • Secure, Reliable • Central source (WIC)

  29. Desktop Window Manager Microsoft-writtencode IHV-writtencode WPF DWM GDI+ MediaFoundation PIX WIC MIL OpenGLICD GDI D3D<9 DXVA D3D9 D3D9Ex D3D10 DXGI OpenGL User-modedriver Common pipeline (DDI) User mode Kernel mode Kernel-modedriver Win32 Kernel DXG Kernel

  30. Desktop Window Manager • New desktop experience using MIL and DirectX • Uses new D3D9Ex interfaces • Desktop Window Manager (DWM) • Composited desktop • Window movement without repainting underlying windows • No more dragging garbage • Client areas from applications • GDI, Direct3D, WPF • Video • Non-client areas from the Window Manager • Allows different views of application windows

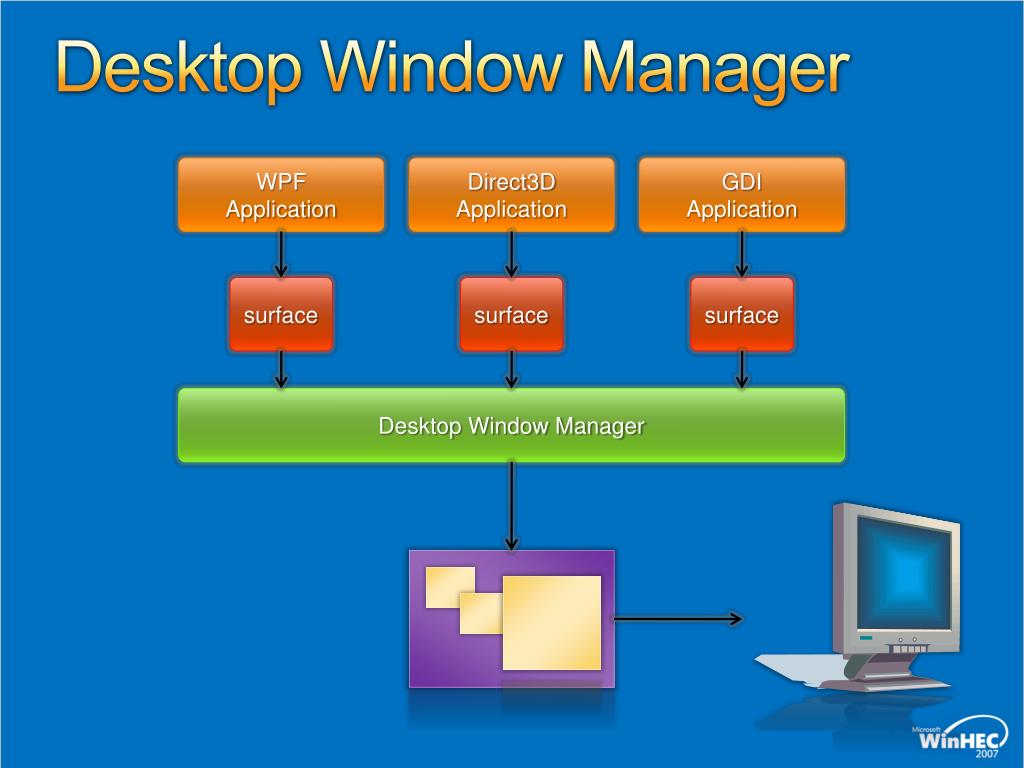

  31. Desktop Window Manager WPFApplication Direct3DApplication GDIApplication surface surface surface Desktop Window Manager

  32. Desktop Window Manager • Supports high-DPI displays • Composition with magnification • Supports video playback • Takes advantage of Direct3D 9 shaders • Animated transitions, etc • New D3D9Ex cross-process shared surfaces • Allows DWM to access application back buffers • Turns off when certain application types running • Overlay planes, front buffer rendering,…

  33. Full Screen Exclusive, Multimon, And DWM • Continue to allow apps to have exclusive monitor access • Control video mode, gamma, etc… • Desktop Window Manager disappears • Other applications can continue to run • May bump the priorities of the output-exclusive app • Applications should recognize case where client area is occluded • Background processing on the GPU • Multiple monitors independent • Composited desktop image per monitor • Exclusive output independent for each monitor

  34. Future Technologies • Warning: These are directions not commitments • Continue the vision • Rich graphics and media experience • Available all the time to all applications • Robust, efficient, applications don’t interfere • Scales across mobile, desktop,… • Seamless print, remote, Terminal Server

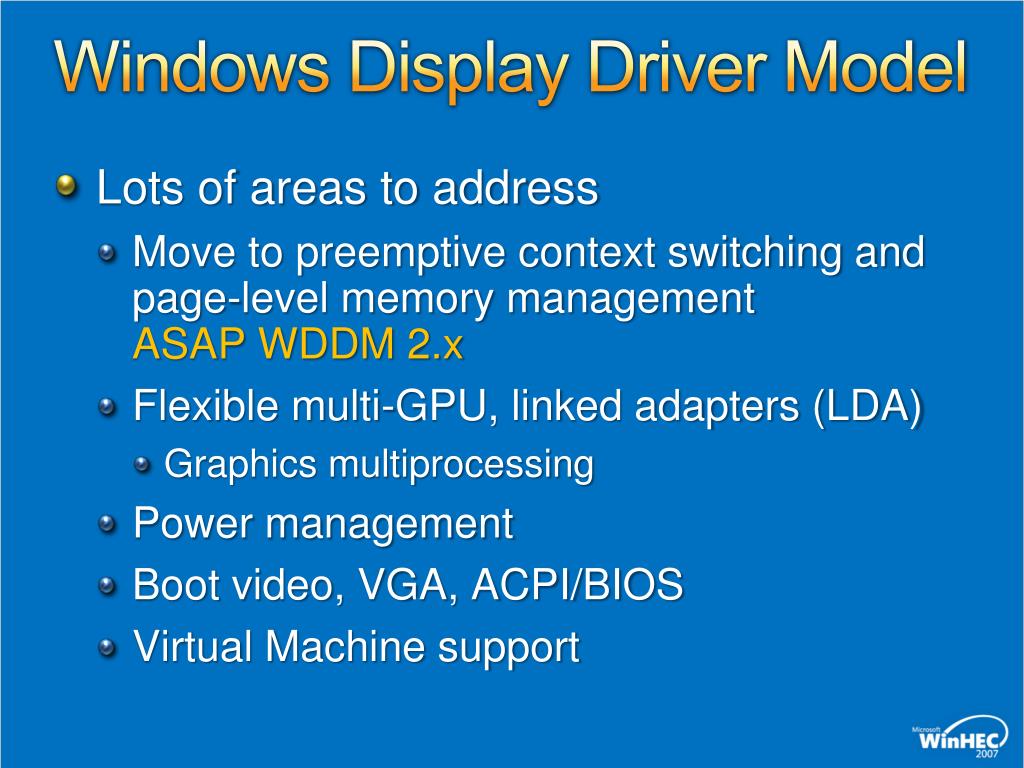

  35. Windows Display Driver Model • Lots of areas to address • Move to preemptive context switching and page-level memory management ASAP WDDM 2.x • Flexible multi-GPU, linked adapters (LDA) • Graphics multiprocessing • Power management • Boot video, VGA, ACPI/BIOS • Virtual Machine support

  36. Display/Device Technologies • Color managed desktop • Hi-def color (float16) • Consumer Electronics (TV) devices • Greater format coverage • Multimon • Improve the fullscreen/windowed experience • Multi-desktop support • Magnification • Monitor controls • DDC/CI • Rationalize GDI/DXGI device control

  37. Rendering Technologies • Interoperability of rendering APIs • Game applications • Higher-def, procedural content • Surface tessellation, order-independent transparency • Shader expressiveness • Mainstream API • Native code access • Text, antialiasing, 2D rendering • Rendering quality • Multicore CPU investments • Process or move data faster

  38. Media Technologies • Imaging • Direct3D 10 provides ideal base • Move to “HDR” (actually 16-bit MDR) • Minor improvements for additional image formats • 16-bit fixed in addition to 16-bit float • Video • Content Protection (Protected Video Path) • Glitch-resilience • Preemptive context switching in WDDM 2.x is key • Hardware Encode/Analysis • Background transcoding • Processing • HD-DVD compositing scenarios

  39. General Compute (GPGPU) • GPU rapidly generalizing • Good at high-bandwidth, data-parallel compute • Image processing, video processing, physics,… • 100 GB/s, 300+ GFlops • Looking at more generalized infrastructure • Don’t draw triangles to trigger computations • Enabled by • Hardware implementation consistency • Fast CPU ↔ GPU data transfer • Multi-GPU support

  40. Call To Action • Windows Vista • Hardware-accelerated graphics all the time • WDDM 1.0 • Direct3D 9/9Ex is everywhere – now • Rapid adoption of Direct3D 10 – it delivers the future • DXVA, content protection, glitch reduction • Next • WDDM 2.x – efficient GPU virtualization • Direct3D 10.1 – incremental changes to 10 • Greater generalization of GPU capabilities • Hi-def color, HD-DVD

  41. Additional Resources Directx @ microsoft.com • E-mail: • Related content • CLN-T359 – Windows Display Driver Model Drivers: Key Features • CLN-C364 – Direct3D Test Framework • CLN-C362 – Kernel Graphics Infrastructure for Display Devices and Mobiles • CLN-P365 – CPU and GPU Directions

  42. Questions?
