Verifying a Wait Free Register Algorithm Using Assertional Reasoning Xu Qiwen Faculty of Science and Technology University of Macau
Read and Write Conflict (Race) If read and write operations are performed on the same memory cell at the same time, read operation may obtain an erroneous value.
Avoiding Race • One cell, waiting needed • More cells, wait free possible write read write read write read 2 cells, read and write different cells, but read and write have no relations (read should read values written by write) 4 cells, read can read a cell that has been written recently but Currently not written
Simpson 4 Slot Algorithm Write Read loop loop a-2: Wp = ! r b-3: Rp = l a-1: Wi = ! Li [ Wp ] b-2: r = Rp a: Cells [ Wp ] [ Wi ] = value b-1: Ri = Li [ Rp ] a+1: Li [ Wp ] = Wi b: y=Cells [ Rp ] [Ri ] a+2: l = Wp
Recent Work on Verifying Register Algorithms Separation Logic. Quite complicated.
Model and Reason about Race Suppose R1(X), W1(X), R2(X), W2(X), are read and write operations from 2 processors Consider all execution sequences by interleaving ………….(a:R1(X))…(b:R2(X))………. no conflict …………. (a:R1(X))...(b:W2(X))………. conflict …………. (a:W1(X))...(b:R2(X))………. conflict …………. (a:W1(X))…(b:W2(X))……… conflict A program is race free if any interleaving of the operations contains no state in which location variables of two processors are at a conflicting pair of operations.
Model and Reason about Race Suppose O1(X), O2(Y), are two operations from 2 processors at locations a and b, the location variables of the two processors areαandβ For any interleaving of operations …………. (a:O1(X))… (b:O2(Y))……. If O1(X) and O2(Y) are read/write, write/write pairs, then X and Y must be distinct (α=a β=b) XY should be an invariant
Assertional Methods Floyd 1967 Assigning meanings to programs Hoare Logic 1969 An axiomatic basis for computer programming { P[e/x] } x:=e { P } { true } x:=1 { x=1 } { x=0 } x:=x+1 { x=1 } { x>0 } x:=x+1 { x>1 }
Race Freedom for Simpson Algorithm a: Cells [ Wp ] [ Wi ] = value b: y=Cells [ Rp ] [Ri ] Invariant(α=a β=b) ( WpRp WiRi )
Verification of Invariant (Global Method) init inv { inv } Op { inv } for any operation Op inv is an invariant This rule cannot be used to prove all invariants. { inv } Op { inv } ( we say inductive ) may not hold for any operation Op, ie, inv may not be inductive.
Verification of Simpson 4 Slot Algorithm (Global method) a-2: Wp = ! r b-3: Rp = l a-1: Wi = ! Li [ Wp ] b-2: r = Rp a: Cells [ Wp ] [ Wi ] = value b-1: Ri = Li [ Rp ] a+1: Li [ Wp ] = Wi b: y=Cells [ Rp ] [Ri ] a+2: l = Wp α=a ( Wi Li [ Wp ] ) is invariant, can be proved by the rule β=b ( Ri = Li [ Rp ] ) is not invariant (α=a β=b) ( WpRp WiRi ) are invariants, β=b ( r = Rp ) but cannot be proved by the rule
Additional Rules inv’ inv inv’ is an invariant inv is an invariant ( Consequence ) inv, inv’ are invariants inv inv’ is an invariant
Verification of Simpson 4 Slot Algorithm (Global method) To prove (α=a β=b) ( WpRp WiRi) invariant, by using the fact α=a ( Wi Li [ Wp ] ), β=b ( r = Rp ) are invariants, it is enough to prove (α=a β=b) ( Wpr Ri = Li [ Rp ] ) invariant. Close enough, but still not inductive. Finally ((α=a-1 α=a)β=b) ( Wpr Ri = Li [ Rp ] ) is inductive.
Verification of Simpson 4 Slot Algorithm (Assertional Network Method) a-2: Wp = ! r b-3: Rp = l a-1: Wi = ! Li [ Wp ] b-2: r = Rp { Wi Li [ Wp ]{ r = Rp } β=b ( Wpr Ri = Li [ Rp ] ) } a: Cells [ Wp ] [ Wi ] = value b-1: Ri = Li [ Rp ] a+1: Li [ Wp ] = Wi b: y=Cells [ Rp ] [Ri ] a+2: l = Wp

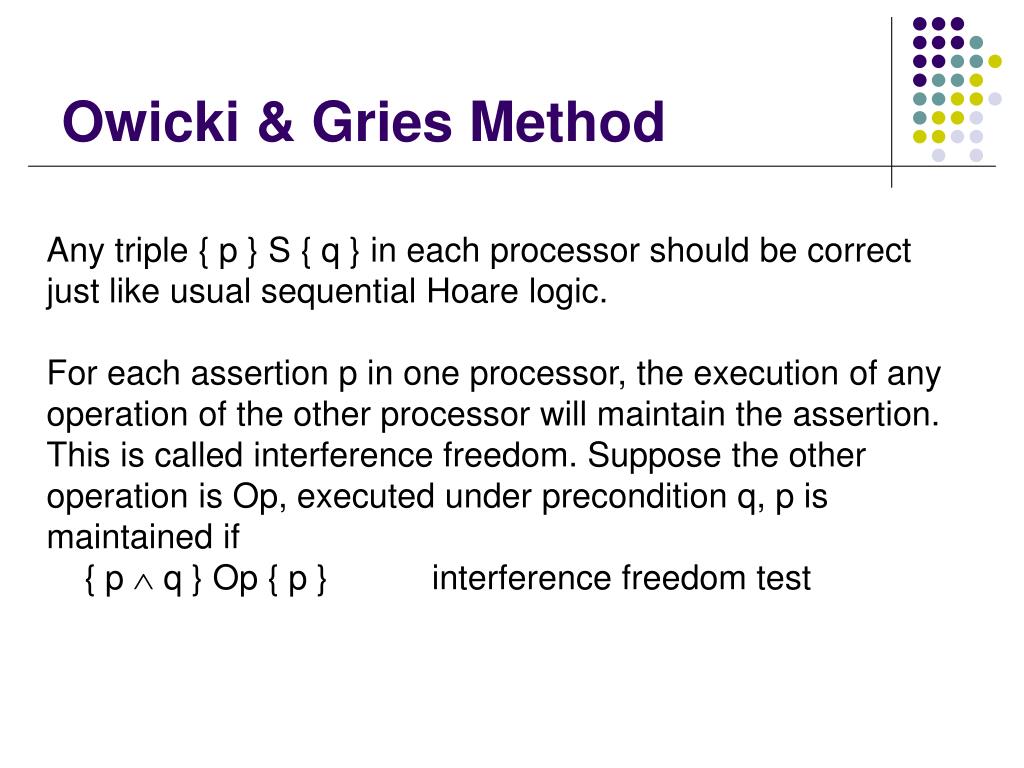

Owicki & Gries Method Any triple { p } S { q } in each processor should be correct just like usual sequential Hoare logic. For each assertion p in one processor, the execution of any operation of the other processor will maintain the assertion. This is called interference freedom. Suppose the other operation is Op, executed under precondition q, p is maintained if { p q } Op { p } interference freedom test
Conclusion and Future Work Traditional assertional methods seem to be able to verify register algorithm quite well. Future Work • Study more complicated algorithms • Verify more properties Data Freshness
Expressing Data Freshness Write Read counter=0 loop loop counter=counter +1 FinishedW=LastW a-2: Wp = ! r b-3: Rp = l a-1: Wi = ! Li [ Wp ] b-2: r = Rp a: Cells [ Wp ] [ Wi ] = value b-1: Ri = Li [ Rp ] C [ Wp ] [ Wi ] = counter b: y=Cells [ Rp ] [Ri ] RC=C [ Rp ] [ Ri ] a+1: Li [ Wp ] = Wi { RC>=max(LastR,FinishedW) } a+2: l = Wp LastR=RC LastW=counter
References R.W. Floyd. Assigning meanings to programs Proceedings of the Symposium on Applied Math, 1967 C.A.R. Hoare An axiomatic basis for computer Programming. Communications of the ACM , 12(1969) 576-580. L. Lamport. On Interprocess Communication Part I: Formalism; Part II: Algorithms. Distributed Computing 1 2(1986), 77-101.
References H. Simpson. Four-slot fully asychronous communication mechanism. IEE Proceedings 137 Part E(1) (January 1990), 17-30. S. Owicki and D. Gries. An Axiomatic Proof Technique for Parallel Programs I. Acta Inf. 6: 319-340 (1976)
