Classification of Concomitant Deviations

Classification of Concomitant Deviations. Created on behalf of NHS NES as supplement to workshops on binocular vision and additional techniques. Classification. Eso / exo / hyper/ hypo Constant / intermittent / latent Accommodative element Other near / distance difference.

Download Presentation

Classification of Concomitant Deviations

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Classification of Concomitant Deviations Created on behalf of NHS NES as supplement to workshops on binocular vision and additional techniques.

  2. Classification • Eso / exo / hyper/ hypo • Constant / intermittent / latent • Accommodative element • Other near / distance difference

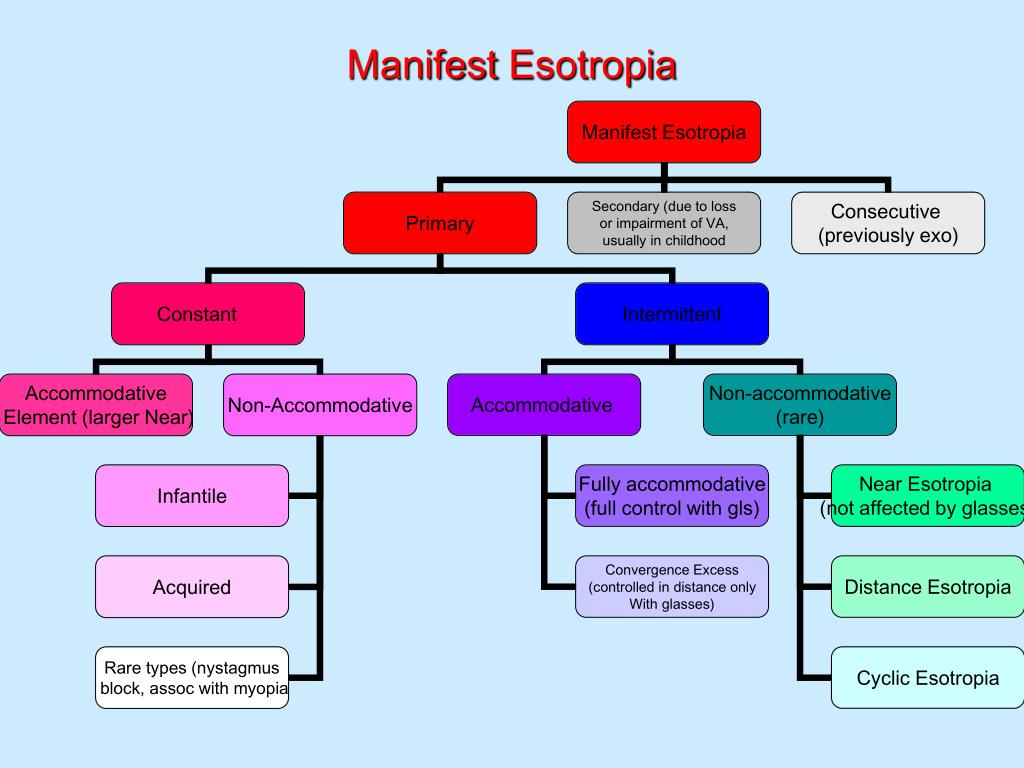

  3. ManifestEsotropia

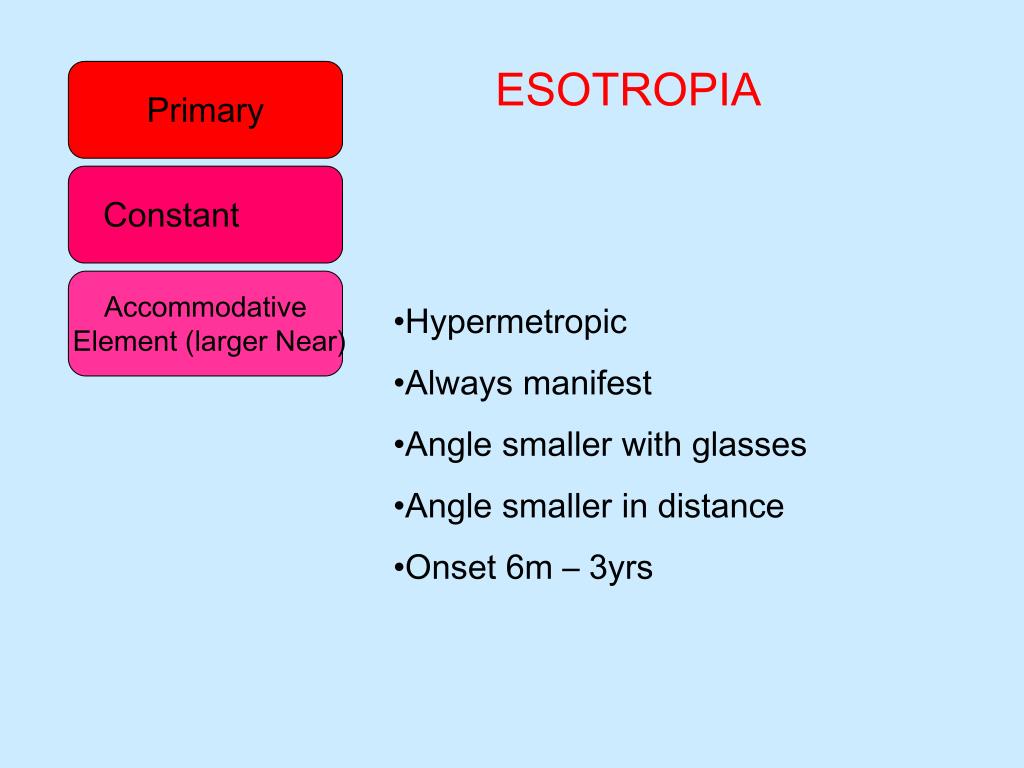

  4. ESOTROPIA Primary Constant Accommodative Element (larger Near) • Hypermetropic • Always manifest • Angle smaller with glasses • Angle smaller in distance • Onset 6m – 3yrs

  5. ESOTROPIA Primary Constant Non-Accommodative • Hypermetropia does not affect angle • Always manifest • <10∆ difference Nr /Dist • Onset often early but vague

  6. ESOTROPIA Primary Constant Non-Accommodative • Onset before 6/12 • Large constant angle • Often alternate • Associated with DVD and latent nystagmus Infantile

  7. ESOTROPIA Intermittent Accommodative Fully accommodative • Hypermetropic +2.0 / +4.5 • Large manifest angle on accommodation without glasses • Fully controlled esophoria with glasses • Normal BSV (or microtropia) with glasses • Onset 18m – 4yrs

  8. ESOTROPIA Intermittent • Low hypermetropia +1.0 / +3.0 • Large manifest angle near & distance without glasses • Manifest esotropia with glasses for near • Fully controlled esophoria in distance with glasses • Normal BSV (or microtropia) with glasses • Onset 4-5 Accommodative Convergence Excess

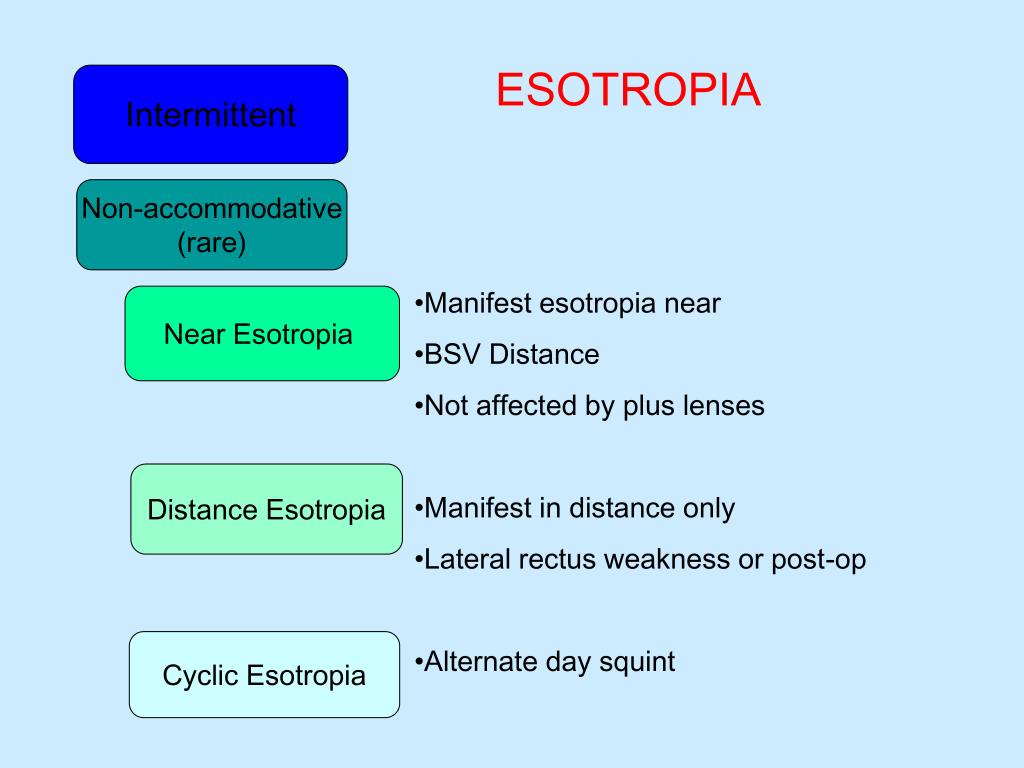

  9. ESOTROPIA Intermittent Non-accommodative (rare) • Manifest esotropia near • BSV Distance • Not affected by plus lenses • Manifest in distance only • Lateral rectus weakness or post-op • Alternate day squint Near Esotropia Distance Esotropia Cyclic Esotropia

  10. Secondary • Due to severe loss or impairment of vision • Esotropia - infancy onset • Exotropia – onset after early childhood • Divergence with time in amblyopia or absence of BV • Eso when previously exo or vice versa • Post-operative Divergence with time in amblyopia or absence of BV • Divergence with time Consecutive

  11. Manifest Exotropia

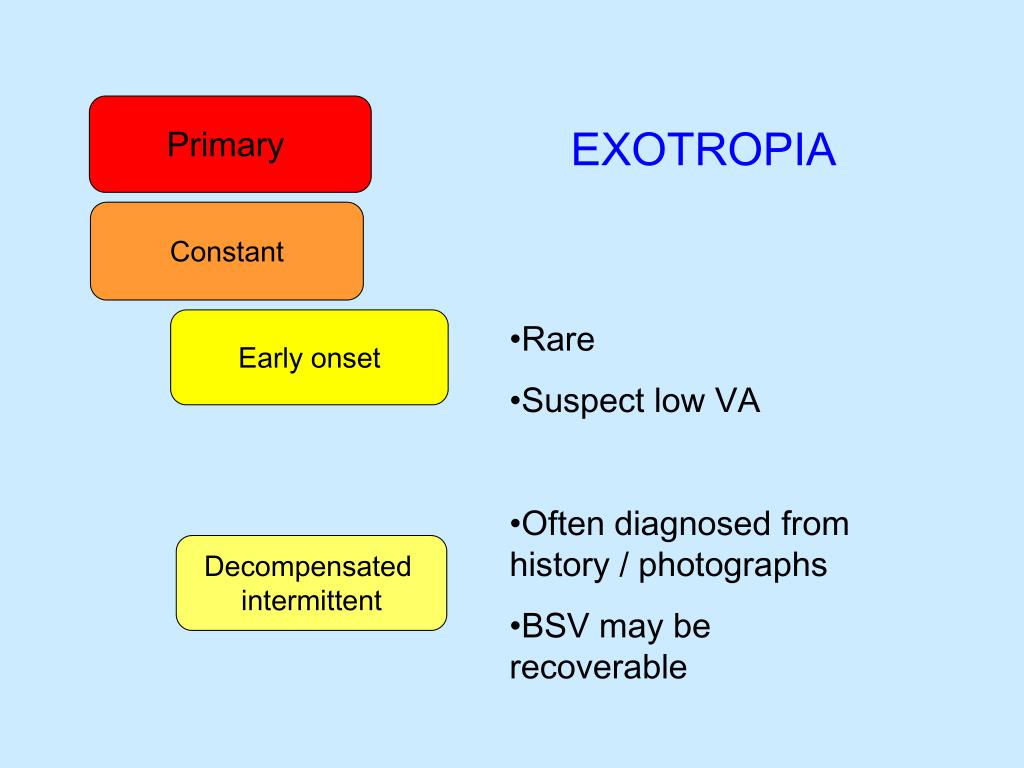

  12. Primary EXOTROPIA Constant Early onset • Rare • Suspect low VA • Often diagnosed from history / photographs • BSV may be recoverable Decompensated intermittent

  13. Primary EXOTROPIA Intermittent • Often decompensated from exophoria • Manifest Near , controlled distance • Older children /adults • Check for dyslexia / stress • Angle similar near /distance • May be worse near or distance but angle similar Near exotropia Non-specific

  14. Primary EXOTROPIA Intermittent Distance exotropia • Manifest exotropia 6m or Far Distance • Exophoria with normal BSV Near • <10∆ change with +/- 3.00 or after 30 mins occlusion True

  15. Primary EXOTROPIA Intermittent • Clinically similar to true distance exotropia • Manifest distance, controlled near • Angle increases at 1/3m after 30 mins occlusion • After occlusion angle inceases at 1/3m with +3.00 lenses Distance exotropia Simulated Controlled with fusion Controlled with Accommodation

  16. Heterophoria

  17. Main difference between intermittent heterotropia and heterophoria is • Size of angle • Fusion range • Not cause
