stream control transmission protocol sctp

Stream Control Transmission Protocol (SCTP)

Acknowledgements

Prof. Paul Amer

Randall Stewart ~ Philip Conrad ~ Janardhan Iyengar

CISC 856: TCP/IP and Upper Layer Protocols

Presented By : Nikhil Shirude

November 15, 2007

overview
Overview
  • Motivation for SCTP
  • SCTP PDU and Chunk Format
  • SCTP 4-Way Association
  • SCTP Association Shutdown
  • SCTP Multi-Homing
  • Summary
slide3
Primary Motivation – Transportation of telephony signaling messages over IP networks

Telephony Signaling – rigid timing & reliability requirements

TCP Limitations

head-of-line blocking

does not preserve A-PDU boundaries

no support for multi-homing

vulnerable to SYN Flooding attacks

SCTP Features

4 way handshake

multihoming

multistreaming

framing

SCTP Motivation

sctp overview

Services/Features

SCTP

TCP

UDP

Connection-oriented

yes

yes

no

Full duplex

yes

yes

yes

Reliable data transfer

yes

yes

no

Partial-reliable data transfer

proposed

no

no

Flow control

yes

yes

no

TCP-friendly congestion control

yes

yes

no

ECN capable

yes

yes

no

Ordered data delivery

yes

yes

no

Unordered data delivery

yes

no

yes

Uses selective ACKs

yes

optional

no

Path MTU discovery

yes

yes

no

Application PDU fragmentation

yes

yes

no

Application PDU bundling

yes

yes

no

Preserves application PDU boundaries

yes

no

yes

Multistreaming

yes

no

no

Multihoming

yes

no

no

Protection against SYN flooding attack

yes

no

n/a

Allows half-closed connections

no

yes

n/a

Reachability check

yes

yes

no

Pseudo-header for checksum

no (uses vtags)

yes

yes

Time wait state

for vtags

for 4-tuple

n/a

SCTP Overview
sctp pdu format
SCTP PDU Format

Common Header

SCTP

PDU

Chunks

  • Building blocks of an SCTP PDU
    • Common Header which occupies the first 12 bytes
    • Header has a CRC-32 checksum.
    • Chunks are of two types: Control chunks and Data chunks
sctp chunk format
SCTP Chunk Format
  • Type - Data, Init, SACK, Cookie Echo, HeartBeat …
  • Flag - Bit meanings depend on type
  • Length - Defines total size of the chunk including type, flags, length and data/parameters
sctp feature summary
SCTP Feature Summary

What TCP and SCTP both have:

  • reliability (retransmissions)
  • congestion control
  • connection oriented

SCTP adds the following:

  • 4-way handshake

to reduce vulnerability to Denial of Service attacks

  • multihoming

instead of one IP address per endpointa set of IP addresses per endpoint

  • framing

preserve message boundaries

  • multistreaming

instead of one ordered stream, up to 64K independent ordered streams

slide9

SYN

SYN sent

SYN-ACK

1RTT

SYN recd

(TCB created)

ACK

established

data

established

First - TCP Connection Establishment

t=0

closed

listen

security tcp flooding attack

SYN

130.2.4.15

TCB

TCB

228.3.14.5

SYN

SYN

190.13.4.1

TCB

SYN

SYN

SYN

190.13.4.1

228.3.14.5

130.2.4.15

Security: TCP Flooding Attack

process

SYN

(victim)

TCP-based web server

(attackers)

spoofed SYN’s

Internet

128.3.4.5

192.10.2.8

221.3.5.10

flooded!!

TCB = Transport Control Block

the sctp way 4 way handshake limits attack

INIT

130.2.4.15

228.3.14.5

INIT

INIT

190.13.4.1

INIT-ACK

INIT-ACK

INIT-ACK

190.13.4.1

130.2.4.15

228.3.14.5

The SCTP Way: 4-way handshake limits attack

process

INIT

(victim)

SCTP-based web server

(attackers)

spoofed INIT’s

Internet

128.3.4.5

192.10.2.8

221.3.5.10

No reserved resources

No flooding!!

slide12

SCTP: Four-way Association Setup

V: Verification tag

I : Initiate tag

closed

t=0

INIT(V=0) (I=TagA)

cookie

wait

INIT–ACK(V=TagA) (I=TagB)(StateCookie)

closed

1RTT

COOKIE–ECHO(V=TagB) (StateCookie)

cookie

echoed

COOKIE–ACK(V=TagA)

2RTT

estab’d

data (V=TagB)

established

what does a cookie contain
What does a Cookie contain?
  • Information from original INIT
  • Information from current INIT-ACK
  • Timestamp
  • Life span of cookie (Time to Live)
  • Signature for authentication (MD5)
slide14

SCTP Association Graceful Shutdown

Upper layer

invokes SHUTDOWN

estbl’d

estbl’d

DATA

DATA

shutdown_pending

SACK

SHUTDOWN

stop accepting data

shutdown_sent

slide15

shutdown_pending

SHUTDOWN

stop accepting data

DATA

shutdown_sent

shutdown_received

SHUTDOWN + SACK

SHUTDOWN_ACK

shutdown_ack_sent

SHUTDOWN_COMPLETE

closed

(delete TCB)

closed

(delete TCB)

sctp feature summary1
SCTP Feature Summary

What TCP and SCTP both have:

  • reliability (retransmissions)
  • congestion control
  • connection oriented

SCTP adds the following:

  • 4-way handshake

to reduce vulnerability to Denial of Service attacks

  • multihoming

instead of one IP address per endpointa set of IP addresses per endpoint

  • framing

preserve message boundaries

  • multistreaming

instead of one ordered stream, up to 64K independent ordered streams

slide17

Multi-Homing

port

Application

132 (IANA)

SCTP

IPaddresses

...

IP

Link

...

...

Physical

...

Multi-Homing: Technique to improve reachability of hosts

which are reachable on more than 1 destinations (interfaces)

traditional uni homing
Traditional “Uni” homing

transport connection

points of failure

A

Internet

B

client

Web server

traditional multi homing tcp

transport connection

points of failure

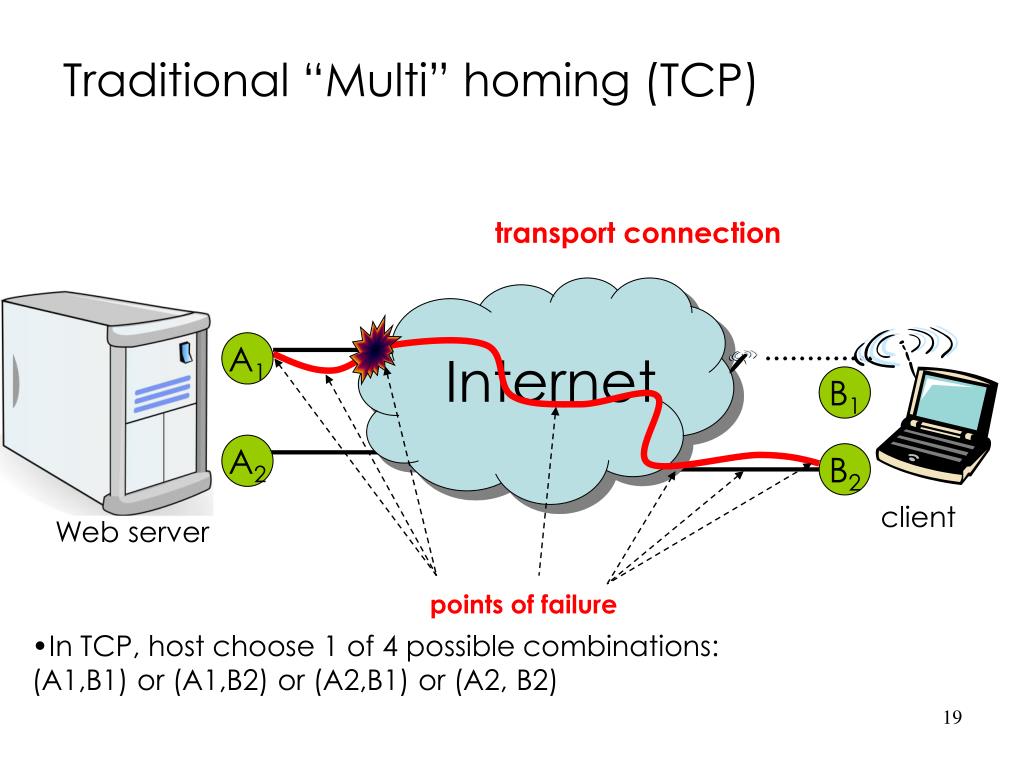

Traditional “Multi” homing (TCP)

A1

Internet

B1

A2

B2

client

Web server

  • In TCP, host choose 1 of 4 possible combinations:(A1,B1) or (A1,B2) or (A2,B1) or (A2, B2)
innovative multi homing in sctp
Innovative “Multi” homing in SCTP

transport “association”

A1

Internet

B1

A2

B2

client

Web server

SCTP Multihoming

  • Hosts use one association ({A1,A2}, {B1,B2})
  • New data sent to one primary destination

- Let B1 be the web server’s primary destination

- Let A1 be the client’s primary destination

  • Path status and destination reachability constantly monitored.
slide21

Multi-homing Association

single-homed SCTP endpoint

multi-homed SCTP endpoint

Host B

Host A

application

application

IP1=160.15.82.20

IP2=161.10.8.221

IP3=10.1.61.11

200

100

SCTP

SCTP

B1

B2

B3

A1

IP=128.33.6.12

endpoint=[128.33.6.12 : 100]

endpoint=[160.15.82.20, 161.10.8.221, 10.1.61.11 : 200]

SCTP association

Host A

Host B

application

application

IP1=160.15.82.20

IP2=161.10.8.221

IP3=10.1.61.11

100

200

SCTP

SCTP

A1

B1

B2

B3

IP=128.33.6.12

association={ [128.33.6.12 : 100] : [160.15.82.20, 161.10.8.221, 10.1.61.11 : 200] }

tcp data transfer without loss
TCP data transfer without loss

data

data

sent by application

delivered to application

data to be sent

receive buffer (6)

6

6

5

5

4

6

6

4

3

5

5

6

4

2

3

2

1

6

4

5

3

3

1

4

6

5

2

A1

B1

6

2

1

4

5

3

6

2

3

4

5

1

A2

B2

tcp data transfer with loss
TCP data transfer with loss

data

data

sent from application

delivered to application

data to be sent

receive buffer (6)

6

5

6

5

4

4

3

3

2

2

1

6

5

4

3

1

2

retransmission

loss

A1

B1

1

2

6

5

4

3

4

1

5

2

6

3

A2

B2

tcp data transfer with single path failure
TCP data transfer with single path failure

data

data

sent by application

delivered to application

data to be sent

receive buffer (6)

6

6

5

5

4

6

5

3

4

6

2

3

4

5

4

1

3

2

connection fails!

2

1

3

A1

B1

5

6

5

2

1

4

4

6

3

5

6

4

6

1

2

3

4

5

A2

B2

sctp data transfer without loss
SCTP data transfer without loss

data

data

sent by application

delivered to application

data to be sent

receive buffer (6)

6

6

5

5

4

6

5

4

3

6

3

4

5

2

6

6

2

1

5

3

4

2

3

4

1

5

6

A1

B1

2

4

1

6

5

3

2

4

3

5

6

1

A2

B2

sctp data transfer with loss
SCTP data transfer with loss

data

data

sent from application

delivered to application

data to be sent

receive buffer (6)

6

6

5

4

5

4

3

3

2

1

6

2

5

4

3

6

2

1

loss

A1

B1

4

6

2

1

3

5

6

5

4

3

1

A2

B2

2

2

retransmission

sctp data transfer with single path failure
SCTP data transfer with single path failure

data

data

sent by application

delivered to application

data to be sent

receive buffer (6)

6

5

6

5

4

6

5

4

3

6

5

2

6

4

3

1

5

6

4

2

3

5

3

1

4

2

6

A1

B1

6

3

4

5

1

2

5

4

2

1

3

6

A2

B2

6

5

6

5

4

4

retransmission

multihoming example
Multihoming Example
  • Laptop connected via Ethernet and Wireless.
  • Both the interfaces are reachable by the peer.
  • Ethernet gets disconnected, transmission of data fails.
  • Failure detected, SCTP uses the wireless interface to transmit.
  • HEARTBEAT is received.
  • Ethernet link is restored.

Heartbeat received

Ethernet

B1

Ethernet

Internet

A1

B2

802.11

A2

802.11

Client Host

(SCTP)

New Transmission Path

Server Host

(SCTP)

slide29

SCTP Failure Detection

  • Host A monitors reachability of primary dest address of Host B

Host A

Host B

application

application

primary

100

alternates

200

SCTP

SCTP

A1

B1

B2

B3

SACK

DATA

  • Host A starts the retransmission timer
  • If timer expires
  • increment error_count
  • If error_count > threshold
  • path = inactive
  • If Host A receives SACK before timer expires

error_count = 0 & path = active

error_count --> variable associated with each destination address of a host. (initially zero)

slide30

Host A monitors reachability of idle destination addresses of Host B

Host A

Host B

application

application

primary

100

alternates

200

SCTP

SCTP

A1

B1

B2

B3

HEARTBEAT-ACK

HEARTBEAT

  • HEARTBEAT is sent periodically to each idle address
  • When a HEARTBEAT is sent
  • increment error_count
  • If error_count > threshold
  • path = inactive
  • If Host A receives a HEARTBEAT-ACK

error_count = 0 & path = active

  • When primary dest. address is detected unreachable =>

SCTP sender chooses REACHABLE, alternate dest. address as primary

heartbeat

HEARTBEAT?

HEARTBEAT is a chunk that an endpoint sends to its peer endpoints to probe the reachability of a particular destination transport address.

In our case, the HEARTBEAT is sent to a destination address which has been idle for a long time to check for its reachability.

HEARTBEAT ACK is a chunk which an endpoint sends to its peer endpoints as a response to a HEARBEAT chunk.

summary of sctp

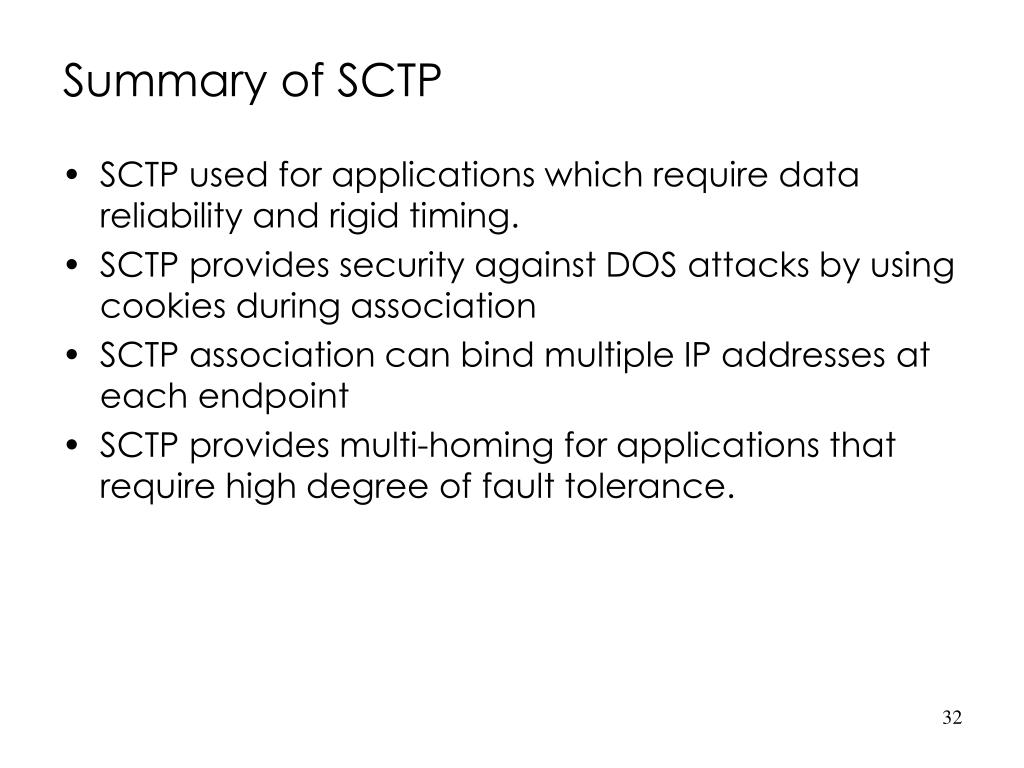

Summary of SCTP
  • SCTP used for applications which require data reliability and rigid timing.
  • SCTP provides security against DOS attacks by using cookies during association
  • SCTP association can bind multiple IP addresses at each endpoint
  • SCTP provides multi-homing for applications that require high degree of fault tolerance.
reference material
Reference Material

Textbooks

Stream Control Transmission Protocol (SCTP)

Randall Stewart, Qiaobing Xie, Addison Wesley, 2002

TCP/IP Protocol Suite – Chapter 13

Behrouz Forouzan

RFC’s

  • RFC 2960 - Stream Control Transmission Protocol
  • RFC 3286 - An Introduction to SCTP
  • RFC 4460 - SCTP Specification Errata and Issues
ad
