First order relationships between lunar crater morphology

  • First-Order Relationships Between

  • Lunar Crater Morphology,

  • Degree of Degradation, and Relative Age:

  • The Crater Degradation Index

William A. Ambrose

Bureau of Economic Geology

John A. and Katherine G. Jackson

School of Geosciences

Apollo 17

photograph


First order relationships between lunar crater morphology

Outline

● Cratering Processes

● Crater Type Versus Morphology

-The USGS Main Sequence

● Crater Degradation Processes

-Fracturing, Lava Flooding, Subsequent Impacts

● Crater Degradation Index

-Statistical Trends for Each Crater Type

● Summary and Conclusions


First order relationships between lunar crater morphology

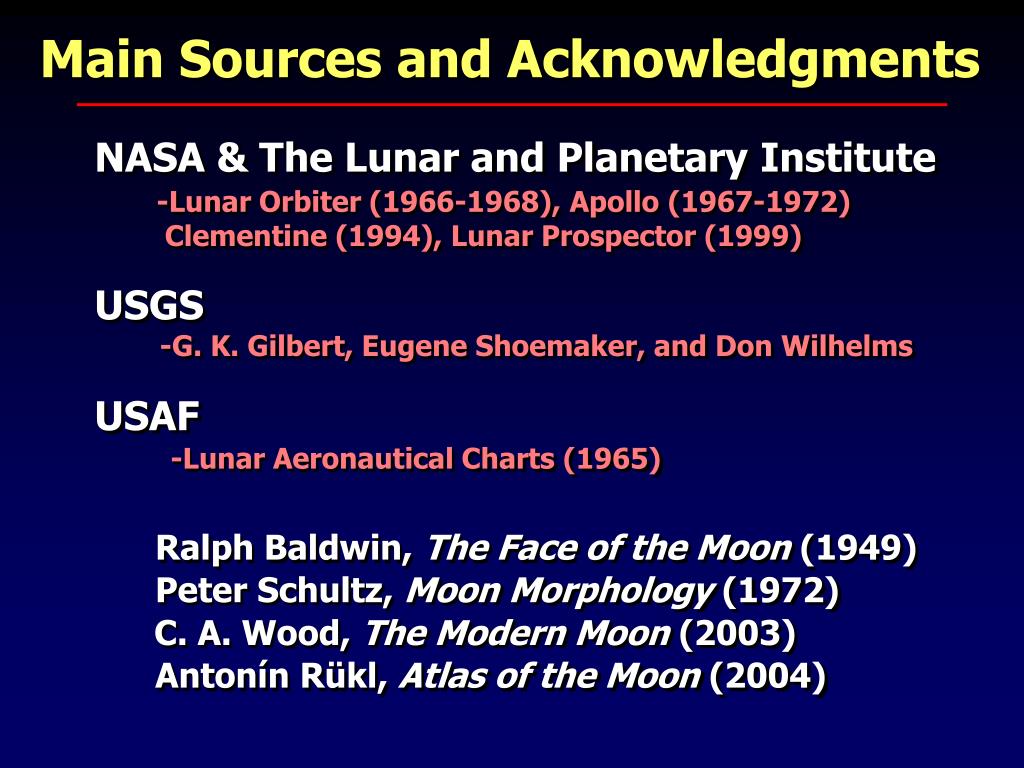

Main Sources and Acknowledgments

NASA & The Lunar and Planetary Institute

-Lunar Orbiter (1966-1968), Apollo (1967-1972)

Clementine (1994), Lunar Prospector (1999)

USGS

-G. K. Gilbert, Eugene Shoemaker, and Don Wilhelms

USAF

-Lunar Aeronautical Charts (1965)

Ralph Baldwin, The Face of the Moon (1949)

Peter Schultz, Moon Morphology (1972)

C. A. Wood, The Modern Moon (2003)

Antonín Rükl, Atlas of the Moon (2004)


First order relationships between lunar crater morphology

Outline

● Cratering Processes

● Crater Type Versus Morphology

-The USGS Main Sequence

● Crater Degradation Processes

-Fracturing, Lava Flooding, Subsequent Impacts

● Crater Degradation Index

-Statistical Trends for Each Crater Type

● Summary and Conclusions


First order relationships between lunar crater morphology

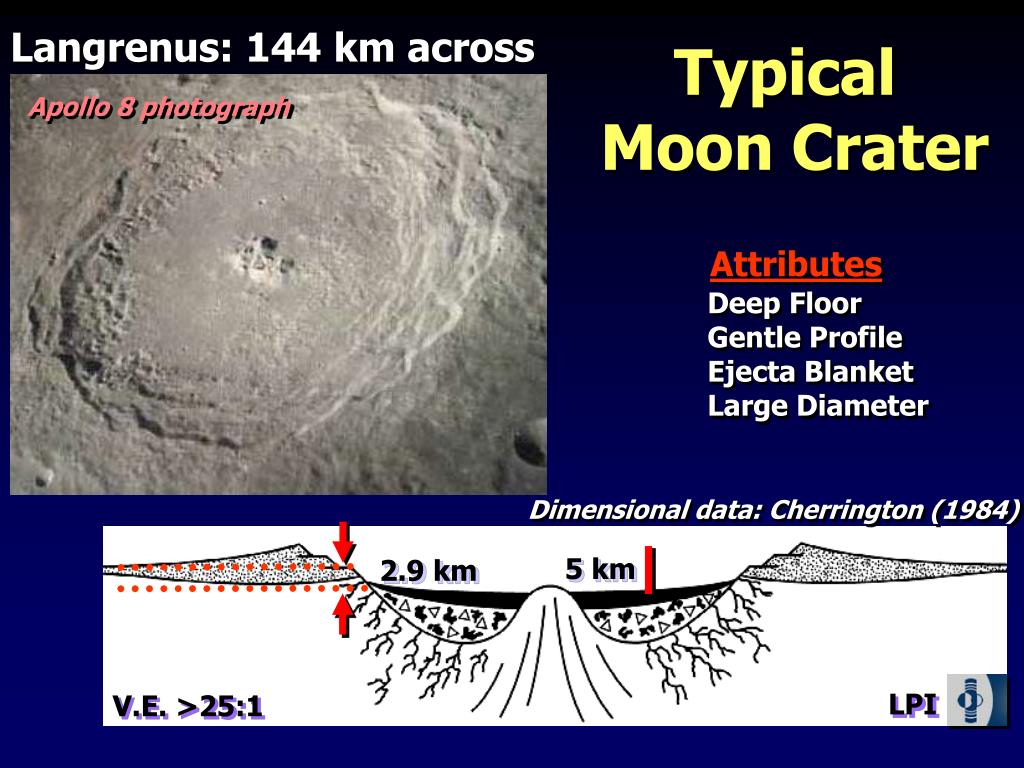

Attributes

Deep Floor

Gentle Profile

Ejecta Blanket

Large Diameter

Langrenus: 144 km across

Typical

Moon Crater

Apollo 8 photograph

Dimensional data: Cherrington (1984)

5 km

2.9 km

LPI

V.E. >25:1


First order relationships between lunar crater morphology

Outline

● Cratering Processes

● Crater Type Versus Morphology

-The USGS Main Sequence

● Crater Degradation Processes

-Fracturing, Lava Flooding, Subsequent Impacts

● Crater Degradation Index

-Statistical Trends for Each Crater Type

● Summary and Conclusions


First order relationships between lunar crater morphology

1

4

5

6

2 & 3

Walled

Plains

Small

Basins

Large

Basins

Simple

Complex

Euler: Type 2

Moltke

Schrödinger

Mare Orientale

227

25

320

10

Schickard

Copernicus:

Type 3

930

93

The Modified USGS Main Sequence

Small

Large

Crater Types (diameter in km)


First order relationships between lunar crater morphology

Type 1 (Simple Craters)

Lunar and Planetary Institute

10 km

Moltke


First order relationships between lunar crater morphology

Type 3 (Aristarchus)

Type 2 (Euler)

40 km

10 km

Types 2 and 3 (Complex Craters)

Lunar and Planetary

Institute


First order relationships between lunar crater morphology

Types 4 and 5

(Walled Plains and Small Basins)

Ptolemaeus (Type 4)

Schrödinger (Type 5)

Apollo 16

Clementine

150 km

75 km

Grimaldi Basin

Type 5

Wood (2003)


First order relationships between lunar crater morphology

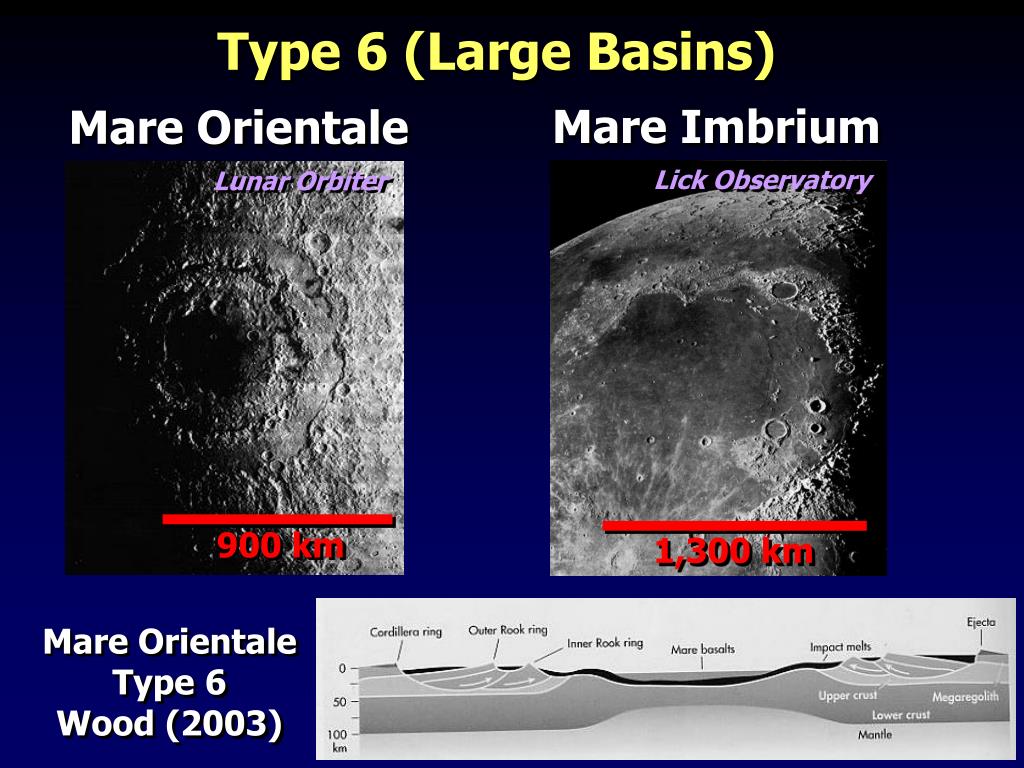

Type 6 (Large Basins)

Mare Imbrium

Mare Orientale

Lick Observatory

Lunar Orbiter

900 km

1,300 km

Mare Orientale

Type 6

Wood (2003)


First order relationships between lunar crater morphology

Outline

● Cratering Processes

● Crater Type Versus Morphology

-The USGS Main Sequence

● Crater Degradation Processes

-Fracturing, Lava Flooding, Subsequent Impacts

● Crater Degradation Index

-Statistical Trends for Each Crater Type

● Summary and Conclusions


First order relationships between lunar crater morphology

● Data sources:

Observations: >700 primarily nearside craters,

farside craters, small basins and large basins

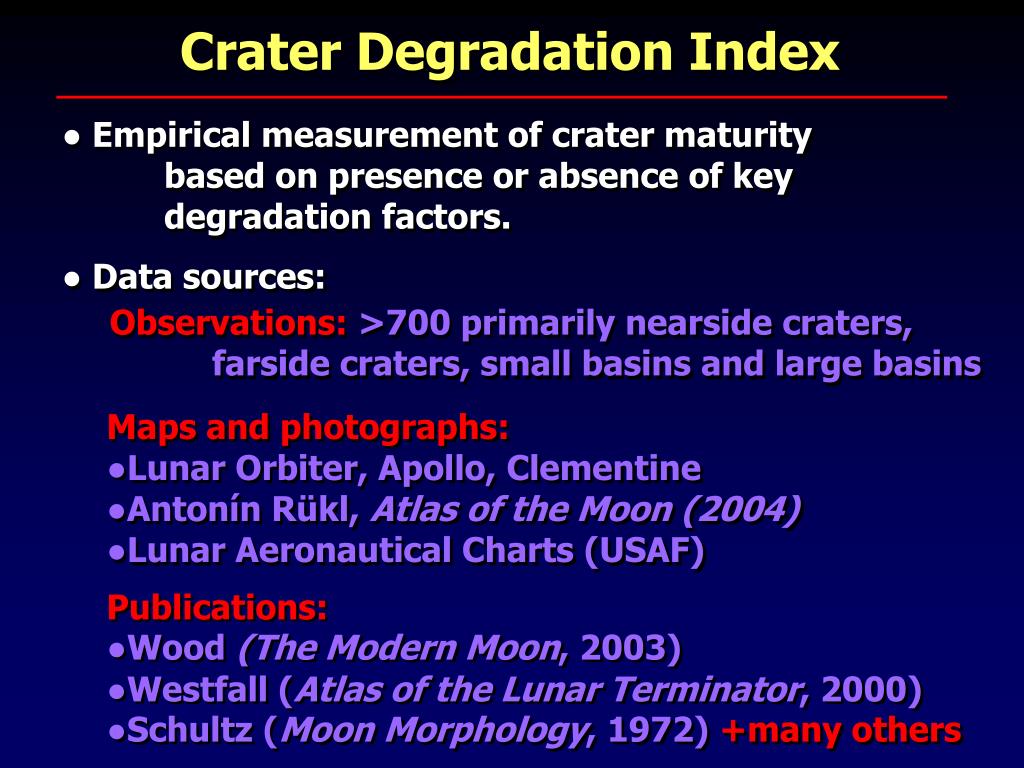

Crater Degradation Index

● Empirical measurement of crater maturity

based on presence or absence of key

degradation factors.

Maps and photographs:

●Lunar Orbiter, Apollo, Clementine

●Antonín Rükl, Atlas of the Moon (2004)

●Lunar Aeronautical Charts (USAF)

Publications:

●Wood (The Modern Moon, 2003)

●Westfall (Atlas of the Lunar Terminator, 2000)

●Schultz (Moon Morphology, 1972) +many others


First order relationships between lunar crater morphology

Extant?

● Subsequent impacts

-New craters, landslides, and ejecta

Yes

● Lava flooding

-External and internal

No

● Fracturing

No

● Degassing/Volcanism

Maybe

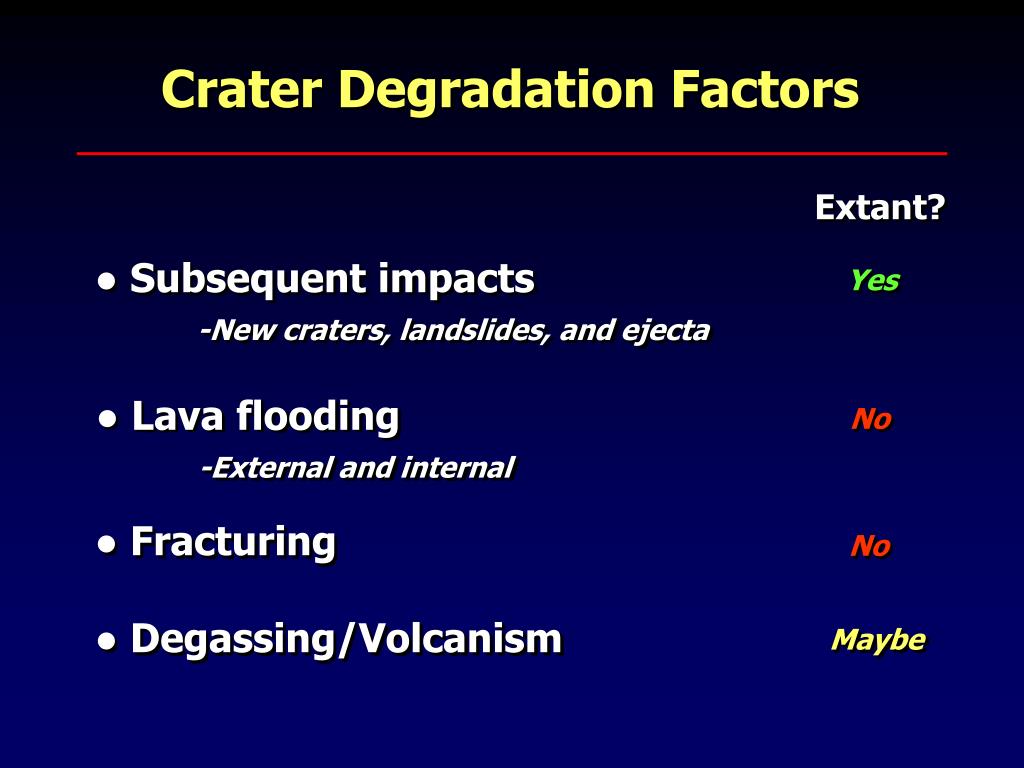

Crater Degradation Factors


First order relationships between lunar crater morphology

Crater Superposition and Relative Age

Overlapping

Non-overlapping

Theophilus

Werner

Cyrillus

Aliacensis

80 km

Lunar Orbiter

Photograph

008


First order relationships between lunar crater morphology

Subsequent Impacts

None

Many

Tycho

Janssen

80 km

100 km


First order relationships between lunar crater morphology

099

Doppelmayer

Lava Flooding:

Mare Humorum

European Southern Obs.

Many large craters in

Mare Humorum are degraded

Gassendi

(floor-fractured)

Degradation is principally

due to mare lavas

Puiseux

Doppelmayer


First order relationships between lunar crater morphology

South

South

Apollo photograph

Gassendi: Floor-fractured crater

European Southern Obs.

100 km

Gassendi


First order relationships between lunar crater morphology

Pu’u O’o Firefountain

Dark-halo

craters

USGS (1985)

Dark-Halo Craters

Alphonsus

Nikolai Kozyrev (1958)

50 km

Apollo photograph


First order relationships between lunar crater morphology

Outline

● Cratering Processes

● Crater Type Versus Morphology

-The USGS Main Sequence

● Crater Degradation Processes

-Fracturing, Lava Flooding, Subsequent Impacts

●Crater Degradation Index

-Statistical Trends for Each Crater Type

● Summary and Conclusions


First order relationships between lunar crater morphology

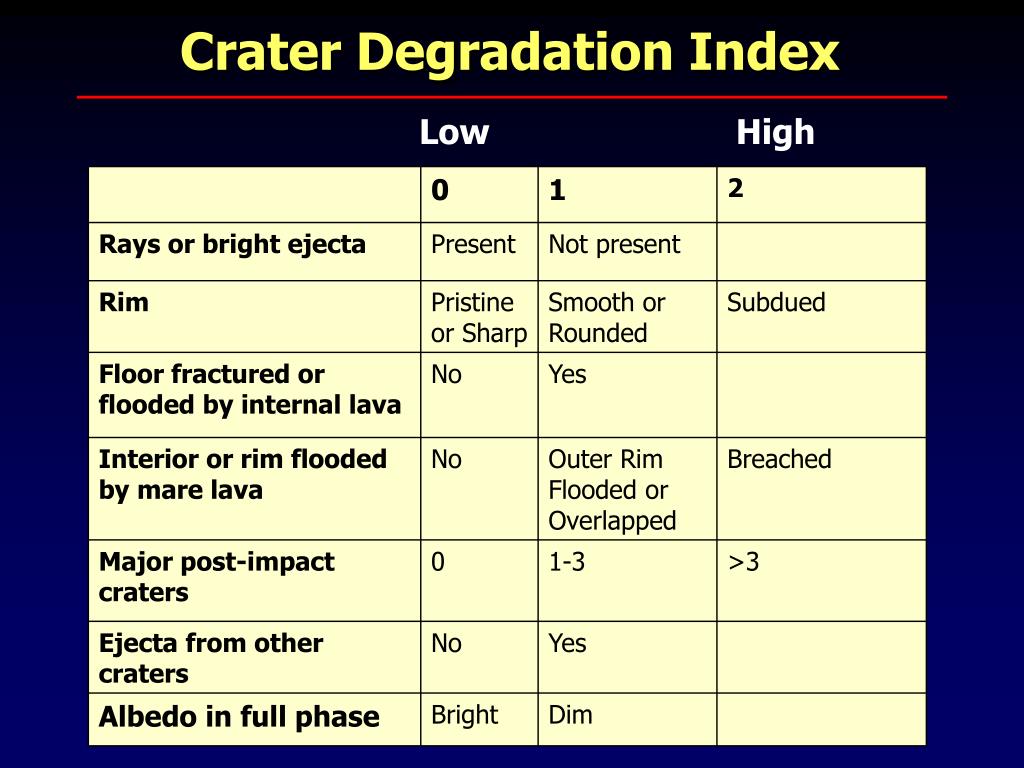

Crater Degradation Index

Low

High


First order relationships between lunar crater morphology

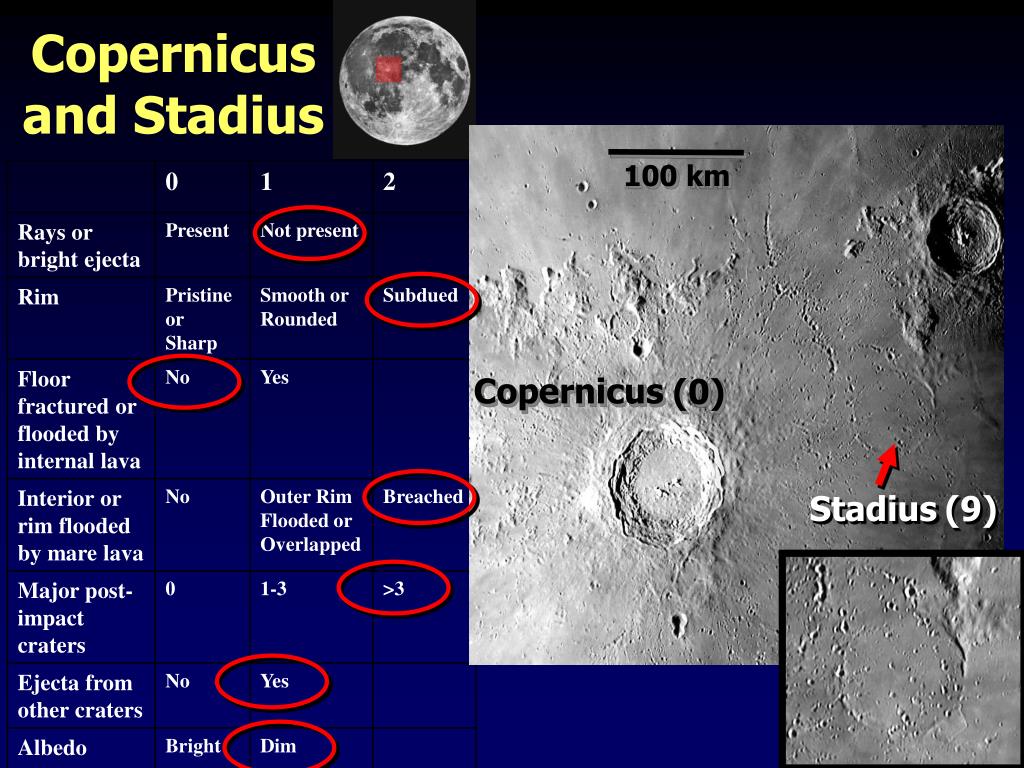

Copernicus

and Stadius

100 km

Copernicus

(0)

Stadius

(9)


First order relationships between lunar crater morphology

Riccioli

70 km

Degradation From Base Surge Deposits

(Trask and McCauley, 1972)

Lunar Orbiter photograph

(6)

Mare Orientale


First order relationships between lunar crater morphology

y=1.4x+0.6

Crater type versus C.D.I.

10

n=704

9

8

7

mean

6

5

C.D.I.

>100

4

50-100

3

20-50

2

1-20

1

0

1

2

3

4

5

6

Type


First order relationships between lunar crater morphology

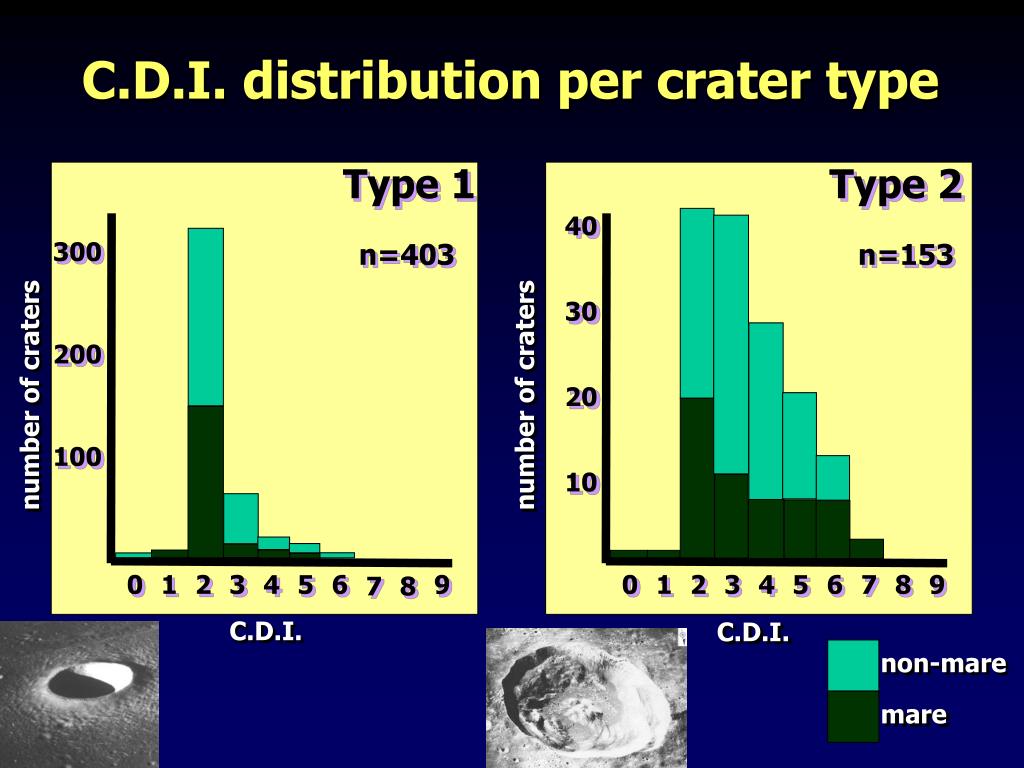

C.D.I. distribution per crater type

Type 1

Type 2

40

300

n=403

n=153

30

200

number of craters

number of craters

20

100

10

0

1

2

3

4

5

6

9

0

1

2

3

4

5

6

7

8

9

7

8

C.D.I.

C.D.I.

non-mare

mare


First order relationships between lunar crater morphology

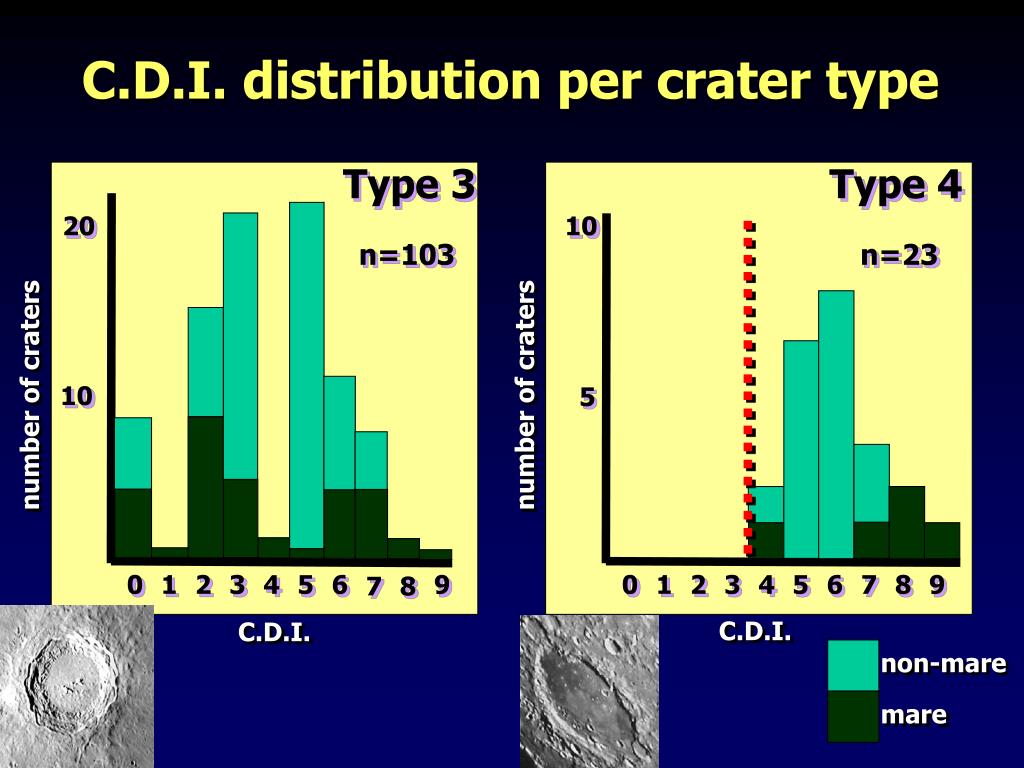

C.D.I. distribution per crater type

Type 3

Type 4

20

10

n=103

n=23

10

number of craters

number of craters

5

0

1

2

3

4

5

6

9

0

1

2

3

4

5

6

7

8

9

7

8

C.D.I.

C.D.I.

non-mare

mare


First order relationships between lunar crater morphology

Langrenus

Wilhelm

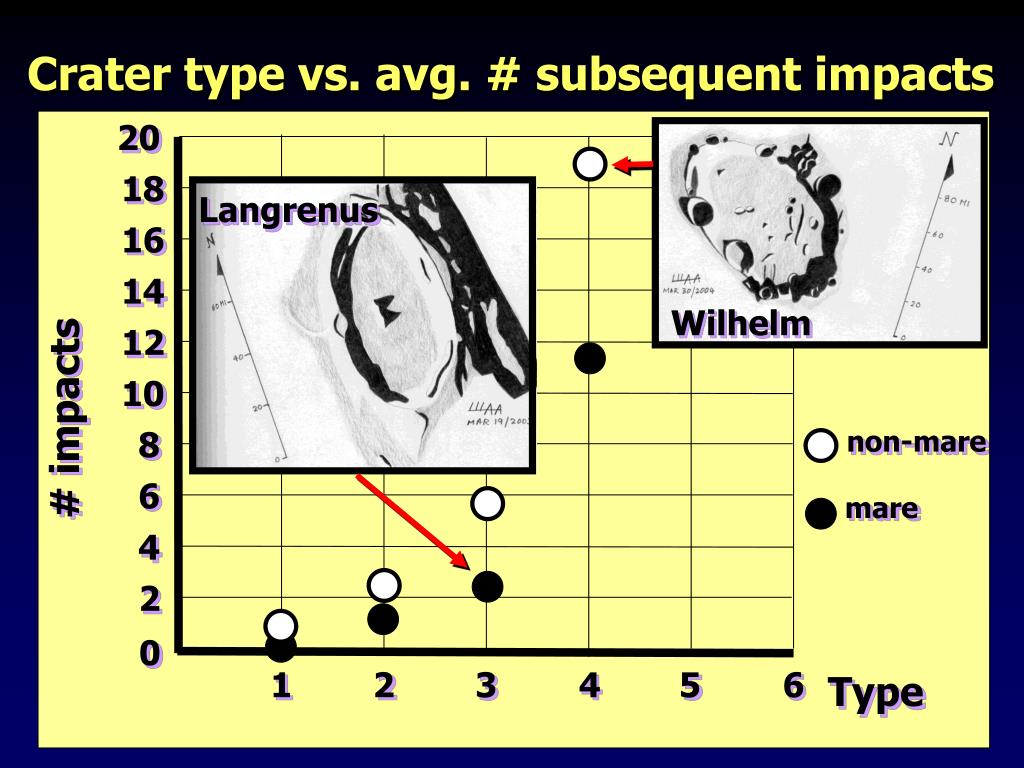

Crater type vs. avg. # subsequent impacts

20

n=596

18

16

14

12

10

# impacts

8

non-mare

6

mare

4

2

0

1

2

3

4

5

6

Type


First order relationships between lunar crater morphology

Prevalent flooding

Sinus Iridum

Type 5

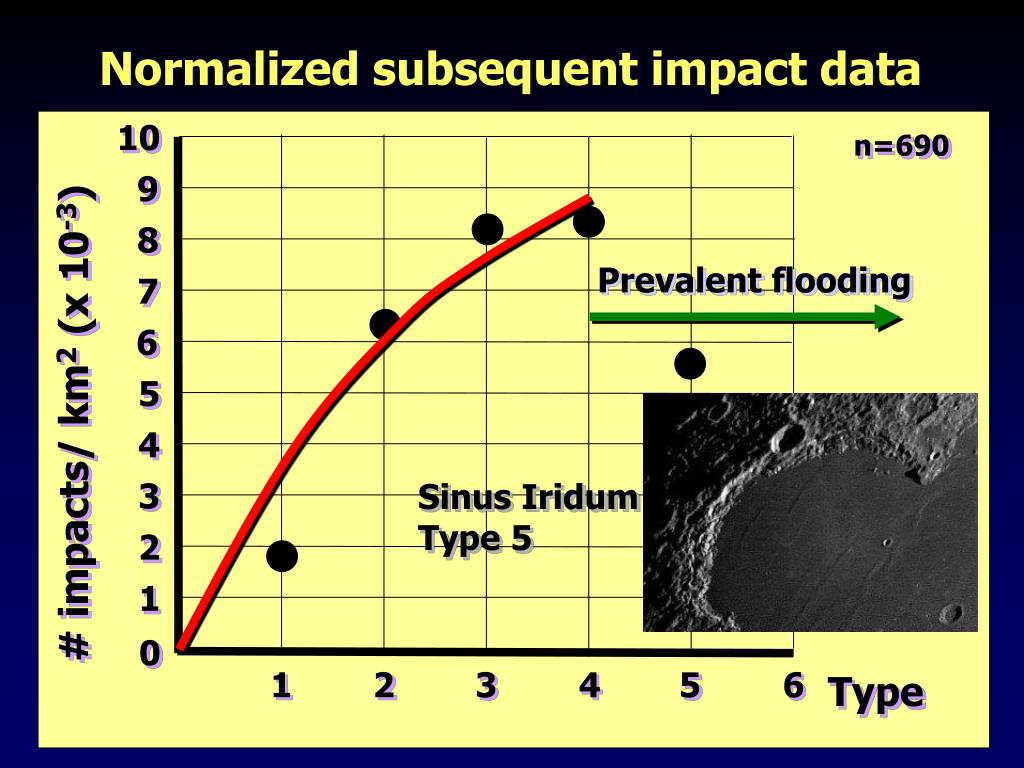

Normalized subsequent impact data

10

n=690

9

8

7

6

5

# impacts/ km2 (x 10-3)

4

3

2

1

0

1

2

3

4

5

6

Type


First order relationships between lunar crater morphology

Lunar Crater Densities vs. Time

Number of Craters

per 106 km2

Age (Billions of years)

Modified from Heiken, Vaniman, and French (1991)


First order relationships between lunar crater morphology

C.D.I.

0-1

2

3-4

5-7

>7

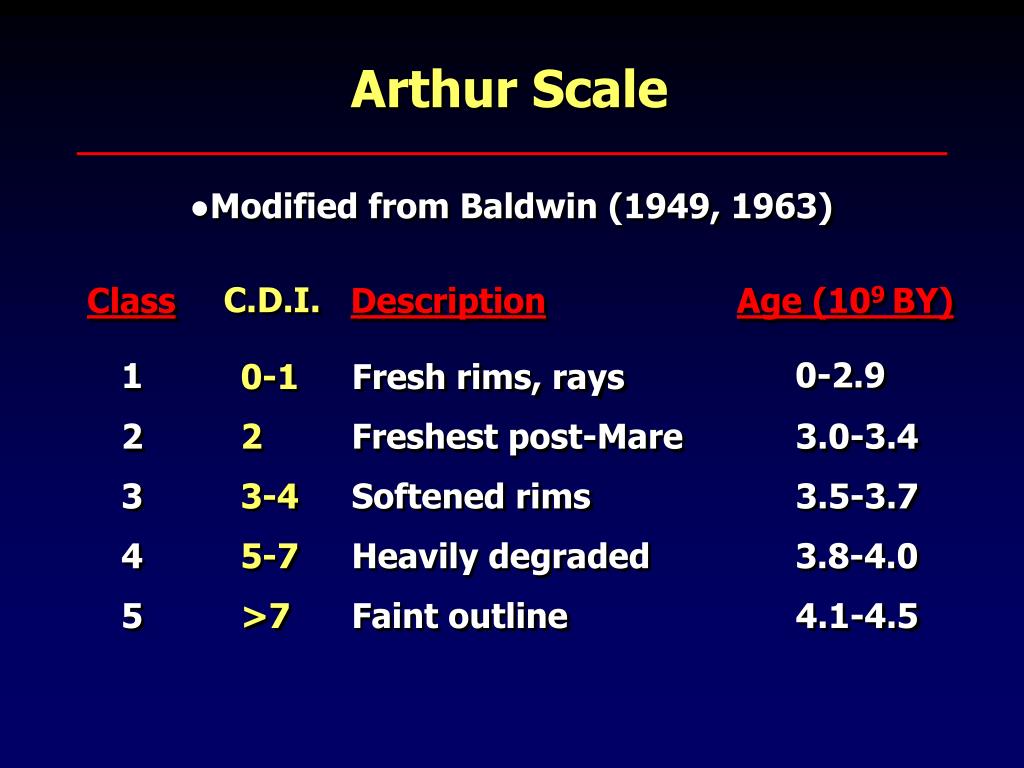

Arthur Scale

●Modified from Baldwin (1949, 1963)

Class

Description

Age (109 BY)

0-2.9

1

Fresh rims, rays

2

Freshest post-Mare

3.0-3.4

3

Softened rims

3.5-3.7

4

Heavily degraded

3.8-4.0

5

Faint outline

4.1-4.5


First order relationships between lunar crater morphology

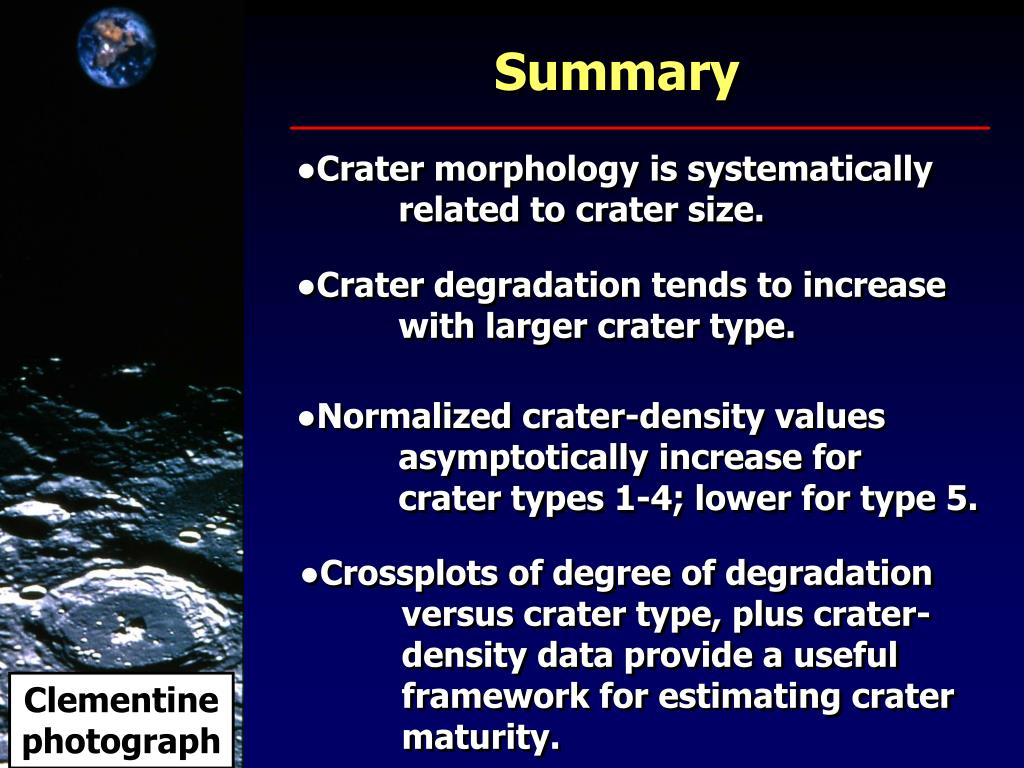

Summary

●Crater morphology is systematically

related to crater size.

●Crater degradation tends to increase

with larger crater type.

●Normalized crater-density values

asymptotically increase for

crater types 1-4; lower for type 5.

●Crossplots of degree of degradation

versus crater type, plus crater-

density data provide a useful

framework for estimating crater

maturity.

Clementine

photograph
