Presentation Transcript
overview of past and on going experiments in the hades url

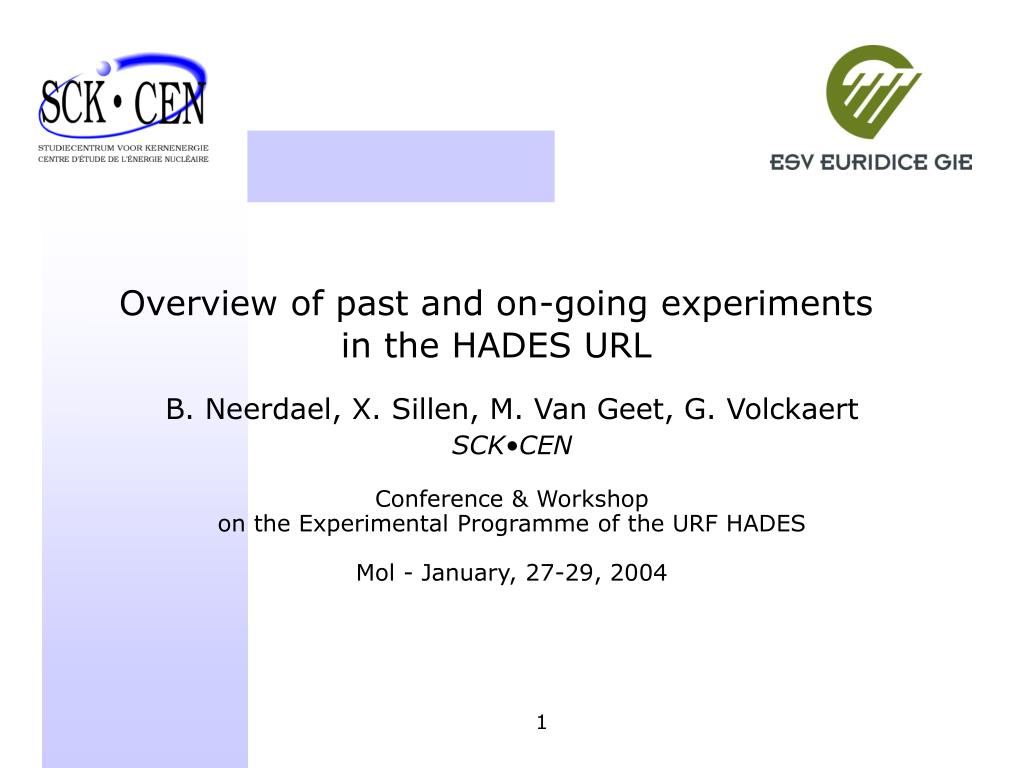

Overview of past and on-going experimentsin the HADES URL

B. Neerdael, X. Sillen, M. Van Geet, G. Volckaert

SCK•CEN

Conference & Workshop

on the Experimental Programme of the URF HADES

Mol - January, 27-29, 2004

framework

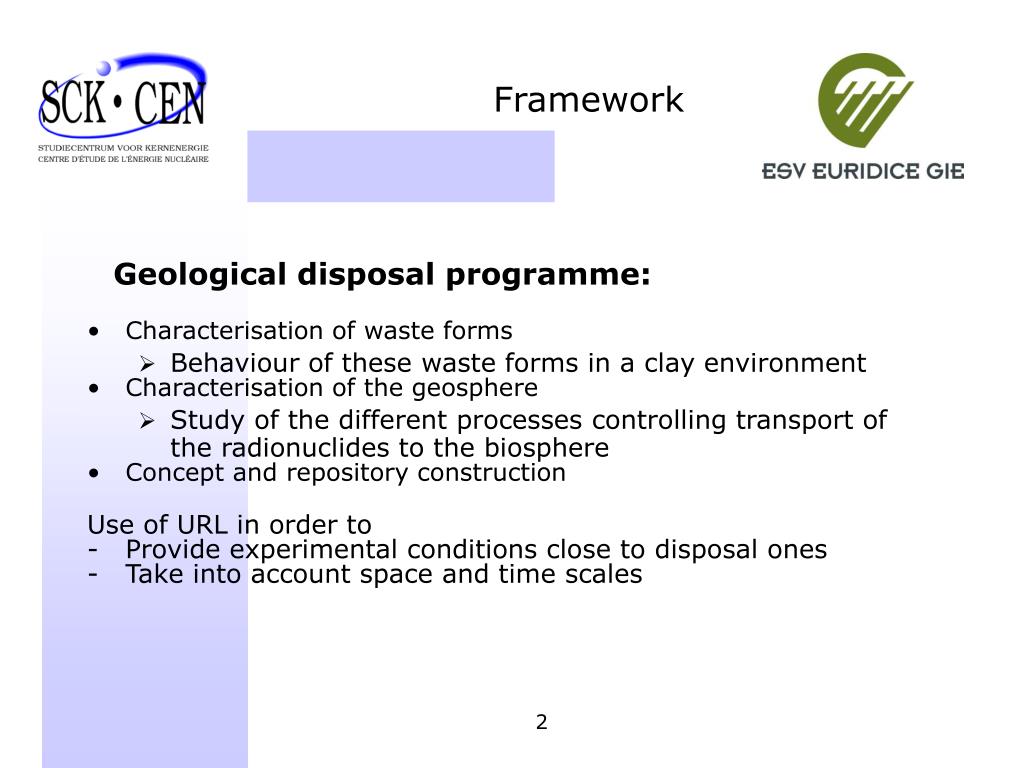

Framework

Geological disposal programme:

  • Characterisation of waste forms
    • Behaviour of these waste forms in a clay environment
  • Characterisation of the geosphere
    • Study of the different processes controlling transport of the radionuclides to the biosphere
  • Concept and repository construction

Use of URL in order to

  • Provide experimental conditions close to disposal ones
  • Take into account space and time scales
slide3

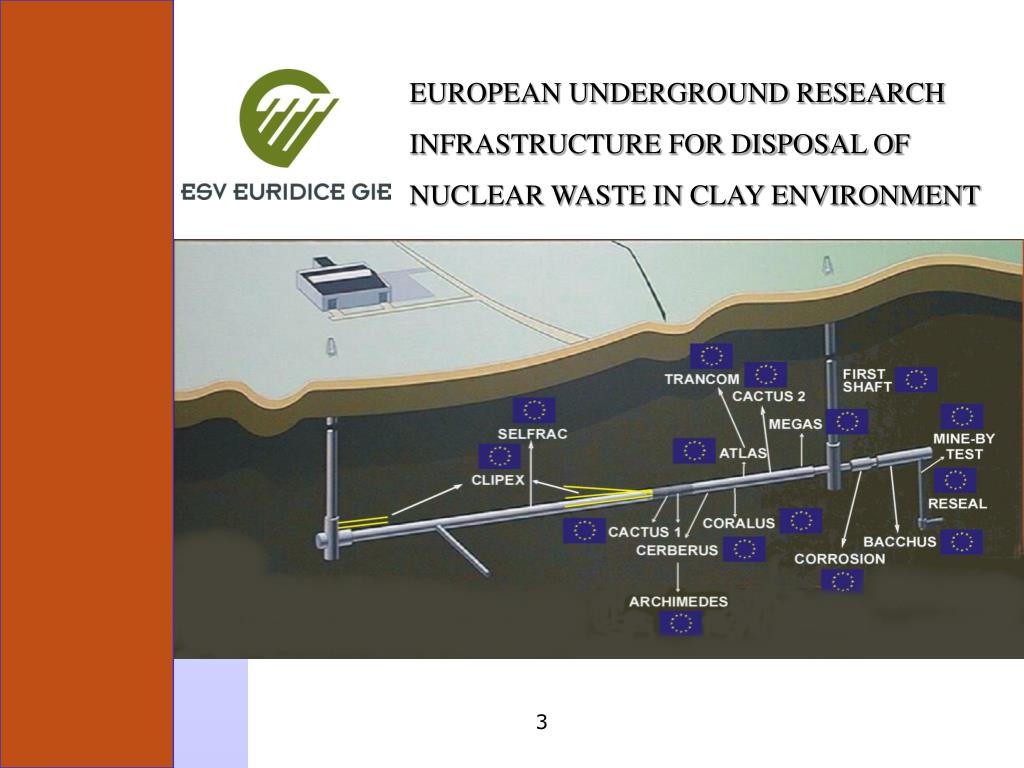

EUROPEAN UNDERGROUND RESEARCH

INFRASTRUCTURE FOR DISPOSAL OF

NUCLEAR WASTE IN CLAY ENVIRONMENT

content

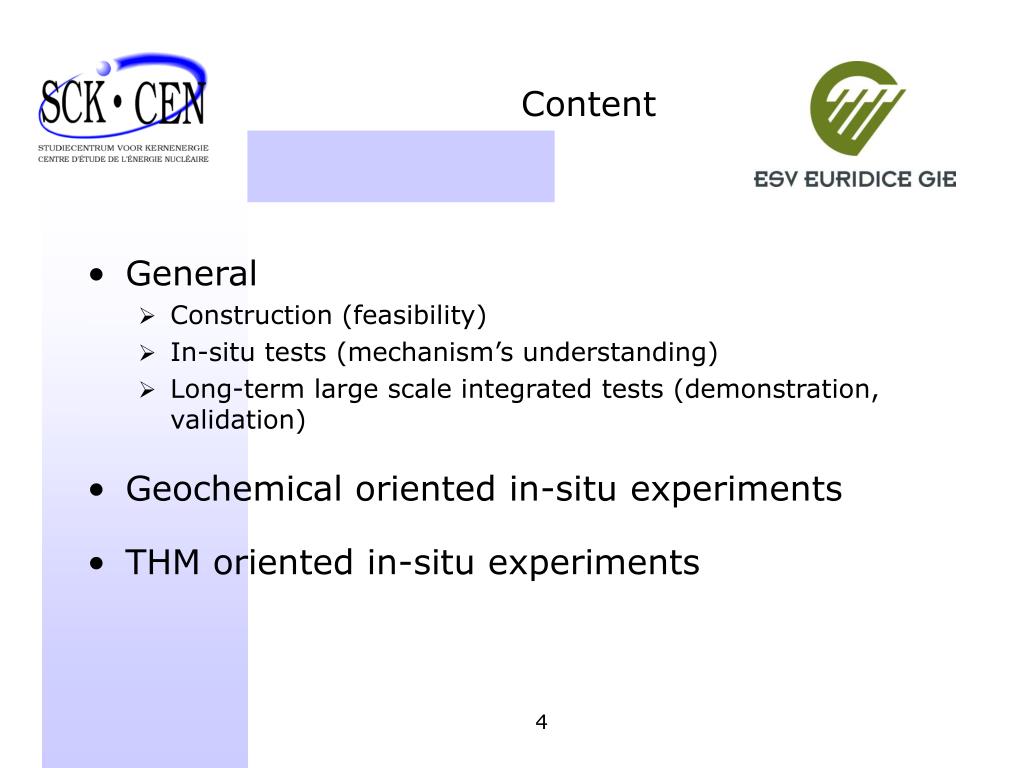

Content
  • General
    • Construction (feasibility)
    • In-situ tests (mechanism’s understanding)
    • Long-term large scale integrated tests (demonstration, validation)
  • Geochemical oriented in-situ experiments
  • THM oriented in-situ experiments
general construction

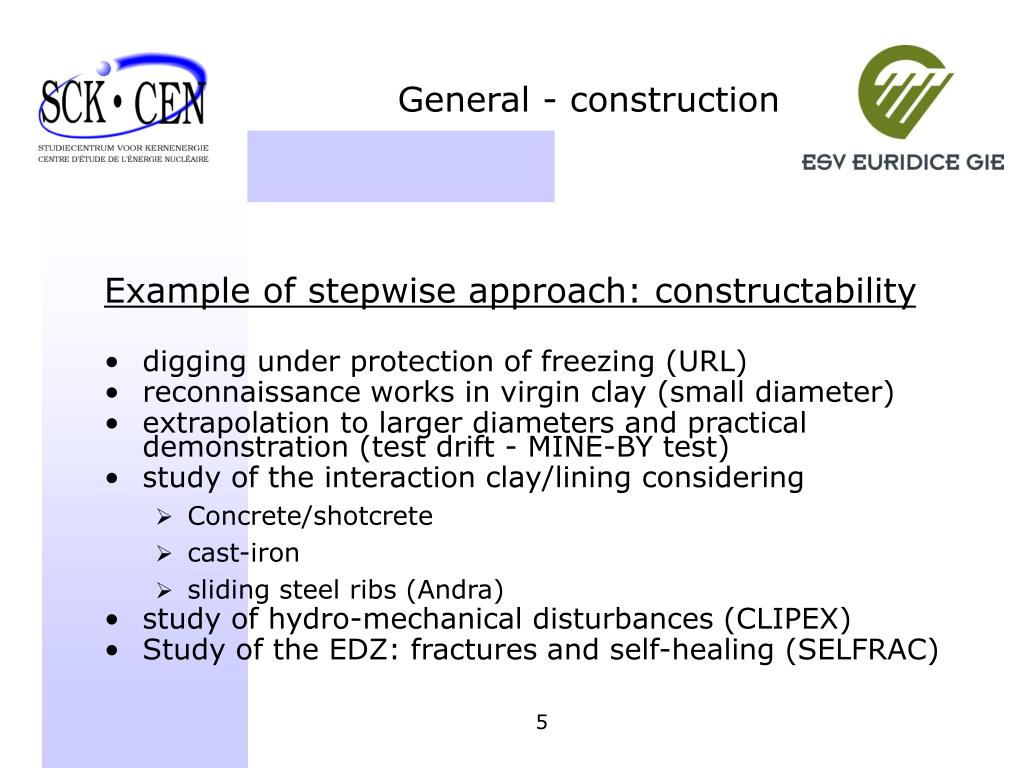

General - construction

Example of stepwise approach: constructability

  • digging under protection of freezing (URL)
  • reconnaissance works in virgin clay (small diameter)
  • extrapolation to larger diameters and practical demonstration (test drift - MINE-BY test)
  • study of the interaction clay/lining considering
    • Concrete/shotcrete
    • cast-iron
    • sliding steel ribs (Andra)
  • study of hydro-mechanical disturbances (CLIPEX)
  • Study of the EDZ: fractures and self-healing (SELFRAC)
experiments first generation

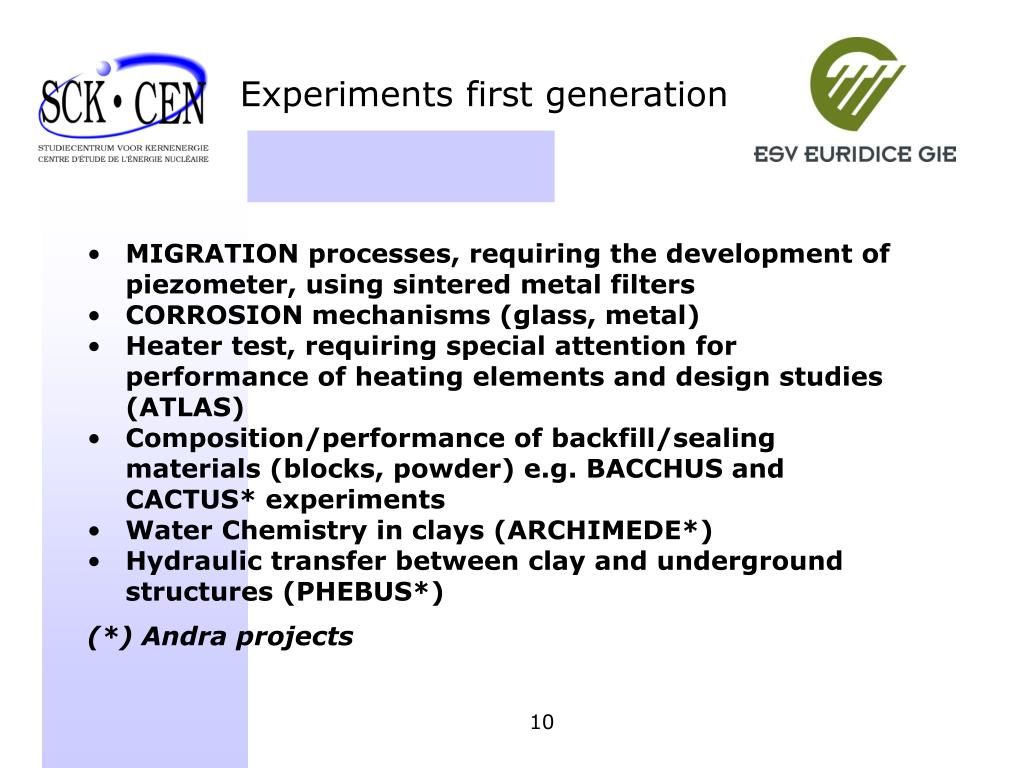

Experiments first generation
  • MIGRATION processes, requiring the development of piezometer, using sintered metal filters
  • CORROSION mechanisms (glass, metal)
  • Heater test, requiring special attention for performance of heating elements and design studies (ATLAS)
  • Composition/performance of backfill/sealing materials (blocks, powder) e.g. BACCHUS and CACTUS* experiments
  • Water Chemistry in clays (ARCHIMEDE*)
  • Hydraulic transfer between clay and underground structures (PHEBUS*)

(*) Andra projects

experiments second generation
Experiments second generation

Development of larger scale integrated experiments, e.g

  • CERBERUS (1988/1996): study of effect on the near-field behaviour of a COGEMA HLW-canister after 50 years cooling time (-sources)
  • Later on, 3-D migration experiments (RN, gas) – MEGAS, PROGRESS
  • More recently, CORALUS (glass), RESEAL (seal plug using clay pellets)
