TFA: A Tunable Finite Automaton for Regular Expression Matching

1. TFA: A Tunable Finite Automaton for Regular Expression Matching Author: Yang Xu, JunchenJiang, RihuaWei, Yang Songand H. Jonathan Chao Publisher: ACM/IEEE ANCS, 2007 Presenter: Ching-HsuanShih Date: 2014/05/28 Department of Computer Science and Information Engineering National Cheng Kung University, Taiwan R.O.C.

2. Outline • Introduction • Motivation • Tunable Finite Automaton(TFA) • Splitting NFA Active State Combinations • State Encoding • Performance Evaluation National Cheng Kung University CSIE Computer & Internet Architecture Lab

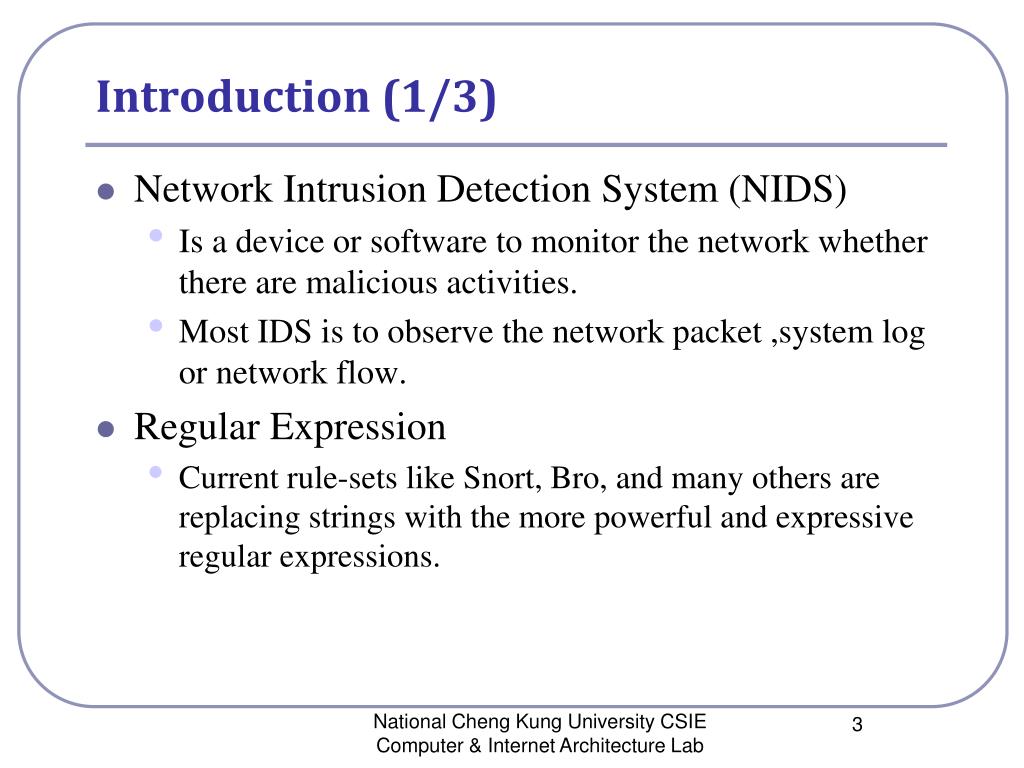

3. Introduction (1/3) • Network Intrusion Detection System (NIDS) • Is a device or software to monitor the network whether there are malicious activities. • Most IDS is to observe the network packet ,system log or network flow. • Regular Expression • Current rule-sets like Snort, Bro, and many others are replacing strings with the more powerful and expressive regular expressions. National Cheng Kung University CSIE Computer & Internet Architecture Lab

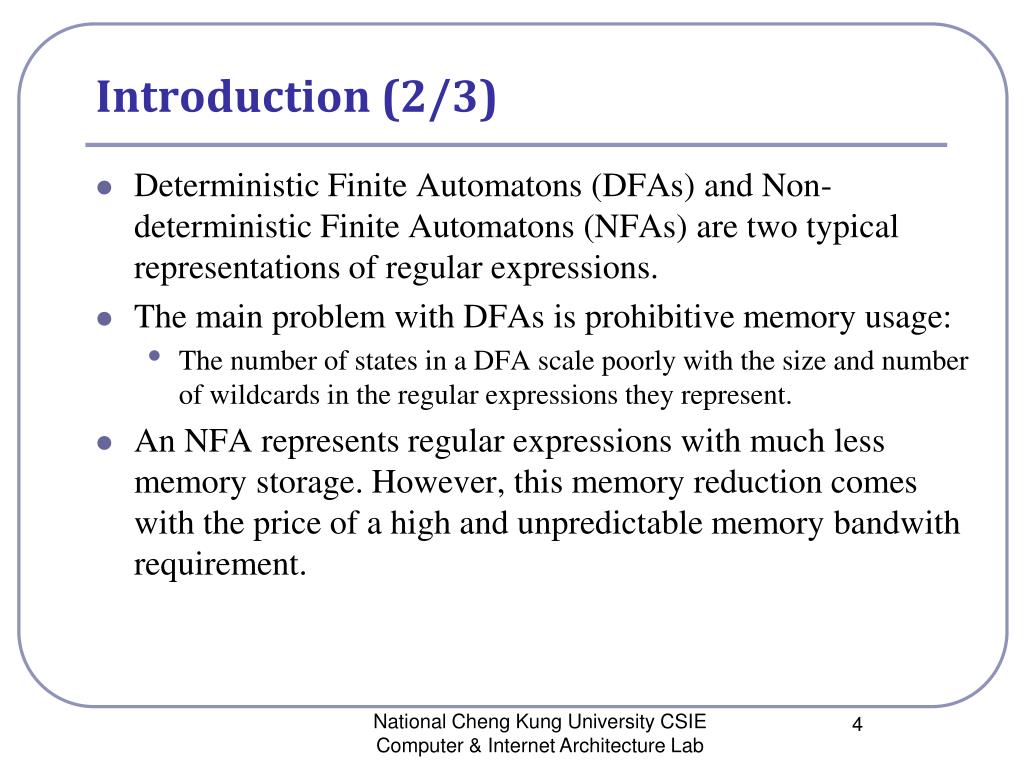

4. Introduction (2/3) • Deterministic Finite Automatons (DFAs) and Non-deterministic Finite Automatons (NFAs) are two typical representations of regular expressions. • The main problem with DFAs is prohibitive memory usage: • The number of states in a DFA scale poorly with the size and number of wildcards in the regular expressions they represent. • An NFA represents regular expressions with much less memory storage. However, this memory reduction comes with the price of a high and unpredictable memory bandwithrequirement. National Cheng Kung University CSIE Computer & Internet Architecture Lab

5. Introduction (3/3) • In this paper, we propose Tunable Finite Automaton (TFA) with a small (larger than one) but bounded number of active states. • The main idea of TFA is to use a few TFA states to remember the matching status traditionally tracked by a single DFA state. National Cheng Kung University CSIE Computer & Internet Architecture Lab

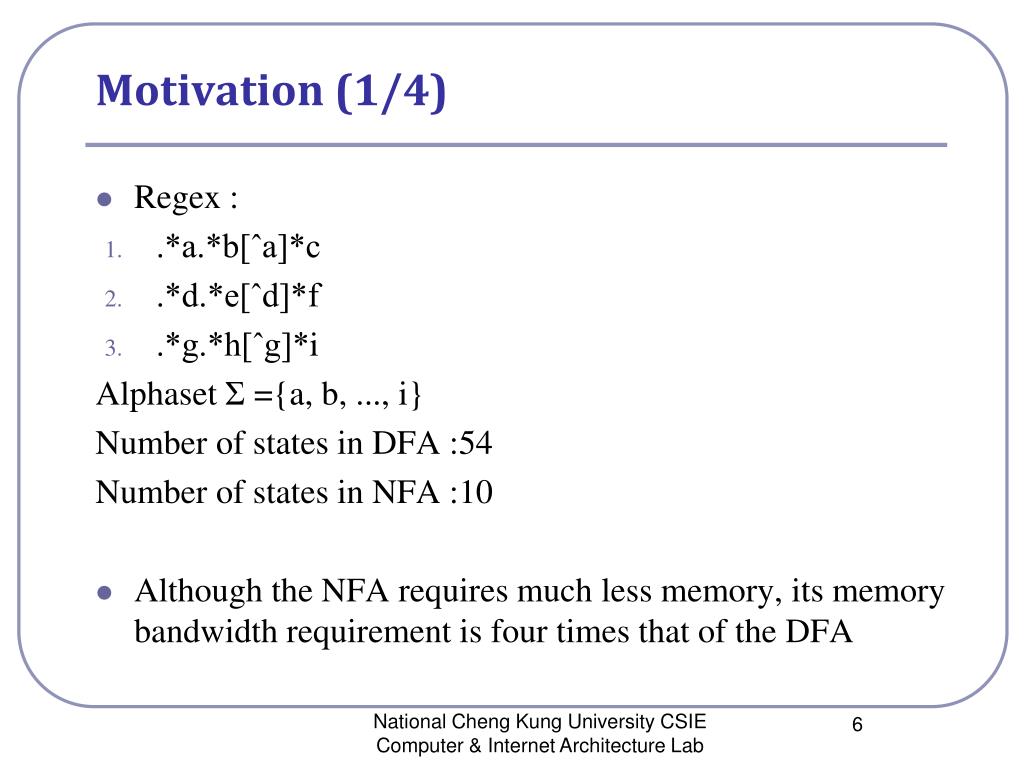

6. Motivation(1/4) • Regex : • .*a.*b[ˆa]*c • .*d.*e[ˆd]*f • .*g.*h[ˆg]*i AlphasetΣ ={a, b, ..., i} Number of states in DFA :54 Number of states in NFA :10 • Although the NFA requires much less memory, its memory bandwidth requirement is four times that of the DFA National Cheng Kung University CSIE Computer & Internet Architecture Lab

7. Motivation(2/4) National Cheng Kung University CSIE Computer & Internet Architecture Lab

8. Motivation(3/4) National Cheng Kung University CSIE Computer & Internet Architecture Lab

9. Motivation(4/4) • We have seen the main reason for the DFA having far more states than the corresponding NFA is that the DFA needs one state for each NFA active state combination • One possible solution is to allow multiple automaton states (bounded by a given bound factor b) to represent each combination of NFA active states. We name it Tunable Finite Automaton (TFA). National Cheng Kung University CSIE Computer & Internet Architecture Lab

10. Tunable Finite Automaton(1/5) A. Constructing A TFA The implementation of a TFA logically consists of two components : • A TFA structure. • Set Split Table (SST) : Each entry of the SST table corresponds to one combination of NFA active states (i.e., a DFA state) recording how to split the combination into multiple TFA states. National Cheng Kung University CSIE Computer & Internet Architecture Lab

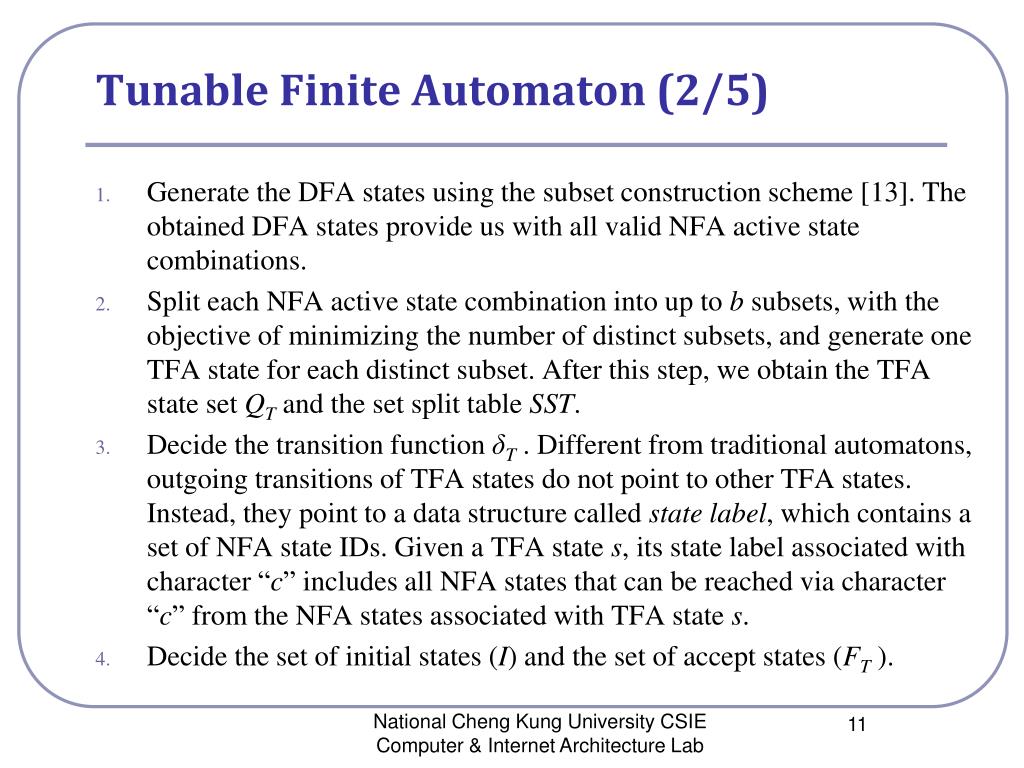

11. Tunable Finite Automaton(2/5) • Generate the DFA states using the subset construction scheme [13]. The obtained DFA states provide us with all valid NFA active state combinations. • Split each NFA active state combination into up to b subsets, with the objective of minimizing the number of distinct subsets, and generate one TFA state for each distinct subset. After this step, we obtain the TFA state set QTand the set split table SST. • Decide the transition function δT. Different from traditional automatons, outgoing transitions of TFA states do not point to other TFA states. Instead, they point to a data structure called state label, which contains a set of NFA state IDs. Given a TFA state s, its state label associated with character “c” includes all NFA states that can be reached via character “c” from the NFA states associated with TFA state s. • Decide the set of initial states (I) and the set of accept states (FT). National Cheng Kung University CSIE Computer & Internet Architecture Lab

12. Tunable Finite Automaton(3/5) National Cheng Kung University CSIE Computer & Internet Architecture Lab

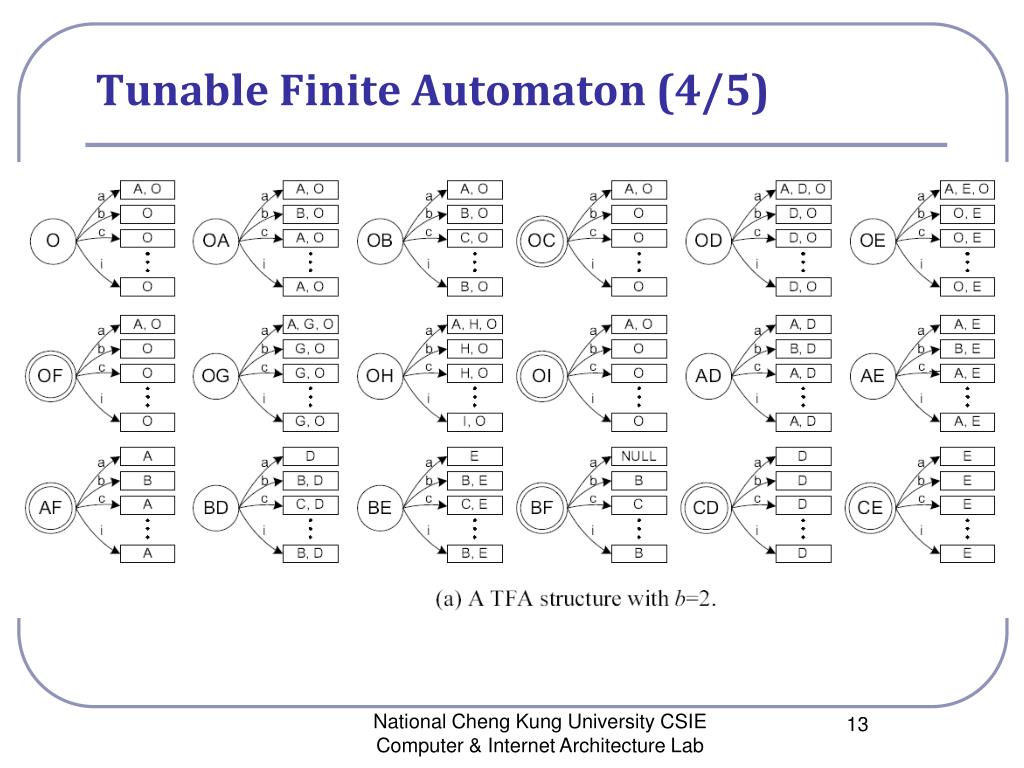

13. Tunable Finite Automaton(4/5) National Cheng Kung University CSIE Computer & Internet Architecture Lab

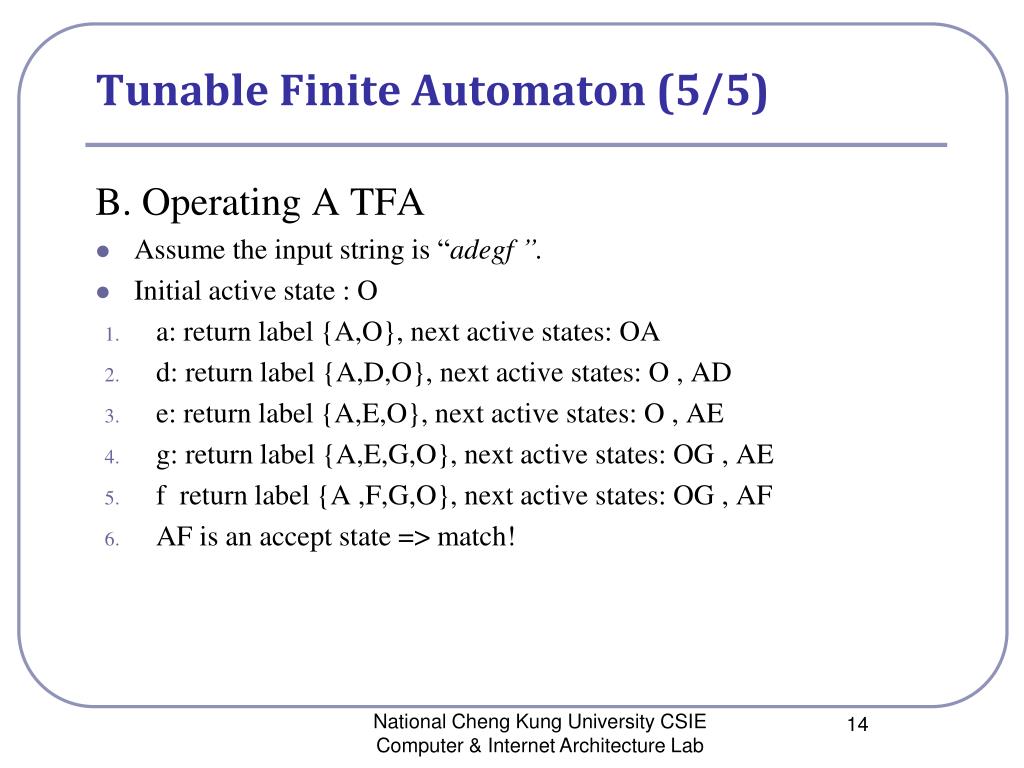

14. Tunable Finite Automaton(5/5) B. Operating A TFA • Assume the input string is “adegf”. • Initial active state : O • a: return label {A,O}, next active states: OA • d: return label {A,D,O}, next active states: O , AD • e: return label {A,E,O}, next active states: O , AE • g: return label {A,E,G,O}, next active states: OG , AE • f return label {A ,F,G,O}, next active states: OG , AF • AF is an accept state => match! National Cheng Kung University CSIE Computer & Internet Architecture Lab

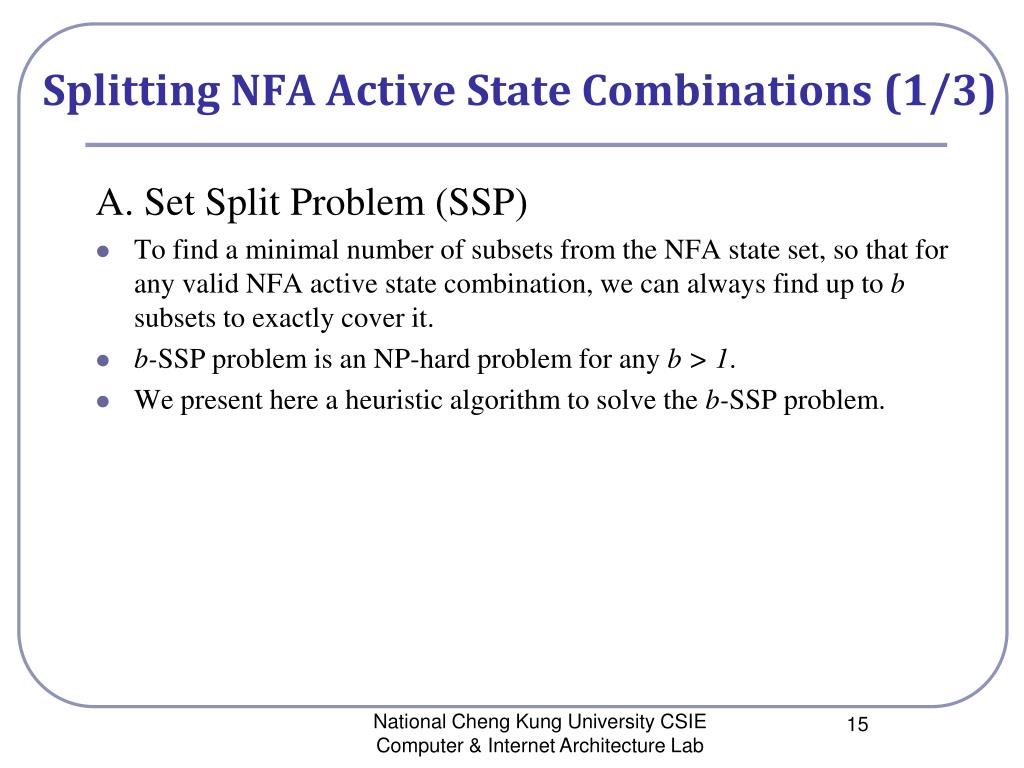

15. Splitting NFA Active State Combinations(1/3) A. Set Split Problem (SSP) • To find a minimal number of subsets from the NFA state set, so that for any valid NFA active state combination, we can always find up to b subsets to exactly cover it. • b-SSP problem is an NP-hard problem for any b > 1. • We present here a heuristic algorithm to solve the b-SSP problem. National Cheng Kung University CSIE Computer & Internet Architecture Lab

16. Splitting NFA Active State Combinations(2/3) B. A Heuristic Algorithm for 2-SSP Problem • Given an NFA active state combination with v states, we consider only two kinds of special splits: • No split at all (i.e., one subset is empty). • Splits that divide the combination into two subsets whose sizes are 1 and v-1, respectively. • The reason to use the second special split is that, after analyzing the NFA active state combinations of many rule sets, we find many combinations of NFA active states differ from each other in only one NFA state. National Cheng Kung University CSIE Computer & Internet Architecture Lab

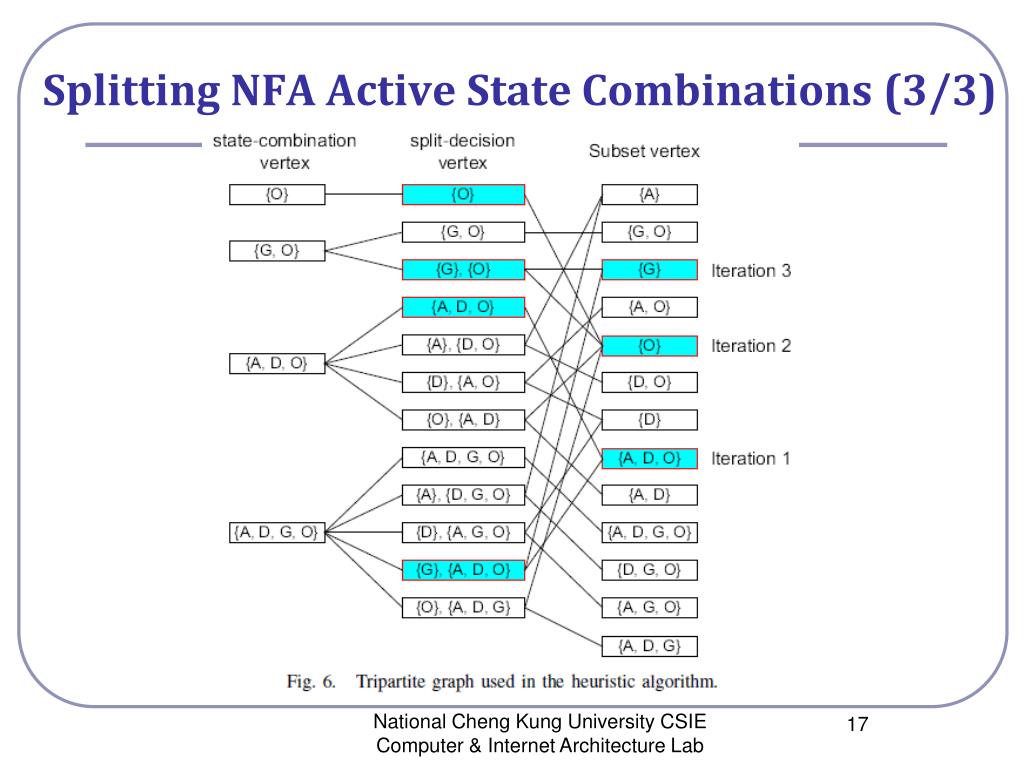

17. Splitting NFA Active State Combinations(3/3) National Cheng Kung University CSIE Computer & Internet Architecture Lab

18. State Encoding • A simple scheme is to implement each state label as an array, including all associated NFA state IDs. • High storage cose. • TFA operation overhead. • Bit vector: • Find a way to assign each NFA state a bit vector, so that the bit vector associated with each valid combination of NFA active states (i.e., each DFA state) must be unique. • And the number of bits used in the bit vector is minimized. National Cheng Kung University CSIE Computer & Internet Architecture Lab

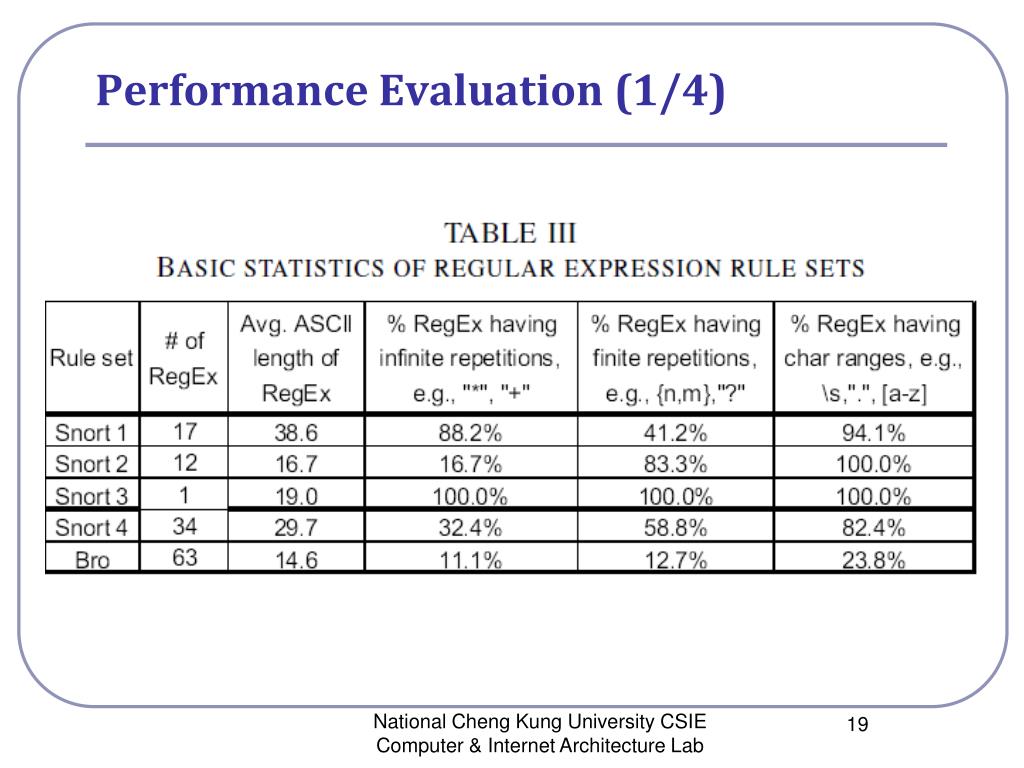

19. Performance Evaluation (1/4) National Cheng Kung University CSIE Computer & Internet Architecture Lab

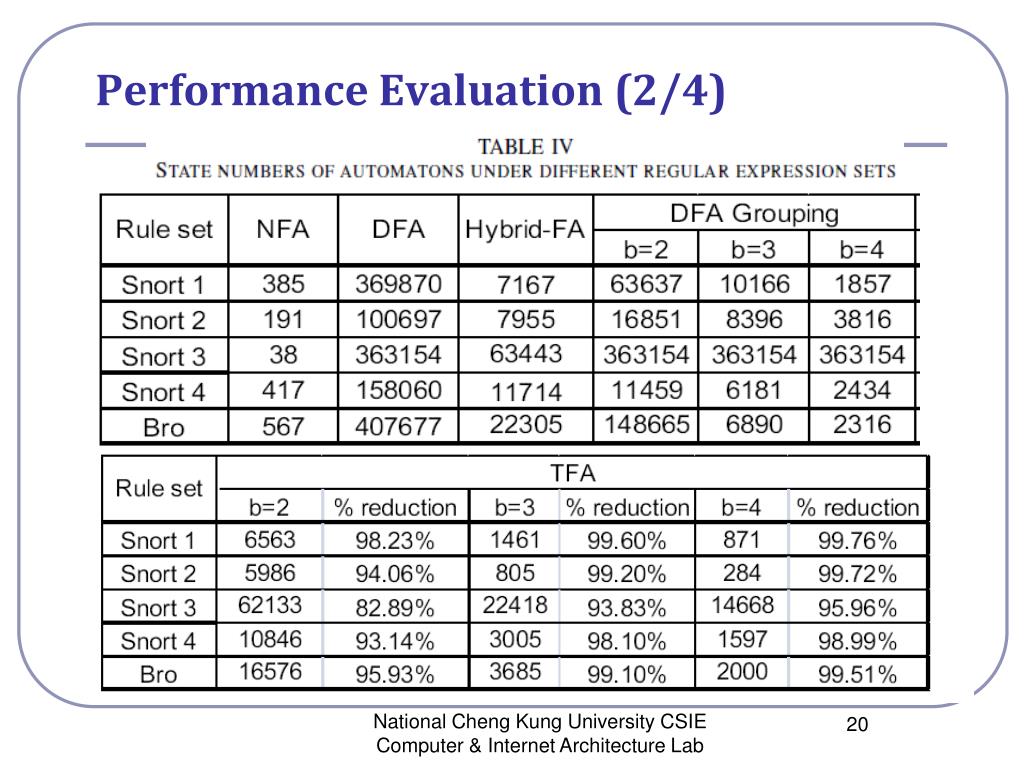

20. Performance Evaluation (2/4) National Cheng Kung University CSIE Computer & Internet Architecture Lab

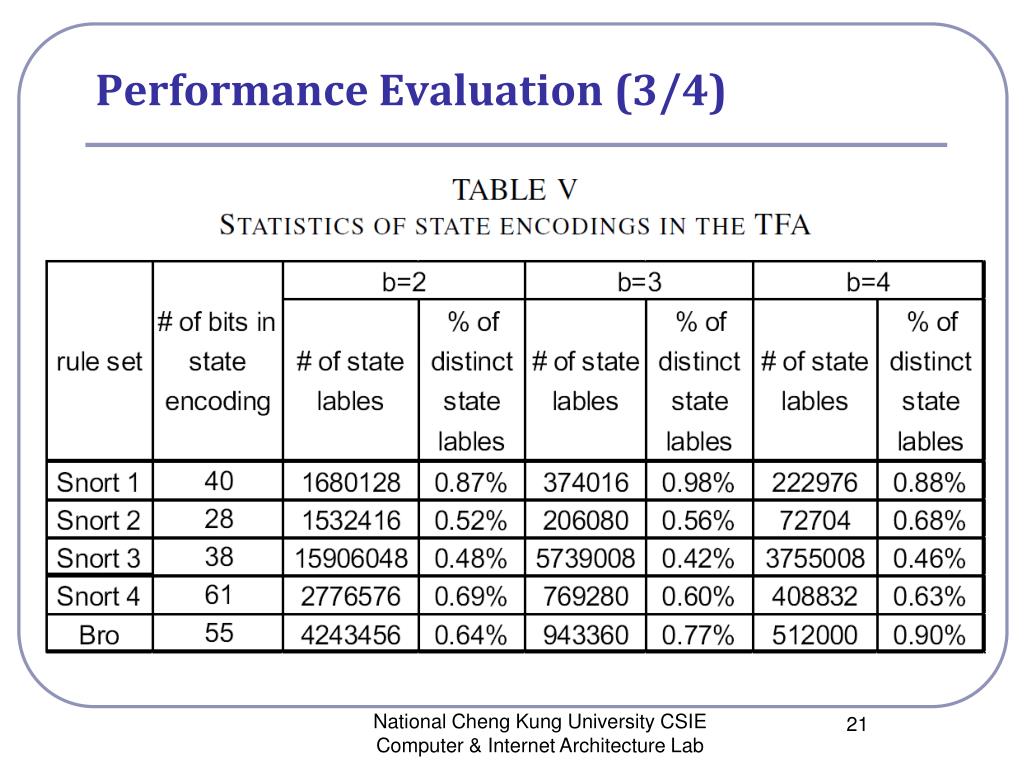

21. Performance Evaluation (3/4) National Cheng Kung University CSIE Computer & Internet Architecture Lab

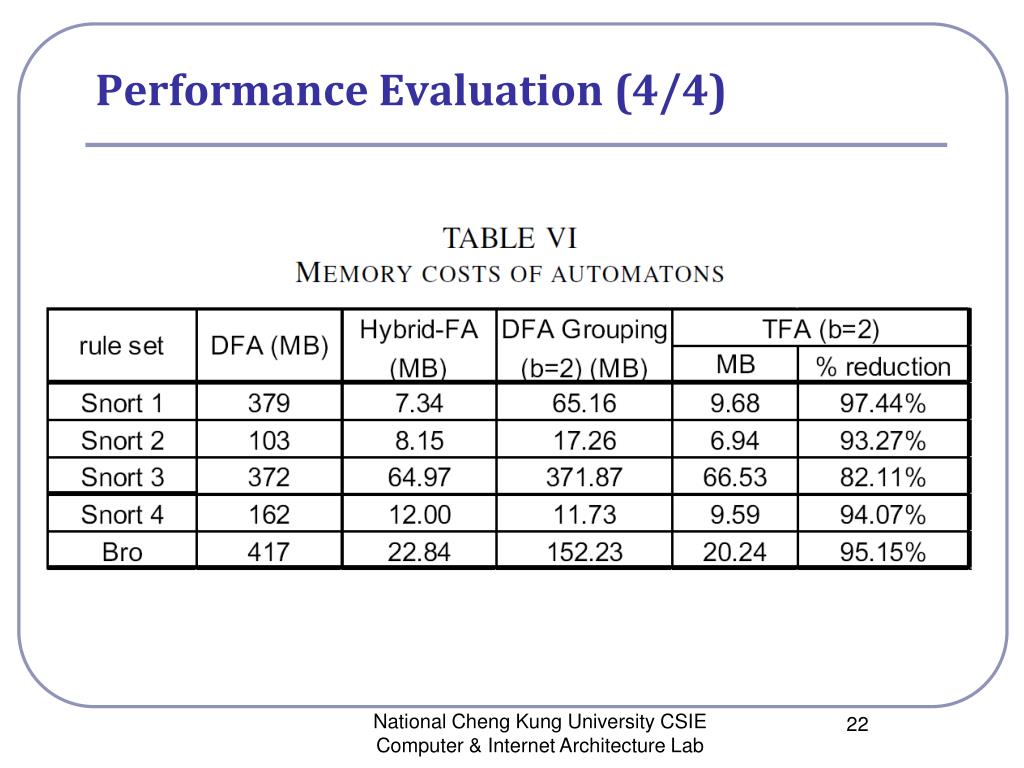

22. Performance Evaluation (4/4) National Cheng Kung University CSIE Computer & Internet Architecture Lab
