Presentation Transcript


Moran scatterplot map 2002 2004

Moran scatterplot map, 2002-2004

Geography of innovation in OECD regions

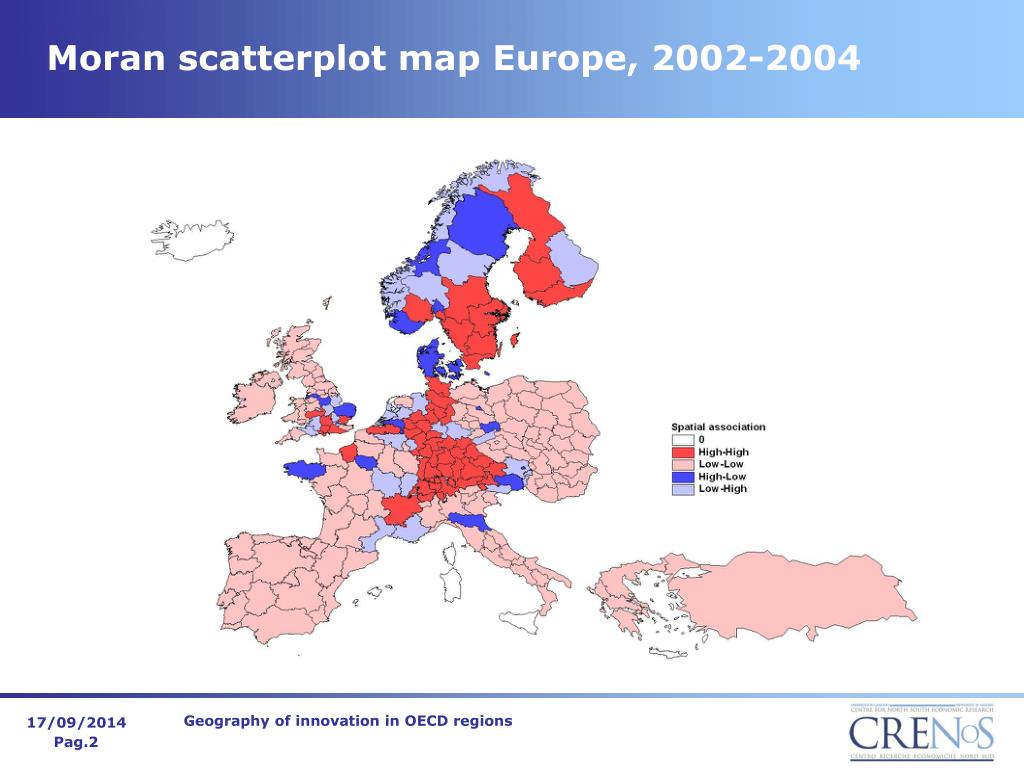

Moran scatterplot map europe 2002 2004

Moran scatterplot map Europe, 2002-2004

Geography of innovation in OECD regions

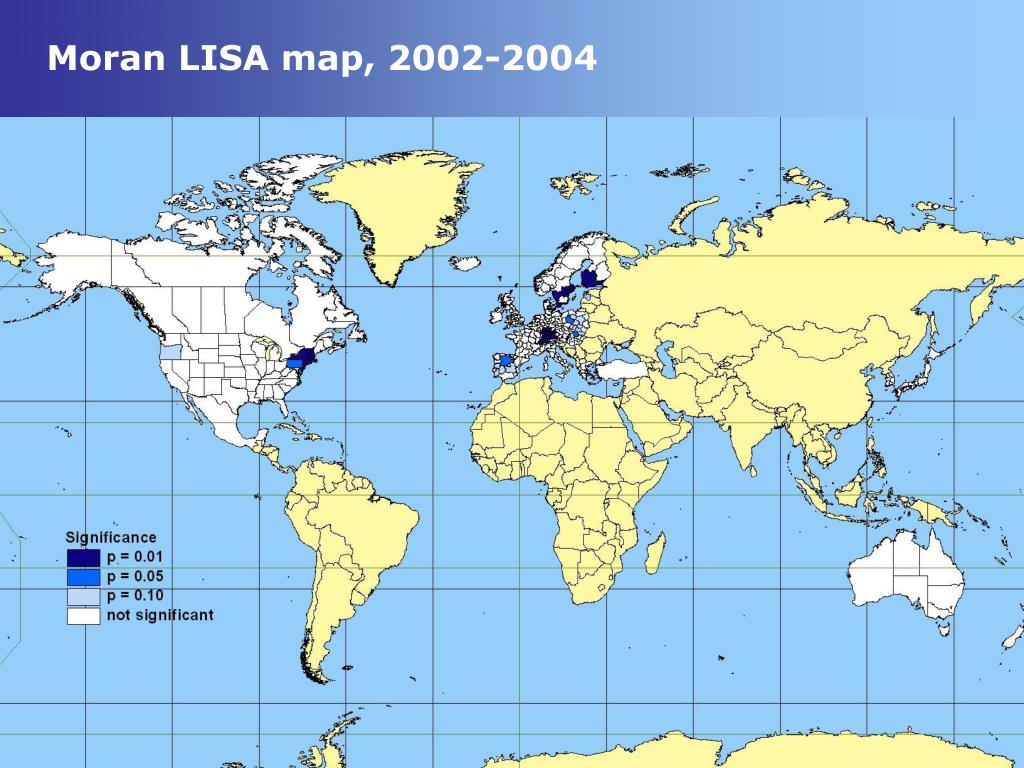

Moran lisa map 2002 2004

Moran LISA map, 2002-2004

Geography of innovation in OECD regions

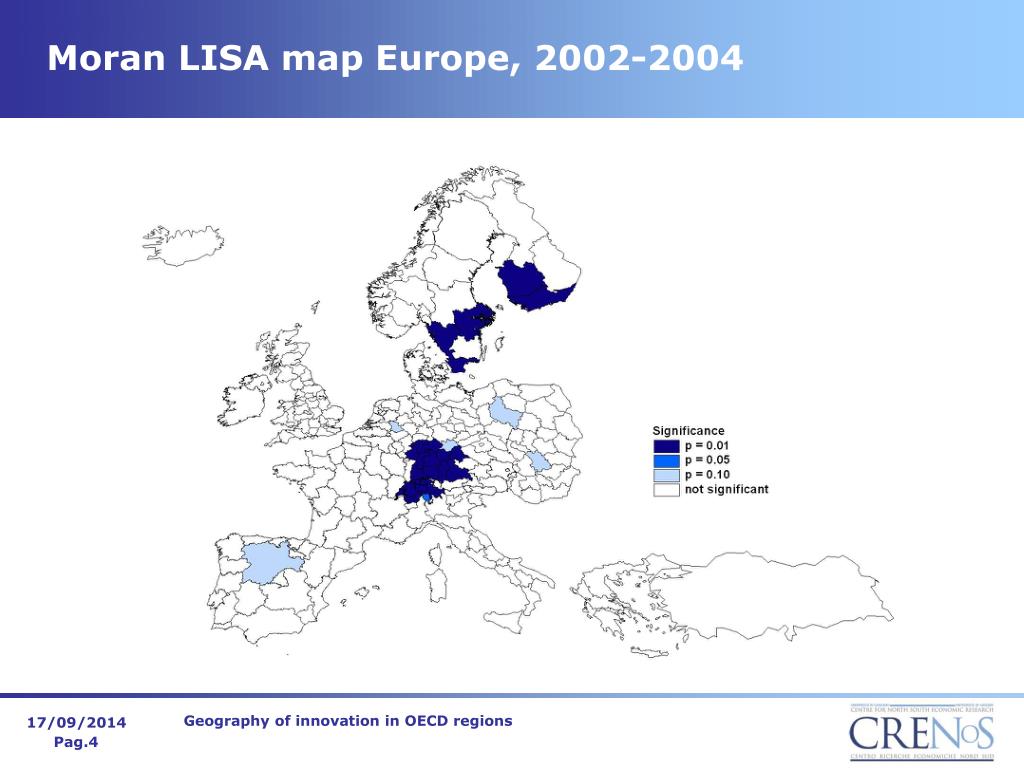

Moran lisa map europe 2002 2004

Moran LISA map Europe, 2002-2004

Geography of innovation in OECD regions


Convergence in innnovative efforts national level

Convergence in innnovative efforts?National level

Geography of innovation in OECD regions


Convergence in innnovative efforts regional level

Convergence in innnovative efforts?Regional level

Geography of innovation in OECD regions


Summary of main novelties

Summary of main novelties…

  • We focus on OECD regions.

  • We have a set of homogeneous indicators for all the countries.

  • We are going to estimate KPF at both the regional level (and later potentially at the industry level)

  • We are going to use specific econometric techniques to analyse the nature and the spatial scope of knowledge creation and diffusion.

Geography of innovation in OECD regions

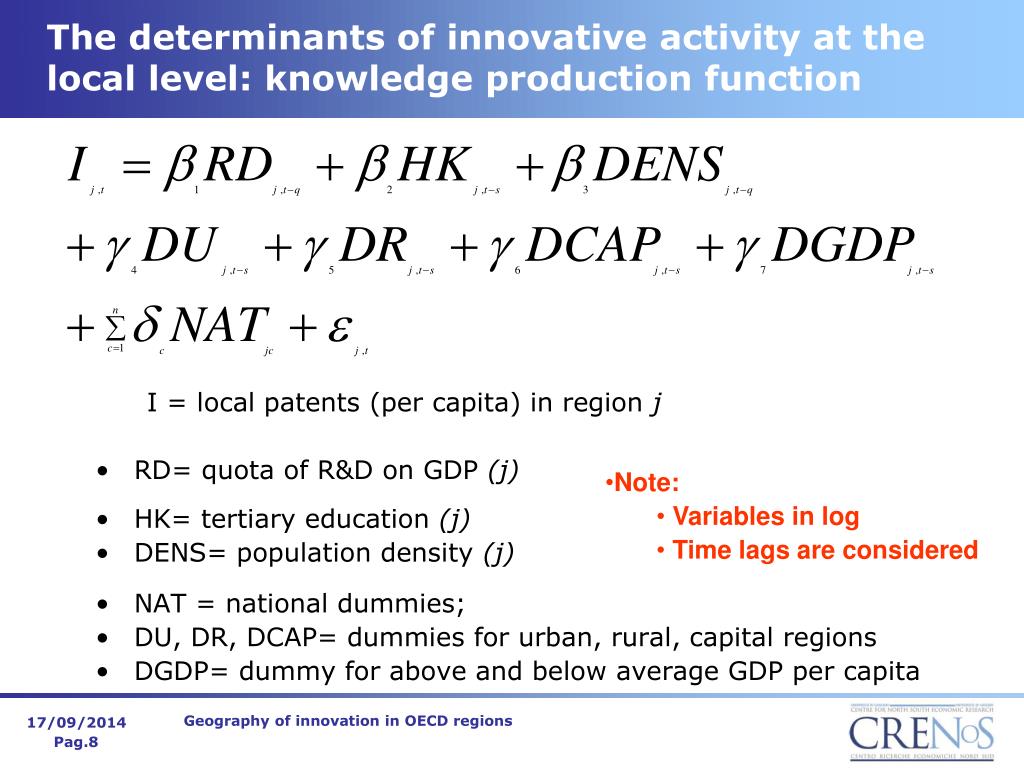

The determinants of innovative activity at the local level knowledge production function

The determinants of innovative activity at the local level: knowledge production function

I = local patents (per capita) in region j

  • RD= quota of R&D on GDP (j)

  • HK= tertiary education (j)

  • DENS= population density (j)

  • NAT = national dummies;

  • DU, DR, DCAP= dummies for urban, rural, capital regions

  • DGDP= dummy for above and below average GDP per capita

  • Note:

    • Variables in log

    • Time lags are considered

Geography of innovation in OECD regions


Estimation strategy

Estimation strategy

  • OLS to assess significance of coefficients and the presence of spatial dependence

  • Discriminate between spatial lag model or spatial error model and re-estimate with ML

Geography of innovation in OECD regions


Moran scatterplot map 2002 2004

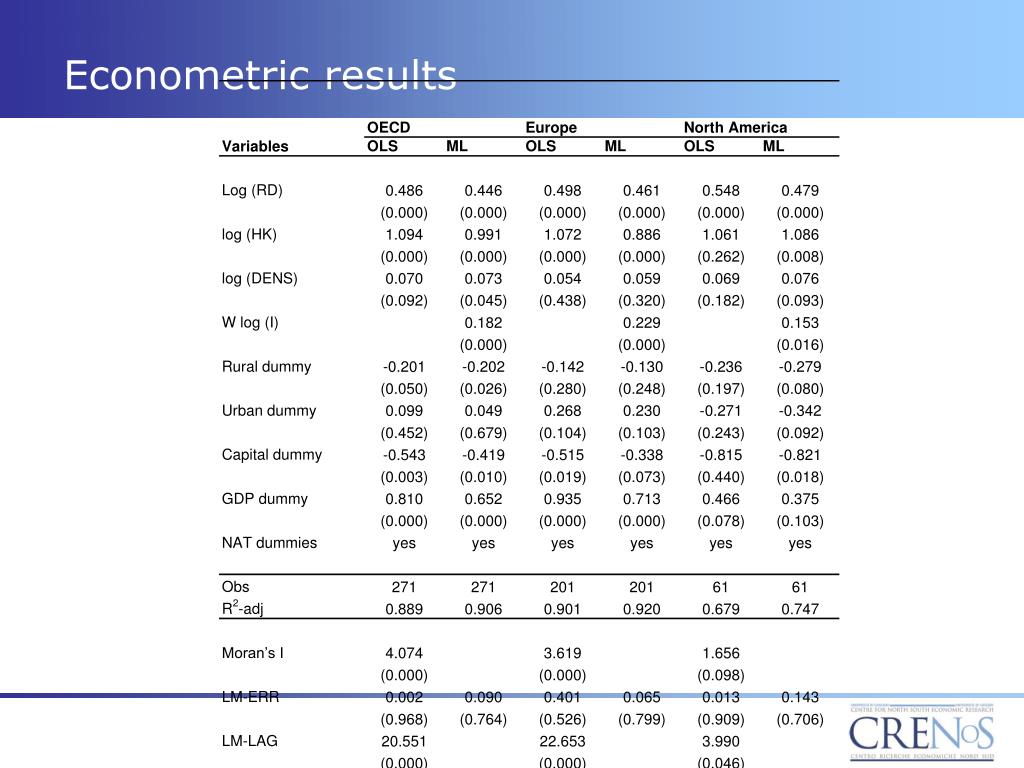

Econometric results


Moran scatterplot map 2002 2004

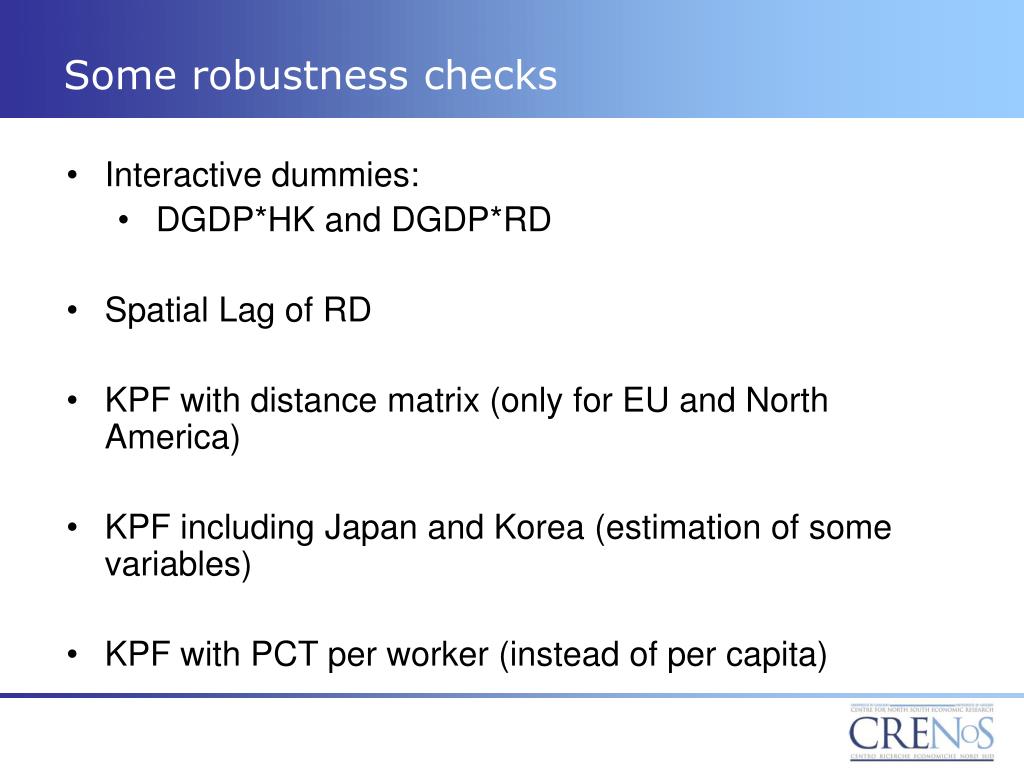

Some robustness checks

  • Interactive dummies:

    • DGDP*HK and DGDP*RD

  • Spatial Lag of RD

  • KPF with distance matrix (only for EU and North America)

  • KPF including Japan and Korea (estimation of some variables)

  • KPF with PCT per worker (instead of per capita)


Kpf estimation with interactive dummies

KPF estimation with interactive dummies


Kpf estimation with spatial lag of rd

KPF estimation with spatial lag of RD


Kpf estimation with distance matrix

KPF estimation with distance matrix

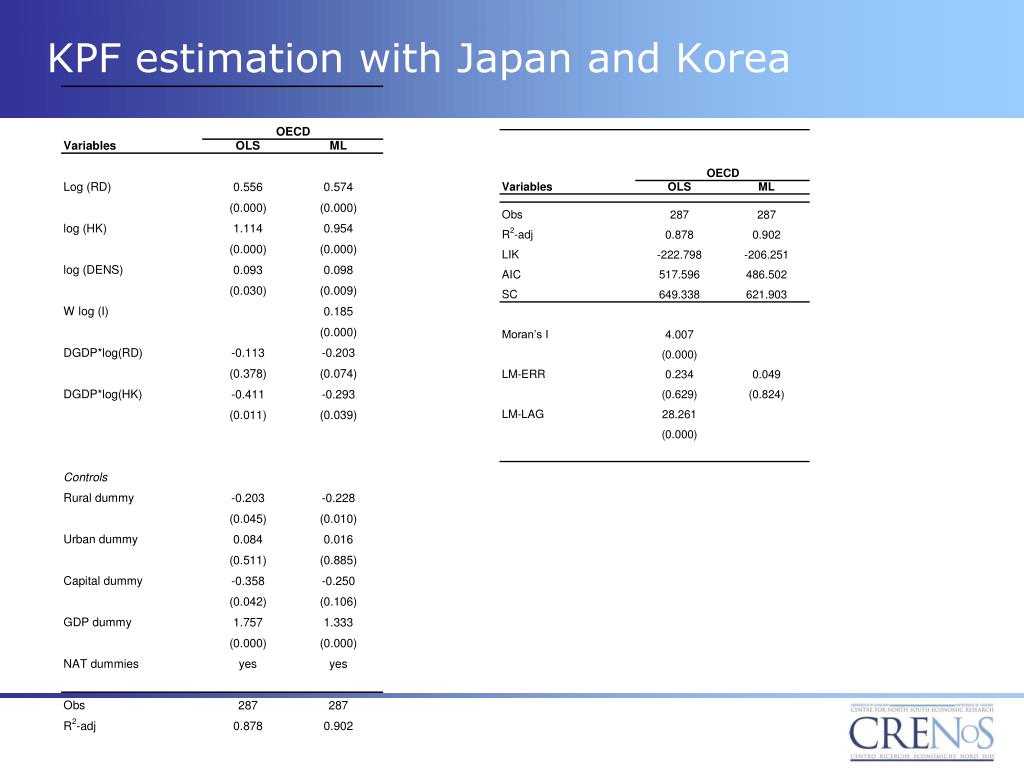

Kpf estimation with japan and korea

KPF estimation with Japan and Korea

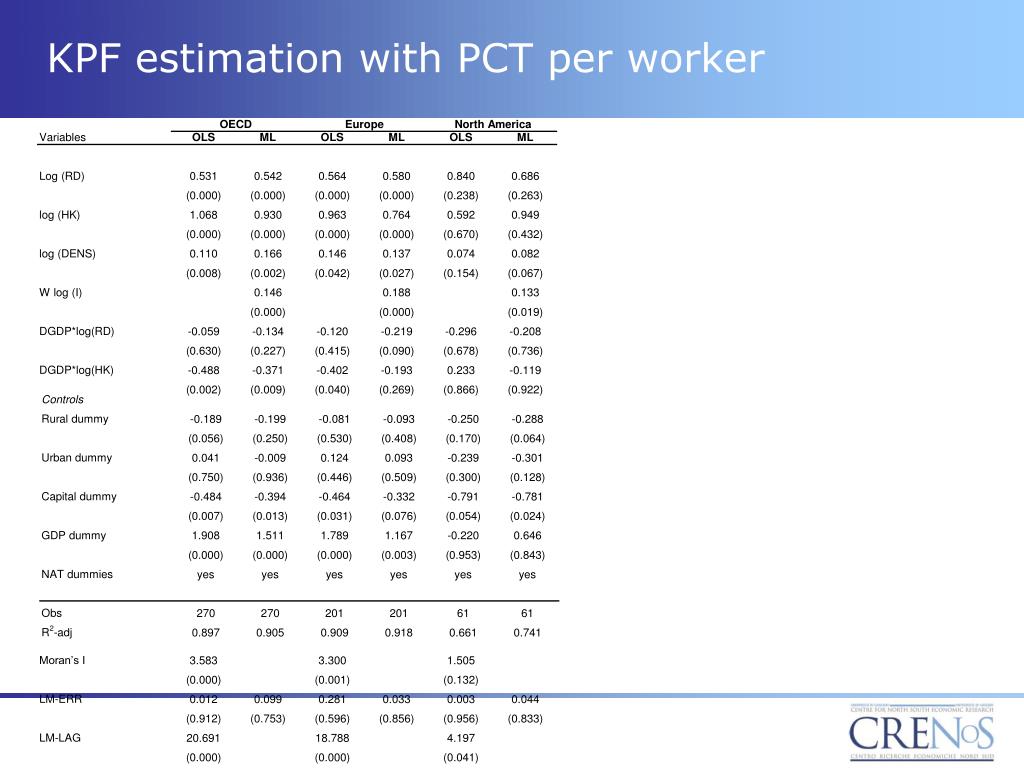

Kpf estimation with pct per worker

KPF estimation with PCT per worker

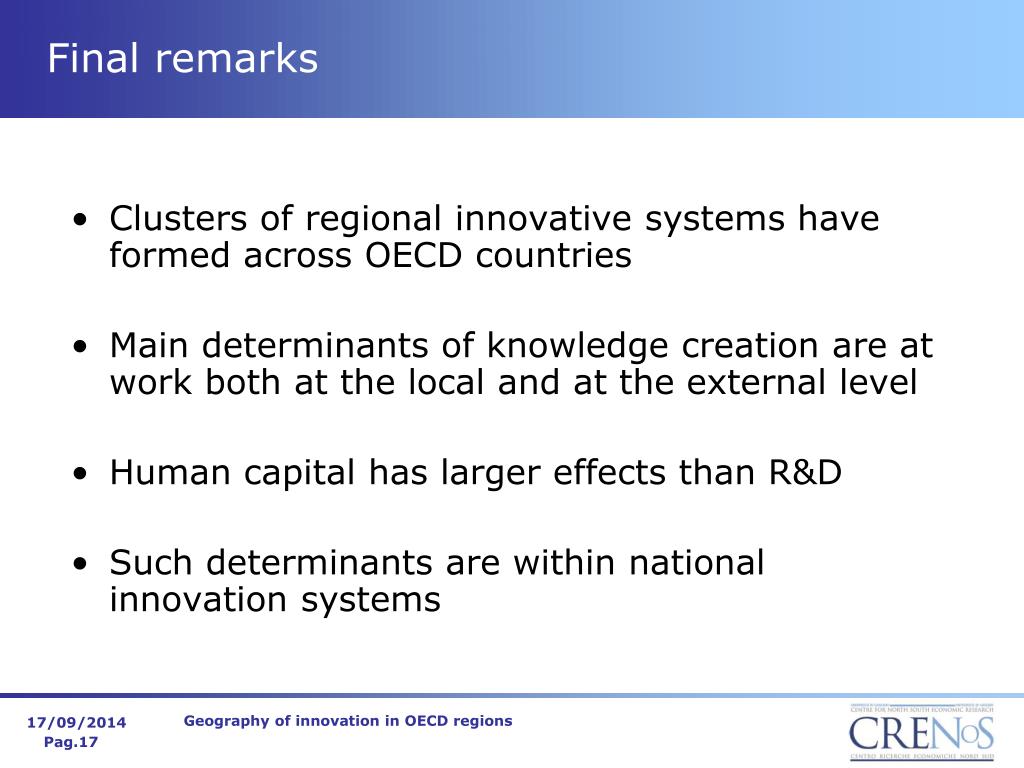

Final remarks

Final remarks

  • Clusters of regional innovative systems have formed across OECD countries

  • Main determinants of knowledge creation are at work both at the local and at the external level

  • Human capital has larger effects than R&D

  • Such determinants are within national innovation systems

Geography of innovation in OECD regions


Final remarks and questions

Final remarks and questions

  • Clusters of regional innovative systems have formed across OECD countries

  • Main determinants of knowledge creation are at work both at the local and at the external level

  • Are they different with respect to industrial specialisation?

  • Are they within national innovation systems?

  • Are they getting stronger or bigger?

Geography of innovation in OECD regions


The research agenda for what we have done so far

The research agenda forwhat we have done so far

  • There are still some missing values in the database (Korea and Switzerland, for example)

  • No detail about RD

    • Public vs private (possible for some countries)

  • Not all spatial externalities are appropriately measured

    • Citations can be used to measure spillovers both within and across regions

  • No measure of other local public knowledge

    • University and research centers?

Geography of innovation in OECD regions


Knowledge flows

Knowledge flows

  • Knowledge flows occur when an idea generated by one particular institution is learned by another institution.

  • The learning process creates the availability of the new idea that becomes part of what is called ‘accessible knowledge’

  • Knowledge may flow through at least four different channels: traded goods, labor mobility, transaction-based flows and knowledge spillovers

  • Channels may be internal or external with respect to firms

Intangible assets & regional economic growth


Moran scatterplot map 2002 2004

Research line

  • To provide a review of the main contributions in the literature

  • To contribute to the analysis of knowledge flows (proxied by citations) across European regions and to investigate on their main determinants

  • To examine whether geographical distance and spatial contiguity influence knowledge links

  • To investigate on the evolution of such flows along time

  • To investigate on specific sector features of such flows

  • To investigate on cross-border flows

Intangible assets & regional economic growth


Knowledge flows1

Knowledge flows

  • Knowledge flows occur when an idea generated by one particular institution is learned by another institution.

  • The learning process creates the availability of the new idea that becomes part of what is called ‘accessible knowledge’

  • Knowledge may flow through at least four different channels: traded goods, labor mobility, transaction-based flows and knowledge spillovers (depend on organisational, social, institutional and geographical proximity)

  • Channels may be intra- or inter-firms

Intangible assets & regional economic growth


Distribution of citations for country of origin and destination 1980 2000

Distribution of citations for country of origin and destination, 1980-2000

Intangible assets & regional economic growth


Distribution of citations for country of origin and destination 1980 20001

Distribution of citations for country of origin and destination, 1980-2000

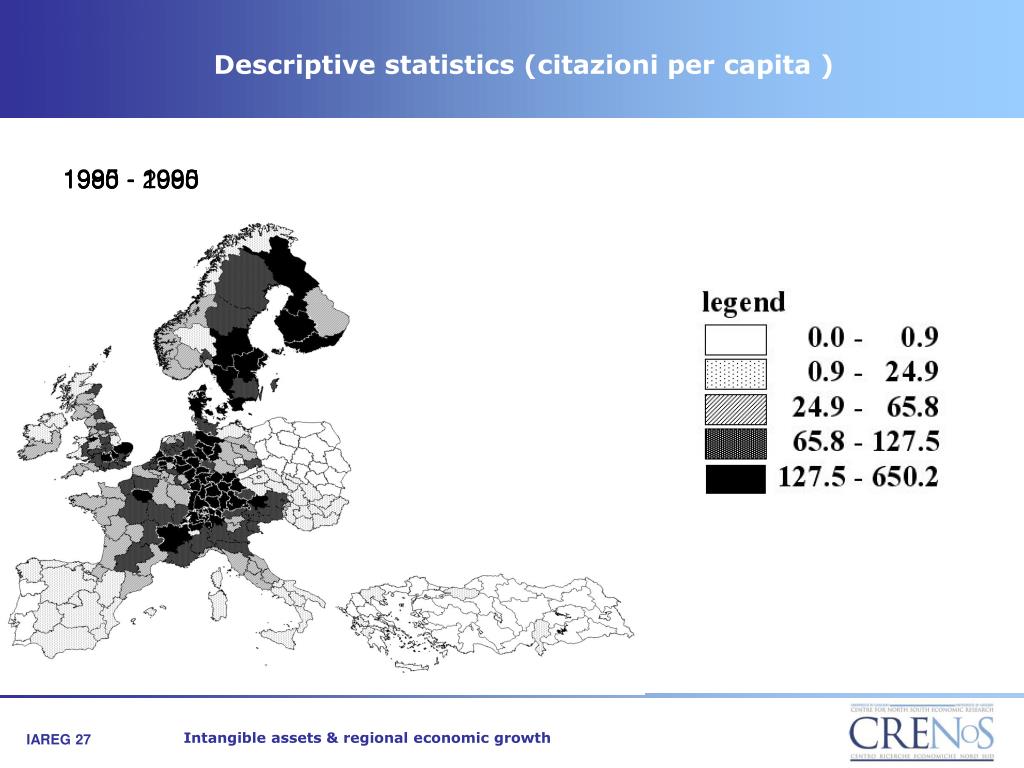

Descriptive statistics citazioni per capita

Descriptive statistics (citazioni per capita )

1985 - 1990

1980 - 1985

1990 - 1995

1995 - 2000

Intangible assets & regional economic growth


Distribution of citations for destination on total 1980 2000

Distribution of citations for destination,% on total, 1980-2000

Intangible assets & regional economic growth


Econometric analysis

Econometricanalysis

  • An improvement of previous analysis with an original extended database

  • The analysis is performed with an original econometric methodology applied to spatial data in a gravity model developed by Le Sage and Page (2008).

Intangible assets & regional economic growth

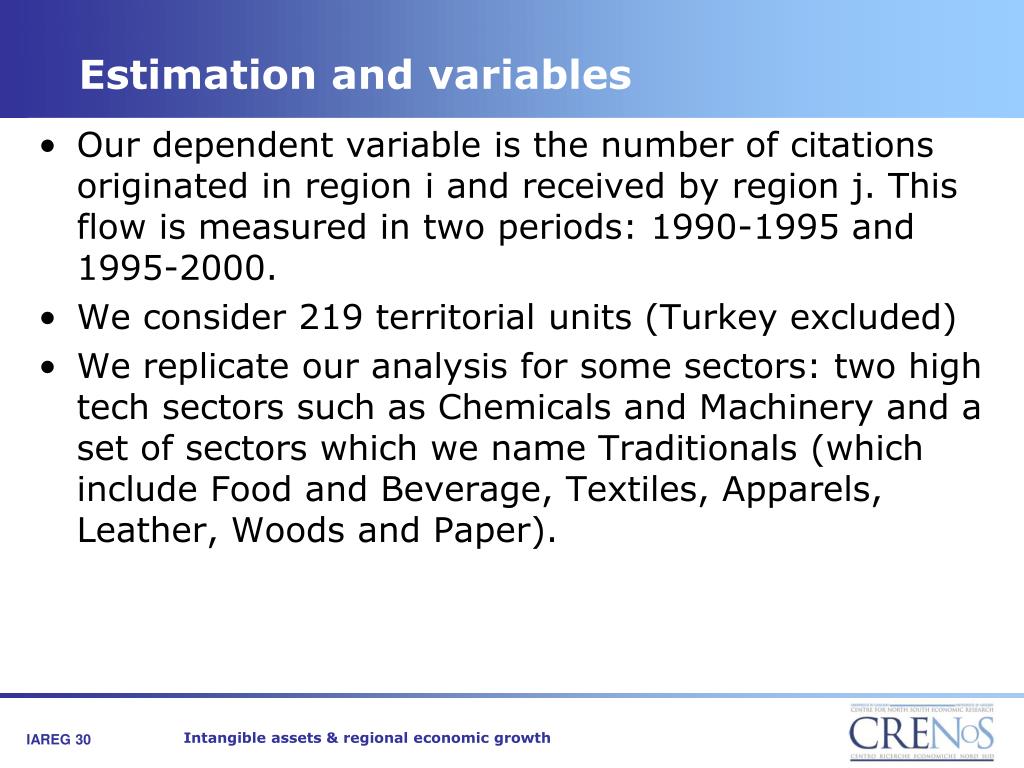

Estimation and variables

Estimation and variables

  • Our dependent variable is the number of citations originated in region i and received by region j. This flow is measured in two periods: 1990-1995 and 1995-2000.

  • We consider 219 territorial units (Turkey excluded)

  • We replicate our analysis for some sectors: two high tech sectors such as Chemicals and Machinery and a set of sectors which we name Traditionals (which include Food and Beverage, Textiles, Apparels, Leather, Woods and Paper).

Intangible assets & regional economic growth


Variables

Variables

  • As for the explanatory variables

    • GDP per capita

    • Quota of R&D expenditure

    • Distance in kilometers.

  • As a robustness exercise we test our results

    • by substituting the R&D variable with the stock of patents.

    • to see if there are institutional, structural and cultural determinants affecting knowledge flows across regions national dummies are inserted

    • Results are also tested with respect to the presence of zero’s

Intangible assets & regional economic growth

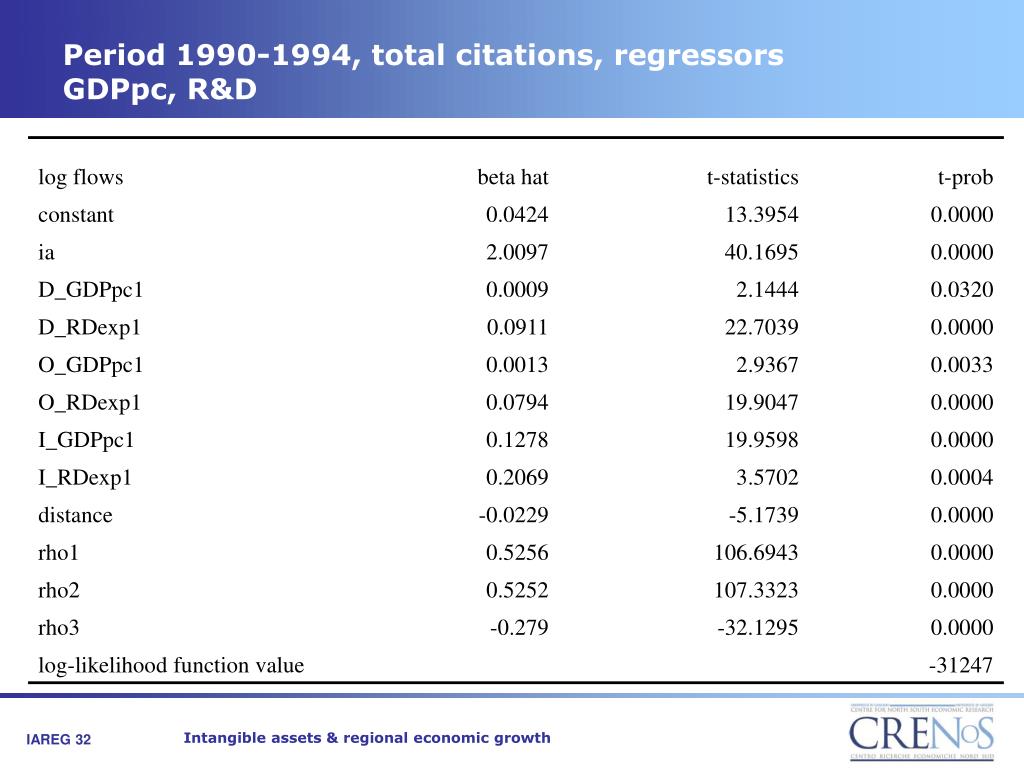

Period 1990 1994 total citations regressors gdppc r d

Period 1990-1994, total citations, regressors GDPpc, R&D

Intangible assets & regional economic growth

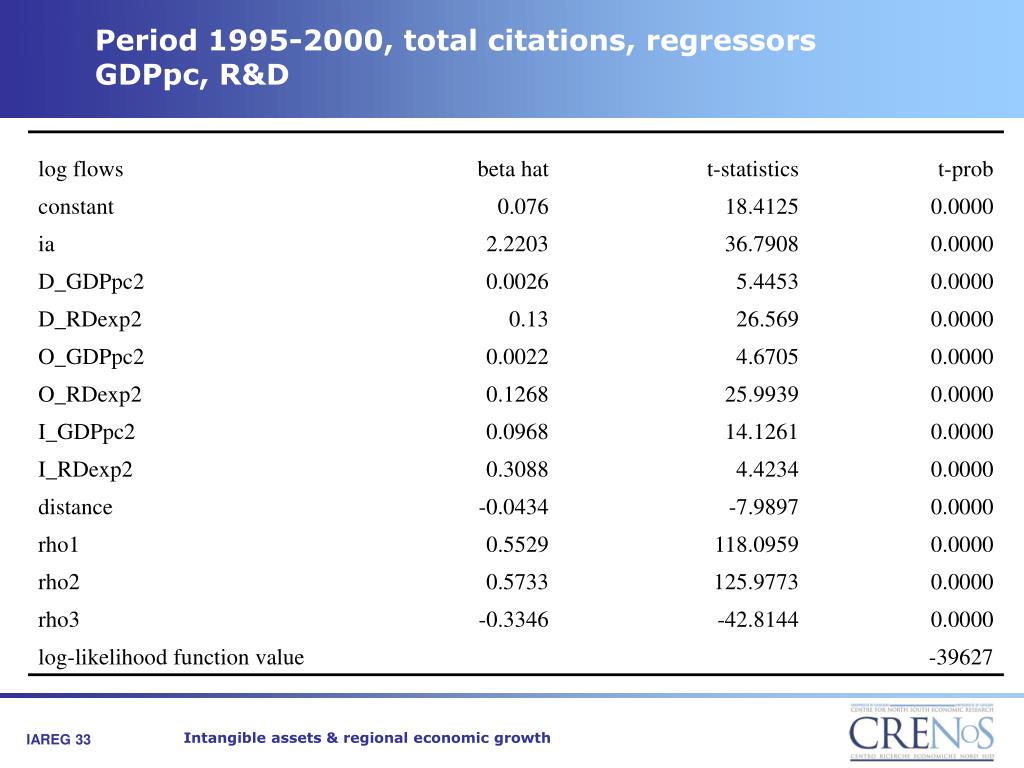

Period 1995 2000 total citations regressors gdppc r d

Period 1995-2000, total citations, regressors GDPpc, R&D

Intangible assets & regional economic growth


Period 1995 2000 sector chemicals

Period 1995-2000, sector Chemicals

Intangible assets & regional economic growth

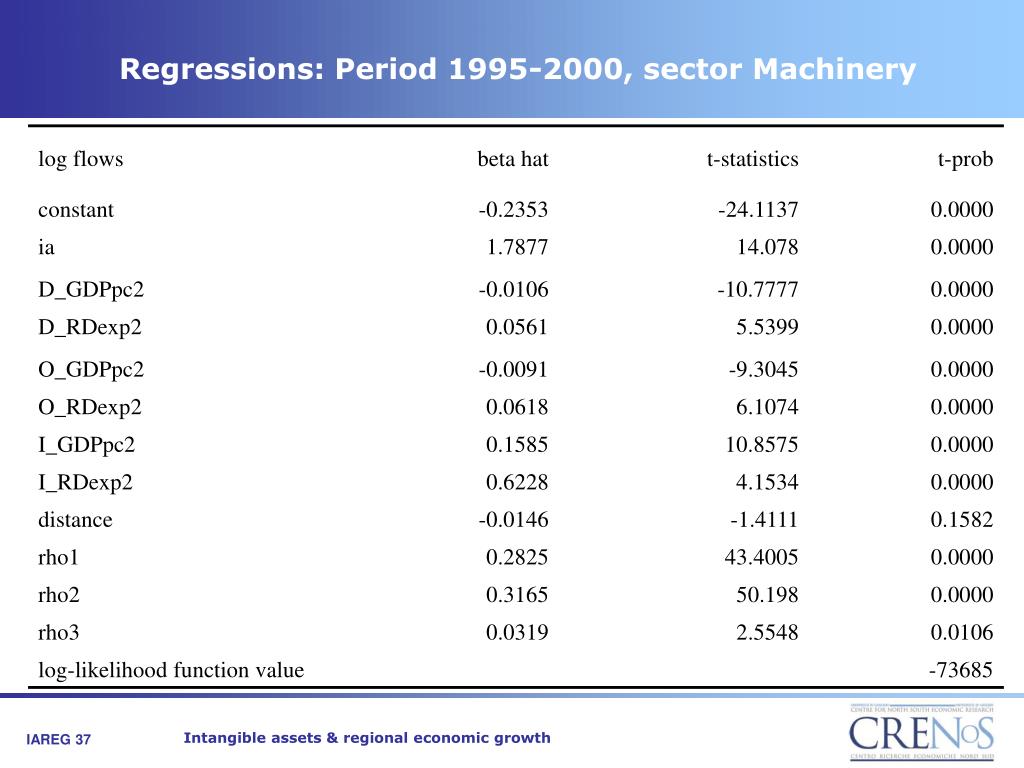

Regressions period 1995 2000 sector machinery

Regressions: Period 1995-2000, sector Machinery

Intangible assets & regional economic growth


Period 1995 2000 sector traditional

Period 1995-2000, sector Traditional

Intangible assets & regional economic growth

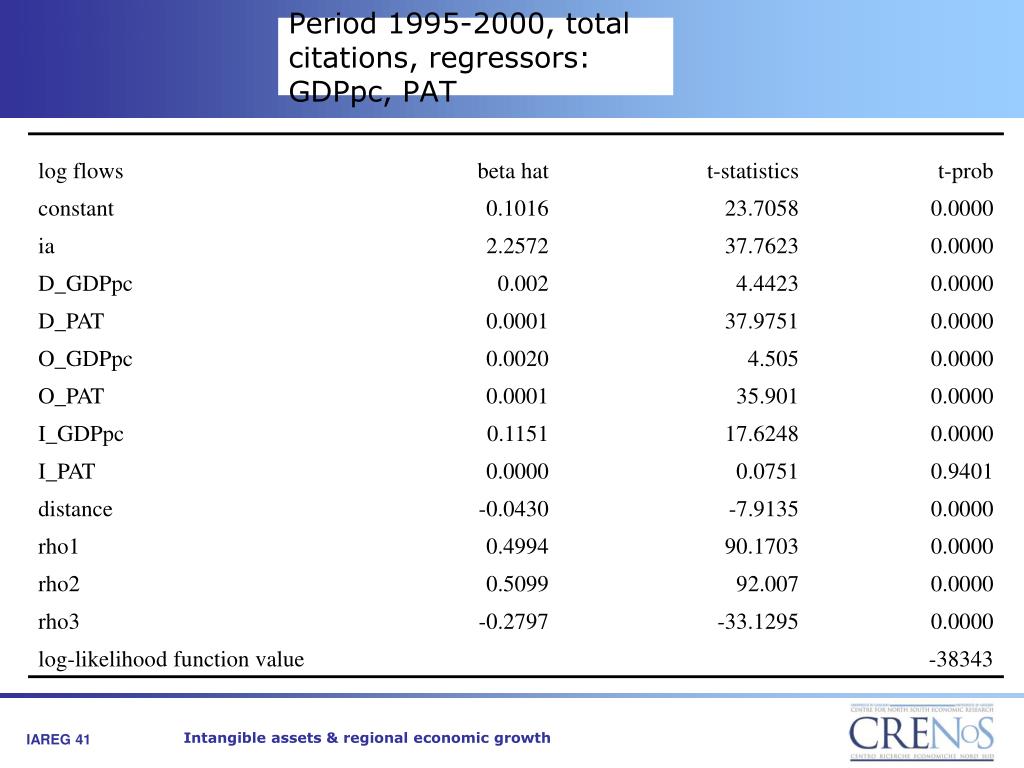

Period 1995 2000 total citations regressors gdppc pat

Period 1995-2000, total citations, regressors: GDPpc, PAT

Intangible assets & regional economic growth


Regressions period 1995 2000 total citations regressors gdppc r d dummy nat

Regressions: Period 1995-2000, total citations, regressors GDPpc, R&D, dummy NAT

Intangible assets & regional economic growth


Regressions period 1995 2000 total citations regressors gdppc pat dummy nat

Regressions: Period 1995-2000, total citations, regressors GDPpc, PAT, dummy NAT

Intangible assets & regional economic growth

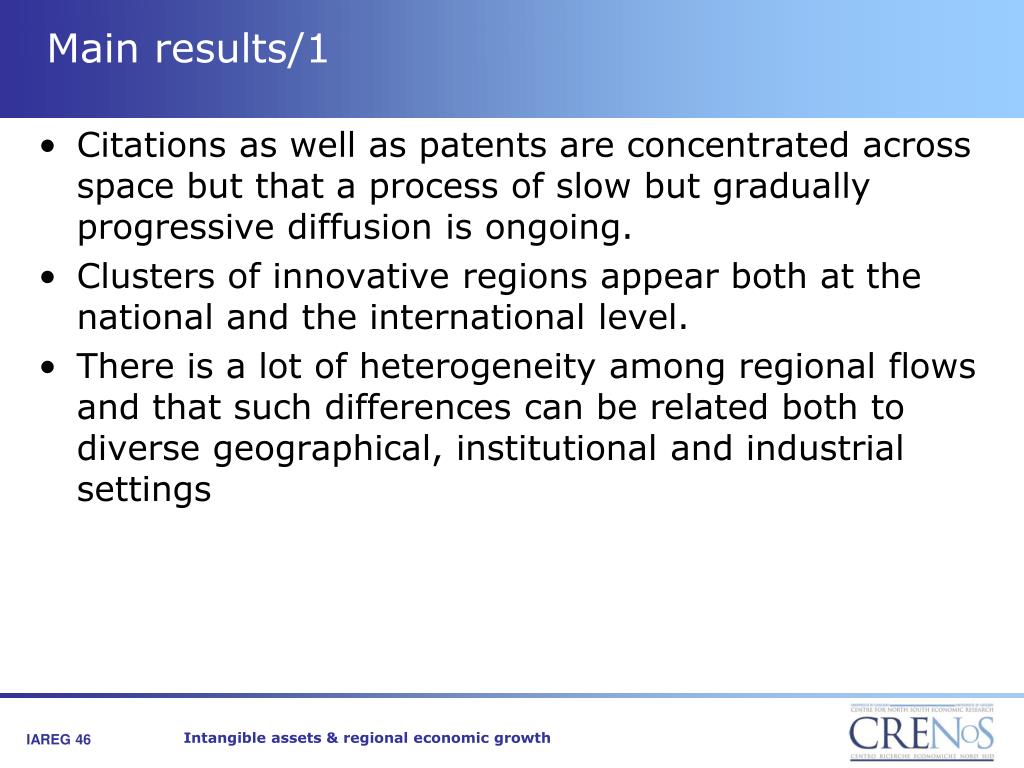

Main results 1

Main results/1

  • Citations as well as patents are concentrated across space but that a process of slow but gradually progressive diffusion is ongoing.

  • Clusters of innovative regions appear both at the national and the international level.

  • There is a lot of heterogeneity among regional flows and that such differences can be related both to diverse geographical, institutional and industrial settings

Intangible assets & regional economic growth


Moran scatterplot map 2002 2004

Main results/2

  • The econometric analysis proves that knowledge flows depend on the weight of origin and destinations regions measured by GDP per capita and R&D investments.

  • Moreover, knowledge flows depend on geographic distance and on the weights of neighbouring regions both of the origin and the destination regions.

  • Results are maintained when some robustness exercise is performed.

  • Finally, sector analysis shows that some results are not robust with respect to the specific feature of the economic structure.

Intangible assets & regional economic growth


For your interests

For your interests

  • Oecd patent database includes also data on citations regionalised for TL2 regions

  • If you are interested in this topic and getting hold on the data you can contact me:

    [email protected]
