Windows Server 2012 IP Address Management

Clyde Johnson

President

Boston Area Windows Server User Group


Ipam internet protocol management

IPAM (Internet Protocol Management)

  • Planning, tracking and managing

  • Increasingly important as new IPv6 networks are deployed

  • Wikipedia has over 26 vendors in this space.

  • New feature of Windows Server 2012


Examples of ip address management problems

Examples of IP Address Management Problems

  • I need to change a DHCP option like web proxy across dozens of scopes residing on multiple servers…

  • I am adding a new lab and want to assign subnets from my address plan…

  • I need to track user or machine activity in my network for troubleshooting or forensics…

  • I want to track my org’s address space and know addresses in use and available across different locations…

  • I have to find a free IP address for a new device and register it in DNS …

  • A DHCP Scope is full and clients are not getting any addresses – I need to expand the scope or create a firefighting scope…


Ipam options

IPAM Options

.

Spreadsheets

.

In-house tools

Commercial appliances

.

.

.

  • No CapEx investment

  • Simple to use for small networks….at first

  • Automation

  • High degree of customization

  • Automation

  • Rich feature set

  • Integration with own and MS DHCP/DNS

.

.

  • Labor intensive estimated (~$10 per address per annum)

  • Only performs address mgmt.

  • Inflexible and does not scale

.

Cons Pros

  • Maintenance cost

  • Relies on in-house support model

  • Expensive to add new capabilities

  • High acquisition and support costs


Windows server 2012 ipam overview

Windows Server 2012 IPAM Overview

Organize, assign, monitor and manage static and dynamic IPv4/v6 addresses

Address space mgmt

(ASM)

Network discovery

.

Automatic discovery of DC, DHCP and DNS servers, and dynamic IP addresses in use

In-box solution that complements – and seamlessly integrated with – MS DHCP and DNS offerings

WS 2012

IPAM

Multi-server mgmt

(MSM)

.

Centralized configuration and update of MS DHCP/DNS servers

Visibility & audit

Track and audit changes and provide real-time view of status

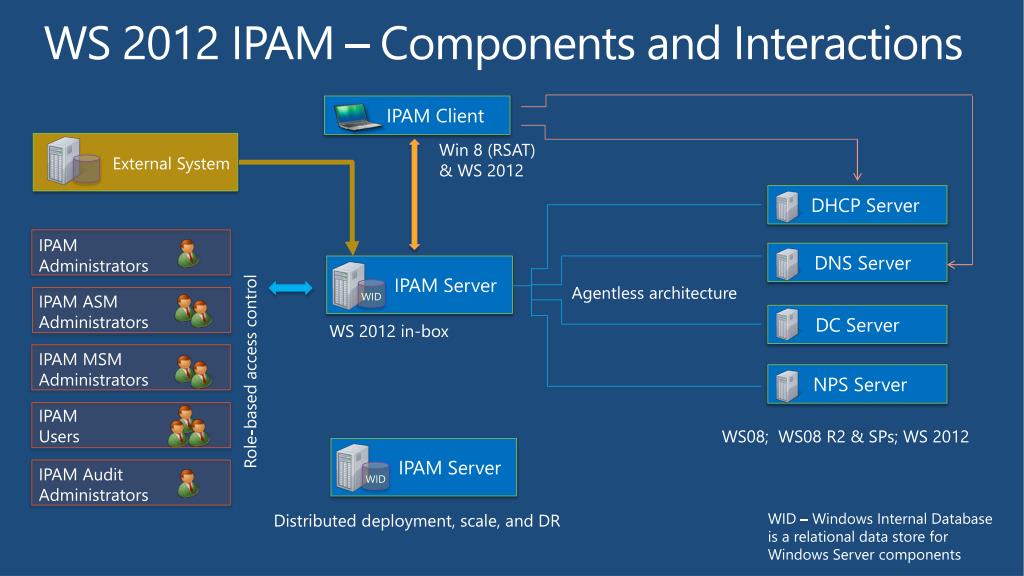

Ws 2012 ipam components and interactions

WS 2012 IPAM – Components and Interactions

IPAM Client

External System

Win 8 (RSAT) & WS 2012

DHCP Server

IPAM

Administrators

DNS Server

IPAM Server

Agentless architecture

WID

IPAM ASM

Administrators

DC Server

WS 2012 in-box

IPAM MSM

Administrators

Role-based access control

NPS Server

IPAM

Users

WS08; WS08 R2 & SPs; WS 2012

IPAM Server

IPAM Audit

Administrators

WID

WID – Windows Internal Database is a relational data store for Windows Server components

Distributed deployment, scale, and DR

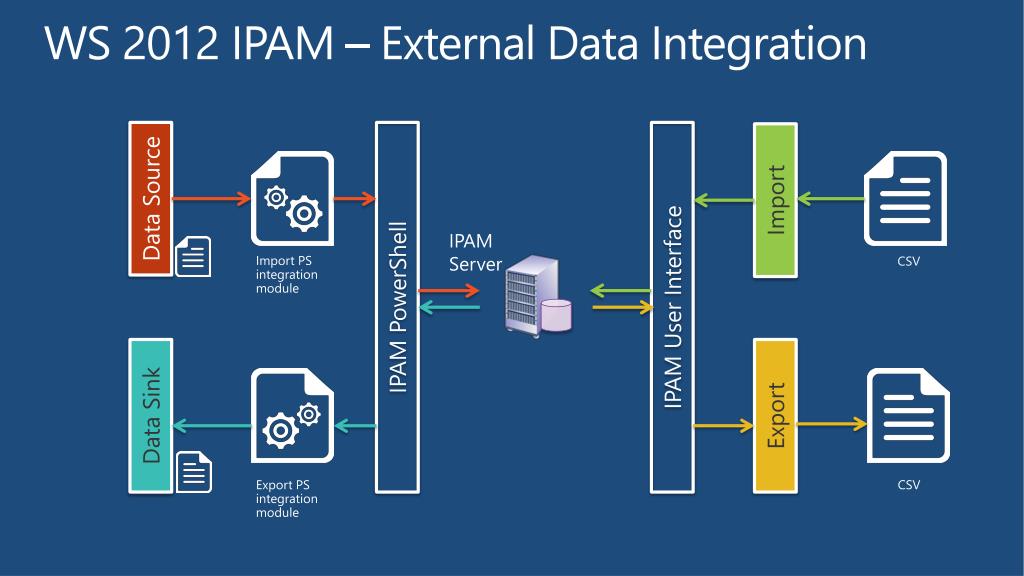

Ws 2012 ipam external data integration

WS 2012 IPAM – External Data Integration

IPAM Server

Data Source

IPAM PowerShell

IPAM User Interface

Import

Import PS integration module

CSV

Export

Data Sink

CSV

Export PS integration module


Ipam installation

IPAM Installation

  • Installed as a feature of Windows 2012

  • Cannot provision on a domain controller


Ipam collections

IPAM Collections

  • IP addresses, client identifiers, and host names are collected from lease logs on managed DHCP serversUser names and IP addresses are collected from logon events on managed domain controllers.

  • User names and client identifiers are collected from logon events on managed network policy servers.


Ipam queries

IPAM Queries

  • Query1: Find all DHCP lease events that match a specified IP address, client ID, or host name.Query2: Correlate network authentication events with the start and end times for events in query 1.

  • Query3: Display all logon events that match a specified user name with correlated DHCP lease events.
