700 MHz Transition

1. 700 MHz Transition Presented by: Bob StephensPublic Safety Working GroupFebruary 15, 2002

2. AGENDA • Introduction by Aldona Valicenti, Ky Chief Information Officer • Overview of 700 MHz Initiative • Break • Organizational Business • Nominations for Chair and Vice Chair • Elections • Appointment of Secretary and Treasurer • Standing Committees: • Implementation • Technical • Interoperability • Appointment of Standing Committee Chairs • Discussion and Adoption of Bylaws • Establish Future Meetings and Locations • Adjourn KY 700 MHz RPC Region 17

3. REALLOCATION OF TV CHANNELS 60-69(FCC Docket #96-86) • TV/DTV Channels 60-69 = 746-806 MHz • FCC’s Goals • Alleviate Current LMR Congestion in Other Bands • Provide Public Safety access to New Technologies • Promote Interoperability • Satisfy PSWAC Requirements • 24 MHz of 60 MHz Allocated to Public Safety • Eligibility • Only for Protection of Life, Health or Property • Non-Governmental Organizations can be eligible but need Letter of Support • Frequency Coordination • Open to all 4 current PS Frequency Coordinators KY 700 MHz RPC Region 17

4. Public Safety Frequency Coordinators • Association of Public-Safety Communications Officials, Inc. (APCO) • International Municipal Signal Association (IMSA) • Forestry Conservation Communications Association (FCCA) • American Association of State Highway and Transportation Officials (AASHTO) KY 700 MHz RPC Region 17

5. 746 752 758 764 770 776 782 788 794 800 806 Guard Band Guard Band Guard Band Guard Band 10 MHz 10 MHz 5 MHz 5 MHz 12 MHz 12 MHz 1MHz 2MHz 2MHz 1MHz 64 66 67 68 61 62 60 63 65 69 Base Transmit Mobile Transmit 24 MHz Public Safety 6 MHz Guard Band Manager 30 MHz Commercial Carriers TV Ch. 59 PMRS 746-806 MHz Band KY 700 MHz RPC Region 17

6. 24 MHz Allocated to Public Safety(per Docket 96-86, 3rd MO&O & 3rd R&O) • General Use • Allocated through Regional Planning Committees • 7.7 MHz narrowband (616 @ 6.25 kHz*) • 4.8 MHz wideband (48 @ 50 kHz**) • Interoperability • NCC to develop a National Plan & recommend I/O Standards • 0.8 MHz narrowband I/O (32 @ 12.5 kHz) + proposed 0.8 MHz I/O Guard (either side of I/O channel) (64 @ 6.25 kHz) • 1.8 MHz wideband I/O (18 @ 50 kHz**) • Other • 2.4 MHz narrowband as ‘block grant’ to each State (192 @ 6.25 kHz*) • 0.3 MHz low power (analog) on-scene/itinerant (24 @ 6.25 kHz*) • 5.4 MHz wideband Reserve (54 @ 50 kHz**) * 6.25 kHz narrowband channels can be aggregated to 25 kHz bandwidth ** 50 kHz wideband channels can be aggregated to 150 kHz bandwidth KY 700 MHz RPC Region 17

7. National Coordination Committee • NCC submitted 1st Report to the FCC on 2/25/00 • NCC Recommended: • Project 25 Phase I as the digital I/O standard • Trunking permissible but not mandatory on the Interoperability Channels • Common Nomenclature for the Interoperability Channels • 4th R&O Adopted 1/11/01 • Project 25 Phase I adopted as the digital I/O standard • 2nd NCC Report 02/2001 • working on the National Plan & Regional Planning Guidelines • receiver standards • wideband data standards KY 700 MHz RPC Region 17

8. 700 MHz RPC Process • FCC Requirements for Regional Planning • Governor must appoint convener to hold 1st 700 mtg. • Most elements the same as the 800 Plans • Encouragement of all eligible entities to participate • Adjacent Region’s written approval • Other Considerations: • Frequency Coordination by all PS Coordinators • Funding (advertising, copying, plan preparation) • Broadcast TV/DTV Incumbency • Encourage Participation by all Eligible Entities • 60 day notice in PS publications & on PS web sites • Hold meetings in different parts of the region • Set up e-mail list servers for distribution of information KY 700 MHz RPC Region 17

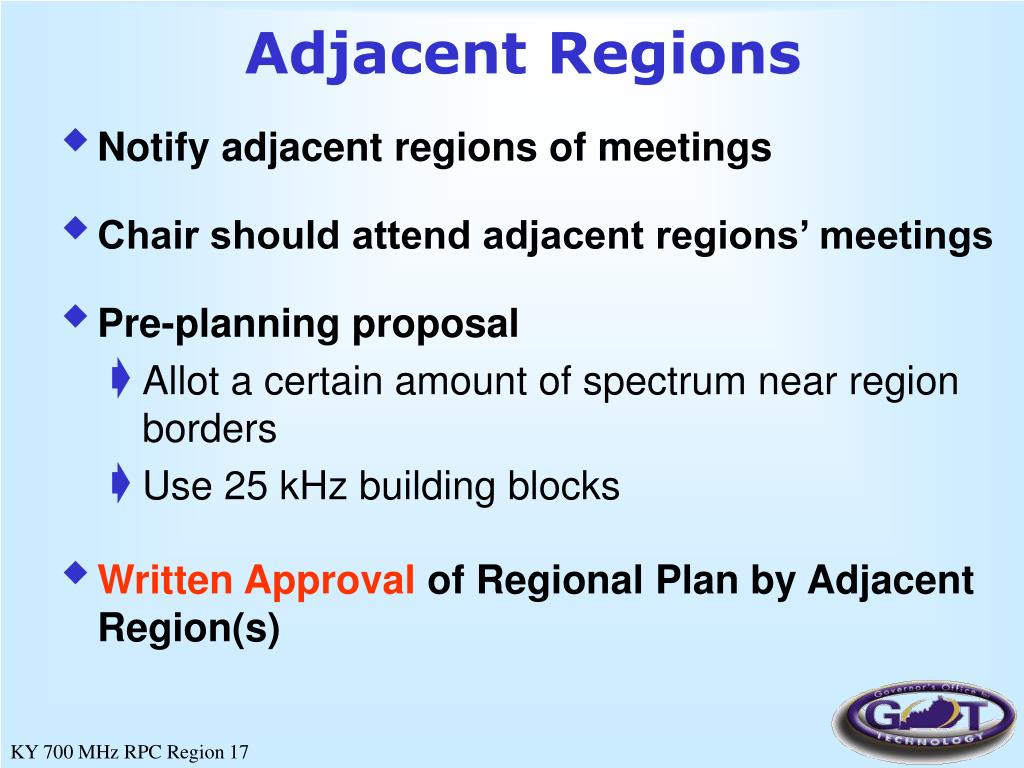

9. Adjacent Regions • Notify adjacent regions of meetings • Chair should attend adjacent regions’ meetings • Pre-planning proposal • Allot a certain amount of spectrum near region borders • Use 25 kHz building blocks • Written Approvalof Regional Plan by Adjacent Region(s) KY 700 MHz RPC Region 17

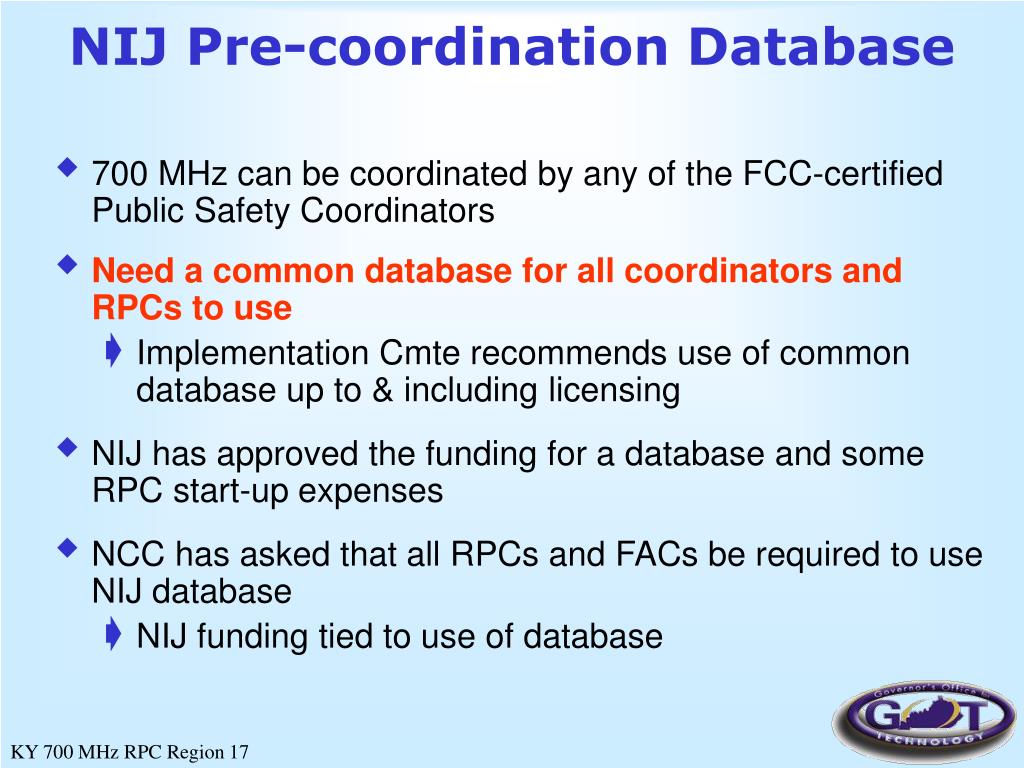

10. NIJ Pre-coordination Database • 700 MHz can be coordinated by any of the FCC-certified Public Safety Coordinators • Need a common database for all coordinators and RPCs to use • Implementation Cmte recommends use of common database up to & including licensing • NIJ has approved the funding for a database and some RPC start-up expenses • NCC has asked that all RPCs and FACs be required to use NIJ database • NIJ funding tied to use of database KY 700 MHz RPC Region 17

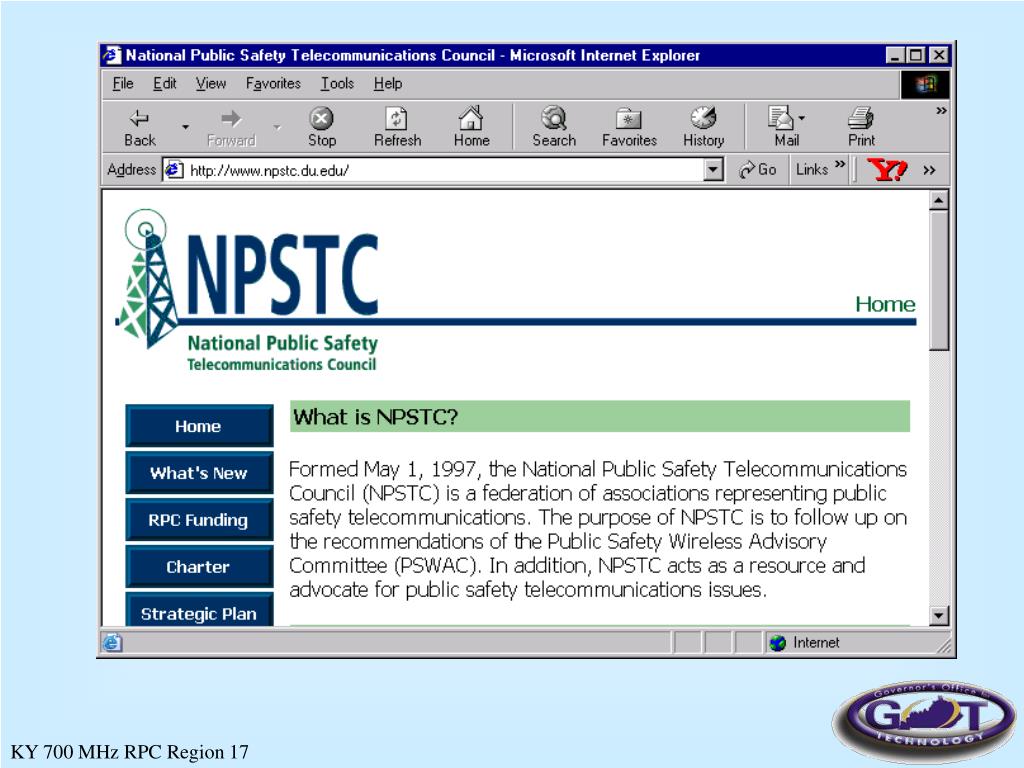

11. KY 700 MHz RPC Region 17

12. KY 700 MHz RPC Region 17

13. TV Incumbency • Full Access: Can TV be moved out faster? • On-going FCC policy discussions • Kennard speech (eliminate 85%, mandatory DTV receivers, penalties) • Canadian border discussions • Will commercial carriers in 30 MHz segments help buy/push out incumbent TV broadcasters? • Does not affect adjacent channel 59 blockage • Can public safety community exert additional pressure? • Could explore potential benefits of non-standard base/mobile of PS spectrum pairing during interim • additional subscriber cost issues • creates transition issues KY 700 MHz RPC Region 17

14. TV Incumbency Rules • Protect incumbent analog and new digital TV receivers in the 746-806 MHz band until broadcast transition ends • Deadline is December 31, 2006 to end analog broadcasts • By market exceptions may be granted by FCC, such as: • Less than 85% of households are served by digital TV services (over-the-air, cable, satellite, etc.) • At least 1of 4 national TV network affiliates are not broadcasting digital • Licenses within 120 km of Canada and Mexico are subject to future agreements with those countries • Canada has allotted DTV to ALL full service, low power, and authorized (but not on-the-air) analog TV stations • many Canadian allotments in 60-69 MHz range • very few analog or digital TV stations in Mexico in 60-69 MHz range KY 700 MHz RPC Region 17

15. Public Safety Channels 63/68 KY 700 MHz RPC Region 17

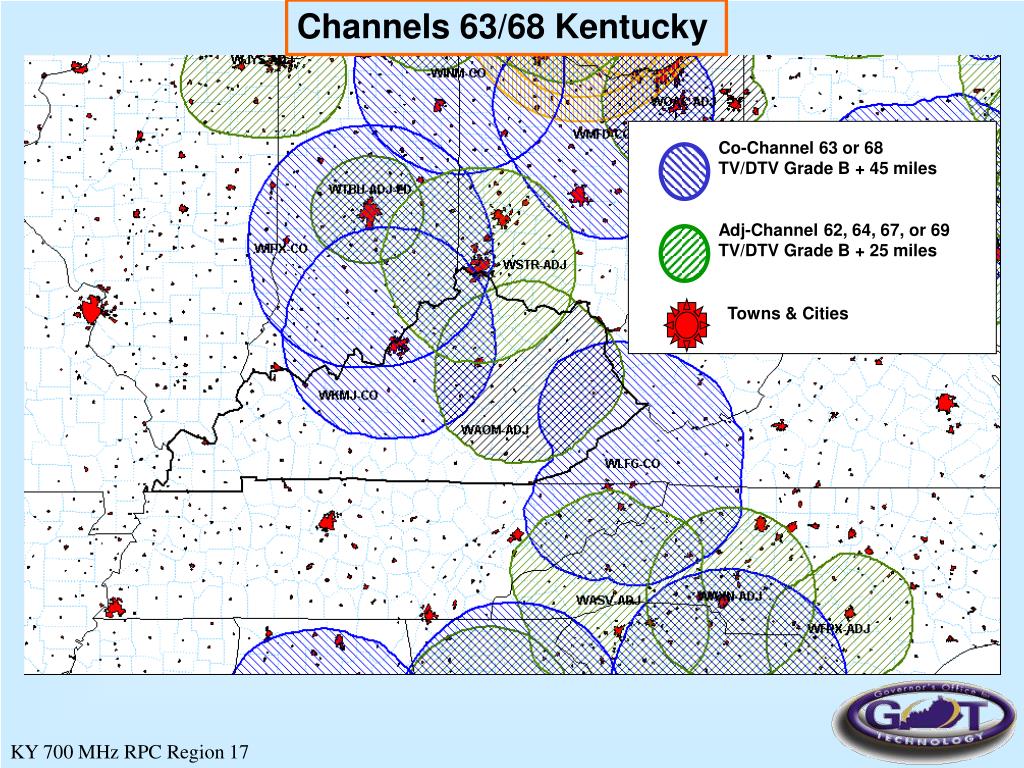

16. Channels 63/68 Kentucky Co-Channel 63 or 68 TV/DTV Grade B + 45 miles Adj-Channel 62, 64, 67, or 69 TV/DTV Grade B + 25 miles Towns & Cities KY 700 MHz RPC Region 17

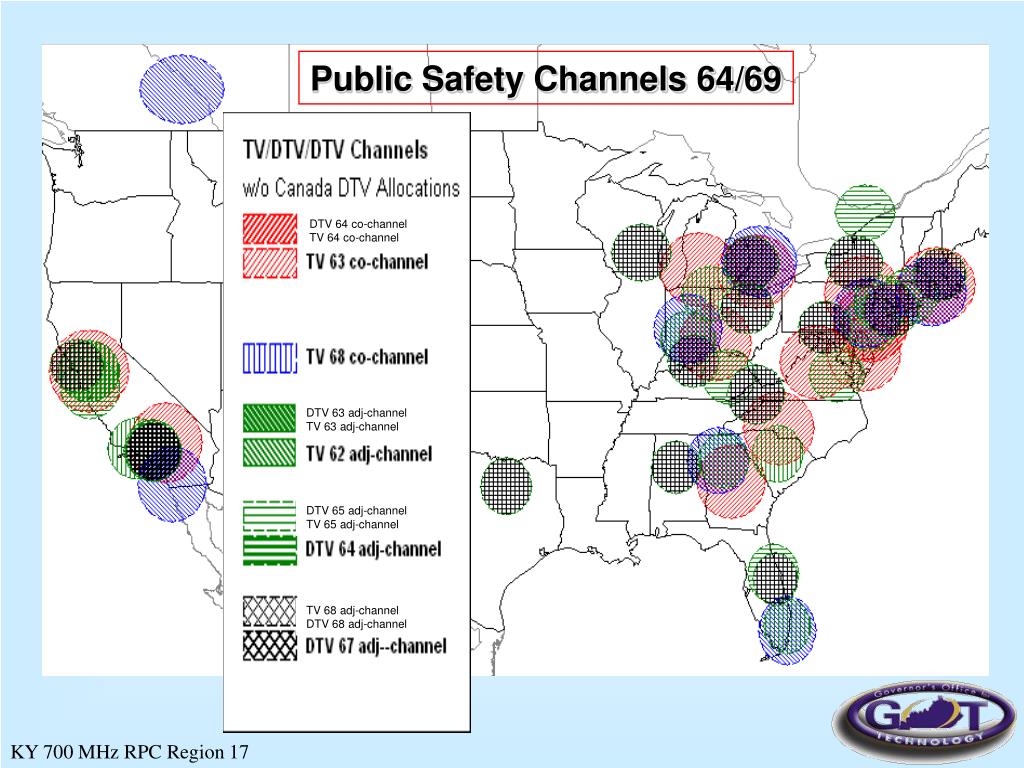

17. DTV 64 co-channel TV 64 co-channel DTV 69 co-channel TV 69 co-channel DTV 63 adj-channel TV 63 adj-channel DTV 65 adj-channel TV 65 adj-channel TV 68 adj-channel DTV 68 adj-channel Public Safety Channels 64/69 KY 700 MHz RPC Region 17

18. Channels 64/69 Kentucky Co-Channel 64 or 69 TV/DTV Grade B + 45 miles Adj-Channel 63, 65, or 68 TV/DTV Grade B + 25 miles Towns & Cities KY 700 MHz RPC Region 17

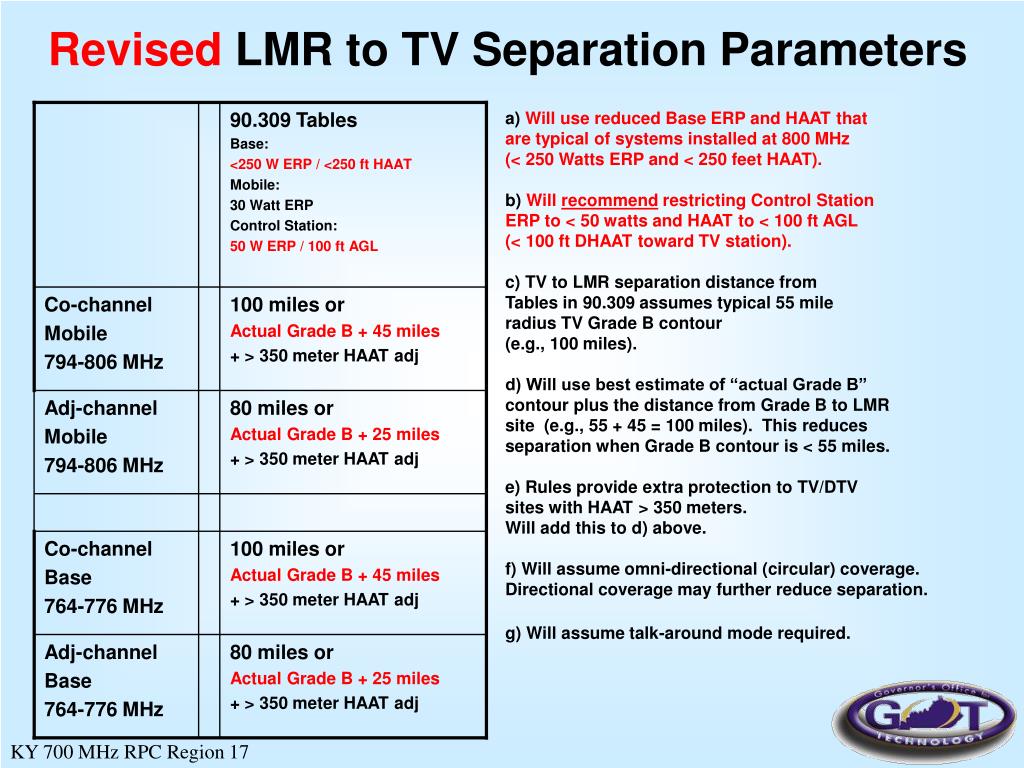

19. Revised LMR to TV Separation Parameters 90.309 Tables Base: <250 W ERP / <250 ft HAAT Mobile: 30 Watt ERP Control Station: 50 W ERP / 100 ft AGL Co-channel Mobile 794-806 MHz 100 miles or Actual Grade B + 45 miles + > 350 meter HAAT adj Adj-channel Mobile 794-806 MHz 80 miles or Actual Grade B + 25 miles + > 350 meter HAAT adj Co-channel Base 764-776 MHz 100 miles or Actual Grade B + 45 miles + > 350 meter HAAT adj Adj-channel Base 764-776 MHz 80 miles or Actual Grade B + 25 miles + > 350 meter HAAT adj a) Will use reduced Base ERP and HAAT that are typical of systems installed at 800 MHz (< 250 Watts ERP and < 250 feet HAAT). b) Will recommend restricting Control Station ERP to < 50 watts and HAAT to < 100 ft AGL (< 100 ft DHAAT toward TV station). c) TV to LMR separation distance from Tables in 90.309 assumes typical 55 mile radius TV Grade B contour (e.g., 100 miles). d) Will use best estimate of “actual Grade B” contour plus the distance from Grade B to LMR site (e.g., 55 + 45 = 100 miles). This reduces separation when Grade B contour is < 55 miles. e) Rules provide extra protection to TV/DTV sites with HAAT > 350 meters. Will add this to d) above. f) Will assume omni-directional (circular) coverage. Directional coverage may further reduce separation. g) Will assume talk-around mode required. KY 700 MHz RPC Region 17

20. Recap • Governor authorized the Public Safety Working Group to administer the public safety 700 MHz spectrum • FCC requires Public Meetings • Develop 700 MHz Plan • Questions KY 700 MHz RPC Region 17

21. Break Time KY 700 MHz RPC Region 17
