International linear collider

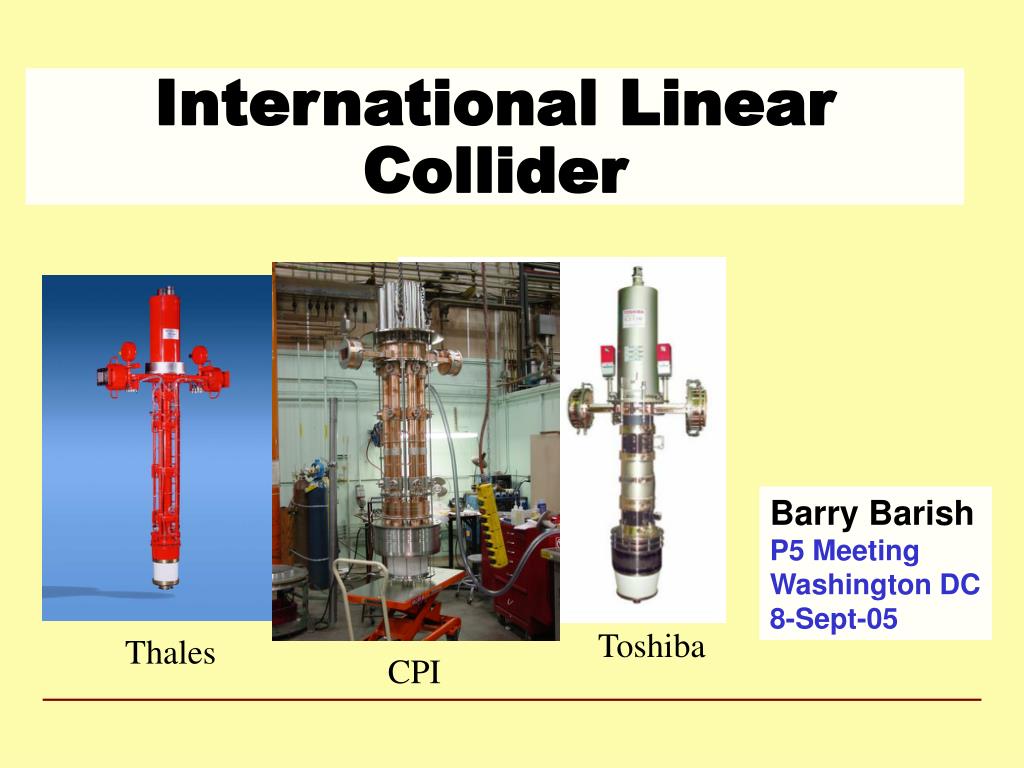

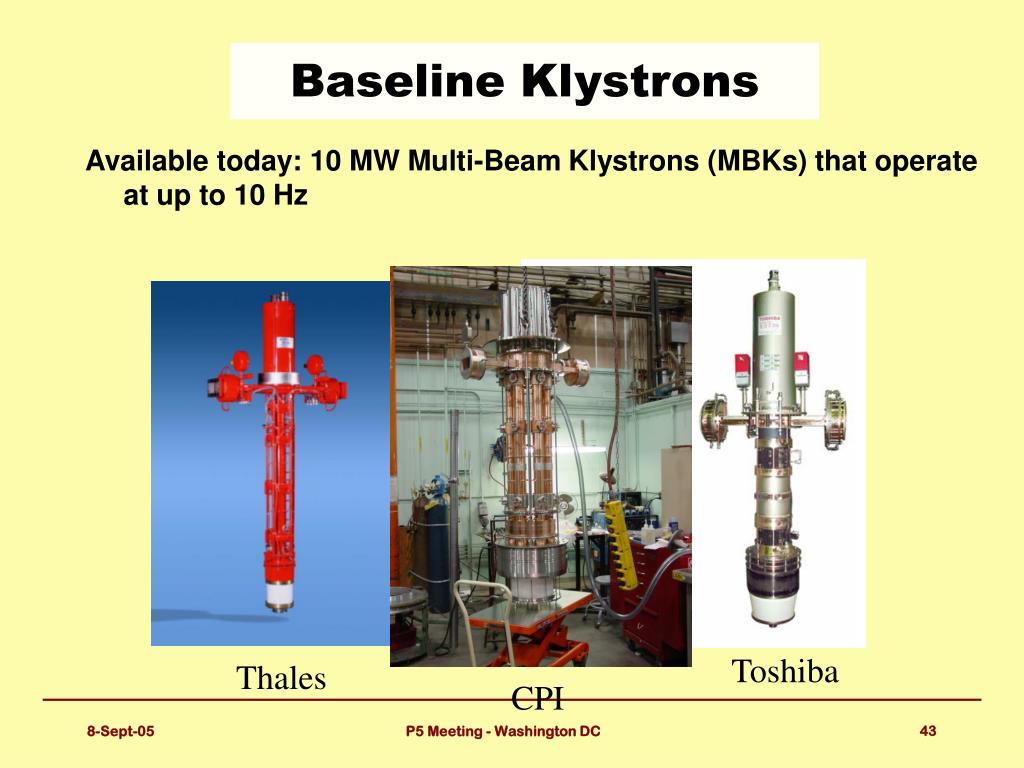

Toshiba

Thales

CPI

International Linear Collider

Barry Barish

P5 Meeting

Washington DC

8-Sept-05

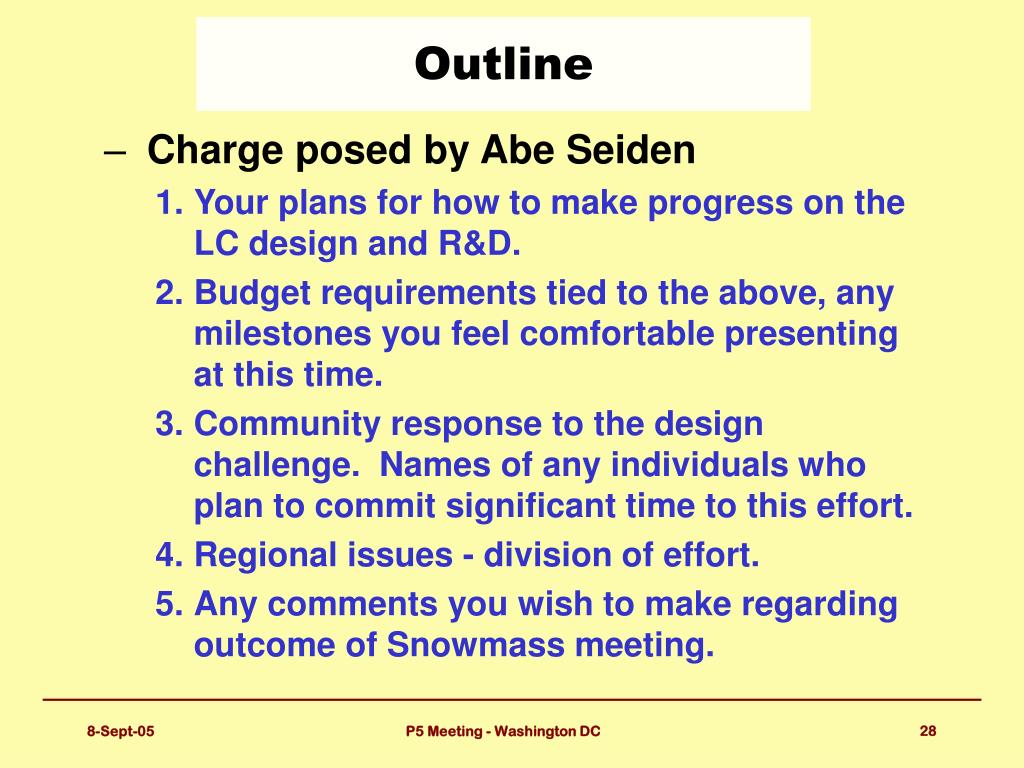

Outline
Outline

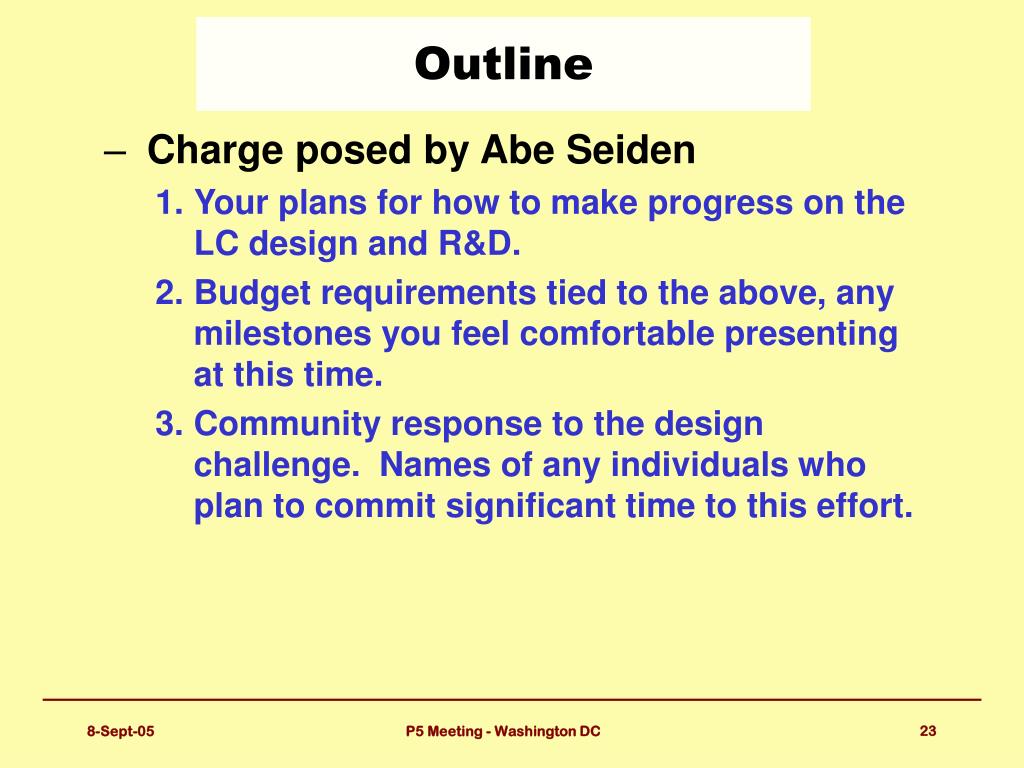

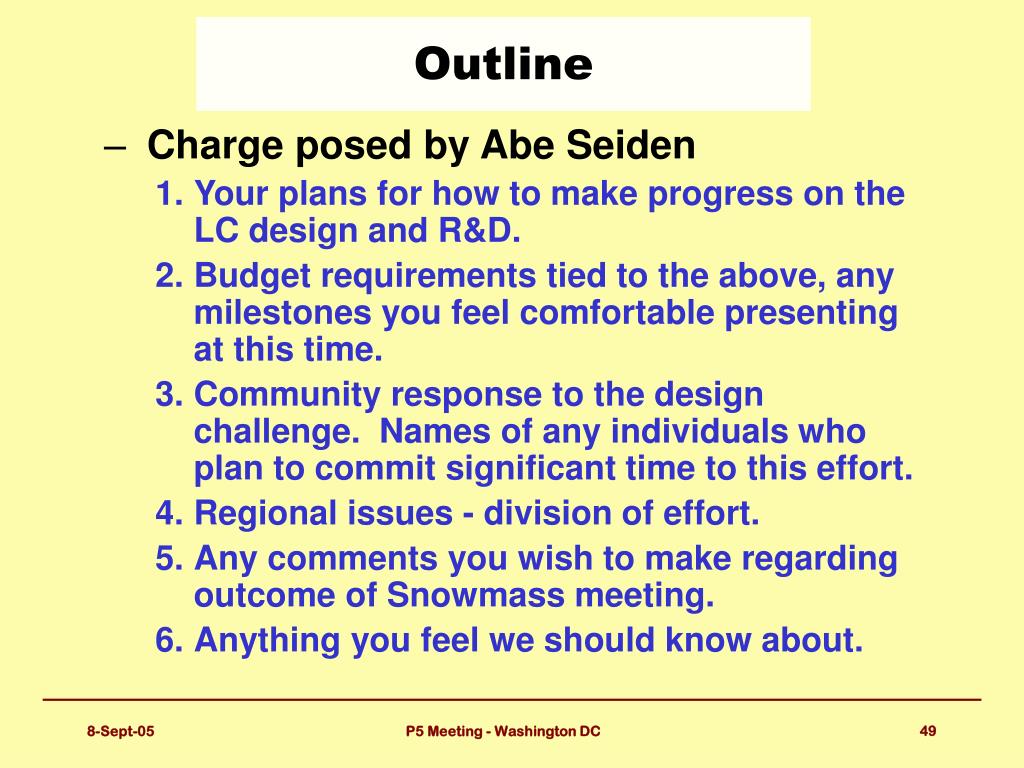

  • Charge posed by Abe Seiden

    • Your plans for how to make progress on the LC design and R&D.

    • Budget requirements tied to the above, any milestones you feel comfortable presenting at this time.

    • Community response to the design challenge. Names of any individuals who plan to commit significant time to this effort.

    • Regional issues - division of effort.

    • Any comments you wish to make regarding outcome of Snowmass meeting.

    • Anything you feel we should know about.

P5 Meeting - Washington DC


Outline1

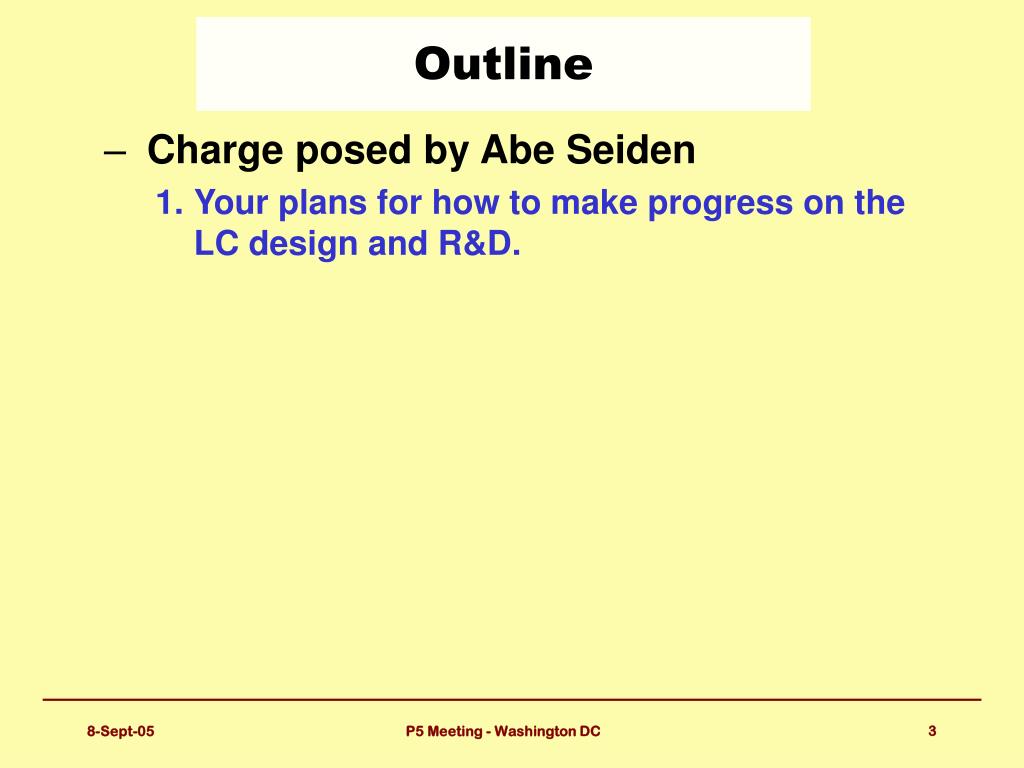

Outline

  • Charge posed by Abe Seiden

    • Your plans for how to make progress on the LC design and R&D.

P5 Meeting - Washington DC


What s our job

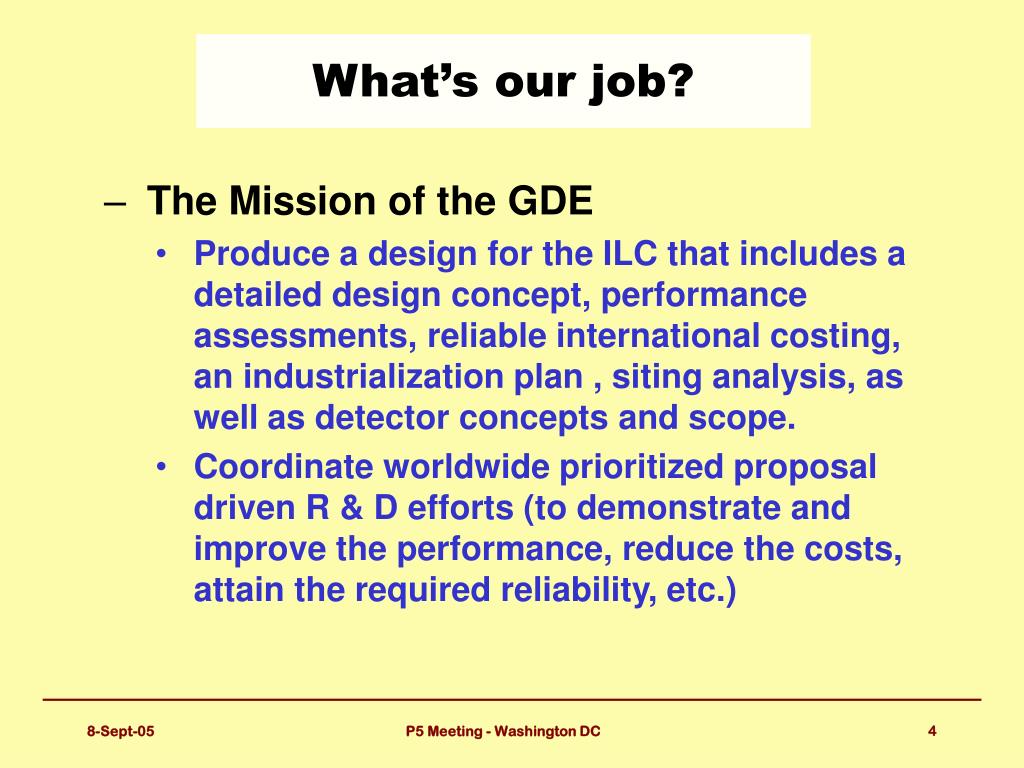

What’s our job?

  • The Mission of the GDE

    • Produce a design for the ILC that includes a detailed design concept, performance assessments, reliable international costing, an industrialization plan , siting analysis, as well as detector concepts and scope.

    • Coordinate worldwide prioritized proposal driven R & D efforts (to demonstrate and improve the performance, reduce the costs, attain the required reliability, etc.)

P5 Meeting - Washington DC

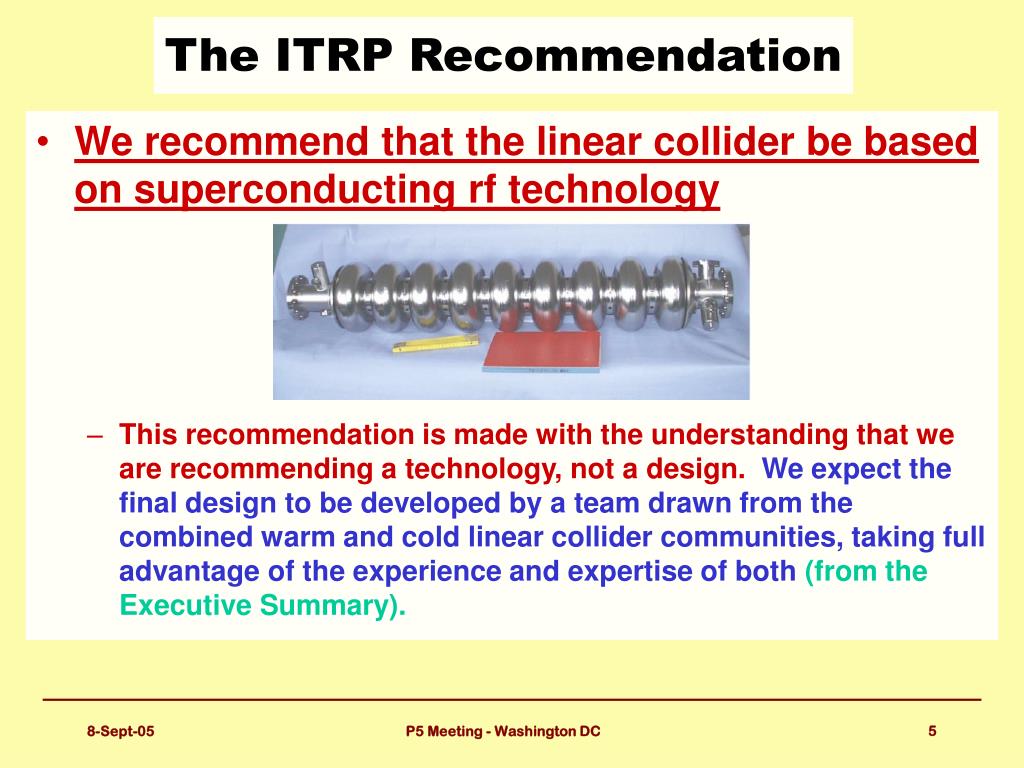

The itrp recommendation
The ITRP Recommendation

  • We recommend that the linear collider be based on superconducting rf technology

    • This recommendation is made with the understanding that we are recommending a technology, not a design. We expect the final design to be developed by a team drawn from the combined warm and cold linear collider communities, taking full advantage of the experience and expertise of both(from the Executive Summary).

P5 Meeting - Washington DC


Starting Point for the GDE

Superconducting RF Main Linac

P5 Meeting - Washington DC


Parameters for the ilc
Parameters for the ILC

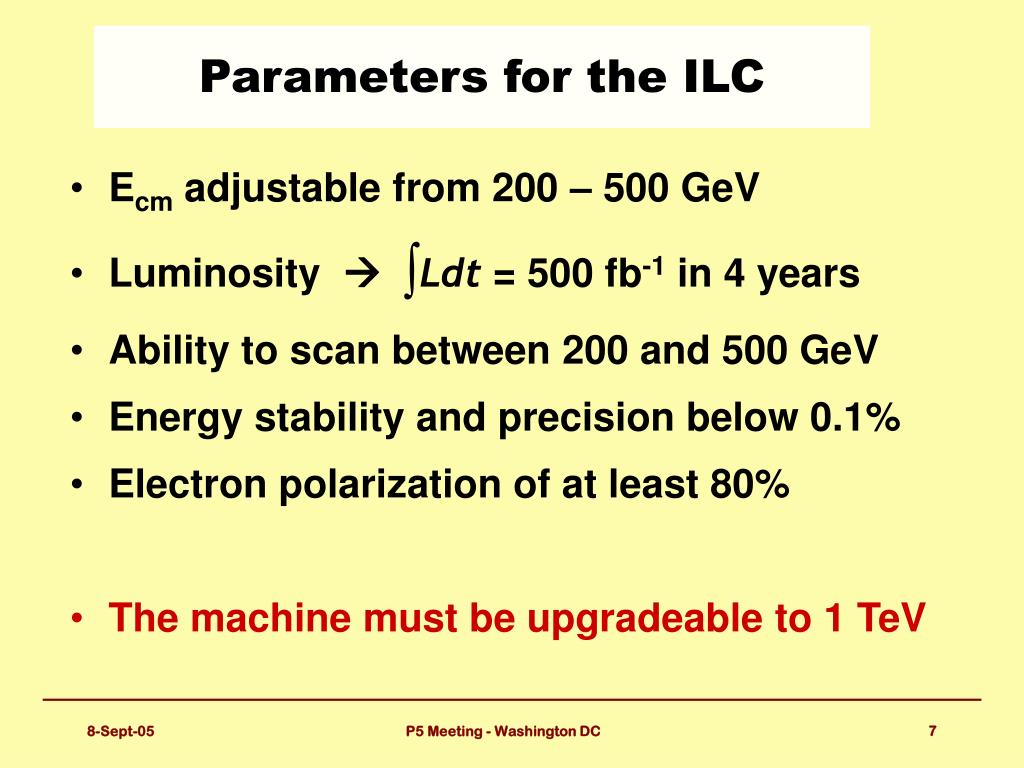

  • Ecm adjustable from 200 – 500 GeV

  • Luminosity ∫Ldt = 500 fb-1 in 4 years

  • Ability to scan between 200 and 500 GeV

  • Energy stability and precision below 0.1%

  • Electron polarization of at least 80%

  • The machine must be upgradeable to 1 TeV

P5 Meeting - Washington DC


Higgs coupling and extra dimensions

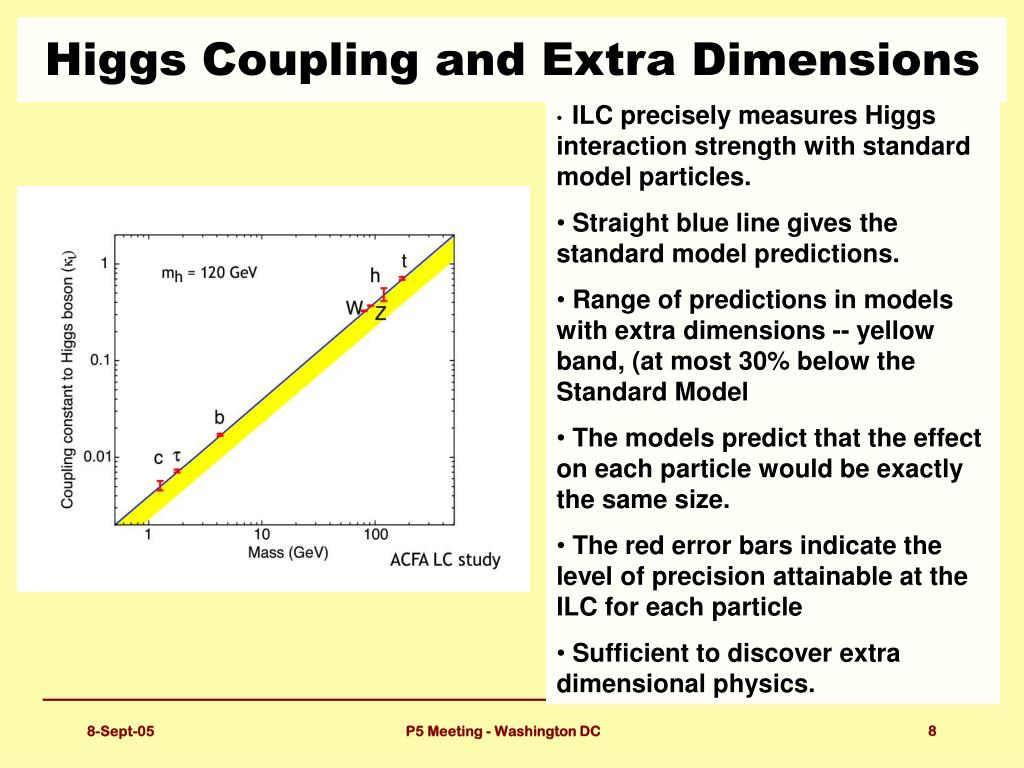

Higgs Coupling and Extra Dimensions

  • ILC precisely measures Higgs interaction strength with standard model particles.

  • Straight blue line gives the standard model predictions.

  • Range of predictions in models with extra dimensions -- yellow band, (at most 30% below the Standard Model

  • The models predict that the effect on each particle would be exactly the same size.

  • The red error bars indicate the level of precision attainable at the ILC for each particle

  • Sufficient to discover extra dimensional physics.

P5 Meeting - Washington DC


Gde near term plan

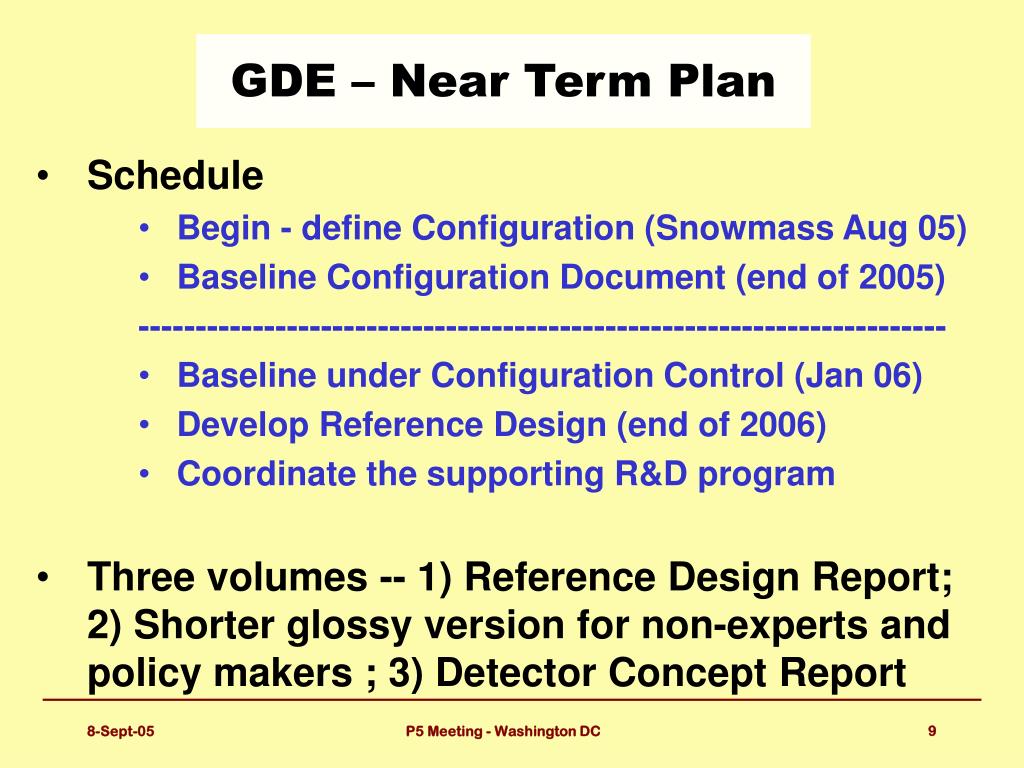

GDE – Near Term Plan

  • Schedule

    • Begin - define Configuration (Snowmass Aug 05)

    • Baseline Configuration Document (end of 2005)

      -----------------------------------------------------------------------

    • Baseline under Configuration Control (Jan 06)

    • Develop Reference Design (end of 2006)

    • Coordinate the supporting R&D program

  • Three volumes -- 1) Reference Design Report; 2) Shorter glossy version for non-experts and policy makers ; 3) Detector Concept Report

  • P5 Meeting - Washington DC


    Gde staffing
    GDE – Staffing

    • Staff the GDE

      • Administrative, Communications, Web staff

      • Regional Directors (one per region)

      • Accelerator Experts (covering all technical areas)

      • Senior Costing Engineer (one per region)

      • Civil/Facilities Engineer (one per region)

      • Detectors (WWS chairs)

      • Fill in missing skills (later)

    • Total staff size about 25 FTE (2005-2006) about 50 heads.

    • The internal GDE organization and tasks will be organized internationally, not regionally

    P5 Meeting - Washington DC

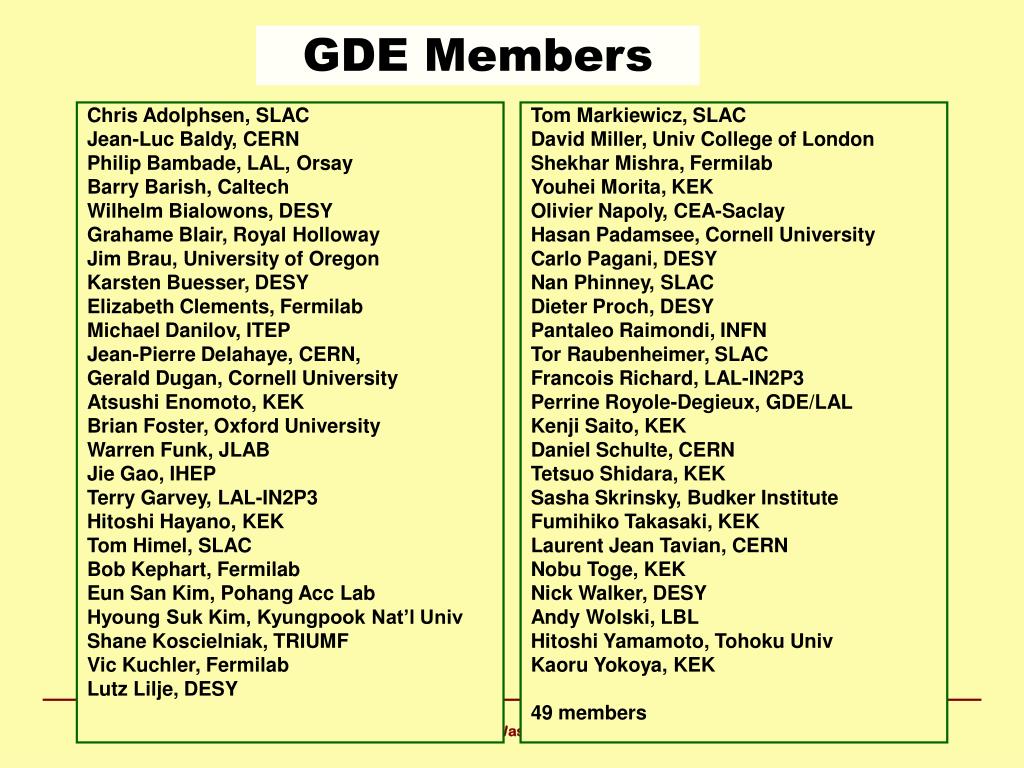

    Gde members

    Chris Adolphsen, SLAC

    Jean-Luc Baldy, CERN

    Philip Bambade, LAL, Orsay

    Barry Barish, Caltech

    Wilhelm Bialowons, DESY

    Grahame Blair, Royal Holloway

    Jim Brau, University of Oregon

    Karsten Buesser, DESY

    Elizabeth Clements, Fermilab

    Michael Danilov, ITEP

    Jean-Pierre Delahaye, CERN,

    Gerald Dugan, Cornell University

    Atsushi Enomoto, KEK

    Brian Foster, Oxford University

    Warren Funk, JLAB

    Jie Gao, IHEP

    Terry Garvey, LAL-IN2P3

    Hitoshi Hayano, KEK

    Tom Himel, SLAC

    Bob Kephart, Fermilab

    Eun San Kim, Pohang Acc Lab

    Hyoung Suk Kim, Kyungpook Nat’l Univ

    Shane Koscielniak, TRIUMF

    Vic Kuchler, Fermilab

    Lutz Lilje, DESY

    Tom Markiewicz, SLAC

    David Miller, Univ College of London

    Shekhar Mishra, Fermilab

    Youhei Morita, KEK

    Olivier Napoly, CEA-Saclay

    Hasan Padamsee, Cornell University

    Carlo Pagani, DESY

    Nan Phinney, SLAC

    Dieter Proch, DESY

    Pantaleo Raimondi, INFN

    Tor Raubenheimer, SLAC

    Francois Richard, LAL-IN2P3

    Perrine Royole-Degieux, GDE/LAL

    Kenji Saito, KEK

    Daniel Schulte, CERN

    Tetsuo Shidara, KEK

    Sasha Skrinsky, Budker Institute

    Fumihiko Takasaki, KEK

    Laurent Jean Tavian, CERN

    Nobu Toge, KEK

    Nick Walker, DESY

    Andy Wolski, LBL

    Hitoshi Yamamoto, Tohoku Univ

    Kaoru Yokoya, KEK

    49 members

    GDE Members

    Americas 16

    Europe 21

    Asia 12

    P5 Meeting - Washington DC

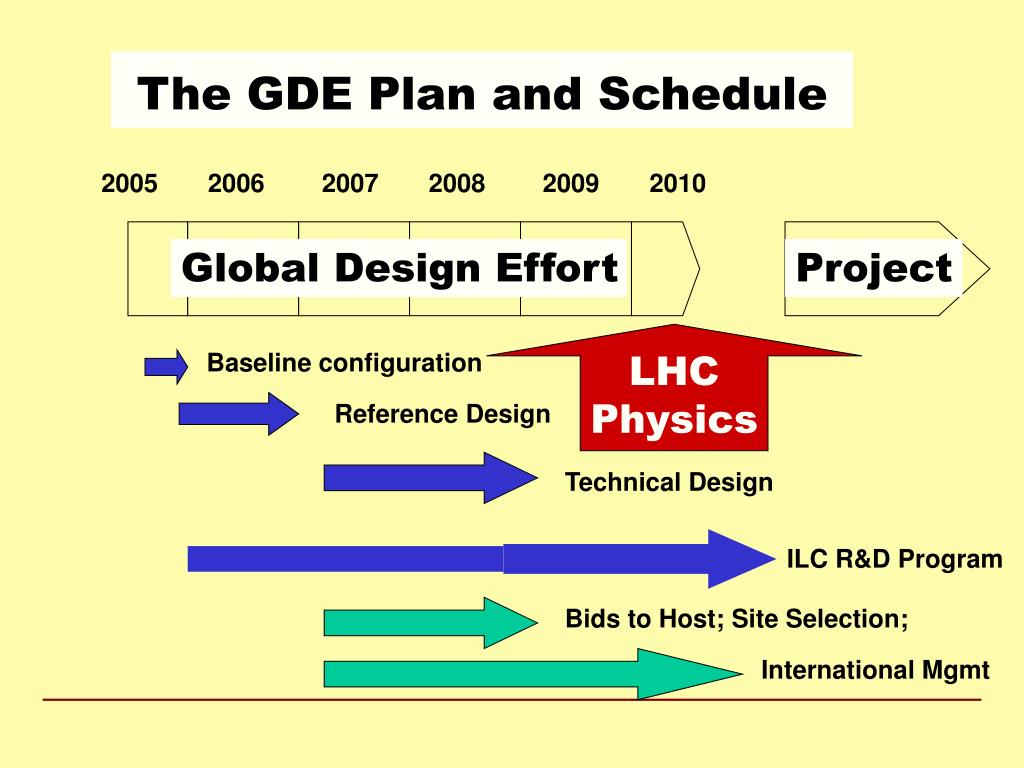

    The gde plan and schedule

    2005 2006 2007 2008 2009 2010

    Global Design Effort

    Project

    LHC

    Physics

    Baseline configuration

    Reference Design

    The GDE Plan and Schedule

    Technical Design

    ILC R&D Program

    Bids to Host; Site Selection;

    International Mgmt


    Design approach
    Design Approach 2010

    • Create a baseline configuration for the machine

      • Document a concept for ILC machine with a complete layout, parameters etc. defined by the end of 2005

      • Make forward looking choices, consistent with attaining performance goals, and understood well enough to do a conceptual design and reliable costing by end of 2006.

      • Technical and cost considerations will be an integral part in making these choices.

      • Baseline will be put under “configuration control,” with a defined process for changes to the baseline.

      • A reference design will be carried out in 2006. I am proposing we use a “parametric” design and costing approach.

      • Technical performance and physics performance will be evaluated for the reference design

    P5 Meeting - Washington DC


    Parametric approach

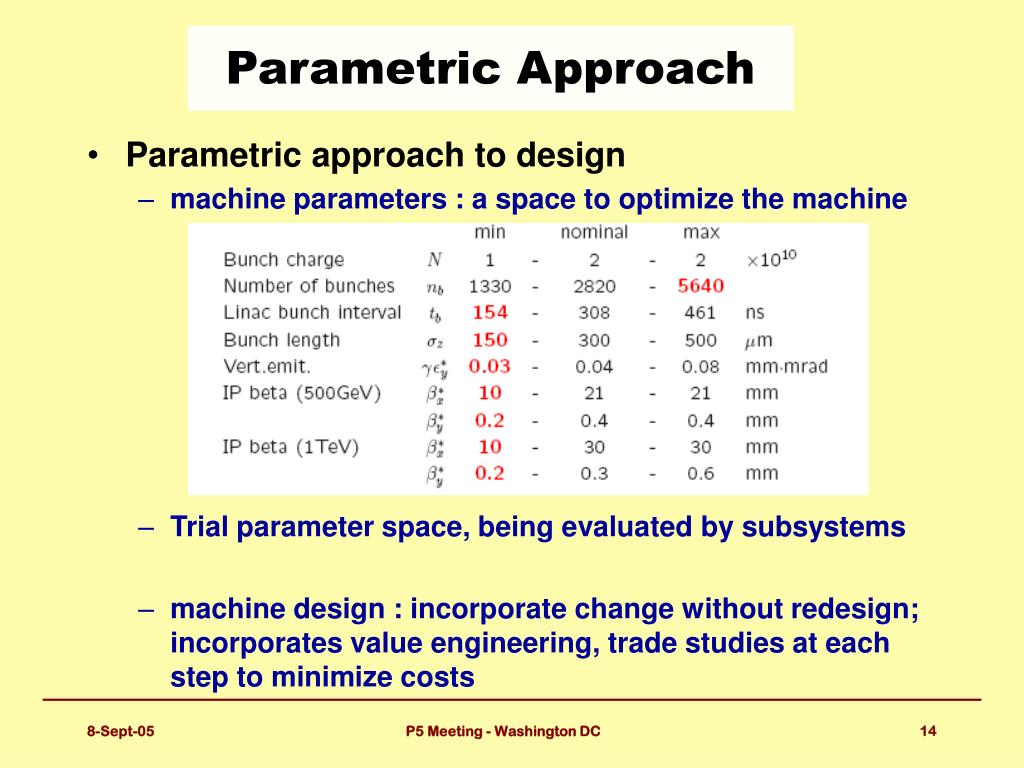

    Parametric Approach 2010

    • Parametric approach to design

      • machine parameters : a space to optimize the machine

      • Trial parameter space, being evaluated by subsystems

      • machine design : incorporate change without redesign; incorporates value engineering, trade studies at each step to minimize costs

    P5 Meeting - Washington DC


    Approach to ilc r d program

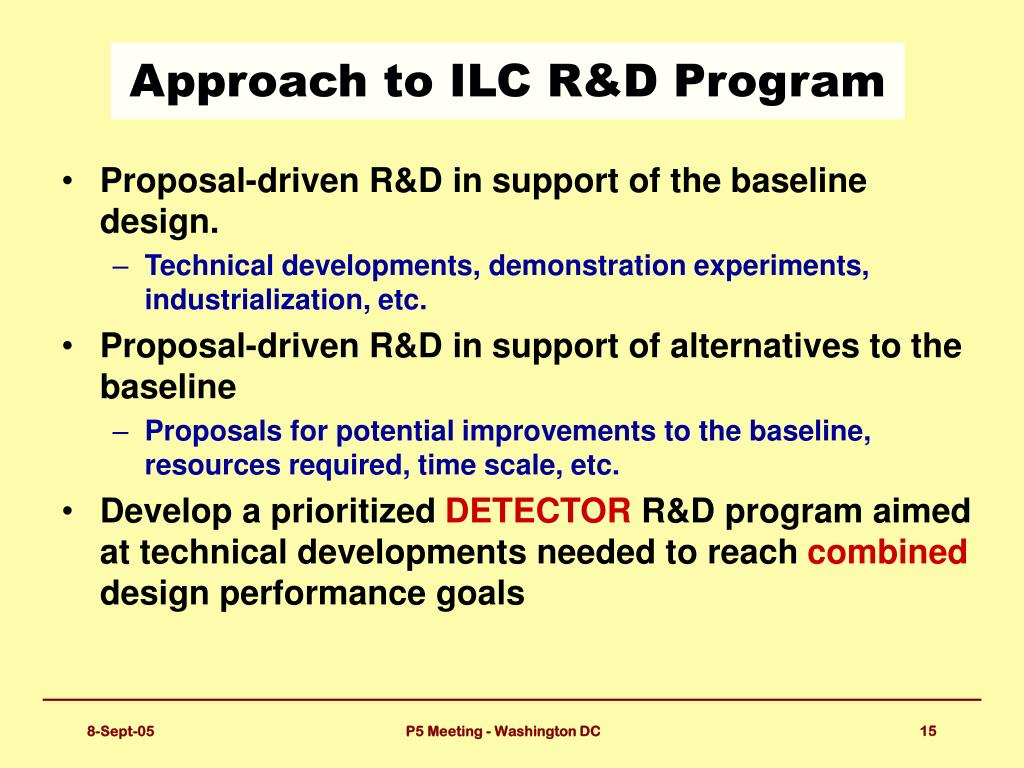

    Approach to ILC R&D Program 2010

    • Proposal-driven R&D in support of the baseline design.

      • Technical developments, demonstration experiments, industrialization, etc.

    • Proposal-driven R&D in support of alternatives to the baseline

      • Proposals for potential improvements to the baseline, resources required, time scale, etc.

    • Develop a prioritized DETECTOR R&D program aimed at technical developments needed to reach combined design performance goals

    P5 Meeting - Washington DC


    Outline2
    Outline 2010

    • Charge posed by Abe Seiden

      • Your plans for how to make progress on the LC design and R&D.

      • Budget requirements tied to the above, any milestones you feel comfortable presenting at this time.

    P5 Meeting - Washington DC


    Us ilc budgets fy05
    US ILC Budgets – FY05 2010

    P5 Meeting - Washington DC

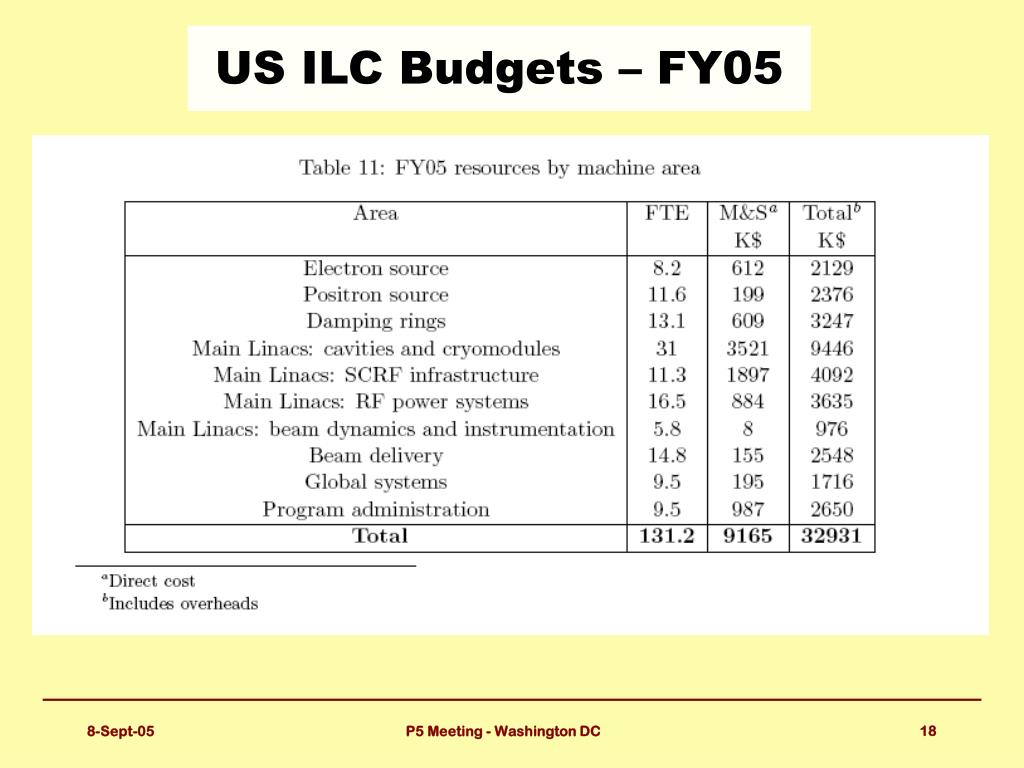

    Us ilc budgets fy051
    US ILC Budgets – FY05 2010

    P5 Meeting - Washington DC

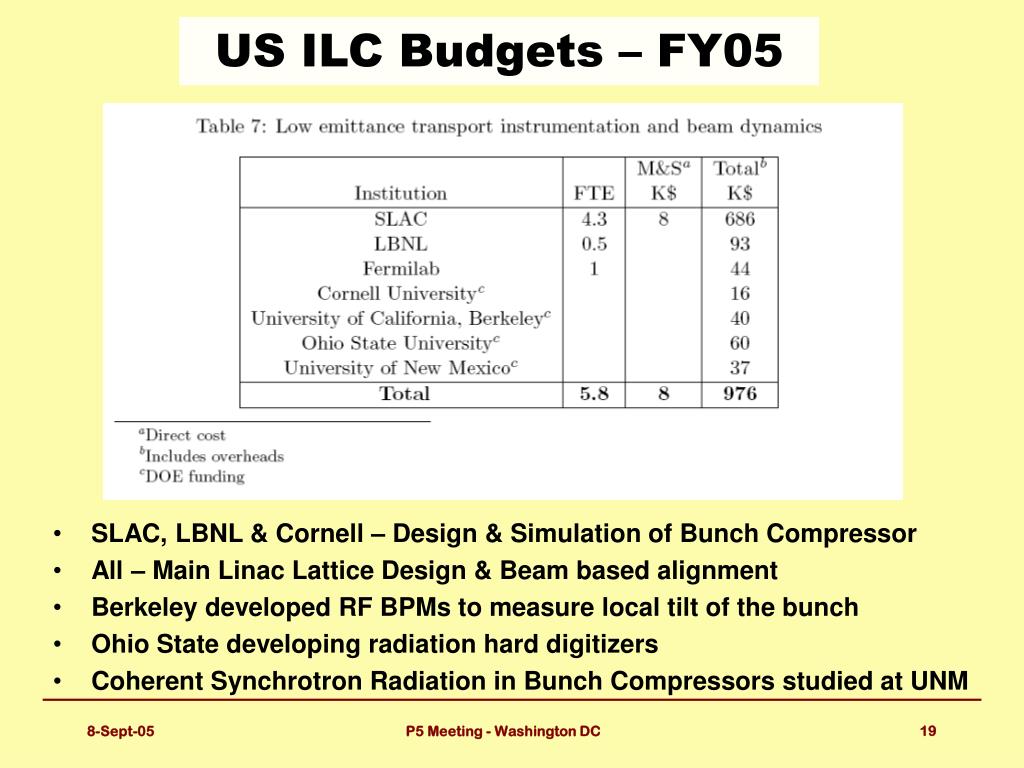

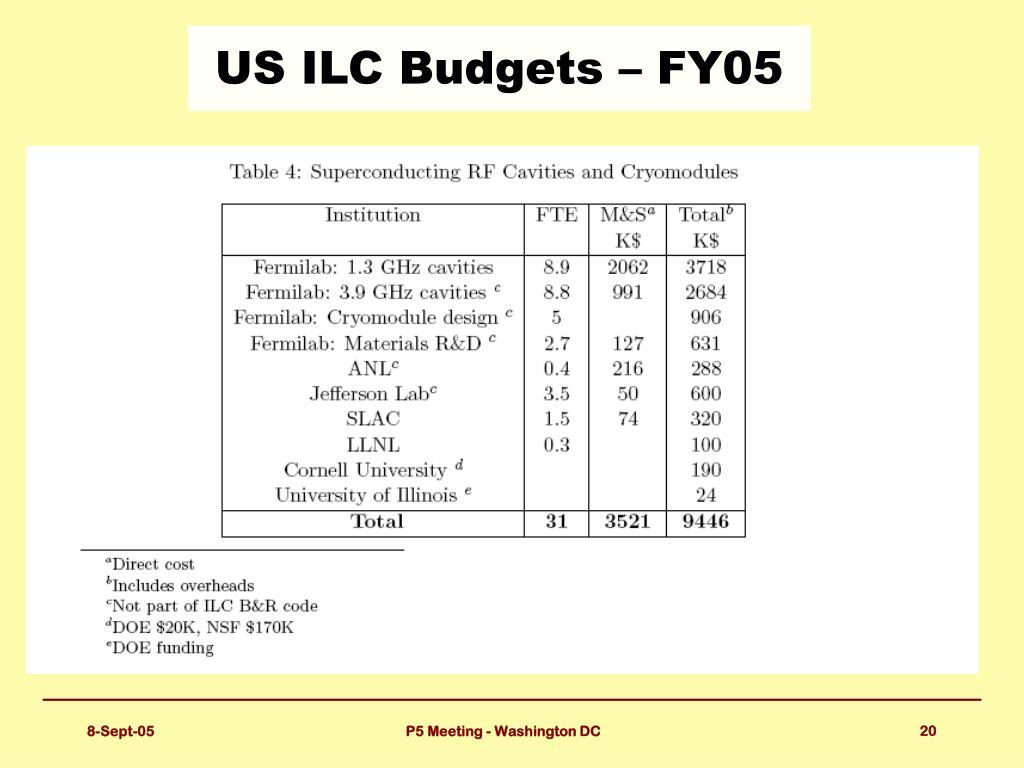

    Us ilc budgets fy052
    US ILC Budgets – FY05 2010

    • SLAC, LBNL & Cornell – Design & Simulation of Bunch Compressor

    • All – Main Linac Lattice Design & Beam based alignment

    • Berkeley developed RF BPMs to measure local tilt of the bunch

    • Ohio State developing radiation hard digitizers

    • Coherent Synchrotron Radiation in Bunch Compressors studied at UNM

    P5 Meeting - Washington DC


    Us ilc budgets fy053
    US ILC Budgets – FY05 2010

    P5 Meeting - Washington DC


    European ilc budgets fy05

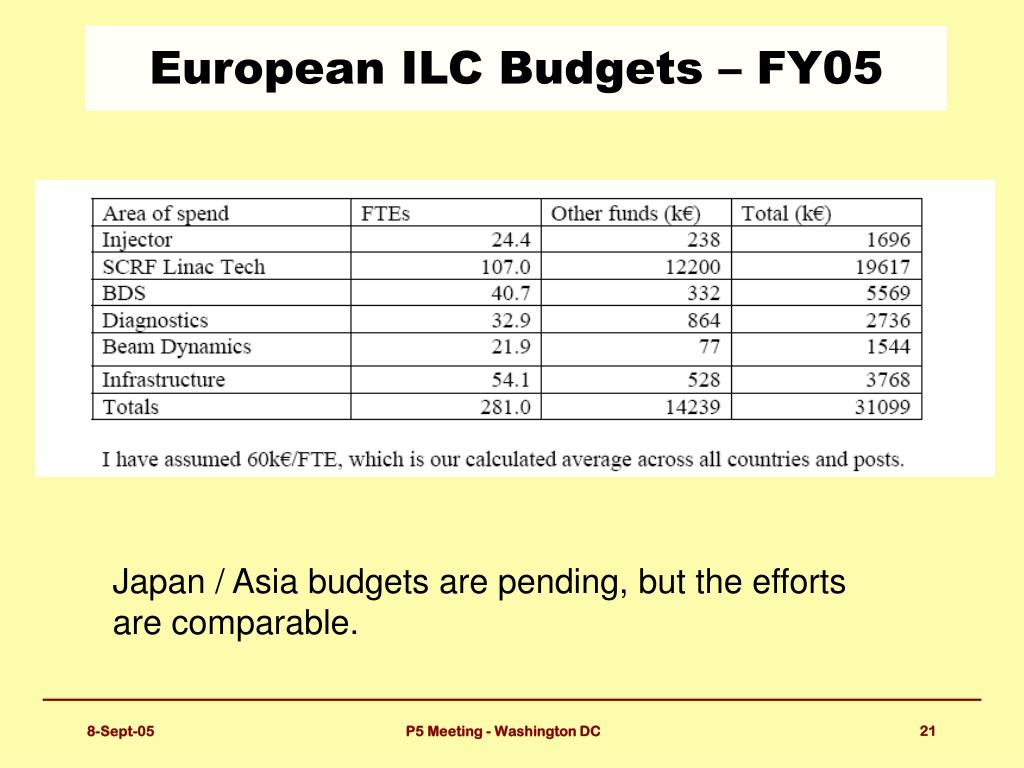

    European ILC Budgets – FY05 2010

    Japan / Asia budgets are pending, but the efforts are comparable.

    P5 Meeting - Washington DC


    Present ilc r d budget levels

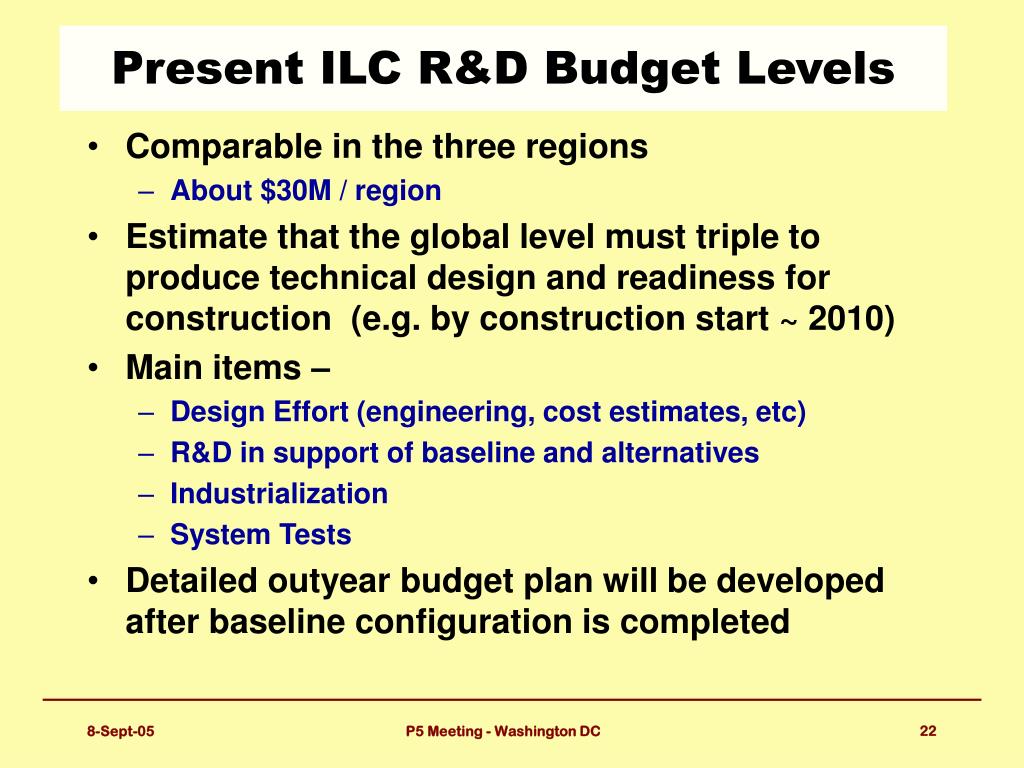

    Present ILC R&D Budget Levels 2010

    • Comparable in the three regions

      • About $30M / region

    • Estimate that the global level must triple to produce technical design and readiness for construction (e.g. by construction start ~ 2010)

    • Main items –

      • Design Effort (engineering, cost estimates, etc)

      • R&D in support of baseline and alternatives

      • Industrialization

      • System Tests

    • Detailed outyear budget plan will be developed after baseline configuration is completed

    P5 Meeting - Washington DC


    Outline3
    Outline 2010

    • Charge posed by Abe Seiden

      • Your plans for how to make progress on the LC design and R&D.

      • Budget requirements tied to the above, any milestones you feel comfortable presenting at this time.

      • Community response to the design challenge. Names of any individuals who plan to commit significant time to this effort.

    P5 Meeting - Washington DC


    Participation in snowmass

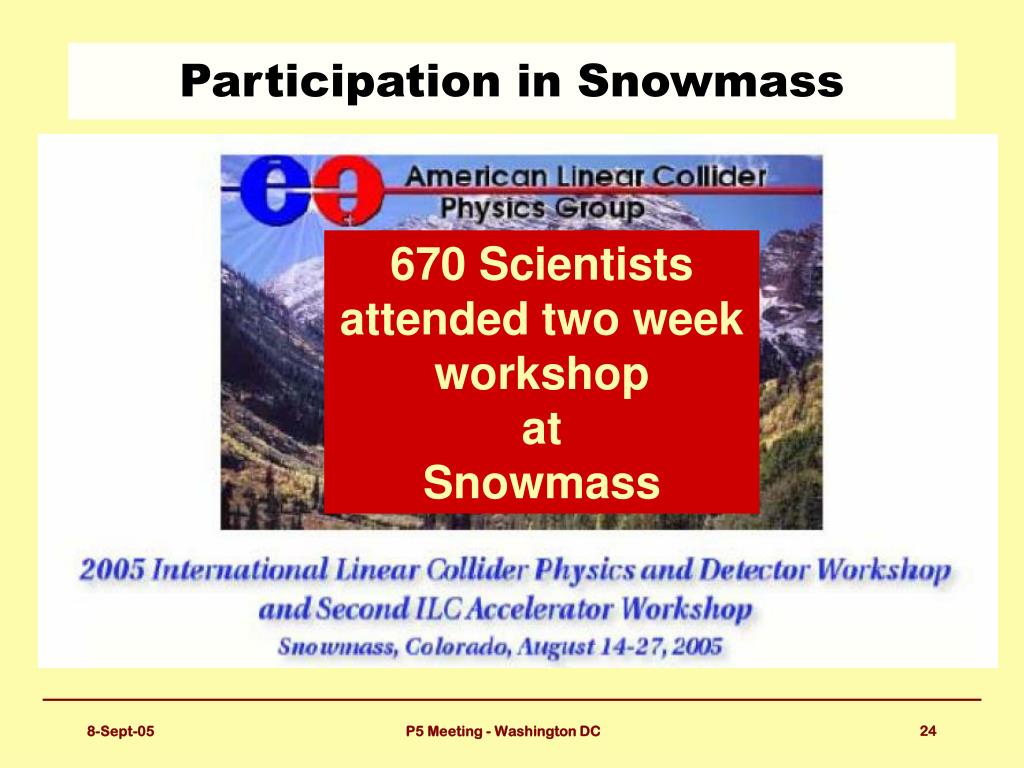

    Participation in Snowmass 2010

    670 Scientists attended two week workshop

    at

    Snowmass

    P5 Meeting - Washington DC


    Gde members1

    Chris Adolphsen, SLAC 2010

    Jean-Luc Baldy, CERN

    Philip Bambade, LAL, Orsay

    Barry Barish, Caltech

    Wilhelm Bialowons, DESY

    Grahame Blair, Royal Holloway

    Jim Brau, University of Oregon

    Karsten Buesser, DESY

    Elizabeth Clements, Fermilab

    Michael Danilov, ITEP

    Jean-Pierre Delahaye, CERN,

    Gerald Dugan, Cornell University

    Atsushi Enomoto, KEK

    Brian Foster, Oxford University

    Warren Funk, JLAB

    Jie Gao, IHEP

    Terry Garvey, LAL-IN2P3

    Hitoshi Hayano, KEK

    Tom Himel, SLAC

    Bob Kephart, Fermilab

    Eun San Kim, Pohang Acc Lab

    Hyoung Suk Kim, Kyungpook Nat’l Univ

    Shane Koscielniak, TRIUMF

    Vic Kuchler, Fermilab

    Lutz Lilje, DESY

    Tom Markiewicz, SLAC

    David Miller, Univ College of London

    Shekhar Mishra, Fermilab

    Youhei Morita, KEK

    Olivier Napoly, CEA-Saclay

    Hasan Padamsee, Cornell University

    Carlo Pagani, DESY

    Nan Phinney, SLAC

    Dieter Proch, DESY

    Pantaleo Raimondi, INFN

    Tor Raubenheimer, SLAC

    Francois Richard, LAL-IN2P3

    Perrine Royole-Degieux, GDE/LAL

    Kenji Saito, KEK

    Daniel Schulte, CERN

    Tetsuo Shidara, KEK

    Sasha Skrinsky, Budker Institute

    Fumihiko Takasaki, KEK

    Laurent Jean Tavian, CERN

    Nobu Toge, KEK

    Nick Walker, DESY

    Andy Wolski, LBL

    Hitoshi Yamamoto, Tohoku Univ

    Kaoru Yokoya, KEK

    49 members

    GDE Members

    P5 Meeting - Washington DC


    Outline4
    Outline 2010

    • Charge posed by Abe Seiden

      • Your plans for how to make progress on the LC design and R&D.

      • Budget requirements tied to the above, any milestones you feel comfortable presenting at this time.

      • Community response to the design challenge. Names of any individuals who plan to commit significant time to this effort.

      • Regional issues - division of effort.

    P5 Meeting - Washington DC

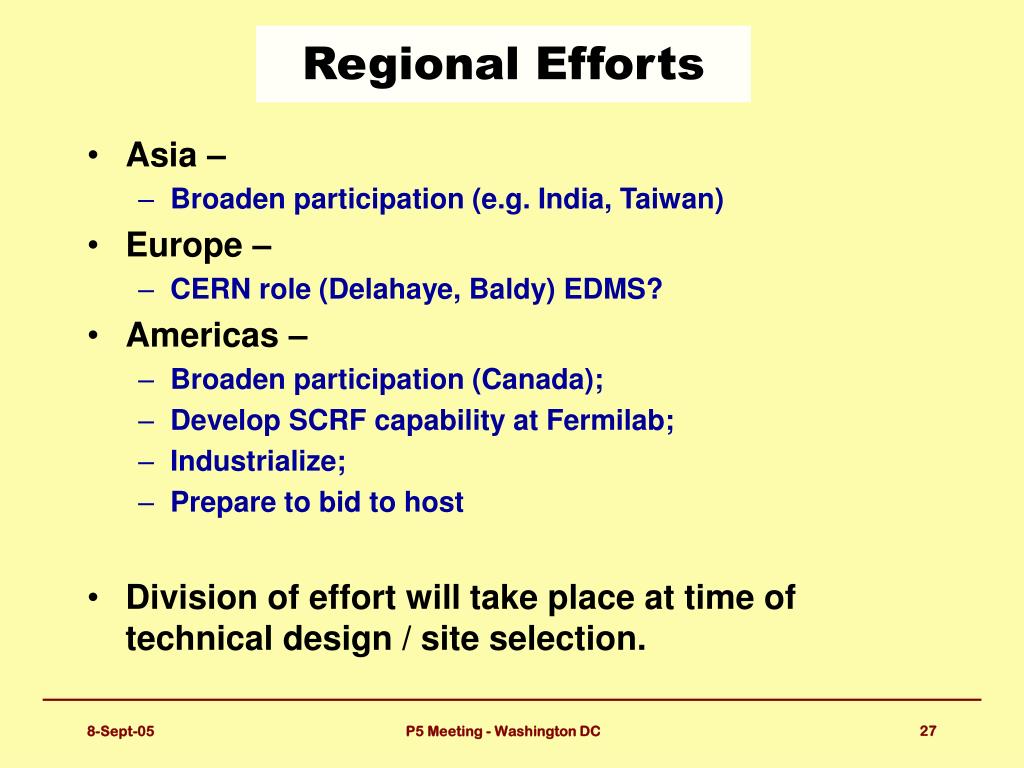

    Regional efforts
    Regional Efforts 2010

    • Asia –

      • Broaden participation (e.g. India, Taiwan)

    • Europe –

      • CERN role (Delahaye, Baldy) EDMS?

    • Americas –

      • Broaden participation (Canada);

      • Develop SCRF capability at Fermilab;

      • Industrialize;

      • Prepare to bid to host

    • Division of effort will take place at time of technical design / site selection.

    P5 Meeting - Washington DC


    Outline5
    Outline 2010

    • Charge posed by Abe Seiden

      • Your plans for how to make progress on the LC design and R&D.

      • Budget requirements tied to the above, any milestones you feel comfortable presenting at this time.

      • Community response to the design challenge. Names of any individuals who plan to commit significant time to this effort.

      • Regional issues - division of effort.

      • Any comments you wish to make regarding outcome of Snowmass meeting.

    P5 Meeting - Washington DC


    Highlights from snowmass
    Highlights from Snowmass 2010

    P5 Meeting - Washington DC


    Ilc workshop organization

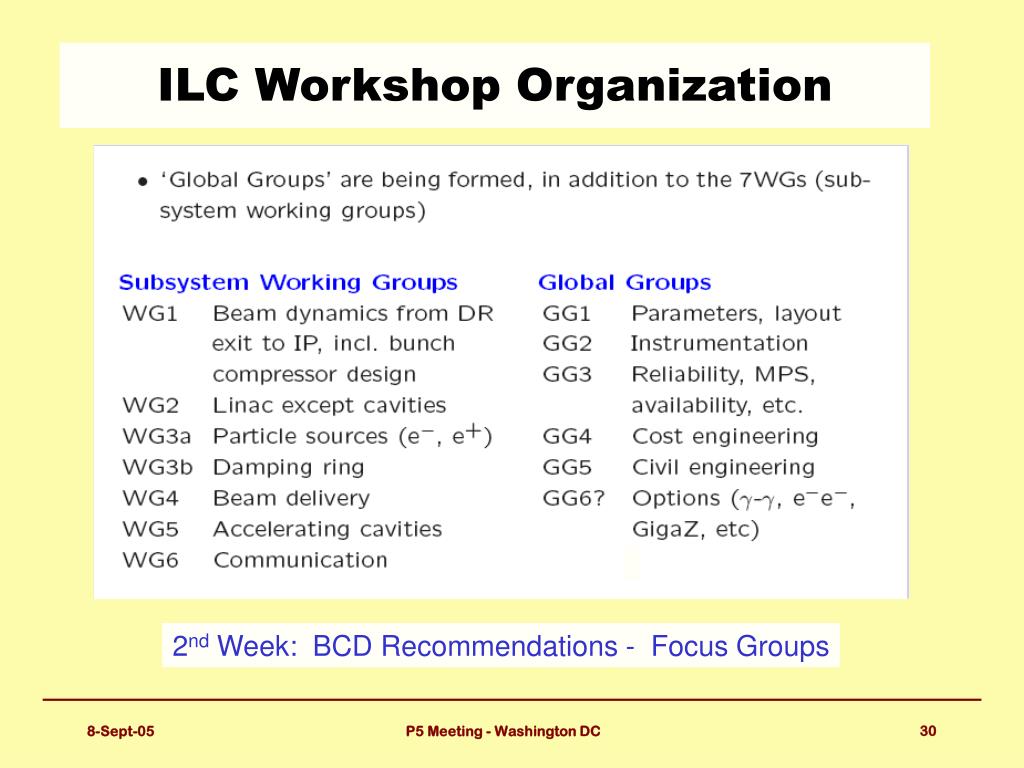

    ILC Workshop Organization 2010

    2nd Week: BCD Recommendations - Focus Groups

    P5 Meeting - Washington DC


    Design choices for baseline
    Design Choices for Baseline 2010

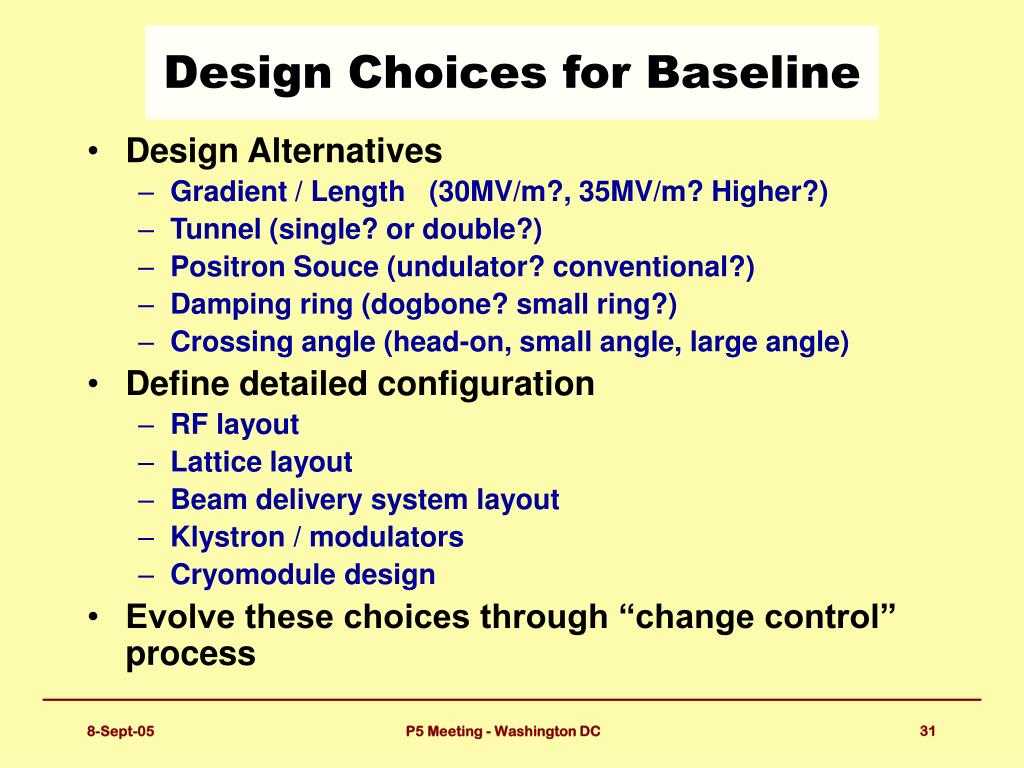

    • Design Alternatives

      • Gradient / Length (30MV/m?, 35MV/m? Higher?)

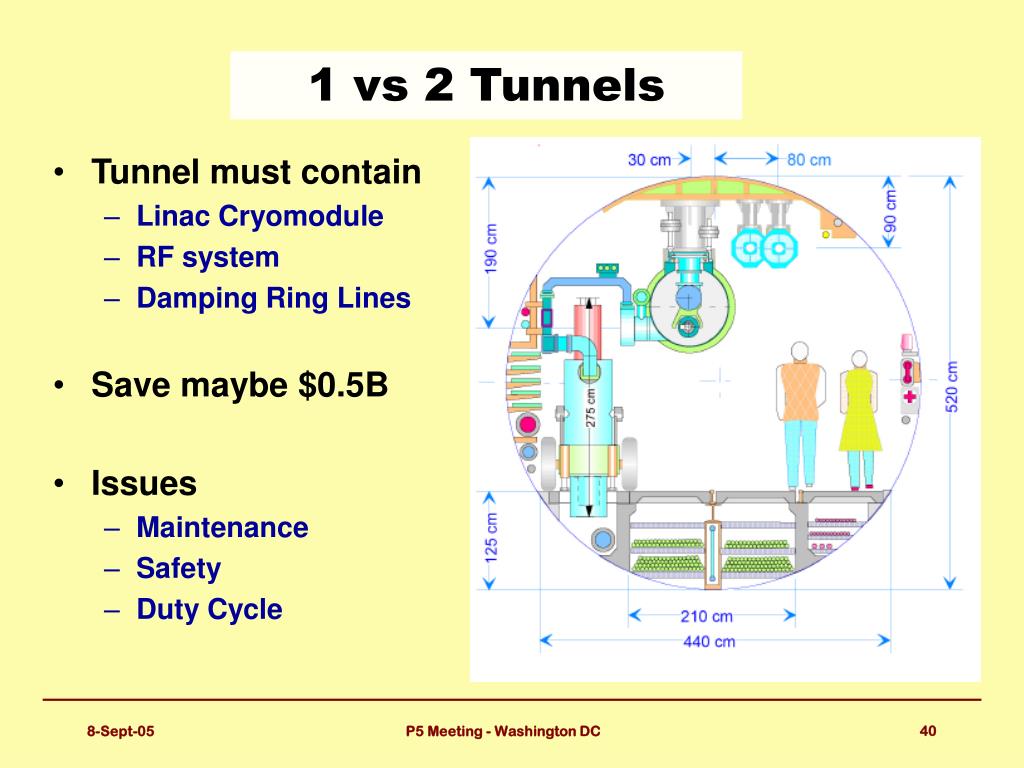

      • Tunnel (single? or double?)

      • Positron Souce (undulator? conventional?)

      • Damping ring (dogbone? small ring?)

      • Crossing angle (head-on, small angle, large angle)

    • Define detailed configuration

      • RF layout

      • Lattice layout

      • Beam delivery system layout

      • Klystron / modulators

      • Cryomodule design

    • Evolve these choices through “change control” process

    P5 Meeting - Washington DC


    Cost drivers

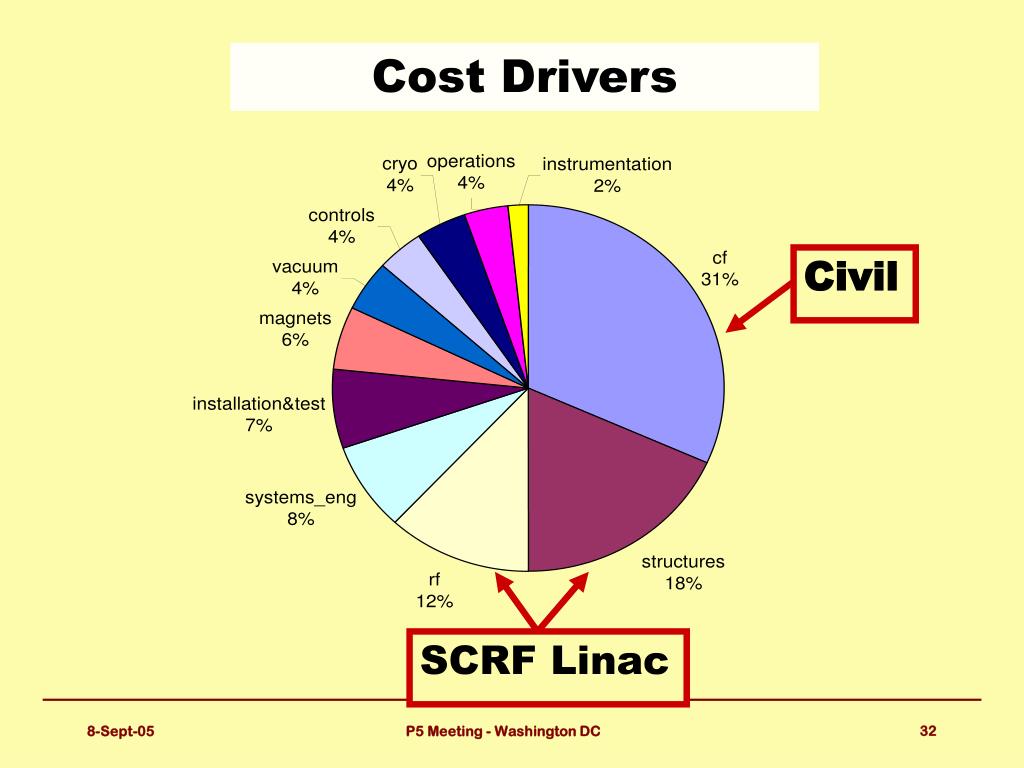

    Cost Drivers 2010

    Civil

    SCRF Linac

    P5 Meeting - Washington DC

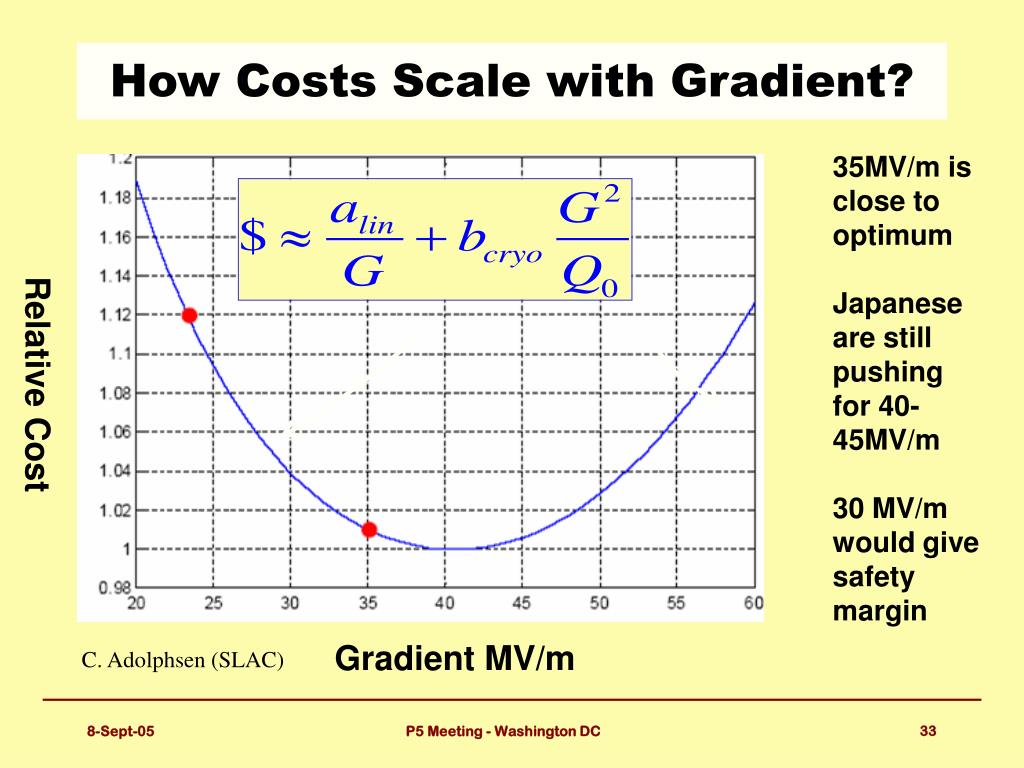

    How costs scale with gradient
    How Costs Scale with Gradient? 2010

    35MV/m is close to optimum

    Japanese are still pushing for 40-45MV/m

    30 MV/m would give safety margin

    Relative Cost

    Gradient MV/m

    C. Adolphsen (SLAC)

    P5 Meeting - Washington DC


    Cavity fabrication
    Cavity Fabrication 2010

    P5 Meeting - Washington DC

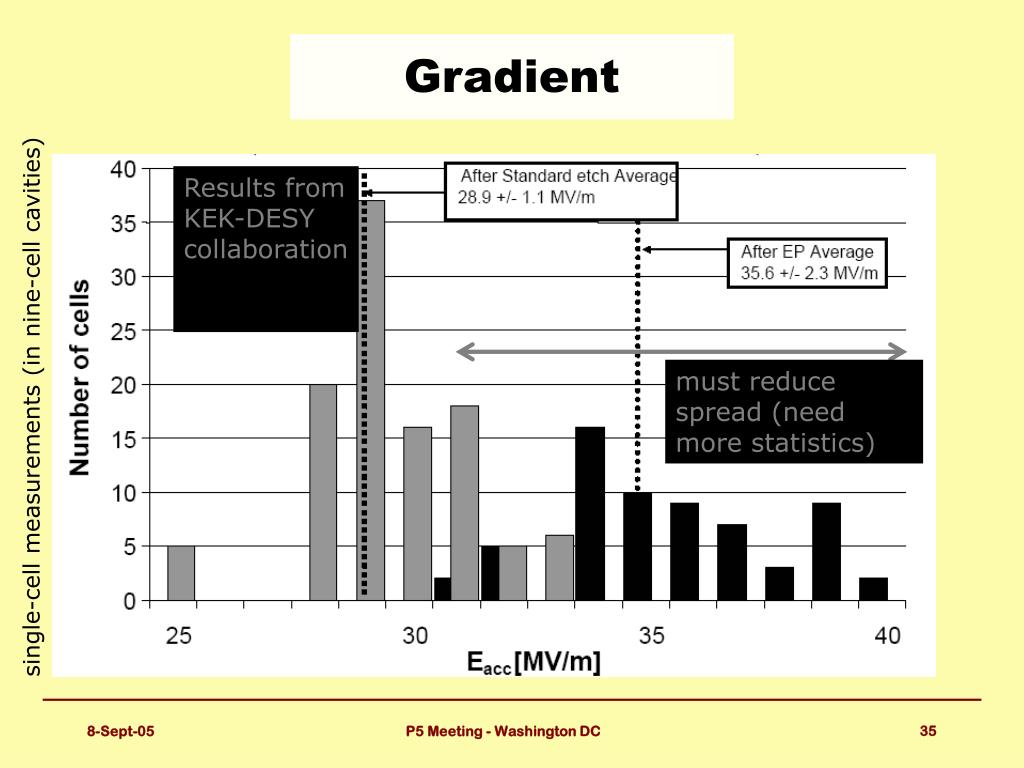

    Gradient
    Gradient 2010

    Results from KEK-DESY collaboration

    must reduce spread (need more statistics)

    single-cell measurements (in nine-cell cavities)

    P5 Meeting - Washington DC

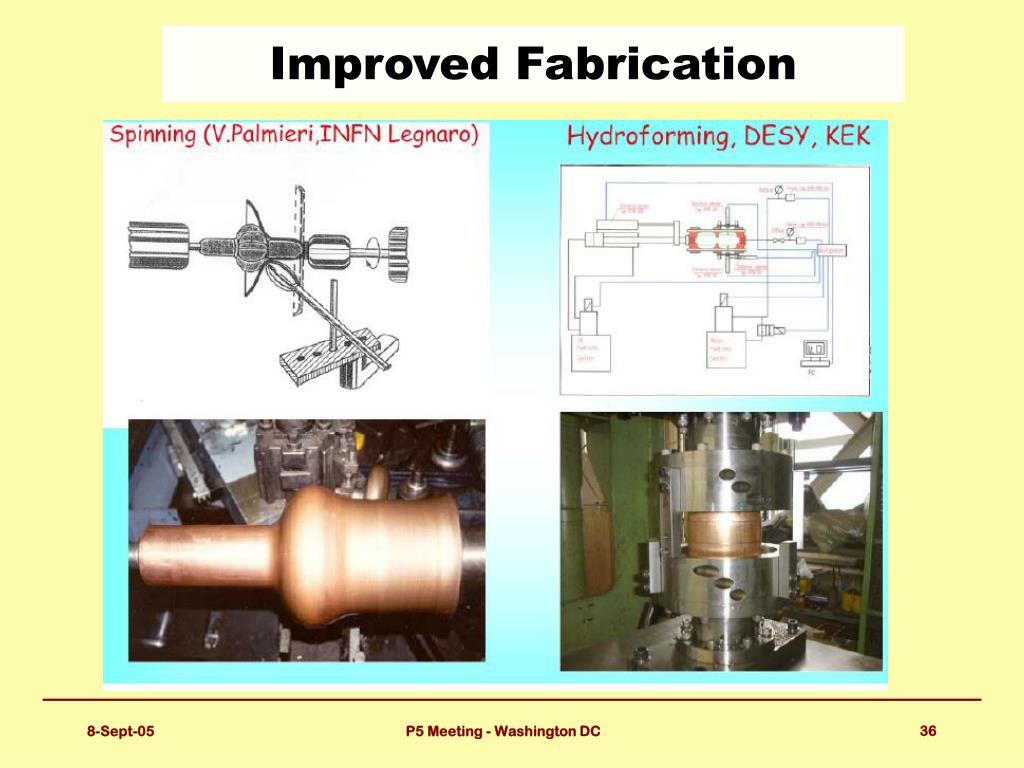

    Improved fabrication
    Improved Fabrication 2010

    P5 Meeting - Washington DC


    Improved processing electropolishing
    Improved Processing 2010Electropolishing

    P5 Meeting - Washington DC


    Improved cavity shapes

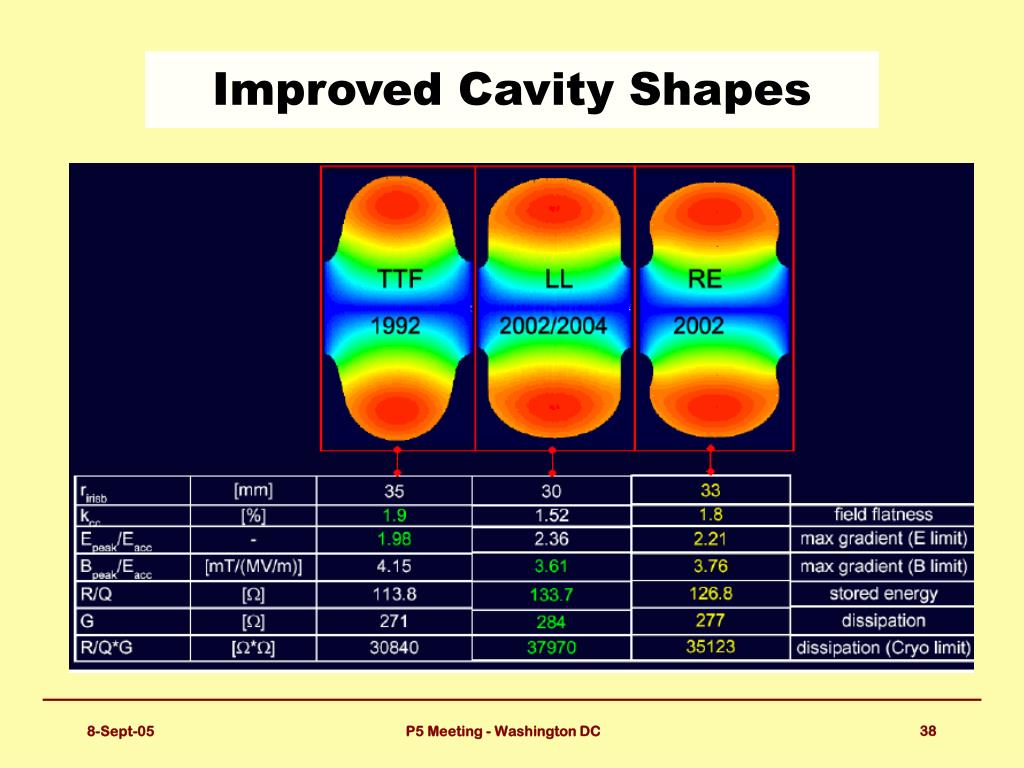

    Improved Cavity Shapes 2010

    P5 Meeting - Washington DC

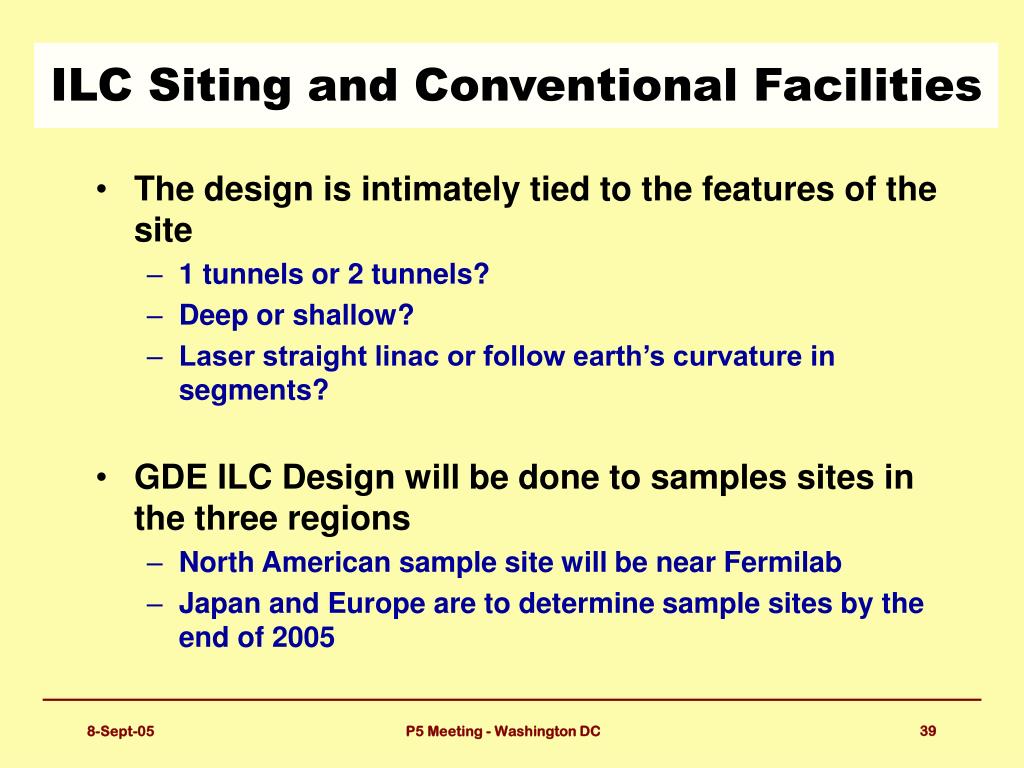

    Ilc siting and conventional facilities
    ILC Siting and Conventional Facilities 2010

    • The design is intimately tied to the features of the site

      • 1 tunnels or 2 tunnels?

      • Deep or shallow?

      • Laser straight linac or follow earth’s curvature in segments?

    • GDE ILC Design will be done to samples sites in the three regions

      • North American sample site will be near Fermilab

      • Japan and Europe are to determine sample sites by the end of 2005

    P5 Meeting - Washington DC


    1 vs 2 tunnels
    1 vs 2 Tunnels 2010

    • Tunnel must contain

      • Linac Cryomodule

      • RF system

      • Damping Ring Lines

    • Save maybe $0.5B

    • Issues

      • Maintenance

      • Safety

      • Duty Cycle

    P5 Meeting - Washington DC


    Possible tunnel configurations
    Possible Tunnel Configurations 2010

    • One tunnel of two, with variants ??

    P5 Meeting - Washington DC

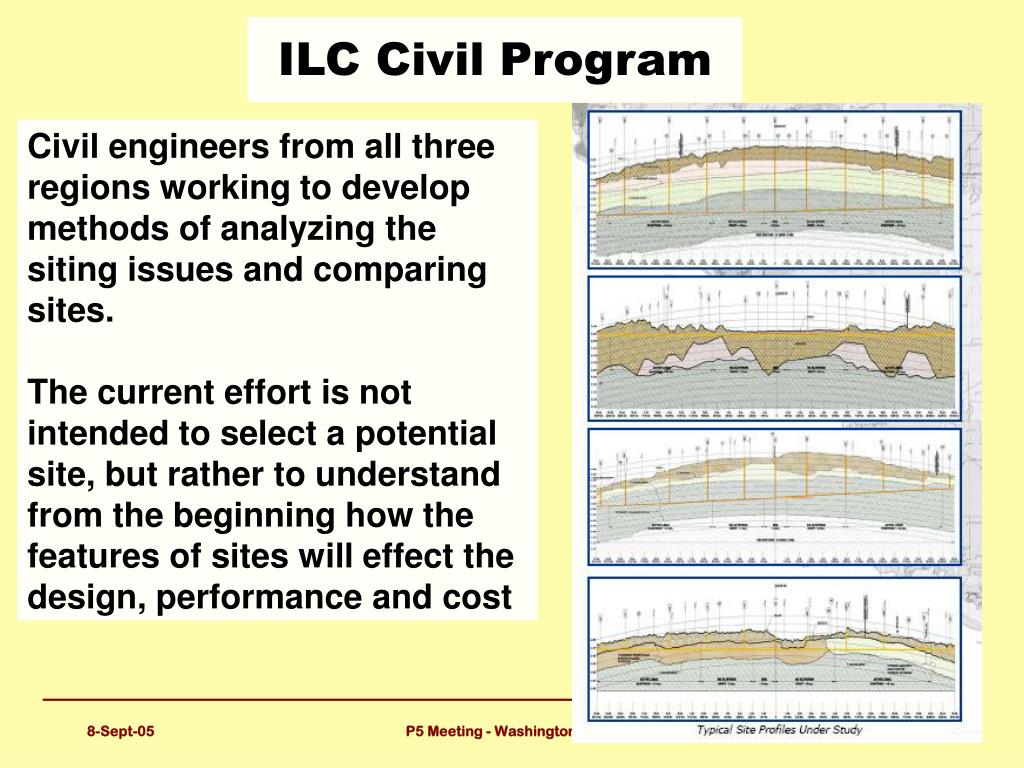

    Ilc civil program
    ILC Civil Program 2010

    Civil engineers from all three regions working to develop methods of analyzing the siting issues and comparing sites.

    The current effort is not intended to select a potential site, but rather to understand from the beginning how the features of sites will effect the design, performance and cost

    P5 Meeting - Washington DC


    Baseline klystrons

    Toshiba 2010

    Thales

    CPI

    Baseline Klystrons

    Available today: 10 MW Multi-Beam Klystrons (MBKs) that operate at up to 10 Hz

    P5 Meeting - Washington DC

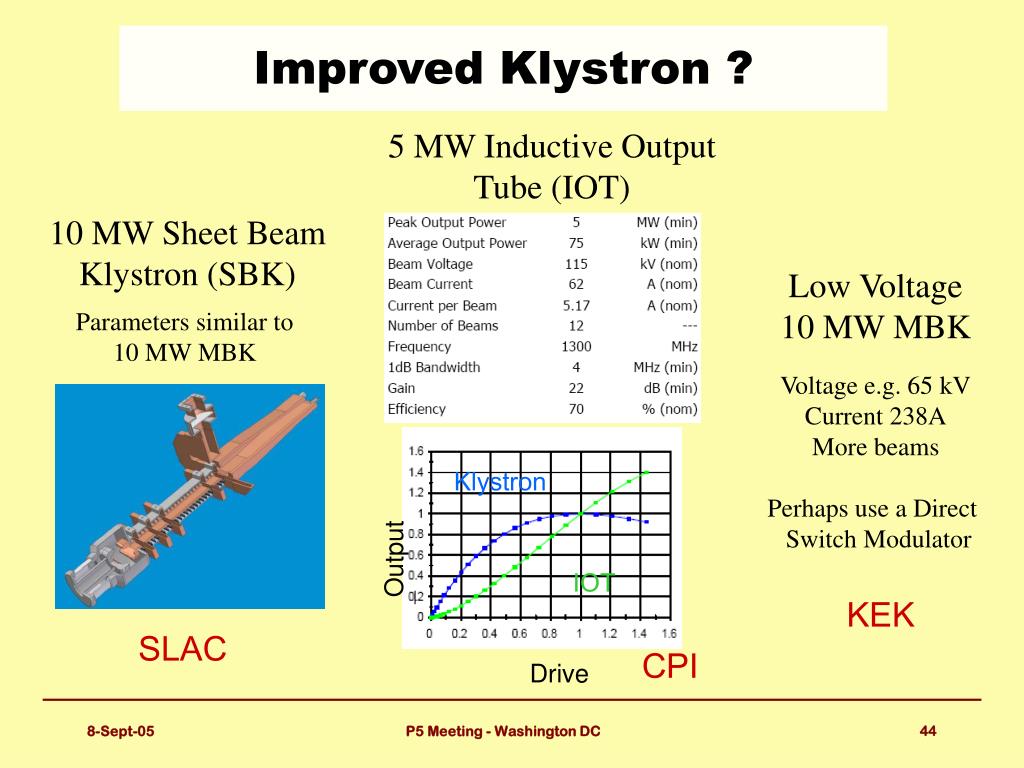

    Improved klystron
    Improved Klystron ? 2010

    5 MW Inductive Output

    Tube (IOT)

    10 MW Sheet Beam

    Klystron (SBK)

    Low Voltage

    10 MW MBK

    Parameters similar to

    10 MW MBK

    Voltage e.g. 65 kV

    Current 238A

    More beams

    Perhaps use a Direct

    Switch Modulator

    Klystron

    Output

    IOT

    KEK

    SLAC

    CPI

    Drive

    P5 Meeting - Washington DC


    Beamsize growth study cumulative after feedback
    Beamsize Growth Study 2010(cumulative after feedback)

    +

    Kicker, current,

    energy jitter,

    BPM resol.

    +

    5 Hz

    ground.

    +

    Component

    jitter

    +

    Undulator

    30 min

    ground.

    P5 Meeting - Washington DC


    Availability studies 1 vs 2 tunnels
    Availability Studies 20101 vs 2 tunnels

    P5 Meeting - Washington DC

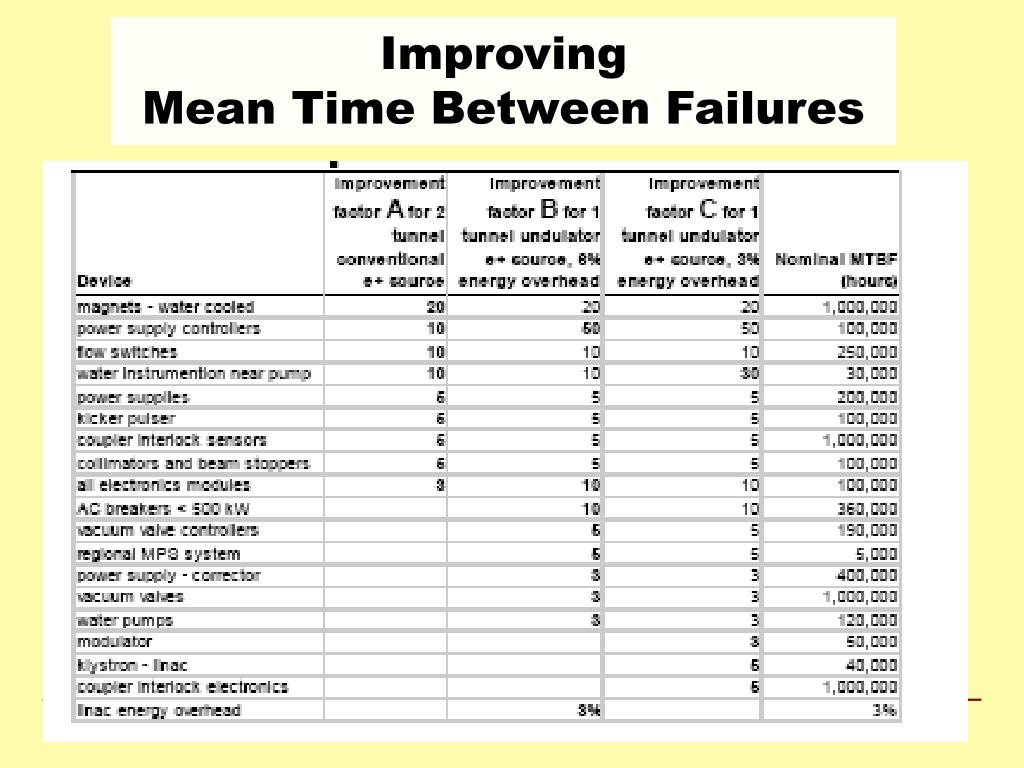

    Improving mean time between failures
    Improving 2010Mean Time Between Failures

    P5 Meeting - Washington DC

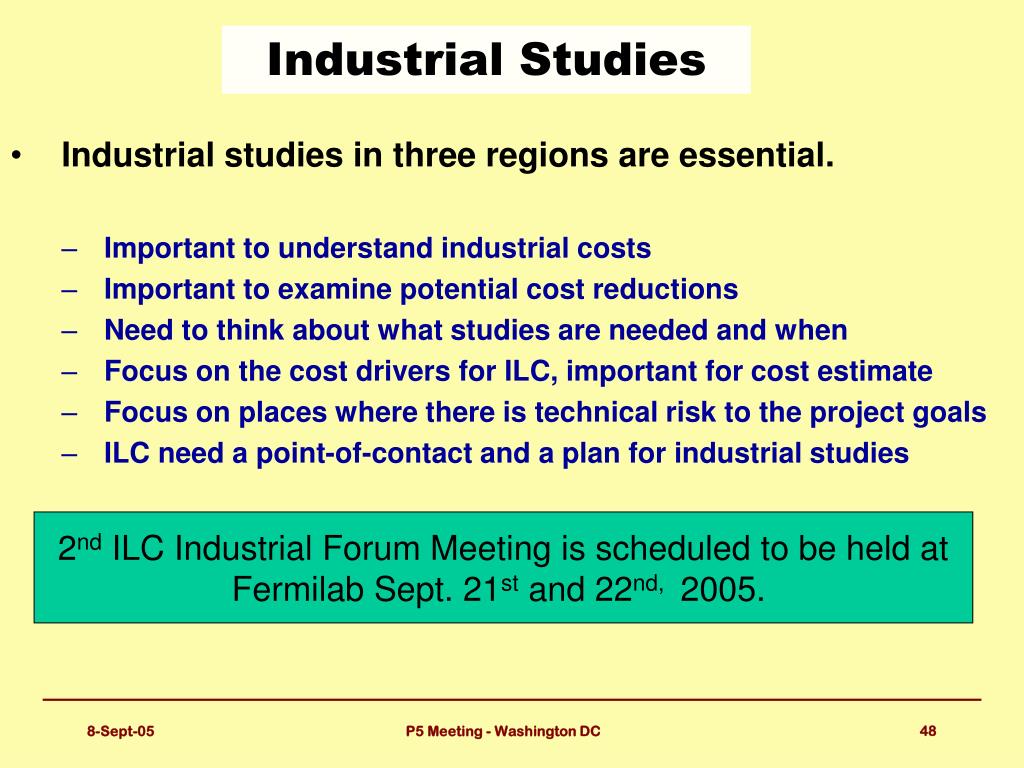

    Industrial studies
    Industrial Studies 2010

    • Industrial studies in three regions are essential.

      • Important to understand industrial costs

      • Important to examine potential cost reductions

      • Need to think about what studies are needed and when

      • Focus on the cost drivers for ILC, important for cost estimate

      • Focus on places where there is technical risk to the project goals

      • ILC need a point-of-contact and a plan for industrial studies

    2nd ILC Industrial Forum Meeting is scheduled to be held at

    Fermilab Sept. 21st and 22nd, 2005.

    P5 Meeting - Washington DC


    Outline6
    Outline 2010

    • Charge posed by Abe Seiden

      • Your plans for how to make progress on the LC design and R&D.

      • Budget requirements tied to the above, any milestones you feel comfortable presenting at this time.

      • Community response to the design challenge. Names of any individuals who plan to commit significant time to this effort.

      • Regional issues - division of effort.

      • Any comments you wish to make regarding outcome of Snowmass meeting.

      • Anything you feel we should know about.

    P5 Meeting - Washington DC


    Detector Concepts and Challenges 2010

    • Three concepts under study

    • Typically requires factors of two or so improvements in granularity, resolution, etc. from present generation detectors

    • Focused R&D program required to develop the detectors -- end of 2005

    • Detector Concepts will be used to determine machine detector interface, simulate performance of reference design vs physics goals next year.

    P5 Meeting - Washington DC


    ad
