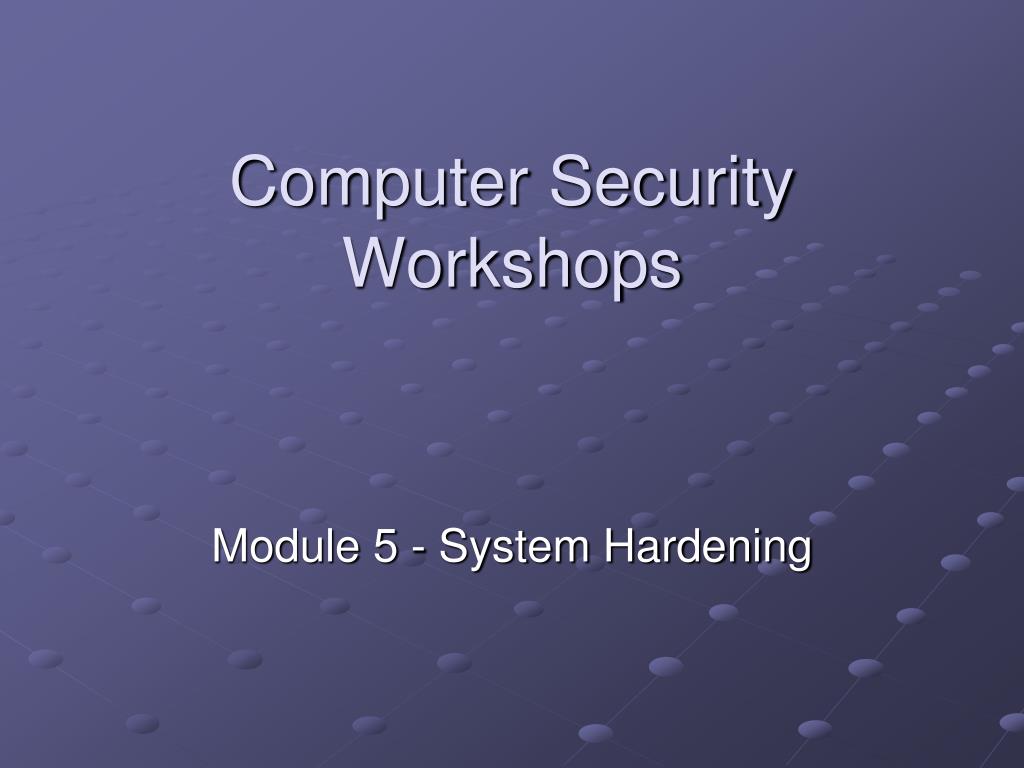

  1. Computer Security Workshops Module 5 - System Hardening

  2. System Hardening • How do we respond to problems? (E.g. operating system deadlock) • Detect • (Detect and) Terminate • Prevent • Security Analogy • Better to prevent than try to clean up

  3. System Hardening - Goals • Prevent intrusion on a particular system • Note: idea can (and should) be applied to network as well • Two main approaches • 1) Develop and ship in hardened state • 2) Harden after setup

  4. Security Certification Levels • Department of Defense, Trusted Computer System Evaluation Criteria (TCSEC) • Orange book – systems; Red book – networks • Levels • Class D (minimal protection) • Class C1 (discretionary security protection) • Class C2 (controlled access protection) • Class B1 (labeled security protection) • Class B2 (structured protection) • Class B3 (security domains) • Class A1 (verified design) • Now largely replaced by Common Criteria for Information Technology Security

  5. 1) Hardening Before Shipping • System architecture should be designed to prevent attacks/intrusion • Configured for high security as default • System programmed defensively • assume any user could be unfriendly • System is audited for security problems • System built to contain known problems • Examples – Operating System Level • OpenBSD ( http://www.openbsd.org ) • SELinux ( http://www.nsa.gov/selinux )

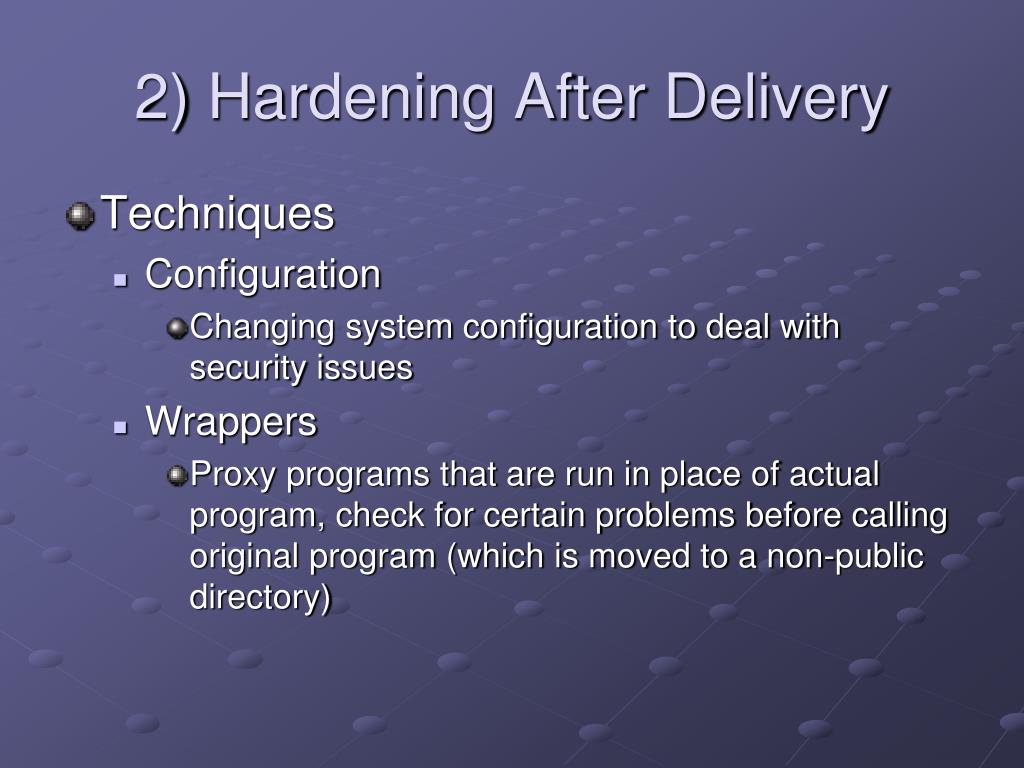

  6. 2) Hardening After Delivery • Techniques • Configuration • Changing system configuration to deal with security issues • Wrappers • Proxy programs that are run in place of actual program, check for certain problems before calling original program (which is moved to a non-public directory)

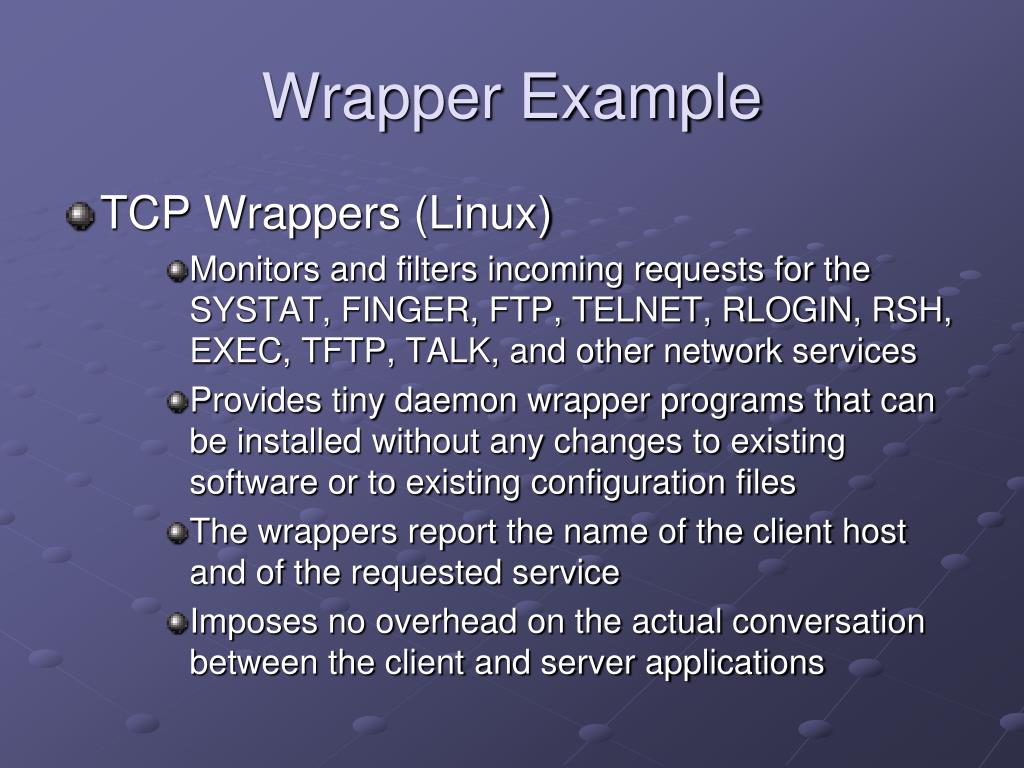

  7. Wrapper Example • TCP Wrappers (Linux) • Monitors and filters incoming requests for the SYSTAT, FINGER, FTP, TELNET, RLOGIN, RSH, EXEC, TFTP, TALK, and other network services • Provides tiny daemon wrapper programs that can be installed without any changes to existing software or to existing configuration files • The wrappers report the name of the client host and of the requested service • Imposes no overhead on the actual conversation between the client and server applications

  8. System Hardening Tools - Linux • Example: bastille • http://www.bastille-linux.org • Script to help automate security changes in a number of areas (file transfer, mail, general configuration) • Certain actions still have to be done manually • Be careful not to turn off needed services accidentally • E.g. Don’t disallow root access at console unless you have other accounts you can use to gain superuser status • There is a RevertBastille application…

  9. System Hardening Tools (Windows) • Microsoft Baseline Security Analyzer • More accurately a vulnerability analysis tool • But notes contain links or information are very useful in system hardening • Start/Programs/Microsoft Baseline Security Analyzer 2.1

  10. Port/Service Closure - Linux • GUI Interface Utilities • Ubuntu: System / Administration / Services • Need to unlock, provide password • Remove services through checkboxes • Manually • Main script directory: /etc/init.d • Directory hierarchy for different run levels: /etc/rcX.d (X = 0 through 6)

  11. Port/Service Closure - Windows • Add and remove services • Start/Programs/Administrative Tools/Services • See processes currently running • Task Manager (ctrl-alt-del), Processes tab
