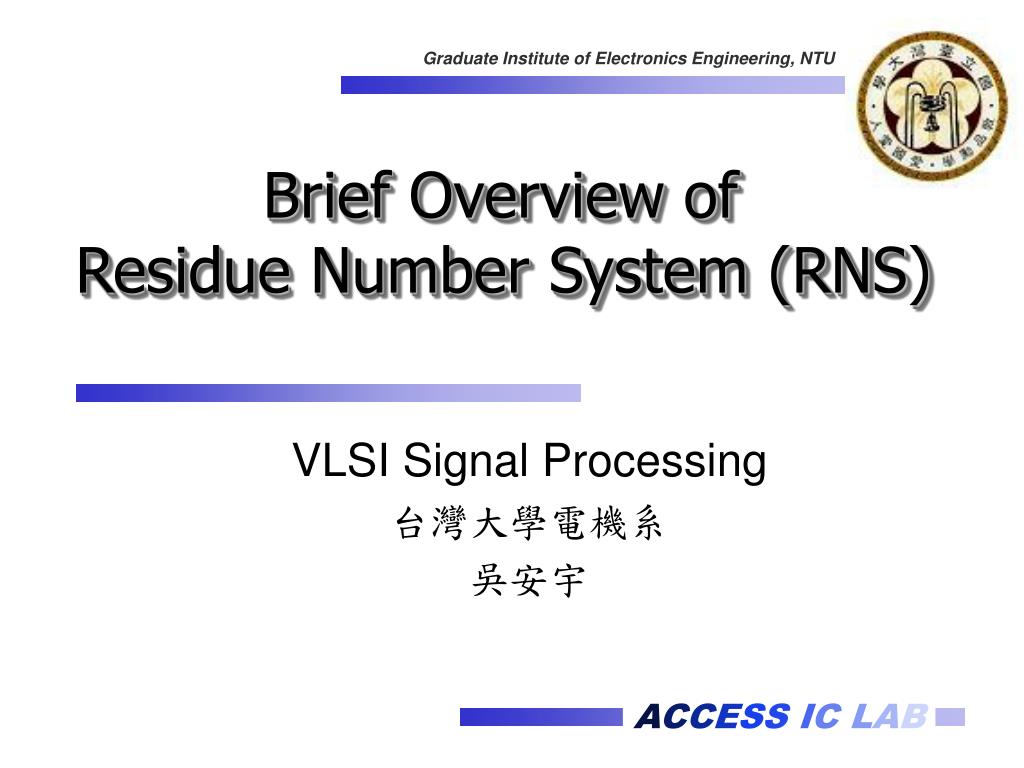

Brief Overview ofResidue Number System (RNS)

VLSI Signal Processing

台灣大學電機系

吳安宇

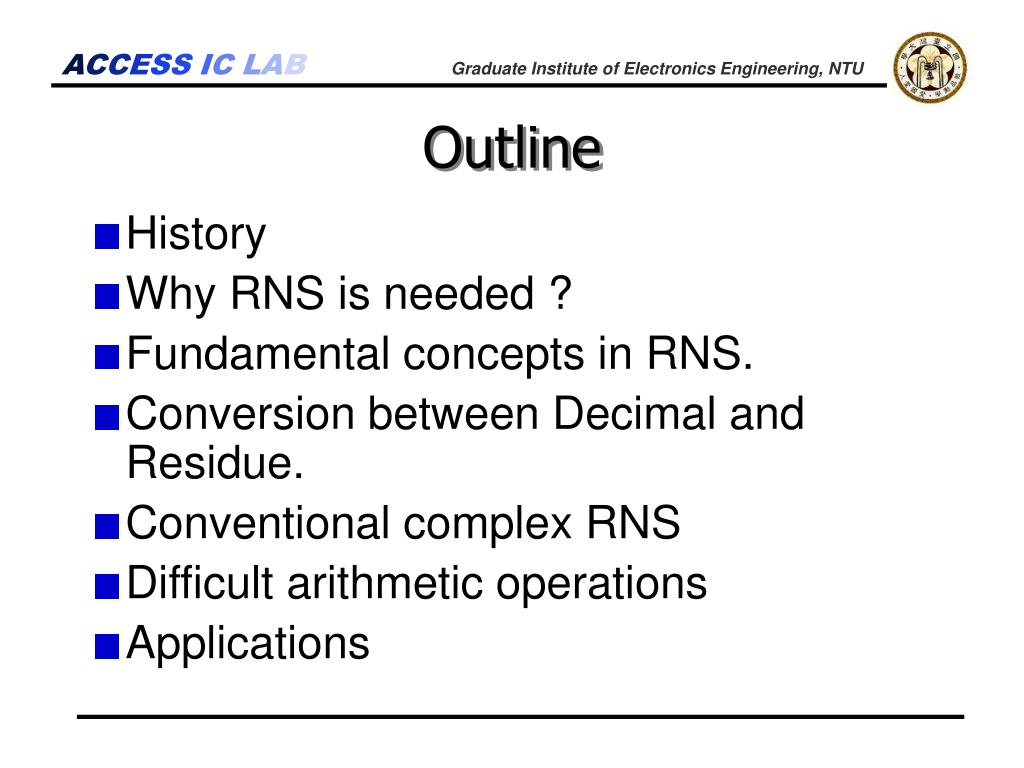

Outline

Outline

  • History

  • Why RNS is needed ?

  • Fundamental concepts in RNS.

  • Conversion between Decimal and Residue.

  • Conventional complex RNS

  • Difficult arithmetic operations

  • Applications


History

History

  • The ancient study of the residue numbering system begins with a verse from a third-centry book, Suan-Ching, by Sun Tzu.

We have things of which we do not know the number,

If we count them by three, the remainder is 2,

If we count them by fives, the remainder is 3,

If we count them by sevens, the remainder is 2,

How many things are there?


History1

History

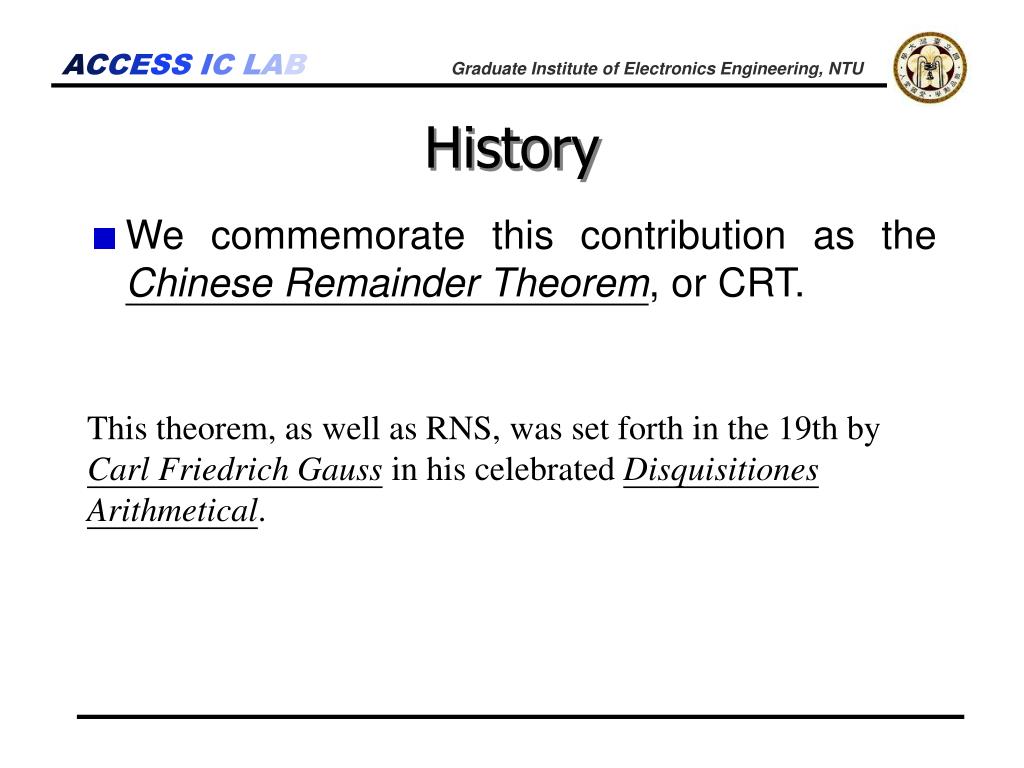

  • We commemorate this contribution as the Chinese Remainder Theorem, or CRT.

This theorem, as well as RNS, was set forth in the 19th by Carl Friedrich Gauss in his celebrated Disquisitiones Arithmetical.


Why rns

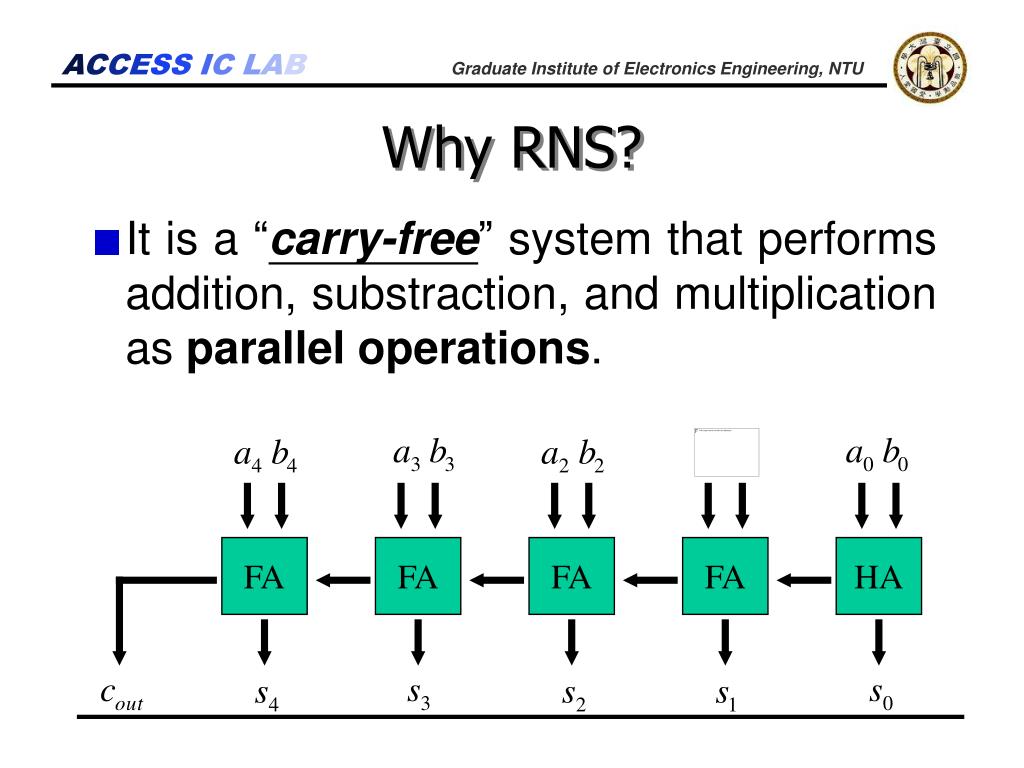

Why RNS?

  • It is a “carry-free” system that performs addition, substraction, and multiplication as parallel operations.

FA

FA

FA

FA

HA


Definition

Definition

  • The RNS is defined in terms of a set of relatively prime moduli.

  • If P denotes the moduli set, then

The dynamic range M is


Definition1

Definition

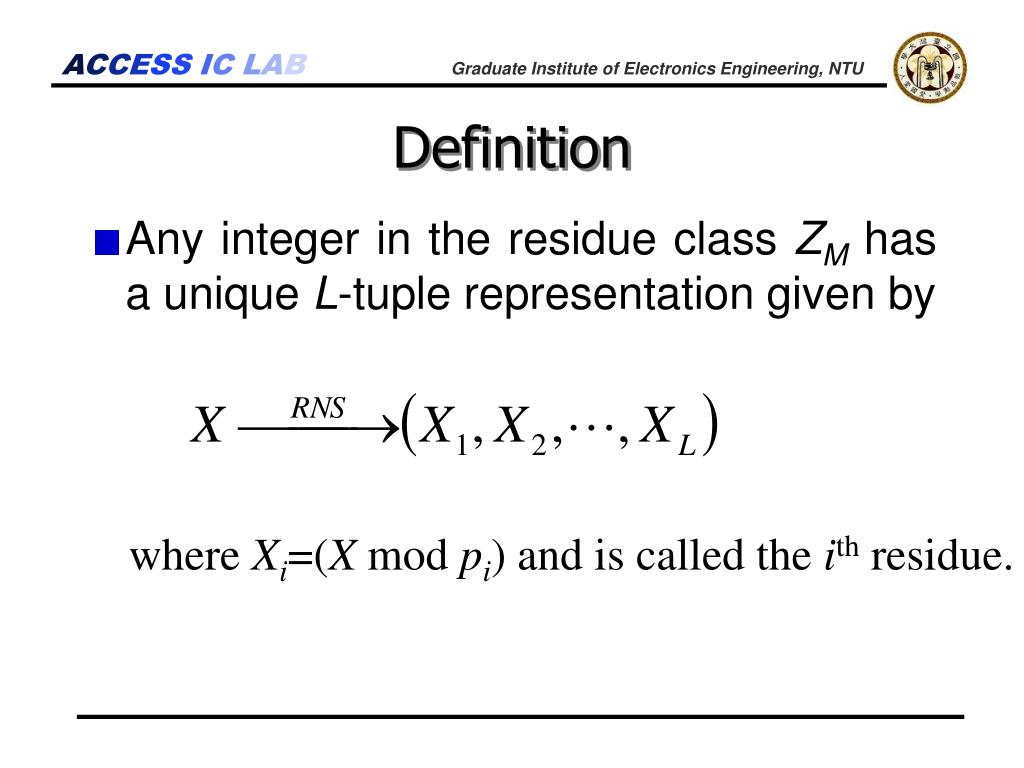

  • Any integer in the residue class ZM has a unique L-tuple representation given by

where Xi=(X mod pi) and is called the ith residue.

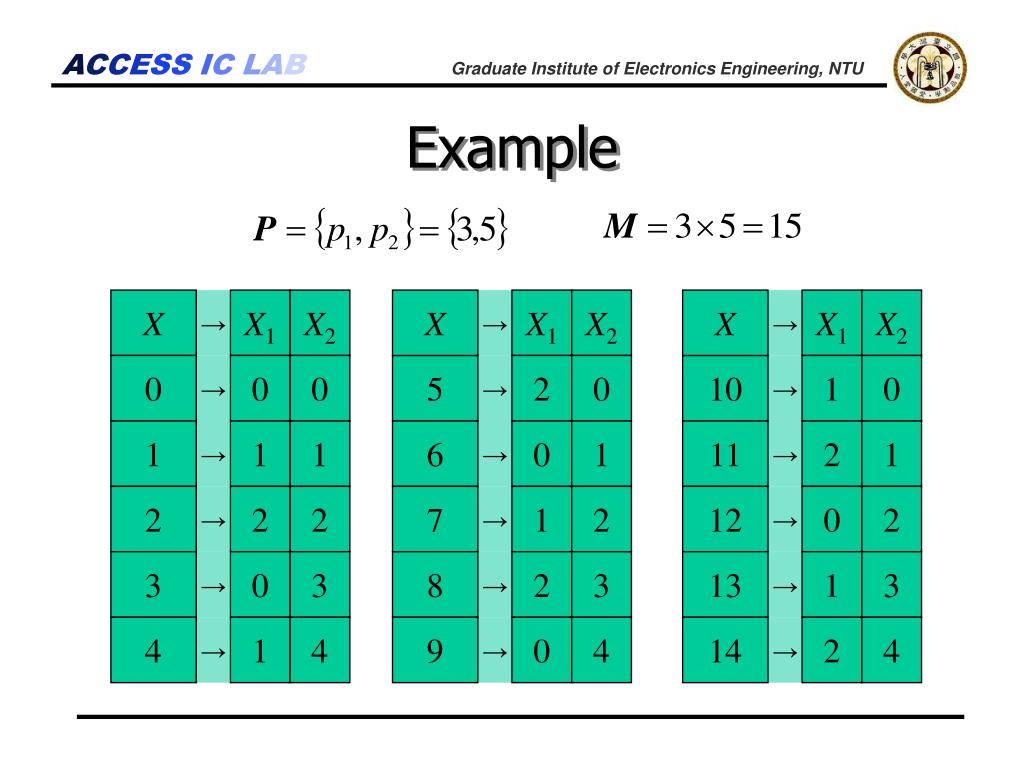

Example

X

X1

X2

X

X1

X2

X

X1

X2

0

0

0

5

2

0

10

1

0

1

1

1

6

0

1

11

2

1

2

2

2

7

1

2

12

0

2

3

0

3

8

2

3

13

1

3

4

1

4

9

0

4

14

2

4

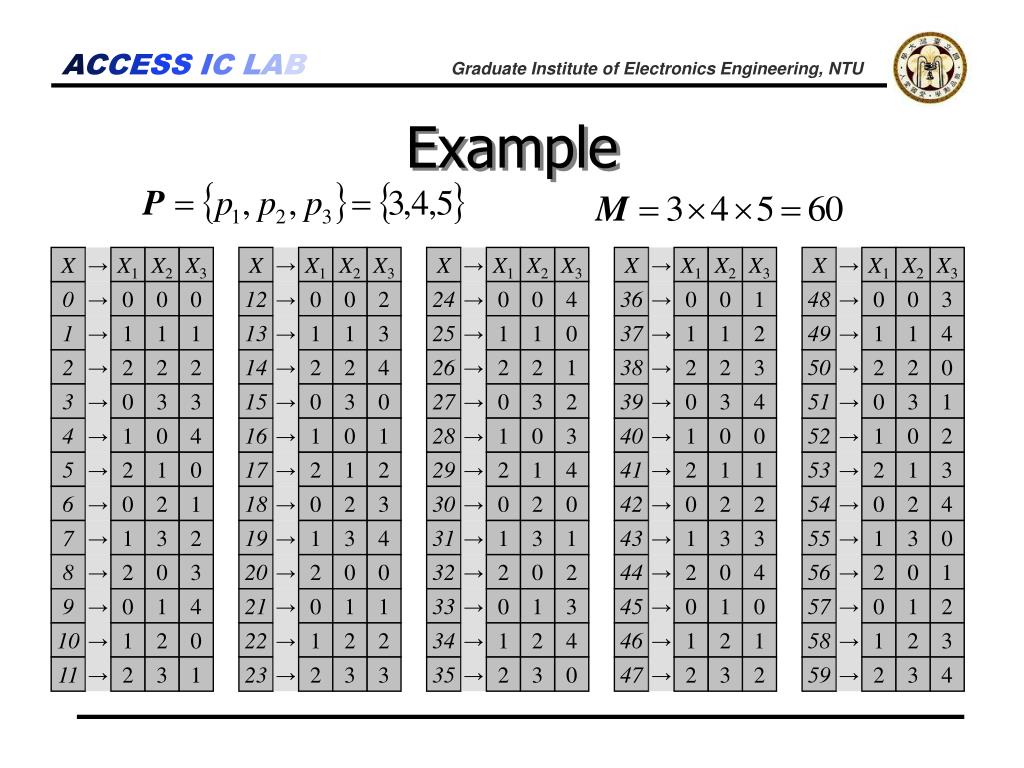

Example


Example1

X

X

X

X

X

X1

X1

X1

X1

X1

X2

X2

X2

X2

X2

X3

X3

X3

X3

X3

12

24

0

48

36

0

0

0

0

0

0

0

0

0

0

2

4

0

1

3

13

49

25

37

1

1

1

1

1

1

1

1

1

1

1

3

0

1

2

4

26

50

2

38

14

2

2

2

2

2

2

2

2

2

2

4

1

0

2

3

39

27

3

15

51

0

0

0

0

0

3

3

3

3

3

4

1

2

0

3

40

52

4

28

16

1

1

1

1

1

0

0

0

0

0

3

4

2

1

0

17

41

53

5

29

2

2

2

2

2

1

1

1

1

1

1

0

4

3

2

6

54

42

30

18

0

0

0

0

0

2

2

2

2

2

4

2

1

3

0

19

7

55

31

43

1

1

1

1

1

3

3

3

3

3

4

0

3

2

1

44

32

56

8

20

2

2

2

2

2

0

0

0

0

0

0

2

1

3

4

21

33

45

57

9

0

0

0

0

0

1

1

1

1

1

3

1

0

2

4

10

46

58

22

34

1

1

1

1

1

2

2

2

2

2

2

3

1

0

4

35

59

47

11

23

2

2

2

2

2

3

3

3

3

3

0

4

2

3

1

Example


Sign representation

X

X1

X2

X

X1

X2

X

X1

X2

-6

0

2

-2

1

2

2

2

2

-5

1

3

-1

2

3

3

0

3

-4

2

0

0

0

0

4

1

0

-3

0

1

1

1

1

5

2

1

Sign Representation

  • For signed RNS, any integer in (-M/2, M/2], has a unique RNS L-tuple representation where xi=(X mod pi) if X>0, and (M-|X|) mod pi otherwise.


Operation

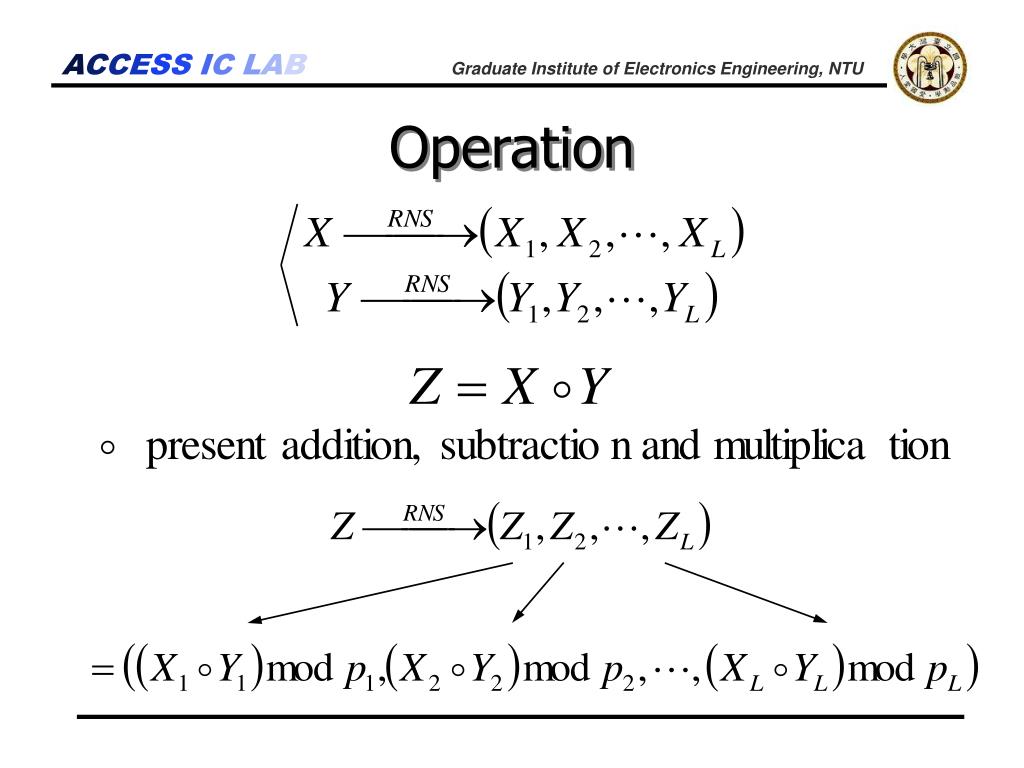

Operation


Operation example

7(1, 3, 2 )

7(1, 3, 2 )

7(1, 3, 2 )

+3(0, 3, 3 )

- 3(0, 3, 3 )

*3(0, 3, 3 )

10(1 mod 3, 6 mod 4, 5 mod 5) = (1,2,0)

4(1 mod 3, 0 mod 4, -1 mod 5) = (1,0,4)

21(0 mod 3, 9 mod 4, 6 mod 5) = (0,1,1)

Operation (Example)


Conversion

Conversion

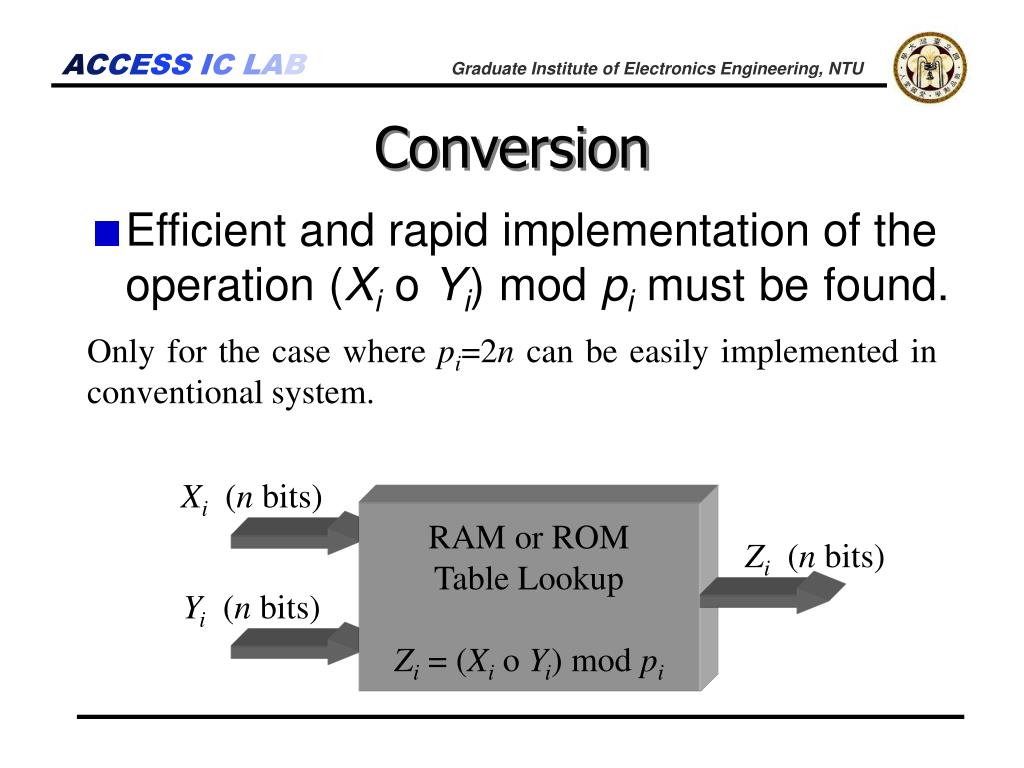

  • Efficient and rapid implementation of the operation (Xi o Yi) mod pi must be found.

Only for the case where pi=2n can be easily implemented in conventional system.

Xi (n bits)

RAM or ROM

Table Lookup

Zi = (Xi o Yi) mod pi

Zi (n bits)

Yi (n bits)


Decimal to residue conversion

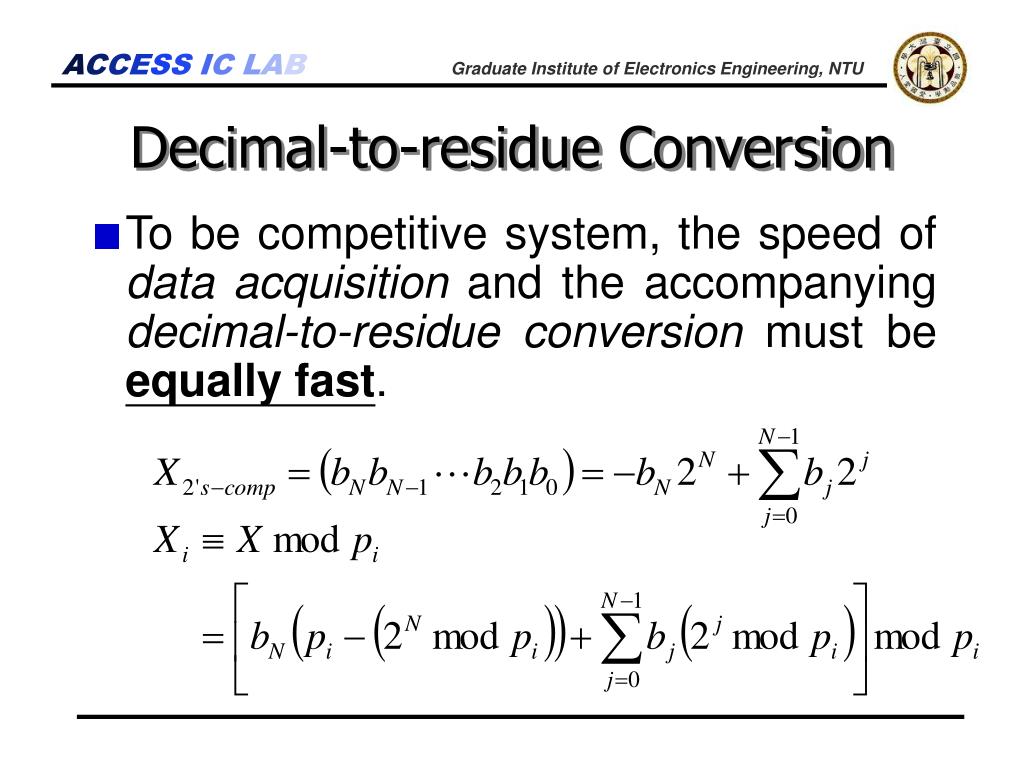

Decimal-to-residue Conversion

  • To be competitive system, the speed of data acquisition and the accompanying decimal-to-residue conversion must be equally fast.


Decimal to residue conversion1

pi-(25mod pi)

2j mod pi

j=4

j=3

j=2

j=1

j=0

i=1

3

i=1

1

3

4

2

1

i=2

3

i=2

2

1

4

2

1

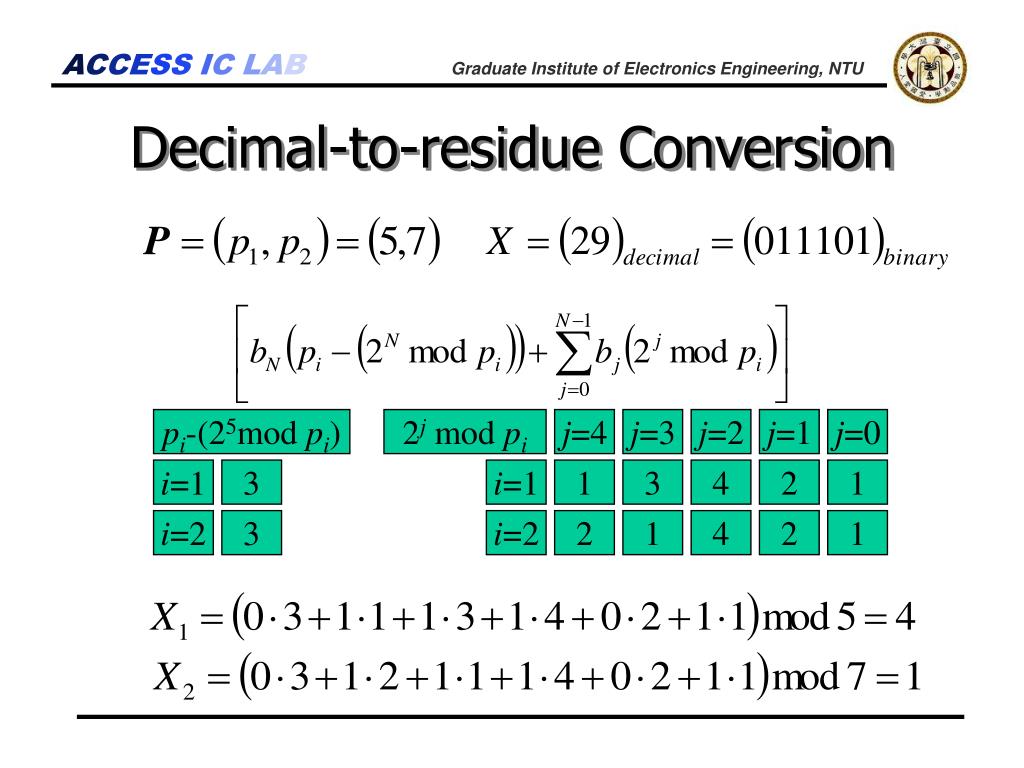

Decimal-to-residue Conversion


Residue to decimal conversion

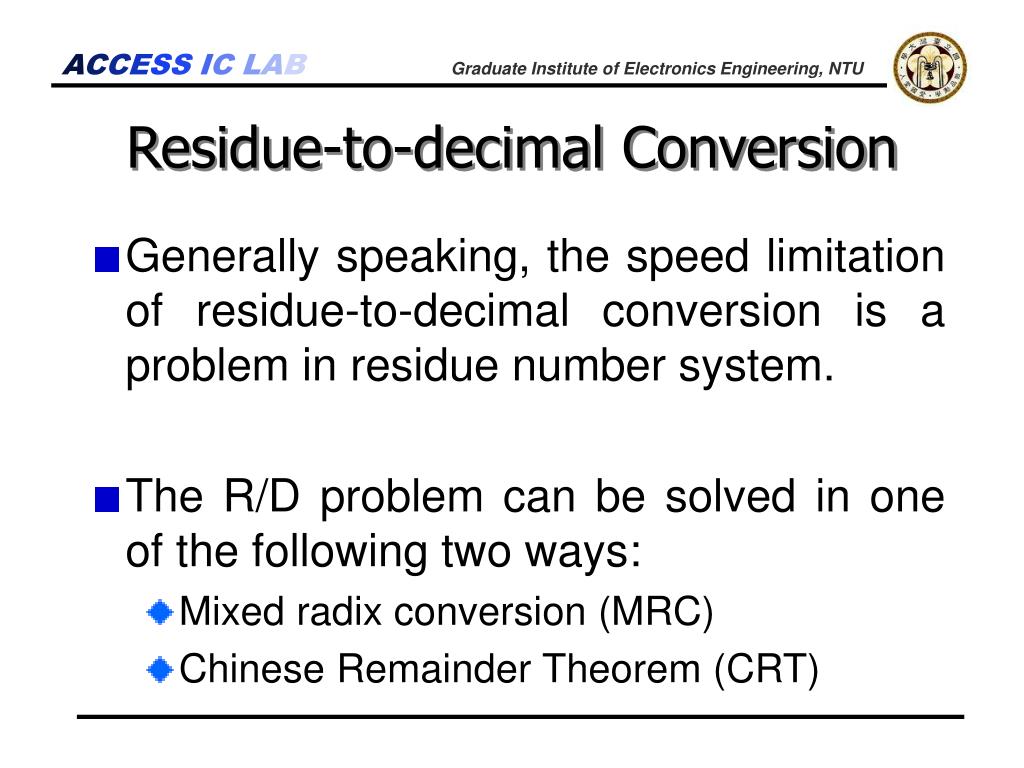

Residue-to-decimal Conversion

  • Generally speaking, the speed limitation of residue-to-decimal conversion is a problem in residue number system.

  • The R/D problem can be solved in one of the following two ways:

    • Mixed radix conversion (MRC)

    • Chinese Remainder Theorem (CRT)


Multiplicative inverse

Pi=5

g

0

1

2

3

4

gi-1

1

3

2

4

Pi=6

g

0

1

2

3

4

5

Example:

gi-1

1

5

Pi=7

g

0

1

2

3

4

5

6

gi-1

1

4

5

2

3

6

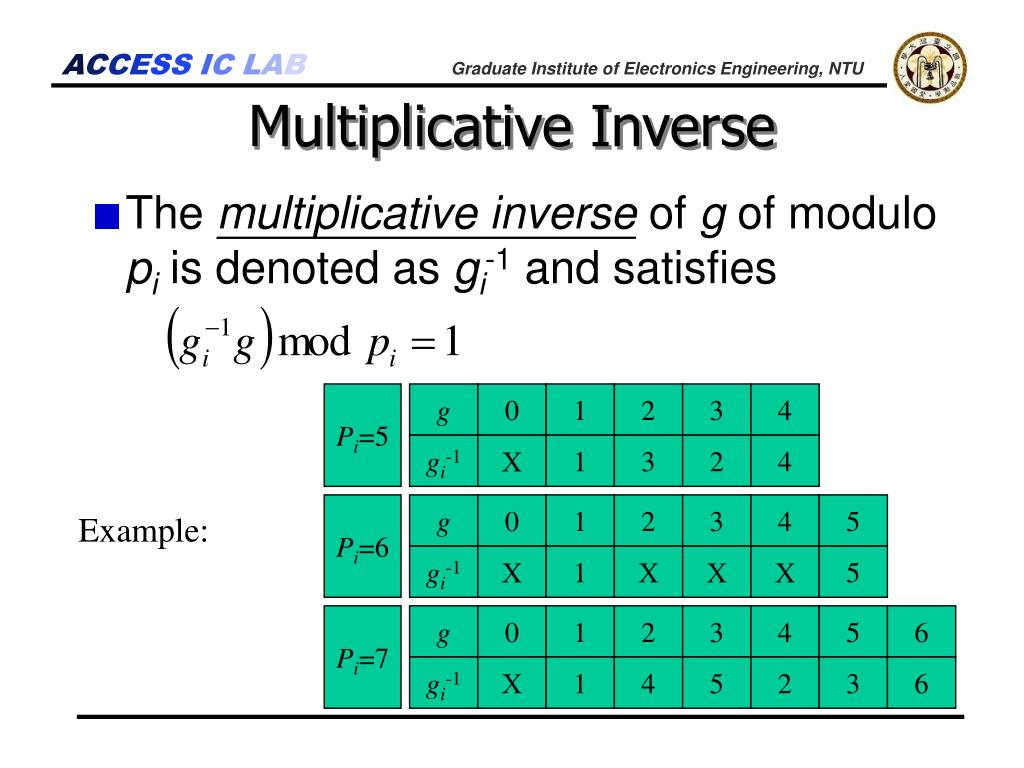

Multiplicative Inverse

  • The multiplicative inverse of g of modulo pi is denoted as gi-1 and satisfies

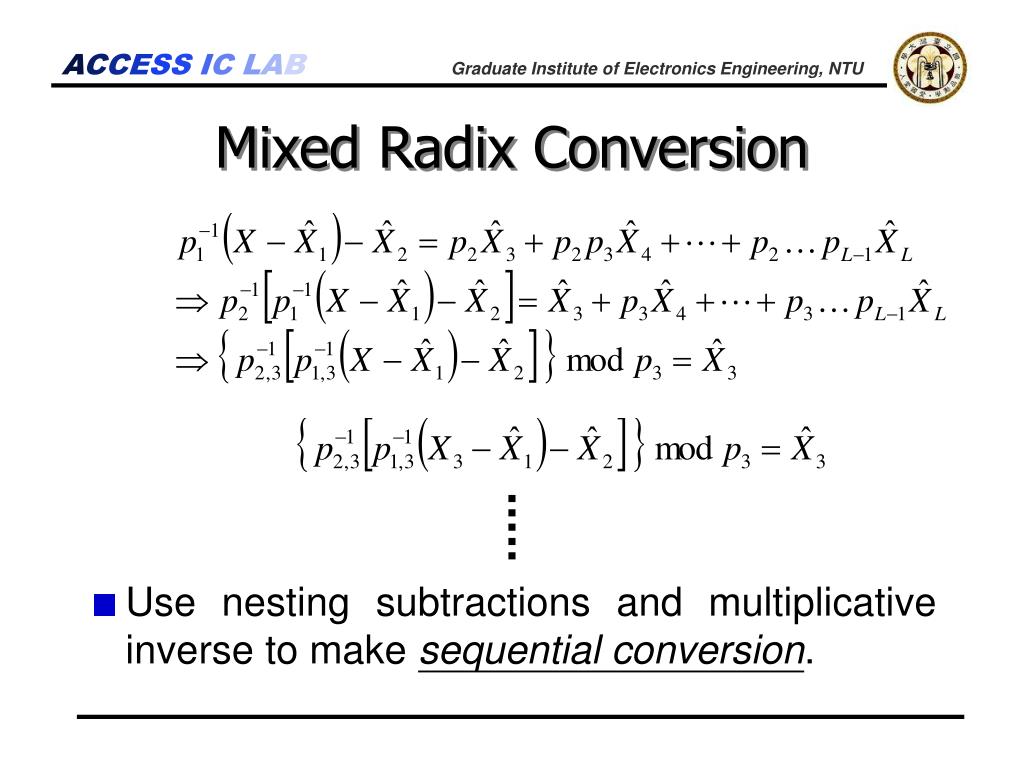

Mixed radix conversion

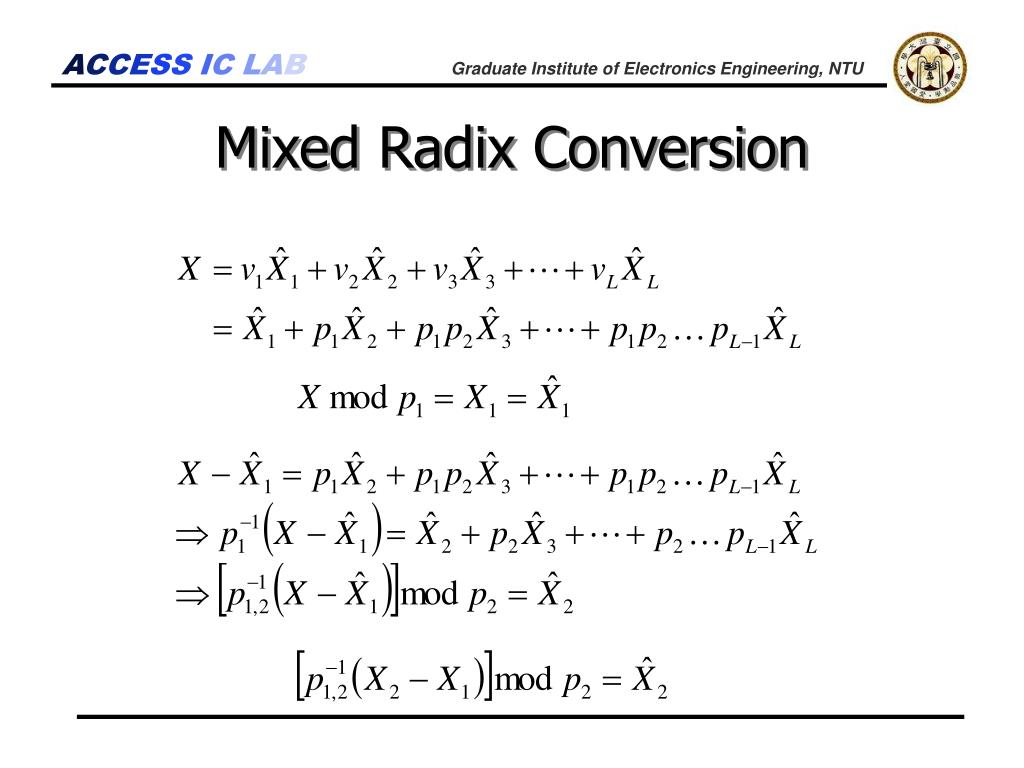

Mixed Radix Conversion

RNS

  • The MRC representation is given by

MRC

where v1=1, v2=p1, v3=p1p2, v4=p1p2p3, …


Mixed radix conversion1

Mixed Radix Conversion


Mixed radix conversion2

Mixed Radix Conversion

  • Use nesting subtractions and multiplicative inverse to make sequential conversion.


Brief overview of residue number system rns

Block Diagram of MRC

p12-1

M

p13-1

M

p23-1

M

p1L-1

M

p2L-1

M

pL-1,L-1

M


Brief overview of residue number system rns

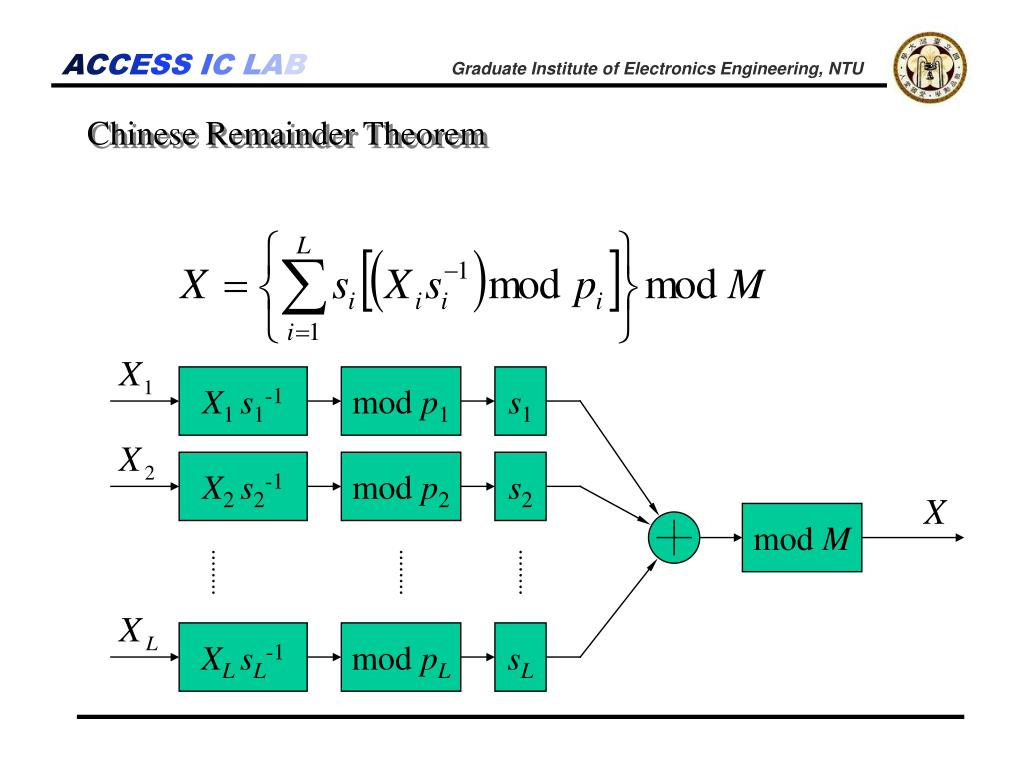

Chinese Remainder Theorem

where si=M/pi and si-1 is the multiplicative

inverse of si mod pi, so that


Brief overview of residue number system rns

Chinese Remainder Theorem

X1s1-1

mod p1

s1

X2s2-1

mod p2

s2

mod M

XL sL-1

mod pL

sL


Brief overview of residue number system rns

Chinese Remainder Theorem

1*2

mod 3

20

0*3

mod 4

15

mod 60

4*3

mod 5

12


Brief overview of residue number system rns

Conventional Complex RNS

A complex number Z is defined to be


Brief overview of residue number system rns

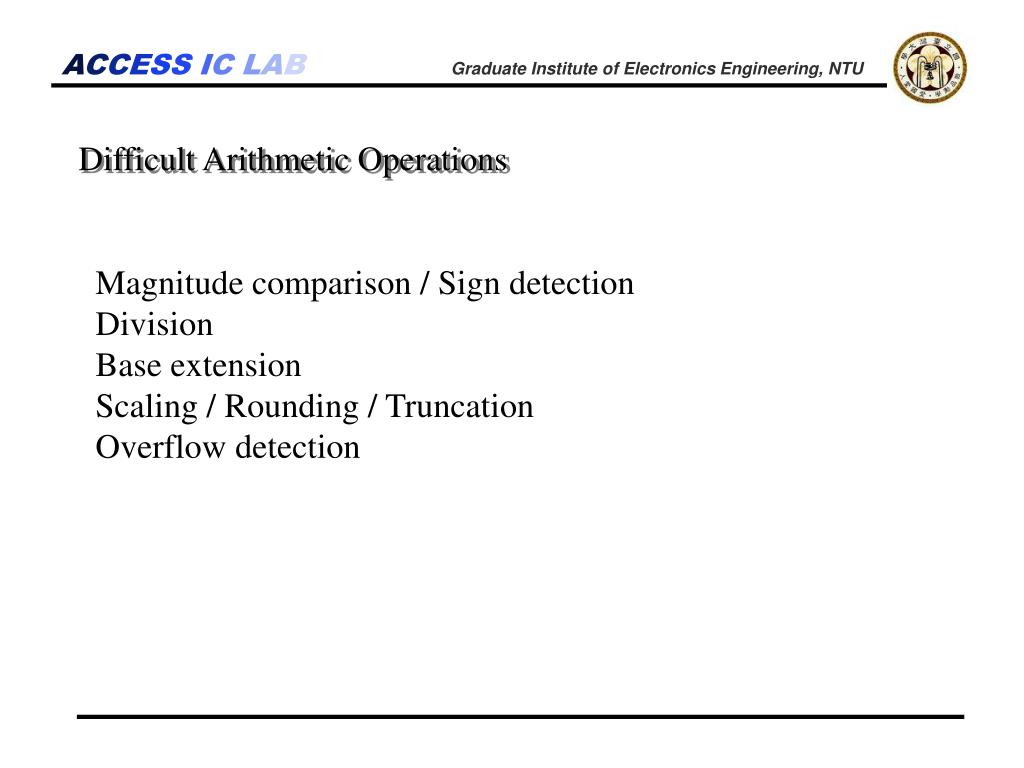

Difficult Arithmetic Operations

Magnitude comparison / Sign detection

Division

Base extension

Scaling / Rounding / Truncation

Overflow detection

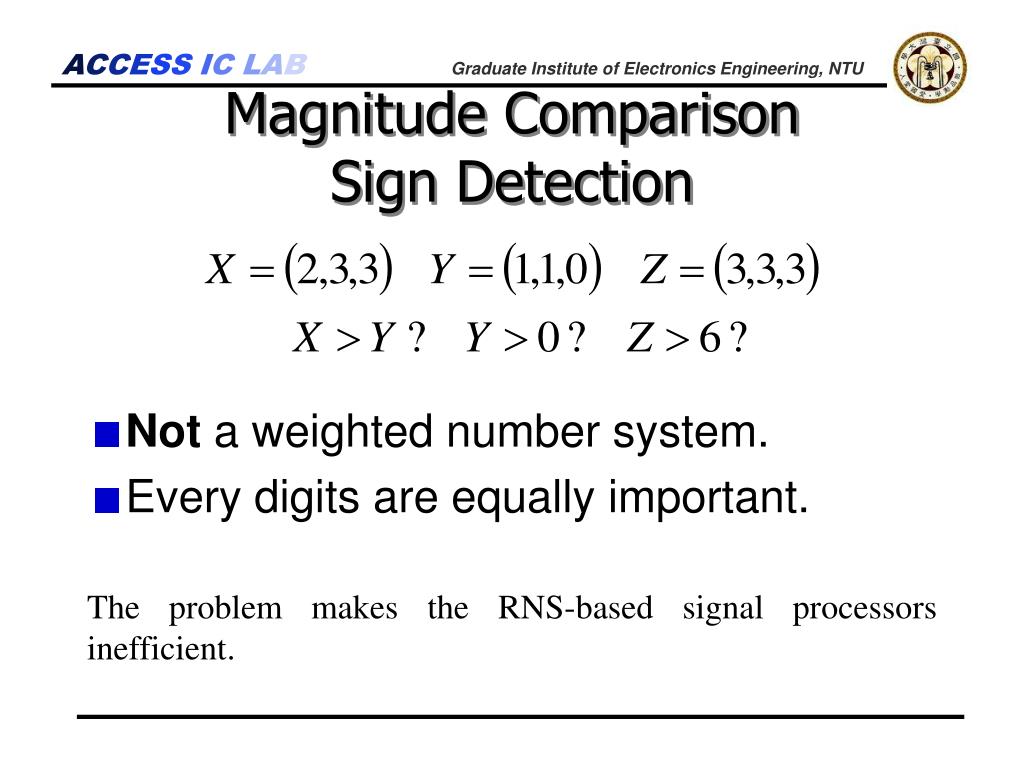

Magnitude comparison sign detection

Magnitude ComparisonSign Detection

  • Not a weighted number system.

  • Every digits are equally important.

The problem makes the RNS-based signal processors inefficient.


Division

Division

  • Blend of nested subtractions and magnitude comparisons, so it is more difficult in the RNS.

RNS is not closed under division, since the RNS is an integer system, it is.

Slow, high-overhead operation and should be avoided in RNS.

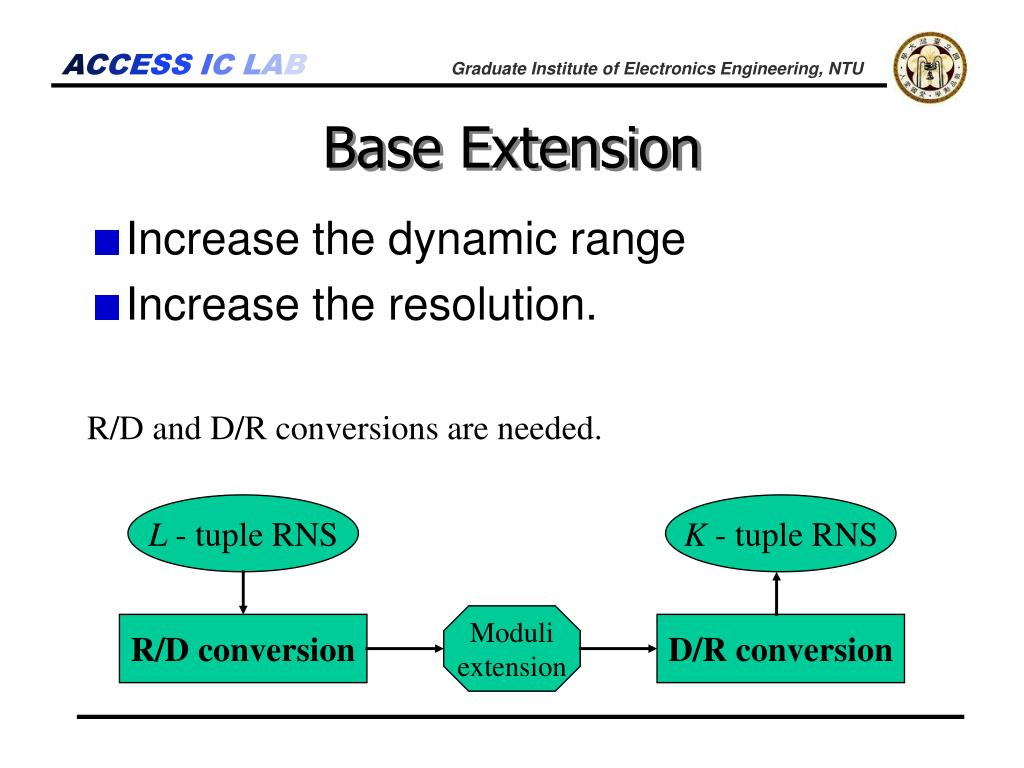

Base extension

L - tuple RNS

K - tuple RNS

Moduli

extension

R/D conversion

D/R conversion

Base Extension

  • Increase the dynamic range

  • Increase the resolution.

R/D and D/R conversions are needed.


Scaling rounding truncation

Scaling / Rounding / Truncation

  • Prevent dynamic-range overflow.

  • A special form of division.

  • The scaling operation is easily to implement when scaling factor is:

    • power of two (2n) in 2’complement.

    • product of one or more of the moduli in RNS.


Overflow detection

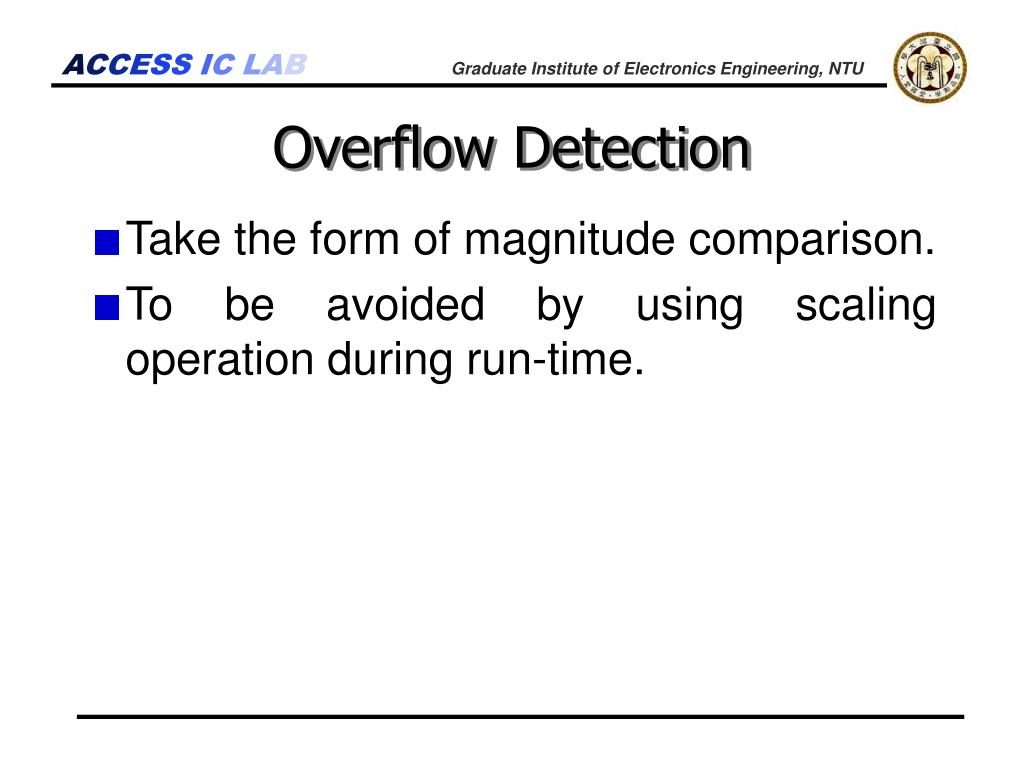

Overflow Detection

  • Take the form of magnitude comparison.

  • To be avoided by using scaling operation during run-time.

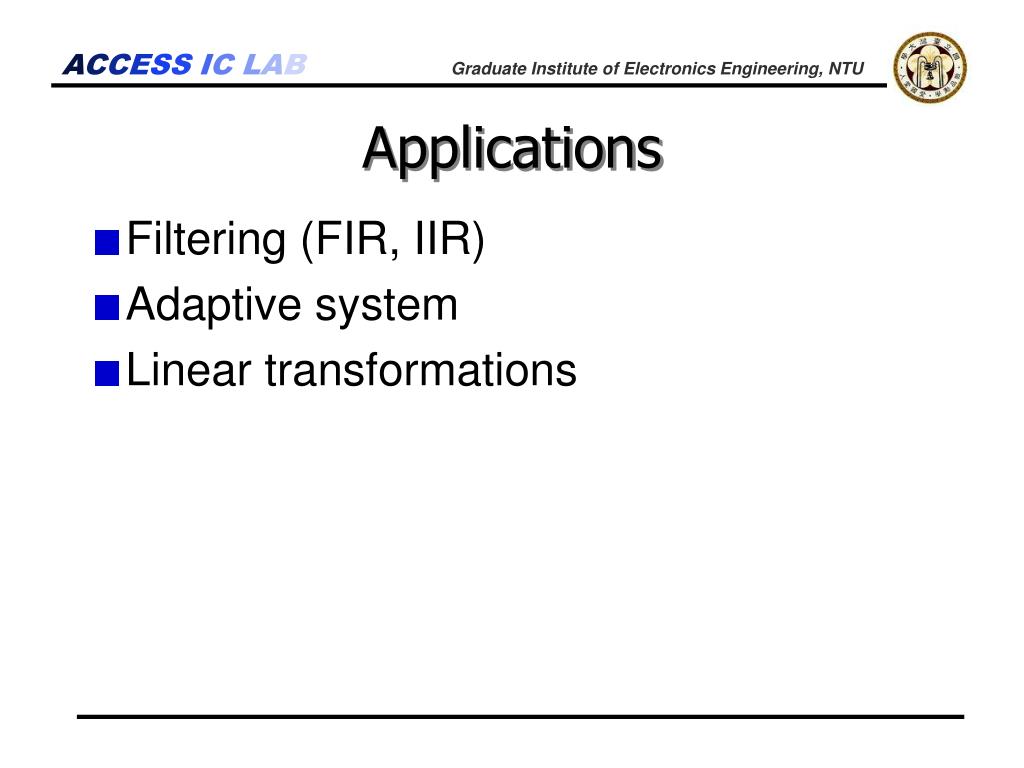

Applications

Applications

  • Filtering (FIR, IIR)

  • Adaptive system

  • Linear transformations
