Presentation Transcript

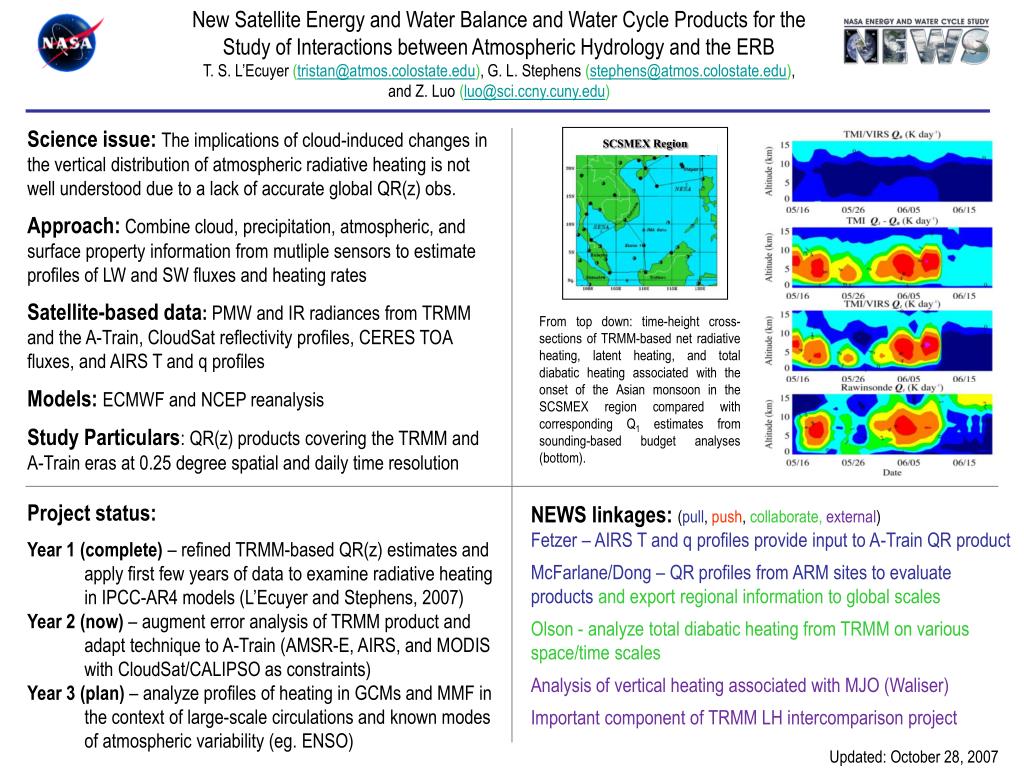

slide1

New Satellite Energy and Water Balance and Water Cycle Products for the Study of Interactions between Atmospheric Hydrology and the ERB

T. S. L’Ecuyer ([email protected]), G. L. Stephens ([email protected]),

and Z. Luo ([email protected])

SCSMEX Region

Science issue:The implications of cloud-induced changes in the vertical distribution of atmospheric radiative heating is not well understood due to a lack of accurate global QR(z) obs.

Approach: Combine cloud, precipitation, atmospheric, and surface property information from mutliple sensors to estimate profiles of LW and SW fluxes and heating rates

Satellite-based data: PMW and IR radiances from TRMM and the A-Train, CloudSat reflectivity profiles, CERES TOA fluxes, and AIRS T and q profiles

Models: ECMWF and NCEP reanalysis

Study Particulars: QR(z) products covering the TRMM and A-Train eras at 0.25 degree spatial and daily time resolution

From top down: time-height cross-sections of TRMM-based net radiative heating, latent heating, and total diabatic heating associated with the onset of the Asian monsoon in the SCSMEX region compared with corresponding Q1 estimates from sounding-based budget analyses (bottom).

Project status:

Year 1 (complete) – refined TRMM-based QR(z) estimates and apply first few years of data to examine radiative heating in IPCC-AR4 models (L’Ecuyer and Stephens, 2007)

Year 2 (now) – augment error analysis of TRMM product and adapt technique to A-Train (AMSR-E, AIRS, and MODIS with CloudSat/CALIPSO as constraints)

Year 3 (plan) – analyze profiles of heating in GCMs and MMF in the context of large-scale circulations and known modes of atmospheric variability (eg. ENSO)

NEWS linkages: (pull, push, collaborate, external)

Fetzer – AIRS T and q profiles provide input to A-Train QR product

McFarlane/Dong – QR profiles from ARM sites to evaluate products and export regional information to global scales

Olson - analyze total diabatic heating from TRMM on various space/time scales

Analysis of vertical heating associated with MJO (Waliser)

Important component of TRMM LH intercomparison project

Updated: October 28, 2007
