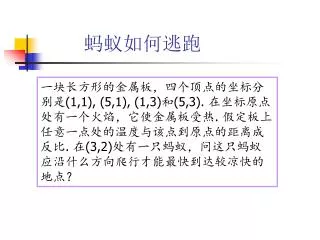

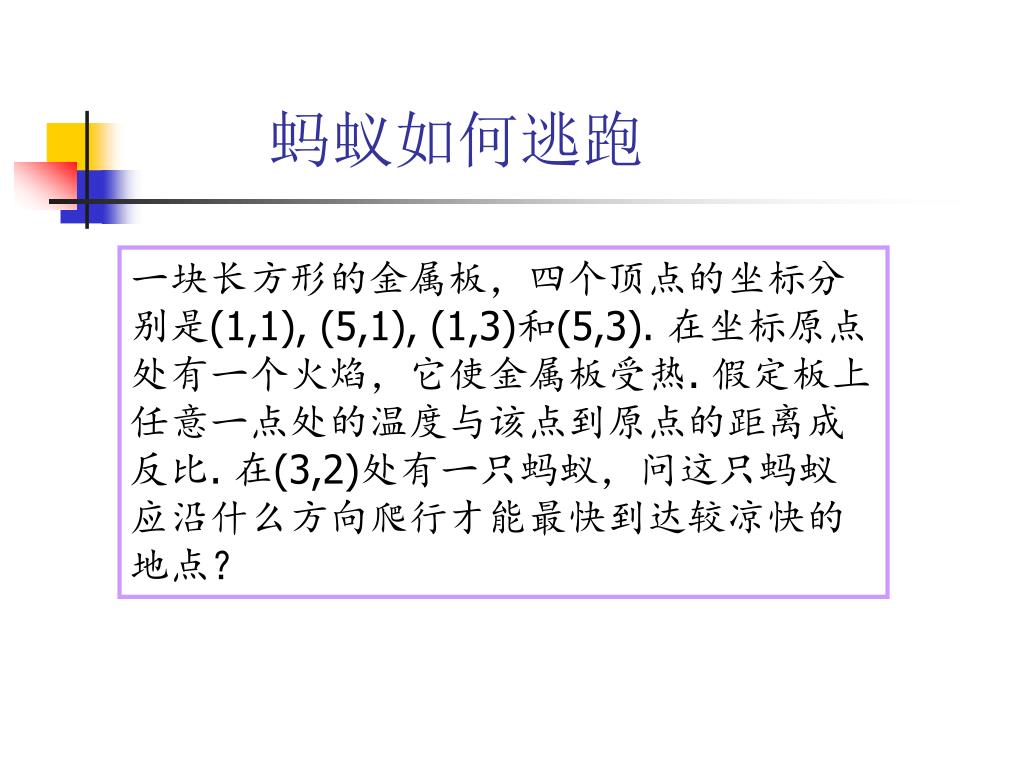

蚂蚁如何逃跑

一块长方形的金属板,四个顶点的坐标分别是(1,1), (5,1), (1,3)和(5,3). 在坐标原点处有一个火焰,它使金属板受热. 假定板上任意一点处的温度与该点到原点的距离成反比. 在(3,2)处有一只蚂蚁,问这只蚂蚁应沿什么方向爬行才能最快到达较凉快的地点?

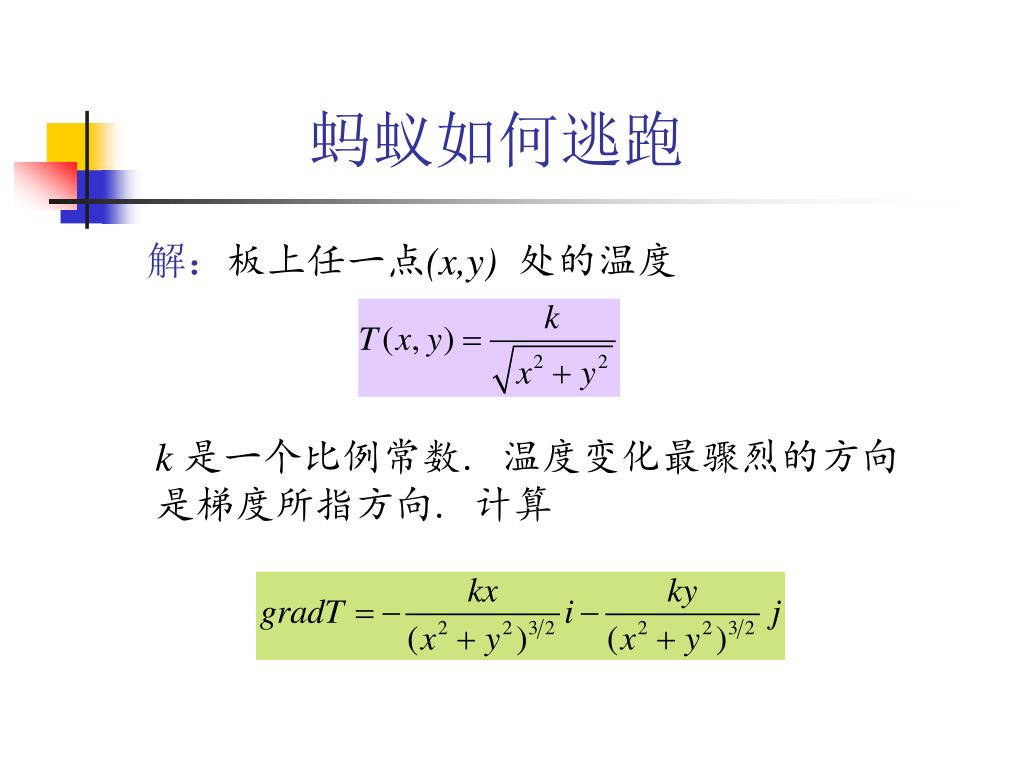

蚂蚁如何逃跑

解:板上任一点(x,y)处的温度

k 是一个比例常数. 温度变化最骤烈的方向是梯度所指方向. 计算


蚂蚁如何逃跑

它的单位矢量

所指的方向是由热变冷变化最骤烈的方向(其反方向则是由冷变热). 蚂蚁虽然不懂梯度,但凭它的感觉细胞的反馈信号,它将沿这个方向逃跑.
